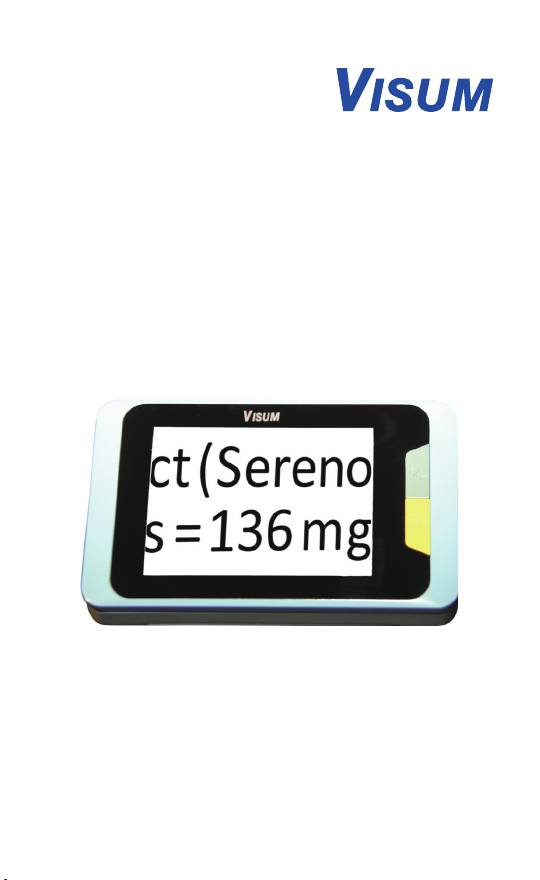

Congratulations on your purchase of the Ecare 3.5"
from Beijing Outsmarting Dacone. The Ecare 3.5" is a
handheld electronic video magnifier that you can take
anywhere.
The Ecare 3.5" allows you to read labels, maps, menus,
and perform a wide variety of visual and writing tasks with
ease.
If you have any questions or suggestions concerning
the use of this product, please contact your distributor or
Beijing Outsmarting Dacone's headquarters.
We hope you will enjoy the convenience of the Ecare 3.5".

Ecare 3.5" Model: Vis-E-H5
1
Focus with Care
Safety Precautions
-Do not expose the Ecare 3.5" to extreme or rapid
changes in temperature or humidity.
-Do not use the unit under -5°C or above +40°C.
-Do not place Ecare 3.5"near a radiator, and do not
expose it to direct sunlight, as it may damage electronic
and optical components of the Ecare 3.5".
-Please handle the device with care. Do not shake,
squeeze, or drop it, as it may damage internal
components.
-Do not use cleaning agents or abrasive materials to
clean the Ecare 3.5", as it may damage the product
surface and internal components. Avoid touching the
lens of the camera, and only clean it using specialized
cleaning materials.
-Do not unscrew or open the device, as this will instantly
void its warranty. Under warranty conditions, only
certied Dacone repair specialists can service the Ecare
3.5". Please contact your local Dacone distributor if you
have any questions.
-Only use the power adapter provided with the Ecare
3.5". Using any other adapter may damage the device
and voids its warranty.
-Use of the Ecare 3.5"for means other than those
described in this user manual will void its warranty
conditions.

Ecare 3.5" Model: Vis-E-H5
2
Focus with Care
Package Contents&Controls

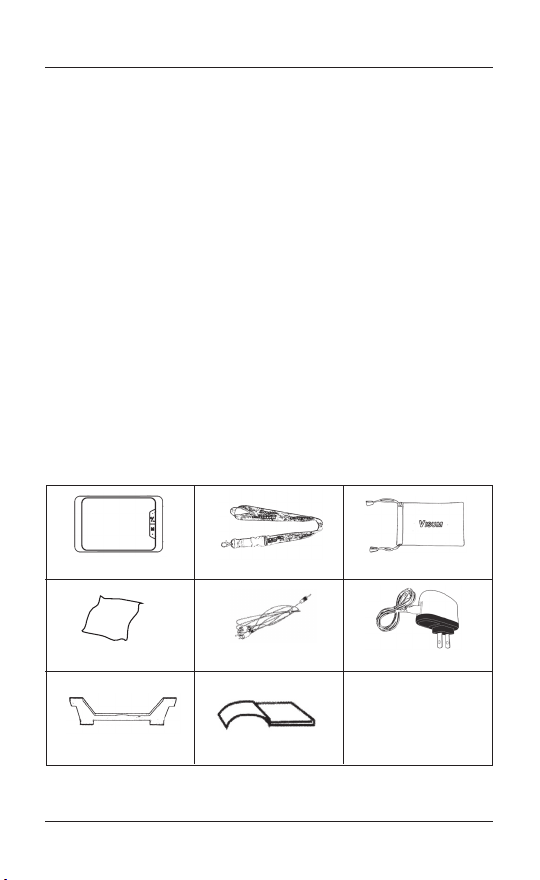

Please refer to the illustrations below to identify the
package contents and controls of your Ecare 3.5"
device. In addition to this user guide, your Ecare 3.5"
package should contain the following items:
- Ecare 3.5" (Battery included inside the device)
- Wrist Strap
- Carrying Case
- Lens Cloth
- Video Cable
- A/C Adapter
- Reading Stand
- User Manual
Note: if any of the items above are missing from your
Ecare 3.5" package, please contact your Dacone
distributor immediately.
Ecare 3.5"
Lens Cloth Video Cable A/C Adapter
Wrist Strap Carrying Case
Reading Stand User Manual

Ecare 3.5" Model: Vis-E-H5
3
Focus with Care
Please note the locations of the following controls on
your Ecare 3.5", as displayed below:
A. Zoom +/-
B. Mode Button
C. Power Button
D. Freeze Function
E. Battery Indicator
F. DC In
G. TV OUT
H. Camera Lens
I. Reading Stand

Ecare 3.5" Model: Vis-E-H5
4
Focus with Care
Using the Ecare 3.5"

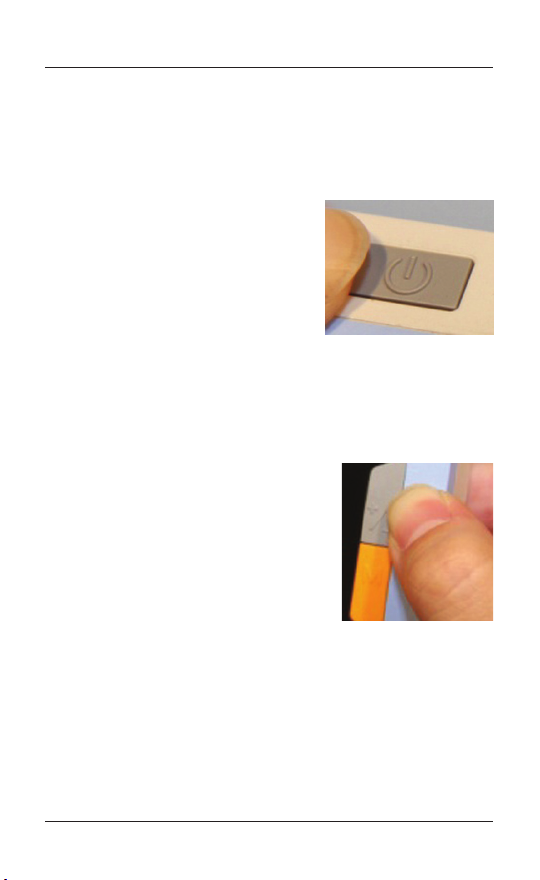

Power On/Off
Power on: to turn on the device,
press and hold the Power Button
for 3 seconds.
Power off: to turn off the device,
press and hole the Power Button
for 3 seconds.
When inactive for 3 consecutive
minutes, the device will be automatically turned off.

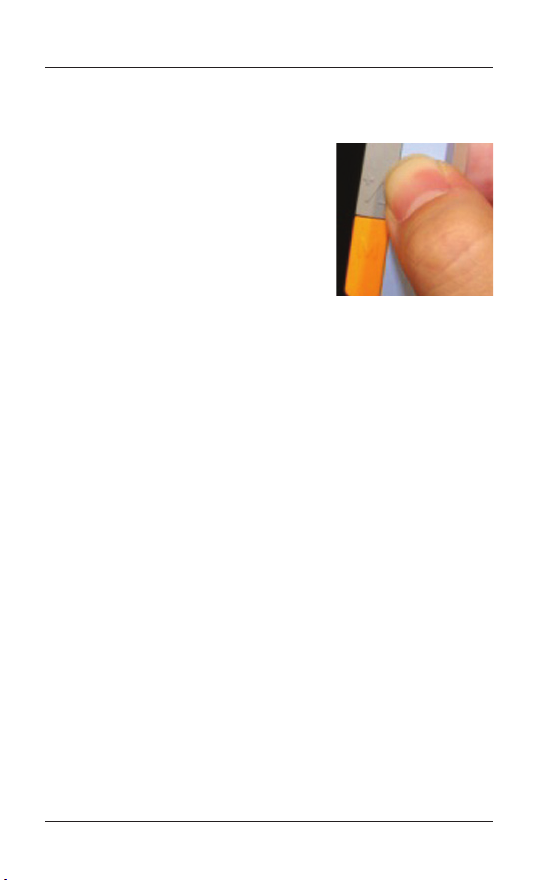

Adjusting the Magnication
Press the Zoom Buttons (labeled“-",
“+") to adjust the digital magnica-
tion level (4 different levels).
The total combined optical and
digital magnification ranges
from 2.5x to 17x. To adjust the
magnification to particular size,
users may also adjust the distance between the camera
lens and the reading material.
When using the Reading Stand, the magnication level
ranges are 3.6x, 7x, 11x, and 14x.

Ecare 3.5" Model: Vis-E-H5
5
Focus with Care
Selecting the Display Mode
To select the preferred display
mode, please press the Mode
Button (Green) to alternate
between different
display modes.
Ecare 3.5" has 8 Display Modes
available:
- Full Color Photo Mode
- Grey Color Mode
- White on Black Mode
- Black on White Mode
- Blue on White Mode
- Yellow on Black Mode
- Yellow on Blue Mode
- Blue on Yellow Mode
Image Freeze Functions
Press this “Freeze"button to freeze
an image on the display. You can
also adjust the magnification and
color modes after freezing an
image.
Press the button again to exit
freeze image mode.

Ecare 3.5" Model: Vis-E-H5
6
Focus with Care

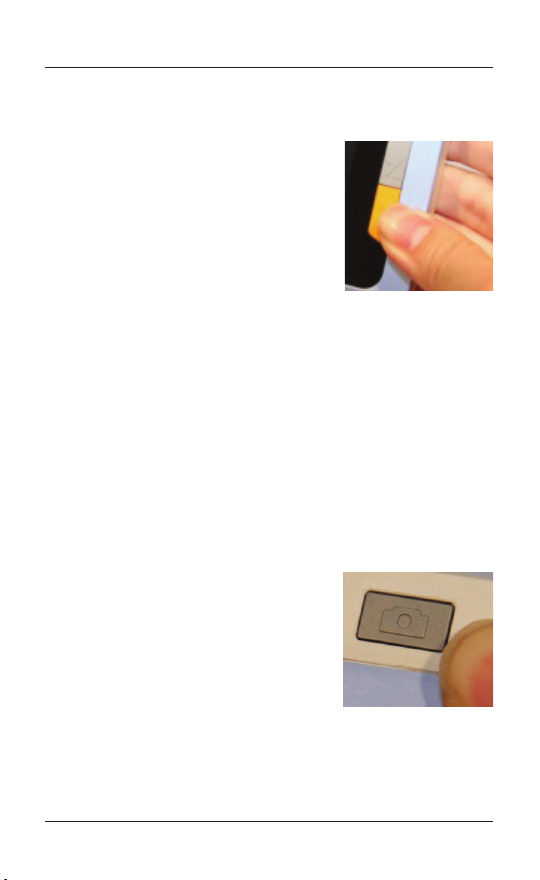

Adjusting the Brightness Level
To adjust the brightness level,
press and hold the Freeze
Button for 3 seconds to access
the brightness menu, and use
the “+/-" Button to adjust the
brightness level. Once the
desired brightness level has
been selected, press and hold the Freeze Button once
again to conrm.
Note: all other buttons do not function when the
Brightness Menu is enabled.
Turn LED Lighting On/Off
By default, the LED Reading
Light is enabled as the device is
turned on.
To turn on/off the LED Reading
Light, press and hold the Mode
Button for 3 seconds.

Ecare 3.5" Model: Vis-E-H5
7
Focus with Care
Turn On/Off the Key Tone
By defaul t , t he Key Ton e i s
enabled as the device is turned
on.
To turn on/off the Key Tone, press
and hold the Mode Button for 3
seconds.
Memory Function
The Ecare 3.5" Memory Function enables all display
parameters (magnification level, display mode,
brightness level, and key ton function) to be saved
as the device is powered off. These parameters will
automatically be applied once the device is turned back
on.
TV Out
The Ecare 3.5" TV OUT Function allows connecting the
device to a TV display, via TV cable, so as to display the
device display onto a TV screen.

Ecare 3.5" Model: Vis-E-H5
8
Focus with Care
Battery Indicator
A battery indicator is located on the upper right corner of
the device. Its described features are as follows:
- Flashing Red Light: battery needs to be recharged
- Non-Flashing Red Light: battery is being re-charged
- No Light: battery is full recharged
Writing Function
Using the Ecare 3.5"’s Reading Stand, the device can
be used for writing. As shown in the picture below, the
device can be used to conveniently write sentences and
sign documents.

Ecare 3.5" Model: Vis-E-H5
9
Focus with Care
Magnication Range 2.5X-17X
LCD Screen 3.5" TFT LCD
Magnication Level 4
Display Modes 8
Image Freeze Function Yes
Adjustable Brightness Yes
LED Light On/Off Yes
Key Tone On/Off Yes
TV Out Yes
Folding Stand Yes
Continuous Working time 4 hours
Weight 140g
Dimensions 118 x 74 x 19 mm
Specications

Ecare 3.5" Model: Vis-E-H5
10
Focus with Care
Warranty
Beijing Outsmarting Dacone offers a 2-year Limited
Warranty from the date of original purchase. Always
keep your purchase receipt safely, as it may be needed
for warranty claim purposes.
• Assuming the problem was caused by defects under
normal and prescribed device use, Dacone will either
repair or replace the device (at company’s option),
without charge.
• This warranty is not applicable in the following
circumstances:
-Intentional damage, or damage caused by excessive
physical force.
-Using device under extreme conditions (e.g. excessive
heat) or againstdevice instructions(e.g. using an
incorrect power adaptor). For more information on terms
and conditions, please refer to the Safety precaution
chapter of this user manual.
-Scratches and blemishes from normal use.
For any further questions on our Warranty Policy, Terms,
and Conditions, please contact your local Dacone
distributor with dated proof of purchase, or send us an
email at [email protected]. Your claim will be
answered within 48 hours.
