2User Guide 79 45 816a | MagniLink Vision Split
CONTENTS
1. INTRODUCTION TO MAGNILINK VISION SPLIT.........................4
2. SAFETY INFORMATION ................................................................6
3. UNPACKING...................................................................................8
4. INSTALLATION ............................................................................ 10
5. INSTRUCTIONS............................................................................ 12
5.1 Control box - ML Vision Split.............................................................12
5.2 Control box - ML Vision Split Student...............................................12
5.3 Description of features.......................................................................14
6. TROUBLESHOOTING .................................................................. 19
7. TECHNICAL SPECIFICATION...................................................... 21

User Guide 79 45 816a | MagniLink Vision Split 3
LVI Low Vision International AB was founded in 1978 and is one of the
world’s leading manufacturers of magnifying TV and computer systems
for visually impaired people. New products are developed in close
cooperation with users and vision rehabilitation professionals. LVI is
certified to Quality System ISO 9001 and Environmental System ISO
14001.
The information in this manual has been carefully checked and is
believed to be accurate. However, LVI assumes no responsibility for any
inaccuracies which may be contained in this manual. In under no
circumstances will LVI be liable for direct, indirect, special, exemplary,
incidental, or consequential damages resulting from any defect or
omission in this manual.
In the interest of continued product development, LVI reserves the right
to make improvements to this manual, and the products it describes, at
any time, without notice or obligation.

4User Guide 79 45 816a | MagniLink Vision Split
1. Introduction to MagniLink Vision Split
MagniLink Vision Split is a video magnifier, which makes it possible to
switch and split the image displayed on the screen between the output
from a reading camera, a distance camera and a computer. MagniLink
Vision Split is available in several different models.
Choose a model via the following steps:
• Reading camera
Choose between the systems MagniLink Vision, MagniLink Pro or
MagniLink S.
• Monitor size
Choose between an 18.5” or 23” TFT screen, both available in
either integrated or free-standing versions. It is also possible to use
a monitor of your own.
If the system comes with a screen, you will also need to acquire a
monitor arm or base which complies with the standard VESA
100x100 mm.
• Reading table
Choose whether or not the system includes a reading table.
• Distance camera (if you want a two camera system)
Choose between a system with a distance camera (ML Vision Split
Student) or without a distance camera (ML Vision Split). There are
two different cameras to choose from, Standard Definition (SD)
and High Definition (HD).
• Mounting of the distance camera
You can select the type of mount to be used with the distance
camera. Choose between a table-top stand and a wall/ceiling
bracket.

User Guide 79 45 816a | MagniLink Vision Split 5
The systems comply with all the requirements for CE marking of medical
devices, in accordance with Directive 93/42/EEC.

6User Guide 79 45 816a | MagniLink Vision Split
2. Safety Information
MagniLink Vision is only intended for use as a reading aid in home,
school or office environments.
• Before connecting, check the system and the mains cord to ensure
that nothing is damaged. The enclosed power supply is only
intended for use with the MagniLink Vision.
• Never operate the MagniLink Vision if the unit has been exposed
to water or other liquids.
• Damaged mains cord or plugs may result in electrical shock or a
fire hazard. Do not allow anything to rest or roll over the mains
cord.
• Moving the system from a cold to a warm place may cause
condensation (water droplets) on its internal surfaces or on the
lens. To avoid condensation, install the system in the room where it
is to be used at least 30 minutes before use. Do not expose the
system to sudden or extreme changes in temperature.
• If the screen needs to be cleaned, use a lightly moistened (not wet)
cloth.
• USB memory sticks and other small parts can be a choking hazard
for small children.

User Guide 79 45 816a | MagniLink Vision Split 7
!
• Do not rely 100 per cent on the results of an OCR conversion; the
OCR engine can misinterpret the text. This is particularly important
to bear in mind when processing sensitive information such as a
medical prescription.
• Do not use sharp objects on the touch screen as this may damage
the screen.
• If you are unable to restore normal operation by following the
operating instructions, do not attempt any further adjustments.
Unplug the set and contact your dealer or service technician. Only
use replacement parts specified by LVI.
If you are unsure, contact your dealer or service technician.
Plastic bags in the packing material can be dangerous.
To avoid danger or suffocation keep bags away from
babies and children..
To prevent fire or shock hazard, do not expose the
equipment to moisture. To reduce the risk of electric
shock, do not remove the cover
No user serviceable parts inside. Please refer service to
qualified service personnel.

8User Guide 79 45 816a | MagniLink Vision Split
3. Unpacking
If the system is supplied with a distance camera, it comes in two separate
boxes; otherwise there is only one box.
First check that the boxes have no external damage. In the event of
damage, please contact the transport company to report the damage.
Open the boxes, take out the unit and remove the packaging parts. For
further information regarding installation, please see the next chapter.
If a one camera system (ML Vision Split) has been ordered, the contents
of the box are as follows:
• Reading camera unit
• Split box
• Control box
• Two user guides
• Table-top holder for the control box
• Monitor (if ordered with the system)
When a two camera system (ML Vision Split Student) has been ordered,
the contents of the boxes are as follows:
Box 1:
• Reading camera unit
• User Guide
• Monitor (if ordered with the system)
Box 2:
• Distance camera unit
• Split box
• Control box
• Table-top holder for the control box
• User guide

User Guide 79 45 816a | MagniLink Vision Split 9
Packaging
The packaging consists of the following materials:
Box (corrugated cardboard)
Polythene bag (LDPE4)
Inserts (LDPE4)
LVI recommends that you save the packaging in case you need to return the
system or move it.
Packing up
Should you need to return or move the system, it should be placed in the
original packaging.

10 User Guide 79 45 816a | MagniLink Vision Split
4. Installation
To install the system, follow the steps below.
• If the system is supplied with a distance camera, its column must
be fastened securely onto the table-top stand (or the
wall/ceiling bracket) with a screw.
• If the reading camera is supplied without a reading table
(MagniLink Vision), it must be fastened securely onto the table-
top stand with a screw.

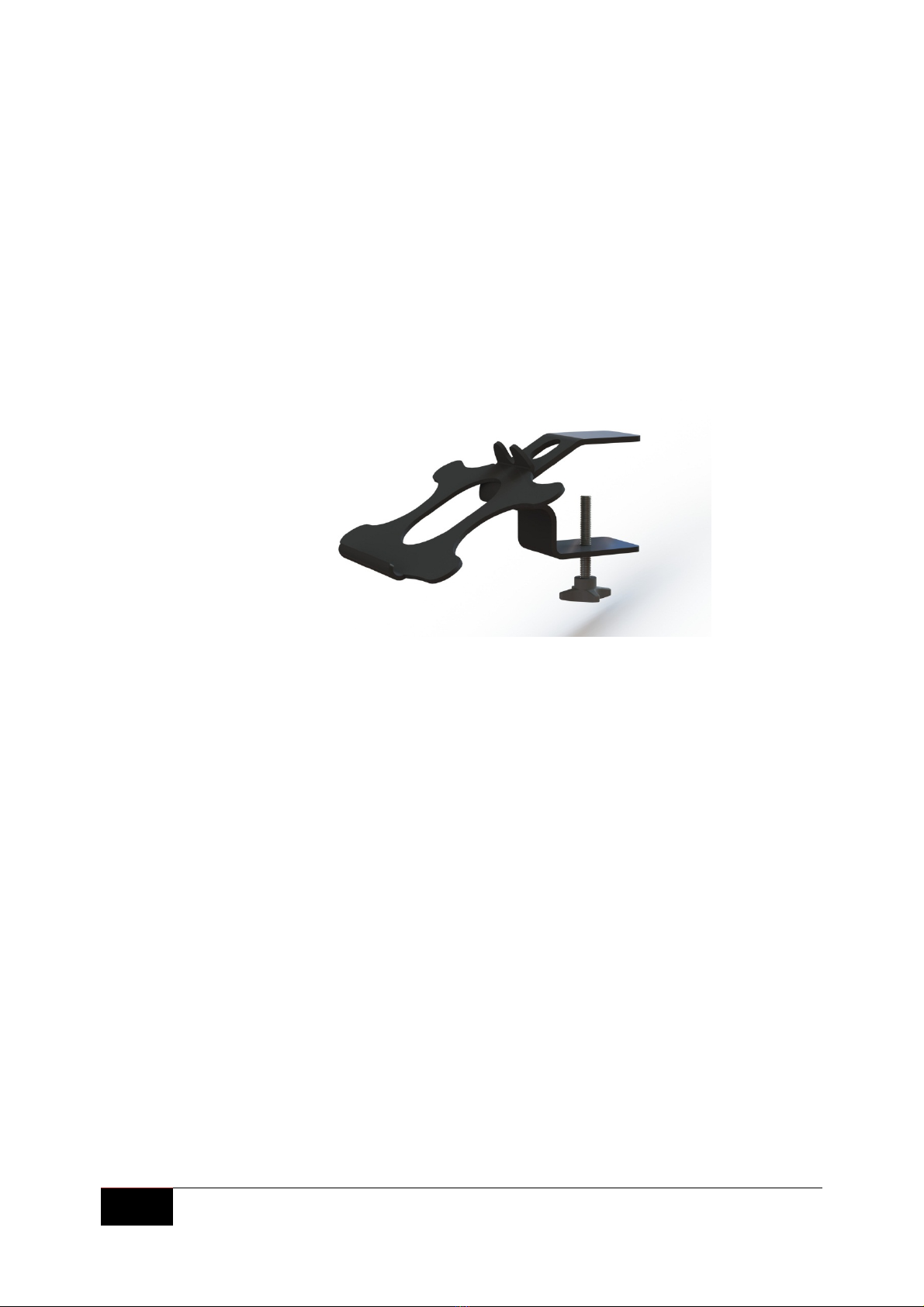

• Fasten the holder for the control box to the table-top.

User Guide 79 45 816a | MagniLink Vision Split 11
• Connect one or two cameras to sockets (1) and (2). You may
choose any combination of reading cameras and distance
cameras.
• It is possible to connect a computer to the split box (3).
• Connect the monitor to port (4).
• Connect the control box to port (5).
• A foot pedal can be connected to port (6).
• Connect the power out (7) to the monitor's power in (only for an
18.5” or 23” LVI monitor).
• Connect the power cable from the reading camera to the power
in (8).

12 User Guide 79 45 816a | MagniLink Vision Split
5. Instructions
The MagniLink Split system's functions are managed using the control
box. There are two versions of the control box, one for ML Vision Split
Student and a simpler version with fewer buttons for ML Vision Split.

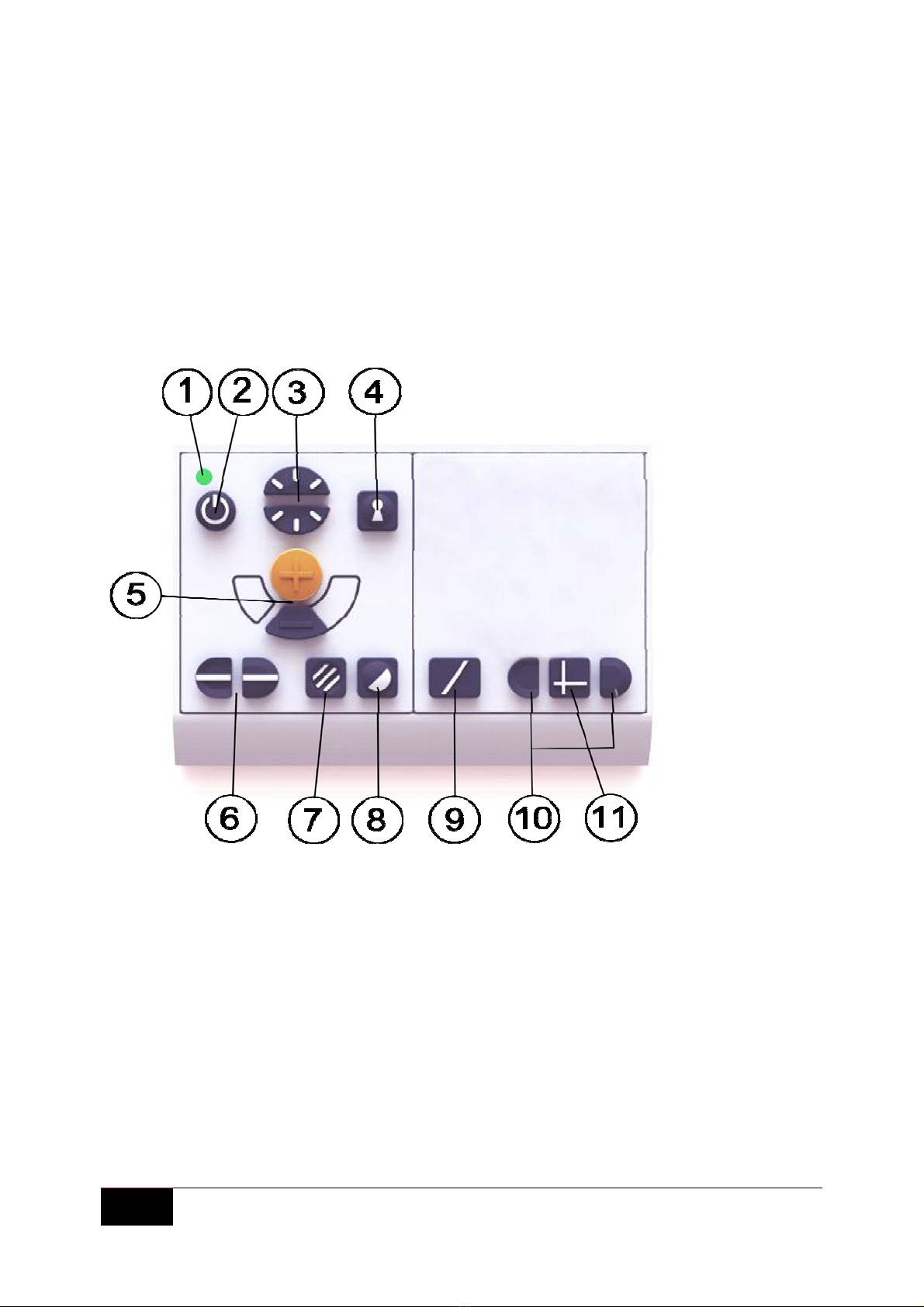

5.1 Control box - ML Vision Split
1. LED
2. Power on/off
3. Lighting configuration
4. Autofocus on/off
5. Magnification control
6. Reference line/bar
7. Picture mode/grey scale
8. High contrast modes
9. Full screen/split screen
10. Split screen adjustment
11. Horizontal/vertical split screen
5.2 Control box - ML Vision Split Student

User Guide 79 45 816a | MagniLink Vision Split 13
1 LED
2 Power on/off
3 Lighting configuration
4 Autofocus on/off
5 Magnification control
6 Reference line/bar
7 Picture mode/grey scale
8 High contrast modes
9 Full screen/split screen
10 Split screen adjustment
11 Horizontal/vertical split screen
12 Image splitting sources
13 Camera selection
14 Programmed magnification (and direction for distance
cameras)
15 Adjustment of pan and tilt

14 User Guide 79 45 816a | MagniLink Vision Split
5.3 Description of features
The active camera image is highlighted with an orange frame. A basic tip
for operating cameras, when more than one camera is connected, is that
the camera whose image is on-screen is automatically the one which can
be operated using the control box's camera section. (Selecting which
camera to operate is only necessary when two cameras are used
simultaneously).
1. LED
A green light indicates that the system is on. A flashing green light
means that the system is starting up. A slowly flashing yellow light
indicates standby. A red light indicates that something is wrong in
the system (see the chapter “Troubleshooting”).
2. Power on/off
Press to start or shut down the system.
3. Lighting configuration
By pressing these buttons it is possible to adjust the brightness.
Press up to increase and down to decrease the brightness. When
the picture mode button (7) is pressed, the lamp’s intensity is
adjusted instead. In this way, the best conditions for reading in
different situations can be achieved.
4. Autofocus on/off
Press the button once to lock the focus. This can be used when you
want to write by hand. In this way, autofocus is not affected by the
pen or your hand. Press the button a second time to reactivate
autofocus. Autofocus is active whenever the system starts.
5. Magnification control
These two buttons are used to set the magnification. Reduce the
magnification by pressing the lower key (minus) and increase the
magnification by pressing the upper key (plus).

User Guide 79 45 816a | MagniLink Vision Split 15
6. Reference line/bar
Adjust the position of the reference line. Press the right-hand
button to move the horizontal line down. Hold the button in to
change the reference line to vertical and move it to the left. The
reference line then becomes a horizontal bar which diminishes the
viewing area. To make the bar vertical, press the button again. The
left-hand, sunken section of the controls has the opposite effect.
(Using the EUC software, you can adjust the colour and thickness of the
reference line and choose to hide or show the bar or reference line. Please
contact your local retailer for more information. )
7. Picture mode
Press the button to toggle the picture mode between natural
colours and grey scale.
Lighting adjustment
Hold the button down to temporarily enable adjustment of the
lighting via the lighting configuration (3). This can be used to help
users who are sensitive to light, or when reading on blank paper.
The system automatically switches between ROPC (Reading
Optimized Picture Control) and DPC (Dynamic Picture Control)
when the lighting reaches a certain level. When the lighting
configuration (3) is used to adjust the lighting, it is not possible to
switch between colour and grey scale.
Lights off/on
The lights can be switched on and off by holding the button down
for three seconds. The system switches automatically between
ROPC (Reading Optimized Picture Control) and DPC (Dynamic
Picture Control).
(The light settings can be locked and grey scale removed using the EUC
software. Please contact your local retailer for more information.)

16 User Guide 79 45 816a | MagniLink Vision Split
8. High contrast modes with artificial colours
Press the key to toggle between the various colour combinations.
The following colours are in the default configuration:
Background/Text
White/Black
Black/White
Yellow/Black
Black/Yellow
Green/Black
Black/Green
Background/Text
Red/Black
Black/Red
Yellow/Blue
Blue/Yellow
White/Blue
Blue/White
(The colour setting in high contrast mode can be adjusted using the EUC
software. Please contact your local retailer if you have any questions.)
9. Full screen/split screen
Using this button, you can quickly change between the current split
screen mode and full screen. The image displayed in full screen
mode depends on the mode that the image splitting sources (12) are
set to. If the desired mode is not active, press this button.
10. Split screen adjustment
Adjust the positions and sizes of the split screen sections. Select
horizontal or vertical split screen with button 11.
11. Horizontal/vertical split screen
Switch between horizontal and vertical split screen by briefly
pressing this button.
12. Image splitting sources
If three image sources are connected, this button switches
between the four different split screen modes. If two or fewer
image sources are connected then this button has no effect.
1. Reading camera/computer
2. Distance camera/computer
3. Reading camera/distance camera
4. Reading camera/distance camera/computer
13. Camera selection
This button is used to select which camera you wish to operate.
The active camera image is highlighted with an orange frame. This
button has no effect if only one camera is connected.

User Guide 79 45 816a | MagniLink Vision Split 17
14. Programmed magnification (and direction for distance
cameras)
The three buttons marked (I), (II) and (III) are used to quickly select pre-
programmed settings for a given space and/or camera magnification.
The distance camera can be programmed with the desired
magnification to quickly point to three different locations in the room.
The reading camera can be programmed with the desired
magnifications and selection of artificial colours.
Point the distance camera at the desired location in the room and
adjust the magnification. Hold down one of the buttons marked (I),
(II) or (III) for three seconds to save the position. The orange frame
briefly turns thicker to indicate that the position has been saved.
The programmed modes can now be selected by briefly pressing
one of the three buttons.
15. Operating the distance camera
These buttons are used to adjust the distance camera horizontally
and vertically. The camera can be adjusted both horizontally and
vertically at the same time. The speed is automatically adjusted
and is dependent on the level of magnification.
(The limits and speeds of the pan and tilt can be adjusted using the EUC
software. Please contact your local retailer if you have any questions.)

18 User Guide 79 45 816a | MagniLink Vision Split
Foot pedal
Using the foot pedal, you can quickly change between the current split
screen mode and full screen without having to touch the control box.
The foot pedal has the same function as button 9.

User Guide 79 45 816a | MagniLink Vision Split 19
6. Troubleshooting
• If the indicator lights on the control box (in/out indication) do not
light up at all when pressing the button, check that the power cable is
correctly connected and that there is a current coming from the wall
socket.
• If no picture signal is being received from the computer, check that
the computer is on and that its video cable is correctly connected at
both ends. It is important that the video resolution is set correctly
(see below) and that the refresh rate of the selected video mode is
set to 60Hz.
• If no picture signal is received from either the computer or the
reading camera, check that the monitor is on and that its cables are
correctly connected.
• If a weak picture is received from the reading camera, check that the
light is on.
In the event of any problems with the unit, try resetting the system by pulling out
the power cable. Wait at least 30 seconds before plugging the power cable back
in and restarting the system.
Contact a service technician if the above measures do not help or if other
errors have occurred. Never remove any panels in order to attempt to repair
the system yourself.

20 User Guide 79 45 816a | MagniLink Vision Split
If the split screen does not work with the computer
MagniLink Split is compatible with refresh rates of up to 60 Hz and most
screen resolutions of up to 1920x1080 pixels from a connected
computer.
On occasions, you may notice that, when changing video mode on the
computer or when first starting up following a change of video mode, only
the computer image is shown on the screen (non-shareable window) when
you attempt to start up the system. This can be due to the computer being
in hibernation mode, or the screen being in energy saving mode, which
means you need to move the mouse in order to get the screen to function
in split screen mode again.
If this does not work, try changing to a different video mode on the
computer.
