1. What is LifeStyle CANDY GRIP?
LifeStyle CANDY GRIP is a handheld electronic video
magnifier that helps people with low vision to read
printed materials like personal mail, magazines,
newspapers, restaurant menus, product catalogs,
medicine bottles, grocery items and much more.
In addition to magnifying, LifeStyle CANDY GRIP can
change the text and background color to enhance the
image contrast for a more comfortable reading. You can
select among 5 color modes.
The continuous digital zoom magnification feature
allows you to change the magnification level from 1.5x
to 22x. The auto focus feature helps to keep a sharp
image while moving the camera across the line of print.
CANDY GRIP’s ergonomic three-position handle is
designed to be held comfortably by either right-handed
or left-handed users. Hold the handle in the center
position or at a 45-degree angle.

LifeStyle CANDY GRIP User Manual
5
2. Safety Precautions
Protect yourself and CANDY GRIP by observing the
following precautions.
!Do not plug the AC adapter into a faulty electrical
outlet. This is to prevent electrical shock or fire.
!Do not touch the AC adapter with wet hands.
!Only use the AC adapter provided with CANDY
GRIP. Using another AC adapter may damage the
device.
!Do not use the CANDY GRIP in a moisture
environment like a bathroom, shower or on a wet
surface like a kitchen counter. This is to prevent any
damage.
!Do not disassemble the CANDY GRIP. If you or any
unauthorized person or company disassembles the
device, serious damage may occur to the device and
the warranty will be voided.
!Do not use CANDY GRIP under direct sunlight or in
a very hot or cold environment, as the image may
not display accurately on the LCD screen. Do not
use this device below 0°C or above 40°C.

LifeStyle CANDY GRIP User Manual
6
3. What’s in the Box?
(a) LifeStyle CANDY GRIP
(b) AC Adapter
(c) Carrying Case
(d) Wrist Strap
(e) Screen Cleaning Cloth
(f) User Manual

LifeStyle CANDY GRIP User Manual
7
4. Physical Description
(1) Power Switch
(2) DC Jack (connect to a AC adapter)
(3) Battery Charging Indicator
(4) Mirror View Camera
(5) Camera Selection Button
(6) Handle
(1)
(2)
(3)
(4)
(5)
(6)

LifeStyle CANDY GRIP User Manual
8
(7) Color Mode Button (11) Freeze Image Button
(8) Focus Button (12) LED Lights
(9) Zoom Down Button (13) Legs
(10)Zoom Up Button (14) Main Camera
(11)
(7)
(8)
(9)
(10)
(12)
(13)
(14)

LifeStyle CANDY GRIP User Manual
9
5. Getting Started
(a) Charging the Battery
The rechargeable lithium polymer battery must be fully
charged for approximately 3 hours prior to first use.
!Plug the AC adapter provided into the DC jack as
shown in the diagram below.
!While charging, the device may feel warm.
!The Battery Indicator will show a red light. When
fully charged, the Battery Indicator will show a green
light.
(b) Removing the Screen Protection Film
A protective film covers the LCD screen. Remove this
film before using the CANDY GRIP.

LifeStyle CANDY GRIP User Manual
10
(c) How to Use the Handle
LifeStyle CANDY GRIP is ergonomically-designed with
three handle positions so it can be comfortably held by
both left-handed and right-handed users.
!Hold the unit with one hand while rotating the handle
with your other hand. See the diagram above. You
can feel the handle “click” into each of the three
positions. See the diagram below.

LifeStyle CANDY GRIP User Manual
11
(d) How to Connect the Wrist Strap
There are two holes as shown in the diagram below.
You can connect the wrist strap through one of these
holes.

LifeStyle CANDY GRIP User Manual
12
6. How to Use LifeStyle CANDY GRIP

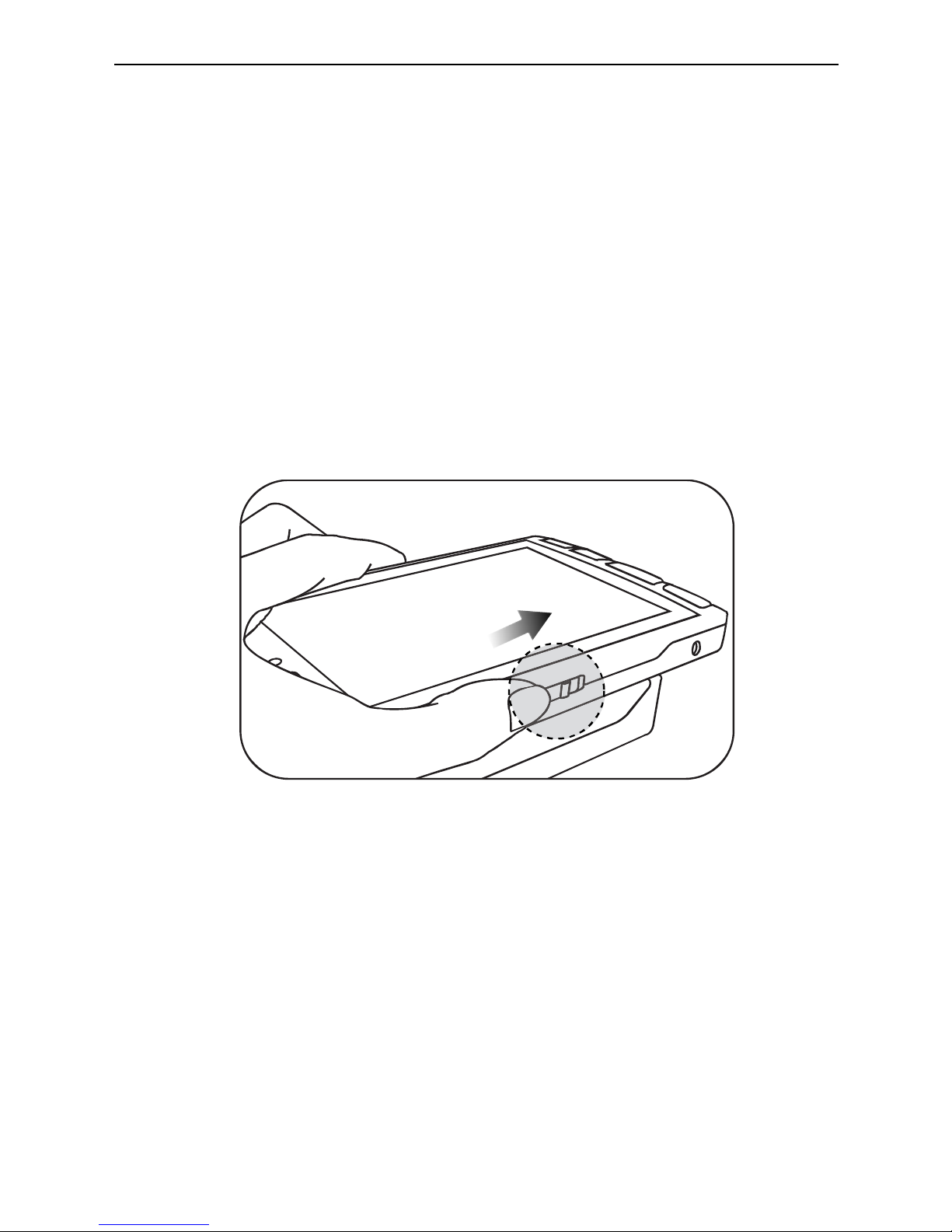

(a) Power On/Off
!To power on, slide the Power switch to the right,
then release it. The magnified image will be
displayed in about 3 seconds.
!To power off, slide the Power switch to the right,
then release it. The device will turn off in about 3
seconds.

LifeStyle CANDY GRIP User Manual
13

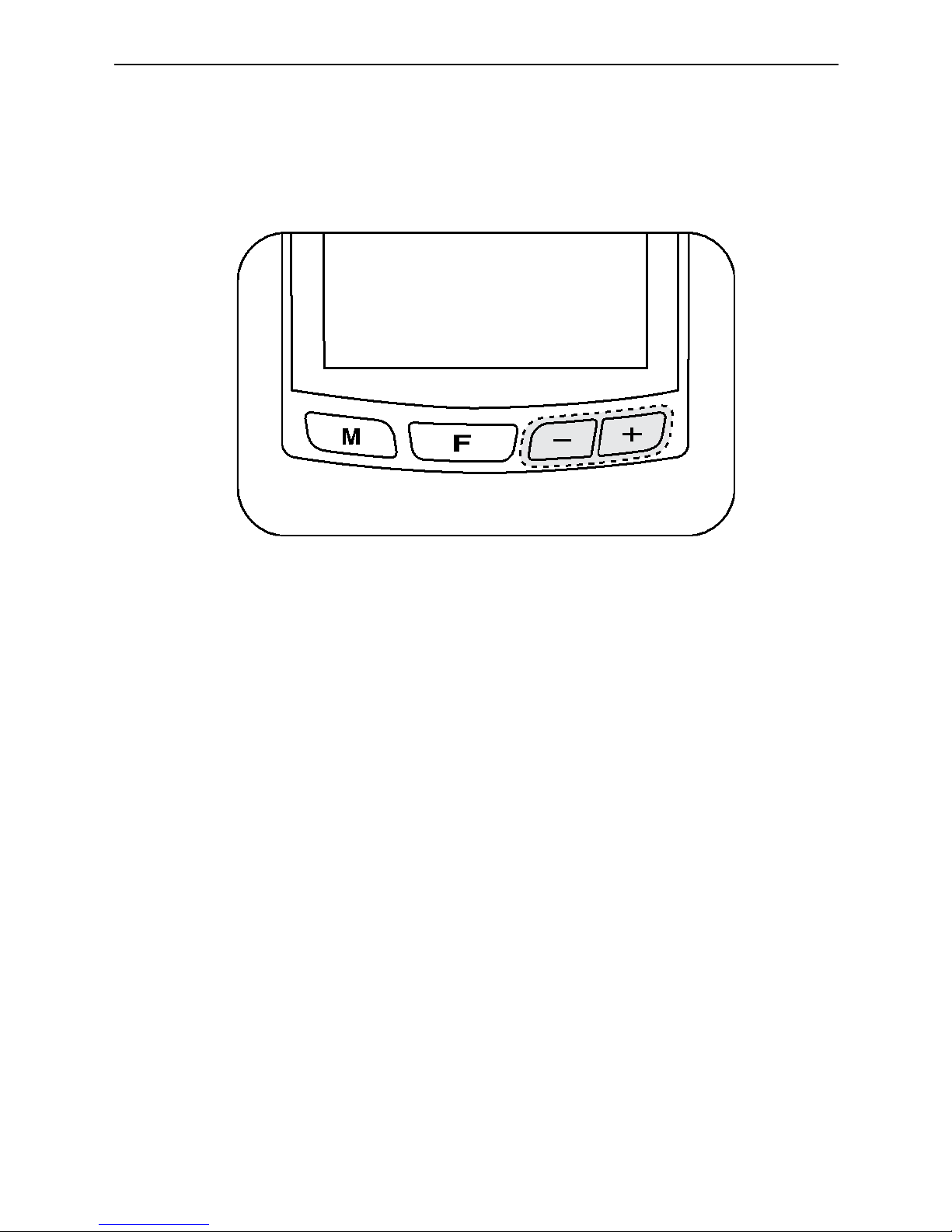

(b) Zoom Up/Down
You can change the magnification level to suit your
visual needs and comfort.
!Press the Zoom Up button (+) to increase the
magnification level.
!Press the Zoom Down button (-) to decrease the
magnification level.
!If you lift up the unit, the magnification level will
decrease. You may need to press the Focus button
(F) to refocus the image clearly depending on the
distance away from the text or photo.

LifeStyle CANDY GRIP User Manual
14
(c) Changing Color Modes
You can change the text and background color to
accommodate your visual preference. To change the
color mode, press the Color Mode button (M) as
shown below.
!There are 5 Color image choices:
1) Natural Color
2) White on Black (high contrast)
3) Black on White (high contrast)
4) Reverse Grayscale
5) Yellow on Blue (high contrast)
!Reverse grayscale mode is used to read documents
with low contrast letters displayed on a light colored
background, for example, yellow letters on yellow-
green background.

LifeStyle CANDY GRIP User Manual
15
(d) Focusing
CANDY GRIP is designed with an auto focus camera. If
the text is on glossy paper, or on an uneven or round
surface, like a vitamin bottle or soup can, you may need
to refocus the image.

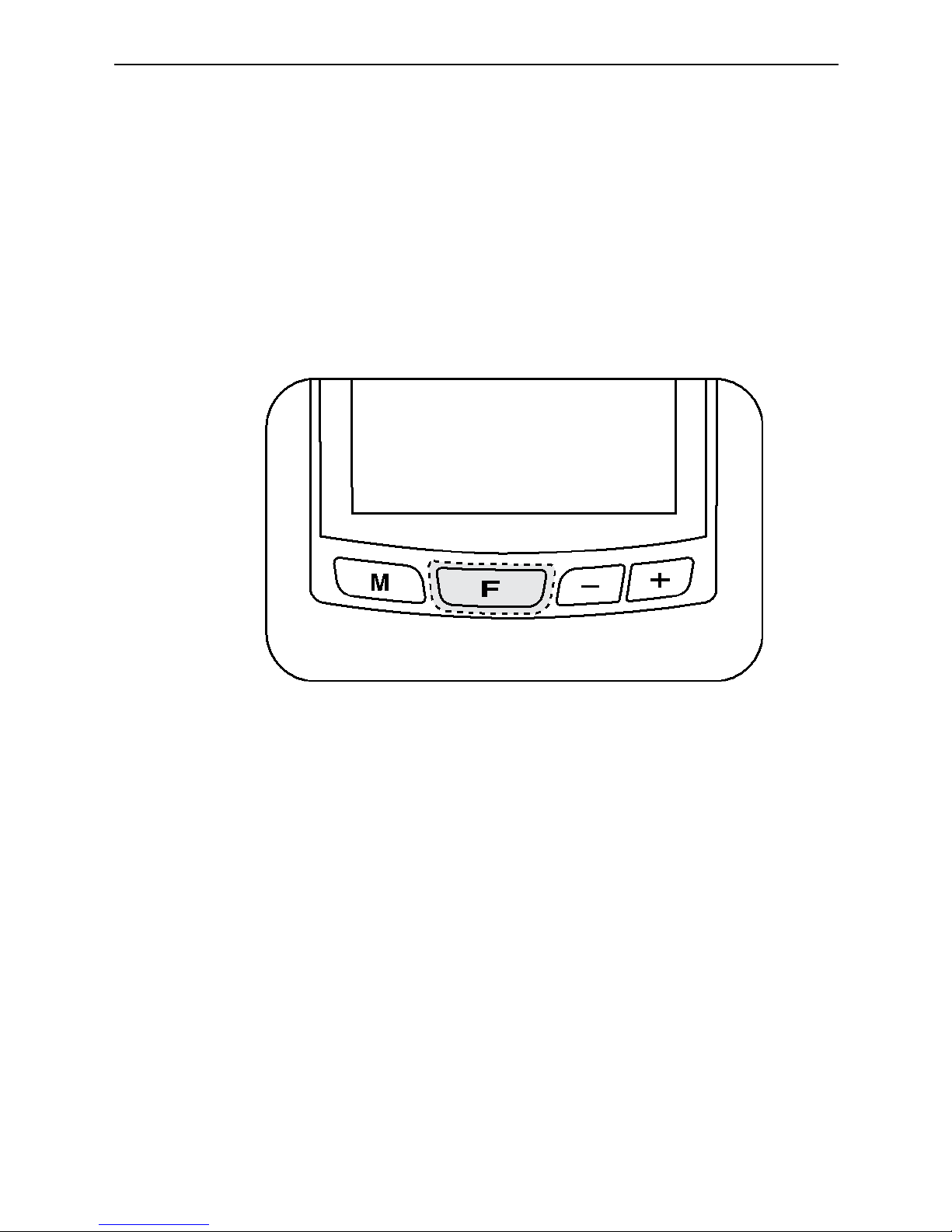

①Focusing
!If the image is not in focus, press the Focus
button (F) to refocus. The Focus button works in
both the Auto Focus and the Manual Focus
modes as explained below.

LifeStyle CANDY GRIP User Manual
16
②Changing Focus Modes
You can switch to the Manual Focus Mode if you
want to try manually focusing on the image.
!Manual Focus Mode
While in Auto Focus Mode, press the Focus
button (F) for 2 seconds, to activate the Manual
Focus Mode.
While in Manual Focus Mode, the CANDY GRIP
will focus only when you press the Focus button
(F).
!Auto Focus Mode
While in Manual Focus Mode, press the Focus
button (F) for 2 seconds to activate the Auto Focus
Mode.
While in Auto Focus Mode, the CANDY GRIP will
focus on the image automatically.
** The default focus mode is Auto Focus Mode.

LifeStyle CANDY GRIP User Manual

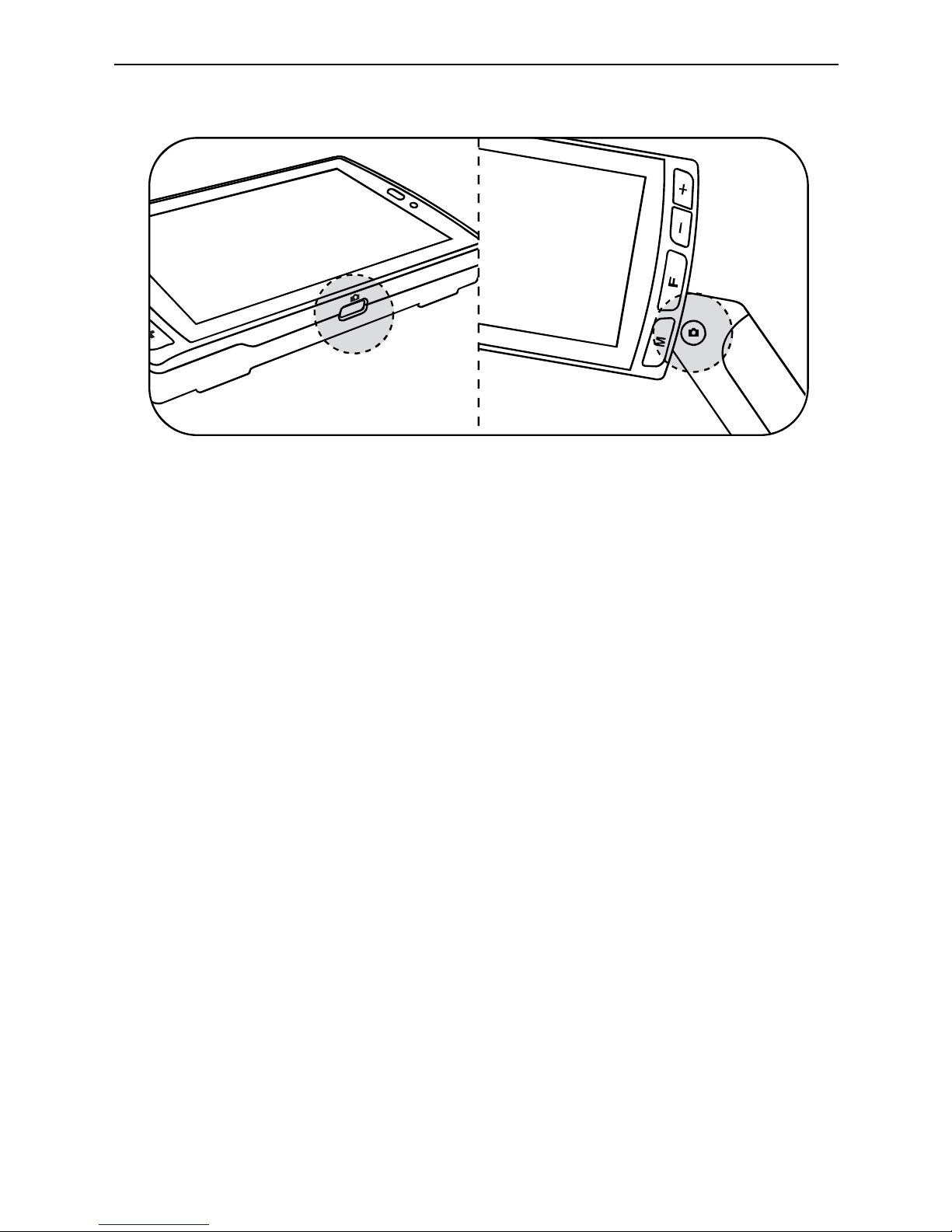

17
(e) Freeze Image
!There are two Freeze Image buttons: one on the
side of the LCD screen and the other on the handle.
!Press and release the Freeze Image button to take
a still shot. CANDY GRIP will freeze the still shot
when the button is released.
!Press the Freeze Image button again to release
the still shot and return to the live camera mode.
!The still image is not saved. If you turn the unit off
then on again, the still image will disappear.

LifeStyle CANDY GRIP User Manual
18
(f) Mirror View
CANDY GRIP offers a unique Mirror View camera.
!Press the Camera Selection button located on the
opposite side from the handle to switch the camera from
the reading camera to the Mirror View camera.
!When you switch to the Mirror View camera, the Zoom
Up, Zoom Down, Freeze Image, and Camera
Selection buttons may still be used.
!To switch back to the reading camera, press the
Camera Selection button again.

LifeStyle CANDY GRIP User Manual
19
(g) Other Functions
①LCD Brightness Control
You may change the brightness level of the LCD to
accommodate your visual needs and preferences.
!Change the brightness level by pressing the
Zoom Up button while at the same time pressing
the Freeze Image button.
!Pressing these buttons will circulate through 3
brightness levels.

LifeStyle CANDY GRIP User Manual
20
②LED Lights Control Modes
!Press the Focus button while at the same time
pressing the Freeze Image button to change the
LED lights modes.
!The LED lights may be set for 3 different modes:
Auto, Always On, Always Off
!In the Auto lights mode, if you lift the unit up from
the reading material, the lights will turn off
automatically. The lights will turn on when you get
closer to the reading material. This function
prevents you from shining the LED lights into
someone’s eyes.
!When you power off the unit while in Always Off
mode, the unit will reset automatically to Auto
Lights mode.
