BEINAT TS1008-V1 User manual

Belonging to
EN50194
CEI 216-3
EN 50270
User Guide e
maintenance

FUNCTION TESTS AND CHECKS
Check and view the type of probe, or equipment
Check and view the serial number
Check and view the Construction date
Check and view the remaining days at the end of the cycle
Check and view how many times it has been turned on
Check and view how many times it has detectedan Alarm
Check and view how many corrections have been made
Check and display the operating range% of LEL
Check and display the operation of the device
Issues the receipt proving the operation
TS1008-V1
Self-certifying Tester for GAS
Detectors and Sensors
Certify the test by printing the report
Extends the RC insurance
TS1008
Customer, version

To use your TS1008 digital tester for a long time, use it and store it with the following precautions in mind.
MAKE SURE of integrity after removing it from the box.
Any use other than that for whichthe detector was designed is to be considered improper, so the BEINAT S.r.l.declines
all responsibility for any damage caused to people, animals or things.
For your safety, in the event of a malfunction, switch off the appliance immediately.
If you notice smoke or an acrid or unusual smell coming from the appliance, switch off the instrument immediately and
send the appliance to the nearest Service center.
Use the appropriate cables supplied.
In order to preserve the conformity of the product with the regulations, for the connection to the input and / or output
terminals of the detector, use only cables supplied for this purpose or sold separately from BEINAT S.r.l.
Avoid contact with liquid crystals.
If the display breaks, be careful not to hurt yourself with the glass fragments and avoid the liquid crystals coming into
contact with the skin, eyes or mouth.
Do not wet it.
The detector is not waterproof if it is submerged in water or exposed to high humidity levels and can cause serious
damage.
Do not let it fall.
Strong blows against rigid surfaces and large vibrations can damage the appliance.
Avoid strong magnetic fields.
This detector should not be used or stored in the presence of radiation or strong magnetic fields. Static electricity or
magnetic fields produced by equipment such as radio transmitters can interfere with detection.
Cleaning
Never clean the appliance with chemicals. If necessary, wash with a damp cloth.
From the experience since 40 years and the requirements ofthe rulesof the test,BEINAT Srlhasbuilt a new tool Tester
TS1008 for its own products.
Mainly this new device is suitable to test all conventional probes to detect explosive and toxic gas manufactured
by BEINATSrl
This device allows to read all of the data and the configuration of work that are in the memory of the probes, also,
having supplied by the serial transmission, it prints the ticket that confirms the testing data, certifying your own
work.
By the Tester TS1008, you can read all of the events that occurred in the probe, such as:
1) The type of probe
2) The serial number of the probe.
3) The status of current work, WAITING (warm up) - READING DATA - FAULT - ALARM.
4) How many times the voltage has been On/Off.
5) How many times it issued an alarm.
6) The status of the current calibration.
7) How many times the correction has been made.
8) How many operating days remain before the substitution of the sensing element.
Page 2
Powered by Lithium Polymer battery ……………………........…...................................................... 3.7 V.cc built-in
Consumption during other detection...................................................................................................3 mA
Consumption during printing..............................................................................................................4 mA
Battery autonomy according to functions .............................................................................380 hour approx
Battery charging and consumption control....................................................................................On Display
Alphanumeric display ...........................................................................................................Alpha numeric
Storing Events ............................................................................... one until the instrument is switched off
Compatible sensors ................................ SGM595, SGM533, SG895, SG800, CO100r, HCF100, serie SGF, CXM200/Q
Auto power off................................................................................................... after 1 hour of stand-by
Operating temperature .................................................................................................. -10° C ÷ + 45° C
Working humidity not condensed ..........................................................................................from 0 to 90%
Printing ........................................................................................................................... With IR port
Electromagnetic Compatibility ......................................................................................................... CE
Dimensions and weight ..................................................................................... 65 * 135 *32mm circa 180gr
Attention!
All measurements taken with batteries in need of recharge can give false measurements.
Mainfeatures
Important warnings
Technical specifications
Thank you for choosing the digital tester of BEINAT S.r.l. mod. TS1008
This manual has been designed to help you achieve maximum functionality and automatic product efficiency.
Read these instructions carefully before beginning use and always keep it handy when using the instrument.
The illustrations and text on the screens shown in this manual may differ from what is actually displayed.

Page 3
Battery replacement
Technical data of non-rechargeable AAA Alkaline batteries
Nominal voltage of the 1.5 VDCV battery pack. caduna
Operating time 380 hours with charged batteries
N.B. Do not replace the batteries in the ATEX area
Replacing the discharged batteries
Proceed as follows when the low battery icon is displayed.
1) Turn off the instrument
2) Unscrew the 4 screws located at the back of the instrument.
3) Raise the cohesion
4) Remove the batteries
5) Insert the new batteries, positioning them in the correct direction (+ -)
6) Replace the cover and tighten the 4 screws
7) Turn on the instrument and continue in your work.
Use
Batteries must never be exposed to temperatures above + 40 ° C
To ensure optimal durability, use them at room temperature.
If used atboth lowand high temperaturestheduration capacity may decrease.
Edit
Enter
TS1008
Sensor
Analyzer
UP Down
bat Indicator of the chargeand / or remaining level ofthe battery


Function of the Buttons
1) Power on and off button.
To turn the TESTER on or off, keep the button pressed for 5 seconds.
2) Group of navigation buttons of the TESTER.
a) "DOWN" button by pressing this button the pages are scrolled downwards. (indication 6)
b) "ENTER" button Pressing the button on page 1 you access:
1) Model verification of the interrogated device
2) Matriculation number
3) Week and year of construction
4) Estimated residual working days
5) Ignition cycles
6) Detected alarms
7) Corrections made
The "ENTER" button on page 3 "PRINT", serves to confirm the start of printing
The "ENTER" button, on page 4 "TAR 175", is used to modify the TAR according to the needs, pressing it will note
the blinking of the writing, and pressing "UP" or "DOWN" increases or decreases the data.
The "ENTER" button on page 5 "NEW" is used to reset the device to the factory data by resetting the counters
The "ENTER" button on page 6 "SAVE" is used to save permanently edited data
c) "UP" button by pressing this button the pages are scrolled upwards. (see indication 6)
Checking the status of the battery.
Pressing the "UP" and "DOWN" buttons at the same time, the message BAT appears on the display followed by three
segments; Segments full, charged battery, empty segments empty battery.
DISPLAY
The display used on the TESTER is of the alphanumeric type and is used to display the following information:
3) "LEL" unit of measurement for explosive gas; "ppm" for the toxic gas, the exchange takes place automatically
according to the type of probe.
4) Percentage reading, indicates the quantity of gas lost in the environment.
N.B. The word "FAULT" replaces the reading of the percentage of gas in case of probe failure.
5) Sign of "%" lights up only when explosive gas is read.
6) Reading page number; The tester contains 1 to 7 pages, depending on the model.
7) "ASTERISK with a line" icon lights up when the tester is not connected to the probe in question.
8) Clock icon, indicates that the probe in question is in the "WARMUP" wait state.
9) "IR" transmission element given to the tamper.
10) "USB" port TS1008 connection with equipment to be examined
Edit
Enter
TS1008
Sensor
Analyzer
LEL 20
*%
2
UP Down
135
65
9Print IR
1
2
7
Edit
Enter
TS1008
Sensor
Analyzer
LEL 20
*
10
3
4
5
6
%
2
UP Down
8
Page 4
Components and commands

Page 5
Description of the screens
Probe sgm595
sn 24ad12
date 41 18
DY 2190
cy 5
al 15
dr 12
range 20
ADC - 127 - 145
2
1
lel 20% 100 ppm
fault
gas methane LPG ecc
3
PRINT
OFS 64 70 72 80
4
5
Tar 175 180 200
* print
PAGE 1 to scroll the page press “ENTER”
Displays: “Probe” The type of probe or device
Displays: “SN” The serial number
Displays: “DATE” The week and year of manufacture
Displays: “Dy” the remaining days at the end of the operating cycle.
Displays: “Cy” How many times the probe has been turned on.
Displays: “AL” How many times is gone into alarm.
Displays: “DR” How many corrections have been done
Displays: “RANGE” The operating range if at 20 or at 100% of LEL
Displays: “ADC” A scrolling to the normalized value, coming out of the gas cap,
modifying these data compromises the functioning and is reserved for authorized
technicians.
To see the next page, press “DOWN”
PAGE 2 to scroll the page press “ENTER”
Displays the percentage of gas dispersed in the environment, can be expressed in:
% of LEL or in ppm. In case of failure appears only “FAULT”
Displays the type of gas for which the probe has been calibrated
To see the next page, press “DOWN”
PAGE 3
PRINT to print, point the IR transmitter toward the printer and press “ENTER”
PAGE 4
Modification: “OFFSET” changes the deviation of the value of zero defined during
calibration.
PAGE 5
Modification: “TAR” multiplicative factor depending on the type of gas.
Printerrecommended
BEINAT S.r.l. recommend a printer with infrared receiving 8 bits (1 start, error 4) Infrared
940nm,33kHz
Every time you disconnect the tester from the probe appears “PRINT”.
The TS1008 has loaded in memory the data stored in the probe and asked to print them.
If you do not want to print, turn off the tester or connect it to another probe.

Page 6
NOTE
BEINAT
Mod.SGM595
S/N:15115d
Prod. Week: 9/2014
Remaining days:2190
LEL: 10%
Power on cycles: 1
Alarm count; 0
Driftcount: 0
date..............................
sign..............................
Sample Print
If the device does not turn on..
Check that the battery is charged, if it is not, recharge it
If the device does not detect
Check that the cables are well plugged in and make contact.
If the device does not print
Check that the instrument is in line with the printer.
Check that the printer is turned on and is in line with the instrument.
In the event other problems arise, directly contact a specialist and/or authorised technician or your BEINAT S.r.l.
dealer.
Problems and solutions

According to the EN 50194 / EN 50291 Standards, and compliant with the EN 60079-29-1 - EN60079-29-2 Standard,
in every type of system performed for the control and prevention of gas leakage it is expected that after installation
performed functional checks, in the times and following ways:
1) Every six months, from the installation the user or whoever will have to perform a check on the effective operation
of the detection equipment.
2) At the end of each year, by means of a specialized technician, the operating test must be performed by emitting
gas from a pre-calibrated cylinder within the percentages described for each type of equipment.
Ordinary and extraordinary maintenance and putting out of service at the end of the operating period guaranteed by
the manufacturer must be carried out by authorized and / or specialized personnel
LEL 20
Sensor
Analyzer
TS1008
Edit
Enter
UP Down

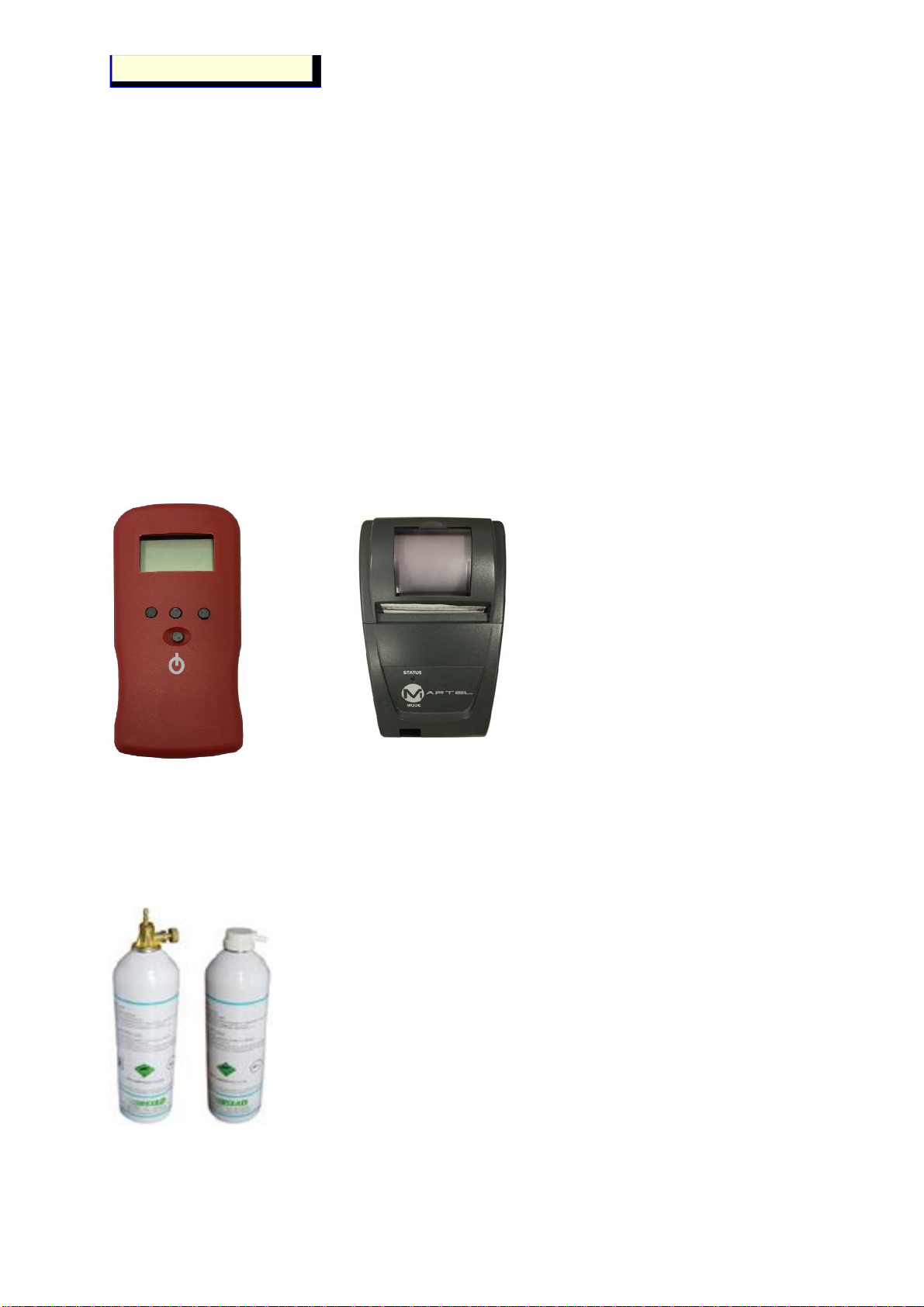

Accessories To perform the test and to obtain a self-certification it is necessary to use:
1 TS1008 tester
1 STM001printer
1 Pre-calibrated cylinder
Page 7
After verifying that the installation to be tested has been in operation for at least 24 hours or more.
Screw the dispensing valve onto the cylinder;
Proceed with the emission of gas by placing the diffuser near the sensor of the probe with fast and constant closing
andopening maneuvers
Testing Sensors

IP40 Made in Italy
BEINATS.r.l.
Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY
Tel. [phone] - Fax [phone]
http:// www.beinat.com
TS1008 -Rev-1 18 39
Business - [e-mail]
[e-mail]
Customer, version
Lo styling è della b & b design
Purchase date :
SerialNumber:
Tester TS1008
INSURANCE.This device is insured by the SOCIETÀ REALE MUTUA for the PRODUCT’S GENERAL LIABILITY up to a
maximum of 1.500.000,00 EURO against damages caused by the device in case of failures in functioning.
WARRANTY.The warranty term is 3 years from manufacturing date, in agreement with the following conditions. The
components acknowledged asfaultywill be replaced free of charge,excluding thereplacement of plasticoraluminium
cases, bags, packing, batteries and technical reports.
Thedevice must arrivefree of shipmentcharges toBEINATS.r.L..Defectscaused byunauthorizedpersonneltampering,
incorrect installation and negligence resulting from phenomena outside normal functioning shall be excluded from the
warranty.
The BEINAT S.r.L. company is not liable for possible damage, direct or indirect, to people, animals, or things; from
product faults and from its enforced suspension of use.
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT.
This symbol on the product or its packaging to indicates that this product shall not be treated as household waste. Instead, it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment, such as for example:
- sales points, in case you buy a new and similar product
- local collection points (waste collection center, local recycling center, etc...).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequence for the environment and human
health, which could otherwise be caused by inappropriate waste handing of this product. The recycling of materials will help to conserve
natural resources. For more detailed information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
Attention: in some countries of the European Union, the product is not included in the field of application of the National Law that applies
the European Directive 2002/96/EC and therefore these countries have no obligation to carry out a separate collection at the “end of
life” of the product.
In agreement with its continuous development policy, we reserve the right to modify its products without notice.
Stamp of Dealer
