Beko RSVC09VT-I User manual

RSVC09VT-I / RSVC09VT-O
RSVC12VT-I / RSVC12VT-O
User Manual

35

1

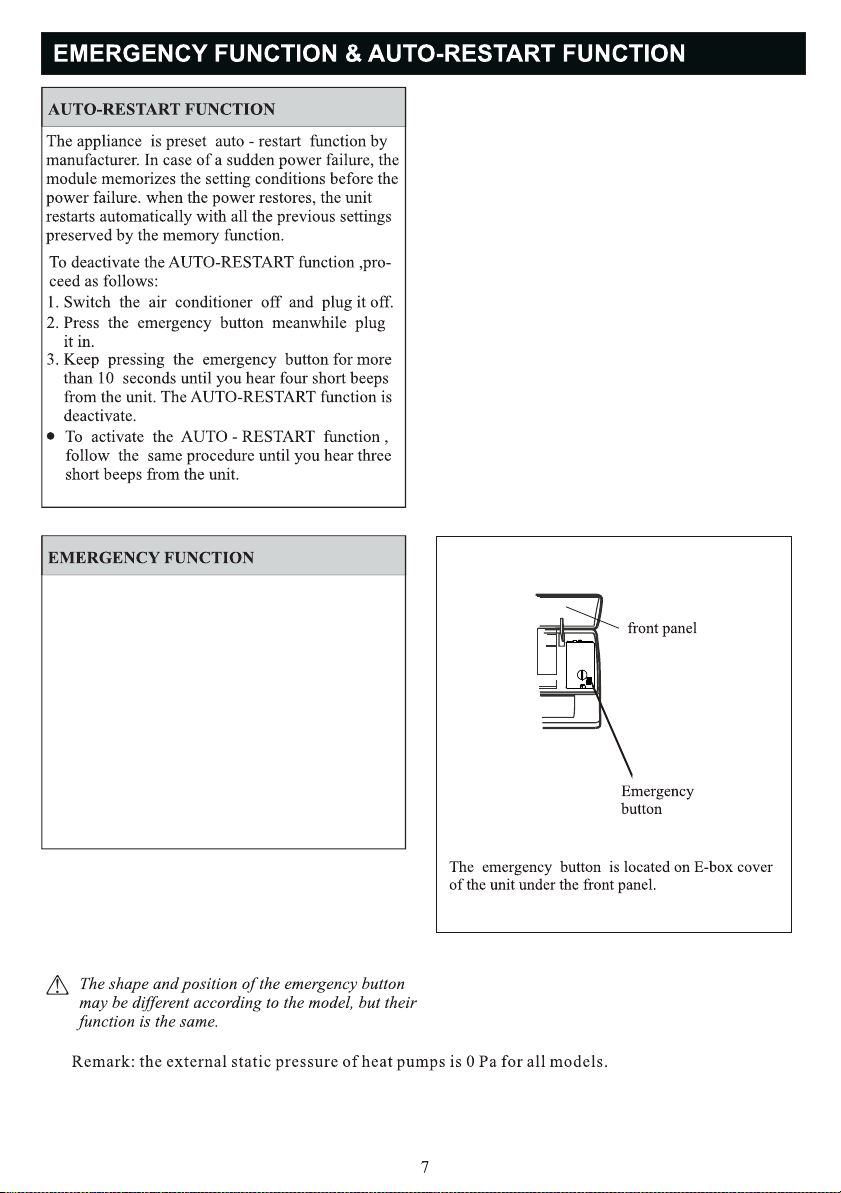

Open and lift the front panel up to an angle to reach
the emergency button.
For heating model, press the emergency button at first
time, the unit will operate in COOL mode. Press at
second time within 3 seconds, the unit will operate in
HEAT mode. Press at third time after 5 seconds, the
unit will turn off.
For cooling only model, press the emergency button
at first time, the unit will operate in COOL mode.
Press again, the unit will turn off.
If the remote controller fails to work or maintenance
necessary, proceed as following:

13
14
Zone

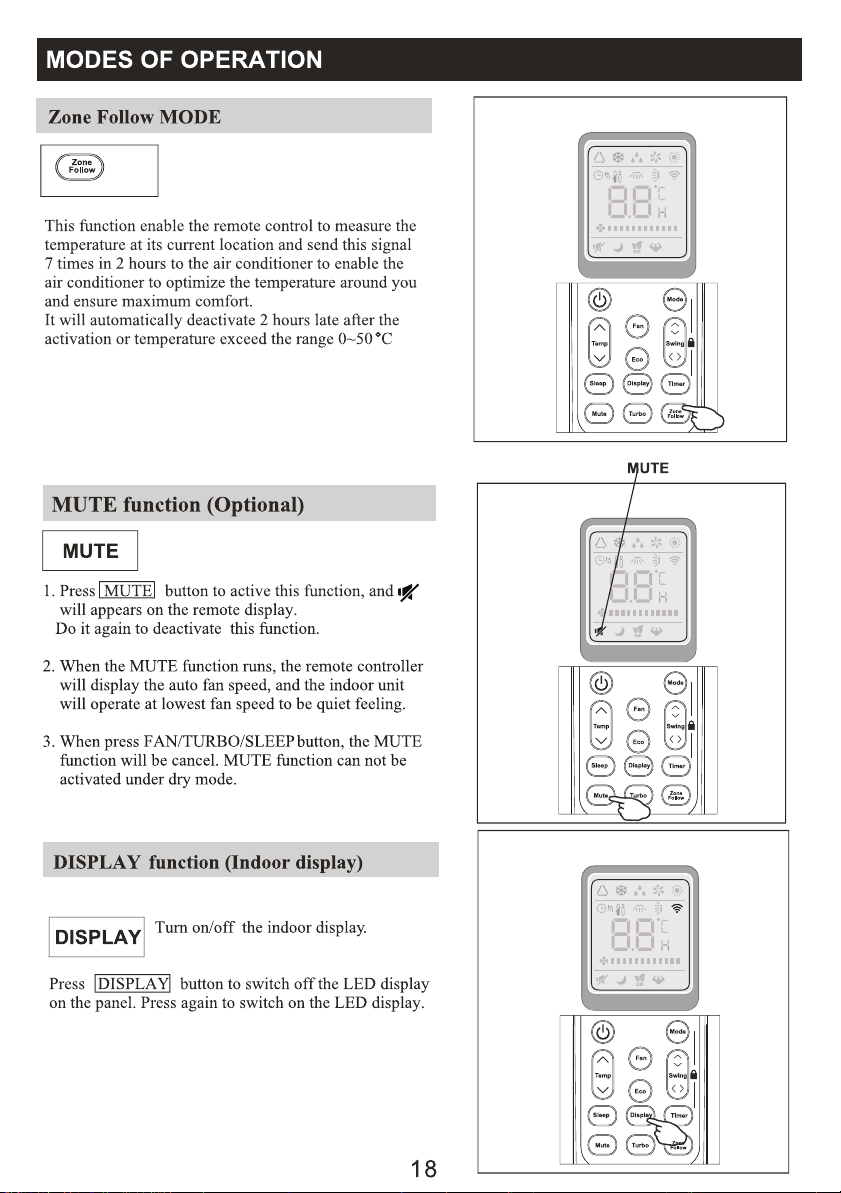

To switch active /deactive "Zone Follow" function.
The air conditioner will regulate the room temperature
based on the temperature(0 ~50 )around the remote
controller.This function will terminate 2 hours later
once it's active. (If applicable)
To activate the function of Child Lock when press MODE
and TIMER buttons together. (If applicable)
8
(MODE+TIMER)

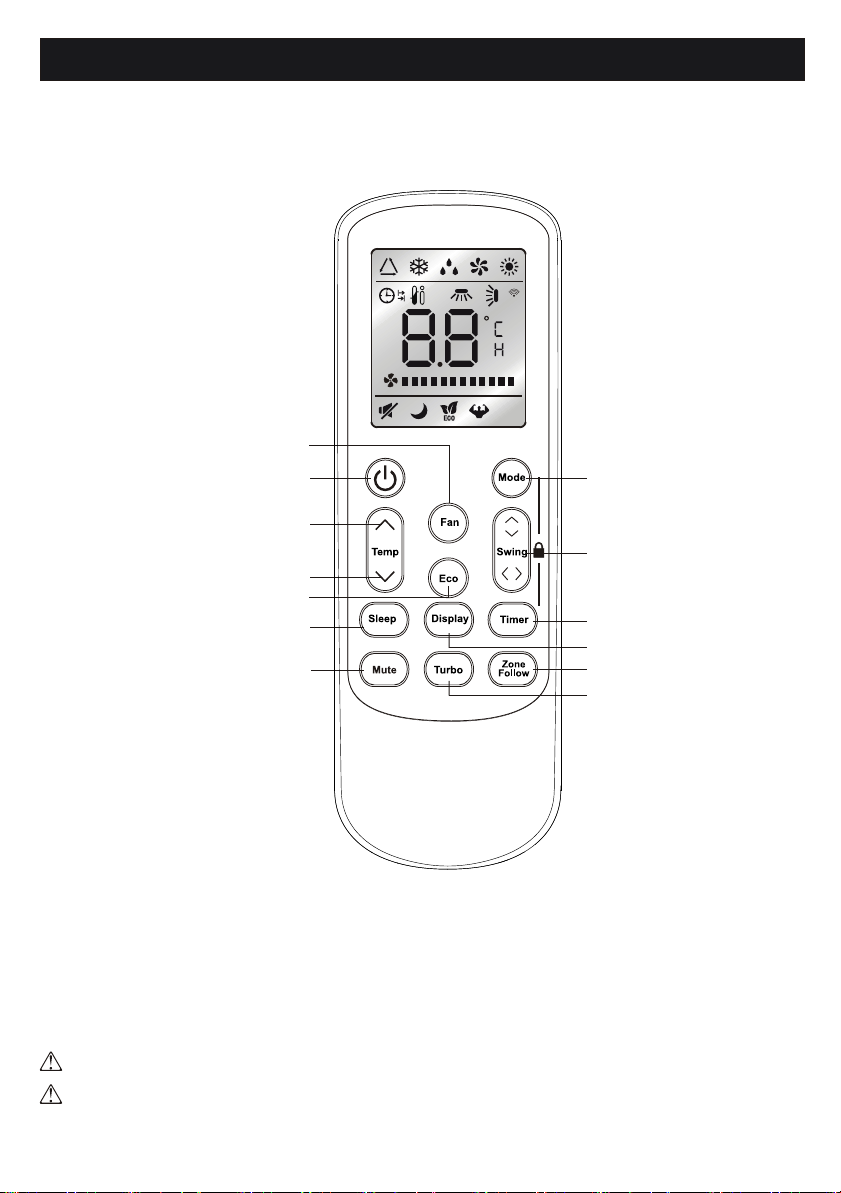

REMOTE CONTROLLER
The shape and position of buttons and indicators maybe difference according to the model, but their
function is the same.
The out looking and some function of remote controller maybe difference.
9
8
3
6
7
9
10
5
12
4
1
2
11
13

COOLING indicator
DEHUMIDIFYING indicator
FAN ONLY OPERATION indicator
HEATING indicator
SIGNAL RECEPTION indicator
TIMER OFF indicator
TIMER ON indicator
AUTO FAN indicator
LOW FAN SPEED indicator
MIDDLE FAN SPEED indicator
HIGH FAN SPEED indicator
SLEEP indicator
FLAP SWING indicator
15 TUBRO indicator
16
17
ECO indicator
Meaning
No. Symbols
CLOCK indicator
18
Zone Followindicator
mode indicator
Meaning
No. Symbols
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14

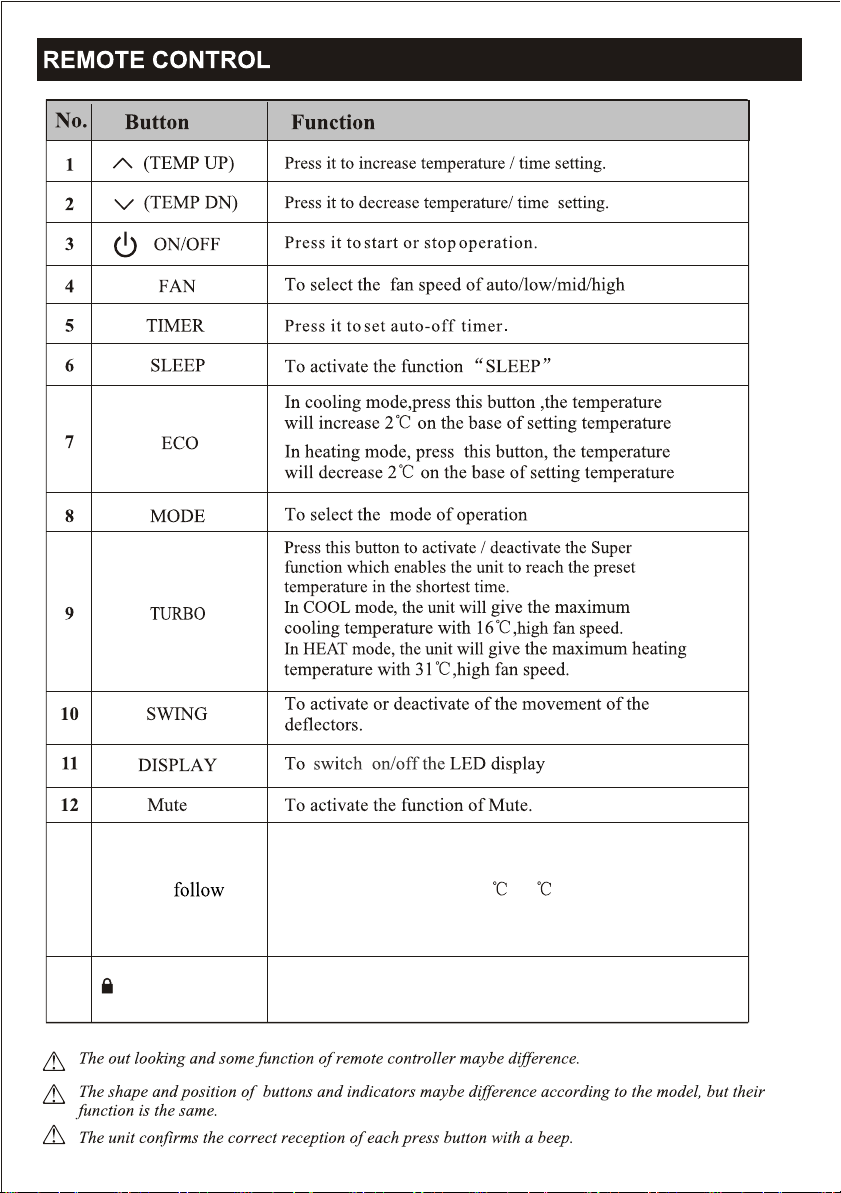

REMOTE CONTROLLER
Remote controller DISPLAY
Meaning of symbols on the liquid crystal display
5

11
REMOTE CONTROL
Signal
receptor
+
+
+
Replacement of Batteries
Remove the battery cover plate from the rear of the remote controller,
by sliding it in the direction of the arrow.
Install the batteries according the direction (+and -)shown on the Remote
Controller.
Reinstall the battery cover by sliding it into place.
Use 2 LRO 3 AAA (1.5V) batteries . Do not use rechargeable
batteries . Replace the old batteries with new ones of the same
type when the display is no longer legible.
Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
NOTE:if you adjust the remote controller in cooling mode,
it will not be possible to activate the heating function in units with
heating pump . you need to take out the batteries and repeat the
procedure described above.
1. Direct the remote controller toward the Air conditioner.
2. Check that there are no objects between the remote control
and the Signal receptor in the indoor unit.
3. Never leave the remote controller exposed to the rays of the sun.
4. Keep the remote controller at a distance of at least 1m from the
television or other electrical appliances.
Recommendations for locating and using the remote controller holder (if present)
The remote controller be kept in a wall-mounted holder
Refer to picture 2:
When you insert the batteries for the first time in the remote
controller or if you change them, you need to program the remote
controller of only cooling or cooling and heating.
When you insert the batteries, the symbols ( ) and
( ) start fashing. If you push whatever button when
the symbol ( ) is displayed, the remote controller is
adjusted in only cooling mode . If you push whatever button when
the symbol ( ) is displayed , the remote controller is
adjusted in Cooling and heating mode.
COOL
HEAT
COOL
HEAT
Refer to picture 1:
i. When you open the battery cover, you can see a DIP switch on
the cover back.l
Ii. NOTE:After adjusting the function, you need to take
out the batteries and repeat the procedure described above.
DIP switch on position Function
The remote controller is adjusted in degree celsius
The remote controller is adjusted in only cooling mode
The remote controller is adjusted in cooling and heating mode
The remote controller is adjusted in degree fahrenheit.
Cool
Heat
C
F
Remote controller holder
Mode
Fan
Eco
TempSwing
Timer
Display
Sleep
MildewTurbo Health
Mode
Fan
Eco
TempSwing
Timer
Display
Sleep
Mildew TurboHealth
Mode
Fan
Eco
TempSwing
Timer
Display
Sleep
MuteTurboIFeel

OPERATING INSTRUCTIONS
Filter
Heat
Fan
Exchanger
The direction of the air outlet is motorized up and down
by flaps, and manually moved right and left by the vertical
deflectors, for some models, the vertical deflectors could be
controlled by motor as well.
The air sucked by the fan enters from the grill and
passes through the filter, then it is cooled/dehumidified
or heated through the heat exchanger.
Fan
12

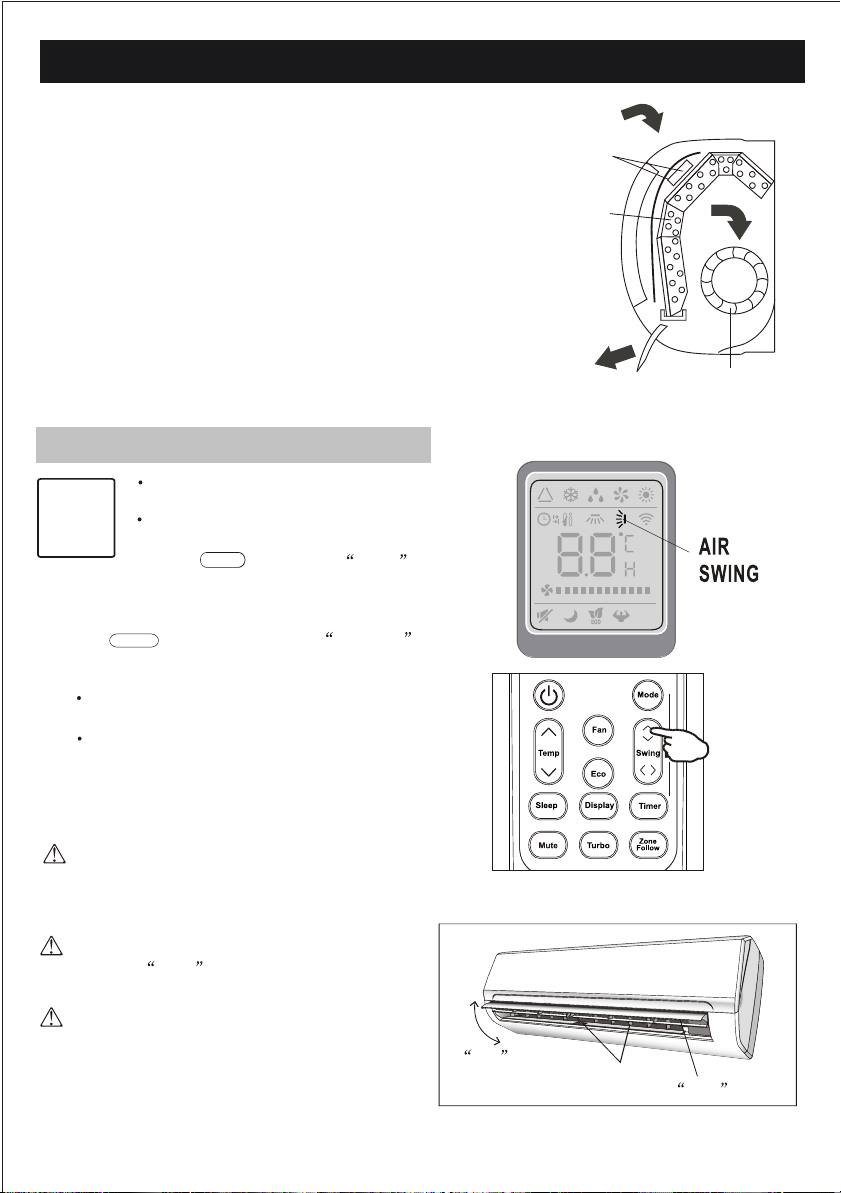

“SWING”CONTROL OF THE AIR FLOW
flaps
flap
movement Deflectors
The air outlet flow is uniformly dist-
ributed in the room.
It is possible to position the direction
of the air in the optimal.
In cooling mode , orient the flaps in horizontal
direction;
In heating mode, orient the flaps downward as
the warm air tends to rise.
The deflectors are positioned manually and placed un-
der the flaps .They allow to direct the air flow rightw-
ard or leftward.
Never position Flaps manually, the delicate mech-
anism might be seriously damaged!
Never poke fingers, sticks or other objects in the air
inlet or outlet vents. Such accidental contact with live
parts might cause unforeseeable damage or hurt.
This adjustment must be done while the appliance
is switched off.
SWING
The key activates the motorized deflectors ,
the air flow is directed alternatively from left to right.
(Optional function, depends on the models)
SWING
The key activates the FLAP ,
the air flow is directed alternatively from
up to down .In order to guarantee an even
diffusion of the air in the room.
SWING

OPERATING INSTRUCTIONS
13

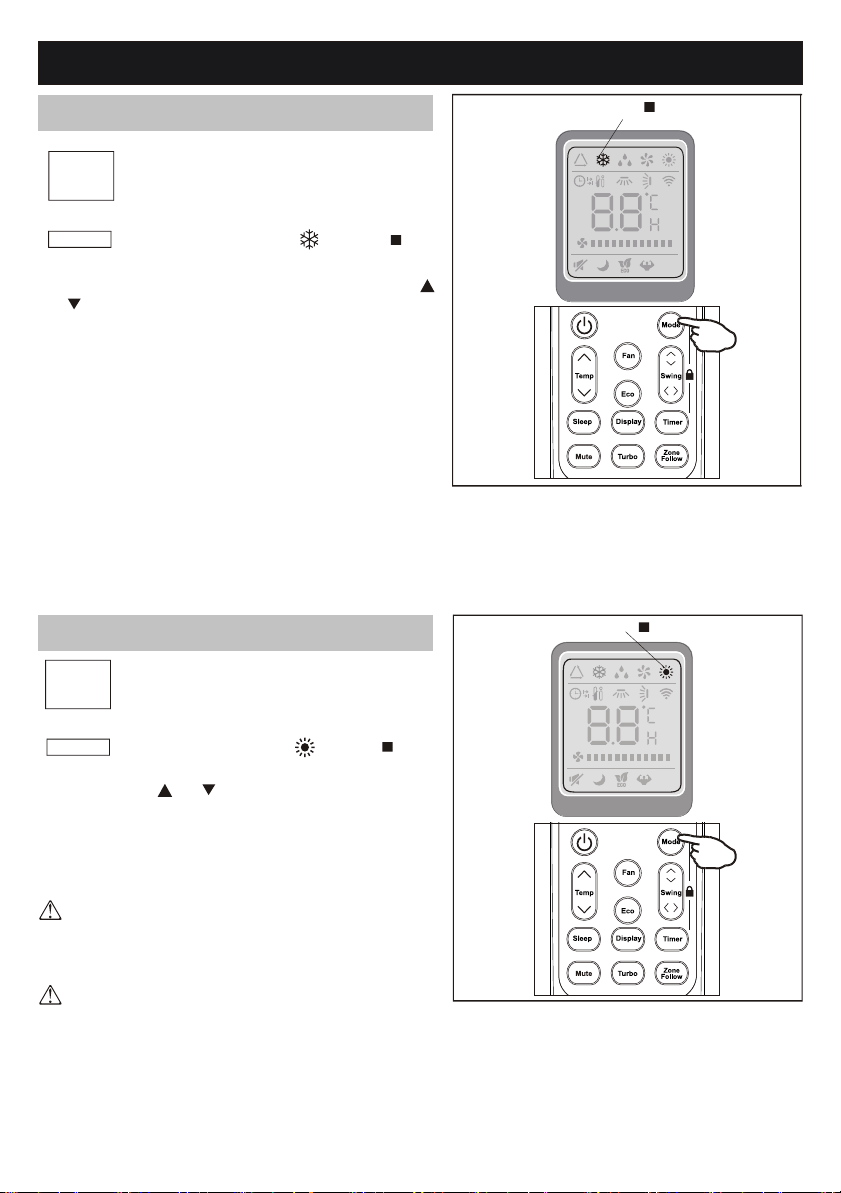

COOLING MODE
The cooling function allows the air condit-
ioner to cool the room and at the same time
reduces Air humidity.
COOL
To activate the cooling function ( COOL ) , press the
MODE button until the symbol ( COOL )
appears on the display.
HEATING MODE
The cooling function is activated by setting the button
or at a temperature lower than that of the room.
To optimize the function of the Air conditioner, adjust
the temperature (1) , the speed (2) and the direction
of the air flow (3) by pressing the button indicated.
HEAT
The heating function allows the air conditi-
oner to heat the room.
To activate the heating function ( HEAT ) , press the
MODE button until the symbol ( HEAT )
appears on the display.
With the button or set a temperature higher than
that of the room..
To optimize the function of the Air conditioner adjust
the temperature ( 1 ), the speed ( 2 ) and the direction
of the air flow ( 3 ) by pressing the button indicated
In HEATING operation, the appliance can automatically
activate a defrost cycle, which is essential to clean the
frost on the condenser so as to recover its heat exchange
function.This procedure usually lasts for 2-10 minutes
during defrosting,indoor unit fan stop operation.
After defrosting ,it resumes to HEATING mode
automatically.
If the appliance is fitted with a electrical heater,
which delays appliance to startup in a few seconds
to ensure an immediate output of hot air (Optional ,
depends on the model).
COOL
HEAT
* This function does not available in cooling only model.

OPERATING INSTRUCTIONS
14
FAN
SWING
SLEEP
POWER SLEEP TIMER RUN
Indoor display
TIMER MODE----TIMER OFF
TIMER MODE----TIMER ON
FAN
SWING
SLEEP
POWER SLEEP TIMER RUN
Indoor display
TIMER

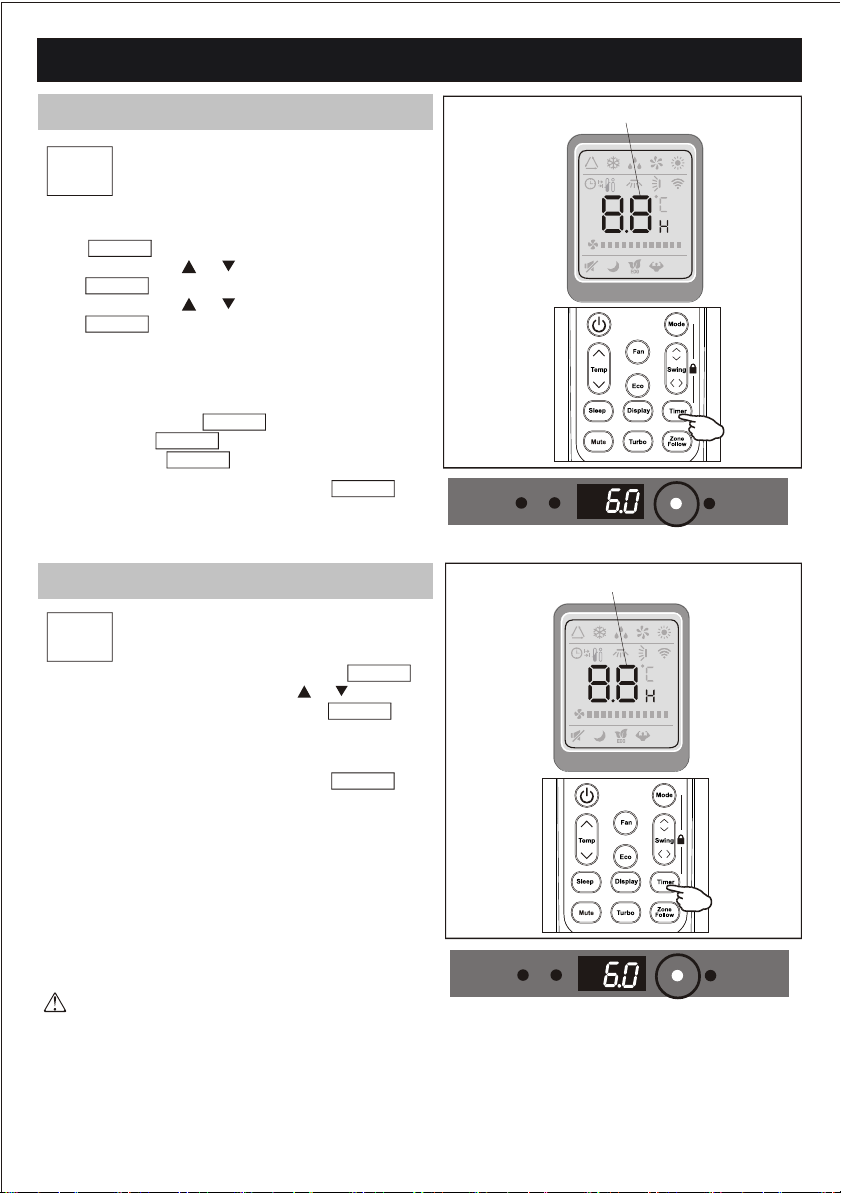

To set the time of the air conditioner
To program the automatical switching-on time, the
appliance should be power off.
Press TIMER at the fist time , set the temperature with
pressing the button or ;
Press TIMER at the second time , set the rest time with
pressing the button or ;
Press TIMER at the third time, confirm the setting, then
the rest time to next automatical switching-on could be
read on the display.
NOTE !
Before proceeding with the time: program the working
mode with the button MODE (2) and the fan speed
with the button FAN (3) . Switch the conditioner
off (with the key ON/OFF ).
TIMER
To set the automatic switching-off of
the air conditioner
The timed stop is programmed by pressing TIMER ,
Set the rest time by pressing the button or ,until the rest
time displayed is to your demand then press TIMER again.
Note:To cancel the set function ,press the TIMER
button again.
Note:To cancel the set function, press the TIMER
button again.
Note:In case of power off,it is necessary to set TIMER
ON again
Note:In case of power off,it is necessary to set TIMER
OFF again
Note:
When the time is set correctly on the
remote, the timer function can be used
and set in half hour increments.
TIMER ON
TIMER OFF

OPERATING INSTRUCTIONS
15

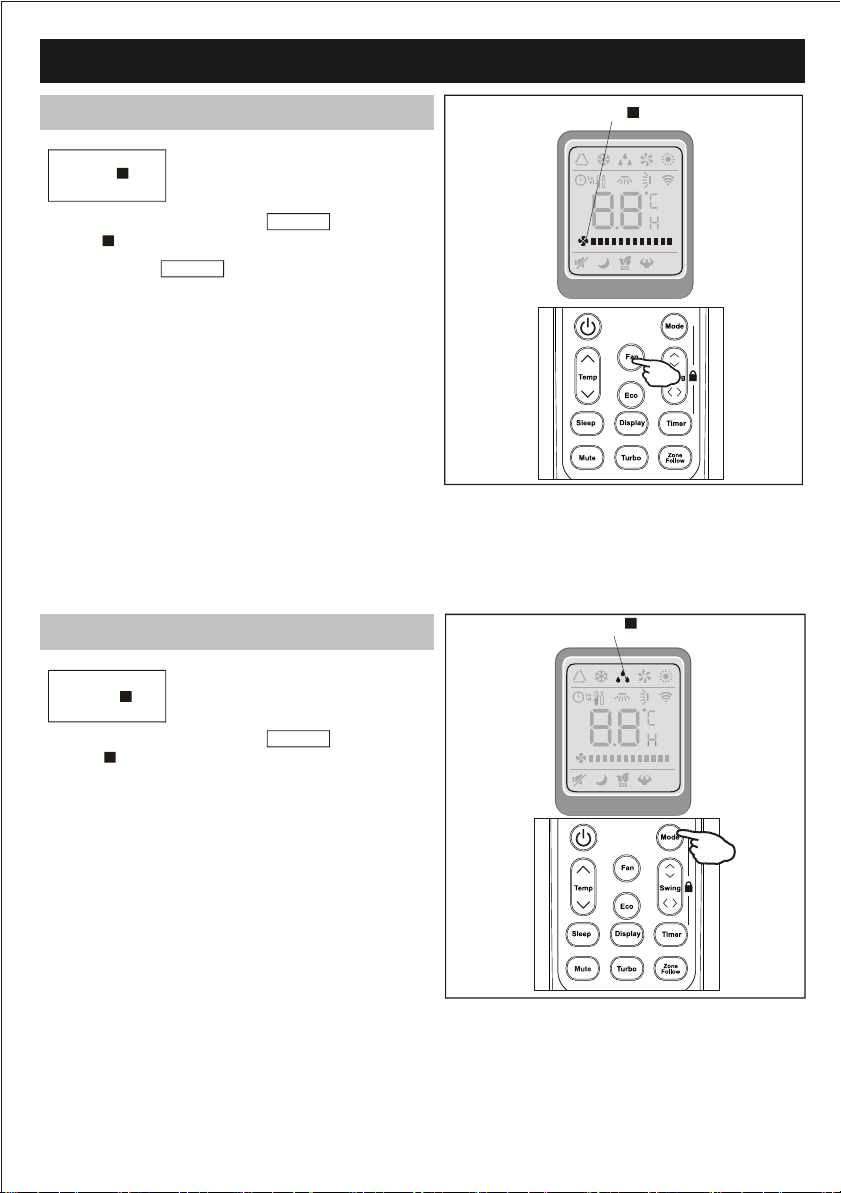

FAN
The conditioner works in only
ventilation.
To set the FAN mode , Press MODE until
( FAN ) appears in the display.
While pressing FAN button the speed changes
in the following sequence: LOW/ MEDIUM/HIGH
/AUTO in FAN mode.
The remote control also stores the speed that was set
in the previous mode of operation.
In AUTO mode (automatic) the air conditioner auto-
matically chooses the fan speed and the mode of
operation (COOLING or HEATING).
This function reduces the humid-
ity of the air to make the room
more comfortable.
To set the DRY mode , Press MODE untill
( DRY ) appears in the display .An automatic
function of alternating cooling cycles and air fan
is activated.
DRY
FAN MODE
DRY MODE
FAN
DRY

OPERATING INSTRUCTIONS
16
Ambient temp Auto temp.
20 23
23
26
20 ~26
Operation mode
HEATING ( FOR HEAT PUMP TYPE)
DRY
COOL
18
FAN (FOR COOL ONLY TYPE)
To optimize the function of the air conditioner, adjust
the temperature(only 2 )(1), the speed (2) and the
direction of the air flow (3) by pressing the buttons
indicated

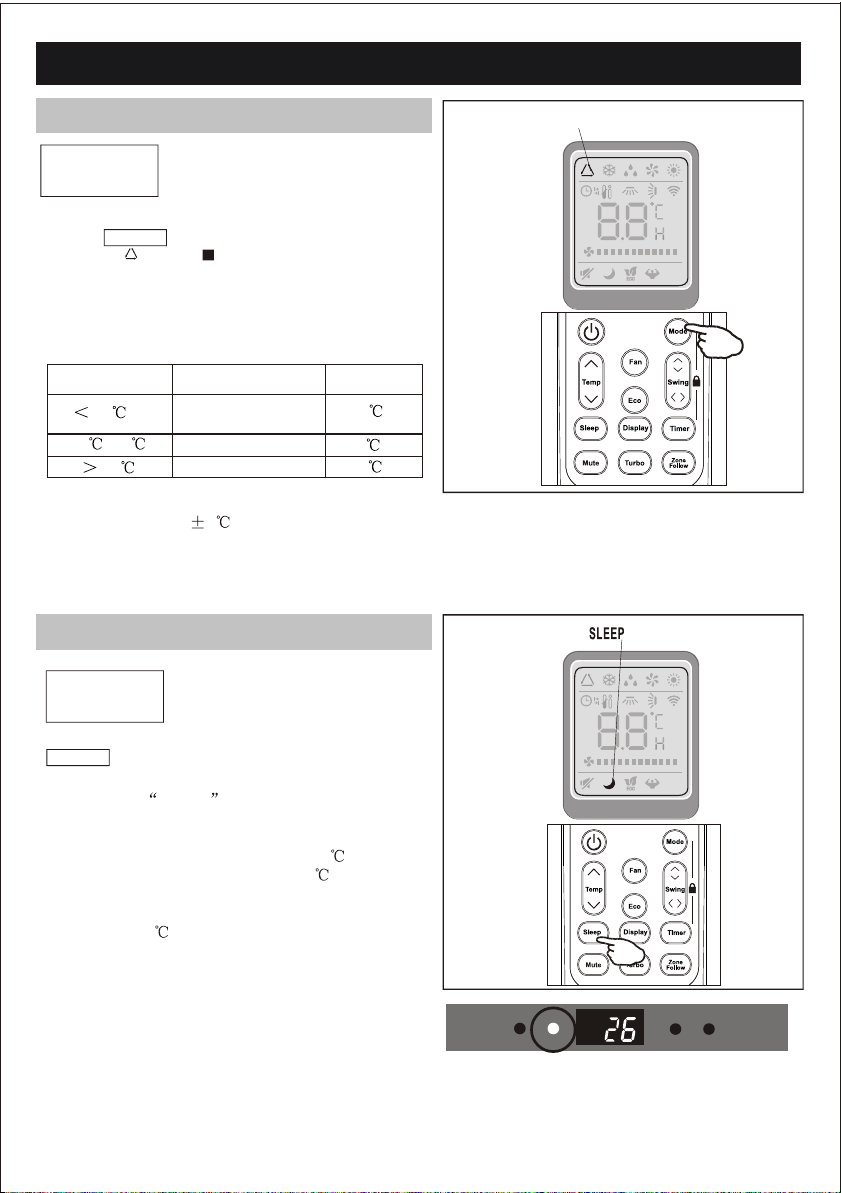

To activate the SLEEP mode of operation, press the
SLEEP button on the remote controller until the sym-
bol (SLEEP ) appears on the display.
SLEEP
The function SLEEP automatically adjusts the
temperature to make the room more comfortable
during the night . In cooling or dry mode , the set
temperature will automatically raise by1 every
60 minutes, to achieve a total rise of 2 during the
first 2 hours of operation.
In heating mode the set temperature is gradually
decreased by 2 during the first 2 hours of operation.
After 10 hours running in sleep mode the air conditio-
ner is swicthed off automatically.
AUTO MODE
FAN
SWING
SLEEP
POWER SLEEP TIMER RUN
Indoor display
SLEEP MODE
AUTO Automatic mode.
To activate the AUTO (automatic) mode of operation,
press the MODE button on the remote controller until
the symbol ( AUTO ) appears on the display.
In AUTO mode the fan speed and the temperature
are set automatically according to the room temperature
(tested by the temperature sensor which is incorporated
in the indoor unit). 
AUTO

Turbo mode.
TURBO MODE

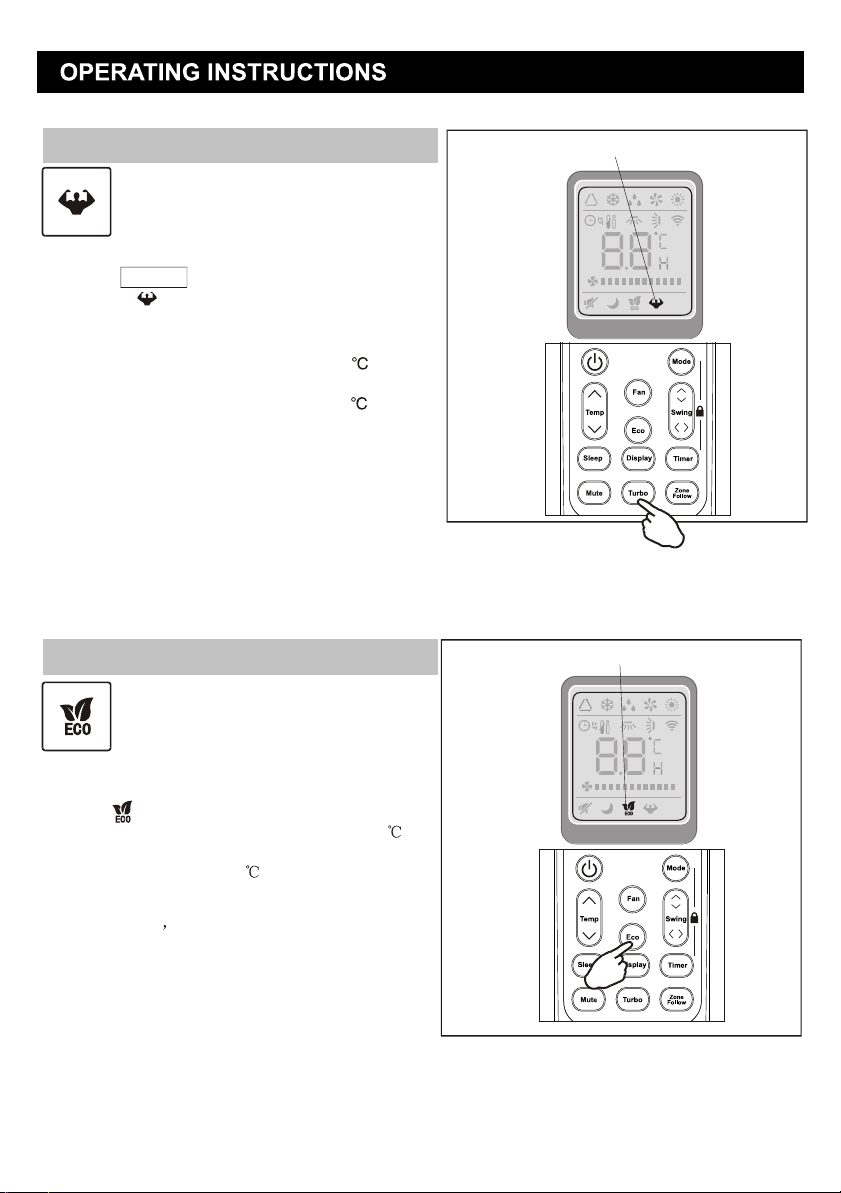

To activate the TURBO mode of operation,
press the TURBO button on the remote control until
the symbol appears in the display.
In cooling mode, press this button, the unit will give
the maximum cooling temperature with 16
In heating mode, press this button, the unit will give
the maximum heating temperature with 31
Eco mode.
ECO MODE
To activate the ECO (economic) mode of operation.
Press the ECO button on the remote controller until the
symbol appears in the display.
In cooling mode, the temperature will increase 2 on
the base of setting temperature, in the heating mode, the
temperature will decrease 2 on the base of setting
temperature. Press again, the air conditioner switched
off ECO mode automatically.The SUPER mode and
ECO mode can t work together.
FAN SLEEP
ECO
17
TURBO
