TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■
Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions.................3
Prior to Operation ..................5
Operating Instructions...........6
Remote Controller ..............6
Remote Control Operation ...7
Maintenance and Service ....12
Indoor unit.........................12
Outdoor unit......................12
Operation Tips ..................13
Troubleshooting ...............14

Safety Precautions
Owner’s Manual 3
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
WARNING
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation or electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• In the supply cord is damaged, it mut be
replaced by the manufacturer or its service
agent or a similarly quallfied person in
order to avoid a hazard. (Y Attachment)
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in damp
environment.
• It may cause electric shock.
Do not direct airflow at room
occupants only.
• This could damage your health.
Always perform grounding
work.
• No grounding may cause electric
shock.
Do not allow water to run
into electric parts.
• It may cause failure of machine or
electric shock.
Always install air leakage
breaker and a dedicated
switching board.
• No installation may cause fire and
electric shock accident.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
• It may cause fire and electric
shock accident.
Do not use the socket if it is
loose or damaged.
• It may cause fire and electric
shock.
Do not open the entrance
during operation.
• It may cause electric shock.

Safety Precautions
4Room Air Conditioner
Ventilate before operating air conditioner
when gas goes out.
• It may cause explosion, fire and, burn.
Do not disassemble or modify products
randomly.
• It may cause failure and electric shock.
Never touch the metal parts of
the unit when removing the filter.
• They are sharp and may cause
injury.
Do not clean the air
conditioner with water.
• Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
CAUTION
When cleaning the unit, first
make sure the power and
breaker are turned off.
• Since the fan rotates at high speed
during operation, it may cause injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
• This could injure the pet or plant.
Do not use appliance for special
purpose such as animals or
vegetables, precision machine,
or conservation of art articles.
• It may cause damage of animals
or vegetables or loss of property.
Stop operation and close the
window in storm or
hurricane.
• Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
Hold the plug by the head of
the power plug when taking
it out.
• It may cause electric shock and
damage.
Turn off the main power
switch when not using it for
a long time.
• It may cause failure of product or
fire.
Do not place obstacles
around the absorption inlet
or instead of blowing-out
inlet.
• It may cause failure of appliance or
accident.
Ensure that an installation
console of the outdoor
appliance is not damaged due
to the use for a long time.
• If leaving appliance damaged,
there is concern of damage due to
the falling of product.
Always insert the filters
securely. Clean it once every
two weeks.
• Operation without filters may
cause failure.
Do not use strong detergent
such as wax or thinner but
use a soft cloth.
• Appearance may be deteriorated
due to change of product color or
scratching of its surface.
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
• There is danger of fire or electric
shock.
Do not drink water drained
from air conditioner.
• It contains contaminants and will
make you sick.
Use caution when
unpacking and installing.
Sharp edges could cause
injury.
If water enters the product, turn
the power switch of the main body
of appliance off. After taking the
power-plug out from the socket,
contact with the service center.
If you eat the liquid from the
batteries, brush your teeth
and see doctor. Do not use
the remote if the batteries
have leaked.
• The chemicals in batteries could
cause burns or other health
hazards.

Owner’s Manual 5
Prior to operation
Prior to operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.
1. Being exposed to direct airflow for an extended period of time could be hazardous to your health.
Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or
other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices,
food, pets, plants, and art objects). Such usage could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling
sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,
leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at
a very high speed during operation. There is a possibility of injury if the unit’s power is accidentally
triggered on while cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for operation
Usage
Cleaning and maintenance
Service
Symbols Used in this Manual
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE

6Room Air Conditioner
Operating Instructions
Remote Controller
Operating Instructions
Remove the battery cover by pulling it according to
the arrow direction.
Insert new batteries making sure that the (+) and (-)
of battery are installed correctly.
Reattach the cover by sliding it back into position.
Use 2 AAA(1.5volt) batteries. Do not use
rechargeable batteries.
NOTICE
• The remote control may be stored mounted on a wall. • To operate the room air conditioner, aim the remote
control at the signal receptor.
Storage and Tips For Using the Remote Control
Signal Receptor
Receives the signals from the remote controller.
(Signal receiving sound:two short beeps or one long beep.)
Operation Indication Lamps
On/Off : Lights up during the system operation.
Timer : Lights up during timer operation
Defrost Mode : Lights up during Defrost Mode or *Hot Start operation.
(Heat pump model only)
: Lights up during outdoor unit operation.
(Cooling model only)
Outdoor Unit
Operation
OUT
DOOR
*Hot Start operation: Stops the indoor fan in Heating Operation to prevent cold air from blowing out from unit.
*In defrost mode unit stops heating operation for few minutes to remove formation of ice on the heat
exchanger coils to maintain the efficiency.
Operation
indication lamps
Signal receptor

Owner’s Manual 7
Operating Instructions
The remote control transmits the signals to the system.
TEMP.
TIME
OFF
hr.
4
1
2
5
6
8
3
7
Cooling Operation
Healthy Dehumidifacation Operation
Heating Operation
Cooling Operation
(Cooling Model)
(Heat pump Model)
Healthy Dehumidifacation Operation
TIME
OFF
hr.
TEMP.
1
3
2
4

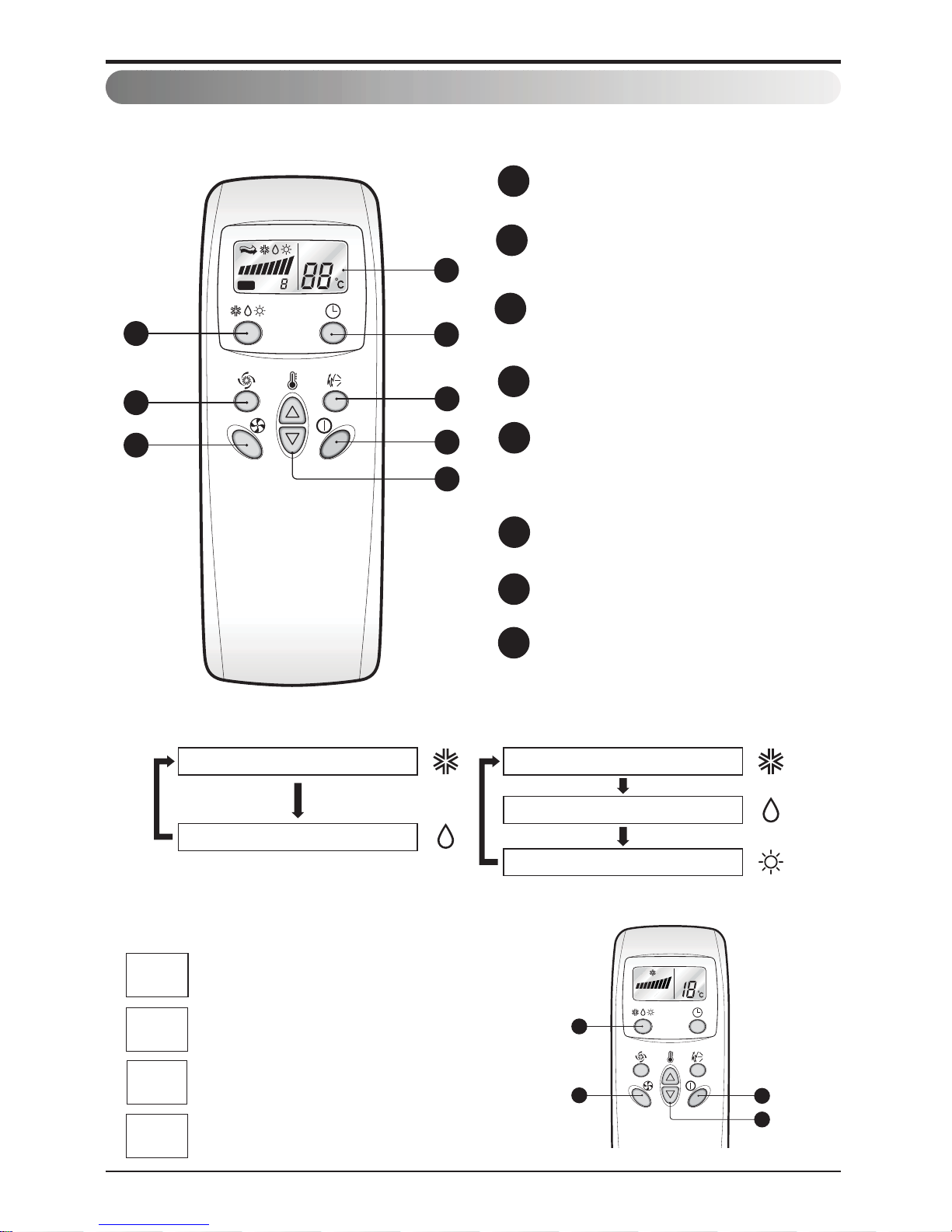

Remote Control Operation
OPERATION DISPLAY
Displays the operation conditions.
AUTO SWING BUTTON
Used to stop or start louver movement and
set the desired up/down airflow direction.
OPERATION MODE SELECTION
BUTTON
Used to select the operation mode.
OFF TIMER BUTTON
Used to set the time of stopping operation.
START/STOP BUTTON
Operation starts when this button is
pressed, and stops when the button is
pressed again.
ROOM TEMPERATURE SETTING
BUTTONS
INDOOR FAN SPEED SELECTION
BUTTON
JET COOL
Used to start or stop the speed cooling.
(Speed cooling operates super high fan
speed in cooling mode.)
1
2
3
4
5
6
7
8
(1) Operation Mode
(2) Operation Procedure
1st
2nd
3rd
4th
Start/Stop Button
Operation Mode Selection Button
Room Temperature Setting Button
Indoor Fan Speed Selection Button

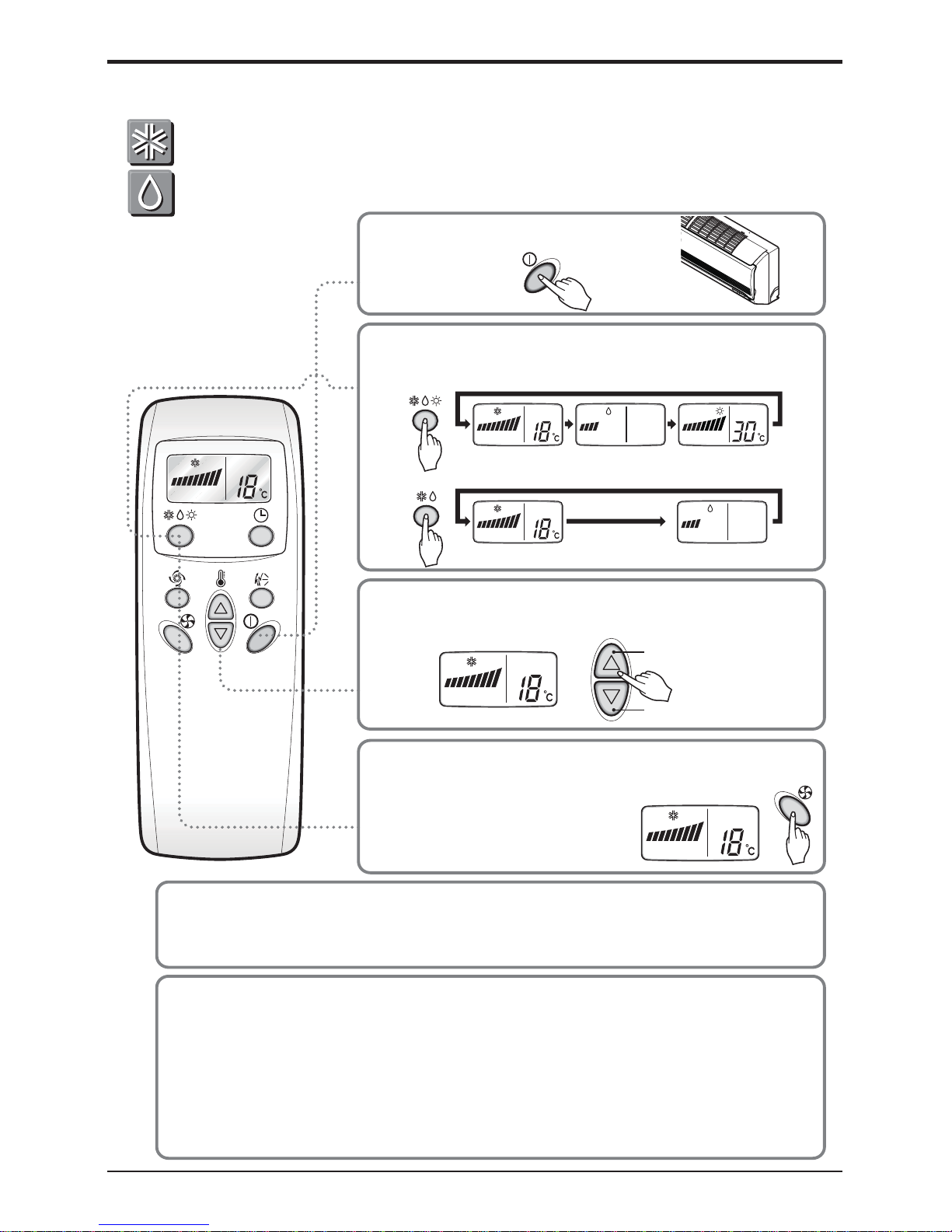

8Room Air Conditioner
Operating Instructions
TIME
OFF hr.
TEMP.
TEMP.
TIME
OFF
hr. TIME
OFF
hr.
TEMP.
TIME
OFF
hr.
TEMP.
TIME
OFF
hr.
TEMP.
TIME
OFF
hr.
TEMP.
Cooling Healthy
Dehumidification
Heating
(Heat pump model only)
To raise the temperature
To lower the temperature
TEMP.
TIME
OFF
hr. TIME
OFF
hr.
TEMP.
Cooling
Healthy
Dehumidification
Beep, Beep
Beep, Beep
Press the Start/Stop Button.
Select Cooling Operation.
Press the Operation Mode Selection Button.
Each time the button is pressed, the operation mode is shifted in the arrow direction.
Set the temperature lower than the room temperature.
• The temperature can be set within a range of 18°C ~ 30°C
by 1°C .
Set the fan speed.
• Select the fan speed in four steps-low, medium, high or CHAOS.
• Each time the button is pressed,
the fan speed mode is shifted.
• The display shows high fan
speed.
Cooling Operation
1
2
3
4
Natural wind by the CHAOS logic
❏For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to
CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan
speed according to the CHAOS logic.
Healthy Dehumidification Operation Mode
This mode dehumidifies
without overcooling.
During Healthy Dehumidification Operation:
❏If you select the dehumidification mode on the operation selection button, the airconditioner starts to run the
dehumidification function, automatically setting the room temp. and airflow volume to the best condition for
dehumidification based on the sensed current room temp.
In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the
room temp. either.
❏During the healthy dehumidification function, the airflow volume is automatically set according to the
optimization algorithm responding to the current room temp. status and makes the room condition healthy and
comfortable even in the high humidity season.

Owner’s Manual 9
Operating Instructions
TIME
OFF
hr.
TEMP.
TIME
OFF hr.
TEMP.
TEMP.
TIME
OFF
hr. TIME
OFF
hr.
TEMP.
TIME
OFF
hr.
TEMP.
Cooling Healthy
Dehumidification
Heating
(Heat pump model only)
To raise the temperature
To lower the temperature
TEMP.
TIME
OFF hr.
Beep, Beep
Beep, Beep
Press the OFF Time Button.
1. Press the OFF Time Button.
2. Check the OFF Time LED of the room air conditioner.
3. The Timer is programmed by 1 hour each
pressing the OFF Time button from 1 hour to 7 hours.
Timer control Setting
OFF TIMER CONTROL SETTING
Press the Start/Stop button.
The unit will respond with
a beep.
To select Heating Operation, press the Operation Mode
Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
Set the temperature higher than the room temperature.
The temperature can be set within a range of 16°C~30°C in
1°C increments.
Set the fan speed again with the door of the
remote control still closed. You can select
the fan speed in four steps–low, medium,
high, or CHAOS. Each time the button is
pressed, the fan speed mode is shifted.
Heating Operation(Heat pump model only)
1
2
3
4

10 Room Air Conditioner
Operating Instructions
or
or or
TIME
OFF hr.
TEMP.
❏During the JET COOL function at any moment, the A/C starts to blow the cool air at
extremely high speed for 30 minutes setting the room temp. automatically to 18°C. It is
especially used to cool the room temp. in the shortest time in a hot summer.
In heat pump mode the JET COOL function is not available.
❏ In order to return to the normal cooling mode from the JET COOL mode, you just press
either the operation mode selection button, airflow volume selection or temp. setting button
or the JET COOL button again.
NOTICE
Press the Start/Stop button.
The unit will respond with a beep.
Press the Jet Cool button to operate the
speed cooling mode and the unit will
operate in super high fan speed on cooling
mode for 30 minutes.
To cancel the Jet Cool mode, press the Jet Cool button
again or the fan speed button or the room temperature
setting button and the unit will operate in high fan speed on
cooling mode.
Jet Cool Operation
1
2
3
