1 Safety instructions
WARNING:
Servcng shall only be performed as recommended by the
equpment manufacturer. Mantenance and repar requrng the
assstance of other sklled personnel shall be carred out under
the supervson of the person competent n the use of flammable
refrgerants. For more detals, please refer to the “Informaton on
servcng" on "INSTALLATION MANUAL " (Ths s only requred for the
unt adopts R32/R290 Refrgerant)
Read safety precautions before installation
Incorrect installation due to ignoring instructions can
cause serious damage or injury.
The serousness of potental damage or njures s classfed as
Warning.
Warning
•Ths applance can be used by chldren aged from 8 years and above
and persons wth reduced physcal, sensory or mental capabltes
or lack of experence and knowledge f they have been gven
supervson or nstructon concernng use of the applance n a safe
way and understand the hazards nvolved. Chldren shall not play
wth the applance. Cleanng and user mantenance shall not be
made by chldren wthout supervson.
Installation warnings
•Ask an authorzed dealer to nstall ths ar condtoner. Inapproprate
nstallaton may cause water leakage, electrc shock, or fre.
•All repars, mantenance and relocaton of ths unt must be
performed by an authorzed servce techncan. Inapproprate
repars can lead to serous njury or product falure.

Splt-type room ar condtoner / User Manual 5 / 136 EN
Warnings for product use
•If an abnormal stuaton arses (lke a burnng smell), mmedately
turn off the unt and pull the power plug. Call your dealer for
nstructons to avod electrc shock, fre or njury.
•Do not nsert fngers, rods or other objects nto the ar nlet or
outlet. Ths may cause njury, snce the fan may be rotatng at hgh
speeds.
•Do not use flammable sprays such as har spray, lacquer or pant
near the unt. Ths may cause fre or combuston.
•Do not operate the ar condtoner n places near or around
combustble gases. Emtted gas may collect around the unt and
cause exploson.
•Do not operate the ar condtoner n a wet room (e.g., bathroom or
laundry room). Ths can cause electrcal shock and cause the product
to deterorate.
•Do not expose your body drectly to cool ar for a prolonged perod
of tme.
Electrical warnings
•Only use the specfed power cord. If the power cord s damaged, t
must be replaced by the manufacturer or certfed servce agent.
•Keep power plug clean. Remove any dust or grme that accumulates
on or around the plug. Drty plugs can cause fre or electrc shock.
•Do not pull power cord to unplug unt. Hold the plug frmly and pull
t from the outlet. Pullng drectly on the cord can damage t, whch
can lead to fre or electrc shock.
1 Safety instructions

6 / 136 EN Splt-type room ar condtoner / User Manual
•Do not use an extenson cord, manually extend the power cord, or
connect other applances to the same outlet as the ar condtoner.
Poor electrcal connectons, poor nsulaton, and nsuffcent voltage
can cause fre.
Cleaning and maintenance warnings
•Turn off the devce and pull the plug before cleanng. Falure to do
so can cause electrcal shock.
•Do not clean the ar condtoner wth excessve amounts of water.
•Do not clean the ar condtoner wth combustble cleanng agents.
Combustble cleanng agents can cause fre or deformaton.
Warning
•If the ar condtoner s used together wth burners or other heatng
devces, thoroughly ventlate the room to avod oxygen defcency.
•Turn off the ar condtoner and unplug the unt f you are not gong
to use t for a long tme.
•Turn off and unplug the unt durng storms.
•Make sure that water condensaton can dran unhndered from the
unt.
•Do not operate the ar condtoner wth wet hands. Ths may cause
electrc shock.
•Do not use devce for any other purpose than ts ntended use.
•Do not clmb onto or place objects on top of the outdoor unt.
•Do not allow the ar condtoner to operate for long perods of tme
wth doors or wndows open, or f the humdty s very hgh.
1 Safety instructions

Splt-type room ar condtoner / User Manual 7 / 136 EN
2.1 Unit parts
1
2
3
4
5
6
7
1. Front Panel
2. Dsplay wndow
3. Power Cable (Some Unts)
4. Remote control Holder (Some Unts)
5. Remote Control
6. Functonal Flter (On Front of Man Flter - Some Unts)
7. Louver
Display code meanings
“ ” for 3 seconds when:
•TIMER ON s set
•FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on
“ ” for 3 seconds when:
•TIMER OFF s sett
•FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off
“ ” when ant-cold ar feature s turned on
“ ” when defrostng
“ ” when unt s self-cleanng
“ ” when freeze protecton s turned on
2 Unit specifications and features

8 / 136 EN Splt-type room ar condtoner / User Manual
2 Unit specifications and features
" " when wreless Control feature s actvated (some unts)
" " When ECO functon(optonal) s actvated, the ' ' llumnates gradually one by one as -- --
--set temperature-- ...... n one second nterval.
In Fan mode, the unt wll dsplay the room temperature.
In other modes, the unt wll dsplay your temperature settng.
C
Note: A guide on using the infrared remote is not included in this literature package.
2.2 Achieving optimal performance
Optmal performance for the COOL, HEAT, and DRY modes can be acheved n the followng
temperature ranges. When your ar condtoner s used outsde of these ranges, certan safety
protecton features wll actvate and cause the unt to perform less than optmally.
2.3 Inverter split type
COOL mode HEAT mode DRY mode
Room temperature 17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C
(5°F - 122°F)
(For models wth
low temp. coolng
systems.)
0°C - 60°C
(32°F - 140°F)
(For specal tropcal
models)
0°C - 60°C
(32°F - 140°F)
(For specal tropcal
models)
For outdoor units with auxiliary electric heater
When outsde temperature s below 0°C (32°F ), we strongly recommend keepng the unt plugged n
at all tme to ensure smooth ongong performance.

Splt-type room ar condtoner / User Manual 9 / 136 EN
2.4 Fixed-speed type
COOL mode HEAT mode DRY mode
Room
temperature 17° - 32°C (63° - 90°F) 0° - 30°C
(32° - 86°F)
10° - 32°C (50° - 90°F)
Outdoor
temperature
18° - 43°C (64° - 109°F)
-7° - 24°C
(19° - 75°F)
11° - 43°C (52° - 109°F)
-7° - 43°C (19° - 109°F)
(For models wth low-temp
coolng systems)
18° - 43°C (64° - 109°F)
18° - 54°C (64° - 129°F)
(For specal tropcal models)
18° - 54°C (64° - 129°F)
(For specal tropcal models)
To further optimize the performance of your unit, do the following:
•Keep doors and wndows closed.
•Lmt energy usage by usng TIMER ON and TIMER OFF functons.
•Do not block ar nlets or outlets.
•Regularly nspect and clean ar flters.
For a detaled explanaton of each functon, refer to the Remote Control Manual.
2.5 Other features
•Auto-restart
If the unt loses power, t wll automatcally restart wth the pror settngs once power has been
restored.
•Anti-mildew (some units)
When turnng off the unt from COOL, AUTO (COOL), or DRY modes, the ar condtoner wll contnue
operate at very low power to dry up condensed water and prevent mldew growth.
•Wireless control (some units)
Wreless control allows you to control your ar condtoner usng your moble phone and a Wreless
connecton.
•Louver angle memory (some units)
When turnng on your unt, the louver wll automatcally resume ts former angle.
•Refrigerant leakage detection (some units)
The ndoor unt wll automatcally dsplay “EC” when t detects refrgerant leakage.
For a detaled explanaton of your unt’s advanced functonalty (such as TURBO mode and ts self-
cleanng functons), refer to the Remote Control Manual.
2 Unit specifications and features

10 / 136 EN Splt-type room ar condtoner / User Manual
C
Note:
Illustratons n ths manual are for explanatory purposes. The actual shape of your
ndoor unt may be slghtly dfferent. The actual shape shall preval.
•Setting angle of air flow
Setting vertical angle of air flow
Whle the unt s on, use the SWING/DIRECT button to set the drecton (vertcal angle) of arflow.
1. Press the SWING/DIRECT button once to actvate the louver. Each tme you press the button, t
wll adjust the louver by 6°. Press the button untl the drecton you prefer s reached.
2. To make the louver swng up and down contnuously, press and hold the SWING/DIRECT button
for 3 seconds. Press t agan to stop the automatc functon.
Setting horizontal angle of air flow
The horzontal angle of the arflow must be set manually. Grp the deflector rod (See Fig.B) and
manually adjust t to your preferred drecton.
For some units, the horzontal angle of the arflow can be set by remote control, please refer to the
Remote Control Manual.
C
Note on louver angles:
When usng COOL or DRY mode, do not set louver at too vertcal an angle for long
perods of tme. Ths can cause water to condense on the louver blade, whch wll drop
on your floor or furnshngs. (See Fig.A)
When usng COOL or HEAT mode, settng the louver at too vertcal an angle can reduce
the performance of the unt due to restrcted ar flow.
Do not move louver by hand. Ths wll cause the louver to become out of sync. If ths
occurs, turn off the unt and unplug t for a few seconds, then restart the unt. Ths wll

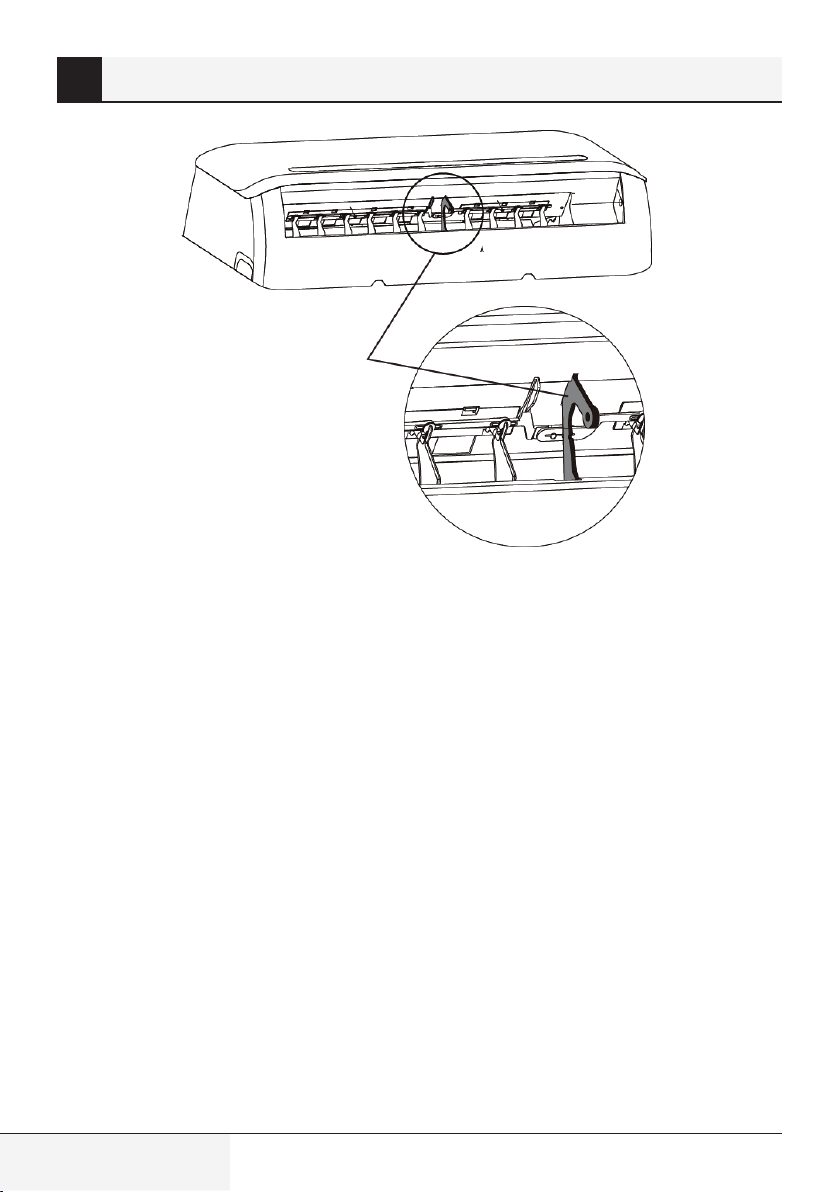

reset the louver.
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 11 / 136 EN
Range
Fig. A
A
Warning
Do not keep louver at too vertcal an angle for long perods of tme. Ths can cause
water condensaton to drp on yur furnshngs.
A
Warning
Do not put your fingers in or near the blower and suction side of the unit. The high-speed
fan inside the unit may cause injury.
2 Unit specifications and features

12 / 136 EN Splt-type room ar condtoner / User Manual
Deflector rod
Fig. B
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 13 / 136 EN
•Sleep operation
The SLEEP functon s used to decrease energy use whle you sleep (and don’t need the same
temperature settngs to stay comfortable). Ths functon can only be actvated va remote control.
Press the SLEEP button when you are ready to go to sleep. When n COOL mode, the unt wll ncrease
the temperature by 1°C (2°F) after 1 hour, and wll ncrease an addtonal 1°C (2°F) after another
hour. When n HEAT mode, the unt wll decrease the temperature by 1°C (2°F) after 1 hour, and wll
decrease an addtonal 1°C (2°F) after another hour.
It wll hold the new temperature for 5 hours, then the unt wll turn off automatcally.
C
Note: The SLEEP function is not available in FAN or DRY mode.
1hr 1hr
+/- 1 C/2 F +/- 1 C/2 F
SLEEP Operation
Set
temperature
7 hours
tmer off
Saving energy during sleep
2 Unit specifications and features

14 / 136 EN Splt-type room ar condtoner / User Manual
3.1 How to operate your unit without the remote control
In the event that your remote control fals to work, your unt can be operated manually wth the
MANUAL CONTROL button located on the ndoor unt. Note that manual operaton s not a long-term
soluton, and that operatng the unt wth your remote control s strongly recommended.
Before manual operation
Unt must be turned off before manual operaton.
To operate your unt manually:
1. Open the front panel of the ndoor unt.
2. Locate the MANUAL CONTROL button on the rght-hand sde of the unt.
3. Press the MANUAL CONTROL button one tme to actvate FORCED AUTO mode.
4. Press the MANUAL CONTROL button agan to actvate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a thrd tme to turn the unt off.
6. Close the front panel.
A
Warning
The manual button is intended for testing purposes and emergency operation only. Please
do not use this function unless the remote is lost and it is absolutely necessary. To restore
regular operation, use the remote control to activate the unit.
Manual control button
3 Manual operation (without remote)

Splt-type room ar condtoner / User Manual 15 / 136 EN
4.1 Cleaning your indoor unit
A
Before cleaning or maintenance
Always turn off your air conditioner system and disconnect its power
supply before cleaning or maintenance.
A
Warning
Only use a soft, dry cloth to wpe the unt clean. If the unt s especally drty, you can
use a cloth soaked n warm water to wpe t clean.
•Do not use chemcals or chemcally treated cloths to clean the unt.
•Do not use benzene, pant thnner, polshng powder or other solvents to clean the
unt. They can cause the plastc surface to crack or deform.
•Do not use water hotter than 40°C (104°F) to clean the front panel. Ths can cause
the panel to deform or become dscolored.
4.2 Cleaning your air filter
A clogged ar condtoner can reduce the coolng effcency of your unt, and can also be bad for your
health. Make sure to clean the flter once every two weeks.
1. Lft the front panel of the ndoor unt.
2. Grp the tab on the end of the flter, lft t up,then pull t towards yourself.
3. Now pull the flter out.
4. If your flter has a small ar freshenng flter, unclp t from the larger flter. Clean ths ar freshenng
flter wth a hand-held vacuum.
5. Clean the large ar flter wth warm, soapy water. Be sure to use a mld detergent.
6. Rnse the flter wth fresh water, then shake off excess water.
7. Dry t n a cool, dry place, and refran from exposng t to drect sunlght.
8. When dry, re-clp the ar freshenng flter to the larger flter, then slde t back nto the ndoor unt.
9. Close the front panel of the ndoor unt.
4 Care and maintenance

16 / 136 EN Splt-type room ar condtoner / User Manual
Flter Tabs
Remove ar freshenng flter from back of
larger flter (some unts)
A
Warning
Do not touch ar freshenng (Plasma) flter for at least 10 mnutes after turnng off the
unt.
4 Care and maintenance

Splt-type room ar condtoner / User Manual 17 / 136 EN
A
Warning
•Before changng the flter or cleanng, turn off the unt and dsconnect ts power supply.
•When removng flter, do not touch metal parts n the unt. The sharp metal edges can
cut you.
•Do not use water to clean the nsde of the ndoor unt. Ths can destroy nsulaton
and cause electrcal shock.
•Do not expose flter to drect sunlght when dryng. Ths can shrnk the flter.
4.3 Air filter reminders (optional)
4.3.1 Air filter cleaning reminder
After 240 hours of use, the dsplay wndow on the ndoor unt wll flash “CL.” Ths s a remnder to clean
your flter. After 15 seconds, the unt wll revert to ts prevous dsplay.
To reset the remnder, press the LED button on your remote control 4 tmes, or press the MANUAL
CONTROL button 3 tmes. If you don’t reset the remnder, the “CL” ndcator wll flash agan when you
restart the unt.
4.3.2 Air filter replacement reminder
After 2,880 hours of use, the dsplay wndow on the ndoor unt wll flash “nF.” Ths s a remnder to
replace your flter. After 15 seconds, the unt wll revert to ts prevous dsplay.
To reset the remnder, press the LED button on your remote control 4 tmes, or press the MANUAL
CONTROL button 3 tmes. If you don’t reset the remnder, the “nF” ndcator wll flash agan when you
restart the unt.
A
Warning
•Any mantenance and cleanng of outdoor unt should be performed by an authorzed
dealer or lcensed servce provder.
•Any unt repars should be performed by authorzed dealer or lcensed servce
provder.
4 Care and maintenance

18 / 136 EN Splt-type room ar condtoner / User Manual
4.4Maintenance – long periods of non-use
If you plan not to use your ar condtoner for an extended perod of tme, do the followng:
Clean all flters Turn on FAN functon untl
unt dres out completely
Turn off the unt and dsconnect the power Remove batteres from remote control
4 Care and maintenance

Splt-type room ar condtoner / User Manual 19 / 136 EN
4.5 Maintenance – pre-season inspection
After long perods of non-use, or before perods of frequent use, do the followng:
Check for damaged wres Clean all flters
Check for leaks Replace batteres
Make sure nothng s blockng all ar nlets and outlets
4 Care and maintenance

20 / 136 EN Splt-type room ar condtoner / User Manual
C
Safety precautions
If ANY of the followng condtons occurs, turn off your unt mmedately!
•The power cord s damaged or abnormally warm
•You smell a burnng odor
•The unt emts loud or abnormal sounds
•A power fuse blows or the crcut breaker frequently trps
•Water or other objects fall nto or out of the unt
Do not attempt to fix these yourself! Contact authorized service provider
immediately!
5.1 Common issues
The followng problems are not a malfuncton and n most stuatons wll not requre repars.
Issue Possible causes
Unit does not turn on
when pressing ON/
OFF button
The Unt has a 3-mnute protecton feature that prevents the unt from
overloadng. The unt cannot be restarted wthn three mnutes of beng
turned off.
The unit changes
from COOL/HEAT
mode to FAN mode
The unt may change ts settng to prevent frost from formng on the
unt. Once the temperature ncreases, the unt wll start operatng n the
prevously selected mode agan.
The set temperature has been reached, at whch pont the unt turns off
the compressor. The unt wll contnue operatng when the temperature
fluctuates agan.
The indoor unit emits
white mist In humd regons, a large temperature dfference between the room’s ar
and the condtoned ar can cause whte mst.
Both the indoor and
outdoor units emit
white mist
When the unt restarts n HEAT mode after defrostng, whte mst may
be emtted due to mosture generated from the defrostng process.
The indoor unit
makes noises
A rushng ar sound may occur when the louver resets ts poston.
A squeakng sound may occur after runnng the unt n HEAT mode due
to expanson and contracton of the unt’s plastc parts.
5 Troubleshooting
