Beko VRR 84314 VB User manual

User Manual
01M-8914953200-4023-02
01M-8914963200-4023-02
VRR 84314 VB
EN - FR - IT - PL - RO - SR
Robot Vacuum Cleaner

Please read this guide first!
Dear Customer,
Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency
from this high quality product which has been manufactured with the state of the art technology.
Please make sure you read and understand this guide and supplementary documentation fully
before use and keep it as a reference. Include this guide with the unit if you hand it over to
someone else. Observe all warnings and information herein and follow the instructions.
Symbols and their meanings
Following symbols have been used throughout this guide:
CImportant information and beneficial
advices regarding the usage of the
device.
AWARNING: Warnings about
dangerous situations regarding safety
of life and property.
Protection class against electric
shock.

Robot Vacuum / User Manual 3 / EN
CONTENTS
ENGLISH 04-31
FRANÇAIS 32-58
ITALIANO 59-88
POLSKI 89-118
ROMANIAN 119-148
SRPSKI 149-173

4 / EN Robot Vacuum / User Manual
This section contains safety
instructions to prevent hazards
that can result in injury or property
damage.
Any warranty is void if these
instructions are not followed.
1.1 General safety
• This appliance complies with
international safety standards.
• This appliance can be used by
children 8-years-old over 8 years
of age, people with physical,
sensory or mental challenges or
people with lack of experience
or knowledge; as long as control
is ensured or information is
provided regarding safe usage
of the device and the hazards
involved. Children must not play
with the appliance. Cleaning
and user maintenance should
not be carried out by unattended
children.
• Do not use the appliance if the
power cord or the appliance is
damaged. Contact authorised
service.
• Keep the appliance and its cable
out of the reach of children
under 8 years of age.
• Do not power your device with
multi socket.
• Your mains power supply should
be in align with the specified
information on the type tag of
the appliance.
• Do not use the appliance with
an extension cord.
• To prevent damage to the power
cord, prevent it from being
pinched, crimped or rubbed
against sharp edges.
• Do not touch the plug of the
appliance with damp or wet
hands while the appliance is
plugged in.
• Do not pull on the cord while
unplugging the appliance.
• Do not vacuum flammable
materials and ensure that the
cigarette ashes are cooled down
before vacuuming them.
• Do not vacuum water and other
fluids.
1 Important safety and environmental instructions

Robot Vacuum / User Manual 5 / EN
• Protect the appliance against
precipitation, humidity and heat
sources.
• Do not use the appliance in or
near explosive or flammable
environments and substances.
• Unplug the appliance before
cleaning and maintenance.
• This product is not designed for
commercial use,it is intended for
use at home and in applications
as follows:
– In the staff kitchens of the
stores, offices and other
working environments,
– In farm houses,
– By customers in
hotels, motels or other
accommodation facilities;
– In hostels, or similar
environments.
– Sleeping places and breakfast
environments
• Do not immerse the appliance
or its power cord in water for
cleaning.
• Do not disassemble the
appliance.
• Use only original parts or
parts recommended by the
manufacturer.
• To prevent blockage of the filter
or damage to the motor, do
not vacuum cement, plaster or
fragments of compressed paper.
• Use the appliance with the adapter
delivered with the appliance only.
• Do not use the appliance without
filters, it may get damaged.
• If you keep the packaging materi-
als, keep them out of the reach of
children.
• This appliance is not intended
to be used by persons, including
children, with physical, sensory
and mental disabilities or those
who have not adequate experi-
ence and knowledge regarding
its use, unless they are under the
supervision of a person responsi-
ble for their safety or they are in-
formed about the operation of the
appliance.
• The children shall be supervised
to prevent them from playing with
the appliance.
1 Important safety and environmental instructions

6 / EN Robot Vacuum / User Manual
1 Important safety and environmental instructions
• Unplug the adapter and remove the
battery pack before any cleaning
or maintenance procedure.
• To avoid any risk of hazard,
a damaged adapter shall be
replaced by the manufacturer,
the authorised representative of
the manufacturer or a similarly
qualified technician.
• Keep your fingers, hair and loose
clothes away from moving parts
or clearances while vacuuming.
• Please discard used batteries in
accordance with local laws and
regulations.
• The batteries in this appliance
may only be replaced by the
authorised service.
• Do not use batteries of different
types or old and new batteries
together.
• Do not short circuit the supply
terminals.
• Shall be used with ME1XXFG
CM 5000 mAh batteries only.
• This appliance shall not be
operated by children and people
with limited physical, sensory
and cognitive skills or people
with lack of experience and
knowledge unless they are under
supervision or they are provided
with the relevant instructions.
• The children shall be supervised
to prevent them from playing
with the appliance.
• Do not put weight on the
appliance. Make sure that the
children and domestic animals
do not get on the appliance.
• Do not run the appliance on high
grounds like table or chair.
1.2 Compliance with the WEEE
regulations and waste disposal
This product complies with EU WEEE
Directive (2012/19/EU). This product bears
a classification symbol for waste electrical
and electronic equipment (WEEE).
This symbol indicates that this product shall not be
disposed with other household wastes at the end
of its service life. Used device must be returned to
offical collection point for recycling of electrical and
electronic devices. To find these collection systems
please contact to your local authorities or retailer
where the product was puchased. Each household
performs important role in recovering and recycling
of old appliance. Appropriate disposal of used appli-
ance helps prevent potential negative consequenc-
es for the environment and human health.

Robot Vacuum / User Manual 7 / EN
1.3 Packaging information
The product's packaging is made of
recyclable materials, in accordance with
the National Legislation.
Do not dispose of the packaging waste with the
household waste or other wastes, dispose it to
the packaging collection areas specified by local
authorities.
1.4 Waste batteries
This symbol on rechargeable batteries/
batteries or on the packaging indicates
that the rechargeable battery/battery
may not be disposed of with regular
house hold rubbish.For certain recharge-
able batteries/batteries, this symbol may be
supplemented by a chemical symbol. Symbols for
mercury (Hg) or lead (Pb) are provided if the
rechargeable batteries/batteries contain more
than 0,0005 % mercury or more than 0,004 %
lead.
Rechargeable batteries/batteries, including those
which do not contain heavy metal, may not be dis-
posed of with household waste. Always dispose of
used batteries in accordance with local environ-
mental regulations. Make enquiries about the ap-
plicable disposal regulations where you live.
1.5 What to do for energy saving
•When using your appliance, adjust the speed
settings according to the surface, in order to
save energy.
•Normally, lower speeds are used when cleaning
hard surfaces while high speeds are used for
cleaning carpets.

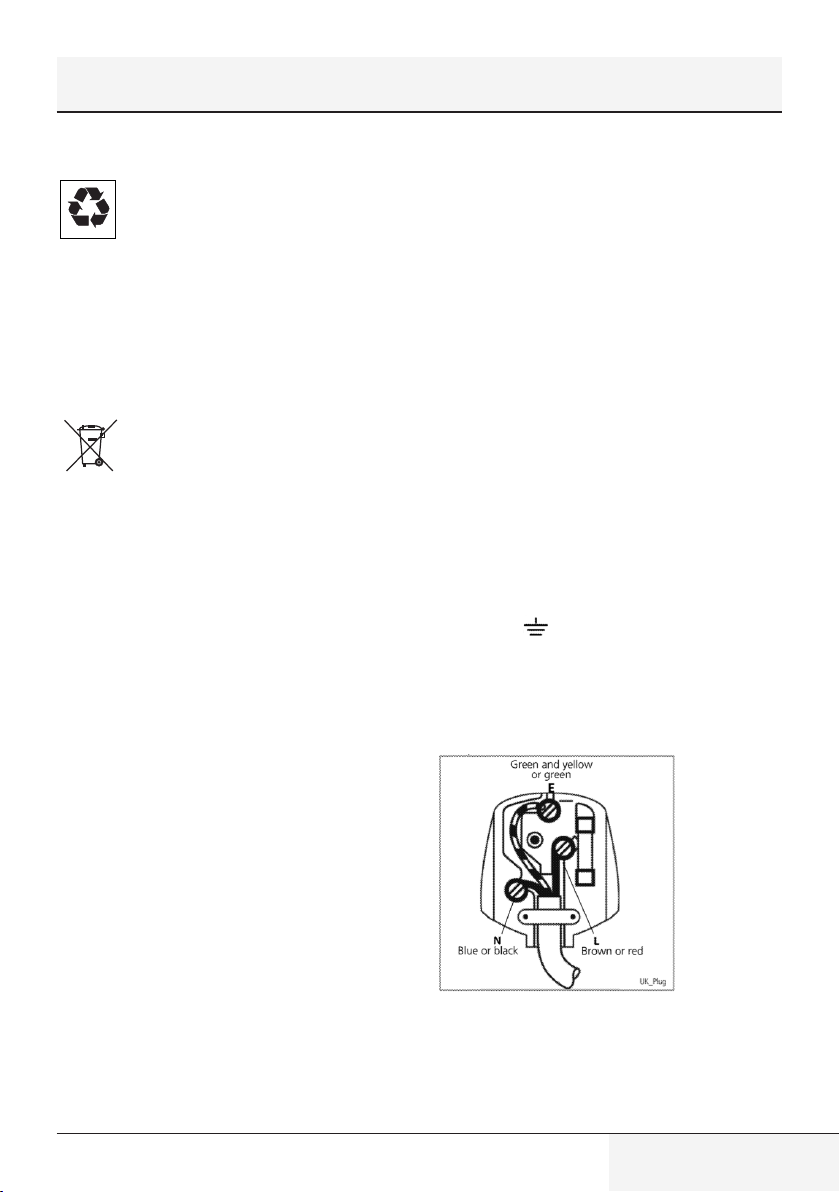

1.5 Plug Wiring
The moulded plug on this appliance incorporates
a 13 A fuse. Should the fuse need to be replaced
an ASTA approved BS1362 fuse of the same rating
must be used. Do not forget to refit the fuse cover.
In the event of losing the fuse cover, the plug must
not to be used until a replacement fuse cover has
been fitted. Colour of the replacement fuse cover
must be the same colour as that visible on the pin
face of the plug Fuse covers are availabe from any
.good electrical store
Fiting a different plug
•As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals on
your plug, proceed as follows:
•Brown cable = L (Live)
•Blue cable = N (Neutral)
•Green/yellow cable must be connected to
ground (E) line
•With the alternative plugs a 13 A fuse must be
fitted either in the plug or adaptore or in the
main fuse box. If in doubt contact a qualified
electrician.
1 Important safety and environmental instructions

8 / EN Robot Vacuum / User Manual
2 Box content
Robot Vacuum Charging dock Charge adaptor
Mopping clothMopping tool User’s manual and product
documentation (2 pcs) Cleaning brush
Spare accessories supplied
1 side brush
1 mopping cloth
1 filter

9 / EN
Robot Vacuum / User Manual

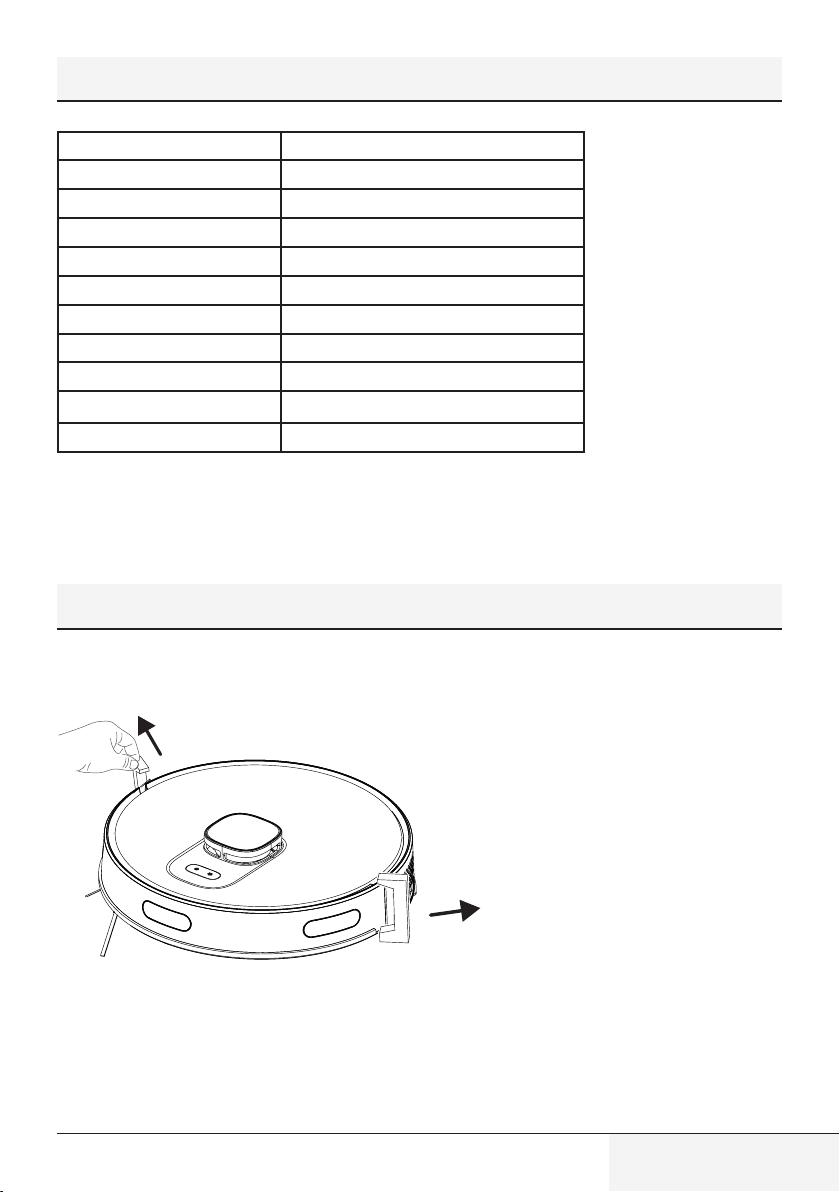

3 Overview
18
19
20
21
22
23
24
25
26
1
2
3
4
5
67
9
8
10
11
12
13
14
15
16
17

10 / EN Robot Vacuum / User Manual

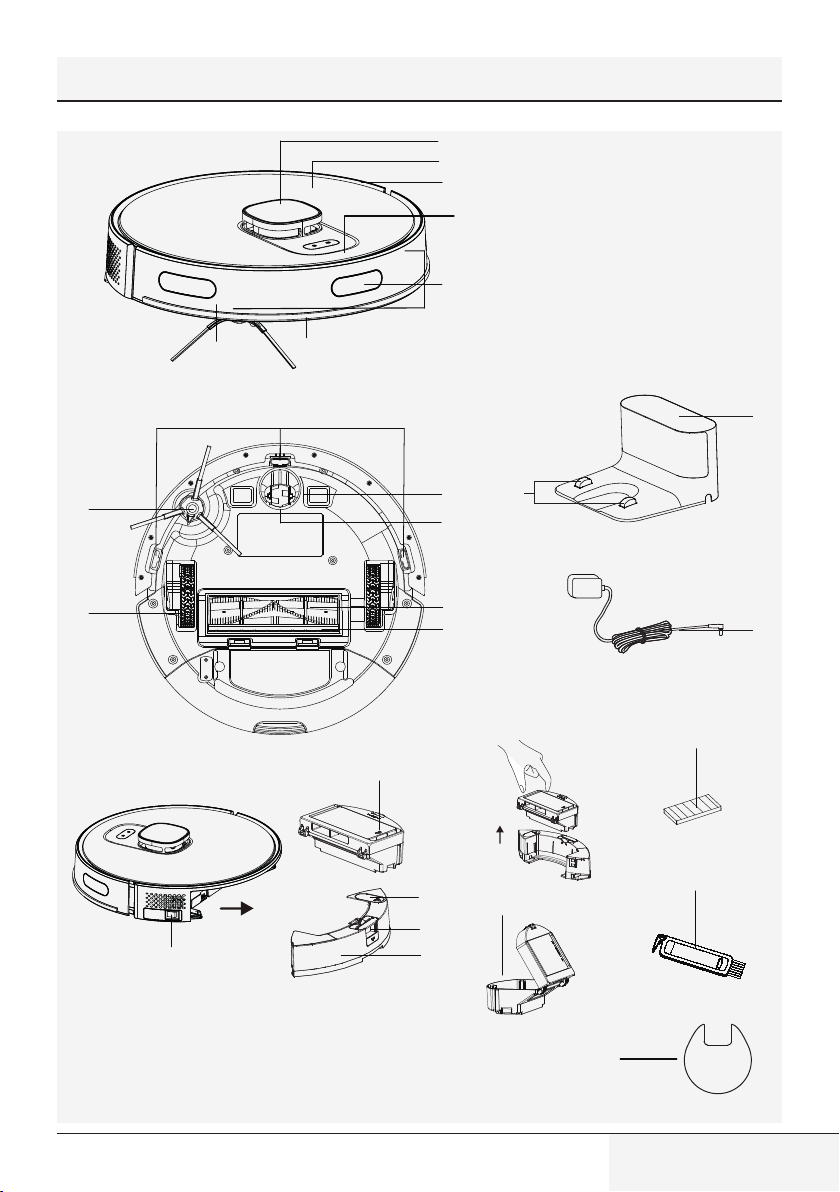

2.1 Checks and components
1. Lidar
2. Upper body
3. Central body
4. Start Cleaning-Pause Button /
Sending to Charging Stand button
5. Bumper sensor
6. Front bumper
7. Front bumper hitting sensor
8. Charging pins
9. Fall prevention sensor
10. Charging pins
11. Front rotating wheel
12. Rotating brush
13. Rotating brush cover
14. Rear wheel
15. Side brush
16. Charging dock
17. Charge adaptor
18. On/Off button
19. Robot vacuum container EPA filter
opening lid
20. Mop water container filling lid
21. Robot vacuum dust container ejec-
tion button
22. Mop water container
23. Dust container
24. EPA filter
25. Cleaning brush
26. Floor protection pad from wetness
2.2 Conformity declaration
for CE
Arçelik A.Ş. hereby declares that this
appliance complies with Directive
2014/53/EU. The complete text of
the EU declaration of conformity is
available in the following internet
address: – Products, from :beko.com
3 Overview
2.2 Technical data
Adapter voltage 100-240V~, 50-60 Hz
Adapter output 24 V 1.0 A
Battery Li-ion: 14.4V / 5.0 Ah
Charging period: 6 – 7.5 hours
Operation time Up to 250 minutes (in
mute position)
Dust container capacity 0.4 L
Water tank capacity 0.3 L
2.4G Wi-Fi frequency
range 2412-2472 MHz
Supported Connections WLAN IEEE 802.11 b/g/n
wireless
2.4G Wi-Fi maximum RF
output power 20 dBm
RF exposure information 2.4G Wi-Fi maximum
2.4G Wi-Fi maximum RF
output power 20 dBm
Operating time
Maximum: 65 mins
Powerful: 120 mins
Standard: 180 mins
Quiet: 250 mins
RF exposure information : The maximum allowed
exposure level is calculated according to the 20 cm
distance between the appliance and the human body. To
comply with the RF exposure condition, a distance of 20 cm
should be put between the appliance and the person.
The rights to make technical and design changes are
reserved.

11 / EN
Robot Vacuum / User Manual
3 Overview
Manufacturer E-TEK Electronics Manufactory Co., LTD
Model ID: ZD024D240100EU / ZD024D240100BS
Input Voltage: 100-240V~
Input Frequency 50-60Hz
Input Current 0.8A
Output Voltage 24.0V DC
Output Current 1.0A
Output Power: 24.0W
Average active efficiency 87.91%
Efficiency at low load (10%) 84.01%
Power under no load: 0.1W
4 Installation
1- Remove the protective sponges.

12 / EN Robot Vacuum / User Manual
4 Installation

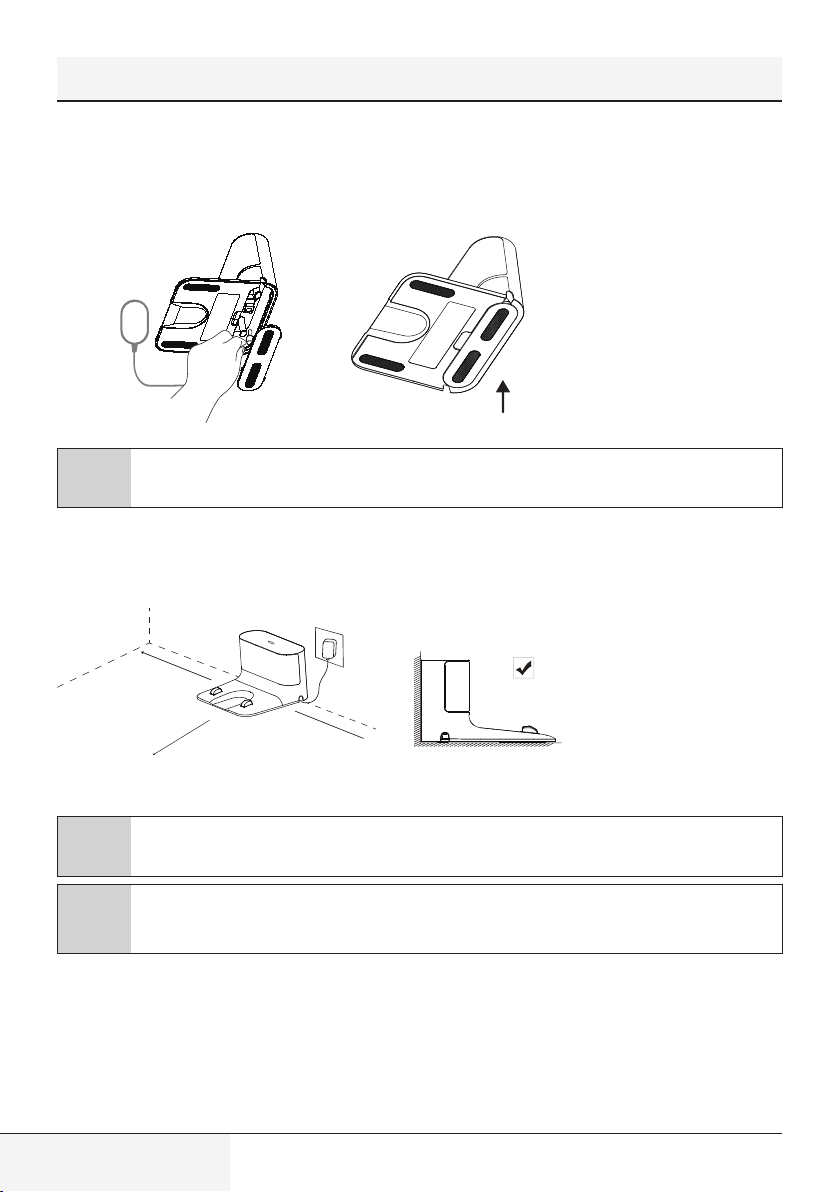

2- Install the charging station.
Install the adaptor plug to the charging station and set the cables up to prevent the adaptor cable from
wrapping around the machine during vacuuming.
0.5M 0.5M
1.5M
CInstall the charging station in a location where it can easily be accessed by the vacuum
cleaner. Install the charging station on a hard and level ground rather than a carpet.
To ensure a smooth operation of the robot, it is advised that no obstacles are present within 1.5 m on
the front and within 0.5 m on the left and right sides.
0.5M 0.5M
1.5M
CAlways keep the charging station plugged, otherwise the robot vacuum cleaner cannot
return to the charging station automatically.
CFor a smooth charging operation, do not move the charging station. When the location is
changed, it may delete the available map and create a new map due to the positioning error.

13 / EN
Robot Vacuum / User Manual
CPlease charge the machine before first use.
CIf the product will not be used for a long period of time; fully charge it then turn off the power
switch to preserve battery life.
The product should be recharged at least once every three months.
5.1 Intended use
This appliance is intended for household use and it is not suitable for industrial use.
5.2 Charging the appliance
1. Bring the on-off button on the side to the on position for the initial power up.
On/Off button
2. Place the appliance to the dust collection station so that it shall be aligned with the charging com-
munication pins.
5 Operation

14 / EN Robot Vacuum / User Manual
5 Operation
CCharging starts after the lighting indicator of charging station flashes 3 times and then it is
turned off completely.
5.3 Operation
For the first operation, bring the ON/OFF button on the side from “O” to “I” position. Press “ ” button
on the robot vacuum cleaner for 3 seconds to turn it on.
•Do not turn off the appliance using ON/OFF button directly during cleaning; otherwise the data of the
robot vacuum cleaner cannot be saved.
•If the ON/OFF button is on OFF position, the robot vacuum cleaner will be turned on automatically
when it is placed on the charging dock and turned off automatically when it is removed from the
charging dock.
•If the robot vacuum cleaner will not be used for a long period of time, bring the ON/OFF button to off
position.
Starting the cleaning
Press “ ” button to start the automatic cleaning mode. When it is started, the
robot vacuum cleaner is removed from the charging dock, performs an automatic
scan to create a map, determines the cleaning route in a smart way and divides the
area to several regions. The cleaning route is planned along the wall and the robot
vacuum cleaner moves forward and backward to clean different regions in order.
AWARNING: If the charging level is too low, the cleaning cannot be started. Please charge
the appliance before starting the cleaning.
AWARNING: Before the cleaning, tidy up all cables to prevent disconnections due to
entanglement/pulling of the cables and to prevent damage to the furniture.
AWARNING: In the automatic cleaning mode, if the area to be cleaned is less than 10
square meters, the cleaning is performed twice as default.
AWARNING: Do not move the charging dock during cleaning and make sure that the station
is plugged; otherwise the robot vacuum cleaner may not be able to return for recharging.
Pausing
Press “ ” button on the body to stop the robot vacuum cleaner while it is operating.The robot vacuum
cleaner switches to pause mode.

15 / EN
Robot Vacuum / User Manual
Automatic charging: The robot vacuum cleaner returns automatically to recharge after the cleaning
is completed.
Manual charging: The robot vacuum cleaner returns automatically to the charging station when you
press “ ” button on the upper body when it is in the pause position.
A. If the operation is paused, press “ ” button to recharge automatically.
B. If the robot vacuum cleaner is caught up anywhere and cannot find the charging dock, please move
the robot vacuum cleaner to the charging station yourself to allow it to be charged.
Point cleaning
Bring the robot vacuum cleaner to the area to be cleaned and press “ ” button
twice. When the mode is activated, the robot vacuum cleaner shall clean a square
area of 1.5 x 1.5 m by considering itself as the center.
•It cannot start the point cleaning operation from the charging dock. When the point cleaning is com-
pleted, it does not return to the charging station and remains in its position. Bring it to the charging
stand or move it to the charging stand by pressing “ ” button on the upper body.
Vacuum power selection
(Supported with the relevant mobile application only) You may select the desired cleaning power from
the application:
•Quiet
•Standard
•Powerful
•Maximum
Remote controlled cleaning
(Supported with the relevant mobile application only) You may direct the robot vacuum cleaner to the
area to be cleaned by using the manual remote control mode through the application.
Sleep
The robot vacuum cleaner switches to sleep mode automatically if it remains stationary for 10 minutes.
The robot vacuum cleaner switches to sleep mode automatically 10 minutes after it is completely
recharged. The sleep mode deactivates the current task.
Resetting the system
For APP account delete, the customer can press “remove the product and clear the account” button on
the APP to delete all the data on the APP and cloud like maps, clean histories, shared machine, WIFI
account password…etc.
5 Operation

16 / EN Robot Vacuum / User Manual
5 Operation
Press “ ” button for 15 seconds in standby position to reset the system.When the system is reset, the
map and the original settings (including virtual limits) on the robot vacuum cleaner are deleted.
5.3.1 Operation with the application
Download the application
To download the application, search for “HomeDirect-SDA” application in the mobile app store. Review
the mobile application manual for detailed information.
Reset Wi-Fi
Press “ ” “ ” buttons simultaneously until you hear the aural warning and see the light blinking.
Add a device
•Open the app, create a new account and follow the instructions in the application.
•Before setting up the Wi-Fi, ensure that the robot vacuum cleaner and the Wi-Fi network meet the
following requirements.
A. Robot Vacuum Cleaner:
•The charging level of the robot vacuum cleaner shall be over 20% or the robot vacuum cleaner shall
be placed on the charging dock.
B. Wi-Fi network:
•Make sure the password of your wireless network (modem) is correct.
•Do not use any VPN (Virtual private Network).
•Wi-Fi router shall support, 802.11b/g/n and IPv4 protocols.
•The router shall be in the 2.4GHz frequency band or a dual-band router that supports the 2.4GHz band
shall be used. The robot vacuum cleaner does not support the 5GHz frequency band.
•If the robot vacuum cleaner cannot connect the 2.4/5GHz dual-band Wi-Fi network, please select
2.4GHz network for Wi-Fi settings. You may switch back to the other frequency band when the setting
is completed.
•If you are connecting to a hidden network, please ensure that you enter the network name [SSID (sen-
sitive to capitalization)] correctly and that you are connected to a 2.4GHz wireless network.
•If you are using a wireless network extender, please ensure that the network name (SSID) and the
password are the same with the main network.

17 / EN
Robot Vacuum / User Manual
5 Operation
Wi-Fi connection error
Wi-Fi Status Root Cause Solution
White light is illuminated
continuously.
The robot vacuum cleaner is
connected to the router (mo-
dem), but it cannot connect to
the network.
•Ensure that the modem is con-
nected to the network.
•Contact your network operator
to see if there is a problem in
the internet data.
White light is flashing rapidly The robot vacuum cleaner can-
not connect to the modem
•Ensure that the network name
and the password are not
changed.
•Reset the Wi-Fi connection, if
required. Please refer to the
“Resetting Wi-Fi” section in the
“Downloading the Application
and Resetting the Wi-Fi” part
of this manual.
White light is flashing slowly. Wi-Fi is reset.
•Ensure the Wi-Fi connection
of the robot vacuum cleaner.
Please review the Mobile Ap-
plication Manual for detailed
directions. Reset the Wi-Fi
connection, if required. Please
refer to the “Resetting the Wi-
Fi” section of this manual

18 / EN Robot Vacuum / User Manual
5 Operation
Network security requirements:
Use TKIP, PSK and AES/CCMP encrypted WPA and WPA2 networks.
5.3.2 Operation modes
Map Management
A. Real time mapping
Real time creation of a house map may help you understand the cleaning route and the cleaning
environment easily. A map of the house is created after cleaning.The map is updated in real time during
each vacuuming operation to ensure a normal navigation. To create a complete house map;
a. Open the doors of your rooms for the robot vacuum cleaner to map each room;
b. Remove any objects that may cause obstruction or blockage of the robot vacuum cleaner;
c. Do not change the location of the charging dock or unplug it after the map is created.
B. Repositioning and remapping
If the robot vacuum cleaner is relocated or significant changes are made in the environment, the robot
vacuum cleaner tries to reposition to adapt to the new environment and may create the relevant map
again. The details are as follows:
a. If repositioning is successful, the robot vacuum cleaner continues on cleaning;
b. If repositioning is unsuccessful, the robot vacuum cleaner starts over to scan in order to make the
mapping again.
AWARNING: Ensure that the robot vacuum cleaner always starts the cleaning operation
from the charging dock.
During cleaning, do not intervene in the robot vacuum cleaner or change its location.

19 / EN
Robot Vacuum / User Manual
5 Operation
Room cleaning mode (Supported by the relevant mobile application only)
You may specify the rooms you want to be cleaned with the mobile application, then the robot vacuum
cleaner cleans only the room(s) that is/are marked in the map.
√A
C
√B
D
•The robot vacuum cleaner may also enter the areas other than the selected area after it starts clean-
ing; thus please remove the obstacles on the ground around the selected area. Area selection does
not provide a secure isolation.
•Regional cleaning may only be started after the robot vacuum cleaner successfully creates a map.
Regional cleaning mode (Supported by the relevant mobile application only)
X
CThe dimensions of the region can be determined by
holding from the right bottom corner. In the meantime,
the dimensions of the displayed area are written on the
screen with the dotted line.
Select regional cleaning mode in the application and then specify a cleaning area. The robot vacuum
cleaner only cleans the selected area and then returns to the charging dock.
•Regional cleaning may only be started after the robot vacuum cleaner successfully creates a map.
CRefer to the mobile application operation manual for detailed usage tips.

20 / EN Robot Vacuum / User Manual
5 Operation
5.4 Operation of the mop
AWARNING: Do not use the mopping mode on a carpet.
AWARNING: Do not put bleach or detergent in the water tank.These chemicals may damage
the liquid channels that ensure the water flow in the robot vacuum cleaner or the pump.
AWARNING: Remove the mopping unit while the robot vacuum cleaner is being charged or
when it is not operated.
AWARNING: Remove the mopping unit immediately after the mopping operation is
completed to prevent damage to your wooden floors.
AWARNING: The robot vacuum cleaner cuts off the water automatically when mopping
is paused or ended. However, the mop remains wet and thus it shall not be kept at this
condition for a long period and removed without delay.
5.4.1 Installation of the wet mopping unit
Remove the dust container and the
water tank assembly (2 in 1).
Remove the dust container.
Remove the rubber plug and
add water to the water tank
from the water inlet.
