Belimo WGVL/G6/G7 User manual

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA/CARIBBEAN
3
SUBJECT TO CHANGE. © BELIMO AIRCONTROLS (USA), INC.
INSTRUCTION MANUAL
WGVL/G6/G7 with EV and RV Series Actuators
5mm
1
1
2
4
AAB
B
AAB
AAB
1
7
1
2
5
4
2 3
3
1
2
5mm
2
!
3
!
6
8
Adaption
1
2
1
2
25 Nm
5 Nm

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA/CARIBBEAN
13

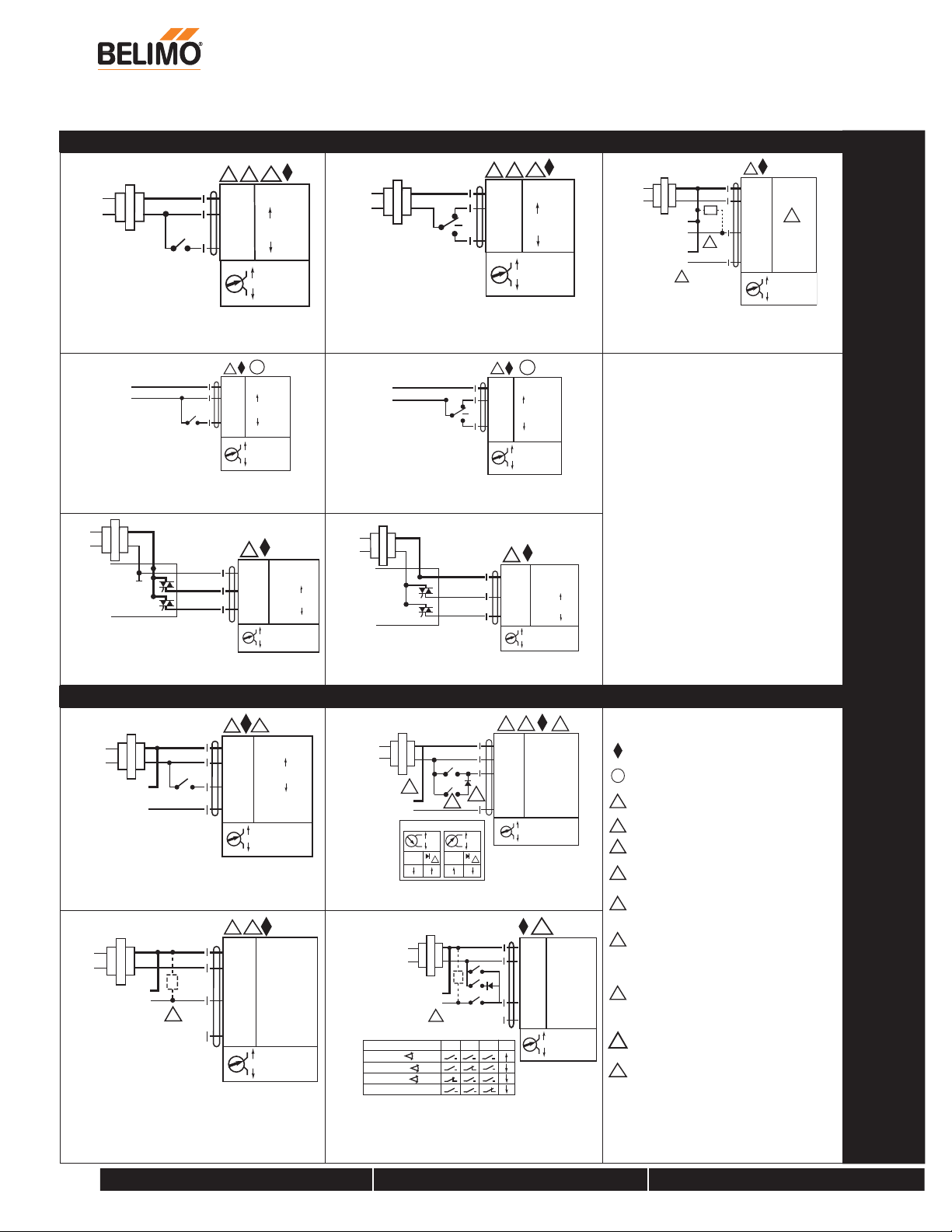

WIRING DIAGRAMS
INSTRUCTION MANUAL
EV Series Actuators
BLK
Black
Negro
Noir
Preto
RED
Red
Rojo
Rouge
Vermelho
WHT
White
Blanco
Blanc
Branco
PNK
Pink
Rosado
Rosa
Cor-de ros
ORG
Orange
Anaranjado
Orange
Alaranjado
BLU
Blue
Azul
Bleu
Azul
BRN
Brown
Marron
Brun
Marrom
Non-Spring Return Actuator with -3
2 3
24 VAC Transformer
Blk (1) Common
Red (2) +
Wht (3) +
Line
Volts
18 24 VAC Transformer
Blk (1) Common
Red (2) +
Wht (3) +
Line
Volts
2 3 18
Blk (1) Common
Red (2) + Hot
Wht (3)
Y Input, 2 to 10V
Org (5) U Output, 2 to 10V
24 VAC Transformer
5
7
Control Signal (+)
VDC/mA
(–)
Feedback Signal (+)
2 to 10 VDC (–)
Ω
500 Ω
Line
Volts
3
18
On/Off Floating Point VDC / 4 to 20 mA
2
100 to 240 VAC
Blu (1) Common
Brn (2) +
Wht (3) +
N L1
H L2
–
A
Line
Hot
2
100 to 240 VAC
Blu (1) Common
Brn (2) +
Wht (3) +
N L1
H L2
A
Line
Hot
On/Off Floating Point
Com
2
24 VAC Transformer (AC only)
Blk (1) – Common
Red (2) + Hot
Wht (3) Y1Input
Line
Volts
Hot
Controller
2
24 VAC Transformer (AC only)
Blk (1) – Common
Red (2) + Hot
Wht (3) Y1Input
Line
Volts
Hot
Controller
Com
Triac Sink Triac Source
Non-Spring Return Actuator with MFT
18
Blk (1) Common
Red (2) Hot
Wht (3) Y Input
Org (5) U Output
Line
Volts
24 VAC Transformer
2 to 10 VDC
Feedback Signal (+)
(–)
3
Line
Volts
(–)
(+)
24 VAC Transformer
Blk (1) – Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output 2 to 10V
AB
18 AB
Direction of rotation switch
A
B
2
9
8
10
12
Feedback Signal
2 to 10 VDC
18
18
Notes:
On/Off Floating Point
7
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input, 2 to 10V
Org (5) U Output, 2 to 10V
(–)
(+)
Line
Volts
24 VAC Transformer
Ω500 Ω
1/4 watt
318
Control Signal
VDC/mA
18
Functions
0%
50%
100%
Control mode acc. to Y
Min*
Mid*
Max*
Normal**
* Default selectable 0-100%. See Configuration Data Sheet.
** Customizable. See Configuration Data Sheet.
abc
500 Ω
Ω
Blk (1) Common
Red (2) + Hot
Org (5)
Wht (3) Y1Input, 2 to 10V
(–)
(+)
Line
Volts
24 VAC Transformer (AC Only)
7
B
C
A
1/4 watt
VDC/mA
Control Signal
VDC / 4 to 20 mA Override Control Min, Mid, Max Postions
Meets cULus requirements without the need of an
electrical ground connection
AActuators with appliance cables are numbered.
2Actuators may be connected in parallel. Power
consumption and input impedance must be observed.
3Actuators may also be powered by 24 VDC.
5Only connect common to neg. (-) leg of control circuits.
7A 500 Ω resistor converts the 4 to 20 mA control signal
to 2 to 10 VDC.
8Control signal may be pulsed from either the Hot
(Source) or Common (Sink) 24 VAC line.
9
Contact closures A & B also can be triacs. A & B should
both be closed for the triac source and open for triac
sink.
10
For triac sink the Common connection from the actuator
must be connected to the Hot connection of the
controller. Position feedback cannot be used with a triac
sink controller. The actuator internal common reference
is not compatible.
12
12
IN4004 or IN4007 diode. (IN4007 supplied, Belimo Part
number 40155)
18 Actuators with plenum rated cable do not have numbers
on wires; use color codes instead.

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA/CARIBBEAN
14
WIRING DIAGRAMS
INSTRUCTION MANUAL
RV Series Actuators
BLK
Black
Negro
Noir
Preto
RED
Red
Rojo
Rouge
Vermelho
WHT
White
Blanco
Blanc
Branco
PNK
Pink
Rosado
Rosa
Cor-de ros
ORG
Orange
Anaranjado
Orange
Alaranjado
BLU
Blue
Azul
Bleu
Azul
BRN
Brown
Marron
Brun
Marrom
Non-Spring Return Actuator with -3
18
Blk (1) Common
Red (2) Hot
Wht (3) Y Input
Org (5) U Output
Line
Volts
24 VAC Transformer
2 to 10 VDC
Feedback Signal (+)
(–)
3
Line
Volts
(–)
(+)
24 VAC Transformer
Blk (1) – Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output 2 to 10V
AB
18 AB
Direction of rotation switch
A
B
2
9
8
10
12
Feedback Signal
2 to 10 VDC
18
18
On/Off Floating Point
Non-Spring Return Actuator with MFT
18
Blk (1) Common
Red (2) Hot
Wht (3) Y Input
Org (5) U Output
Line
Volts
24 VAC Transformer
2 to 10 VDC
Feedback Signal (+)
(–)
3
Line
Volts
(–)
(+)
24 VAC Transformer
Blk (1) – Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output 2 to 10V
AB
18 AB
Direction of rotation switch
A
B
2
9
8
10
12
Feedback Signal
2 to 10 VDC
18
18
Notes:
On/Off Floating Point
7
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input, 2 to 10V
Org (5) U Output, 2 to 10V
(–)
(+)
Line
Volts
24 VAC Transformer
Ω500 Ω
1/4 watt
318
Control Signal
VDC/mA
18
Functions
0%
50%
100%
Control mode acc. to Y
Min*
Mid*
Max*
Normal**
* Default selectable 0-100%. See Configuration Data Sheet.
** Customizable. See Configuration Data Sheet.
abc
500 Ω
Ω
Blk (1) Common
Red (2) + Hot
Org (5)
Wht (3) Y1Input, 2 to 10V
(–)
(+)
Line
Volts
24 VAC Transformer (AC Only)
7
B
C
A
1/4 watt
VDC/mA
Control Signal
VDC / 4 to 20 mA Override Control Min, Mid, Max Postions
Meets cULus requirements without the need of an
electrical ground connection
2Actuators may be connected in parallel. Power
consumption and input impedance must be observed.
3Actuators may also be powered by 24 VDC.
7A 500 Ω resistor converts the 4 to 20 mA control signal
to 2 to 10 VDC.
8Control signal may be pulsed from either the Hot
(Source) or Common (Sink) 24 VAC line.
9
Contact closures A & B also can be triacs. A & B should
both be closed for the triac source and open for triac
sink.
10
For triac sink the Common connection from the actuator
must be connected to the Hot connection of the
controller. Position feedback cannot be used with a triac
sink controller. The actuator internal common reference
is not compatible.
12
12
IN4004 or IN4007 diode. (IN4007 supplied, Belimo Part
number 40155)
18 Actuators with plenum rated cable do not have numbers
on wires; use color codes instead.
