Thank you for purchasing the Belkin N1 Wireless Desktop Card. Now
you can take advantage of this great new technology and gain the
freedom to network your home and office computers wirelessly. This
Card allows you to connect a desktop computer to your network.
Please be sure to read through this User Manual completely, and
pay special attention to the section entitled “Placement of your
Wireless Networking Hardware for Optimal Performance”.
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all
the connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin wireless network:
• Mobility – you no longer need a dedicated “computer
room”—you can work on a networked laptop or desktop
computer anywhere within your wireless range
• Easy installation – Belkin Easy Installation Wizards make
setup simple
• Flexibility – set up and access printers, computers, and
other networking devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products
lets you expand your network to include devices such as printers
and gaming consoles
• No cabling required – you can spare the expense and hassle
of retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products

32
Introduction
32
Introduction
Placement of your Wireless Networking Hardware
for Optimal Performance
Your wireless connection will be stronger the closer your computer
is to your wireless router (or access point). Typical indoor operating
range for your wireless devices is between 100 and 200 feet. In the
same way, your wireless connection and performance will degrade
somewhat as the distance between your wireless router (or access
point) and connected devices increases. This may or may not be
noticeable to you. As you move farther from your wireless router
(or access point), connection speed may decrease. Factors that can
weaken signals simply by getting in the way of your network’s radio
waves are metal appliances or obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and 10 feet from the wireless router (or access
point) in order to see if distance is the problem. If difficulties persist
even at close range, please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating
at its maximum effectiveness, this checklist may help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection
point of your network, as close as possible to the center of your
wireless network devices.
To achieve the best wireless network coverage for your “wireless
clients,” (i.e. computers enabled by Belkin Wireless Notebook Cards,
Wireless Desktop Cards, and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas
are parallel to each other, and are positioned vertically (toward
the ceiling). If your wireless router (or access point) itself is
positioned vertically, point the antennas as much as possible
in an upward direction.
• In multistory homes, place the wireless router (or access point) on a
floor that is as close to the center of the home as possible. This may
mean placing the wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a
cordless 2.4GHz phone.

3
Introduction
Introduction
3
Introduction
section
1
2
3
4
5
6
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that
may emit radio “noise”, such as microwave ovens. Other objects that
can inhibit wireless communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path between
your computers and wireless router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending
to the above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router
(or access point) and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the farthest channel from your
wireless network as possible. For example, change the
phone to channel 1 and move your wireless router (or
access point) to channel 11. (Your channel selection will
vary depending on your region.) See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or
5GHz cordless phone.

4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that
can conflict with yours. Use the Site Survey capabilities of your Belkin
Wireless Networking Utility to locate any other wireless networks, and
move your wireless router (or access point) and computers to a channel
as far away from other networks as possible.
Experiment with more than one of the available channels in order to
find the clearest connection and avoid interference from neighboring
cordless phones or other wireless devices.
For more Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included in your
User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and
are used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online (AOL),
which lets you use AOL through broadband provided by another
cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by re-running the VPN
or AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power management
settings so it does not go to sleep; however, this may not be appropriate
for portable computers. To change your power management setting in
Windows, see the “Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and
AOL, please review steps 1–4 in the previous pages to be sure you
have addressed these issues.
These guidelines should allow you to cover the maximum possible area
with your wireless router. Should you need to cover an even wider area,
we suggest the Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support.
54
Introduction

Product Features
The Card complies with the IEEE draft-802.11n specification to
communicate with other draft-802.11n-compliant wireless devices at
speeds of up to 300Mbps*. The Card is also compatible with 802.11g
devices at 54Mbps as well as 802.11b products at 11Mbps. The Card
operates on the same 2.4GHz frequency band as 802.11b/g
Wi-Fi® products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Belkin Wireless Networking Utility
• PCI interface, for operation in virtually any desktop computer
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy),
or 128-bit encryption
• Wireless access to networked resources
• Data rate of up to 300Mbps* (draft 802.11n), 54Mbps
(802.11g), or 11Mbps (802.11b)
• Easy installation and use
• LED power and activity indicators
Overview
section
1
2
3
4
5
6
1
5
Introduction

76
76
Applications and Advantages
• Connection rates of up to 300Mbps*
Provides immediate high-speed wireless connectivity at home,
work, and hotspot locations without compromising the use of
existing 802.11b/g products
• Compatibility with 802.11b/g products
The Card is backward-compatible with existing Wi-Fi
(IEEE 802.11b/g) products
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls,
or open areas where wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO
users need
Product Specifications
Host Interface: 32-bit PCI
Power Consumption:
802.11b: TX 920mA @ 3.3V, RX 400mA @ 3.3V
802.11g: TX 1000mA @ 3.3V, RX 400mA @ 3.3V
802.11n: 20MHz operation, TX 1000mA @ 3.3V,
RX 400mA @ 3.3V
40MHz operation, TX 1070mA @ 3.3V,
RX 500mA @ 3.3V
Operating Temperature: 32—131 degrees F (0—55 degrees C)
Storage Temperature: -4—176 degrees F (-20—80 degrees C)
Humidity: Max. 90% (non-condensing)
Typical Operating Range: Up to 1,400 ft. (426.7m)**
* NOTE: The standard transmission rate–300Mbps–is the physical data rate.
Actual data throughput will be lower.
**Wireless performance may vary depending on the networking environment.
Overview

7
7
section
1
2
3
4
5
6
Overview

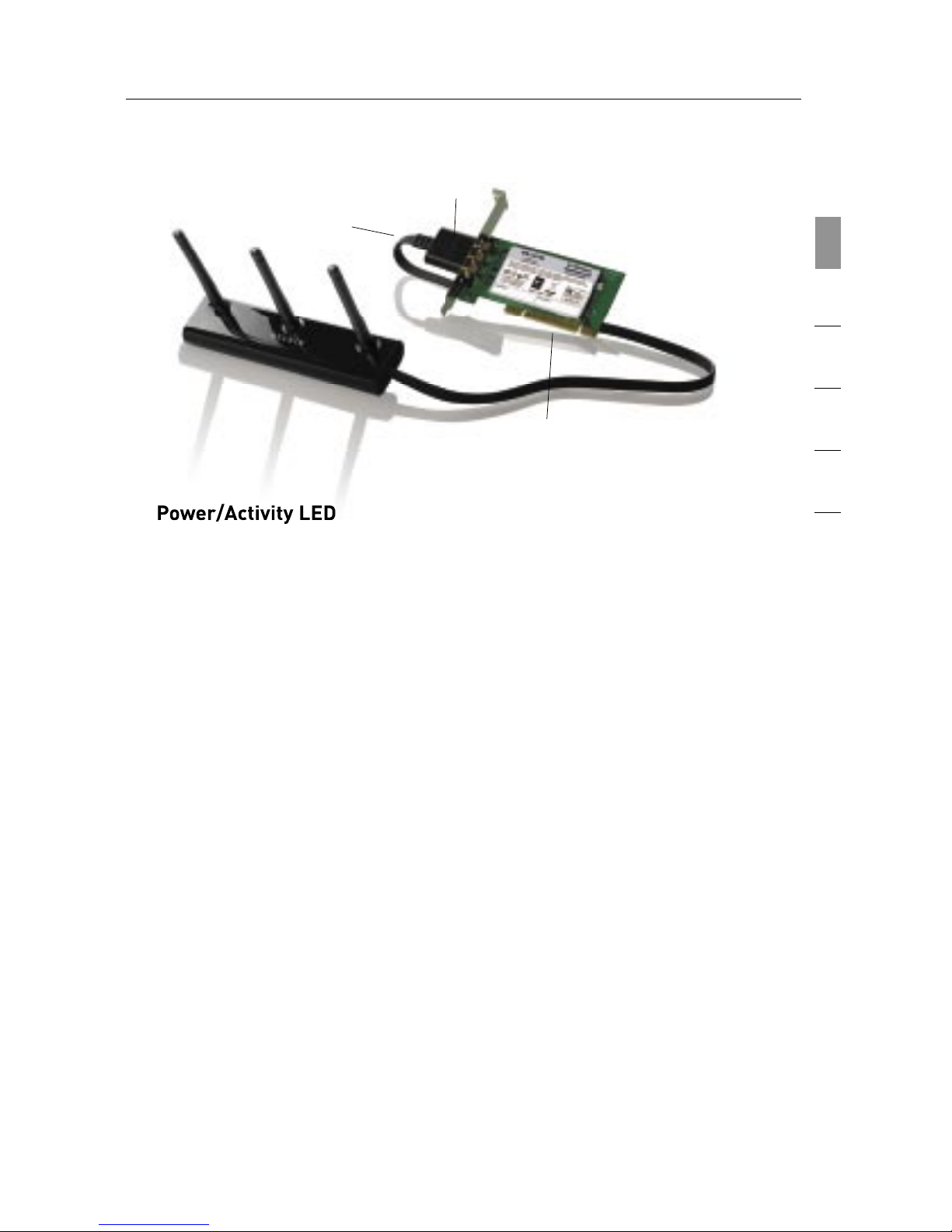

(a) Power/Activity LED
Lights up when the Card is powered on; flashes when wireless
activity is detected
(b) Card Connector
Part of the Card that fits into your computer’s PCI slot
(c) External Antenna Connector
Lets you connect to the cable from the external antenna
System Requirements
• PC-compatible desktop computer containing:
one available 32-bit PCI slot
• 128MB RAM or greater
• 500MHz processor or greater
• Windows® 2000 or XP
Package Contents
• N1 Wireless Desktop Card
• External Antenna with Cable
• Quick Installation Guide
• Installation Software CD
• User Manual
Power/Activity LED
(b)
(a)
(c)

98
Installing and Setting up the Card
98
Installing and Setting up the Card
Step 1 Install
IMPORTANT: Install the software before inserting the Card.
1.1 Insert the Installation Software CD into your CD-ROM drive.
1.2 1.2 The Belkin Wireless Card Installer screen will automatically appear.
(This may take 15–20 seconds.) Click “Install Software” or “Next”
to start the installation.
Note: If the Belkin Wireless Card Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer”
icon; then double-click on the CD-ROM drive into which the installation CD
has been placed. Double-click on the icon named “Setup.exe”.
1.3 The InstallShield Wizard will now
start. Click “Next” to continue.

9
Installing and Setting up the Card
9
section
1
2
3
4
5
6

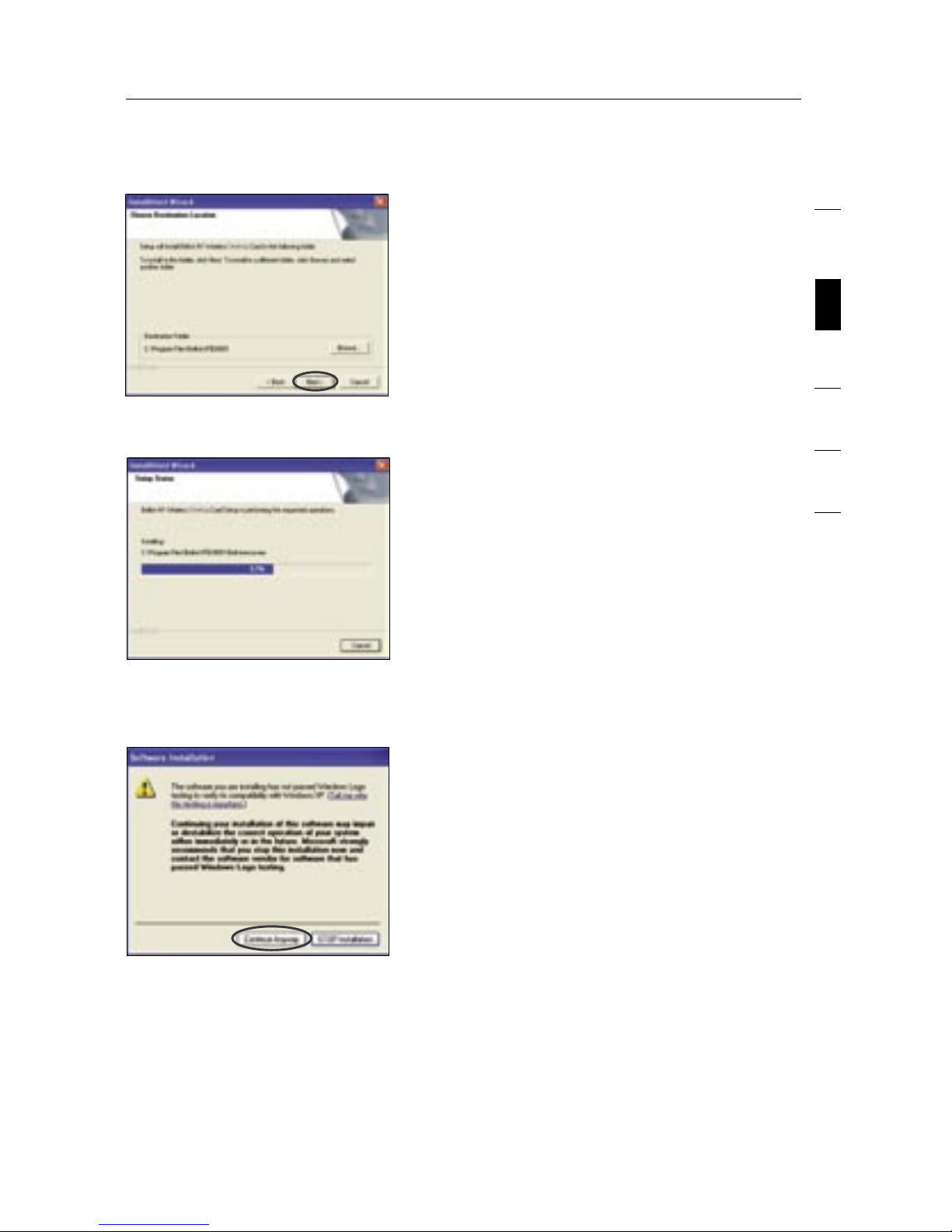

1.4 Choose a destination folder in
which to install the software,
or simply click “Next”.
1.5 The first in a series of
progress-monitoring screens
will let you know where you are
in the setup process.
1.6 You might see a screen similar to
this one. This DOES NOT mean
there is a problem. Our software has
been fully tested and is compatible
with this operating system. Select
“Continue Anyway” and follow the
on-screen instructions.

1110
Installing and Setting up the Card
1110
Installing and Setting up the Card
Step 2 Insert
Insert the Card into your Computer
2.1 Shut down your computer and disconnect your computer’s
power cord.
2.2 Remove the screws behind your computer case that secure
the computer cover and remove the cover.
2.3 Touch any metal part of the case to discharge static electricity,
to avoid damage to your product or the computer.
2.4 Locate an empty PCI expansion
slot (usually white in color).
Confirm that the Card will fit
into the slot you have chosen.
2.5 Remove the metal PCI bracket
from the back of the computer that
corresponds to the PCI slot you
selected. If there is a screw, place
it in a safe place, as you will be
using it to attach the Card to the
computer later.
2.6 Push the Card firmly into the PCI
slot that you have chosen.

11
Installing and Setting up the Card
11
section
1
2
3
4
5
6
2.7 Now secure the Card with the screw that you previously placed
in a safe place.
2.8 Replace the computer’s cover. Plug in the external antenna cable
to the connector on the back of the Card.
2.9 Now that the Card is installed, you can reconnect the power cord
and turn the computer back on.
Step 3 Finish
Finish Installation of the Card

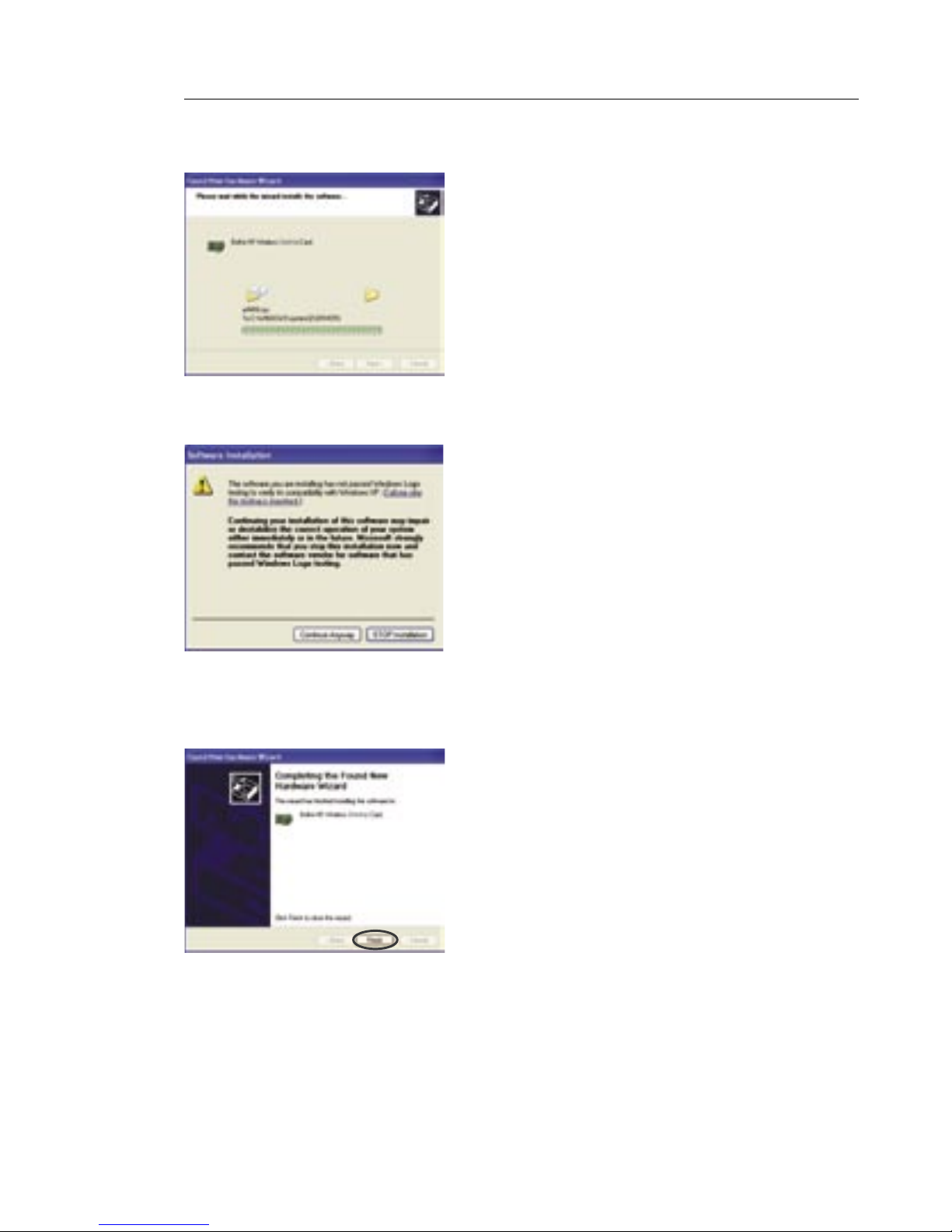

3.1 The Found New Hardware Wizard
will appear. (This may take 3–15
seconds.) Select “Yes, this time
only” and click “Next” to install
the hardware.
3.2 Select “Install the software
automatically” and “Next” to
install the hardware.

1312
Installing and Setting up the Card
1312
Installing and Setting up the Card
3.3 The Wizard will now install
your software.
3.4 You might see a screen similar
to this one. This DOES NOT
mean there is a problem. Our
software has been fully tested
and is compatible with this
operating system. Select “Continue
Anyway” and follow the on-screen
instructions.
3.5 The installation is now complete.
Click “Finish” to exit.

13
Installing and Setting up the Card
13
section
1
2
3
4
5
6
Step 4 Configure
Use the Belkin Wireless Networking Utility
4.1 After restarting your computer,
double-click the Belkin Wireless
Networking Utility icon on the
desktop screen.
4.2 The Belkin Wireless Networking
Utility screen will appear.
4.3 Select a network to connect to from
the “Available Networks” list and
click “Connect”.
Note: In order to see your available
networks, you must be near a working
wireless router or access point.
4.4 The Belkin Wireless Networking
Utility icon can also be found on
the system tray.
Note: Double-clicking on the Belkin
Wireless Networking Utility icon on
the system tray will bring up the
“Utility” screen.
Installation is now complete.

1514
Using the Belkin Wireless Networking Utility
1514
Using the Belkin Wireless Networking Utility
After successfully installing the Belkin Wireless Networking Utility
(WNU), configurations for wireless connection and security are just
a few easy clicks away.
Accessing the Belkin Wireless Networking Utility
from the Windows System Tray

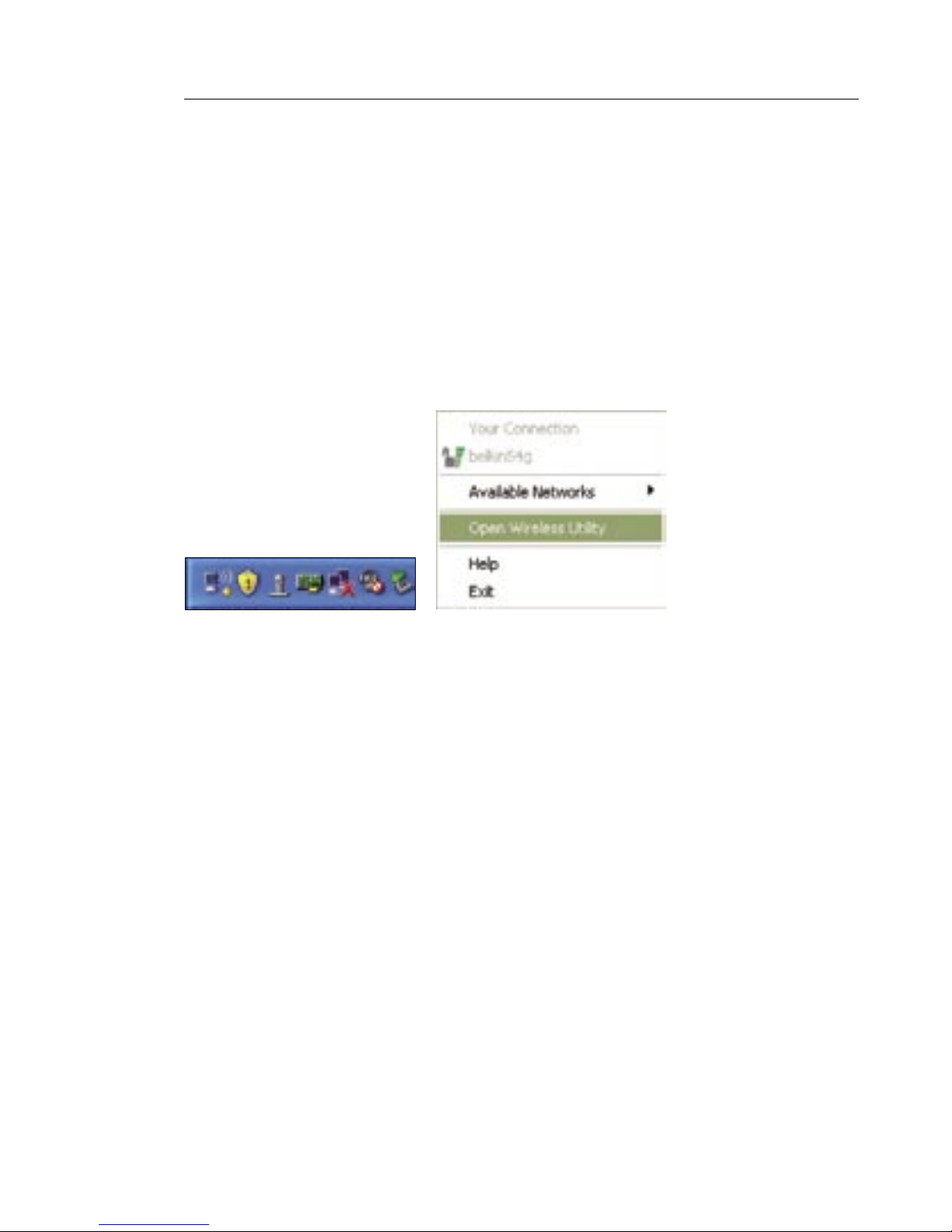

To access the WNU, simply place your mouse pointer and right-click
over the WNU icon on the Windows task tray.
If the icon is not present, click on “Start > Programs > Belkin >
Belkin Wireless Utility”.

15
Using the Belkin Wireless Networking Utility
15
section
1
2
3
4
5
6
The WNU’s default screen is the “Current Status” tab. The “Current
Status” tab displays the current Network Status and Available Networks.
Network Status
This window displays the connectivity status of the current network.
It even displays connectivity between the computer and router,
and router and Internet. In the event of a connectivity problem,
this window can be used to determine the problem’s source
(e.g. computer, router, or Internet/modem).
Available Networks
This window displays the available networks at the current
location as well as their SSID, Signal Strength, Security Type,
Channel, and Network Type.
Lost Wireless Connection
If the current wireless connection is lost, a window will pop up and the
WNU will attempt to reconnect.
