Congratulations on your purchase of this Belkin OmniView KVM Switch (the KVM
Switch). Our diverse line of KVM solutions exemplifies the Belkin commitment
to delivering high-quality, durable products at an affordable price. Designed to
give you control over multiple computers from one console, Belkin KVM switches
come in a variety of capacities suitable for all configurations, large or small. This
compact, affordable KVM switch is backed by a Belkin 3-Year Warranty and free
technical support.
This User Manual will provide details about your new PS/2 KVM Switch, from
installation and operation to troubleshooting—in the unlikely event of a problem.
Thank you for purchasing the Belkin OmniView PS/2 KVM Switch. We appreciate
your business and have confidence that you will soon see for yourself why Belkin
is the number-one-selling brand in KVM switches worldwide.
Introduction
Package Contents
+6-#ABLE+ITS
&$*0"/NLY
+6-#ABLE+ITS
&$*0"/NLY
/MNI6IEW03
+6-3WITCH
5SER-ANUAL 1)'
OmniView PS/2 KVM
Switch
2 KVM Cable Kits
(F1DJ102PeaB Only) 4 KVM Cable Kits
(F1DJ104PeaB Only)
User Manual QIG
P74529ea_F1DJ10xP_uk.indd 1 10/01/2008 10:37:38

2
Feature Overview
• HotKeys
Hot-key functionality allows you to select a desired port using designated key
commands. Control up to four computers, depending on the model, using
simple hot-key sequences on your keyboard. Full hot-key instructions and
commands are listed in this manual, on page 11.
• AutoScan
The AutoScan feature allows you to automatically scan and monitor the
activities of all connected computers, one by one.
• VideoResolution
The PS/2 KVM Switch supports video resolutions of up to 1920x1440 @ 75Hz.
• PushButton
A push button, conveniently located on the top panel of the PS/2 KVM Switch,
allows for simple, manual port selection.
• LEDDisplay
An LED display on the front panel of the PS/2 KVM Switch serves as a status
monitor. An LED illuminates to indicate the console that currently controls the
corresponding computer.
Overview
P74529ea_F1DJ10xP_uk.indd 2 10/01/2008 10:37:38

section
3
1
2
3
4
5
6
7
8
Overview
EquipmentRequirements
Cables:
Connecting the PS/2 KVM Switch to a computer requires a Belkin Cable Kit.
Belkin PS/2 Cable Kits:
F1D9000-XX (PS/2-style)
Belkin PS/2 All-in-One Cable Kits:
F3X1105bXX (PS/2-style)
(-XX denotes length in feet)
F1D9000bea06 (PS/2-style)
P74529ea_F1DJ10xP_uk.indd 3 10/01/2008 10:37:38

4
Overview
SystemRequirements
OS Platforms
The PS/2 KVM Switch is compatible with CPUs running on, but not limited to, the
following OS platforms:
• Windows®NT®, 2000, XP, Server 2003, or Vista™
• Microsoft®DOS 5.x and above
• Red Hat®Linux®8.x and above
• Novell®NetWare®5.x
Keyboards
• PS/2-compatible
• Supports 101-/102-/104-/106-standard-key keyboards
Mice
• PS/2-compatible mice (with PS/2 adapter) having 2, 3, 4, or 5 buttons
• PS/2-compatible wireless or optical mice
Monitors
• CRT
• LCD (with VGA support)
OptionalPowerSupply
An optional 9V DC, 600mA power supply is available. This is only required in rare
cases where the power output from the connected computer is not adequate to
power the KVM Switch.
P74529ea_F1DJ10xP_uk.indd 4 10/01/2008 10:37:38

1
2
3
4
5
6
7
8
section
5
Overview

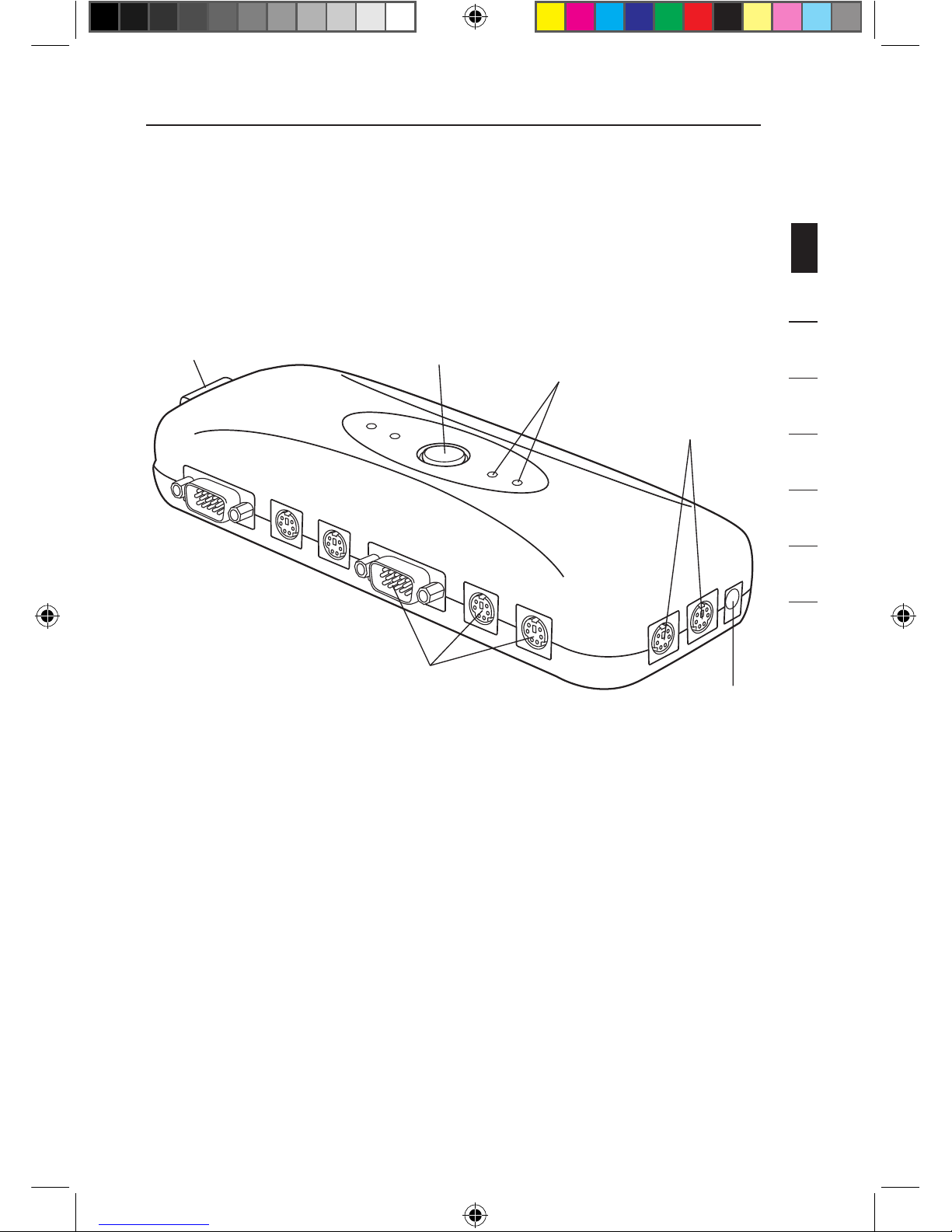

UnitDisplayDiagrams
4-Port PS/2 KVM Switch:
Port-Selector Button
Port Status LEDs
Console VGA Port
Computer Ports
Optional Power Jack
Console Keyboard and
Mouse Ports
P74529ea_F1DJ10xP_uk.indd 5 10/01/2008 10:37:39

Overview
Specifications
Part No.: F1DJ102P, F1DJ104P
Enclosure: High-impact plastic
Power: By PS/2 computer ports; optional 9V DC, 600mA
power adapter, center-pin-positive polarity
No. of Computers 2 and 4 respectively for 2- and 4-port models
Supported:
Monitors Supported: CRT and LCD (with VGA support)
Max. Resolution: Up to 1920x1440 @ 75Hz
Keyboard Input: PS/2 (miniDIN6)
Mouse Input: PS/2 (miniDIN6)
Monitor Port: VGA (HDDB15 female)
PC Ports: HDDB15 male, PS/2 (miniDIN6)
Operating Temp: 32° to 104° F (0~40° C)
Storage Temp: -4° to 140° F (20~60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 3 years
Dimensions: (F1DJ102P) 4.5 x 3.5 x 1.25 in.
(F1DJ104P) 7.75 x 3.5 x 1.25 in.
Weight: (F1DJ102P) 7.9oz.
(F1DJ104P) 4.8oz.
Note: Specifications are subject to change without notice.
P74529ea_F1DJ10xP_uk.indd 6 10/01/2008 10:37:39

1
2
3
4
5
6
7
8
section
7
Installation
Pre-Configuration
Where to Place the KVM Switch
The OmniView PS/2 KVM Switch is designed to sit on the desktop. Where you
place the KVM Switch will be based on the location of your CPUs and the length
of your cables.
ConsiderthefollowingwhendecidingwheretoplacetheKVM
Switch:
• whether or not you intend to use the port-selector button
• the lengths of the cables attached to your keyboard, monitor, and mouse
• the location of your computers in relation to your console
• the lengths of the cables you use to connect your computers to the KVM
Switch
Cable-DistanceRequirements:
ForPS/2Computers:
VGA signals transmit best up to 25 feet (7.6m). Beyond that length, the
probability of video degradation increases. For this reason, Belkin recommends
that the length of the cables between the KVM Switch and the connected
computers does not exceed 25 feet (7.6m).
Cautions and Warnings!
Avoid placing cables near fluorescent lights, air-conditioning equipment, or
machines that create electrical noise (e.g., vacuum cleaners).
P74529ea_F1DJ10xP_uk.indd 7 10/01/2008 10:37:39

8
Installation
Installation Guide
You are now ready to begin installation of your KVM Switch. The following sections
(pages8–10)providecompleteinstructionsforthehardwaresetup.
Before attempting to connect anything to the PS/2 KVM Switch or your computers,
ensure that everything is powered off. Plugging and unplugging cables while
computers are powered on may cause irreversible damage of the computers and/or
the KVM Switch. Belkin is not responsible for damage caused in this way.

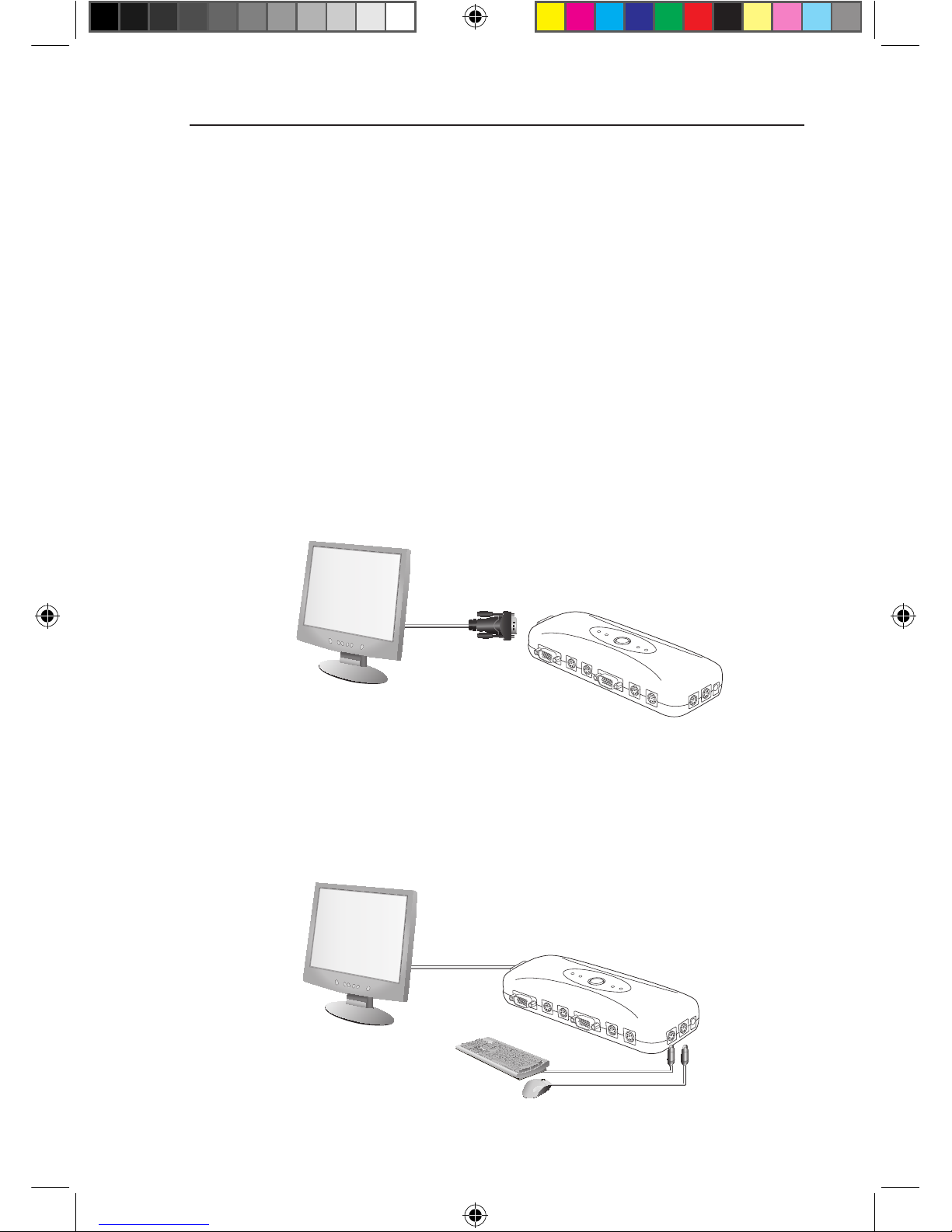

Keyboard, Monitor, and Mouse Connections
Connecting the Console
Step1
Connect the monitor to the PS/2 KVM Switch. Using the cable that is attached to
your monitor, connect it to the HDDB15 female port of the PS/2 KVM Switch labeled
“VGA Out”. (Refer to diagram below.)
Step2
Connect the PS/2 keyboard to the PURPLE keyboard port on the KVM Switch,
located on the same side as the optional power jack. (Refer to diagram below.)
Step3
Connect the PS/2 mouse to the GREEN mouse port on the front of the KVM Switch,
located on the same side as the optional power jack. (Refer to diagram below.)
You are ready to connect your computers.
P74529ea_F1DJ10xP_uk.indd 8 10/01/2008 10:37:41

1
2
3
4
5
6
7
8
section
9
Installation
ConnectingComputerstothePS/2KVMSwitch:
Step 1
Make sure your computer is powered off.
Step2
Using the Belkin PS/2 Cable Kit (F1D9000bea06), take the VGA cable and connect
the male end to the VGA port on the first computer. Connect the female end of the
cable to the PC1 port located on the long side of the KVM Switch.
(Refer to diagram below.)
Step3
Connect one end of the PS/2 keyboard KVM cable to the keyboard port on the
computer, and the other end to the PURPLE keyboard connector under the PC1
port located on the long side of the KVM Switch. (Refer to diagram below.)
Step4
Connect one end of the PS/2 mouse KVM cable to the mouse port on the computer,
and the other end to the GREEN mouse connector under the PC1 port located on
the long side of the KVM switch. (Refer to diagram below.)
Step 5
Power up your computer.
Step 6
Repeat Steps 1 through 5 for each additional PS/2 computer you wish to connect.
P74529ea_F1DJ10xP_uk.indd 9 10/01/2008 10:37:43

10
PoweringUptheSystems
Verify that all computers connected to the PS/2 KVM Switch are powered on.
If any connected computers have not been powered on, it is okay to do so at
this time (computers can be powered on simultaneously). The PS/2 KVM Switch
emulates both a mouse and keyboard on each port and allows your computer to
boot normally. Your PS/2 KVM Switch is ready to use.
The computer connected to port labeled “PC1” will be displayed on the
monitor. Check that the keyboard, monitor, and mouse are working normally.
Check all occupied ports to verify that all computers are connected and
responding correctly. If you encounter an error, check your cable connections
for that computer and reboot. If the problem persists, please refer to the
“Troubleshooting” section in this User Manual.
Installation
P74529ea_F1DJ10xP_uk.indd 10 10/01/2008 10:37:44

section
1
2
3
4
5
6
7
8
11
Using your PS/2 KVM Switch
SelectingaComputerUsingtheSelectorButton
You can cycle through the connected computers by pressing the selector button
or by using a hot-key command. The LED will be lit next to the port number to
indicate which port is currently selected. It takes approximately 1–2 seconds
for the video signal to refresh after switching computers. Re-synchronization
of the mouse and keyboard signals also occurs. This is normal operation and
ensures that proper synchronization is established between the console and the
connected computers.
SelectingaComputerUsingHot-KeyCommands
Switch to the next or previous port with simple keyboard hot-key sequences
using the “Scroll Lock” key, and either the “Up” or “Down” arrow keys. To send
commands to the KVM Switch, the “Scroll Lock” key must be pressed twice
within two seconds. The PS/2 KVM Switch will beep, confirming that it is in hot-
key mode. Next, press the “Up” arrow key and the PS/2 KVM Switch will switch
to the previous port. Press the “Down” arrow key to switch to the next port.
You can switch directly to any port by entering the number of the port you wish
to access. For example, if you press “Scroll Lock”, “Scroll Lock”, “2”, the KVM
Switch will switch to the computer connected on Port 2.
Note: You will have approximately four seconds to complete each hot-key
sequence.
Hl^iX]idcZmiVXi^kZedgi!
¹9dlcºVggdl
Hl^iX]idegZk^djhVXi^kZedgi!¹JeºVggdl#
Hl^iX]idedgi)
Hl^iX]idedgi'
P74529ea_F1DJ10xP_uk.indd 11 10/01/2008 10:37:44

12
Using your PS/2 KVM Switch
SelectingaComputerUsingthe
Port-Selector Button
You can select which computer you wish to control by pressing the port-selector
button. The LED will illuminate to indicate the port is currently selected.
LEDDisplay
The LEDs on the front panel of the PS/2 KVM Switch serves as a status
monitor. An LED illuminates to indicate that the console currently controls the
corresponding computer. As a port selector is pushed, the LED will light up
as you cycle through the ports. A flashing port LED indicates that there is no
computer connected to that port or that the computer connected is powered off.
The LED will also blink while the KVM Switch is in AutoScan mode.
Note: The port LED will remain solid for some computers that continuously
supply power to the keyboard PS/2 port, even while they are shut down.
AutoScan Mode
In AutoScan mode, the PS/2 KVM Switch remains on one active port for eight
seconds before switching to the next active port. This time interval cannot be
changed.
To activate the AutoScan function, press “Scroll Lock”, “Scroll Lock”, “S”. You
should hear two beeps.
To stop AutoScan, press the port-selector button on the top panel or any key on
the keyboard.
Note: There is no mouse or keyboard control in AutoScan mode. This is
necessary to prevent data and synchronization errors. If the user is using the
mouse or keyboard when the PS/2 KVM Switch is switching between ports, data
flow may become interrupted and could result in erratic mouse movement and/or
wrong-character input when using the keyboard.
Port-Selector Button
P74529ea_F1DJ10xP_uk.indd 12 10/01/2008 10:37:44

section
1
2
3
4
5
6
7
8
13
Using your PS/2 KVM Switch
KeyboardHot-Key-CommandShortcutReference
Below is a complete list of hot-key commands that can be used for your PS/2
KVM Switch:
Note: Each command needs to be preceded by “Scroll Lock”, “Scroll Lock”.
Command Function
Previous computer
Next computer
[1,2,3,4] Switch to port “x” (1, 2, 3, 4)
SActivates AutoScan
Note: You will have approximately three seconds to complete each hot-key
sequence.
P74529ea_F1DJ10xP_uk.indd 13 10/01/2008 10:37:45

14
Frequently Asked Questions
Q: Which operating systems does the PS/2 KVM Switch support?
A: The PS/2 KVM Switch will support any operating system that runs on a
PS/2 platform only. Operating systems include, but are not limited to, DOS;
Windows 2000, NT®, XP, Server 2003, Vista; and Linux.
Q: Can I connect USB computers on the host side?
A: No, the PS/2 KVM Switch will support PS/2 computers only.
Q: How far can the computer be from the KVM Switch?
A: The KVM Switch can be placed up to 25 feet away from your PS/2
computer.
Q: What is the maximum video resolution that the PS/2 KVM Switch
supports?
A: The advanced video circuit in the KVM Switch supports a maximum
resolution of up to 1920x1440 @ 75Hz.
Q: Do I have to install any software to use the KVM Switch?
A: No, the KVM Switch does not require any drivers or software to be installed
in your computers. Simply connect all your computers to the Belkin KVM
Cable Kits, and then attach one keyboard, monitor, and mouse to the
console port, and it is ready for use.
Q: Does the KVM Switch require an AC adapter?
A: No, the KVM Switch can be used in the majority of cases without an
external power adapter.
Q: Can I use the KVM Switch to switch video signals only?
A: No, the KVM Switch must be connected to both the video and keyboard/
mouse ports on your computers. The KVM Switch detects the power from
the PS/2 ports on your computers in order to function.
Q: Does the KVM Switch support Linux?
A: Yes, the KVM Switch works with Red Hat and other Linux distributions
configured for PS/2 support.
Q: How long is the warranty for the PS/2 KVM Switch?
A: The KVM Switch comes with a 3-Year Limited Warranty.
P74529ea_F1DJ10xP_uk.indd 14 10/01/2008 10:37:45

section
15
1
2
3
4
5
6
7
8
Troubleshooting
My computer does not boot up when connected to the KVM Switch, but
works fine when I connect the keyboard, video, and mouse directly to the
computer.
• Make sure that the keyboard and mouse cables are connected tightly between
the KVM Switch and the computer.
• Check that the keyboard and mouse cables are not crossed.
• Check the cable connections.
• Boot the computer with the port selected.
I am getting ghosting, shadowing, or fuzzy images on my monitor.
• Check that all video cables are inserted properly to the Cable Kit.
• Check that the monitor you are using supports the resolution and refresh-rate
setting on your computer.
• Lower the video resolution of your monitor.
• Check that the cable length does not exceed 25 feet.
• Check that the graphics card you are using supports the resolution and refresh-
rate setting on your computer.
• Connect the monitor directly into the computer with which you are having
trouble to see if the problem still appears.
I am getting a black screen on my monitor.
• Check that all video cables are inserted properly.
• Check that the keyboard cable is connected and inserted properly between the
computer and the appropriate port on the KVM Switch.
• Move the mouse and see if it is necessary to log in as a user.
• Connect your monitor directly to the computer to verify that your monitor is
functioning properly.
The computer does not detect a keyboard and I get a keyboard error
reported at boot up.
• Check that the keyboard cable on the KVM Switch is completely connected to
your computer. Tighten any loose connections.
• If you are using the keyboard software that was included with your keyboard,
uninstall it and then reinstall the standard Microsoft keyboard driver.
• Boot the computer with the port selected.
P74529ea_F1DJ10xP_uk.indd 15 10/01/2008 10:37:45

Troubleshooting
The mouse is lost when I switch to a different port.
• Check that the mouse you are using is connected properly to the console port of
the KVM Switch.
• Tighten any loose cable connections.
• If you are using a mouse driver that was included with your mouse, uninstall it and
install the standard Microsoft mouse driver.
• Make sure the mouse works when directly plugged into the computer.
• If the computer is coming out of standby mode, allow up to one minute to regain
mouse function.
• De-activate power-management schemes on the PC with which you are
experiencing problems.
• Try a different mouse.
The mouse is not detected at boot up.
• Check the cables and make sure that they are inserted correctly.
The computer boots up, but the mouse does not work.
• Make sure the mouse is plugged in properly.
• Make sure the mouse works when directly plugged into the computer. Rebooting
may be necessary when trying this.
• Try a different mouse.
• Boot the computer with the port selected.
When I switch from one port to another, mouse movement is completely
erratic.
• Make sure you do not have more than one mouse driver installed. Make sure that
the driver is either for a standard PS/2 or USB mouse, or a PS/2 mouse compatible
with Microsoft.
• Make sure you do not have any mouse drivers loaded in your “CONFIG.SYS” or
“AUTOEXEC.BAT” files.
• Avoid moving the mouse or pressing the mouse button when switching ports on
the KVM Switch.
• Do not switch ports while a computer is booting up.
P74529ea_F1DJ10xP_uk.indd 16 10/01/2008 10:37:45

1
2
3
4
5
6
7
8
section
17
Glossary
The following definitions are used throughout this User Manual.
AutoScan: A mode of operation where the KVM switch scans from one port to
another, on an ongoing basis, as configured by the user.
Console: The all-in-one term for the keyboard, video monitor, and mouse
connected to a KVM switch.
Console Port: Receptors for the console to connect to the KVM switch.
Control: When discussing switching between ports, control means that the
console is capable of sending input to the computer. Control requires that the
console also has focus on the port, and is viewing it.
KVM: Literally “Keyboard Video Mouse”, this term refers to technology that
allows two or more computers to be controlled by one keyboard, video monitor,
and mouse; some switches that use KVM technology enable sharing of other
peripherals such as audio speakers, microphones, and printers.
KVM Switch: A device that allows a user to access and control multiple
computers from a single console. It has at least one console port and multiple
computer ports.
Port: An interface receptor on a computer through which you can attach a device
or plug in a device cable.
P74529ea_F1DJ10xP_uk.indd 17 10/01/2008 10:37:45

Information
18
FCC Statement
CE Declaration of Conformity
We, Belkin International, Inc., declare under our sole responsibility that the
products F1DJ102P, F1DJ104P, to which this declaration relates, are in conformity
with Emissions Standard EN55022 and with Immunity Standard EN55024, LVP
EN61000-3-2, and EN61000-3-3.
ICES
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe B est conforme á la norme NMB-003 du Canada.
Belkin International, Inc., Limited 3-Year Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin
product that the product shall be free of defects in design, assembly, material, or
workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for three years.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to Belkin
for inspection upon Belkin’s request at the sole expense of the purchaser, or if
Belkin determines that the Belkin product has been improperly installed, altered in
any way, or tampered with. The Belkin Product Warranty does not protect against
acts of God such as flood, lightning, earthquake, war, vandalism, theft, normal-use
wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage
disturbances (i.e. brownouts or sags), non-authorized program, or system equipment
modification or alteration.
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 501 West Walnut Street, Compton CA
90220, declare under our sole responsibility that the products:
F1DJ102P, F1DJ104P
to which this declaration relates:
Comply with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
P74529ea_F1DJ10xP_uk.indd 18 10/01/2008 10:37:45
