Belkin OmniView SOHO F1DS104J User manual

User Manual
F1DS102J
F1DS104J
OmniView®SOHO KVM
Switch with Audio
PS/2 and USB Console and Host Support

Table of Contents
1. Introduction ............................................................................... 1
Package Contents.............................................................1
2. Overview...................................................................................... 2
Feature Overview ..............................................................2
Equipment Requirements ..................................................3
Unit Display Diagrams.......................................................4
Specifications ...................................................................5
3. Installing the KVM Switch ............................................................ 6
Pre-Configuration..............................................................6
Connecting the KVM Switch ..............................................7
Audio and Microphone Connections ..................................8
Powering Up the Systems .................................................9
4. Using the KVM Switch ................................................................ 10
Selecting a Computer Using
Direct-Access Port Selectors........................................... 10
Selecting a Computer Using
Keyboard Hot-Key Commands ........................................ 10
Hot-Key Preceding Sequence Configuration .................... 11
Quick-Reference Sheet ................................................... 12
Switching the Audio/Mic ................................................. 13
5. Firmware-Upgrade Guide .......................................................... 14
Upgrade Using the Windows Version Utility .....................14
Upgrade Using the Mac Version Utility.............................18
6. FAQs .......................................................................................... 24
7. Troubleshooting......................................................................... 26
Firmware-Upgrade Troubleshooting ................................. 30
8. Information................................................................................ 31

11
OmniView
SOHO KVM
Switch with Audio
2/4 SOHO
USB/PS2
Cable Kits, 6 ft.
User Manual Quick Installation
Guide
Power Supply
9V, 1.1A DC Adapter
1
2
3
4
5
6
7
8
section
Introduction
Congratulations on your purchase of the Belkin OmniView SOHO KVM Switch
with Audio. Our diverse line of quality KVM solutions exemplifies the Belkin
commitment to delivering high-quality, durable products at a competitive price.
Engineered to give you control over multiple computers/servers from one
console, Belkin KVM Switches come in a variety of capacities suitable for all
configurations, large or small. This compact, affordable Belkin OmniView KVM
Switch is backed by a Belkin 3-Year Warranty and free technical support.
This User Manual will provide details about your new Switch, from installation
and operation, to troubleshooting—in the unlikely event of a problem. For easy
installation, please refer to the Quick Installation Guide included with your
KVM Switch.
Thank you for purchasing the Belkin OmniView SOHO KVM Switch with Audio.
We appreciate your business and have confidence that you will soon see for
yourself why over 1 million Belkin OmniView KVM Switches are being
used worldwide.
Package Contents

2
Overview
Feature Overview
Video Resolution
The SOHO KVM Switch is able to support video resolutions of up to 2048x1536 so
you can use the latest in video display technology for all your computers.
Flash Upgrade
With the firmware-upgrade feature, your investment in the KVM Switch is further
ensured and its lifetime value is maximized. You don’t have to change your KVM
Switch to solve compatibility problems since you can solve them with easy
firmware upgrades. A special upgrade cable is not needed; you can use the same
KVM cable that connects your computer.
Speaker/Microphone Support
The SOHO KVM Switch allows you to share one set of speakers and one
microphone with all your computers, so you won’t need to unplug and reconnect
your speakers and microphone every time you switch access from one computer
to the next.
Direct-Access Port Selectors
Direct-access port selectors, conveniently located on the front face of the SOHO
KVM Switch, allow you to easily switch access from one computer to the next. You
can change the KVM port or the audio/mic using these buttons.
Cables
All the required cables are 6 feet in length and are included in the box for easier
installation. The cables are also smaller and easier to manage.
LED Display
There are two LEDs on each button. One indicates which port the KVM is on and
the other indicates which port the audio/mic is on.

3
1
2
3
4
5
6
7
8
section
Overview
Equipment Requirements
Operating Systems
OmniView SOHO KVM Switches with Audio are for use on CPUs using:
Platforms
Windows®2000, XP, 2000, Vista®, 2003
DOS
Linux®
Novell®NetWare®4.x/5.x
Mac OS®* X v10.x
*with USB support
Keyboards
Supports 101-/102-/104-/107-key keyboards
Mice
Mice with 2, 3, 4, or 5 buttons,
compatible with Microsoft®
Note: Mouse software is not supported
Monitor
VGA
SVGA
MultiSync®
Microphone
Multimedia microphone/stereo with 3.5mm connectors
Audio
Multimedia speaker/stereo with 3.5mm connectors
Power Supply
9V, 1.1A DC power supply is required

4
Overview
4

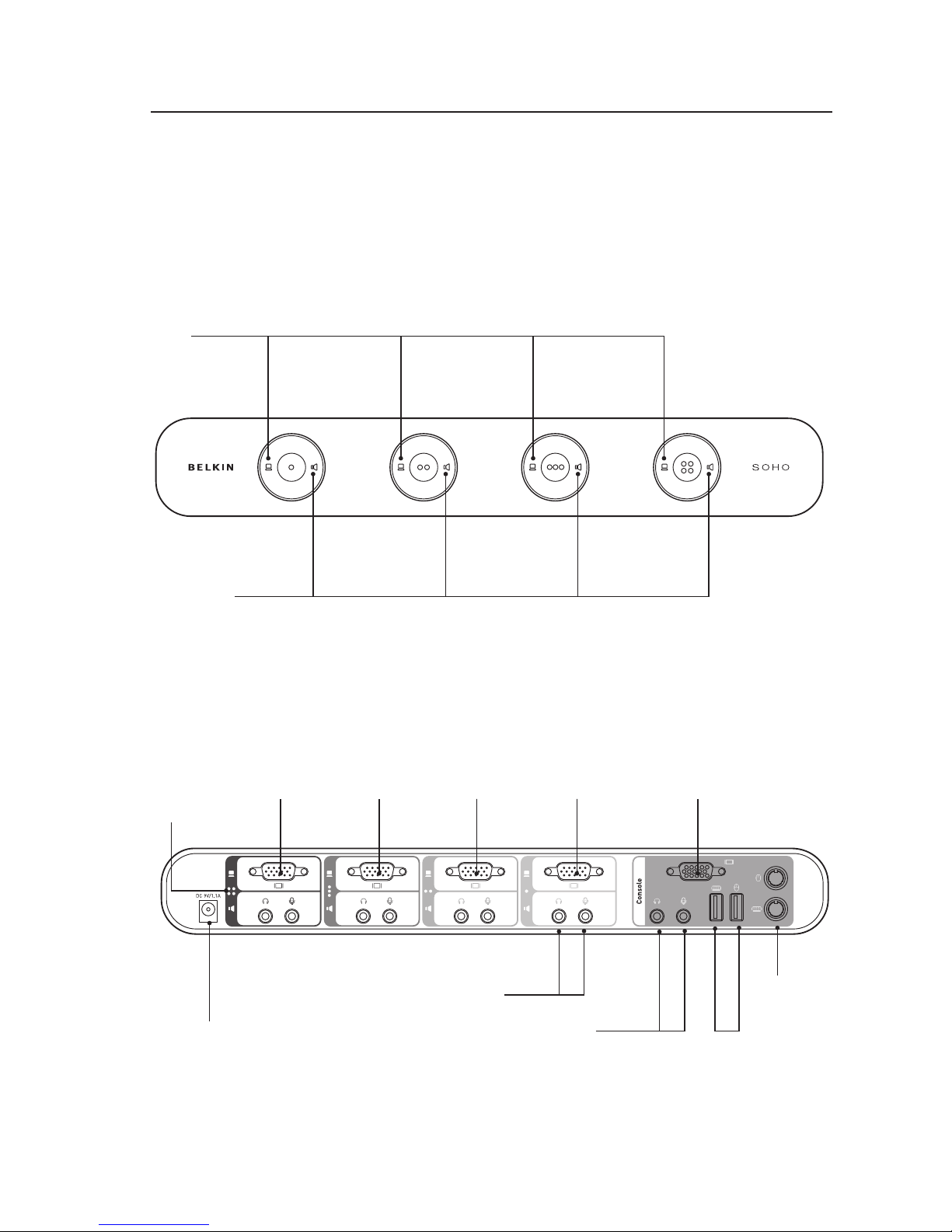

Unit Display Diagrams
Front View
Back View
KVM Soho VGA U-type 4 Port Enclosure
Print Graphics v.2.1 F1DS102L, F1DS104L
front panel
back panel
KVM Soho DVI 4 Port Enclosure
Print Graphics v.2.1 F1DD102L, F1DD104L
front panel
back panel
KVM Soho VGA T-type 4 Port Enclosure
Print Graphics v.2.1 F1DS102J, F1DS104J
front panel
back panel
Audio/Mic Switch
KVM Switch
KVM Soho VGA U-type 4 Port Enclosure
Print Graphics v.2.1 F1DS102L, F1DS104L
front panel
back panel
KVM Soho DVI 4 Port Enclosure
Print Graphics v.2.1 F1DD102L, F1DD104L
front panel
back panel
KVM Soho VGA T-type 4 Port Enclosure
Print Graphics v.2.1 F1DS102J, F1DS104J
front panel
back panel
DC Power Jack
1st Computer
Audio/Mic
Console Jacks Audio/Mic
Console Jacks USB Console
Port
PS/2
Console
Port
VGA Console
Port
1st Computer
Port
2nd Computer
Port
3rd Computer
Port
4th Computer
Port
Additional Computer Audio/Mic Console Jacks
Port Indicators

5
1
2
3
4
5
6
7
8
section
Overview
5
Specifications
Part No.: F1DS102J, F1DS104J
Power: 9V, 1.1A DC adapter with center pin-positive polarity
PCs Supported: 2 (F1DS102J), 4 (F1DS104J)
Console Keyboard: PS/2 & USB
Console Mouse: PS/2 & USB
Monitor Supported: VGA and SVGA MultiSync, LCD
Max Resolution: 2048x1536@85Hz
Audio Input/Output: 3.5mm jack
Microphone Input/Output: 3.5mm jack
VGA Port: 15-pin HDDB type
LED Indicators: 4 (F1DS102J), 8 (F1DS104J)
Enclosure: High-impact plastic
Dimensions: F1DS102J
12.5 (L) x 5.5 (W) x 5.5 (D) in.
(317.5 x 139.7 x 139.7mm)
F1DS104J
12.5 (L) x 5.5 (W) x 5.5 (D) in.
(317.5 x 139.7 x 139.7mm)
Weight: F1DS102J
1.48 lbs. (0.67kg)
F1DS104J
1.50 lbs. (0.68kg)
Operating Temp: 32° to 104° F (0° to 40° C)
Storage Temp: -4° to 140° F (-20° to 60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 3 years
Note: Specifications are subject to change without notice.

66
Installing the KVM Switch
Pre-Configuration
Where to Place the KVM Switch
The compact size of the KVM Switch makes it perfect for desktop placement.
Consider the following when deciding where to place the KVM Switch: whether
or not you intend to use the direct-access port selectors; the length of the cables
attached to your keyboard, mouse, and monitor; the location of your CPUs from
your console; and the length of the cables you use to connect your computers to
the KVM Switch.
Cable-Distance Requirements
For PS/2 computers: VGA signals are best retained when transmitted up to 25 feet
(7.6m). Beyond 25 feet (7.6m), probability of video degradation increases with an
increase in distance. For this reason, your PS/2 computer should be placed within
25 feet (7.6m) of the KVM Switch.
For USB computers: USB signals can be transmitted up to 15 feet (4.6m) between
the KVM Switch and the CPU. Beyond 15 feet (4.6m), probability of signal failure
is likely.
Cautions and Warnings
Avoid having cables near fluorescent lights, air-conditioning equipment, or
machines that create electrical noise (e.g., vacuum cleaners).
Single-Switch Installation
This section provides complete instructions for the hardware setup of a single KVM
Switch. (F1DS102J or F1DS104J)
Important Note: Before attempting to connect anything to the KVM Switch or
into your computer(s), make sure that everything is powered off. Plugging and
unplugging cables while computers are powered on may cause irreversible damage
to the computers and KVM Switch. Belkin will not be responsible for damage
caused by these actions.

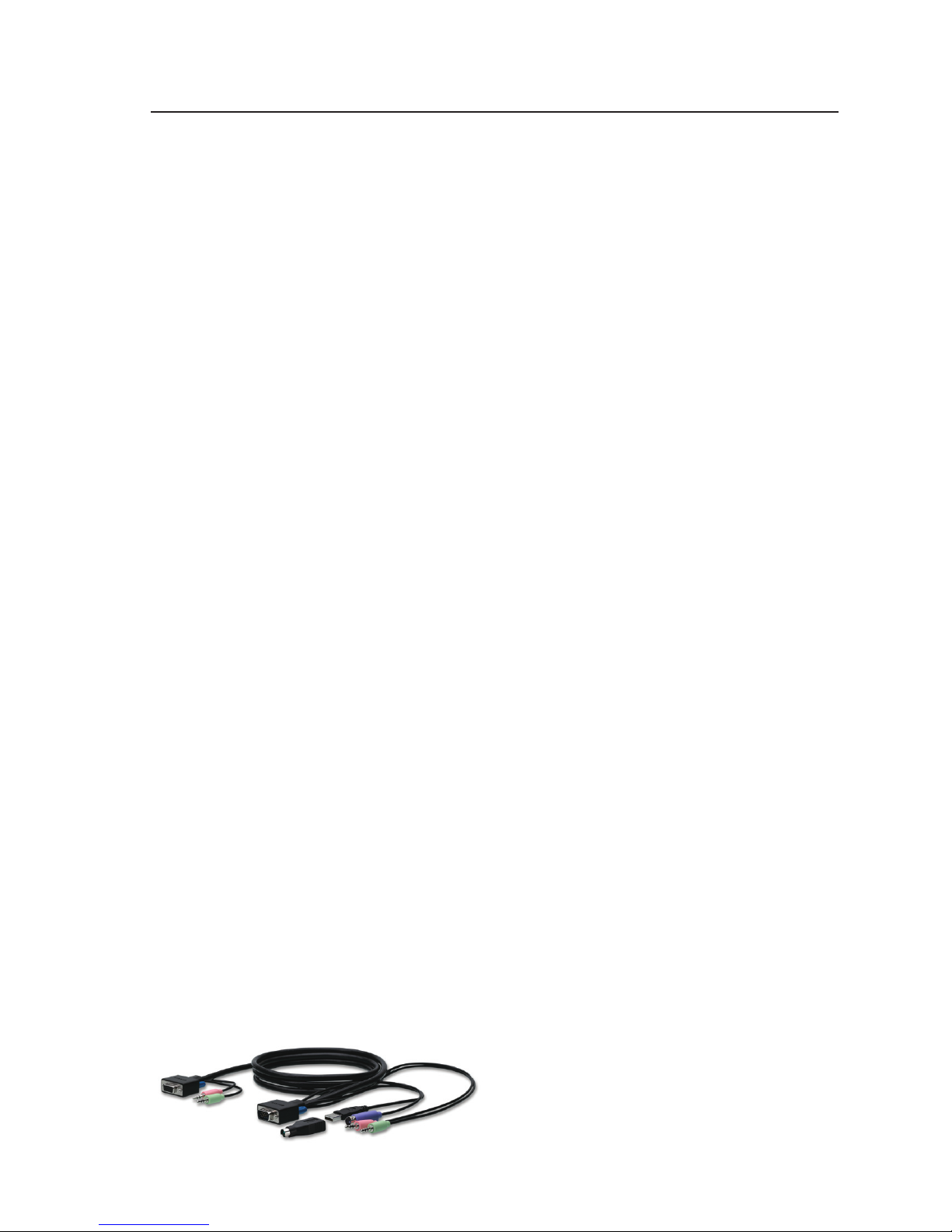

Cable/model types:
PS/2 and USB models use: VGA/USB/PS/2 combo cable connected to the USB or
PS/2 connector of the host PC

7
1
2
3
4
5
6
7
8
section
Installing the KVM Switch

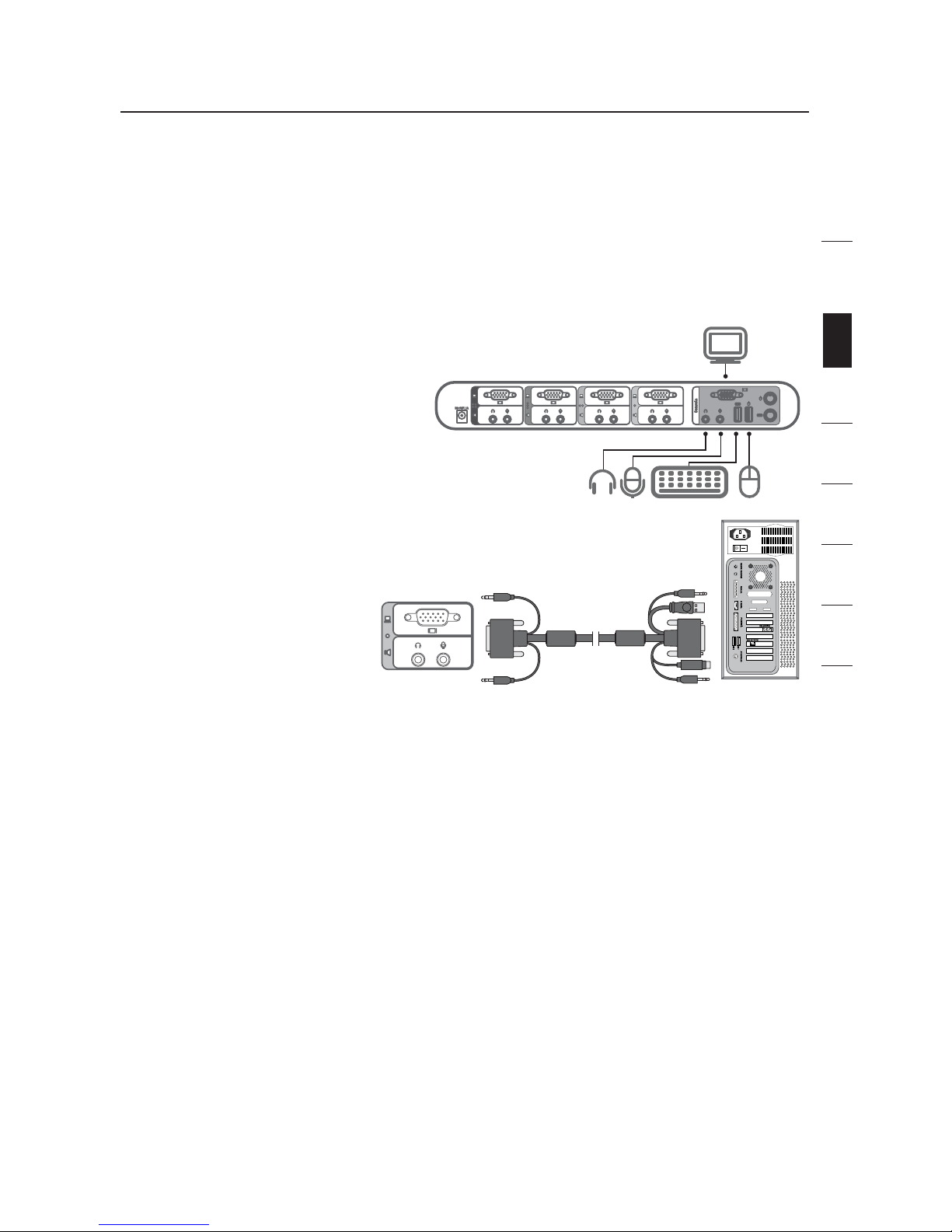

Connecting the KVM Switch
Note: If you are using a PS/2 computer: Please make sure that all of your PS/2
computers are powered off before connecting to the KVM Switch. Otherwise, the
KVM Switch system might not be properly set up. However, USB computers do
not have this limitation.
Step 1
Connect the shared keyboard,
mouse, and monitor to the console
port on the rear of the KVM Switch.
Step 2
Connect your PS/2 computer
to a computer port on the rear
of the KVM Switch.
Step 3
For USB computers, use
the special USB PS/2 KVM
cable (with the USB-to-PS/2
adapter) for connection to a USB computer
(PS/2 computer).
Note: The special KVM cable provides a PS/2 keyboard connector, a USB
connector, and an HDB video connector for the computer connection. When
connecting to a USB computer, just plug the USB connector to it and leave the
PS/2 connector dangling free. When connecting to a PS/2 computer, just add one
USB-to-PS/2 adapter to the USB connector and you’ll have a PS/2 connector for
the mouse.
Do NOT connect the USB connector and the PS/2 keyboard connector to a
computer at the same time.

8
Installing the KVM Switch
Audio and Microphone Connections
Note: Speakers and microphones are not required for use of your KVM Switch.
Connect the Audio
1. Using the audio cable attached to your speakers, connect the male 3.5mm
plug to the lime audio jack in the “Console” section of the KVM Switch.
2. Using the mic cable attached to your microphone, connect the male 3.5mm
plug to the pink mic jack in the “Console” section of the KVM Switch.
3. Using the SOHO USB Cable Kit, connect one end of the lime male 3.5mm
plug to the speaker jack of your sound card or computer, and connect the
other end to the audio jack of the KVM Switch.
4. Using the KVM Cable, connect one end of the pink male 3.5mm plug to the
mic jack of your sound card or computer, and connect the other end to the
pink mic jack of the KVM Switch.

9
1
2
3
4
5
6
7
8
section
Installing the KVM Switch
Powering Up the Systems
Once all cables have been connected, power up the CPUs that are attached
to the KVM Switch. All computers can be powered on simultaneously. The
KVM Switch emulates a mouse and keyboard on each port and allows your
computer to boot normally. Your KVM Switch should now be ready for use.
You can select which computer to operate by either the direct-access port
selectors located on the front panel of the KVM Switch or through keyboard
hot-key commands. Note that it will take 1–2 seconds for the video to display
after switching. This is due to the refresh of the video signal. There is also
re-synchronization of the mouse and keyboard signal that takes place. This is
normal operation and ensures that proper synchronization is established.
Note: The KVM Switch must be powered up before the computers.

10
Using the KVM Switch

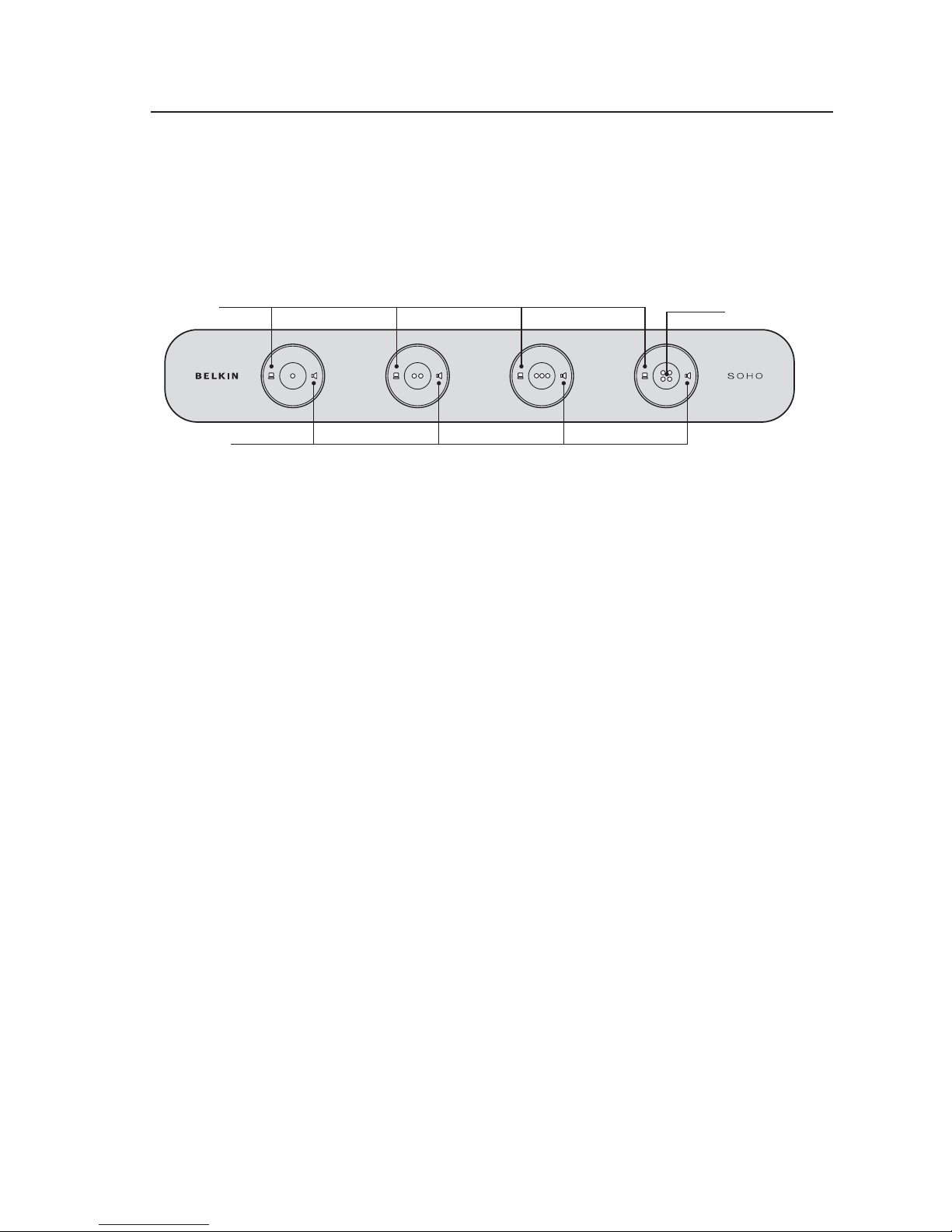

Selecting a Computer Using Direct-Access Port Selectors
You can directly select which computer you wish to control by pressing the
corresponding direct-access port selector next to the appropriate port. The LED
will be lit to indicate that the port is currently selected.
• Pushing the button in the center switches both the KVM Switch
and audio for that specific computer at the same time.
• The KVM LED on the left of the button allows you to switch just your USB
keyboard, video, and mouse to another connected computer.
• The Audio LED on the right of the button allows you to independently switch your
audio feed while continuing to work off of a different computer.
Selecting a Computer Using Keyboard Hot-Key Commands
A keyboard hot-key sequence consists of at least three specific keystrokes
(hot-key sequence = [ScrLk]* + [ScrLk] * + Command key(s)).
User-definable hot keys also allow you to customize your hot-key sequence.
For example:
SCROLL LOCK
CAPS
F12
NUM LOCK
LEFT_CTRL
RIGHT_CTRL
Audio LED
KVM LEDCenter Function

11
1
2
3
4
5
6
7
8
section
1111
Using the KVM Switch
Hot-Key Preceding Sequence Configuration
For users who want to use a preceding sequence other than two consecutive
Scroll Locks, there is also one convenient way to configure it.
1. Press “ScrollLock” + “ScrollLock” + H, and a beeping sound will signal
readiness for a new preceding sequence selection [or press and hold down
the center of the last front-panel button (Button 2 or Button 4) until you
hear three beeps, then release the button].
2. Select and press the key you would like to use as your preceding sequence
(SCROLL LOCK, CAPS, F12, NUM LOCK, LEFT_CTRL, RIGHT_CTRL
keys are available for selection), and you will hear a beep for selection
confirmation. Now you can use the new preceding sequence to execute
your hot-key commands.
Note: Each keystroke within a hot-key sequence should be pressed within
two seconds. Otherwise, the hot-key sequence will not be validated.

12
Using the KVM Switch
To modify the hot-key preceding sequence from the default Scroll Lock, you can
either hit the hot-key sequence: scrlk – scrlk – H – (y), y = y = SCROLL LOCK,
CAPS, ESC, F12 or NUM LOCK (as detailed in the QIG).
or
You can use another method: Press and hold the last button to enter the hot-key
setting mode.
Step 1. Press and hold the last button (i.e., the second button on the 2-port
model and the fourth button on the 4-port model) till you hear two beeps.
Then release the button.
Step 2. Within two seconds, you should hit any of the selectable hot-key triggers
(y), y = y = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK, to be your
hot-key trigger.
For example, if you hit CAPS after hearing the two beeps, then the hot key will be:
CAPS – CAPS – command key.
For detailed hot-key sequences and their corresponding functional commands,
please refer to the Quick-Reference Sheet.
Hotkey Reference Table
2/4-port SOHO KVM Switch w/ Audio&Mic -- Operation Commands for Hotkeys / Front-Panel Buttons
Hotkey sequence = [ScrLk]
*
+ [ScrLk]
*
+ Command key(s) * User-definable Preceding sequence = SCROLL LOCK, CAPS, F12 or NUM
LOCK, LEFT_CTRL, RIGHT_CTRL
Command
Hotkeys
1
Front-panel
Buttons
Description
Select Computer Channel
2
(Joint-select PC port/audio&mic,
if binding is enabled)
ScrLk + ScrLk + (x)
(x is a top-row number key)
x = 1~2 / x = 1~4 for PC channel no
Press the computer icon on
the left of a button to select
the active computer
channel
Select the active computer channel
(Hotkey: Joint-select PC port/audio&mic, if
binding is enabled)
Select Audio&Mic Channel
2
(Joint-select PC port & audio/mic , if
binding is enabled)
ScrLk + ScrLk + (Fy)
Fy = F5~F6/Fx=F5~F8 (Fy is a function
key)
y = 1~2 / y = 1~4 for audio/mic channel
no
--
Select the active Audio&Mic channel
(Hotkey: Joint-select PC & audio&mic
channel, if binding is enabled)
Bind Computer & Audio/Mic
Switching
2
[Default]
ScrLk + ScrLk + Q
--
Enable the binding of PC port and
audio&mic switching. (Hotkey: Once this
feature is enabled, any computer and/or
audio&mic switching by hotkeys is bound
together) (factory default)
Unbind PC & Audio/Mic
Switching
2
ScrLk + ScrLk + W
--
Disable the binding of PC port and
audio&mic switching
Next lower PC channel
2
(Joint-select PC /audio&mic,if binding
is enabled)
ScrLk + ScrLk + (arrow down)
--
Select the next lower connected PC channel
(Hotkey: Joint-select PC/audio&mic, if
binding is enabled)
Next higher PC channel
2
(Joint-select PC /audio&mic, if binding
is enabled)
ScrLk + ScrLk + (arrow up)
--
Select the next higher connected PC channel
(Hotkey: Joint-select PC/audio&mic , if
binding is enabled)
Previous PC channel
ScrLk + ScrLk + (Backspace)
--
Toggle between the previous channel and
current channel
Define Hotkey Preceding Sequence
ScrLk + ScrLk + H + (y)
y= SCROLL LOCK, CAPS,
F12, NUM LOCK, LEFT_CTRL, or
RIGHT_CTRL
Press and hold down last
button (Button 2 /
Butotn4) till three beeps,
release the button, then
press (y) key
Select the hotkey preceding sequence among
5 alternative keys

13
1
2
3
4
5
6
7
8
section
Using the KVM Switch
Switching the Audio/Mic
The audio/mic is independent to the KVM Switch and can be switched
independently. This means that if you are working on port 1 of the KVM Switch,
you can be listening to your music on port 3.
You can switch the audio/mic in two ways:
1. Using the direct-port selectors: The port selector has an Audio LED that
indicates which port your audio/mic is on. Push the speaker icon on any of the
four buttons and the audio/mic will switch to the corresponding port.
2. Using the pre-defined hot key: Please see the Quick-Reference Sheet for a
list of the hot keys.

14
Firmware-Upgrade Guide
This firmware-upgradeable KVM Switch allows you to upgrade firmware contents
whenever it is needed to enhance its compatibility to other devices or its
functionality and performance. We offer both Windows and Mac®versions of the
upgrade utility. You can choose either one depending on the computer platform
on which you are going to perform the KVM Switch firmware uploading. The
correct firmware-upgrade procedures using the Windows and Mac upgrade utilities
are described below. Please follow the instructions to complete your
firmware upgrade.
The firmware upgrade is performed through port 1 of the KVM Switch, so the KVM
cables that are connected to port 1 should remain connected. Unplug all remaining
KVM cables and peripheral cables connecting the KVM Switch to your computers
or peripherals. You can leave the power cable connected to the KVM Switch. The
keyboard, mouse, and monitor should be disconnected from the KVM Switch and
plugged in directly to the host computer.
The computer that is connected to port 1 of the KVM Switch will be performing the
upgrade and will be referenced as the “Host PC” for this process.
Upgrade Using the Windows Version Utility
Prepare your KVM Switch and the Host PC
Step 1.
Ensure that the power adapter is connected to the KVM Switch. Check to make
sure that the KVM cables for port 1 remain connected to the KVM Switch. The
monitor, mouse, and keyboard should be disconnected from the console port of the
KVM Switch and plugged in directly to the host computer. The power supply should
also remain connected to the KVM Switch.
Step 2.
Power on the host PC and copy/download the firmware-upgrade utility,
“Uniloader.exe”, and the firmware-upgrade file, “*.uni”, from belkin.com/support.

15
1
2
3
4
5
6
7
8
section
15
Firmware-Upgrade Guide
Activate the Firmware-Upgrade Utility Program
Note: You should close any unnecessary running programs such as antivirus,
system-monitoring, or automatic updates; otherwise, the stability of the
system during the firmware-upgrade process might be undermined.
Step 3.
Double-click the icon of “Uniloader.exe”, the firmware-upgrade utility program.
A warning message box may appear if you have antivirus software running on
the PC.
Read it carefully for information (and close any unnecessary programs
before upgrading).
Click “OK”. A firmware file-selection dialog box appears.

16
Firmware-Upgrade Guide
Connect your KVM Switch to the Host PC
Step 4.
Now press the first front-panel button on the KVM Switch until you hear two beeps.
The KVM Switch has now entered into the upgrade mode.
Step 5.
Check to make sure the KVM cables from port 1 are connected to the host PC.
Note: A special upgrade cable is not needed to perform the upgrade since you can
use the same KVM cable that you use for connecting to the computers. However,
depending on the different models, the KVM cables you use will vary.
Step 6.
Click the “Browse” button and locate the firmware-upgrade file, which is indicated
with a file extension such as “*.uni”.
Select the upgrade file (for example: “UCF-30-11-07.uni”) and click “Open” to load
the file. Then click “Upgrade” to make it ready for upload.

17
1
2
3
4
5
6
7
8
section
Firmware-Upgrade Guide
Begin the File Upload
Note: Before hitting the “Upgrade” button on the utility program, you should
make sure that you are focused on port 1 of the KVM Switch where you have
the computer connected. If not, switch to that computer before hitting the
“Upgrade” button.
Step 7.
After you click the “Upgrade” button, the file-transfer progress will begin in seconds
and can be monitored through the advancement of the progress bar. Wait until the
progress bar runs to its full length for the upgrade process to be completed.
Note: Meanwhile, be careful not to power off the computer or disconnect
the USB-cable connection. Otherwise, the file upload will be interrupted and
the upgrade process will be aborted. If that does happen, please refer to the
“Firmware-Upgrade Troubleshooting” section.
The file upload is finished when the progress bar runs through 100 percent
and a prompt tells you that the upgrade is OK.
Click “OK”. The firmware-upgrade process is complete.

18
Firmware-Upgrade Guide
Step 8.
Finally, unplug the power cable from the back of the KVM Switch and all other
cables from the KVM Switch, and perform a cold reset. Reconnect all the cables
again to the KVM Switch.
Now you can enjoy the newly added functionality and compatibility of the new
firmware version.
Note: After you have finished the firmware-upgrade process, try the port switching
and other functionalities of the KVM Switch to see whether it works fine with the
new firmware. If it does, then this upgrade process was successfully completed.
Congratulations!
If the file-upload process encounters an error and cannot complete successfully,
please refer to the “Firmware-Upgrade Troubleshooting” section.
Upgrade Using the Mac Version Utility
Prepare your KVM Switch and the Mac Host
Step 1.
Ensure that the power adapter is connected to the KVM Switch. Check to make
sure that the KVM cables for port 1 remain connected to the KVM Switch. The
monitor, mouse, and keyboard should be disconnected from the console port of
the KVM Switch and plugged in directly to the host computer. The power supply
should also remain connected to the KVM Switch.
Step 2.
Power on the Mac host and copy/download the firmware-upgrade utility,
“Uniloader Installer.pkg”, and the firmware-upgrade file, “*.uni”, to it.
