OVERVIEW
INTRODUCTION
Congratulations on your purchase of this Belkin OmniView MATRIX2
Series KVM Switch (the MATRIX2). Our diverse line of KVM solutions
exemplifies the Belkin commitment to delivering high-quality, innovative
products at reasonable prices.
Developed with the server administrator in mind, the MATRIX2 surpasses
all other switches on the market. It gives two users control over multiple
computers and servers from two consoles—simultaneously. Engineered to
work with the most advanced server room and laboratory environments, it
offers LED port indicators, direct-access port selectors, higher video-
resolution support than comparable products, and flash-upgradeable
firmware. The MATRIX2 also comes with the unparalleled assurance of a
Belkin Five-Year Warranty.
This manual will provide details about your new MATRIX2, from
installation and operation to troubleshooting, in the unlikely event
of a problem.
For quick and easy installation, please refer to the Quick Installation
Guide included in your MATRIX2 packaging.
Thank you for purchasing this great solution from Belkin. We appreciate
your business and have confidence that you will soon see for yourself why
over 1 million Belkin OmniView products are being used worldwide.
Package Contents
• OmniView MATRIX2 Series KVM Switch
• Adjustable Rack-mount Brackets with Screws
• DB25-to-RJ45 Parallel Flash Cable
• User Manual
• Quick Installation Guide
• 12-Volt DC, 1-Amp power supply
• Registration Card

2
OVERVIEW
The MATRIX2 allows two users to control up to a maximum of 256
computers from two keyboards, monitors, and mice. They support PS/2
input devices (keyboard and mouse) as well as VGA, SVGA, XGA, and
XGA-2 video.
It supports both PS/2 and USB output. This enables cross-platform control
over PCs and USB-based computers, including USB Sun™workstations
and Mac®computers.
FEATURE OVERVIEW
Hot Keys:
Hot key functionality allows you to select a desired port using designated
key commands. By using a simple hot key sequence on your keyboard,
selecting one computer from as many as 256 computers is instantaneous.
For a listing of complete hot key instructions and commands, see page 19.
AutoScan:
The AutoScan feature allows you to set your MATRIX2 to scan and
monitor the activities of all operating computers connected to the switch,
one by one. The time interval allotted for each computer can be defined
or adjusted through the On-Screen Display (OSD) menu. For complete
instructions on AutoScan usage, please refer to page 21.
Video Resolution:
Through a 400MHz bandwidth, MATRIX2s support video resolutions of
up to 2048x1536@85Hz. To preserve signal integrity at these higher
resolutions, your MATRIX2 requires 75-Ohm, coaxial VGA cabling.
Flash Upgrade:
Flash upgradeable firmware allows you to obtain the latest firmware
upgrades for your MATRIX2. This enables your MATRIX2 to maintain
consistent compatibility with the latest devices and computers. Firmware
upgrades are free for the life of your MATRIX2. Refer to the enclosed flash
upgrade instruction document or visit us at belkin.com for complete
upgrade information and support.

3
OVERVIEW
On-Screen Display (OSD):
The OSD feature simplifies server management by allowing you to assign
individual names to each connected server throughout the system. It
provides a visual means of switching between computers and setting the
time interval for the AutoScan function.
Direct-Access Port Selector:
Direct-access port selectors, located conveniently on the front face of the
MATRIX2, allow for simple, manual port-selection. Each button controls
a port.
LED Display:
An LED display on the face of the MATRIX2 serves as a status monitor. An
LED next to each direct-access port selector illuminates to indicate that
the console currently controls the corresponding computer. As a port is
selected, the LED next to it lights up. A flashing LED light indicates that
there is no computer connected to that port.
Seven-Segment LED Display:
When daisy-chaining multiple MATRIX2s together, the seven-segment LED
display serves as a quick indicator of the selected BANK.

4
OVERVIEW
EQUIPMENT REQUIREMENTS
Cables:
To connect to the MATRIX2, an OmniView All-in-One MATRIX Series
KVM Cable is necessary. Video resolution support of up to
2048x1536@85Hz requires use of a 75-Ohm, coaxial VGA cable to
preserve signal integrity. VGA cables must have HDDB15 female-to-
HDDB15 male connectors.
Belkin highly recommends that you use OmniView All-In-One MATRIX
Series KVM Cables. These cables offer the highest quality possible to
ensure optimal data transmission. The MATRIX Series KVM Cables
feature micro-cable construction and are molded together for a neat
and organized setup. PC99 color-coded connectors are included for
easy identification and connection. The MATRIX Series KVM Cables
include an industry-standard, 14-pin, coaxial VGA cable; nickel-plated
connectors for high-resolution applications; double-shielded cabling to
reduce EMI/RFI interference; strain-relief construction for added
durability; and ferrite bead for noise immunity. They are available in
both USB and PS/2 connector types. The following cables are
recommended for your MATRIX2:
OmniView All-In-One MATRIX Series
F1D9300-XX (PS/2 Style)
F1D9301-XX (USB Style)
OmniView MATRIX2 Series Daisy-Chain
F1D9302-XX (Daisy-Chain Cable)
(-XX denotes length in feet)

5
OVERVIEW
OPERATING SYSTEMS
The MATRIX2 is designed for use on CPUs using:
Platforms:
• Windows®95/98/2000/Me/NT®/XP
• DOS
• Turbolinux®and all Linux®distributions
• Novell®NetWare®4.x/5.x
•Mac
®(with USB support)
• Sun (with USB support)
Keyboards:
• Supports 101-/102-/104-key keyboards
Mice:
• Microsoft®software-compatible PS/2 or PS/2 & USB combo mice (with
PS/2 adapter) having 2, 3, 4, or 5 buttons
• Microsoft software-compatible PS/2 wireless or optical mice
Monitor:
• VGA
• SVGA
• MultiSync®

6
OVERVIEW

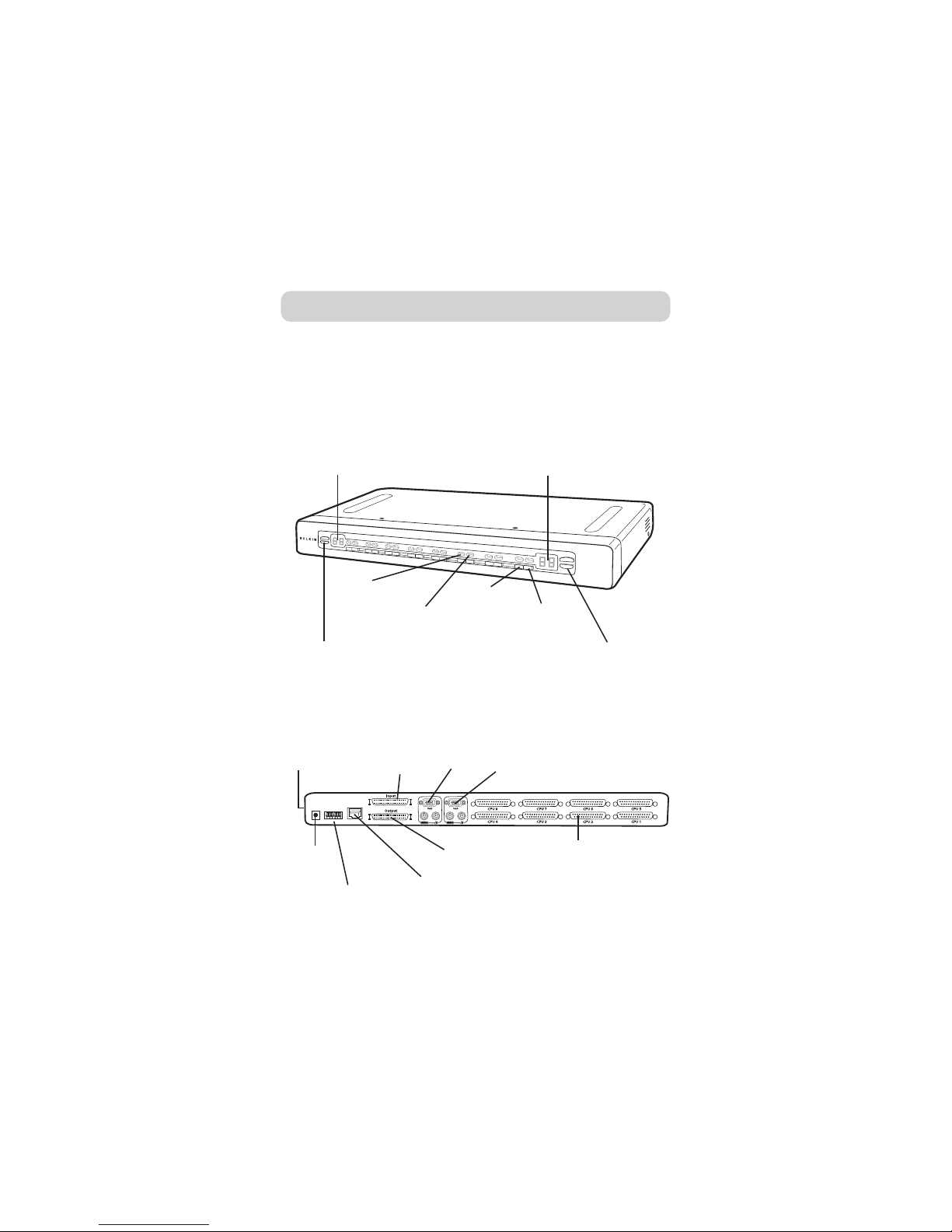

UNIT DISPLAY DIAGRAMS
Front View of the MATRIX2
Back View of the MATRIX2
Console B
direct-access
port selector
Console A
Manual BANK
scroll buttons
Console A
7-segment LED for selected
BANK identification
Console B LED for
selected port
identification
DC power
jack
BANK DIP switch (may
be located on the side
in some models)
FLASH DIP switch
(may be located on the
side in some models)
Flash upgrade port
DB25 CPU
connector
Daisy-chain
Output port
Daisy-chain
Input port
Console B
Manual BANK
scroll buttons
Console B
7-segment LED for selected
BANK identification
Console A LED for
selected port
identification
Console A
direct-access
port selector
Console B VGA
and PS/2
connections Console A VGA
and PS/2
connections

7
OVERVIEW
SPECIFICATIONS
Part No.: F1DM208T, F1DM216T
Power: 12-Volt DC, 1-Amp power adapter with center-pin positive polarity
Daisy-Chain: Maximum of 16 KVM Switches
Computer Connections Supported: 8 (F1DM208T); 16 (F1DM216T)
Keyboard Emulation: PS/2
Mouse Emulation: PS/2
Monitors Supported: VGA, SVGA, MultiSync, and LCD (optional adapter may
be required)
Max. Resolution: 2048x1536@85Hz
Bandwidth: 400MHz
CPU Input: DB25 (Video, PS/2, or USB)
Port LED Indicators:
16 (F1DM208T)
32 (F1DM216T)
Enclosure: Metal enclosure with high-impact plastic faceplate
Dimensions:
F1DM208T: 17.25 x 1.75 x 8.9 inch (438 x 44.5 x 225.5mm)
F1DM216T: 17.25 x 3.5 x 8.9 inch (438 x 88.85 x 225.5mm)
Weight:
F1DM208T: 9.75 lbs. (4420.5 grams)
F1DM216T: 11.7 lbs. (5307.5 grams)
Operating Temp.: 32° to 104° F (0~40° C)
Storage Temp.: -4° to 140° F (20~60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 5 years
Note: Specifications are subject to change without notice.

8
INSTALLATION
PRE-CONFIGURATION
Where to Place the MATRIX2:
The enclosure of the MATRIX2 is designed for standalone or rack-mount
configuration. The MATRIX2 is natively rack-mountable in standard
19-inch server racks. Rack-mount hardware is included with these
switches for a sturdy rack installation.
Consider the following when deciding where to place the MATRIX2:
• whether or not you intend to use the direct-access port selectors;
• the lengths of the cables attached to your keyboards, monitors,
and mice;
• the location of your CPUs in relation to your Consoles;
• and the lengths.
Cable Distance Requirements:
For PS/2 Computers:
VGA signals transmit best at distances of up to 25 feet. Beyond that
length, the probability of video degradation increases. For this reason, we
recommend that the length of the cables between the MATRIX2 and the
connected computers not exceed 25 feet.
Note: If you need your Console to reside further than 25 feet from the
MATRIX2, we recommend using the Belkin CAT5 Extender
(F1D084) with a standard CAT5 UTP cable. By using this device,
you may increase the distance between your MATRIX2 and your
PS/2 keyboard, PS/2 mouse, and monitor by as much as 500 feet
without risking signal degradation.
For USB Computers:
USB signals can be transmitted up to 15 feet between the MATRIX2 and
the CPU. Beyond 15 feet, the probability of signal failure is likely, and this
may cause the device to fail.
Cautions and Warnings:
Avoid placing cables near fluorescent lights, air conditioning equipment,
or machines that create electrical noise (e.g., vacuum cleaners).

9
INSTALLATION
STEP-BY-STEP INSTALLATION GUIDE
Cautions and Warnings:
Before attempting to connect anything to the MATRIX2 or your
computer(s), please ensure that everything is powered off. Plugging and
unplugging cables while computer(s) are powered on may cause
irreversible damage to the computer(s) and/or the MATRIX2(s). Belkin
Components is not responsible for damage caused in this way.
Installing the MATRIX2 into a Server Rack:
The MATRIX2 includes adjustable mounting brackets ideal for installation
in 19-inch racks. The mounting brackets feature three adjustment
positions to allow the faceplate of the MATRIX2 to mount flush to your
rack-mounted servers, or to the rack. Please follow these simple steps to
achieve the desired adjustment.
1. Determine how far you would like the MATRIX2 to protrude from the
rack. Select a bracket-hole scheme.
2. Attach the bracket to the side of your MATRIX2 using the Phillips
screws provided. (Refer to diagram above).
3. Mount the MATRIX2 to the rack rail assembly.
Note: If this MATRIX2 will be daisy-chained to another MATRIX2, set
the BANK address prior to installing on a rack. Refer to the
section in this User Manual labeled “Connecting Multiple
MATRIX2s (Daisy-Chaining)” (page 12).
Your MATRIX2 is now mounted securely into the bracket and you are now
ready to connect cables to it at the back.

10
INSTALLATION
SINGLE MATRIX2 INSTALLATION
This section provides complete instructions for the hardware setup of a
single MATRIX2 (F1DM208T, F1DM216T).
PS/2 Installation: Keyboard, Video, and Mouse Connections
Connect the Console:
1. Connect the first monitor to the MATRIX2. Attach your monitor cable
to the HDDB15 female port labeled “Console A VGA” on the back of
the MATRIX2.
2. Connect the PS/2 keyboard cable to the keyboard port on the back of
the MATRIX2 in the “Console A” section.
3. Connect the PS/2
mouse cable to the
mouse port on the
back of the
MATRIX2 in the
“Console A” section.
4. Repeat steps 1
through 3 for
Console B.
Console B Console A
Console B Console A

11
INSTALLATION
Connect the Power:
Attach the power supply to the DC power jack labeled “DC 12V, 1A”
located on the rear of the MATRIX2. Once the power is connected to a
power source, the LED for port 01 will begin flashing. Sequentially push
the direct-access port selectors for ports 01 through 08 (16 for
F1DM216T). The corresponding LED should flash as each button is
pressed, indicating that the port is ready for connecting your servers.
Connect the Computer:
PS/2 Installation:
1. Using an OmniView MATRIX2 KVM Cable (Belkin part# F1D9300-XX),
plug the male 25-pin (DB25) connector into an available port, such as
“CPU 1”, on the back panel of the MATRIX2.
2. Connect the VGA HDDB15 connector to the VGA port on the
first computer.
3. Connect the PS/2 keyboard connector of the OmniView MATRIX2
KVM Cable to the keyboard port on the first computer.
4. Connect the PS/2 mouse KVM cable to the mouse port on the
first computer.
5. Repeat steps 1 through 4 for each additional PS/2 computer you wish
to connect.
Installation on a USB Computer:
1. Boot the computer you wish to connect via USB as you would
normally, with the keyboard, monitor, and mouse connected directly
to the computer.
2. After the operating system finishes loading, connect the MATRIX2 to
the USB computer using the USB connector on the MATRIX KVM
Cable (Belkin part# F1D9301-XX). Your computer should
recognize your MATRIX2 and automatically install the HID USB
driver, if necessary.
3. Once your computer finishes installing the USB driver, power down
your computer. Disconnect the USB connector from your computer.

12
INSTALLATION
4. Using the OmniView MATRIX KVM Cable, plug the male DB25
connector to an available port, such as “CPU2”, on the back of
the MATRIX2.
5. Connect the male VGA connector located on the other end of the
cable to the VGA port on the computer.
6. Connect the USB cable’s “A-type” connector to an available USB port
on your computer.
Note: We recommend you attach the KVM cable directly to a free USB
port on your computer.
Repeat steps 1 through 6 above for each additional USB computer you
wish to connect to the MATRIX2.
Power on all connected computers. The MATRIX2 is now ready to use.
Connecting Multiple MATRIX2s (Daisy-Chaining):
You can daisy-chain up to 16 MATRIX2s together to control over a
maximum of 256 computers. When daisy-chained together, each
MATRIX2 is referred to as a “BANK” and assigned an address. The
Console keyboard, mouse, and monitor connects to BANK 00 and is
referred to as the “Primary” switch. BANKS 01 through 15 are referred to
as “Secondary” switches.
Note: A MATRIX Series daisy-chain cable (F1D9302-XX) is required to
daisy-chain each MATRIX2 and is available through your Belkin
reseller or online at belkin.com.
All MATRIX2s feature a “BANK DIP” switch. The BANK DIP switch is used
for proper identification and use of OmniView KVM Switches in a
single-unit or daisy-chain configuration.
•F
or a single-unit configuration, set the BANK DIP switch on the
MATRIX2 to the “Primary” (BANK address 00) setting. This is the
factory default setting.
•F
or multi-unit configuration, the BANK DIP switch on the Primary unit
must be set to “BANK address 00”. Secondary units must be set to a
unique BANK address (from 01 through 15). Refer to the following
chart for DIP switch settings.

13
INSTALLATION
DIP SWITCH CONFIGURATION CHART
DIP SWITCH# BANK ADDRESS
1 2 3 4 5 6
ON ON ON ON ON ON BANK 00 Primary (default)
ON ON OFF ON ON ON BANK 01 Secondary
ON ON ON OFF ON ON BANK 02 Secondary
ON ON OFF OFF ON ON BANK 03 Secondary
ON ON ON ON OFF ON BANK 04 Secondary
ON ON OFF ON OFF ON BANK 05 Secondary
ON ON ON OFF OFF ON BANK 06 Secondary
ON ON OFF OFF OFF ON BANK 07 Secondary
ON ON ON ON ON OFF BANK 08 Secondary
ON ON OFF ON ON OFF BANK 09 Secondary
ON ON ON OFF ON OFF BANK 10 Secondary
ON ON OFF OFF ON OFF BANK 11 Secondary
ON ON ON ON OFF OFF BANK 12 Secondary
ON ON OFF ON OFF OFF BANK 13 Secondary
ON ON ON OFF OFF OFF BANK 14 Secondary
ON ON OFF OFF OFF OFF BANK 15 Secondary
Note: “ON” is the down position.
Example:
Four 8-Port MATRIX2s (F1DM208T) are daisy-chained together for
controlling up to 32 computers. The DIP switch on the Primary switch is
set to “BANK address 00” (factory default) and the Secondary switches are
each set to a unique BANK address between 01 and 15.

INSTALLATION
INSTALLATION
Before You Begin:
1. Make sure that all computers are powered off and that each MATRIX2
has been assigned a unique BANK address.
2. Place Primary and Secondary switches in the desired location. Make
sure all are turned off and unplugged from the power source.
3. Connect the Console monitor, keyboard, and mouse to the Console
ports of the Primary switch (BANK 00), as described previously in this
installation guide.
Connecting the Primary Switch to First Secondary Switch:
4. Using the MATRIX2 daisy-chain cable (F1D9302-XX), connect one end
of the cable to the “Input” port on the Primary switch (BANK 00).
5. Connect the other end of the daisy-chain cable to the “Output” port of
the Secondary switch (BANK 01).
Adding Additional Secondary Switches:
6. Using the daisy-chain cable (F1D9302-XX), connect one end of the
cable to the available daisy-chain port labeled “Input” on the
Secondary switch (for example, BANK 01).
7. Connect the other end of the daisy-chain cable to the “Output” port of
the Secondary switch that you are adding (for example, BANK 02).
8. Repeat steps 6 and 7 for additional MATRIX2s you wish to
daisy-chain together.
Example of Daisy-Chain Configuration:
Cable 1 Primary Unit (BANK 00)
Cable 2 Secondary Unit (BANK 01)
Cable 3 Secondary Unit (BANK 02)
Secondary Unit (BANK 03)
14

15
INSTALLATION
Connecting the Computers:
9. Connect all computers to the Primary and Secondary switches. Refer
to “Single MATRIX2 Installation” on page 10 for instructions on how
to connect the Console and the computers to the MATRIX2.
10. Connect the power supply to the Primary switch first and power up
the MATRIX2. You should see it light up and display the digits “00”,
indicating its BANK address.
11. Power up the Secondary switches sequentially, beginning with BANK
01 by connecting each unit’s power supply. Each switch should
display its corresponding BANK address number as it is powered up.
Note: If the MATRIX2s do not enumerate correctly, reset the Primary
switch (BANK 00) by simultaneously pressing the “BANK +” and
“BANK -” buttons. You can also reset the Primary switch to detect
newly added Secondary switches. If the switches still do not
enumerate correctly, check that all switches have the correct
BANK address assigned to them and that all daisy-chain cables
are connected properly.
12. Verify that the Primary unit has detected all Secondary switches by
scrolling through the BANKs using the BANK + and BANK - buttons
for both Consoles. If all Secondary switches are detected properly, the
LED displays on the Primary switch will register and display all
attached switches by BANK address.

16
INSTALLATION
Powering up the Systems:
Once all cables have been connected, power up the computers that are
attached to the MATRIX2. All computers can be powered on
simultaneously. The MATRIX2 emulates both a mouse and keyboard on
each port and allows your computer to boot normally.
The computer connected to port “1” will be displayed on the monitor.
Check to see that the keyboard, monitor, and mouse are working normally.
Proceed to do this with all occupied ports to verify that all computers are
connected and responding correctly. If you encounter an error, check your
cable connections for that computer and reboot. If the problem persists,
please refer to the “Troubleshooting” section in this manual.

17
USING YOUR MATRIX2
Now that you have connected your Console and computers to your
MATRIX2, it is ready for use.
For fast and easy identification, each of the two Consoles are color-coded:
“Console A” in amber and “Console B” in green.
Select connected computers either by using the direct-access port selectors
located on the front panel of the MATRIX2, On-Screen Display menu, or by
using hot key commands through the Console keyboard. It takes
approximately two seconds for the video signal to refresh after switching
computers. The mouse and keyboard signals also re-synchronize. This is
normal operation and ensures that proper synchronization is established
between the Console and connected computers.
SELECTING A COMPUTER USING DIRECT-ACCESS
PORT SELECTORS
You can directly select which computer you wish to control by pressing
the direct-access port selector, which is located next to the port for the
corresponding Console. The LED lights in amber indicate that the port is
currently selected by Console A. The LED lights in green indicate that the
port is currently selected by Console B. When Consoles A and B have
both selected the same port, the LED will light in the color corresponding
to the Console that has control of the port.
For example: If Console A (amber) selects port 2 on BANK 00 first,
Console A’s LEDs for port 2 will be lit in amber. If Console B (green) then
switches over to port 2, BANK 00 while Console A has access to it, then
both LEDs will be lit in amber. This indicates that both Consoles are
currently accessing the same port but Console A has control of the port.
In this example, Console B will only have viewing privileges.
Note: When both Consoles are accessing the same port, only one will
have control of the computer connected to that port. The other
computer will only have viewing capabilities. Port control is
assigned on a first-come, first-served basis.

18
USING YOUR MATRIX2
If you have daisy-chained multiple switches (MATRIX2s) together, use the
BANK scroll keys located on the front panel of the Primary switch to
access other computers that are connected to the Secondary switches.
BANK + and BANK - Scroll Buttons:
Pressing the “BANK +” and “BANK -” scroll buttons on the Primary switch
will allow you to switch between the daisy-chained MATRIX2s. Pressing
both buttons simultaneously will reset the MATRIX2.
The “BANK +” button will take you to the next BANK. For example, when
you are at the Primary switch (BANK 00) and want to check computers on
BANK 02. Pressing the “BANK +” button will take you to BANK 02. As a
default, the first active computer will be displayed on the Console
monitor. Use the direct-access port selector to go to the desired computer
on BANK 02.
The “BANK -” button will take you to the previous BANK. For example,
when you are at BANK 02 and want to check computers in BANK 01.
Pressing the “BANK -” button will take you to BANK 01. As a default, the
first active computer will be displayed on the Console monitor. Use the
direct-access port selector to go to the desired computer on BANK 01.
