Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
INTRODUCTION AND PACKAGE CONTENTS
Section 1 - Introduction
Thank you for purchasing this 2 port Belkin Secure Flip KVM Switch. This
Belkin Secure Flip KVM Switch is designed for use in secure environments
across wide security gaps. This product provides the highest security
safeguards and features, meeting current and future cyber prevention
requirements.
This User Manual provides all the details you’ll need to install and operate
your new product, and also to troubleshoot it, in the unlikely event of a
problem.
Why use the Belkin Secure Flip KVM Switch?
Belkin Secure Flip KVM Switches are mandatory cyber security equipment
today organizations with multiple isolated networks. Many users in large
organizations are working on two isolated networks and require a secure
KVM that will be cost effective. Regular secure KVMs are expensive and
take up a lot of desktop space. The Belkin Secure Flip KVM Switches have
an exceptionally small footprint and from the price point of view it is sold
for a similar price as an additional set of display, keyboard and mouse. In
most cases using the Belkin Secure Flip KVM Switch is cheaper and more
secure than the use of another set of peripherals.
Package Contents
• Belkin Secure Flip KVM Switch
• 12V 1.5A DC Power Supply
• Remote Control
• User Manual
Important Security Note:
If you are aware of potential security vulnerability while
installing or operating this product, we encourage you to
contact us immediately at the following email address:
[e-mail]
Important:
This product is equipped with always-on active anti-tamper
system. Any attempt to open the enclosure may activate
the anti-tamper system and render the unit permanently
inoperable. If the unit’s enclosure appears disrupted or if all
the port LEDs flash continuously, please call Belkin
Technical Support at 1(800) 282-2355
Table of Contents SECTIONS 12 3 4 5 6 7

3
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Section 2 - Overview
Security Features
The 2 port Belkin Secure Flip KVM Switch is the most advanced and secure,
commercially available KVM Switch in the market today. This product is a
derivative of the high security advanced Belkin KVM products used in many
high security government, defense and military organizations. Below is a
summary of some key security features incorporated into this product:
Unidirectional Data Paths
Optical diodes are used to enforce unidirectional data flow from the
peripheral devices to computers preventing potential leakage paths
between computers, even in the severe threat of two infected computers
attacking the KVM.
Dedicated Processors for Emulation
The Belkin Secure Flip KVM Switch features a dedicated processor per
computer port to emulate peripheral devices. This keeps each computer
running on different security levels, physically separated and secure at all
times, and prevents any unintended data leakage between computers
even when computers are infected by malicious code.
USB Ports Protection
Console USB ports are protected from the use of storage and other unsafe
USB devices through strong filtering (independent of other computer
protection means). Unqualified devices are rejected when connected to
the Belkin Secure Flip KVM Switch. Only mouse and keyboard data are
passed through.
Active Always-On Anti-Tampering
Active always-on chassis anti-tampering system prevents the Belkin Secure
Flip KVM Switch electronic circuitry from being accessed and tampered
with by permanently disabling the product once tampering is detected.
Tamper-Evident Label

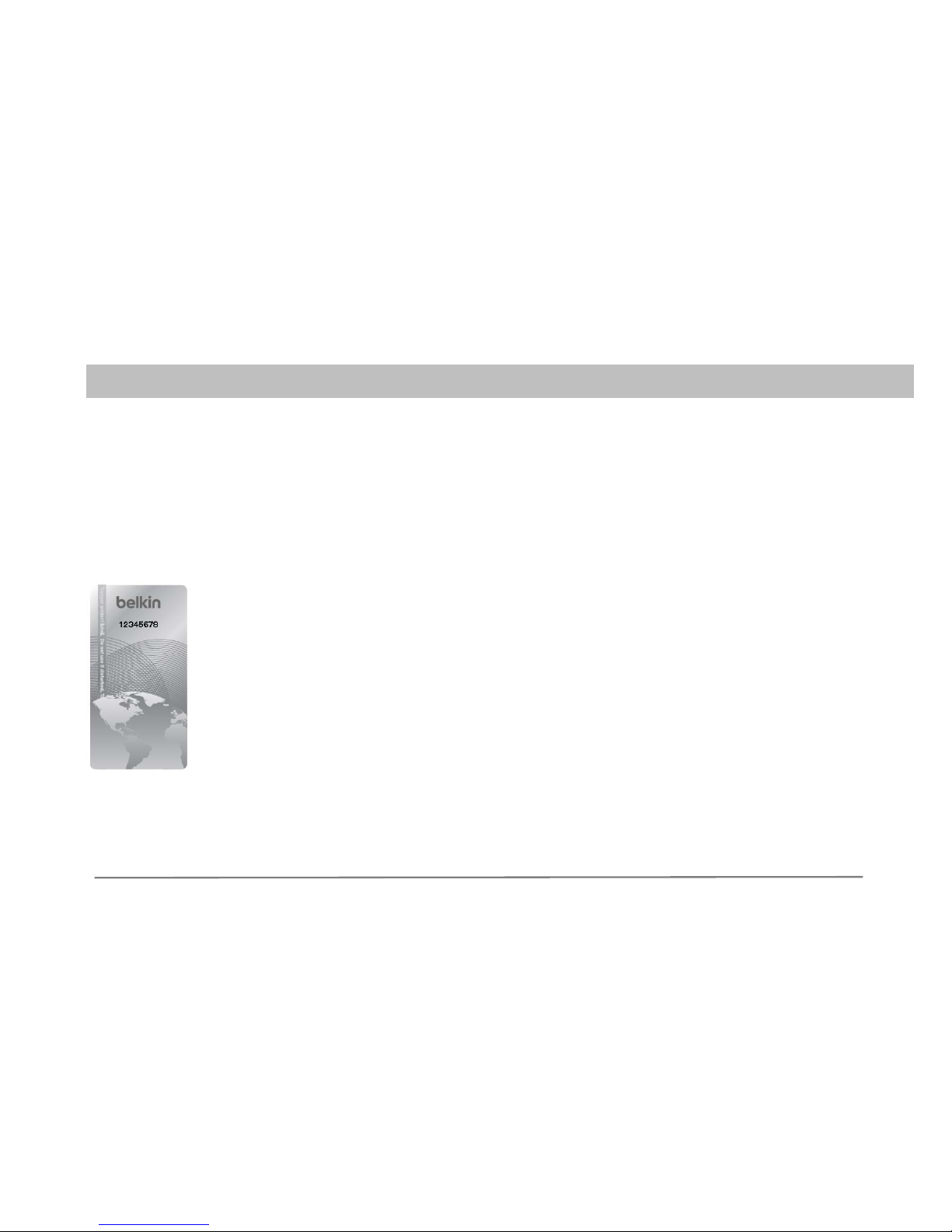

A holographic security tamper-evident label is placed on the enclosure to
provide a visual indication if the Switch has been opened or compromised.
Table of Contents SECTIONS 12 3 4 5 6 7
Please note: Belkin Secure KVM Products cannot be
upgraded, serviced or fixed.

4
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Secure Packaging
“Tear away” packaging ensures secure delivery of the Switch as it is routed
to the end user. The recyclable packaging also breaks down flat, simplifying
the cleanup process.
Non-Reprogrammable Firmware
The product features custom firmware that is not reprogrammable,
preventing the ability to remotely attack the KVM control logic.
Common Criteria EAL-4 Listing
The product is one of the only KVMs in the market that is listed by the
Common Criteria organization. It is Common Criteria validated to EAL 4+
(Evaluation Assurance Level 4) to assure the highest level of protection.
Tamper-Proof Hardware
All integrated circuits are soldered directly to the printed circuit board to
prevent tampering with the components.
No Memory Buffer
The lack of memory buffers prevents unintentional transfer of keystrokes
or other data when switching between computers.
LED Indicators
Each port button number illuminates to indicate that the console currently
controls the corresponding computer. As a port selector is pushed the LED
number will light up.
Table of Contents SECTIONS 12 3 4 5 6 7

5
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Operational Features
The Belkin Secure Flip KVM Switch was designed with the user in mind for
today’s IT environment. Below is a summary of some of the features
incorporated into the product.
Remote Control
The Belkin Secure Flip KVM Switch includes a remote control unit for easy
placement of the device and providing clear indication of the active
network.
Exceptionally Small Footprint
Weighing in at just 1lbs and with a width of 4.6 Inches, Belkin Flip Secure
KVMs are by far the worlds smallest secure KVMs in the market today.
Audio Support
This Belkin Secure Flip KVM Switch supports audio out switching.
Microphone switching is not supported to prevent analog leakages through
audio ports.
Port Coloring
The Belkin Secure Flip KVM Switch has two illuminate channel select push
buttons colored in red and green for easy selection and clear indication of
channels.
Increased Reliability
Using a new, advanced anti-tampering battery with extremely low self-
discharge rate, the life expectancy of the switch has been increased
dramatically to over 25 years
No Cables required
No cables are required with the Belkin Secure Flip KVM Switch as all cables
are part of the product making it very easy to install.
Remote Control
The remote control is an optional accessory which allows the user to save
desktop space by mounting the product in under the desk or behind the
monitor.
The remote control has a single push button used to switch between the
two KVM channels.
The Bi-Color LED (illuminated Green and Red alternatively) next to the
push button is used to give indication of the active channel. The Green and
Red indication is correlating to the Green and Red led indication on the
secure KVM (Green for channel 1 (default) and Red for Channel 2)
Bloomberg Keyboard Support
The Belkin Secure Flip KM supports the Bloomberg Keyboard through the
ConsolePS/2 Keyboard jack.
Table of Contents SECTIONS 123 4 5 6 7

6
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Equipment Requirements
User Operating-System (OS) Support
The Belkin Secure Flip KVM Switch is compatible with computers running
on, the following OS platforms:
• Windows® 2000
• Windows XP (Home/Professional)
• Windows 2003 Server
• Windows 7
• Windows 8
• Windows Vista®
• Red Hat® Linux®
• Mac OS® X v.10.6 and higher
USB Mouse console port
The Belkin Secure Flip KVM USB mouse console port is compatible with the
following types of devices:
•Standard USB mouse
Notes:
-Mouse devices having internal USB hubs are not supported.
-Composite devices having mouse function are supported including
extenders.
Cables
No cables are required with the Belkin Secure Flip KVM Switch as all cables
are part of the product.
User Audio Devices
The Belkin Secure Flip KVM Switch is compatible with the following types
of user audio devices:
•Stereo headset; or:
•Amplified stereo speakers.
USB Mouse and Audio Molded cables
The Belkin Secure Flip KVM Switch includes two sets of USB cables, one for
each connected PC. The USB connectors on the client side of these
computers are of type USB-A.
Table of Contents SECTIONS 1 23 4 5 6 7

7
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Safety Precautions
Please read the following safety precautions carefully before using the
Belkin Secure Flip KVM Switch:
•Before cleaning, disconnect the product from DC
power.
•Be sure not to expose the product to excessive
humidity.
•Be sure to install the product on a clean secure surface.
•Do not place the DC power cord in a path of foot traffic.
•If the product is not used for a long period of time,
remove the product’s wall-mount power supply from
the main jack.
•The product should be stored and used only in
temperature and humidity controlled environments as
defined in the product’s environmental specifications.
•The wall-mount power supply used with this product
should be the model supplied by the manufacturer or
an approved equivalent provided by Belkin or an
authorized service provider. The use of improper power
source will void product warranty
•If one of the following situations occurs, get the product
checked by a qualified service technician:
The product’s power supply is overheated, damaged,
broken, causes smoke or shortens the main power socket.
Liquid penetrates the product’s case.
The product is exposed to excessive moisture or water.
The product is not working properly even after carefully
following the instructions in this user’s manual.
The product has been dropped or is physically damaged.
The product has obvious signs of breakage or loose
internal parts.
Product contains internal battery. Battery is non-
replaceable. Never attempt to replace battery as any
attempt to open product enclosure would permanently
damage the product.
Table of Contents SECTIONS 1 23 4 5 6 7

8

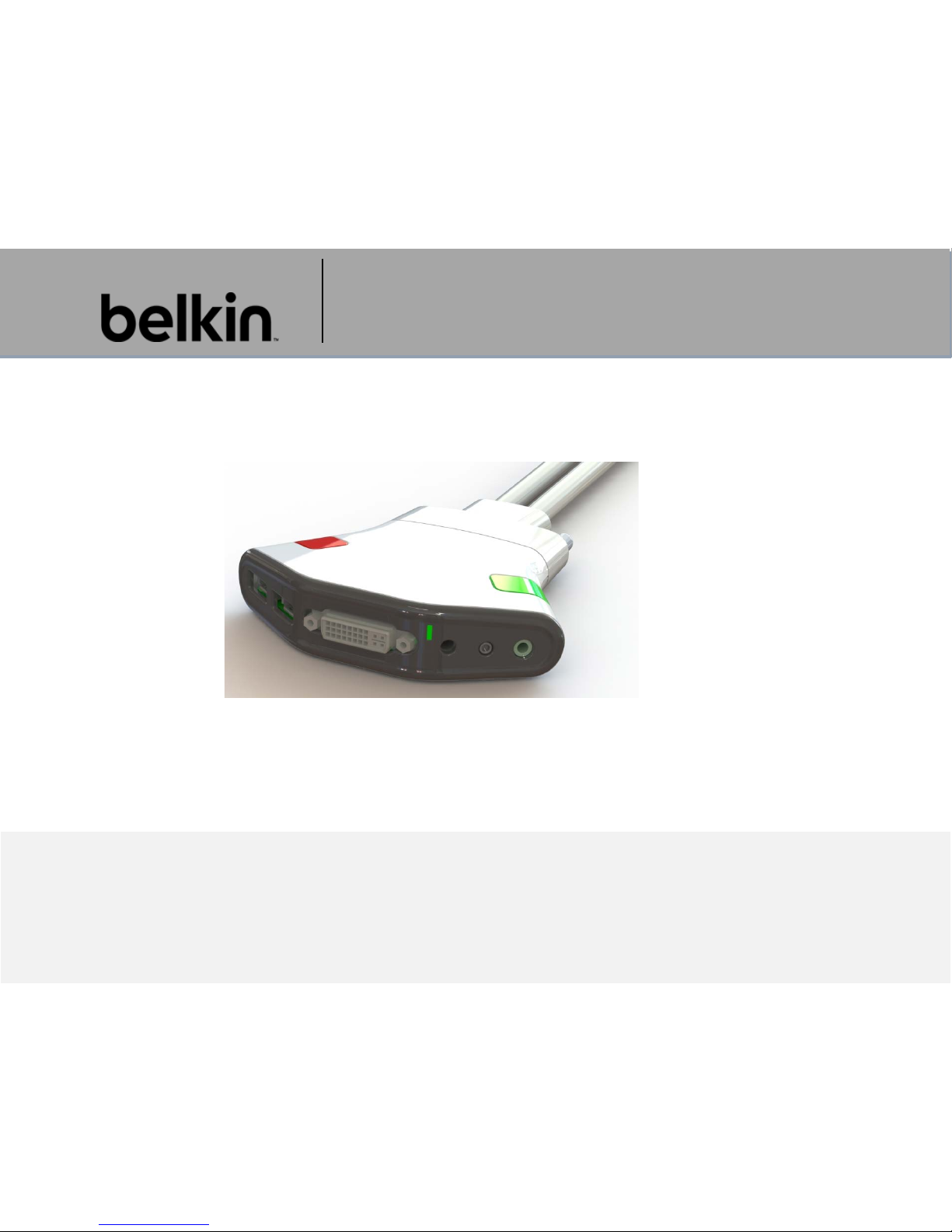

Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Table of Contents SECTIONS 1 23 4 5 6 7
Figure 5 – F1DN102V TOE Front panel features
Figure 4 – F1DN102F TOE front panel features

9
Belkin® Secure 2 port Flip DVI-D/VGA/DP KVM Switch User Manual
OVERVIEW
Table of Contents SECTIONS 1 23 4 5 6 7
Figure 6 – F1DN102N TOE Front panel features
1. Console USB Keyboard
2. Console USB Mouse
3. Console display output port
4. Display Status LED
5. DC Jack
6. Flip Remote controller jack
7. Console audio out jack
8. Channel #2 select illuminated push-button
9. Channel #1 select illuminated push-button
10. Computer interface cables
11. Flip Remote Controller - Channel selected Bi-color LED
12. Remote - Channel select push-button
Table relating to figures 4, 5 and 6
