I
Installation and
maintenance manual
Smart Bell 65/55 MF
Serial number:
Production date:

©
© Barbas Bellfires BV
This document or parts thereof may not be reproduced, stored in a retrieval system, or transmitted,
in any form or by any means, electronic, mechanical, photocopying, recording, nor otherwise,
without the prior written permission of Barbas Bellfires BV. This document could contain technical
inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document
from time to time in the contents thereof.
Contact information
Barbas Bellfires BV
Hallenstraat 17, 5531 AB Bladel, The Netherlands
Phone: [phone]
E-mail: [email protected]
Introduction
2
Smart Bell 65-55

C
Contents
1 About this document................................................................................ 5
1.1 How to work with this document.................................................................................................. 5
1.2 Warnings and cautions used in this document............................................................................ 5
1.3 Related documentation................................................................................................................5
2 Description............................................................................................... 6
2.1 Intended use................................................................................................................................ 6
2.2 Installation options....................................................................................................................... 6
2.3 Overview of a typical installation..................................................................................................6
2.4 Overview of the appliance............................................................................................................7
2.5 Overview of the burner bed and the pilot light.............................................................................8
2.6 Overview of the ceramic log set...................................................................................................9
2.7 Overview of the control elements...............................................................................................11
2.7.1 Overview of the rear of the gas regulator block.............................................................. 11
2.7.2 Overview of the front of the gas regulator block..............................................................12
2.7.3 Overview of the connections on the gas regulator block.................................................13

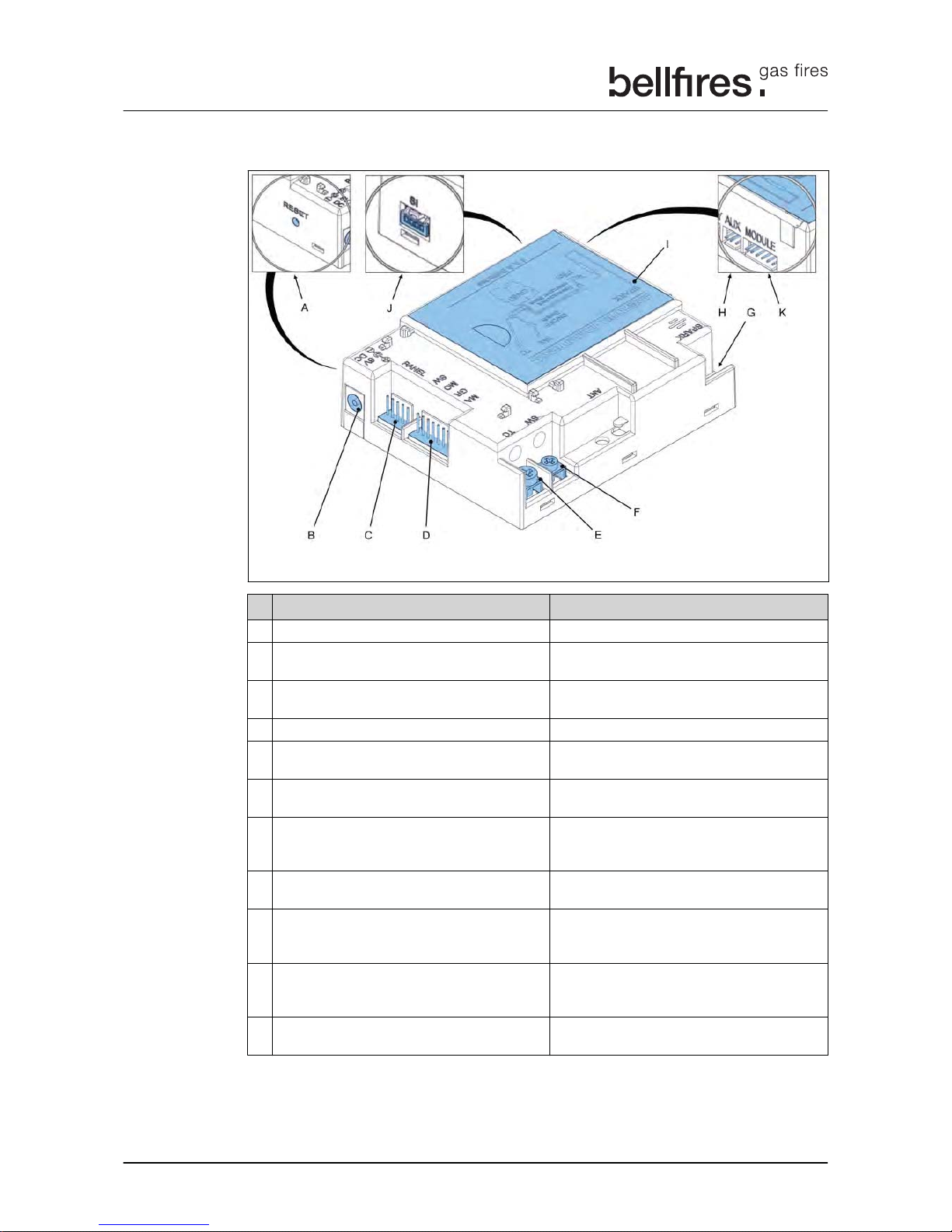

2.7.4 Overview of the receiver.................................................................................................14

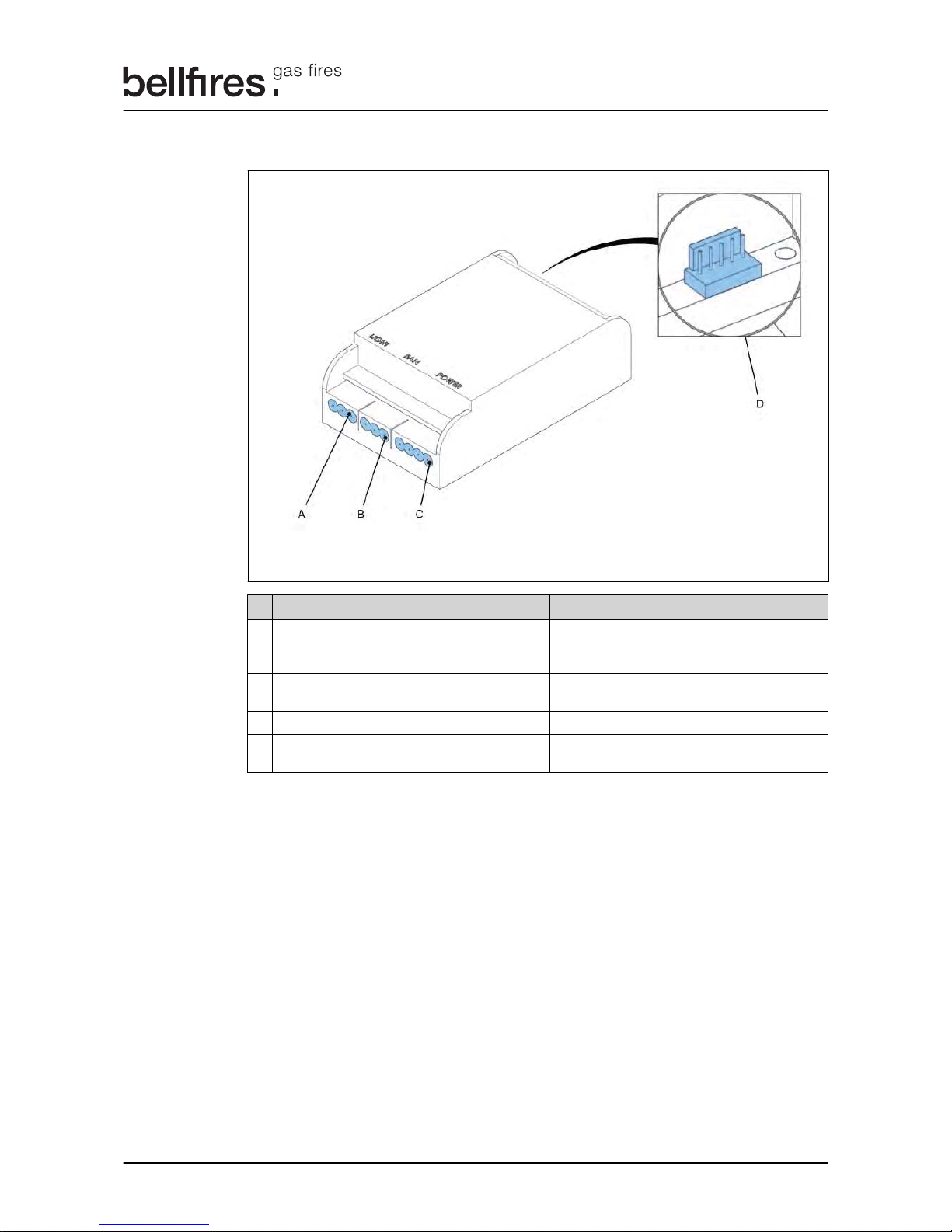

2.7.5 Overview of the fan/light module.....................................................................................15
3 Safety.....................................................................................................16
3.1 Safety devices on the appliance................................................................................................ 16
3.2 Safety instructions for installation.............................................................................................. 16
3.3 Safety instructions with regard to the environment....................................................................17
4 Installation..............................................................................................18
4.1 Installation prerequisites............................................................................................................ 18
4.2 Installation procedure.................................................................................................................18
4.2.1 Install the appliance........................................................................................................ 18
4.2.2 Horizontally align the appliance...................................................................................... 19
4.2.3 Make the gas connection................................................................................................ 19
4.2.4 Do a check on the gas connections................................................................................ 19
4.2.5 Make the electrical connection........................................................................................19
4.2.6 Connect the concentric flue system................................................................................ 20
4.2.7 Install the flue gas restriction plate..................................................................................20
4.2.8 Remove the baffle plate..................................................................................................20
4.2.9 Build the fireplace............................................................................................................21
4.3 Prepare the appliance for use....................................................................................................21
4.3.1 Do a check on the operation of the lighting.....................................................................22
4.3.2 Put the ceramic log set on the burner bed...................................................................... 22
4.3.3 Do a final check on the fireplace.....................................................................................24
Contents
Smart Bell 65-55
3

5
5 Maintenance.......................................................................................... 25
5.1 Annual maintenance.................................................................................................................. 25
5.1.1 Clean the appliance........................................................................................................ 25
5.1.2 Do a check on the appliance...........................................................................................26
5.2 Maintenance procedures........................................................................................................... 26
5.2.1 Remove the door (including glass)..................................................................................26
5.2.2 Install the door (including glass)......................................................................................27
5.2.3 Remove the frame...........................................................................................................28
5.2.4 Install the frame...............................................................................................................29
5.2.5 Clean the glass............................................................................................................... 29
5.2.6 Replace the ambient light bulb when broken.................................................................. 29
6 Troubleshooting..................................................................................... 30
7 Technical specification...........................................................................31
7.1 Smart Bell 65/55 MF (MagniFire) - GB, IE, ES, IT.....................................................................31
7.2 Diagram electricity and gas........................................................................................................33
7.3 Dimensions Smart Bell 65/55 with a Built-in frame....................................................................34
7.4 Dimensions Smart Bell 65/55 with a Classic frame 35 mm....................................................... 35
7.5 Dimensions Smart Bell 65/55 with a Classic frame 52 mm....................................................... 36
7.6 Dimensions Smart Bell 65/55 with a Classic frame 70 mm....................................................... 37
7.7 Dimensions Smart Bell 65/55 with an Insert frame 15 mm........................................................38
7.8 Dimensions Smart Bell 65/55 with an Insert frame 50 mm........................................................39
7.9 Dimensions Smart Bell 65/55 with an Insert frame 50 mm and Convection fan........................40
7.10 Dimensions of the restriction plate.............................................................................................40
8 Warranty Terms..................................................................................... 41
9 EU-Declaration of Conformity................................................................ 43
Contents
4
Smart Bell 65-55

1
1About this document
This document shows the necessary information to do these tasks on the Smart Bell
65/55 MF:
• Installation
• Maintenance
This document refers to the Smart Bell 65/55 MF as 'the appliance'. This document is an
essential part of your appliance. Read it carefully before you do work on the appliance.
Keep it in a safe place.
The original instructions of the document are in English. All other language versions of
the document are translations of the original instructions. It is not always possible to
provide a detailed illustration of every single item of the equipment. The illustrations in
this document show a typical setup. The illustrations are for instructional use only.
1.1 How to work with this document
1. Make yourself familiar with the structure and content of the document.
2. Read the safety chapter in detail.
3. Make sure that you understand all the instructions.
4. Do the procedures completely and in the given sequence.
1.2 Warnings and cautions used in this document
Warning
If you do not obey these instructions, there is a risk that can cause personal injury or
death.
Caution
If you do not obey these instructions, there is a risk of damage to the equipment or to
property.
Note
A note shows more information.
Symbol Description
Visual sign that there is a hazard
Visual sign that there is a notice
1.3 Related documentation
• Preparation manual
• Installation and maintenance manual
• User manual
About this document
Smart Bell 65-55
5

2
2Description
2.1 Intended use
The appliance is intended for use in a completely sealed or mechanically ventilated
house without extra ventilation and/or fume extraction to heat the room wherein it is
installed. Do not use it for other purposes.
The appliance may only be used at a location that meets the requirements for the
installation of the appliance. Refer to the preparation manual.
2.2 Installation options
The appliance is supplied with a MF (MagniFire) double burner.
• The appliance can be installed as an insertion into an existing open fireplace or as a
built-in appliance in a new fireplace.
• The appliance can be installed with a convection fan set. The convection fan collects
the heated convection air from the appliance and releases this air into the room. The
convection fan set consists of the convection fan, backcasing, cable and assembly
material, which will be installed on the appliance from the factory.
• A mantel iron can be installed on the appliance. The mantel iron makes it possible to
build the brickwork of the fireplace beyond the height of the appliance.

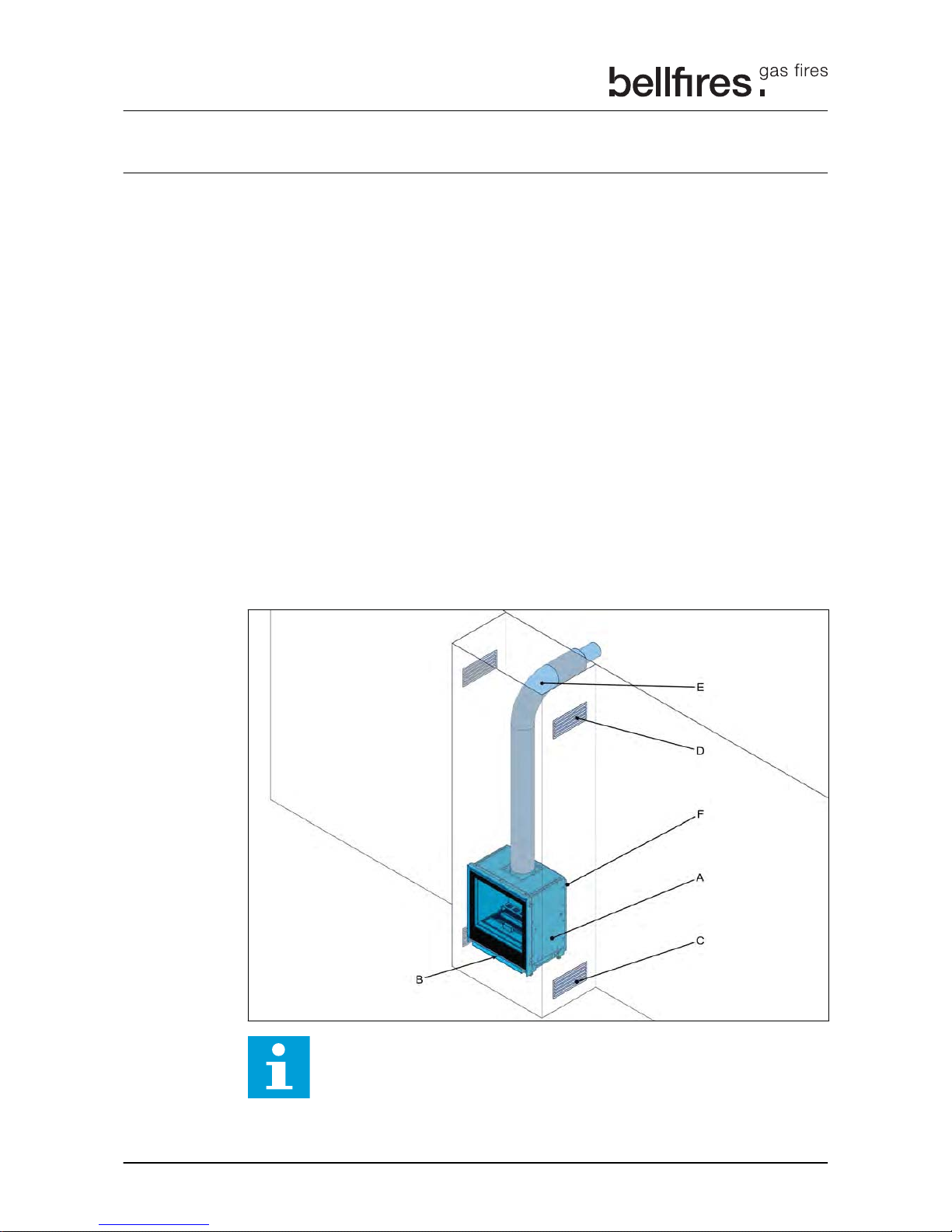

2.3 Overview of a typical installation
Note:
This is an example of a typical installation with the convection fan set option
and a wall outlet for the concentric flue, your installation can be different.
Description
6
Smart Bell 65-55

I
Item Description
A Appliance Decorative gas fire that heats the room
B Control unit Contains the gas regulator block, receiver and
the fan/light module
C Inlet grate Provides the fireplace with air
D Outlet grate The heated air in the fireplace is extracted by
the outlet grates into the room
E Concentric flue system (wall outlet variant) The concentric flue system provides combus-
tion air to the appliance and extracts the flue
gases from the appliance
F Convection fan set (option) Pushes the heated air of the convection cas-
ing.

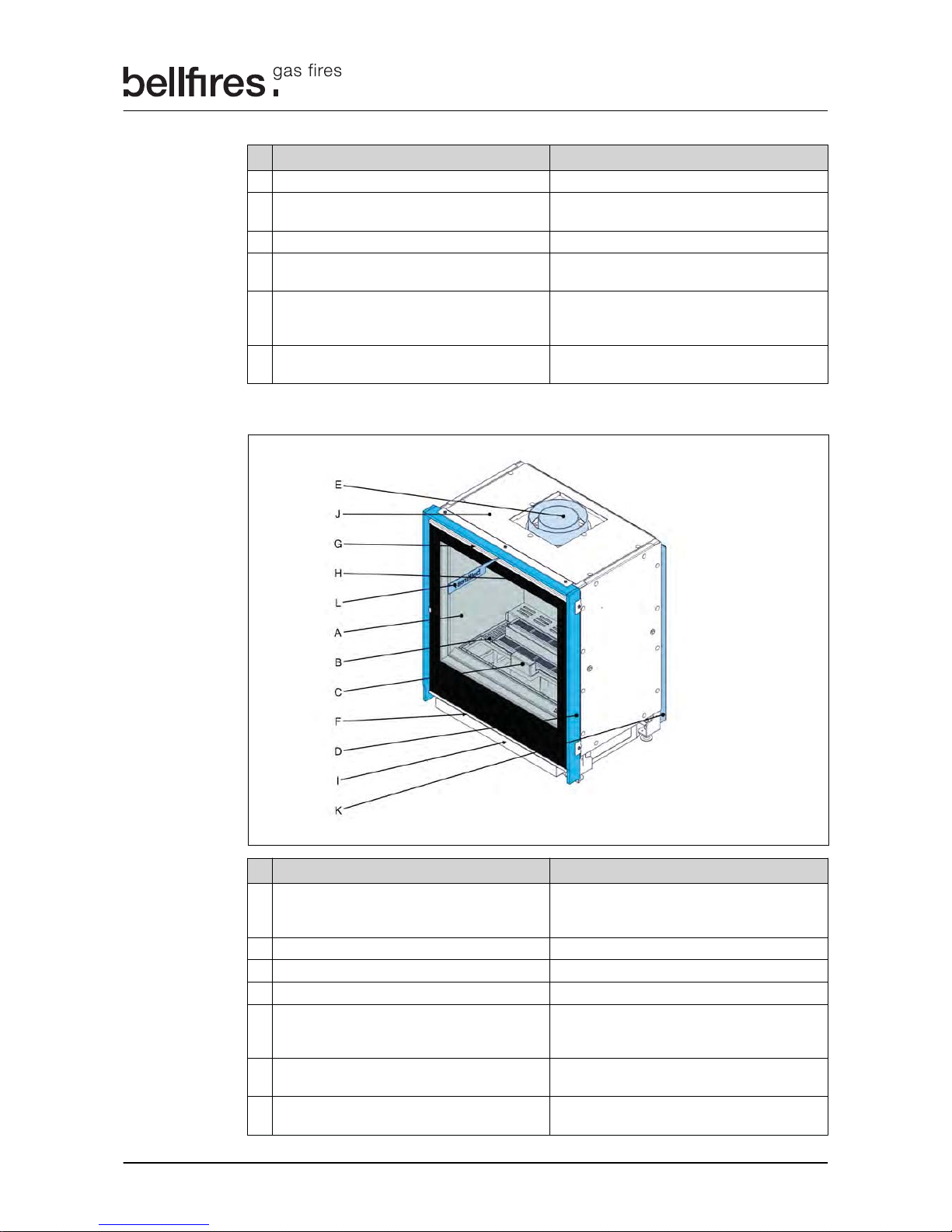

2.4 Overview of the appliance
Item Description
A Glass The heat resistant glass keeps the flue gas-
ses inside the appliance and closes the com-
bustion chamber off
B Burner bed Top side of the gas burner and grate
C Pilot light burner Provides a pilot light
D Frame (there are different sizes available) A decorative edge around the glass
E Concentric flue connection The connection to the concentric flue system
that provides combustion air and extracts the
flue gases
F Inlet opening convection air An inlet opening in the front of the appliance
which is connected to the convection casing
G Outlet opening convection air An outlet opening in the front of the appliance
which is connected to the convection casing
Description
Smart Bell 65-55
7

I
Item Description
H Overpressure door Protects the appliance against an overpres-
sure
I Control unit Contains the gas regulator block, receiver and
the fan/light module
J Convection casing Collects the heated convection air. The con-
vection air has a natural upward flow and is
extracted by the upper front side openings of
the appliance
K Convection fan set (option) Pushes the heated air of the convection cas-
ing
L Hook For opening the door (including glass)
2.5 Overview of the burner bed and the pilot light
Item Description
A Grate Combustion air gets in the combustion cham-
ber through the grate around the main burner
B Main burner (upper part) Supplies the gas for the main upper fire
C Main burner (lower part) Supplies the gas for the main lower fire
D Pilot light outer casing Protective cover for the pilot light
E Pilot light burner Supplies the gas for the pilot light
F Thermocouple Detects if the pilot light is on
G Ignition electrode Supplies a spark to ignite the pilot light
Description
8
Smart Bell 65-55

2

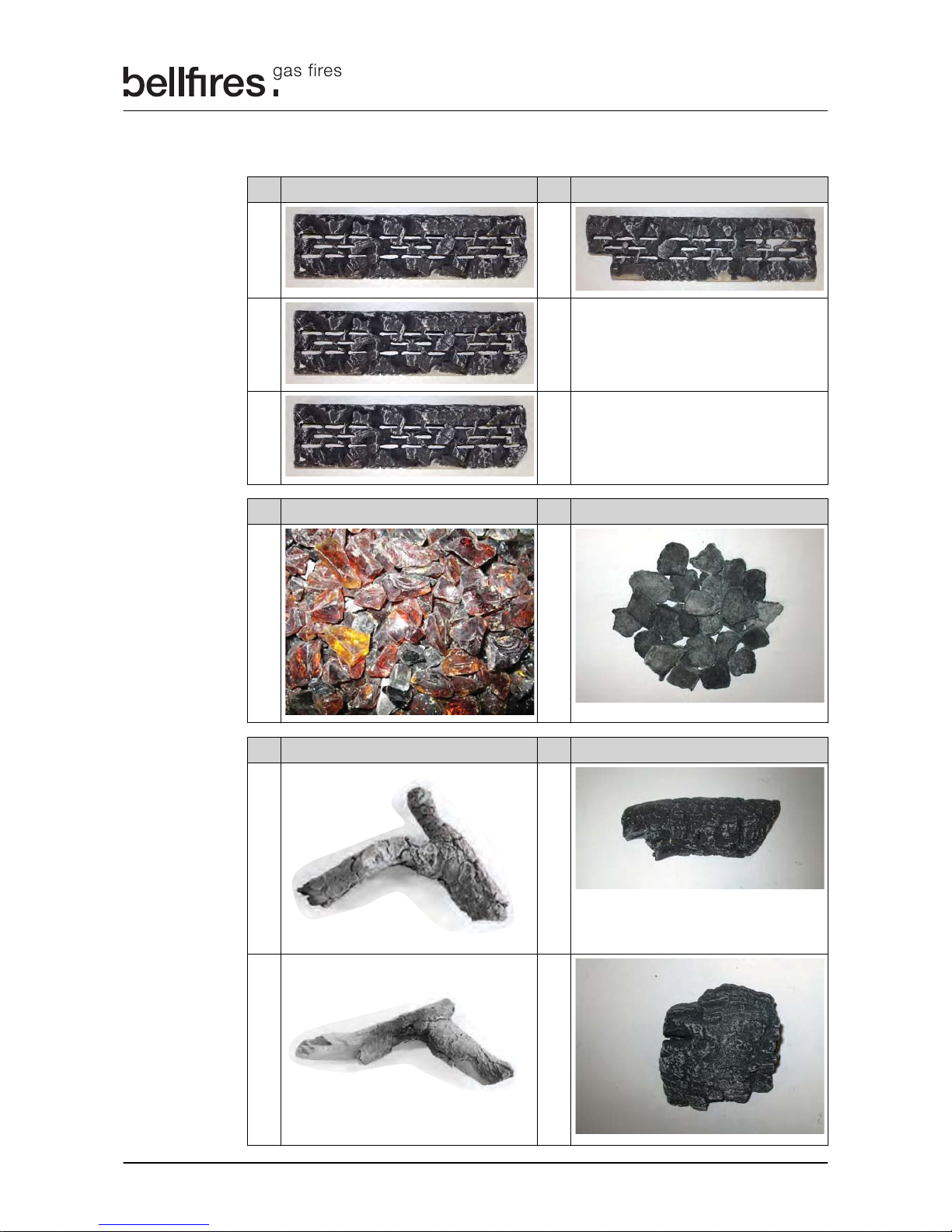

2.6 Overview of the ceramic log set
No. Ember grate No. Ember grate with pilot opening
3T 3TV
3T
3T
No. 'Fire glass' Dark Amber No. Embers
No. Log No. Charcoal
121
222
Description
Smart Bell 65-55
9

N
No. Log No. Charcoal
425
6
No. Wood chip No. Wood chip
P70
6
P70
7
P70
6
Description
10
Smart Bell 65-55

2
2.7 Overview of the control elements

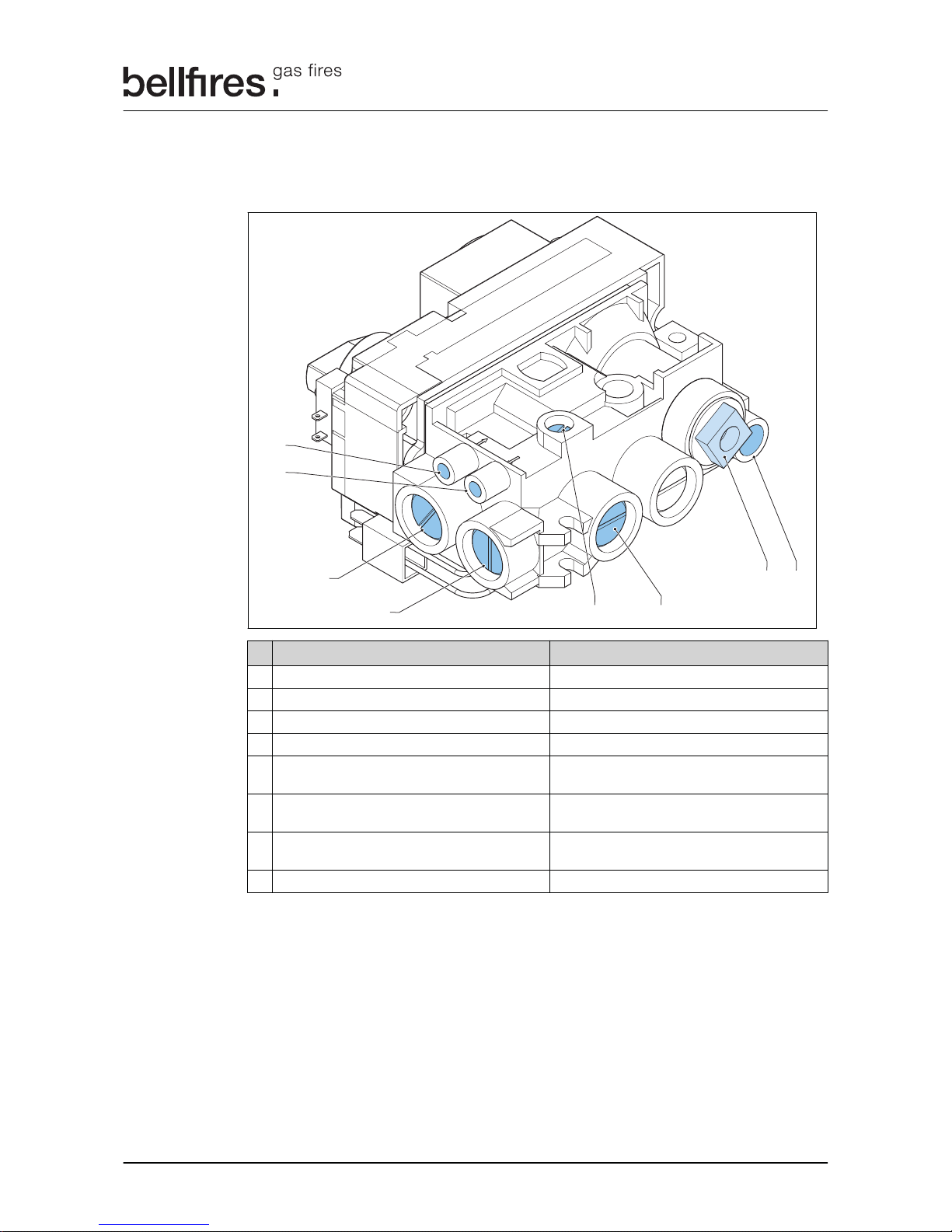

2.7.1 Overview of the rear of the gas regulator block
B
A
C
D
HG
E F
Item Description
A Inlet pressure tap Point to measure the gas supply pressure
B Outlet pressure tap Point to measure the front burner pressure
C Gas supply connection The connection for the gas supply pipe
D Gas connection for the front burner The connection for the front burner gas pipe
E Adjustment screw for the minimum burner
pressure
sets the minimum burner pressure. The ad-
justment screw is factory set and sealed.
F Gas connection for the gas valve that is con-
nected to the rear burner
The connection for the rear burner gas pipe
G Thermocouple interrupter connection The connection for the thermocouple inter-
rupter
H Pilot light connection The connection to the pilot light gas pipe
Description
Smart Bell 65-55
11

2
2.7.2 Overview of the front of the gas regulator block
A B C
DE
Description
A Pilot gas adjustment screw Sets the pilot light gas pressure. The adjust-
ment screw is factory set and sealed.
B Adjustment screw maximum burner pressure Sets the maximum gas pressure for the burn-
er. The adjustment screw is factory set and
sealed.
C Motor-knob Operates the internal main gas valve
D Microswitch Detects the end position of the motor-knob
E 8 wire cable connection Connects the 8-wire cable from the receiver
Description
12
Smart Bell 65-55

2
2.7.3 Overview of the connections on the gas regulator block
B
A
C
M
D
E
G
F
H
L
K
J
I
Item Description
A Pilot light pipe Supplies gas to the pilot light burner
B Thermocouple Detects if the pilot light is on
C Connector (nut-olive) Ø 4mm Connects the pilot light gas pipe to the gas
regulator block
D Thermocouple interrupter Interrupts the signal of the thermocouple, and
bypasses this signal through the receiver.
When the thermocouple signal is cut off by
the receiver (requested by the remote control)
or when the thermocouple signal is weak or
broken, the gas supply to the pilot light will
stop.
E Connector Connects the gas valve of the rear burner
F Gas pipe rear burner Supplies gas to the rear of the main burner
G Connector (nut-olive) Ø 8mm Connects the rear burner gas line to the gas
valve of the rear burner
H Gas valve of the rear burner Controls the flow of gas to the rear burner
I Control cable of the gas valve of the rear
burner
Connects the valve to the receiver
J Olive Ø 8mm For the gas pipe to the front burner
K Nut Ø 8mm For the gas pipe to the front burner
L Gas supply connection Inlet for the gas supply
M Gas pipe front burner Supplies gas to the front of the main burner
Description
Smart Bell 65-55
13

2
2.7.4 Overview of the receiver
Item Description
A Reset button Reset of the receiver
B Connection for an adapter Optionally, a 6 VDC adapter can supply the
receiver and an optional wifi-box with power
C connection for external operating Optionally, a wall switch or domotica system
can be connected
D 8 wire cable connection Sends signals to the gas regulator block
E Thermocouple voltage / current IN (red con-
nection)
Connection to the thermoelectric pilot light
shut-off wire IN
F Thermocouple voltage / current OUT (yellow
connection)
Connection to the thermoelectric pilot light
shut-off wire OUT
G Piezo cable connection Connection for the piezo cable which is con-
nected to the ignition electrode of the pilot
light
H Connection to the gas valve rear burner
(AUX)
Sends a signal if the rear burner must burn
I Battery compartment cover Batteries are not applicable in the receiver for
this appliance. (Power is supplied by the fan/
light module.)
J Connection for a wifi-box (SI) Optionally, a wifi-box can be connected to the
receiver to control the appliance with a smart-
phone or tablet with the Bellfires app.
K Connection for the fan/light module (MOD-
ULE)
To control the light function and optionally to
control the fan speed function
Description
14
Smart Bell 65-55

2
2.7.5 Overview of the fan/light module
Item Description
A connection for the power supply Connection for the 230 VAC power cable with
an earthed plug. Connection is also used for
earthing the appliance
B Connection for a convection fan Powers the convection fan. Optional for this
appliance
C Connection for the ambient lights Powers the ambient light bulbs
D Connection for the receiver To control the light function and optional the
convection fan function
Description
Smart Bell 65-55
15

3
3Safety
3.1 Safety devices on the appliance
Name Description
Thermo-electric pilot light shut off Prevents unforseen discharge of gas from the main
burner.
Overpressure door If an overpressure occurs in the appliance, the door
opens for a short duration. When the door opens, a
loud noise can occur. If an overpressure occurs, the in-
staller must do a thorough check on the appliance.
3.2 Safety instructions for installation
Warning:
• The appliance must be positioned and connected as a 'room sealed
system' appliance by a certified and registered gas installation engineer
• Before beginning the installation, check that the details on the rating plate
correspond to the gas type and supply pressure to which the appliance will
be connected.
• Install the appliance in accordance with the following installation
instructions, and the national and the local applicable regulations.
• Do not put flammable materials in the fireplace.
• Make sure that the area around the fireplace is free of flammable materials
at all times. the minimal safe distance is 100 cm from the fireplace.
• Make sure that the burner openings stay clean during installation.
Blockage of the burner openings can lead to a dangerous situation.
• Make sure that the gas regulator block and the piping remain free of
cement or other building material. Otherwise, the gas regulator block or the
piping can start to leak.
• Do not twist the flexible pipes to the gas regulator block. Make sure that
there is no stress on the flexible pipes and the gas regulator block.
• Make sure that you do not damage the pipes.
• Make sure that the compression fittings do not come loose.
• Do not install the appliance against a flammable rear wall.
• After installation, Make sure that the pipes and compression fittings are
gas tight.
Safety
16
Smart Bell 65-55

C
Caution:
• Only use the items that are supplied or described in the preparation
manual and other related documentation.
• Do not use masking tape on the appliance. Masking tape can damage the
finish of the appliance.
• Do not insulate the appliance. If necessary, only install strips of white,
loose insulation wool that is heat resistant up to at least 1000 °C. Install
the insulation strips with a width of maximally 15 cm to protect the walls.
Only install these strips on top and on the side of the appliance.
• Do not use fiberglass, rockwool, or any other sort of insulation material.
These materials produce pungent odour and can produce discolouration of
the fireplace.
• Make sure that brickwork is build with a clearing of at least 3 mm between
the sides and the top of the appliance and the brickwork. The appliance
can expand during operation due to heating.
• Do not build the brickwork higher than the casing without the use of a
mantel iron.
3.3 Safety instructions with regard to the environment
• Dispose of the packing materials in an environmentally friendly way.
• Dispose of batteries as chemical waste.
• Dispose of ceramic heat-resistant glass as household waste. Do not dispose of
ceramic heat-resistant glass in a glass recycling container.
• Dispose of an obsolete appliance according to instructions of the authorities or the
fitter.
• Obey the local regulations.
Safety
Smart Bell 65-55
17

4
4Installation
4.1 Installation prerequisites
1. Make sure that the location agrees with the requirements. Refer to the preparation
manual.
2. Make sure that the details of the rating plate of the appliance agree with the gas type
and gas pressure of the gas supply.
4.2 Installation procedure
Note:
The appliance is factory set to the correct nominal heat input. The pilot light is
set to the correct level of gas consumption.
• Do all the procedures in this section. Optional procedures are indicated with
(optional).
4.2.1 Install the appliance
Safety conditions
Caution:
Do not install the appliance against a flammable rear wall.
Procedure

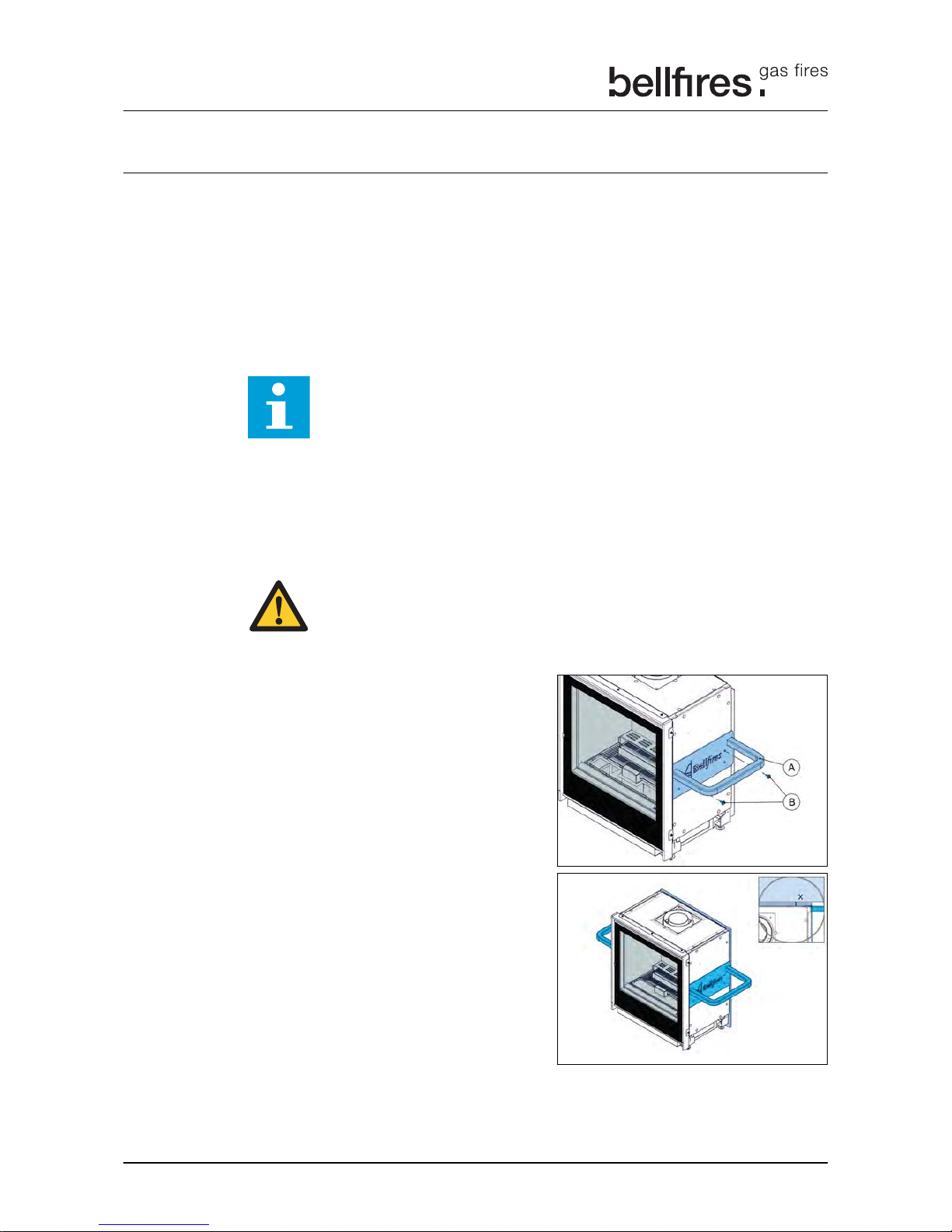

1. Install the carrying brackets (A). Use
the fasteners (B). You can use the
carrying brackets to move the
appliance.
2. Install the appliance. Make sure that
the distance x is approximately 2 cm.
3. Remove the carrying brackets.
4. Put a nonflammable insulation plate
(B) of at least 12 mm thick between
the appliance and the rear wall.
Make sure that the insulation plate
covers the entire area of the rear of
the appliance.
Installation
18
Smart Bell 65-55

4
4.2.2 Horizontally align the appliance
• Adjust the adjustable feet. Use an hexagonal key of size 4.
a) Make sure that distance x is at least 1 cm.
b) Make sure that the appliance is installed horizontally.
4.2.3 Make the gas connection
Caution:
• Do not twist the gas supply pipe to the gas regulator block. Make sure that
there is no stress on the gas supply pipe and the gas regulator block.
• Make sure that you do not damage the gas supply pipe.
1. Connect the gas to the appliance. Use a compression fitting.
2. Make sure that the gas is correctly connected.
4.2.4 Do a check on the gas connections
• Make sure that the gas connections do not leak. Use soapy water or a leak tester.
4.2.5 Make the electrical connection
Caution:
• Use a wall socket with earth connection.
• The socket must be accessible at all times.
1. Connect the plug to the wall socket.
2. Make sure that the electrical cable does not touch the appliance, due to the high
temperatures of the appliance.
Installation
Smart Bell 65-55
19

4
4.2.6 Connect the concentric flue system
1. Connect the concentric flue system to the appliance. Use the materials that are
specified in the preparation manual. Do not use any other materials.
2. Make sure that all mechanical connections of the concentric flue system are correctly
connected.
4.2.7 Install the flue gas restriction plate
Safety conditions
Caution:
Install the correct restriction plate. An incorrect restriction plate can cause
damage to the appliance.
Procedure
1. Remove the door (including glass).
See
5.2.1 .
2. Install the restriction plate (A) with
the fasteners (B) in the appliance.
Use the restriction plate specified in
the preparation manual. Baffle plate
(C) stays in place when a restriction
plate must be installed. .
4.2.8 Remove the baffle plate
The appliance is factory supplied with a baffle plate. This baffle plate is located at the top
of the combustion chamber, just before the connection with the concentric flue. The baffle
plate only remains on location, if a restriction plate needs to be mounted. Refer
4.2.7 .
Safety conditions
Warning:
Always remove the baffle plate if there is no need to mount a restriction
plate!!!
No restriction plate → No baffle plate !!!!!
Failure to remove the baffle plate, if there is no need to mount a restriction
plate, can lead to dangerous situations!
Procedure
1. Remove the baffle plate, by
unscrewing two bolts.
2. Screw the bolts back into the ceiling
of the combustion chamber, after the
baffle plate has been removed.
Installation
20
Smart Bell 65-55
