Bellman BE1420 User manual

Buttons and connections
Visit push button transmitter
Status LED
Pre-mounted battery
Radio key switches Hole for lanyardFront button
Adhesive tapeFront cover
Signal switches
2¯hole markings
BE1420
In the box
BE1420 Visit push button transmitter
with pre-mounted alkaline battery
Lanyard with safety clasp
Adhesive tape, screws and plugs
Power and battery
Battery type
1¯6 V PX28A alkaline or
1¯6 V PX28L lithium
Power consumption
Active < 35 mA
Idle position < 0.05 μA
Operation time
Alkaline battery ~ 2 years
Lithium battery ~ 5 years
Frequency and coverage
Frequency
314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage
50 - 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Environment
For indoor use and outdoor use
in a protected location. Will not
withstand water or rain.
Operating temperature
15° to 35° C, 59° to 95° F
Relative humidity
5% to 95%, non-condensing
Dimensions and weight
Height: 66 mm, 2.6"
Width: 48 mm, 1.9"
Depth: 23 mm, 0.9"
Weight: 50 g, 1.8 oz. incl. battery
Activation
Via the front button
Maintenance and cleaning
Maintenance free
Clean with a dry cloth
Do not use household cleaners,
aerosol sprays, solvents, alcohol,
ammonia or abrasives
Technical specications

Using it as a caller button
The transmitter can be worn around your neck and
be used as a wireless caller button.
Here is how you use it:
1Attach the lanyard to the transmitter.
2Hang the transmitter around your neck.
Using it as a doorbell
The transmitter can also be used as a wireless doorbell. Here is how you set it up:
Mounting with screws
1Carefully remove the transmitter front cover and make two holes on the markings.
2Fix the unit to the wall using the supplied screws and put the cover back on.
2
1 2
21
AB
www.bellman.com
Bellman Visit 868 Pushbuttontransmitter
Model: BE1420
Frequency 868,3 MHz
Battery: 1 x 6V
Made in P.R.C.by Bellman & Symfon AB, Sweden
1
Mounting with adhesive tape
1Attach the adhesive tape to the back of the transmitter.
Clean the wall with the wet wipe and remove the protective lm from the tape.
2Mount the unit in a weather protected area by the front door.
Visit push button transmitter

Default signal pattern
Transmitter Receiver signal pattern
LED LED Sound Vibration Flash
Green light Green light 1¯door chime, low Slow Yes
Changing the signal pattern
Changing the signal pattern is easy. Just open the transmitter front cover and move signal switches
no. 8, 9 and 0 according to the table below:
Transmitter Receiver signal pattern
Switch LED Sound Vibration Flash
Green light 1¯door chime, low Slow Yes
2
¯green blinks 2¯door chime, low Slow Yes
3
¯green blinks 1¯door chime, high Slow Yes
Green blinks 2¯door chime, high Slow Yes
Orange light Baby melody Fast Yes
Orange blinks Baby melody Fast Yes
Yellow light 1¯ring signal, low Medium Yes
Yellow blinks 2¯ring signal, high Medium Yes
Testing the connection
Using the front button
1 Press the front button on the transmitter. The LED lights up
in green to show that a radio signal is being transmitted.
2The green Visit LED on the receiver lights up to show that
the signal was received. In addition, it starts to sound, ash
or vibrate with a certain pace, called signal pattern.
The transmitter determines the signal pattern and the
default is as follows:
1 2
Visit push button transmitter
On
O

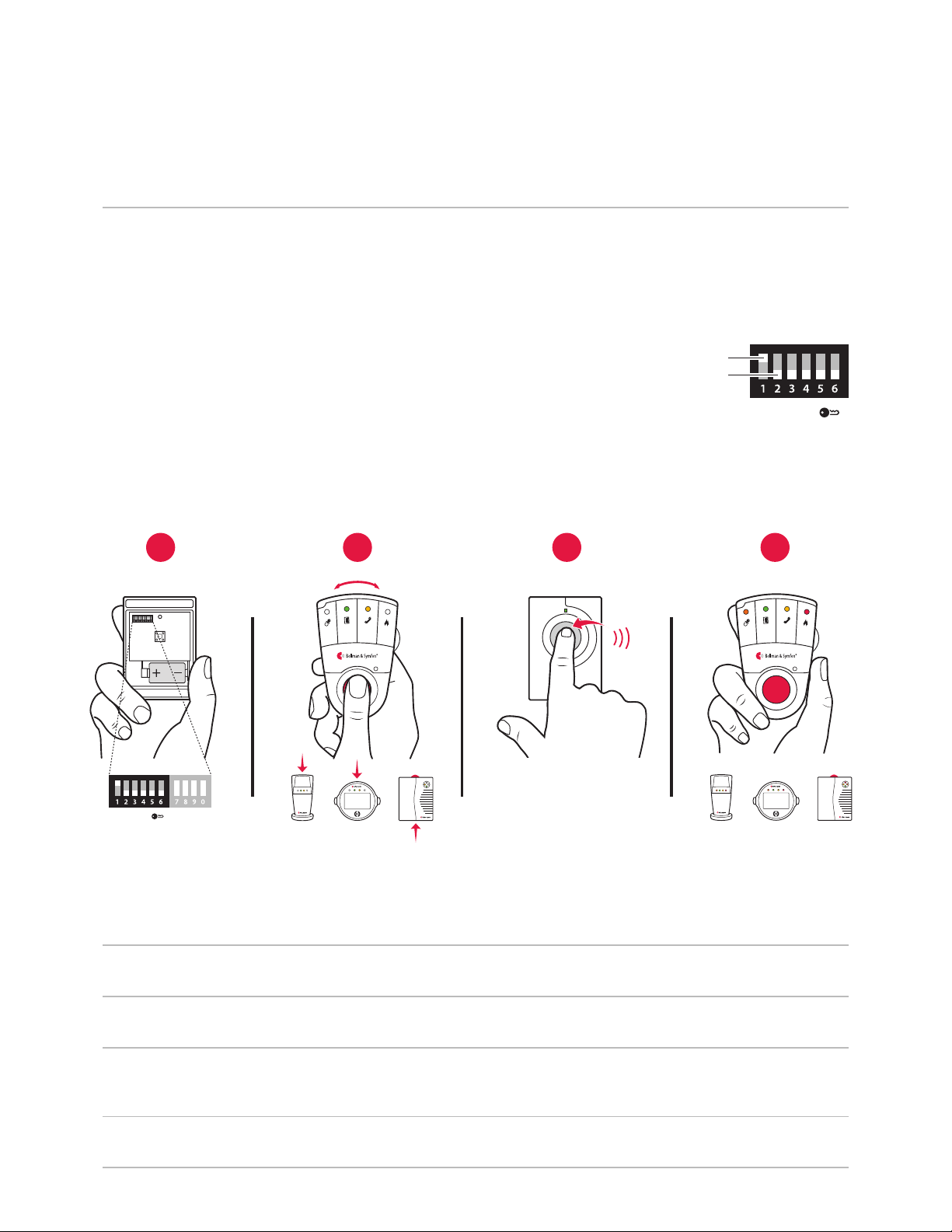

Changing the radio key
If your Visit system is activated for no reason, there is probably a nearby system that triggers yours. In order to avoid radio
interference you need to change the radio key on all units. The radio key switches are located under the transmitter cover.
Here is how you change the radio key:
1Remove the transmitter front cover and move any radio key switch to the up (on position)
to change the radio key. By default, all radio key switches are positioned down (o).
2Press and hold the test/function button on the receiver until the green and yellow Visit LEDs
blink alternately. Release the button.
3Press the front button on the transmitter within 30 seconds to send the new radio key.
4All Visit LEDs on the receiver blink 5 times to show that the radio key has been changed. It then returns to normal mode.
Note: All Visit units must be set to the same radio key in order to operate as a group.
RADIO KEY
On
O
Troubleshooting
If Try this
The transmitter LED lights up in yellow
when I press the button
The battery is nearly depleted. Replace it with an alkaline PX28A or a lithium
PX28L type battery.
The transmitter LED doesn’t light up
when I press the button
Check that the battery is positioned correctly.
Replace the battery with an alkaline PX28A or a lithium PX28L type battery.
The transmitter LED lights up in green
but the receiver is not activated
Check the receiver batteries and connections.
Move the receiver closer to the transmitter to make sure it’s within radio range.
Check that the units are set to the same radio key, see Changing the radio key.
The receiver is activated for no
apparent reason
There is probably another Visit system installed nearby that triggers your
system. Change the radio key on all units, see Changing the radio key.
RADIO KEY SIGNAL
1 2 3 4
°5
Visit push button transmitter
