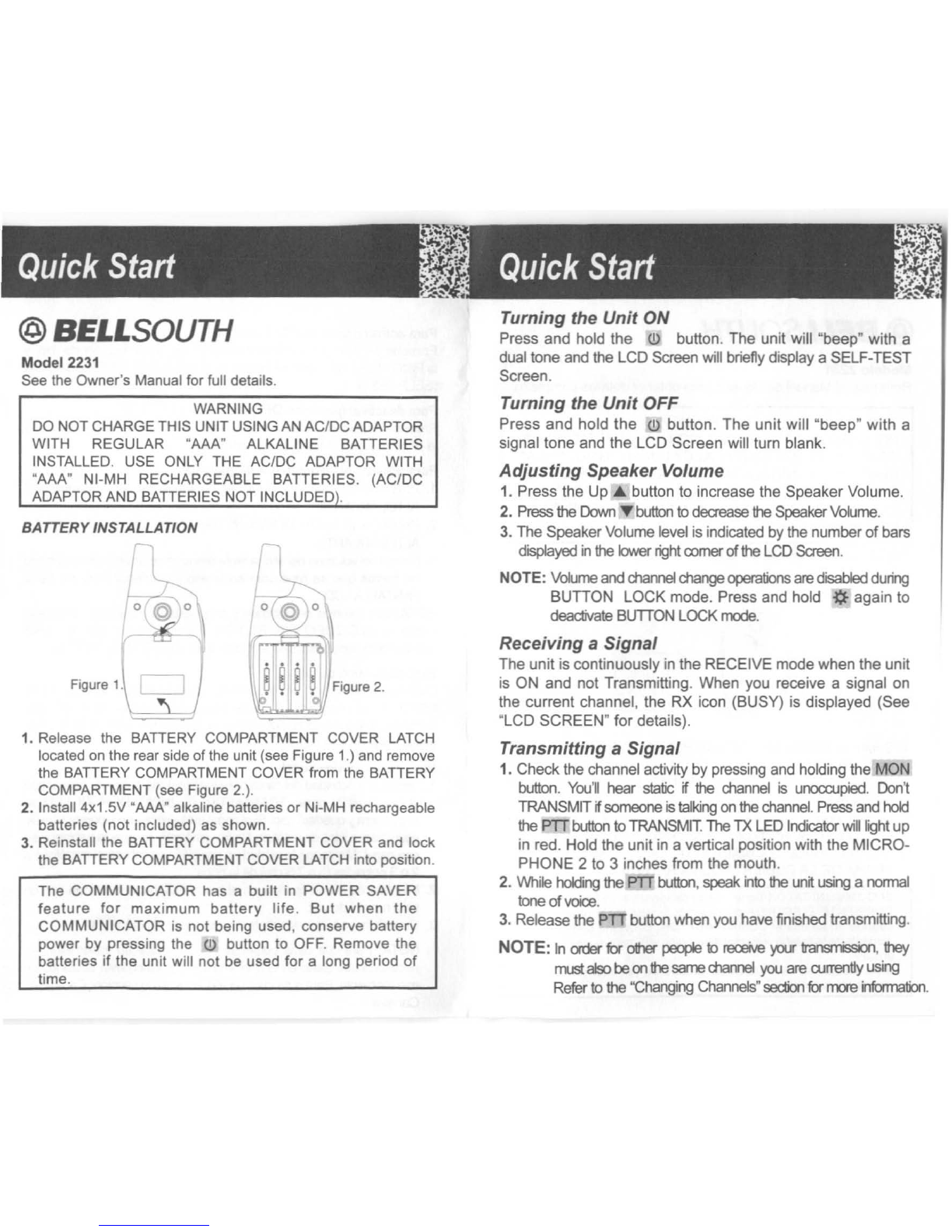

Quick Start
Quick Start
@BELLSOUTH
Model 2231
See the Owner's Manual for full details.
WARNING
DO NOT CHARGE THIS UNIT USING AN AC/DC ADAPTOR
WITH REGULAR "AAA" ALKALINE BATTERIES
INSTALLED. USE
ONLY THE AC/DC ADAPTOR WITH
"AAA" NI-MH RECHARGEABLE BATTERIES. (ACIDC
ADAPTOR AND BATTERIES NOT INCLUDED).
BATTERYINSTALLATION
CJ /'
I
1. Release the BATTERY COMPARTMENT COVER LATCH
located on the rear side of the unit (see Figure 1.) and remove
the BATTERY COMPARTMENT COVER from
the BATTERY
COMPARTMENT (see Figure 2.).
2. Install 4x1.5V "AAA" alkaline batteries or Ni-MH rechargeable
batteries (not included) as shown.
3. Reinstall the BATTERY COMPARTMENT COVER and lock
the BATTERY COMPARTMENT COVER
LATCH into position.
The COMMUNICATOR has abuilt in POWER SAVER
feature for maximum battery life. But when the
COMMUNICATOR is not being used, conserve battery
power
by pressing the (I) button to OFF. Remove the
batteries
if the unit will not be used for along period of
time.
Turning the Unit ON
Press and hold the (I) button. The unit will "beep" with a
dual tone and the LCD Screen will briefly display aSELF-TEST
Screen.
Turning the Unit OFF
Press and hold the (I) button. The unit will "beep" with a
signal tone and the LCD Screen will turn blank.
Adjusting Speaker Volume
1. Press the Up button to increase the Speaker Volume.
2. Press the Down button to decrease the Speaker Volume.
3. The Speaker Volume level is indicated by the number of bars
displayed
in the loNer right conner ofthe LCD Screen.
NOTE: Volume and channel change operations are disabled during
BUTTON LOCK mode. Press and hold
~ again to
deactivate BUTTON LOCK mode.
Receiving aSignal
The unit is continuously in the RECEIVE mode when the unit
is ON and not Transmitting. When you receive asignal on
the current channel, the RX icon (BUSY) is displayed (See
"LCD SCREEN" for details).
Transmitting aSignal
1. Check the channel activity by pressing and holding the MON
button. You'" hear static if the channel is unoccupied. 0001
TRANSMIT if someone is talking on the channel. Press and hold
the PIT button to TRANSMIT The TX LED Indicator will light up
in red. Hold the unit in avertical position with the MICRO-
PHONE 2to 3inches from the mouth.
2. While holding the PTT button, speak into the unit using a noonal
tone of voice.
3. Release the PTTbutton when you have finished transmitting.
NOTE: In Older br oIher people kJ reOOve pJ transnission, they
rrustalso be on the sarrechannel you are currently using
Refer
to the "Changing Channels" sedion for rrore informatX:ln.

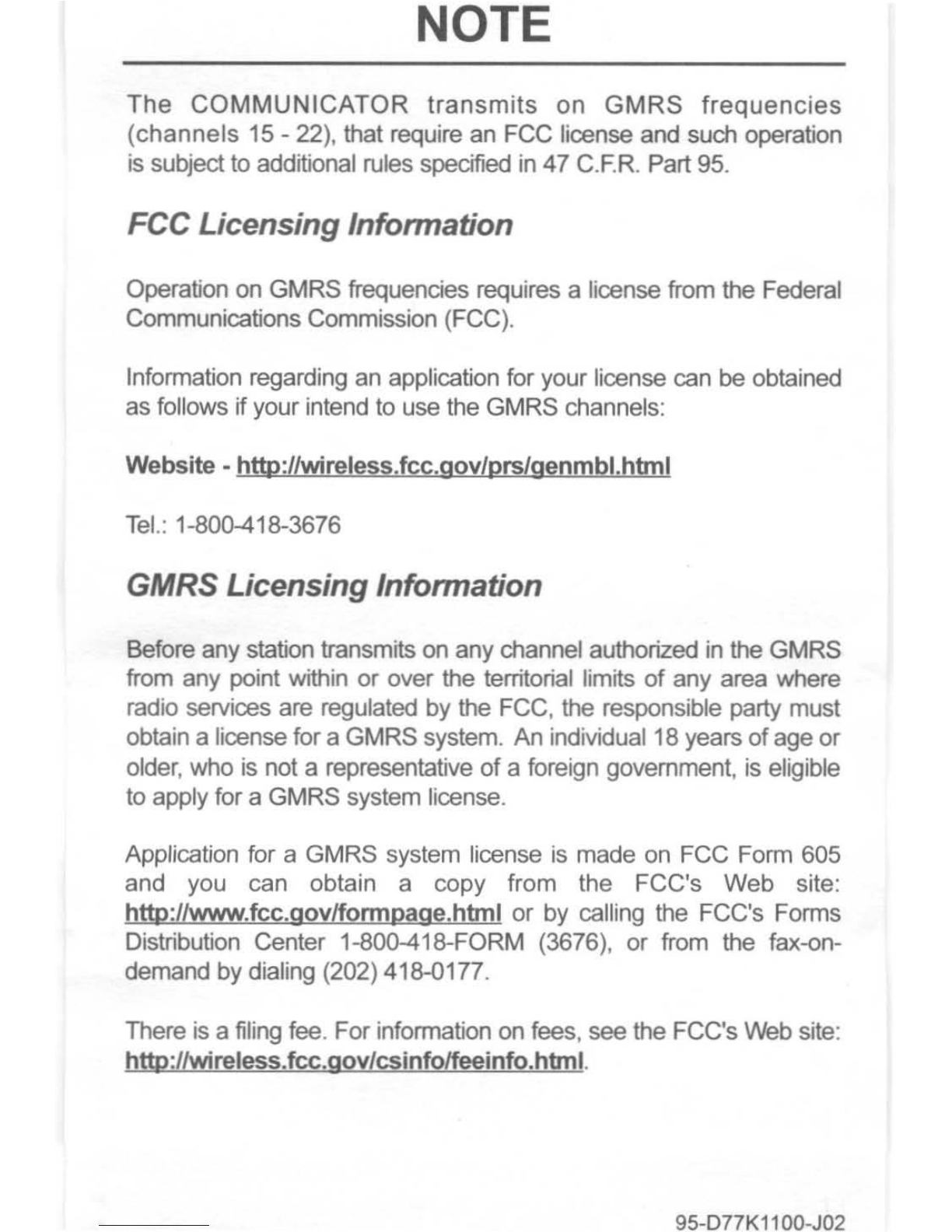

NOTE
The COMMUNICATOR transmits on GMRS frequencies
(channels 15 -22), that require an FCC license and such operation
is subject to addrtional rules specified
in 47 C.F.R. Part 95.
FCC Licensing Infonnation
Operation on GMRS frequencies requires alicense from the Federal
Communications Commission (FCC).
Information regarding an application for your license can
be obtained
as follows if your intend to use the GMRS channels:
Website -httD:llwireless.fcc.govlprslgenmbl,hbnl
Tel.: [phone]
GMRS Licensing Infonnation
Before any station transmits on any channel authorized in the GMRS
from any point wrthin or over the territorial limits
of any area where
radio services are regulated by the FCC, the responsible party must
obtain alicense for aGMRS system. An individual 18 years ofage or
older, who is not arepresentative
of aforeign govemment, is eligible
to apply for aGMRS system license,
Application for aGMRS system license
is made on FCC Form 605
and you can obtain acopy from the FCC's Web site:
httD:llwww.fcc.govlfonnpage.htmlor by calling the FCC's Forms
Distribution Center 1-800-418-FORM (3676), or from the
fax-<ln-
demand by dialing [phone].
There is afiling fee. For information on fees, see the FCC's Web site:
httD:llwireless,fcc,govlcsinfolfeeinfo,html.
95-D77K1100-J02

lectronics
Exclusive Distributor
Call TJI Free 1-800-828-5208
I
~
~0
rl~J
'-.-/ r 'J
,'-/J
--.---10
--.---1 0
.--r ~ J
~ J .
J,-J
'------IJSEJecfro ics
Exclusive Distributor

I
iI

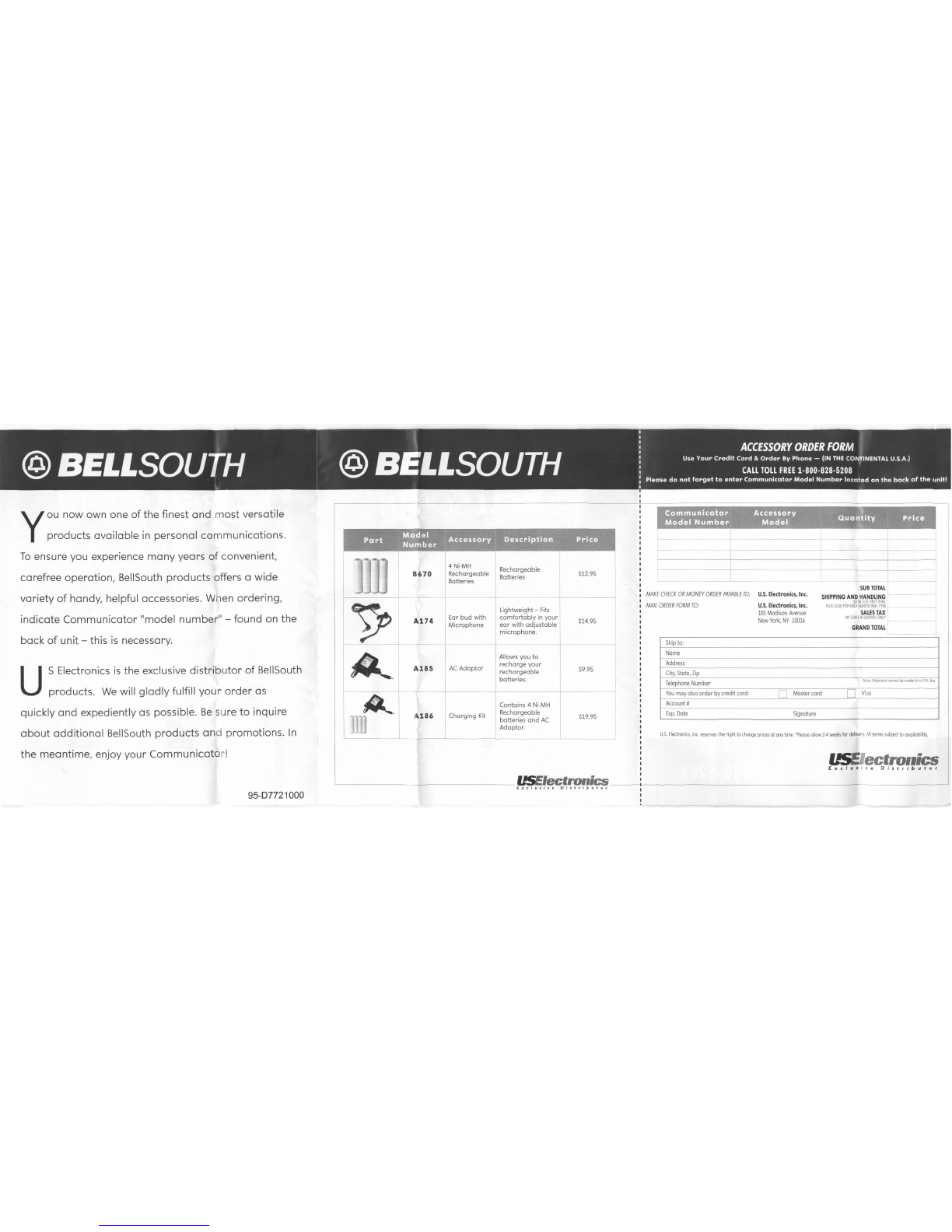

i : ACCESSORY ORDER FORM
@
B
£lLSOU
~H @ BrlLSOU~H :Use Your Credit Card & Order BV Phone-(INTHE CONTINENTAL U.S.A.)
I ~ ~I I ~ : CALL TOLL FREE 1-800-828-5208
:Please do not forget to enter Communicator Model Number located on the back of the unit!
I
Part M
Nodebl
Accessory Description Price
urn er
U.S. Electronics, Inc. reserves the right to change prices at any time. 'Please allow 2-4 weeks for delivery. All terms subject to availability.
Communicator Accessory Q '-t P I
Model Number, Model uan"t1 y r ce
flSElectronics
Exclusive Distributor
D Visa
Note: Shipment cannot be mode to 0 P.O. Box
GRAND TOTAL
SUB TOTAL
SHIPPING AND HANDLING r----
SJ.OO F-OR FIRST ITEM
PLUS $1.00 FOR EACH ADDITIONAL nEM
SALES TAX
NY STATE RESIDfNTS QNLY f------j
If-------- --+------
Signature
D Master card
U.S. Electronics, Inc.
U.S. Electronics, Inc.
105 Madison Avenue
New York, NY 10016
Exp. Date
Account #
You may also order by credit cord:
City, State, Zip
Address
Telephone Number
Nome
Ship to:
MAKE CHECK OR MONEY ORDER PAYABLE TO:
MAIL ORDER FORM TO:
$19.95
$9.95
$14.95
$12.95
4Ni-MH
Rechargeable
8670
Rechargeable
Batteries Batteries
~
Lightweight - Fits
A174
Ear bud with
comfortably in your
Microphone
ear with adjustable
microphone.
~
Allows you to
<'i'
A18S
AC Adaptor
recharge your
rechargeable
batteries.
~
'"
Contains 4Ni-MH
186
Charging Kit
Rechargeable
ill]
batteries and AC
Adaptor.
back of unit -this is necessary.
Y
OU now own one of the finest and most versatile
products available in personal communications.
To ensure you experience many years of convenient,
carefree operation, BellSouth products offers a wide
variety of handy, helpful accessories. When ordering,
indicate Communicator "model number" - found on the
USElectronics
is the exclusive distributor of BellSouth
products. We will gladly fulfill your order as
quickly and expediently as possible. Be sure to inquire
about additional BellSouth products and promotions. In
the meantime, enjoy your Communicator!
95-07721000 USE'ectronics
---I L--. £ x c I U JI ~ e0 I Jtrj but 0r ,------------------------------------'

@BELLSOUTH )
Special Features Contents '
Preparation
Communicator Controls -Location &Function 3
FCC Notice 5
. 7
. 7
........................ 8
. 9
.10
.
.. 10
...................................10
.10
........................................ 10
Operation
Changing Channels 11
Monitor................................................................. 11
Lamp+(Lamp/Lock Button)...... . 11
Channel Scan..... . . .. 12
Battery Level Indicator. .12
Sending Call Tones............ .13
Battery Charge Indication 13
Connecting
an Adaptor. .14
VOX Function......... .15
Getting Started
Removing the Belt Clip .
Installing the Belt Clip .
Battery Installation
LCD Screen .
Turning the Unit
ON .
Turning the Unit
OFF. .
Adjusting Speaker Volume .
Receiving aSignal.....
Transmitting aSignal.
Other Information
Troubleshooting............ .16
Care and Maintenance 17
Specifications........ .19
Warranty................... .20
FCC Licensing Information 22
GMRS Licensing Information 22
BeliSouth is committed to providing quality products that fit your
needs. We would like to have any comments or suggestions you
might have on this product.
You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016

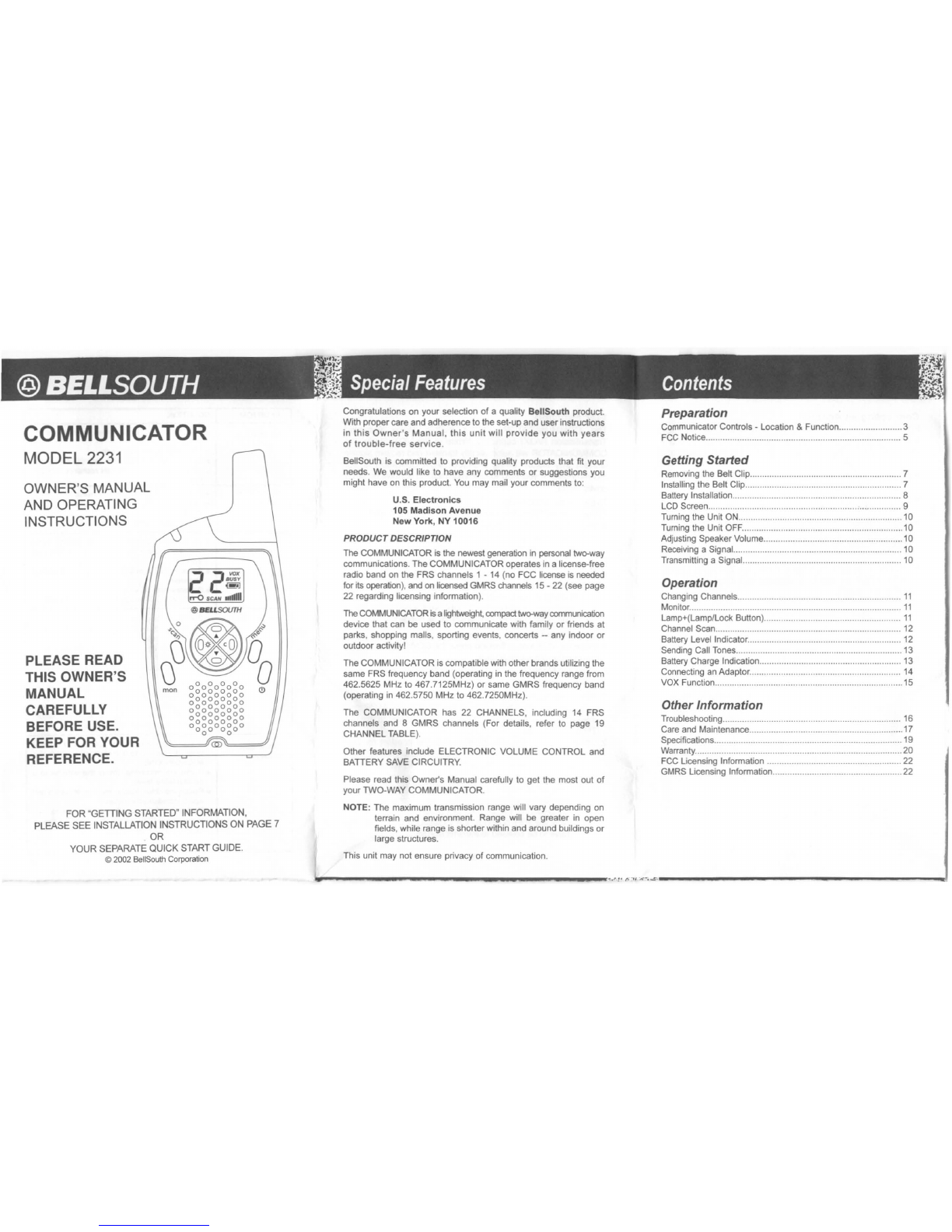

PRODUCT DESCRIPTION
The COMMUNICATOR is the newest generation in personal ~o-way
communications. The COMMUNICATOR operates in alicense-free
radio band on the FRS channels 1-14 (no FCC license
is needed
for its operation), and on licensed GMRS channels 15 -22 (see page
22 regarding licensing information).
The COMMUNICATOR is alightweight. compad ~y communication
device that can
be used to communicate with family or friends at
parks, shopping malls, sporting events, concerts -any indoor or
outdoor activity!
The COMMUNICATOR is compatible with other brands utilizing the
same FRS frequency band (operating
in the frequency range from
462.5625 MHz to 467.7125MHz) or same GMRS frequency band
(operating
in 462.5750 MHz to 462.7250MHz).
The COMMUNICATOR has 22 CHANNELS, including 14 FRS
channels and 8GMRS channels (For details, refer to page 19
CHANNEL TABLE).
Other features include ELECTRONIC VOLUME CONTROL and
BATTERY SAVE CIRCUITRY.
Please read this Owner's Manual carefully to get the most out
of
your TWO-WAY COMMUNICATOR.
CongratUlations on your selection
of aquality BeliSouth product.
With proper care and adherence to the set-up and userinstructions
in
this Owner's Manual, this unit will provide you with years
of trouble-free service.
PLEASE READ
THIS OWNER'S
MANUAL
CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
OWNER'S MANUAL
AND OPERATING
INSTRUCTIONS
COMMUNICATOR
MODEL 2231
FOR "GETIING STARTED" INFORMATION,
PLEASE SEE INSTALLATION INSTRUCTIONS ON PAGE 7
OR
YOUR SEPARATE QUICK START GUIDE.
BeIiSouth Corporation
NOTE: The maximum transmission range will vary depending on
terrain and environment. Range will
be greater in open
fields, while range is shorter within and around bUildings or
large structures.
This unit may not ensure privacy
of communication.
.;, ..... ... - ... ,.", r·" ~~~. ~

Communicator Controls Communicator Controls
FCC Notice
14
13
12
11
10
2
3
4
Jf-~44-- 5
6
7
8
1.-------9
3
1. ANTENNA (Pgs. 6,17, 18)
2. LCD Screen: Displays current channel selection and other
radio status symbols. (Pgs. 9-12,14, 16)
3. UP • button (VOLUME/CHANNEL): Press to adjust
volume level and change channels. (Pgs. 10, 11, 15, 16)
4. CALL C button: Press to transmit CALLTONES. (Pgs. 11,
12, 13)
5. MENU button: Allows you to change channels. (Pgs. 11, 15,
16)
6. POWER ON/OFF (!) button: Press and hold the button
to turn your unit ON/OFF. (Pgs.
8, 10)
7.
SPEAKER (Pg. 10)
8. BATIERY COMPARTMENT (LOCATED ON THE REAR):
Houses 4 x 1.5V "AAA" alkaline or Ni-MH rechargeable
batteries (not inclUded). (Pgs.
8, 18)
9. BATIERY COMPARTMENT COVER LATCH (LOCATED
ON THE REAR): Secures
BATIERY COMPARTMENT
COVER. (Pg.
8)
10. DOWN'" button (VOLUME/CHANNEL): Press to adjust
volume level and change channels. (Pgs. 10,
11, 15, 16)
11. MONITOR MON button: Press to tune in and hold
onto weak signals. (Pgs. 10-12, 16)
12. SCAN button: Used to activate/deactivate CHANNEL
SCAN. (Pg. 12)
13. LAMP+ / LOCK ~ button: Used to turn LCD Screen
LAMP ON/OFF. Buttons are locked when pressed and
held. (Pgs.
9, 10, 11, 16)
14. MIC: Microphone. (Pgs. 10, 15, 16, 18)
15.
PTI (PUSH TO TALK) button: Press to transmit. (Pgs. 6,
10-12,15)
16. TX (Transmission) LED indicator: Illuminates red when
transmitting. (Pgs. 10, 13, 15)
17.SP./ MIC./ BATIERY CHARGE JACK (Pgs.14, 15)
18.
BELT CLIP (LOCATED ON THE REAR) (Pg. 7)
4
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply
with the limits for aClass Bdigital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•Connect the equipment into
an outlet on acircuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radiolTV technician
for help.
5
----- .... .'n- .. '..,." .. _ _._ ...... --------- --------_~ _

FCC Notice .
Getting Started
Carefully remove your communicator from its Blister Pack.
If there
is any visible damage, do not attempt to operate
this COMMUNICATOR. Return
it to the place of purchase.
1. Press the BELT CLIP SPRING LOCK.
2. While pressing the BELT CLIP SPRING LOCK, pull out the
BELT CLIP to remove it from the unit, as shown in Figure 1.
Figure 2.
Figure 1.
Removing the BELT CLIP:
This device complies with Part 15 of the FCC Rules.
Operation
is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, inclUding
interference that may cause undesired operation.
Important: To maintain compliance with the FCC's RF
exposure guidelines, hold the transmitter and ANTENNA
at least 1inch (2.5 centimeters) from your face and speak
in anormal voice, with the ANTENNA pointed up and away
from the face.
If you wear the handset on your body while
using the headset accessory, use only the supplied BELT
CLIP for this product and when transmitting, take it out of
the belt to ensure that the ANTENNA is at least 1inch (2.5
centimeters) from your body.
Use only the supplied ANTENNA. Unauthorized antennas,
modifications, or attachments could damage the transmitter
and may violate FCC regulations.
Safety Information:
Your wireless hand-held portable transceiver contains a
low power transmitter. When the Push-to-Talk (PTT) button
is pushed it sends out radio frequency (RF) signals.
In
August 1996, the Federal Communications Commissions
(FCC) adopted
RF exposure gUidelines with safety levels
for hand-held wireless devices.
Read this Owner's Manual first to
receive the best performance of the
COMMUNICATOR.
Operation
on GMRS frequencies
requires alicense from the Federal
Communications Commission (FCC)
Website -hltp-{fwireless.fcc.gQy/prslgenmbl html Installing the Belt Clip
Tel.: [phone]
@BELLSOUTH
Visit Us Qn the Web:
www Yselectronics.info
Made in China
@
t5-D77014DO-.ID2
6
1. Press the BELT CLIP SPRING LOCK.
2. While pressing the BELT CLIP SPRING LOCK, insert the
BELT CLIP LOCK into the unit, as shown in Figure 2.
3. Release the BELT CLIP SPRING LOCK and check the
BELT CLI Pto determine if it is locked into position.
7

Getting Started . Getting Started Getting Started .

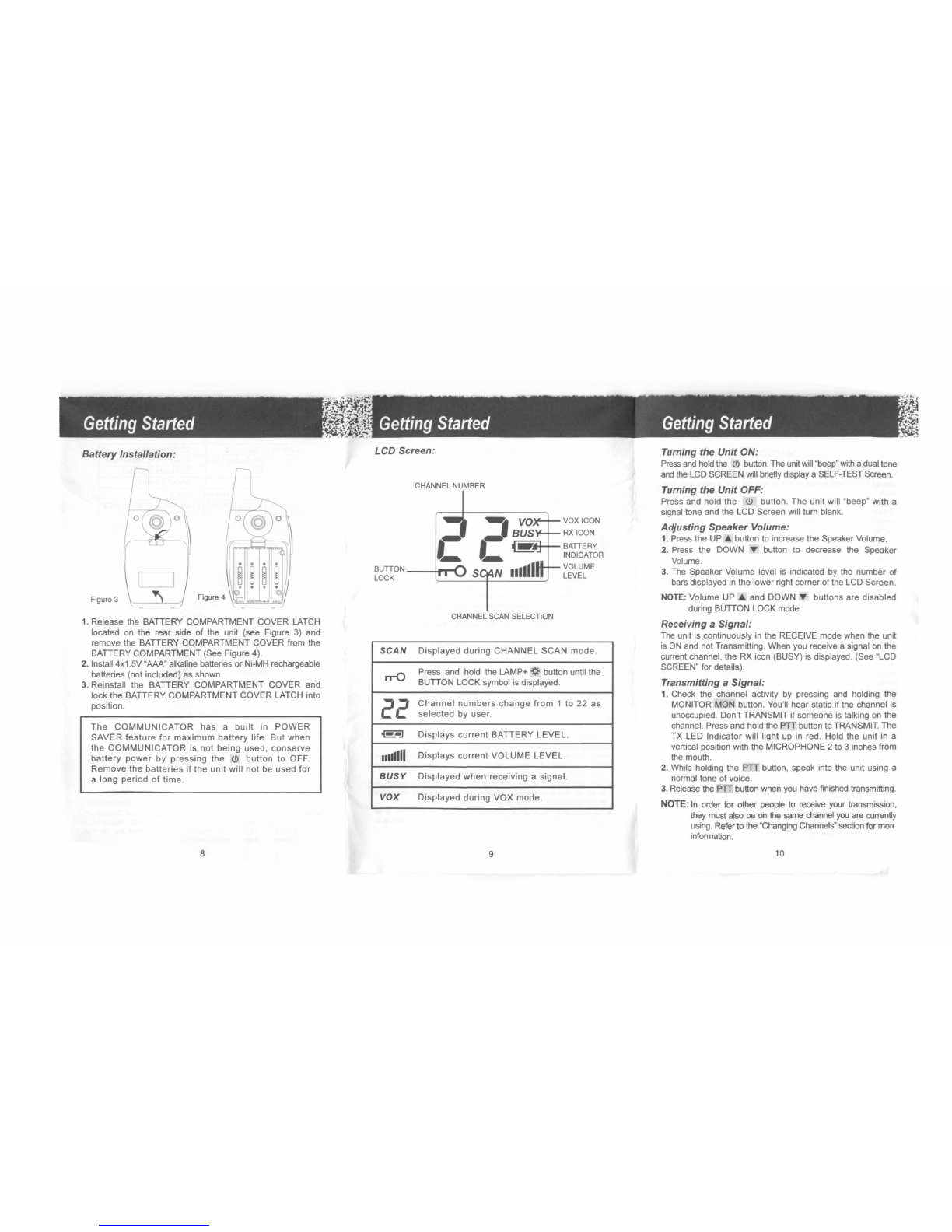

Battery Installation:
Figure 3
1. Release the BATIERY COMPARTMENT COVER LATCH
located on the rear side of the unit (see Figure 3) and
remove the
BATIERY COMPARTMENT COVER from the
BATIERY COMPARTMENT (See Figure 4).
2. Install 4x1.5V "AAA" alkaline batteries or Ni-MH rechargeable
batteries (not included)
as shown.
3. Reinstall the
BATIERY COMPARTMENT COVER and
lock the
BATIERY COMPARTMENT COVER LATCH into
position.
The COMMUNICATOR has a built in POWER
SAVER feature for maximum battery life. But when
the COMMUNICATOR is not being used, conserve
battery power by pressing the (!) button to OFF.
Remove the batteries if the unit will not be used for
a long period of time.
8
LCD Screen:
CHANNEL NUMBER
VOX ICON
RX ICON
BATTERY
INDICATOR
BUTTON VOLUME
LOCK LEVEL
CHANNEL SCAN SELECTION
SCAN Displayed during CHANNEL SCAN mode.
J'T"0
Press and hold the LAMP+ -(f button until the
BUTION LOCK symbol is displayed.
22
Channel numbers change from 1 to 22 as
selected by user.
1!!!tO-J
Displays current BATTERY LEVEL.
11111111
Displays current VOLUME LEVEL.
BUSY
Displayed when receiving a signal.
VOX
Displayed during VOX mode.
9
Turning the Unit ON:
Press and hold the (!) button. The unit will "beep" with adual tone
and the LCD SCREEN will briefly display aSELF-TEST Screen.
Turning the Unit OFF:
Press and hold the (!) button. The unit will "beep" with a
signal tone and the LCD Screen will turn blank.
Adjusting Speaker Volume:
1. Press the UP .... button to increase the Speaker Volume.
2. Press the DOWN '" button to decrease the Speaker
Volume.
3. The Speaker Volume level is indicated by the number of
bars displayed
in the lower right corner of the LCD Screen.
NOTE: Volume UP
.... and DOWN'" buttons are disabled
during BUTTON LOCK mode
Receiving a Signal:
The unit is continuously in the RECEIVE mode when the unit
is ON and not Transmitting. When you receive asignal on the
current channel, the RX icon (BUSY)
is displayed. (See "LCD
SCREEN" for details).
Transmitting a Signal:
1. Check the channel activity by pressing and holding the
MONITOR MON button. You'll hear static if the channel is
unoccupied. Don't TRANSMIT if someone
is talking on the
channel. Press and hold the PTT button to TRANSMIT. The
TX LED Indicator will light up in red. Hold the unit in a
vertical position with the MICROPHONE 2
to 3inches from
the mouth.
2. While holding the PTI button, speak into the unit using a
normal tone of voice.
3. Release the PTT button when you have finished transmitting.
NOTE: In order for other people to receive your transmission,
they must also be on the same channel you are currently
using. Refer to the "Changing Channels" section for mon
information.
10

Operation
Changing Channels:
The unit has 22 channels that include 14 FRS channels and 8
GMRS channels. In addition, channels 1 - 7are shared FRS
IGMRS channels.
1. Press the MENU button once to enter the FRS/GMRS
CHANNEL SELECTION mode. The current channel number
flashes
on the LCD Screen.
2. While the channel number is flashing:
•Press the UP ... button
to move to ahigher channel.
•Press the DOWN'" button to move to alower channel.
•Press the
PTI button to confirm the channel or wait 10
seconds
for the channel to be selected automatically.
3. Press the MENU button or PTI button to select the desired
channel and return to the NORMAL mode, or press the
CALL Cbutton to confirm the channel and TRANSMIT.
4. Channel change operations are disabled dUring BUTION
LOCK mode.
NOTE: Refer
to the "Channel Table" section of this Owner's
Manual for detailed frequency listings.
Monitor:
You can use the MONITOR feature to check for weak signals
in the current channel.
1. Press the MONITOR MON button for normal monitoring.
2. Press and hold the MONITOR MON button until it beeps for
continuous monitoring. (The RX BUSY icon will display
on
the LCD Screen while this function is activated.)
3. Press the MONITOR MON button again to deactivate
the function.
Lamp+ (LAMP/LOCK button):
1. Press and immediately release the LAMP+ -(f button to light
up the LCD SCreen. The BACKLIGHT will automatically shut
off after 4seconds if no other buttons have been pressed.
2. Press and hold the LAMP+ -(f button until the BUTION
LOCK icon is displayed on the LCD Screen.
NOTE: Volume
and Channel Change Operations are disabled
dUring BUTION LOCK mode. Press and hold the
LAMP+ -(f button again to deactivate BUTION LOCK
mode.
11
Channel Scan:
CHANNEL SCAN performs searches for active signals in an
endless loop from 1to 22.
1. Press and release the SCAN button to activate CHANNEL
SCAN. The channel number
on the LCD Screen changes
rapidly until an active signal is detected.
During CHANNEL SCAN mode.
•Press the SCAN button and the channel will return
to
the original default channel automatically.
•Press the CALL Cbutton to change
to CALL function
and to send aCALL TONE on that active channel.
2. When an active signal (one of 22 channels) is detected
CHANNEL
SCAN pauses keeping the active signal broadcasted.
3. Press the PTI button to communicate through the active
signal channel and CHANNEL SCAN
is deactivated.
•If the active signal is the original default channel (e.g.
CH-5), when the
PTI button is pressed, channel (CH-5)
will remain the default channel.
•Ifthe active signal
is not the original default channel (e.g.
CH-1), after the
PTI button is pressed, the default channel
(e.g. CH-5) will automatically change to channel (CH-1).
4. When an active signal (one of 22 channels) is detected, but
another channel is desired, press the MONITOR
MON button to bypass the current channel and continue to
search for another active channel.
5. Press the SCAN button to deactivate CHANNEL SCAN
mode.
Battery Level Indicator:
1. The BA TIERY LEVEL is indicated by the number ofsquares
present inside the BATIERY icon on the LCD Screen.
2. When the BATIERY LEVEL is low, the BATIERY icon will
flash to indicate that the batteries need to be replaced.
3. Do not charge this unit using an ACIDC adapter with
regular "AAA" alkaline batteries installed. Only use an
optional AC/DC adapter with "AAA" Ni-MH rechargeable
batteries (not included).
12
Sending Call Tones
You can use CALL TONES to alert the other user when you
are attempting to contact them. You can also use CALL
TONES
to signal the beginning or the end of atransmission.
1. Press the CALL Cbutton, the red TX LED indicator will light
up and the CALL TONE continues for 3seconds.
2. Release the CALL Cbutton, your CALL TONES will transmit
to nearby receivers set to the same channel.
Battery Charge Indication
During BATIERY CHARGE mode, the BATIERY indicator
will keep flashing.
NOTE:
Please ensure that the unit is turned off during
BATIERY CHARGE mode.
13
--~ r- ~_-,--, __ ..--_~ ....-_ -,. ._,- . .:. _

Operation .
Operation Troubleshooting'
Connecting an Adaptor
In the event you wish to use the unit with rechargeable batteries
(not included) you will
be required to use an AC/DC adaptor -
Input
120 VAC 60 Hz -Output 6 VDC 100MA (not included).
•Insert 4"AAA" NI-MH rechargeable batteries (not included)
•Turn the unit
OFF.
• Plug the adaptor into the wall and insert the round end into
the CHARGE JACK marked CHG on the top
of the
COMMUNICATOR:
•Unplug the adaptor.
Turn the unit ON. The BATIERY LEVEL
INDICATOR on the LCD Screen will
display the new
BATIERY LEVEL.
CAUTION: Your COMMUNICATOR must have rechargeable
•AAA" batteries installed before using the external
DC adaptor.
NOTE: It takes approximately 14 hours to fully charge the
batteries
if they are at their lowest level.
You may order the adaptor and or batteries by calling
1-800-828-5208.
14

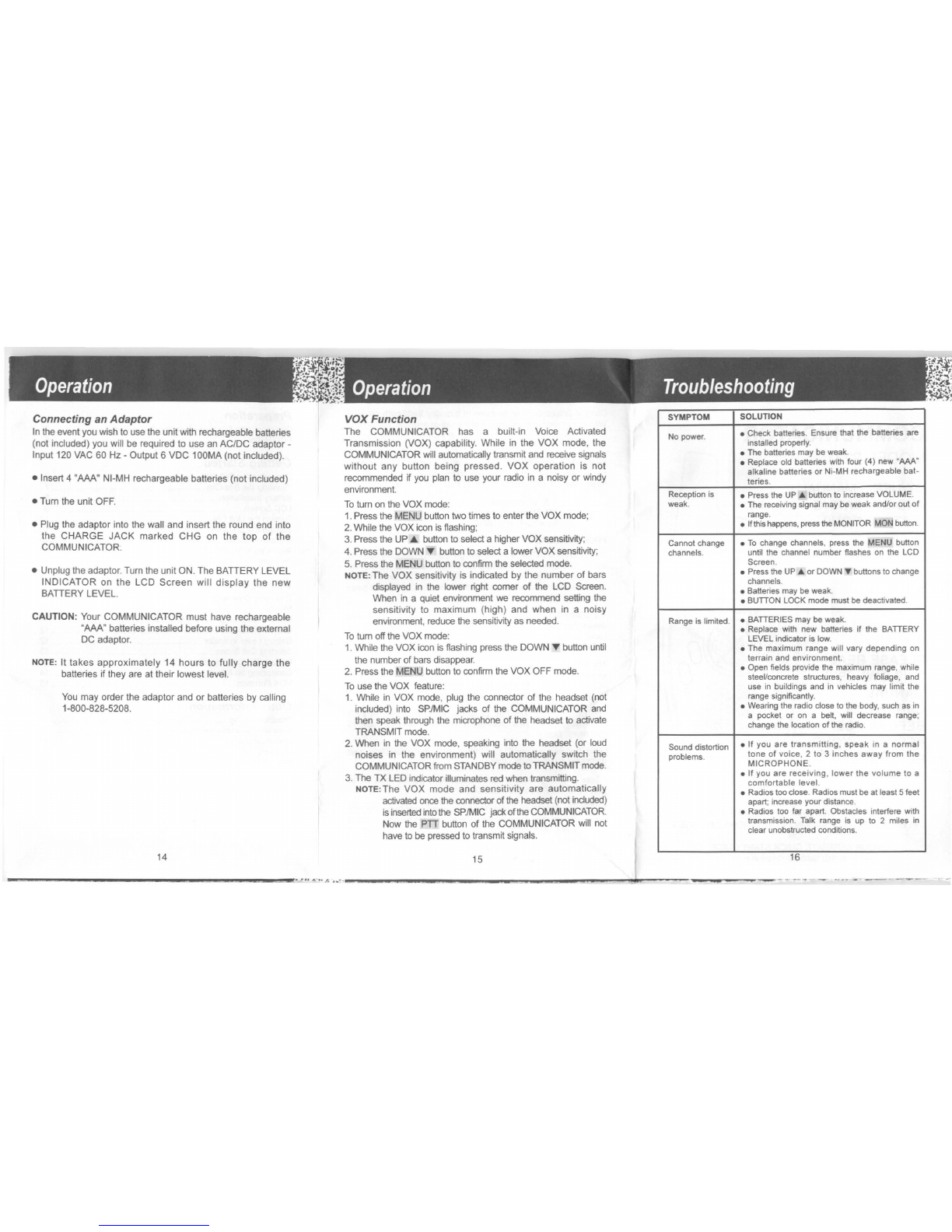

VOX Function
The COMMUNICATOR has abuilt-in Voice Activated
Transmission (VOX) capability. While
in the VOX mode, the
COMMUNICATOR will automatically transmit
and receive signals
without any button being pressed.
VOX operation is not
recommended if
you plan to use your radio in anoisy or windy
environment.
To tum on the VOX mode:
1. Press the MENU button two times to enter the VOX mode;
2. While the VOX icon is flashing;
3. Press the UP 4. button to select ahigher VOX sensitivity;
4. Press the DOWN'" button to select alower VOX sensitivity;
5. Press the MENU button to confirm the selected mode.
NOTE: The VOX sensitivity is indicated by the number of bars
displayed
in the lower right comer of the LCD Screen.
When in aquiet environment we recommend setting the
sensitivity to maximum (high) and when in anoisy
environment,
reduce the sensitivity as needed.
To tum offthe VOX mode:
1. While the VOX icon is flashing press the DOWN'" button until
the number of bars disappear.
2. Press the MENU button to confirm the VOX OFF mode.
To use the VOX feature:
1. While in VOX mode, plug the connector of the headset (not
included) into SP./MIC jacks of the COMMUNICATOR and
then speak through the microphone of the headset to activate
TRANSMIT
mode.
2. When in the VOX mode. speaking into the headset (or loud
noises in the environment) will automatically switch the
COMMUNICATOR
from STANDBY mode to TRANSMIT mode.
3. The TX LED indicator illuminates red when transmitting.
NOTE: The VOX mode and sensitivity are automatically
activated once the connector of the headset (not induded)
is inserted into the SP ./MIC jackofthe COMMUNICATOR.
Now the PTI button of the COMMUNICATOR will not
have to be pressed to transmit signals.
15
SYMPTOM
SOLUTION
No power.
• Check batteries. Ensure that the batteries are
installed properly.
• The batteries may be weak.
• Replace old batteries with four (4) new 'MA'
alkaline batteries or Ni-MH rechargeable bat-
teries.
Reception is •
Press the UP ... button to increase VOLUME.
weak. •
The receiving signal may be weak andlor out of
range.
• If this happens, press the MONITOR MON button.
Cannot change
• To change channels, press the MENU button
channels.
until the channel number flashes on the LCD
Screen.
• Press the UP ... or DOWN T buttons to change
channels.
• Batteries may be weak.
•BUDON LOCK mode must be deactivated.
Range is limited .•
BADERIES may be weak.
• Replace with new batteries if the BADERY
LEVEL indicator is low.
• The maximum range will vary depending on
terrain and environment.
•Open fields provide the maximum range, while
steel/concrete structures, heavy foliage, and
use in buildings and in vehicles may limit the
range significantly.
• Wearing the radio close to the body. such as in
a pocket or on a belt. will decrease range;
change the location of the radio.
Sound distortion
• If you are transmitting, speak in anormal
problems.
tone of voice, 2 to 3inches away from the
MICROPHONE.
•If you are receivingI lower the volume to a
comfortable level.
•
Radios too close. Radios must be at least 5 feet
apart; increase your distance.
• Radios too far aparl. Obstacles interfere with
transmission. Talk range is up to 2miles in
clear unobstructed conditions.
16
-.. --------------- ,. .. -._----------------.",.~I---_.---~----.- _ .. -_ -- ---

Care and Maintenance Care and Maintenance .
Specifications
[CAUTION
Damaged ANTENNA'
Do not use any COMMUNICATOR that has adamaged ANTENNA. If a
damaged ANTENNA comes in contact with the skin, a minor burn may
result.
~
All batteries can cause property damage andlor bodily injury such as
burns if conductive material such as jewelry, keys, or beaded chains
touches exposed terminals. The material may complete
an electrical
circuit (short circuit) and become quite hot. Exercise care in handling
any charged battery, particularly when placing it inside apocket, purse,
or other container with metal objects.
[WARNING
For Vehjcles with an Air Bag-
Do not place your COMMUNICATOR in the area over an air bag or in
the air bag deployment area.
Air bags inflate with great force. If a
COMMUNICATOR is placed in the air bag deployment area and the air
bag inflates, the COMMUNICATOR may be propelled with great force
and cause serious injury to the occupants of vehicle.
PotentiaUy Explosive Atmospheres:
Turn your COMMUNICATOR OFF when in any area with apotentially
explosive atmosphere, unless it is atype specifically qualified for such
use (for example, Factory MutualApproved). Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
~
Do not replace or charge batteries in apotentially explosive atmosphere.
Contact sparking may occur while installing or removing batteries and
cause an explosion.
Blasting Caps and Areas'
To avoid possible interference with blasting operations, turn your
COMMUNICATOR OFF near electrical blasting caps or in a'blasting
area" or in areas posted: "Turn off two-way radio". Obey all signs and
instructions.
NOTE: Areas with potentially explosive atmospheres are often, but
not always, clearly marked. They include fueling areas such as below
deck on boats; fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
17
Care and Maintenance
To clean the unit, wipe with asoft cloth dampened with water. Don't use
cleaner or solvents
on the unit; they can har.m the case and leak inside,
causing per.manent damage. Battery contacts may be wiped with adry,
lint-free cloth.
If the unit gets wet, tum it OFF and remove the batteries immediately.
Dry the BATTERY COMPARTMENT with asoft cloth
to minimize poten-
tial water damage.
leave the cover off the BATTERY COMPARTMENT
ovemight or until completely dry. Do not use the unit until completely dry.
EXPOSUre to Radio Frequency Energy·
The design of your COMMUNICATOR, which generates radio frequency
(RF) electromagnetic energy (EM
E), complies with the following national
and international standards and guidelines.
The Relevant Guidelines and Standard Are"
•FCC Report and Order FCC 96-326 (August, 1996)
•American National Standards Institute (C95-1-1992)
•National Council on Radiation Protection and Measurements (NCRP-
1986)
•International Commission on Non-Ionizing Radiation Protection
(ICNRP -1986)
To ensure optimal unit performance and to ensure that exposure to RF
energy is within the guidelines in the above standards, the following
operating procedures should be observed:
For Portable Two·wav Communicators·
• When transmitting with aCOMMUNICATOR, hold the COMMUNICATOR
in avertical position with its MICROPHONE 1
to 2inches (2.5 to 5.0
em) away from your mouth. Keep the ANTENNA at least 1inch (2.5
em) from your head and body.
•If you wear aCOMMUNICATOR on your body, ensure that the
ANTENNA is at least one inch (2.5 em) from your body when
transmitting.
Electromagnetic Interference/Compatibility;
Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed, or otherwise
configured
for electromagnetic compatibility.
•Turn your unit OFF in any facilities where posted notices instruct you
to do so. Hospitals or health care facilities may be using equipment
that is
sens~ive to extemal RF energy.
• Turn your unit OFF when on board an aircraft when instructed to do
so. Any use of the unit must be accordance with airline regulations or
crew instructions.
18
Channels Available
22 Channels
Output ERP Power (TX)
0.5W (FCC Maximum)
Battery Life
30 Hours (typical)
Range
About 2 Miles
CHANNEL TABLE
CHANNEL
FREQUENCY CHANNEL FREQUENCY
NUMBER (MHz)
NUMBER (MHz)
1 462.5625 12 467.6625
2
462.5875 13 467.6875
3
462.6125 14 467.7125
4 462.6375 15
462.5750 GMRS
5
462.6625 16
462.6250 GMRS
6
462.6875 17*
462.6750 GMRS
7
462.7125 18
462.5500 GMRS
8
467.5625
19 462.6000 GMRS
9
467.5875 20 462.6500 GMRS
10 467.6125 21 462.7000 GMRS
11 467.6375 22
462.7250 GMRS
NOTES:
1. 'GMRS emergency channel 462.6750MHz.
2. The maximum transmission range will vary denpending on
terrain and enviroment.
Use the following channel conversion chart to communicate on the same
frequency with other GMRS and FRS/GMRS models.
BeliSouth Other Brands
All Brands
22 Channel Models
22 Channel Models 15 Channel Models
Ch.1-7 Ch.1-7 Ch.1-7
Ch.8-14 Ch.8-14 NA
Ch.15 Ch.16 Ch.8
Ch.16 Ch.18 Ch.9
Ch.17 Ch.20 Ch.10
Ch.18 Ch.15
Ch.11
Ch.19 Ch.17 Ch.12
Ch.20 Ch.19 Ch.13
Ch.21 Ch.21
Ch.14
Ch.22 Ch.22 Ch.15
• All 15 Channel GMRS units including BeIiSouth use the same channels.
NOTE: For your convenience
it is suggested that you use Channels 1
thru 14. Operation of this model on GMRS frequencies
(Channels 15 thru 22) requires alicense from the Federal
Communications Commission (FCC).
19

Warranty .
Warranty Warranty .
BellSouth Products
One-Year Limited Warranty
This limited warranty sets forth all BeliSouth
Products responsibilities
regarding your COMMUNICATOR. There are no other expressed or
implied warranties from BeliSouth Products.
Warranty Service Provided
If you purchased the COMMUNICATOR unit new from aretail vendor,
BellSouth Products warrants the equipment against defects
in material
and workmanship for aperiod of one (1) year from the original date of
purchase. This warranty is in lieu of all other express warranties. This
warranty begins when you purchase the COMMUNICATOR unit and
continues for one (1) year unless you sell or rent the unit, in which case
the warranty stops.
BeliSouth Products disclaims any implied warranty, including the
warranty of merchantability and the warranty of fitness for aparticular
purpose, as of the date
of one year from your original purchase of the
COMMUNICATOR unit. BeliSouth Products assumes no responsibility
for any special, incidental, or consequential damages.
This warranty gives you specific legal rights and you may have other
rights which vary from state to state. Some states
do not allow the
exclusion or limitations of special, incidental or consequential damages
or limitations on how long awarranty lasts. so the above exclusion
or limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse,
abuse, improper installation or operation, lack of reasonable care,
unauthorized modification, or the affixing of any attachment not provid-
ed by BeliSouth Products with the COMMUNICATOR unit, and/or loss
of parts. This warranty
is voided in the event any unauthorized person
opens, alters, or repairs the unit.
All BeliSouth equipment being returned for repair must be suitably
packaged.
BeliSouth Products does not warrant that this equipment
is compatible
with the type of accessory of any particular communicator company or
the services provided
by it.
20
What To Do for Warranty Service
During the first thirty (3D) days, adefective product is eligible for over-
the-counter exchange at the retailer from whom it was purchased. After
thirty (30) days, the defective product should
be returned to the
authorized service center. The shipping address
of the authorized
service center is:
U.S. Electronics CONSUMER CENTER
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow,
GA 30260
Website -www.uselectronics.info
Your unit will be repaired or replaced if examination by the service center
determines the unit
is defective.
ACOMMUNICATOR unit received damaged as aresult of shipping will
require you to file aclaim with the carrier to cover repair costs.
ACOMMUNICATOR unit received with missing parts or with damage
due
to abuse, inadequate packing, or some other noncompliance with
this limited warranty will
be returned to you C.O.D., freight collect.
NOTE: ACOMMUNICATOR unit received which was not made for
BeliSouth
Products or which is not defective as determined
by our test procedures will not
be repaired and will be returned
to
you C.O.D., freight collect.
To Obtain Warranty Service
oProvide proof of the date of purchase within the package.
oPrepay all shipping costs to the authorized service center.
oInclude areturn shipping address within the package.
Please retain your sales receipt, the carton, the packing materials,
and
the printed material. The original carton is the best shipping container
for the COMMUNICATOR unit should you have to return it.
Foryour reference:
Model Number
Date of Purchase
-----------
Name of Dealer
-----------
Customer Service Telephone Number:
1-800-864-2199
21
FCC Licensing Information
Channels 1 thnu 14 transmit on FRS frequencies.
Channels 15
thnu 22 transmit on GMRS frequencies.
Operation on
GMRS frequencies requires alicense from the
Federal Communications Commission (FCC).
Information regarding an application for your license can
be
obtained as follows if you intend to use the GMRS channels:
Website -hUp·Uwireless.fcc.govlorslgenmbl.html
Tel.: [phone]
GMRS Licensing Information
Before any station transmits on any channel authorized in the
GMRS from any point within or over the territorial limits of any area
where radio services are regulated by
the FCC, the responsible
party
must obtain alicense for a GMRS system. An individual 18
years of age or older, who is not a representative of a foreign
government, is eligible to apply for a GMRS system license.
Application for a
GMRS system license is made on FCC Form 605
and you can
obtain a copy from the FCC's .\lllll.b..s.i1
http://www.fcc.gov/formpage.htmlor by calling the FCC's Forms
Distribution Center 1-800-418-FORM (3676), or from the fax-on-
demand by dialing [phone].
There is afiling fee.
For information on fees, see the FCC's IiYllll
~
http://wireless fcc.govlcsinfo/feeinfo html
22
