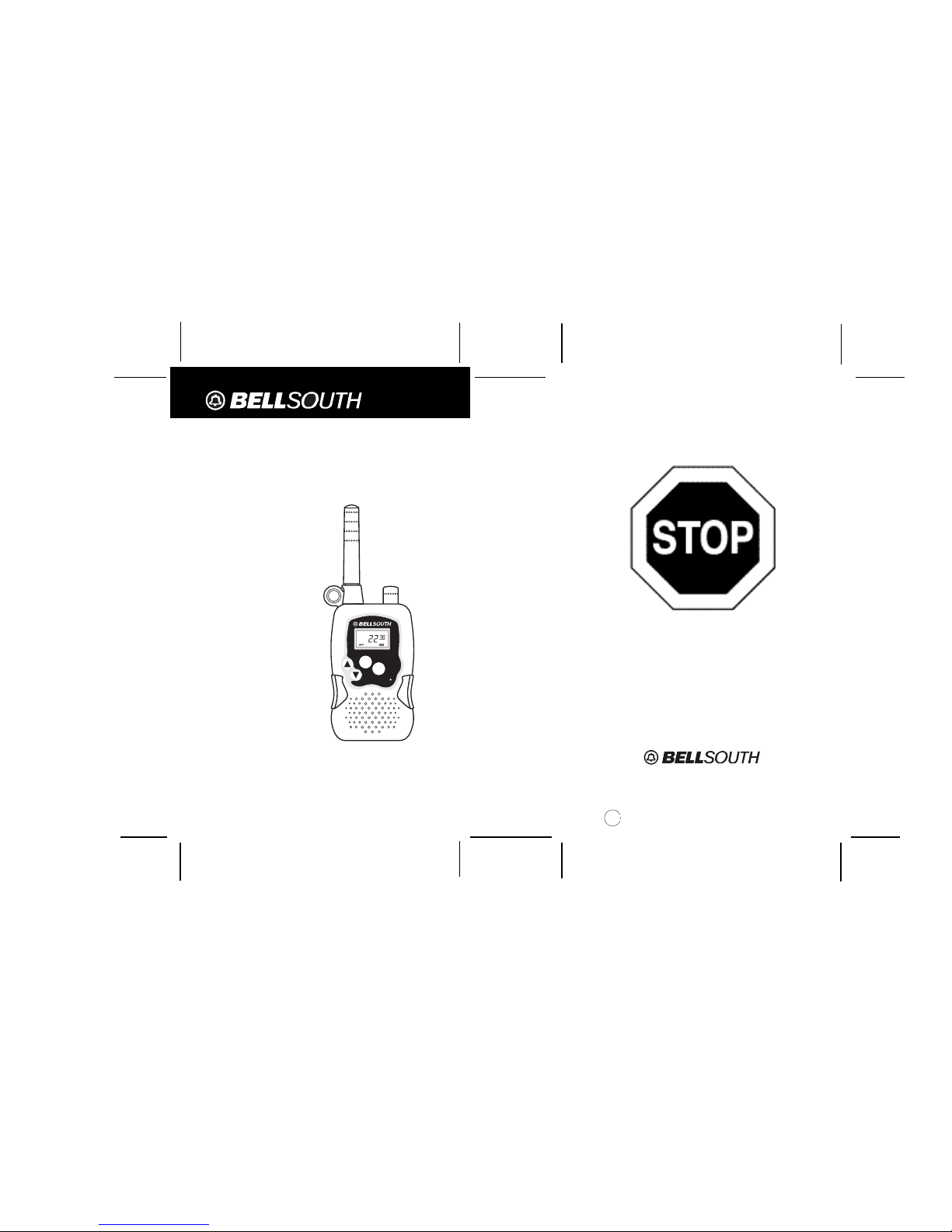

BellSouth 2730 Manual

VX
TX RX
SC
Mode
Call
GMRS/FRS
P
HI
LO
COMMUNICATOR
MODEL 2730
OWNER’S MANUAL
AND OPERATING
INSTRUCTIONS
PLEASE READ
THIS OWNERS
MANUAL
CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
Made in China
LD
Read this Owner’s Manual first to
receive the best performance from the
COMMUNICATOR.
Operation on GMRS frequencies
requires a license from the Federal
Communications Commission (FCC)
Website - http://wireless.fcc.gov/prs/genmbl.html
Tel.: [phone]
FOR “GETTING STARTED” INFORMATION,
PLEASE SEE INSTALLATION INSTRUCTIONS ON PAGE 7
OR
YOUR SEPARATE QUICK START GUIDE.
© 2002 BellSouth Corporation
Visit Us on the Web:
www.uselectronics.info

ContentsSpecial Features
Congratulations on your selection of a quality BellSouth Product.
With proper care and adherence to the set-up and user instructions
in this Owner’s Manual, this unit will provide you with years
of trouble-free service.
BellSouth is committed to providing quality products that fit your
needs. We would like to have any comments or suggestions you
might have on this product. You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016
PRODUCT DESCRIPTION
The COMMUNICATOR is the newest generation in personal two-way
communications. The COMMUNICATOR operates in a license-free
radio band on the FRS channels 8 - 14 (no FCC license is needed
for its operation), and on licensed GMRS/FRS channels 1 - 7, and
GMRS channels 15 - 22 (see page 22 regarding licensing
information).
The COMMUNICATOR is a lightweight, compact two-way
communication device that can be used to communicate with family
or friends at parks, shopping malls, sporting events, concerts -- any
indoor or outdoor activity!
The COMMUNICATOR is compatible with other brands utilizing the
same FRS frequency band (operating in the frequency range from
462.5625 MHz to 467.7125 MHz) or same GMRS frequency band
(operating in 462.5750 MHz to 462.7250 MHz).
The COMMUNICATOR has 22 CHANNELS, including 7 FRS
channels, 7 GMRS/FRS channels, and 8 GMRS channels (For
details, refer to page 15 CHANNEL TABLE.).
Other features include ELECTRONIC VOLUME CONTROL and
BATTERY SAVE CIRCUITRY.
Please read this Owner's Manual carefully to get the most out of
your GMRS/FRS COMMUNICATOR.
NOTE: The maximum transmission range will vary depending on
terrain and environment. Range will be greater in open
fields, while range is shorter within and around buildings or
large structures.
This unit may not ensure privacy of communication.
Preparation
COMMUNICATOR Controls - Location & Function................... 3
FCC Notice................................................................................ 5
Getting Started
Removing the BELT CLIP......................................................... 7
Installing the BELT CLIP........................................................... 7
Battery Installation..................................................................... 8
LCD Screen............................................................................... 9
Turning the Unit ON...................................................................10
Turning the Unit OFF..................................................................10
Adjusting Speaker Volume.........................................................10
Receiving a Signal..................................................................... 10
Transmitting a Signal................................................................. 10
Operation
Changing Channels................................................................... 11
Monitor....................................................................................... 11
MODE/BUTTON LOCK Button (FUNCTION EDITING)............ 11
Changing the CTCSS Sub-channels......................................... 12
VOX Selection............................................................................12
TRANSMIT POWER SELECTION Mode.................................. 13
CHANNEL SCAN.......................................................................13
Sending Call Tones.................................................................... 14
Battery Level Indicator............................................................... 14
Battery Charge Indication.......................................................... 14
Connecting an Adapter.............................................................. 15
Accessory Connection............................................................... 15
Other Information
Specifications............................................................................. 15
Channel Table............................................................................ 16
Troubleshooting......................................................................... 17
Care and Maintenance...............................................................18
Warranty..................................................................................... 20
Licensing Information ................................................................22

VX
TX RX
SC
Mode
Call
GMRS/FRS
P
HI
LO

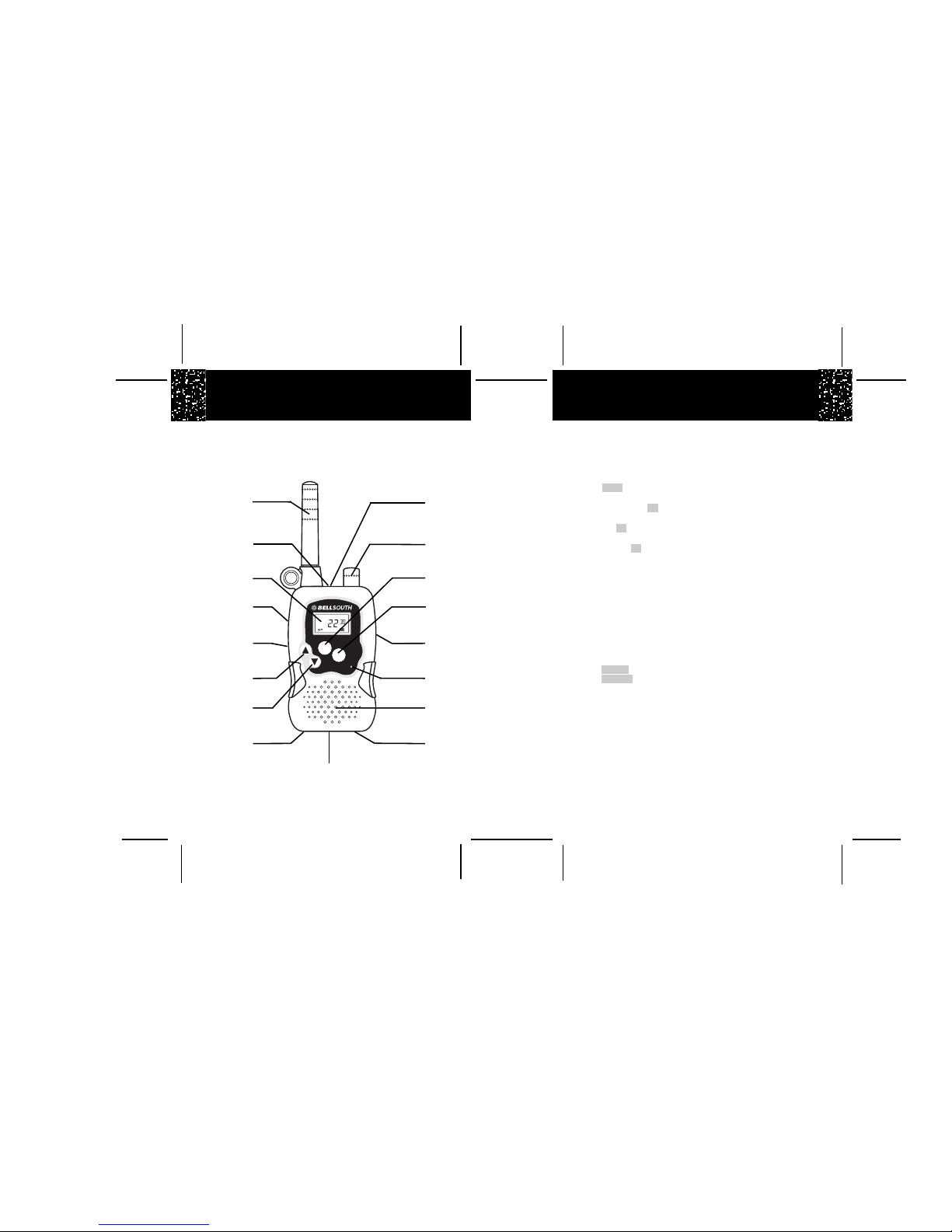

COMMUNICATOR ControlsCOMMUNICATOR Controls
3 4
3
1
2
4
5
6
7
8
9
10
11
12
13
14
16
17
15
1. ANTENNA (Pgs. 6, 18, 19)
2. BELT CLIP (LOCATED ON THE REAR) (Pgs. 6-8)
3. LCD (Liquid Crystal Display) Screen: Displays current
channel selection and other radio status symbols. (Pgs. 9-
13, 17)
4. PTT (PUSH TO TALK) button - Press to make a call.
(Pgs. 10-13)
5. MONITOR M button: Press to tune in and hold onto
weak signals. (Pgs. 10, 11, 17)
6. UP ▲▲button : Press to change channels and select
FUNCTION in every editing mode. (Pgs. 11-14, 17)
7. DOWN ▼▼button : Press to change channels and select
FUNCTION in every editing mode. (Pgs. 11-14, 17)
8. CHARGE TERMINAL (LOCATED ON THE REAR)
9. BATTERY COMPARTMENT COVER LATCH (LOCATED
ON THE REAR) - Secures BATTERY COMPARTMENT
COVER. (Pg. 8)
10. BATTERY COMPARTMENT (LOCATED ON THE REAR)
- Houses four (4) 1.5V “AAA” alkaline or Ni-MH recharge-
able batteries (not included with the package). (Pgs. 8, 19)
11. SPEAKER (Pg. 10)
12. MIC: MICROPHONE. (Pgs. 10, 17, 19)
13. CHARGE JACK (Pg. 15)
14. CALL button - Press to transmit CALL Tones. (Pg. 14)
15. MODE /BUTTON LOCK button - Press to shift into
FUNCTION EDITING mode. Press and hold for 5 seconds
to LOCK the buttons. (Pgs. 11-14, 17)
16. ON/OFF/VOLUME CONTROL - Rotate to turn your unit
ON/OFF and to adjust the VOLUME CONTROL level.
(Pgs. 8, 10)
17. EAR (EARPHONE)/MIC(MICROPHONE) JACK (Pg. 15)

FCC NoticeFCC Notice
5 6
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and
receiver.
●Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician
for help.
Safety Information:
Your wireless hand-held portable transceiver contains a
low power transmitter. When the Push-to-Talk (PTT) button
is pushed it sends out radio frequency (RF) signals. In
August 1996, the Federal Communications Commissions
(FCC) adopted RF exposure guidelines with safety levels
for hand-held wireless devices.
Important: To maintain compliance with the FCC’s RF
exposure guidelines, hold the transmitter and ANTENNA
at least 2 inches (5 centimeters) from your face and speak
in a normal voice, with the ANTENNA pointed up and away
from the face. If you wear the handset on your body while
using the headset accessory, use only the supplied BELT
CLIP for this product and when transmitting, take it out of
the belt to ensure that the ANTENNA is at least 2 inches
(5 centimeters) from your body.
Use only the supplied ANTENNA. Unauthorized antennas,
modifications, or attachments could damage the transmitter
and may violate FCC regulations.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.

AAA
AAA
AAA
AAA

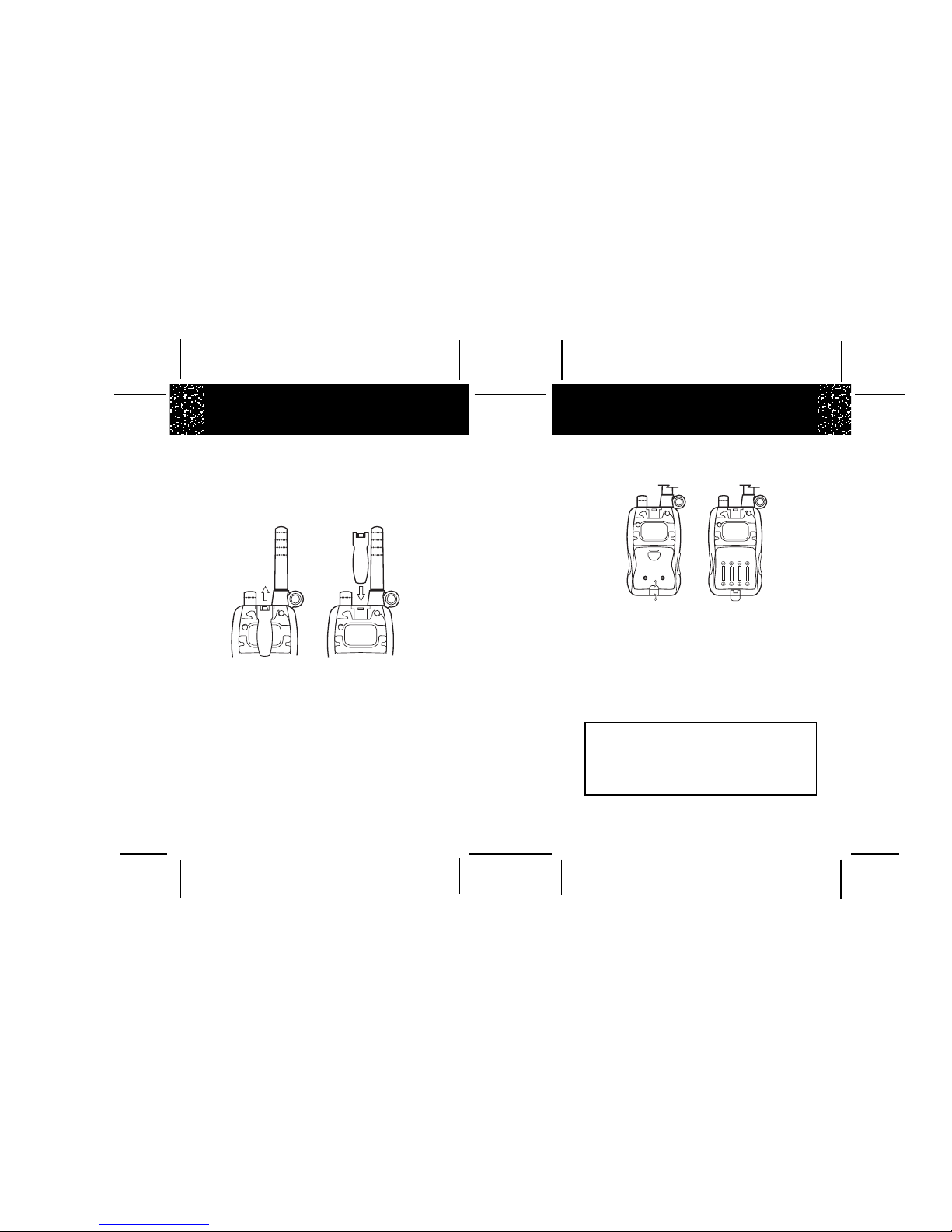

Removing the BELT CLIP:
1. Pull the BELT CLIP LATCH away from the unit.
2. While pulling the BELT CLIP LATCH, push up on the BELT
CLIP to remove it from the unit, as shown in Figure 1.
Installing the BELT CLIP:
1. Slide the BELT CLIP into the BELT CLIP SLOT as shown
in Figure 2.
2. A “click” indicates the BELT CLIP is locked into position.
Getting StartedGetting Started
7 8
Carefully remove your COMMUNICATOR from its Blister
Pack. If there is any visible damage, do not attempt to
operate this COMMUNICATOR. Return it to the place of
purchase.
Figure 1 Figure 2
Battery Installation:
1. Remove the BELT CLIP. (Refer to “Removing the Belt Clip”
section.)
2. Remove the BATTERY COMPARTMENT COVER from the
BATTERY COMPARTMENT. See Figure 3.
3. Install 4 x 1.5V “AAA” alkaline batteries or Ni-MH
rechargeable batteries (not included) as shown.
4. Reinstall the BATTERY COMPARTMENT COVER and
lock the BATTERY COMPARTMENT COVER LATCH into
position. (Refer to “Installing the Belt Clip” section)
The COMMUNICATOR has a built in POWER
SAVER feature for maximum battery life. But when
the COMMUNICATOR is not being used, conserve
battery power by rotating the ON/OFF/VOLUME
CONTROL to OFF. Remove the batteries if the unit
will not be used for a long period of time.
Figure 3 Figure 4

Getting StartedGetting Started
910

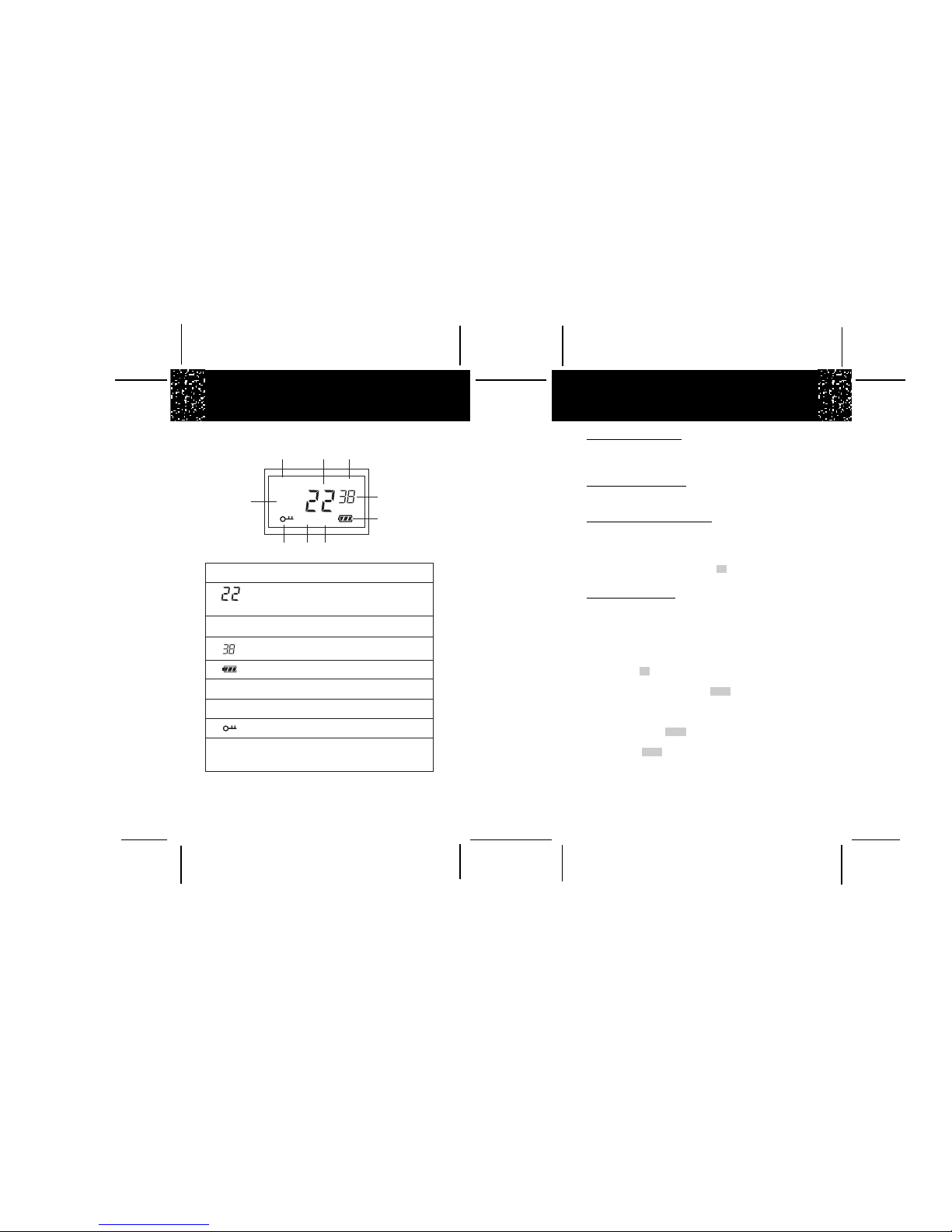

LCD Screen:
VX
TX RX
SC
A.
B.
C. - Displayed when receiving a signal.
D.
E.
T
R
-
F.
G.
H. - D
X
X
SC
VX
- Displayed when transmitting a signal.
- Displays during the VOX mode.
- CHANNEL NUMBER. Changes from 1 to 22 as selected
by user.
- CTCSS code. Changes from 1 to 38 as selected by user.
Displays the current BATTERY LEVEL charge.
- Displayed during the CHANNEL SCAN mode.
isplays when the LOCK mode is activated .
I. - POWER HI/LOW indicator. Appropriate icon appear when
the transmit power is set to desired output level.
14
38
ACB
D
E
FGH
P
HI
LO
I
PHI
LO
Turning the Unit ON:
Rotate the ON/OFF/VOLUME CONTROL in a clockwise direction.
The unit will “beep” and the LCD Screen will display 2rS then the
current channel.
Turning the Unit OFF:
Rotate the ON/OFF/VOLUME CONTROL in a clockwise direction.
The LCD Screen will turn blank.
Adjusting Speaker Volume:
●Rotate the ON/OFF/VOLUME CONTROL in a clockwise
direction to increase the SPEAKER volume.
●Rotate the ON/OFF/VOLUME CONTROL in a counter-
clockwise direction to decrease the SPEAKER volume.
●Press and hold the MONITOR M button to confirm your
SPEAKER Volume.
Receiving a Signal:
The unit is continuously in the RECEIVE mode when the unit
is ON and not transmitting. When you receive a signal on the
current channel, the RX icon is displayed. (See “LCD Screen”
for details).
Transmitting a Signal:
1. Check the channel activity by pressing and holding the
MONITOR M button. You’ll hear static if the channel is
unoccupied. Don’t TRANSMIT if someone is talking on the
channel. Press and hold the PTT button to TRANSMIT.
The TX icon is displayed (see “LCD Screen” for details).
Hold the unit in a vertical position with the MICROPHONE
2 to 3 inches (5 to 7.5 cm) from the mouth.
2. While holding the PTT button, speak into the unit using a
normal tone of voice.
3. Release the PTT button when you have finished transmitting.
NOTE: In order for other people to receive your transmission,
they must also be on the same channel and CTCSS sub-
channel you are currently using. Refer to the “Changing
Channels” section for more information.

OperationOperation
11 12
Changing Channels:
The unit has 22 channels that include 7 FRS channels and 8
GMRS channels. In addition, channels 1 - 7 are shared GMRS
/FRS channels.
● Press the UP ▲▲button to move to a higher channel.
●Press the DOWN ▼▼button to move to a lower channel.
● The channel changes from 1 to 22, or from 22 to 1.
NOTE: Refer to the “Channel Table” section of this Owner’s
Manual for detailed frequency listings.
Monitor:
You can use the MONITOR feature to check for weaker signals
in the current channel.
●Press the MONITOR M button for normal monitoring.
●Press and hold the MONITOR M button until it "beeps"
for continuous monitoring.
MODE/BUTTON LOCK Button (FUNCTION EDITING):
1. Depress the MODE button momentarily;
●Press the button briefly to enter into the FUNCTION EDIT
modes in due order. CTCSS/VOX/POWER (HI/LOW) mode.
NOTE: In the current FUNCTION EDIT mode, press the PTT
button to return to the NORMAL mode after making your
selection. In the FUNCTION EDIT mode, press the
MODE button again to shift from the current option in
each submenu to the next option.
2.Press and hold the MODE button for 5 seconds to activate
or deactivate the BUTTON LOCK mode. The BUTTON
LOCK icon is displayed on the LCD Screen.
NOTE: Channel Change Operations are disabled during
BUTTON LOCK mode. Press and hold the MODE
button again to deactivate BUTTON LOCK mode.
Changing the CTCSS Sub-channels:
The COMMUNICATOR has 38 available CTCSS sub-
channels. To change channels:
1. Press the MODE button once, the CTCSS sub-channel 0
will flash on the LCD Screen.
2. While the CTCSS sub-channel is flashing:
●Press the UP ▲▲button to move to a higher sub-channel.
●Press the DOWN ▼▼button to move to a lower sub-
channel.
●The sub-channel changes from 0 to 38, or from 38 to 0.
3. Press PTT button to confirm your selection and return to the
NORMAL mode.
4. To confirm and shift to the next option, press the MODE
button.
NOTE: To communicate with other COMMUNICATOR units,
both units must be switched to the same channel and
sub-channel.
VOX Selection:
The COMMUNICATOR is capable of voice activated (VOX)
transmission. In VOX mode, the radio will transmit a signal
only when it is activated by your voice or other sound around
you. VOX operation is not recommended if you plan to use
your radio in a noisy or windy environment.
1. Press the MODE button twice, the VX icon will flash on the
LCD Screen.
2. Press the UP ▲▲button to turn the VOX feature ON, or press
the DOWN ▼▼button to turn the VOX feature OFF.
3. In the VOX mode, the VX icon will be displayed.
4. To confirm your selection and return to the NORMAL mode,
press the PTT button.
5. To confirm and shift to the next option, press the MODE button.
NOTE: To save power, the unit will not turn ON the LCD Screen
light when in the VOX mode.

OperationOperation
13 14
TRANSMIT POWER SELECTION Mode:
This feature permits selection of the transmitting power level to
high (3.0 watts) or low (0.5 watt). When using low power the unit
will have a lower transmit range but battery life will be increased.
To access the TRANSMITTER POWER SELECTION function:
1. Press the MODE button 3 times, The P (POWER) icon will
flash on the LCD Screen.
2. While the P (POWER) icon is flashing:
● Press the UP ▲▲button to select the HI POWER level.
● Press the DOWN ▼▼button to select the LO POWER level.
3. Press the PTT button to confirm your selection and return to
the NORMAL mode.
4. To confirm and shift to the next option, press the MODE button.
NOTE: This COMMUNICATOR unit allows you to select the P
(POWER) level from high (HI) to low (LO) when using
channels 1 through 7 and 15 through 22 only, channels 8
through 14 are automatically set to power low (LO) since
the power level is only 0.5 watt.
CHANNEL SCAN:
CHANNEL SCAN performs searches for active signals in an
endless loop from 1 to 22.
1. At the same time, press and release the MODE button
and the UP ▲▲or DOWN ▼▼button together to activate
CHANNEL SCAN. The channel number on the LCD
Screen changes rapidly until an active signal is detected.
2. When an active signal (one of 22 channels) is detected,
CHANNEL SCAN pauses keeping the active signal
broadcasted.
3. Press the PTT button to communicate through the active
signal channel and CHANNEL SCAN is deactivated.
●If the active signal is the original default channel (e.g.
CH-5), when the PTT button is pressed, channel (CH-
5) will remain the default channel.
● If the active signal is not the original default channel
(e.g. CH-1), after the PTT button is pressed, the default
channel (e.g. CH-5) will automatically change to channel
(CH-1).
4. When an active signal (one of 22 channels) is detected, but
another channel is desired, press the UP ▲▲or DOWN ▼▼
button to bypass the current channel and continue to
search for another active channel.
5. Press the MODE button to deactivate CHANNEL SCAN
mode.
NOTE: This COMMUNICATOR unit allows you to
communicate with standard FRS models by using
channels 1 through 14.
Sending Call Tones:
You can use CALL TONES to alert the other user when you
are attempting to contact them. You can also use CALL
TONES to signal the beginning or the end of a transmission.
1. Press and release the CALL button, the red TX LED
indicator will light up and the CALL TONE continues for 3
seconds.
2. Your Call Tones will transmit to nearby receivers set to the
same channel.
Battery Level Indicator:
1. The BATTERY LEVEL is indicated by the number of squares
present inside the BATTERY icon on the LCD Screen.
2. When the BATTERY LEVEL is low, the BATTERY icon will
flash to indicate that the batteries need to be replaced.
3. Do not charge this unit using an AC/DC adapter with
regular “AAA” alkaline batteries installed. Only use an
optional AC/DC adapter with “AAA” Ni-MH rechargeable
batteries (not included).
Battery Charge Indication:
During BATTERY CHARGE mode, the BATTERY indicator will
keep scrolling.
NOTE: Please ensure that the unit is turned OFF
during BATTERY CHARGE mode.

Specifications:
Channel TableSpecifications
15 16
* All 15 Channel GMRS units including BellSouth use the
same channels.
NOTE: For your convenience it is suggested that you use Channels 1
thru 14. Operation of this model on GMRS frequencies
(Channels 1 thru 7 & 15 thru 22) requires a license from the
Federal Communications Commission (FCC).
Use the following channel conversion chart to communicate
on the same frequency with other GMRS and GMRS/FRS models.
BellSouth
22 Channel Models
Other Brands
22 Channel Models
All Brands*
15 Channel Models
Channels 1-7 Channels 1-7 Channels 1-7
Channels 8-14 Channels 8-14 N/A
Channel 15 Channel 16 Channel 8
Channel 16 Channel 18 Channel 9
Channel 17 Channel 20 Channel 10
Channel 18 Channel 15 Channel 11
Channel 19 Channel 17 Channel 12
Channel 20 Channel 19 Channel 13
Channel 21 Channel 21 Channel 14
Channel 22 Channel 22 Channel 15
Note: Channels 1 to 14 are shared with the FRS radio channels.
Channels 15 through 22 are exclusively for GMRS radios. The maximum
transmission range will vary depending on terrain and environment.
Connecting an Adapter:
In the event you wish to use the unit with rechargeable batteries
(not included) you will be required to use an AC/DC adapter -
Input 120 VAC 60 Hz - Output 7.5 VDC 150mA (not included).
●Insert 4 "AAA" Ni-MH rechargeable batteries (not included).
●Turn the unit OFF.
●Plug the adapter into the wall and insert the round end into
the CHARGER JACK at the side of the unit.
●Unplug the adapter. Turn the unit ON. The BATTERY
LEVEL INDICATOR on the LCD Screen will display the
new BATTERY LEVEL.
CAUTION: Your COMMUNICATOR must have rechargeable
“AAA” batteries installed before using the external
AC/DC adapter.
You may order the adapter and or batteries
by calling 1-800-828-5208.
NOTE: It takes approximately 5 to 6 hours to fully charge
the batteries if they are at their lowest level.
Accessory Connection:
The COMMUNICATOR is designed to be used with accessories
(Earphone, Microphone, etc.).
22 Channels
38 for each Channel
138 mW(GMRS )/7 5mW(FRS)
About 7 Miles (GMRS) / 2 Miles (FRS)
Channels Available
CTCSS Sub-channel
ERP (TX)
Range
Channel Table
POWER
(mW)
POWER
(mW)
FREQUENCY
(MHz)
15
467.6625
467.6875
467.7125
16
17
18
19
20
21
22
CHANNEL
NUMBER
CHANNEL
NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
114
114
114
114
114
114
114
138
138
138
138
138
138
138
138
75
75
75
75
75
75
75
FREQUENCY
(MHz)
467.5625
467.5875
467.6125
467.6375
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
462.5750
462.6250
462.6750
462.5500
462.6000
462.6500
462.7000
462.7250
Channel Conversion Chart

Care and MaintenanceTroubleshooting
17 18
CAUTION !
Damaged ANTENNA:
Do not use any COMMUNICATOR that has a damaged ANTENNA. If a
damaged ANTENNA comes in contact with the skin, a minor burn may
result.
Batteries:
All batteries can cause property damage and/or bodily injury such as
burns if conductive material such as jewelry, keys, or beaded chains
touches exposed terminals. The material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling
any charged battery, particularly when placing it inside a pocket, purse,
or other container with metal objects.
WARNING !
For Vehicles with an Air Bag:
Do not place your COMMUNICATOR in the area over an air bag or in
the air bag deployment area. Air bags inflate with great force. If a
COMMUNICATOR is placed in the air bag deployment area and the air
bag inflates, the COMMUNICATOR may be propelled with great force
and cause serious injury to the occupants of vehicle.
Potentially Explosive Atmospheres:
Turn your COMMUNICATOR OFF when in any area with a potentially
explosive atmosphere, unless it is a type specifically qualified for such
use (for example, Factory Mutual Approved). Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
Batteries:
Do not replace or charge batteries in a potentially explosive atmosphere.
Contact sparking may occur while installing or removing batteries and
cause an explosion.
Blasting Caps and Areas:
To avoid possible interference with blasting operations, turn your
COMMUNICATOR OFF near electrical blasting caps or in a “blasting
area” or in areas posted: “Turn off two-way radio”. Obey all signs and
instructions.
NOTE: Areas with potentially explosive atmospheres are often, but
not always, clearly marked. They include fueling areas such as below
deck on boats; fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
SYMPTOM
No power.
Reception is
weak.
Cannot change
channels.
Range is limited.
Sound distortion
problems.
SOLUTION
●Check batteries. Ensure that the batteries are
installed properly.
●The batteries may be weak.
●Replace old batteries with four (4) new 1.5V
“AAA” alkaline batteries or Ni-MH
rechargeable batteries.
●Press the UP ▲▲button to increase VOLUME
●The receiving signal may be weak and/or out of
range.
●If this happens, press the MONITOR M button.
●To change channels, press the MODE button
until the channel number flashes on the LCD
Screen.
●Press the UP ▲▲or DOWN ▼▼buttons to
change channels.
●Batteries may be weak.
● BUTTON LOCK mode must be deactivated.
●BATTERIES may be weak.
●Replace with new batteries if the BATTERY
LEVEL indicator is low.
●The maximum range will vary depending on
terrain and environment.
●Open fields provide the maximum range, while
steel/concrete structures, heavy foliage, and
use in buildings and in vehicles may limit the
range significantly.
●Wearing the radio close to the body, such as in
a pocket or on a belt, will decrease range;
change the location of the radio.
●If you are transmitting, speak in a normal
tone of voice, 2 to 3 inches away from the
MICROPHONE.
●If you are receiving, lower the volume to a
comfortable level.
●Radios too close. Radios must be at least 5 feet
apart; increase your distance.
●Radios too far apart. Obstacles interfere with
transmission. Talk range is from 2 to 7 miles in
clear unobstructed conditions.

WarrantyCare and Maintenance
2019
BellSouth Products
One-Year Limited Warranty
This limited warranty sets forth all BellSouth Products responsibilities
regarding your COMMUNICATOR. There are no other expressed or
implied warranties from BellSouth Products.
Warranty Service Provided
If you purchased the COMMUNICATOR unit new from a retail vendor,
BellSouth Products warrants the equipment against defects in material
and workmanship for a period of one (1) year from the original date of
purchase. This warranty is in lieu of all other express warranties. This
warranty begins when you purchase the COMMUNICATOR unit and
continues for one (1) year unless you sell or rent the unit, in which case
the warranty stops.
BellSouth Products disclaims any implied warranty, including the
warranty of merchantability and the warranty of fitness for a particular
purpose, as of the date of one year from your original purchase of the
COMMUNICATOR unit. BellSouth Products assumes no responsibility
for any special, incidental, or consequential damages.
This warranty gives you specific legal rights and you may have other
rights which vary from state to state. Some states do not allow the
exclusion or limitations of special, incidental or consequential damages
or limitations on how long a warranty lasts, so the above exclusion
or limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse,
abuse, improper installation or operation, lack of reasonable care,
unauthorized modification, or the affixing of any attachment not provided
by BellSouth Products with the COMMUNICATOR unit, and/or loss of
parts. This warranty is voided in the event any unauthorized person
opens, alters, or repairs the unit.
All BellSouth equipment being returned for repair must be suitably
packaged.
BellSouth Products does not warrant that this equipment is compatible
with the type of accessory of any particular communicator company or
the services provided by it.
Care and Maintenance
To clean the unit, wipe with a soft cloth dampened with water. Don’t use
cleaner or solvents on the unit; they can harm the case and leak inside,
causing permanent damage. Battery contacts may be wiped with a dry,
lint-free cloth.
If the unit gets wet, turn it OFF and remove the batteries immediately.
Dry the BATTERY COMPARTMENT with a soft cloth to minimize potential
water damage. Leave the cover off the BATTERY COMPARTMENT
overnight or until completely dry. Do not use the unit until completely dry.
Exposure to Radio Frequency Energy:
The design of your COMMUNICATOR, which generates radio frequency
(RF) electromagnetic energy (EME), complies with the following national
and international standards and guidelines.
The Relevant Guidelines and Standard Are:
●FCC Report and Order FCC 96-326 (August, 1996)
●American National Standards Institute (C95-1-1992)
●National Council on Radiation Protection and Measurements (NCRP-
1986)
●International Commission on Non-lonizing Radiation Protection
(ICNRP -1986)
To ensure optimal unit performance and to ensure that exposure to RF
energy is within the guidelines in the above standards, the following
operating procedures should be observed:
For Portable Two-way Communicators:
●When transmitting with a COMMUNICATOR, hold the COMMUNICATOR
in a vertical position with its MICROPHONE 1 to 2 inches (2.5 to 5.0
cm) away from your mouth. Keep the ANTENNA at least 2 inches (5
cm) from your head and body.
●If you wear a COMMUNICATOR on your body, ensure that the
ANTENNA is at least two inches (5 cm) from your body when
transmitting.
Electromagnetic Interference/Compatibility:
Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed, or otherwise
configured for electromagnetic compatibility.
●Turn your unit OFF in any facilities where posted notices instruct you
to do so. Hospitals or health care facilities may be using equipment
that is sensitive to external RF energy.
●Turn your unit OFF when on board an aircraft when instructed to do
so. Any use of the unit must be in accordance with airline regulations
or crew instructions.

To Obtain Warranty Service
• Provide proof of the date of purchase within the package.
• Prepay all shipping costs to the authorized service center.
• Include a return shipping address within the package.
Please retain your sales receipt, the carton, the packing materials, and
the printed material. The original carton is the best shipping container
for the COMMUNICATOR unit should you have to return it.
For your reference:
Model Number
Date of Purchase
Name of Dealer
Customer Service Telephone Number:
1-800-864-2199
Warranty
2221
Licensing Information
What To Do for Warranty Service
During the first thirty (30) days, a defective product is eligible for over-
the-counter exchange at the retailer from whom it was purchased. After
thirty (30) days, the defective product should be returned to the
authorized service center. The shipping address of the authorized
service center is:
U.S. Electronics CONSUMER CENTER
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow, GA 30260
Website - www.uselectronics.info
Your unit will be repaired or replaced if examination by the service center
determines the unit is defective.
A COMMUNICATOR unit received damaged as a result of shipping will
require you to file a claim with the carrier to cover repair costs.
A COMMUNICATOR unit received with missing parts or with damage
due to abuse, inadequate packing, or some other noncompliance with
this limited warranty will be returned to you C.O.D., freight collect.
NOTE: A COMMUNICATOR unit received which was not made for
BellSouth Products or which is not defective as determined
by our test procedures will not be repaired and will be returned
to you C.O.D., freight collect.
FCC Licensing Information
Channels 1 thru 7 transmit on GMRS/FRS frequencies.
Channels 8 thru 14 transmit on FRS frequencies.
Channels 15 thru 22 transmit on GMRS frequencies.
Operation on GMRS/FRS and GMRS frequencies requires a
license from the Federal Communications Commission (FCC).
Information regarding an application for your license can be
obtained as follows if you intend to use the GMRS channels:
Website - http://wireless.fcc.gov/prs/genmbl.html
Tel.: [phone]
GMRS Licensing Information
Before any station transmits on any channel authorized in the
GMRS from any point within or over the territorial limits of any area
where radio services are regulated by the FCC, the responsible
party must obtain a license for a GMRS system. An individual 18
years of age or older, who is not a representative of a foreign
government, is eligible to apply for a GMRS system license.
Application for a GMRS system license is made on FCC Form 605
and you can obtain a copy from the FCC's Web site:
http://www.fcc.gov/formpage.html or by calling the FCC's Forms
Distribution Center 1-800-418-FORM (3676), or from the fax-on-
demand by dialing [phone].
There is a filing fee. For information on fees, see the FCC's Web
site:
http://wireless.fcc.gov/csinfo/feeinfo.html
