EN Additional information for hospital staff for devices from
serial number 20,000

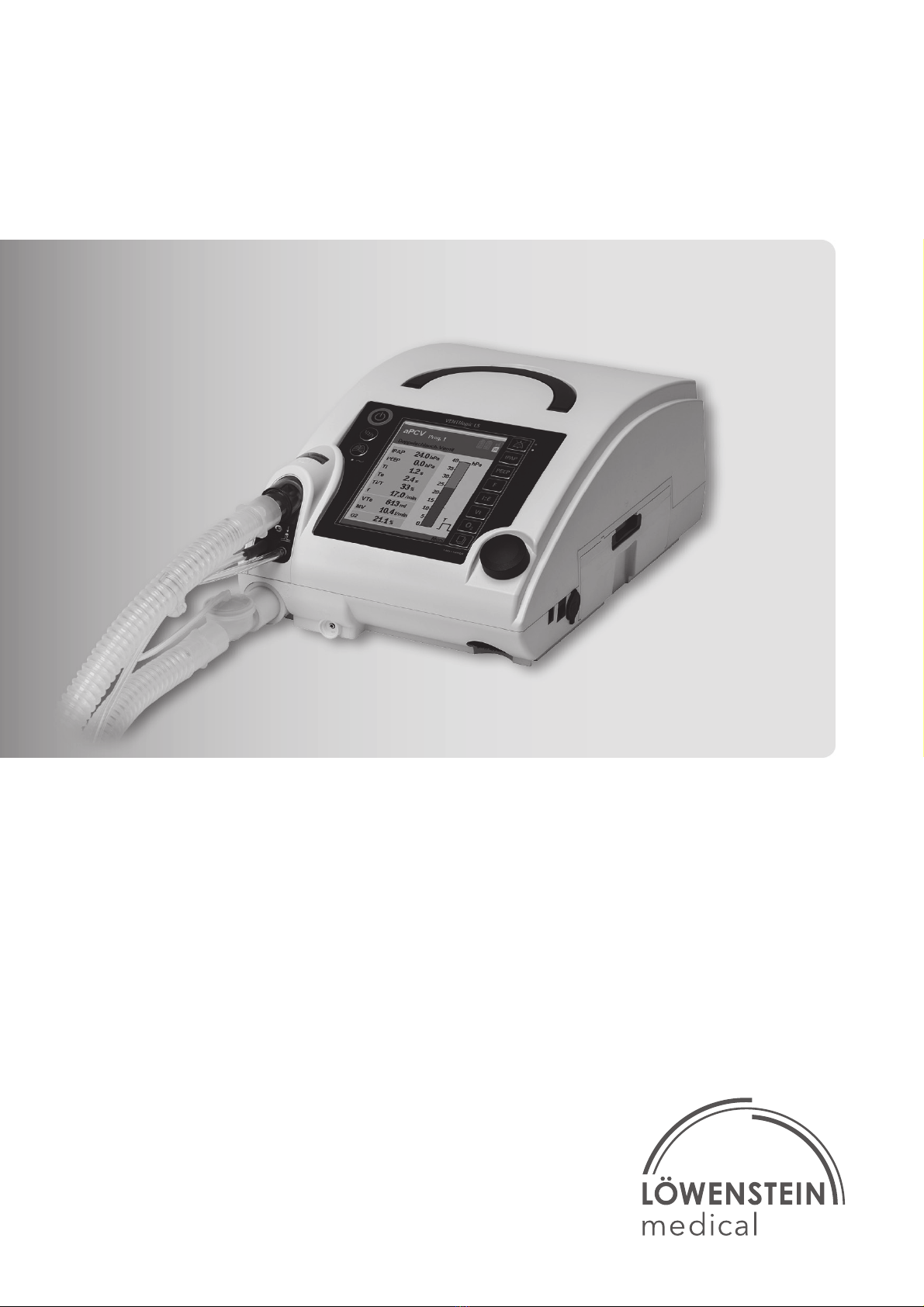

VENTIlogic LS
VENTIlogic plus
Ventilation Device

2 Contents
EN
Contents
1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Operating panel . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Menu structure . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Mode summary . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Display in Clinical menu. . . . . . . . . . . . . . . . . 9
1.5 Symbols used in the display . . . . . . . . . . . . . 10
1.6 Abbreviations used in the display. . . . . . . . . 11
2. Operation . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.1 New delivery . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Enable and lock clinical functions . . . . . . . . 13

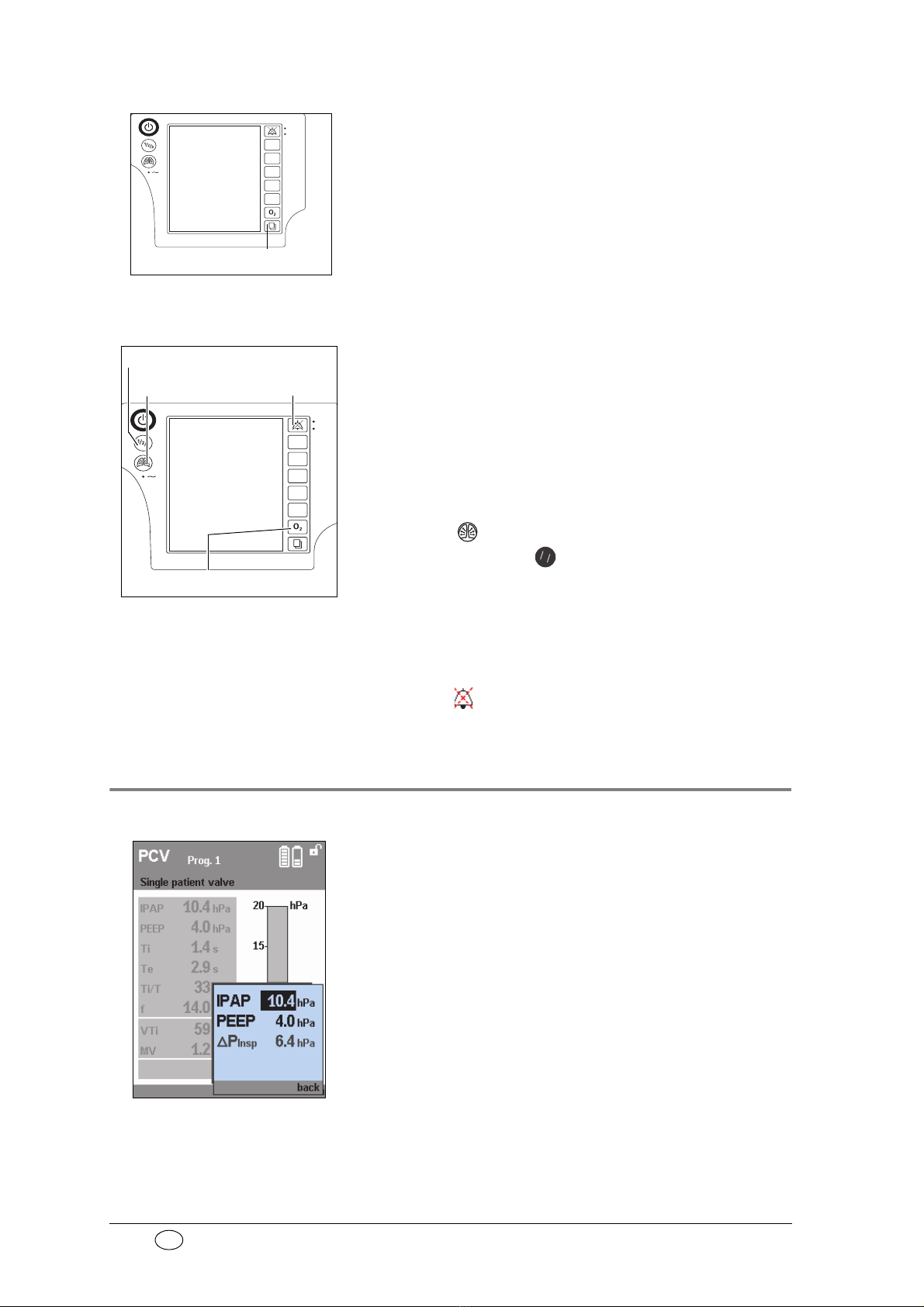

2.3 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4 Set ventilation parameters . . . . . . . . . . . . . . 14

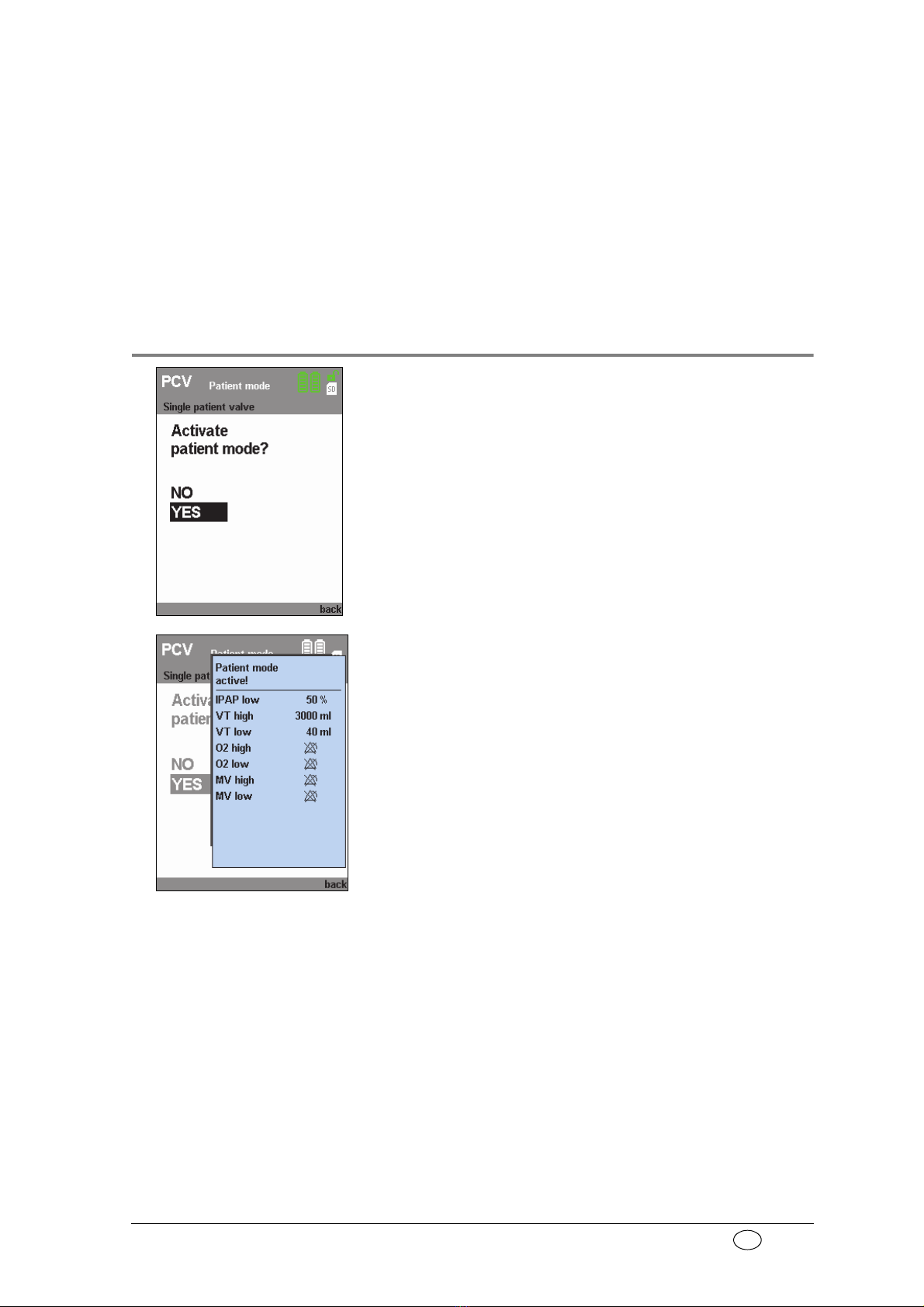

2.5 Activate patient mode . . . . . . . . . . . . . . . . . 15
2.6 Convert device . . . . . . . . . . . . . . . . . . . . . . 16
2.7 Connect device to remote alarm . . . . . . . . . 17
2.8 Use with nebulizers . . . . . . . . . . . . . . . . . . . 17
3. Clinical menu . . . . . . . . . . . . . . . . . . . . . . 19
3.1 Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2 Set mode . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.3 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.4 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.5 Device configuration . . . . . . . . . . . . . . . . . . 35
4. Hygiene treatment on change of
patient. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5. Troubleshooting . . . . . . . . . . . . . . . . . . . . 42
6. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1 Deactivate alarms . . . . . . . . . . . . . . . . . . . . 44
6.2 Acknowledge alarms . . . . . . . . . . . . . . . . . . 44
6.3 Sequence of displays when alarms are
triggered simultaneously . . . . . . . . . . . . . . . 45
6.4 Physiological alarms. . . . . . . . . . . . . . . . . . . 46
6.5 Technical alarms . . . . . . . . . . . . . . . . . . . . . 49
6.6 Store alarms . . . . . . . . . . . . . . . . . . . . . . . . 52
6.7 Transfer of alarms . . . . . . . . . . . . . . . . . . . . 52
7. Function check . . . . . . . . . . . . . . . . . . . . . 53
7.1 Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7.2 Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7.3 Calibrate oxygen sensor . . . . . . . . . . . . . . . 55
7.4 SpO2module. . . . . . . . . . . . . . . . . . . . . . . . 56
7.5 Energy supply . . . . . . . . . . . . . . . . . . . . . . . 57

Introduction 3
EN
Introduction
Please note
This document is not a complete set of instructions for use. It serves as supplementary material for hospital
staff. The following information can be found in the patient's instructions for use:
• complete overview of all types of device and all accessories
• device description and intended use
• safety instructions
• device setup
• hygiene treatment if there is no change of patient
• function check
• servicing
• scope of supply
• technical data
• warranty
• declaration of conformity

4 Overview
EN
1. Overview
This overview describes the most important functions for hospital staff. A complete overview of all device variants
and accessories can be found in the patient’s instructions for use.

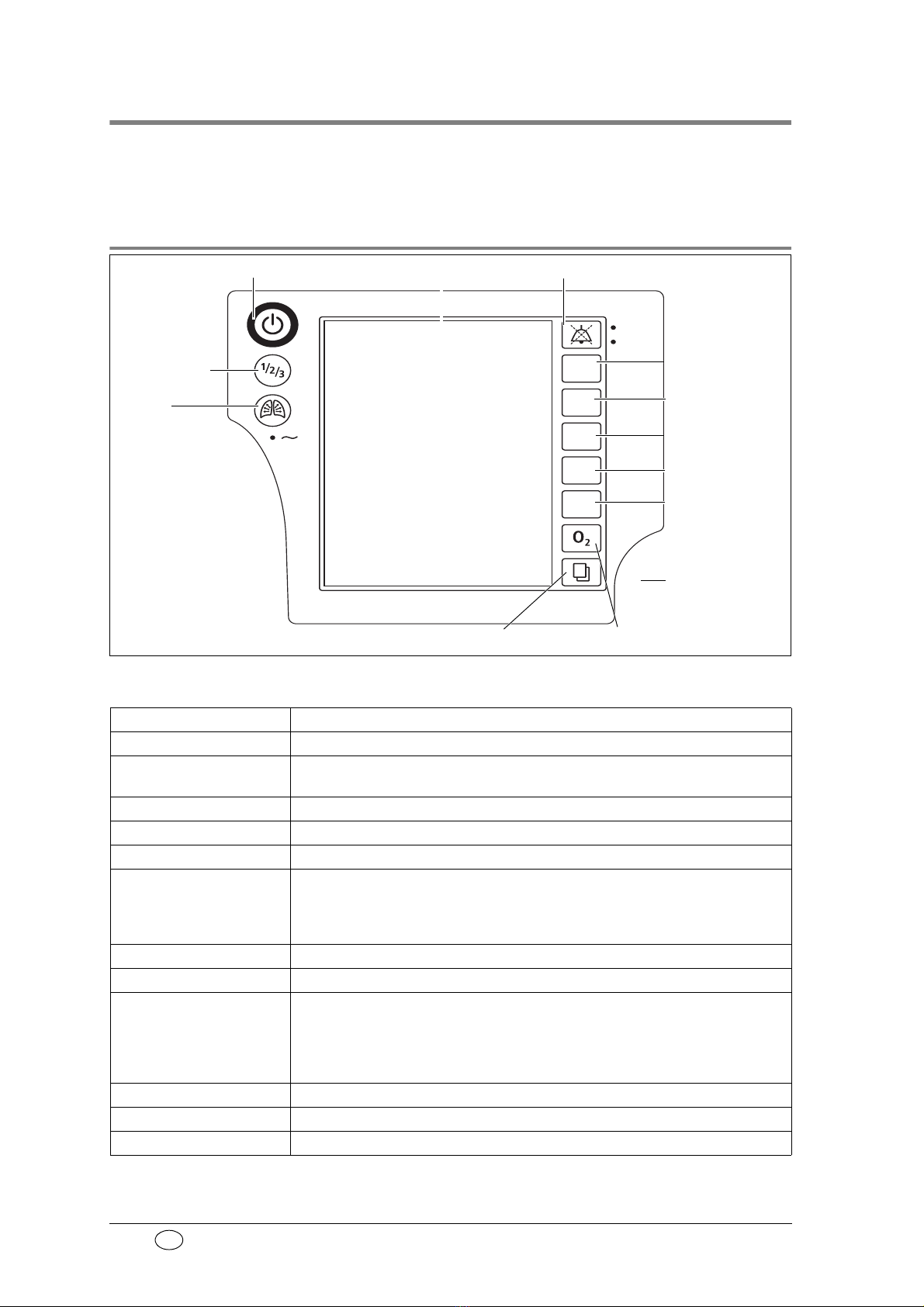

1.1 Operating panel
Key
Element Function
1On/Off key Switches the therapy device on or off.
2Alarm acknowledgement
key with LEDs For the temporary muting of alarms. LEDs are for displaying alarms visually.
3IPAP For making quick settings for IPAP. Locked in Patient mode.
4EPAP / PEEP For making quick settings for EPAP / PEEP. Locked in Patient mode.
5f For making quick settings for respiratory frequency. Locked in Patient mode.
6Ti/T (I:E)
For making quick settings for the proportion of inspiration time in a respiratory
cycle. Locked in Patient mode. On this therapy device, the I:E ratio is changed by
specifying the percentage proportion of inspiration time (Ti) of the entire respiratory
cycle (T).
7Vt For making quick settings for tidal volume. Locked in Patient mode.
8Dial Central control of the therapy device. For navigating in the menu.
9O2key
Allows rapid access to the functions below.
• If clinical functions are enabled: Device configuration menu > O2usage (see ”O2”
on page37).
• In Patient mode: Calibrate O2sensor
10 Menu key For switching from the default display to the menu and back.
11 LIAM Triggers the LIAM coughing aid function (insufflation).
12 Program key For switching to one of the three pre-configured programs manually.
Vt
PEEP
IPAP
F
I : E
1On/Off key
9O2key
11 LIAM
10 Menu key
8Dial
2Alarm acknowledgement key with LEDs
12 Program key
5f
6Ti/T (I:E)
7Vt
3IPAP
4EPAP / PEEP

Overview 5
EN
1.2 Menu structure
1.2.1 Valve ventilation
* These modes/settings are only available on VENTIlogicLS.
Active program
Mode
PCV
aPCV
PSV
VCV *
aVCV *
SIMV
MPVp
Valve system
Parameters
Trigger lockout
Trigger
sensitivity
MPVp
MPVv
On inspiration
On exhalation
Trigger lockout
Te
graph
Function check
Patient mode
Device
Activate
patient mode
Enabled
Volume
compensation
Pressure rise On inspiration
On exhalation
Compensation
VT
¨p
Device
configuration
Lk
O2
O2supply on/off
Calibrate O2
sensor
VCV/aVCV
settings* Flow
Programs ventilation
programs:
LIAM
(insufflation)
On/Off
'PLIAM
TiLIAM
TeLIAM
Duration
Interval
Cycles
Plateau signal DE, EN, FR, IT,
NL, DA, SV, NO,
FI SK PL RU
L
ea
k
age system
Valve ventilation,
single patient
circuit,
Valve ventilation,
double patient
circuit*

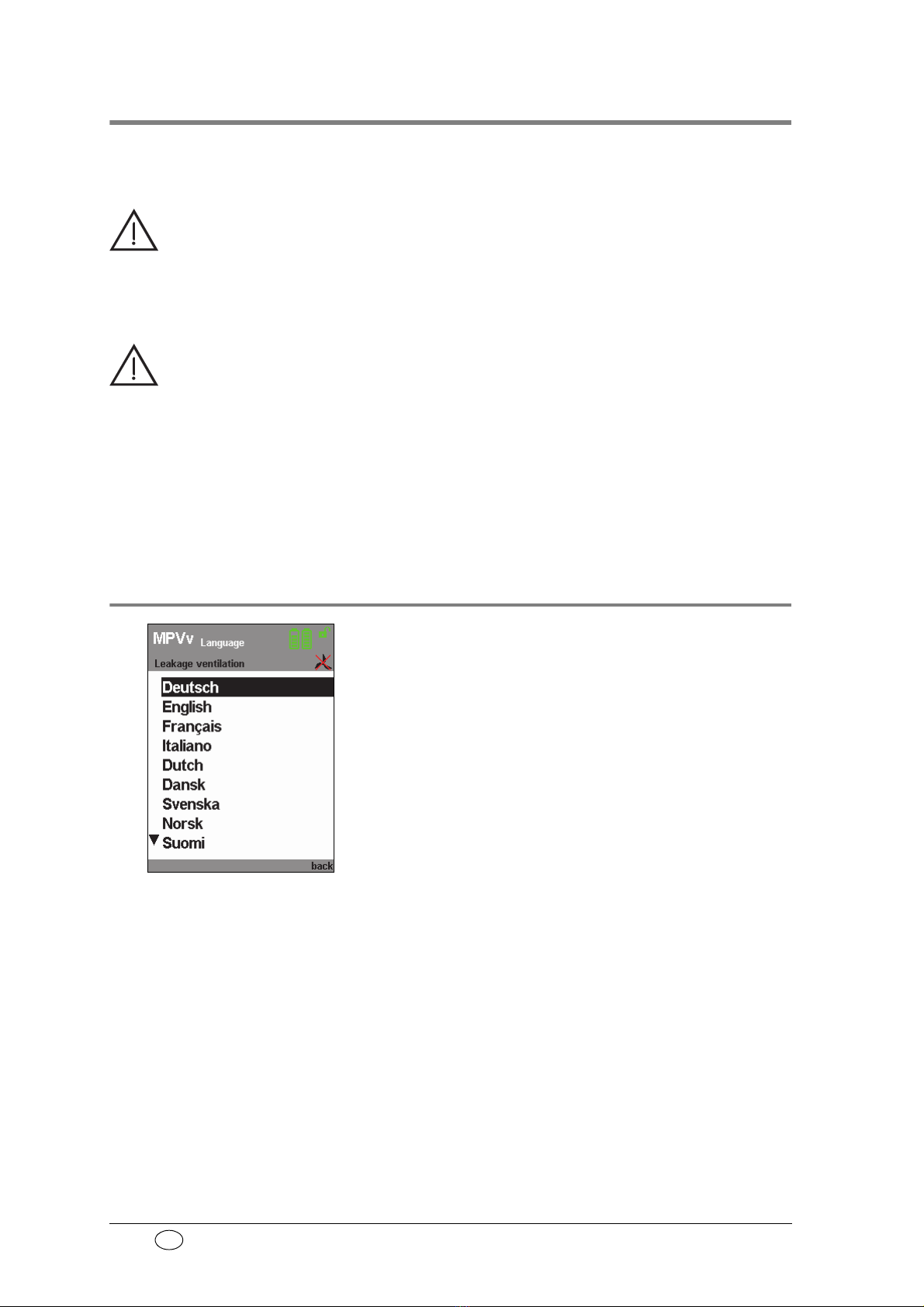

Language
Patient circuit
IPAP low (leakage)
Apnea
VTlow
VThigh
Pressure
Monitor
P(t); V(t)
Alarms
Servicing
Filter change
counter reset
Set date/time
FI
,
SK
,
PL
,
RU
,
EL, PT, ES, TR,
ZH, JA
Language
Pressure
low
Pressure high
Frequency low
Frequency high
O2low
O2high
MV low
MV high
SpO2low
S
p
O
2
high
Filter change
Date/Time
Statistics
Displays Display
Alarm list
P(t);
V(t)
F(t)
PV loop*
FV loop*
Night display
Actual values
Mean values
Device usage
Servicing
Counter reset
Set factory
settings
p
2
high
Pulse low
Pulse high
Usage time
Factory
settings
Servicing
Usage time
Counter reset
Rechargeable
battery pack Internal battery
Replaceable
batt.
Brightness Brightness level
1-6
Autolock Auto lock on/off
LIAM info
Overview
Settings
Alarms
Actual values

6 Overview
EN
1.2.2 Leakage ventilation
* These modes/settings are only available on VENTIlogicLS.
Active
program
Displays Display
Mode
Monitor
P(t); V(t)
F(t)
TA curve
PV loop*
FV loop*
S
T
ST
CPAP
MPVp
MPVv
Leakage system
Statistics
Alarm list
Parameters
FV
loop*
Night display
Trigger lockout
Trigger
sensitivity Actual values
Mean values
Device usage
TA statistics
AirTrap statistics
On inspiration
On exhalation
Trigger lockout
Te
graph
O
LIAM info
Overview
Settings
Volume
compensation
Pressure rise On inspiration
On exhalation
Compensation
VT
¨p
Function check
Patient mode
Device
configuration
Activate patient
mode
Rechargeable
battery pack
Internal battery
Replaceable batt.
O
n
Off
AirTrap control
Settings
Actual values
Alarms
Programs
Enabled
ventilation
LIAM
(insufflation)
On/Off
'PLIAM
TiLIAM
TeLIAM
Duration
Interval
Cycles
Plateau signal
configuration
Leakage system
Valve ventilation,
single patient
circuit, valve
ventilation, double
patient circuit
*
Patient circuit
O2O2supply on/off
programs:
TA
Settings
Model
fTA
¨fTA
TA analysis
Filt h
Set date/time
DE, EN, FR, IT,
NL, DA, SV, NO,
FI, SK, PL, RU, EL,
PT, ES, TR, ZH, JA
patient
circuit
Language
IPAP
Date
Time
Target values*
SX: TTi; ¨TTi
SXX: TTi;
¨TTi ; TTe
Alarms
Servicing
Counter reset
Set factory
settings
Filt
er c
h
ange
counter reset
IPAP
low (leakage)
Apnea
VTlow
VThigh
Frequency low
Frequency high
O2low
O2high
MV low
MV
high
Factory settings
Servicing
Filter change
Uti
high
SpO2low
SpO2high
Pulse low
Pulse high
Usage time
U
sage
ti
me
Counter reset
Brightness Brightness level
1-6
Autolock Auto lock on/off

Overview 7
EN
1.3 Mode summary
Note
The ventilation modes available depend on the patient circuit installed (see “2.6 Convert device” on
page16 and “3.5.3 Patient circuit” on page37).
1.3.1 Valve ventilation
* These modes/settings are only available on VENTIlogicLS.
Mode Adjustable before
activation
Trigger sensitivity
Trigger lockout
Pressure rise
Volume compensa-
tion
LIAM (insufflation)
VCV/aVCV settings*
PCV
– IPAP
– PEEP
–f
–Ti/T
•••
aPCV
– IPAP
– PEEP
–f
–Ti/T
•••••
PSV
– IPAP
– PEEP
–f
–Ti/T
•••••
VCV*
–V
T
–f
–Ti/T
– PEEP
–Flow
••
aVCV*
–V
T
–f
–Ti/T
– PEEP
–Flow
• • • •
SIMV
–P
SIMV
– IPAP
– PEEP
–f
backup
–Ti/T
ba
–f
SIMV
–T
apnea
•••
MPVp – IPAP
–Ti ••• •
MPVv – IPAP
–V
T
••• •

8 Overview
EN
1.3.2 Leakage ventilation
Mode Adjustable
before activation
Trigger sensitivity
Trigger lockout
AirTrap Control
Pressure rise
Volume compensa-
tion
LIAM (insufflation)
S–IPAP
– EPAP • •••
T
–IPAP
– EPAP
–f
– Ti/T (I:E)
••••
ST
–IPAP
– EPAP
–f
– Ti/T (I:E)
••••••
CPAP – CPAP
MPVp –IPAP
–Ti ••••
MPVv –IPAP
–V
T
••••

Overview 9
EN

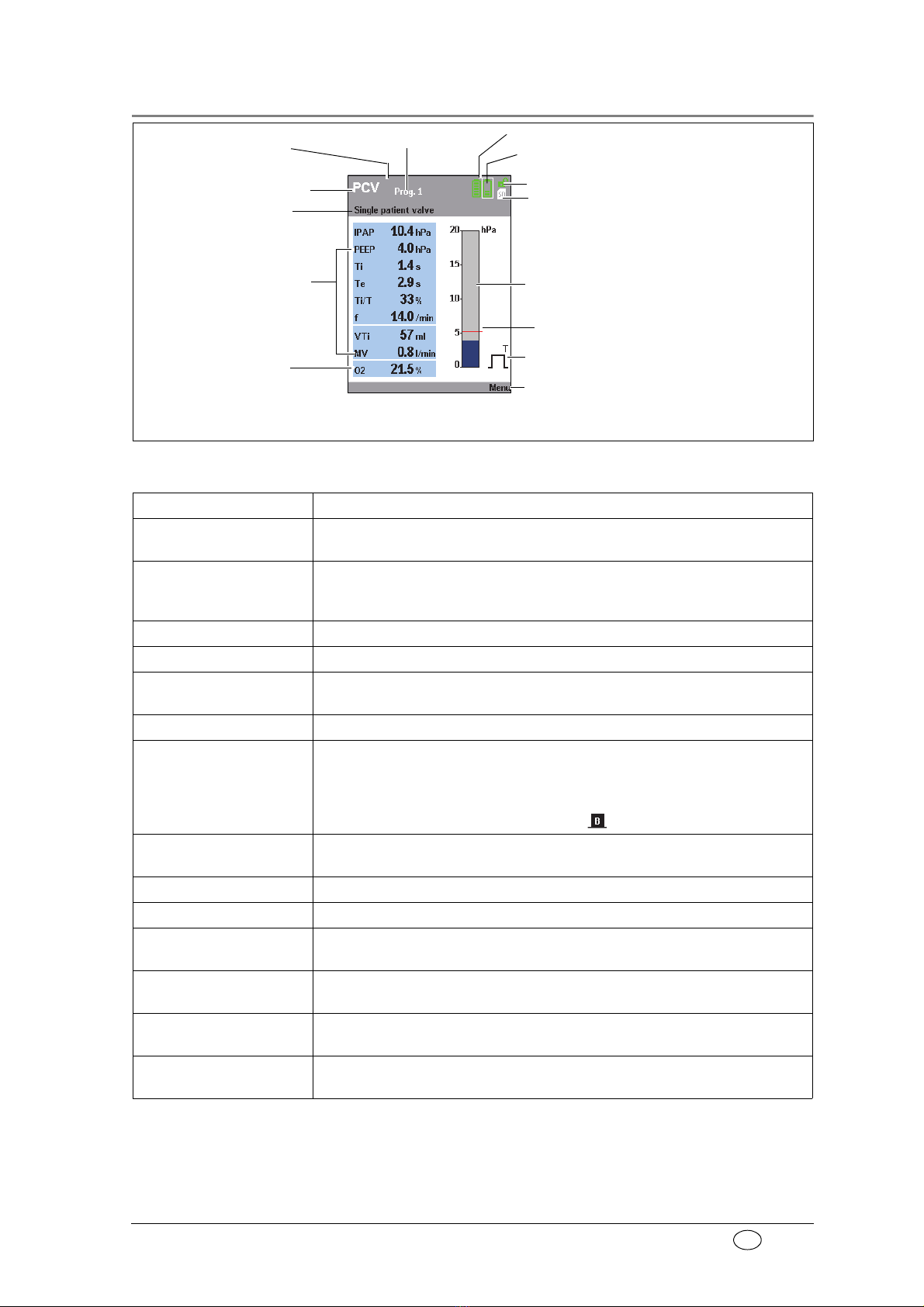

1.4 Display in Clinical menu
Key
Element Function
1Battery charging state of
internal battery
Indicates the charging state of the internal rechargeable battery. If the battery is
being charged, the segments are shown in succession.
2Battery charging state of
replaceable battery
(Option)
Displays the charging state of the replaceable battery available as an option. If the
battery is being charged, the segments are shown in succession.
3Padlock symbol Appears when clinical functions are enabled. Faded out in Patient mode.
4Memory card symbol Appears if a memory card is present and there is data saved on the memory card.
5Bar graph Indicates the pressure curve on inspiration and exhalation.
Note: 1.01973 hPa correspond to 1 cm H2O.
6Alarm limit Displays the specified alarm limit for IPAP low.
7Respiratory phase change
display
Indicates whether the current respiratory phase was triggered spontaneously by the
patient (S) or by the device (T). Switches from left (inspiration) to right (exhalation)
depending on respiratory phase. Diagram: inspiration triggered by the device.
Also indicates whether the trigger for inspiration is blocked due to an activated
trigger lockout time at the start of expiration .
8Access to Clinical menu The key next to this menu item enables you to switch to the menu and back to the
default display.
9Oxygen concentration Is displayed in % if an oxygen sensor is connected.
10 Ventilation parameters Indicates the ventilation parameters currently set.
11 Patient circuit Indicates the patient circuit (valve or leakage ventilation) currently set and the
current configuration (double or single patient circuit).
12 Therapy mode Indicates therapy mode currently set. Is overwritten by LIAM and shown next to it
in subscript if LIAM is activated.
13 Alarm symbol Indicates the current setting for alarms (in this case: all physiological alarms
deactivated).
14 Active program Indicates the ventilation program currently active. The value in brackets show the
total number of enabled programs.
3Padlock symbol
12 Therapy mode
10Ventilation parameters
11 Patient circuit
9Oxygen concentration
5Bar graph
7Respiratory phase change display
8Access to Clinical menu
1Battery charging state of internal battery
13 Alarm symbol
4Memory card symbol
2Battery charging state of replaceable battery (Option)
6Alarm limit
14 Active program

10 Overview
EN
1.5 Symbols used in the display
Symbol Significance
Status line:
Filter change required
Servicing required
Acoustic signal of alarms muted for 120 seconds
All physiological alarms deactivated (exception for VENTIlogicLS: In VCV and aVCV modes, the
Pressure high and Pressure low alarms cannot be deactivated)
Blower off (standby mode)
Battery display green (2-5 segments): battery capacity over 25 %
Battery display orange: battery capacity below 25 %
Battery display red: battery capacity below 10 %
Segments are displayed in succession: device operated by power supply, battery charging
Battery not present
Battery not ready for use:
– battery defective or
– battery too cold or
– battery too hot
Battery not recognized as a genuine battery. Replace battery.
Device in internal battery mode
Measured values are written to the SD card
SD card is write-protected or defective. No data can be recorded.
Alarm window:
Low-priority alarm triggered
Medium-priority alarm triggered
High-priority alarm triggered
Main window
Plateau signal switched on
Plateau signal switched off

Overview 11
EN
1.6 Abbreviations used in the display
Symbol Significance
Status line:
SS mode active
ST ST mode active
TT mode active
CPAP CPAP mode active
PCV PCV mode active
PSV PSV mode active
aPCV aPCV mode active
VCV VCV mode active (VENTIlogicLS only)
aVCV aVCV mode active (VENTIlogicLS only)
SIMV SIMV mode active
MPVp MPVp mode active
MPVv MPVv mode active
+V Volume compensation activated (after mode: e.g PCV+V)
+A AirTrapControl activated (after mode: e.g. ST +A)
+LIAM
LIAM enabled: displayed under the current mode, e.g.:
PCV
+LIAM
LIAM LIAM (Lung Insufflation Assist Maneuver) active
Prog. Active ventilation program
Main window (Monitor):
IPAP Inspiration pressure
EPAP / PEEP Exhalation pressure
PSIMV Specifies the inspiration pressure level of the back-up ventilation (SIMV mode only)
hPa Pressure given in hectopascals; 1.01973 hPa corresponds to 1 cm H2O.
fRespiratory frequency
SRespiratory phase switch triggered - spontaneous
TRespiratory phase switch triggered - mandatory
B Trigger for inspiration blocked during expiration
Ti/T Proportion of inspiration time in a respiratory cycle
VT Tidal volume
VTi Tidal volume on inspiration
VTe Tidal volume on exhalation
Ti Inspiration time
Te Exhalation time
O2(21%) Mean oxygen concentration
Shown in brackets: measuring cell not calibrated, perform oxygen calibration
SpO2(%) Oxygen saturation
bpm Pulse beats per minute
Tapnoe Time since patient's last spontaneous breath (only in MPVv and MPVp modes)

12 Operation
EN
2. Operation
This section describes the most important operating functions for hospital staff. A complete description of the
device and its operation can be found in the patient’s instructions for use.
Caution!
Risk of injury when changing patients.
On a change of patient, the settings for the previous patient may lead to the current patient being ventilated
incorrectly.
When changing patients, always reset all device parameters to the factory settings (see “3.5.8 Factory
Settings” on page 38).
Note on using Intersurgical®patient circuits
When using Intersurgical®patient circuits ref. 5183064 and ref. 5083 (and other single-patient circuits in
which Intersurgical valves from the patient circuits mentioned are used) the volume display on the device
may deviate. The volume displayed may deviate from that actually delivered by up to 105 ml.
• Be aware of this potential display deviation when setting alarm limits and parameters.
• Use patient circuit WM 27181 from the manufacturer to avoid this deviation in the display.
Note
All clinical functions are also available in Standby (with fan switched off). Therefore, you do not need to
activate the fan until immediately before the start of therapy.
2.1 New delivery
As soon as the device is connected to a power supply, it starts up in
patient mode. First use the dial to select the language in which you wish
to operate the device.
If you wish to use the device again after prolonged storage, see the
section entitled “4. Hygiene treatment on change of patient” on
page 41.

Operation 13
EN
2.2 Enable and lock clinical functions
If the device is in Patient mode or if no settings have been made in the
Clinical menu for 15 minutes with autolock activated, Clinical functions
are locked. To enable the clinical functions again, proceed as follows:
1. Press the IPAP and PEEP keys for 4 seconds until there is the message
Clinical menu locked! (Patient mode: only available in Clinical
menu!) is no longer shown.
Note
In Patient mode, the clinical functions cannot be enabled from the
menu. If necessary, press the menu key in order to switch to the
default display in Patient mode. Then keep the IPAP and PEEP
keys depressed as described above.
You can also deactivate the clinical functions again.
Press the IPAP and PEEP keys again for 4 seconds, until the message
Clinical menu locked! appears. To switch the device to Patient mode,
proceed as described in “Activate patient mode” on Page 15.
You can also deactivate the automatic lock of the clinical functions after
15 minutes (see “Autolock” on page40).
2.3 Controls
2.3.1 Navigate with the dial
This is the central control of the therapy device. You can use the dial to
select menu items, navigate in the menu windows and set values for
individual menu items.
Select menu items
• Move the dial clockwise to move the selection bar down in the display.
• Move the dial anticlockwise to move the selection bar up in the display.
• Press the dial to confirm selection of a menu item and open the relevant
submenu, or to select a value you wish to change.
Set values
• Move the dial clockwise to increase a value.
• Move the dial anticlockwise to decrease a value.
• Press the dial to store a value.
Exit menu item
Move the dial clockwise until the selection bar in the display is on back,
cancel or close, depending on context. Then press the dial. The display
switches back to the menu one level above. Alternatively, you can exit a
menu item by pressing the menu key (back,cancel or close appears
in the display to the left of the menu key depending on context).
Rapid access
If you press the dial during therapy, the device switches straight to the
Displays > Display menu. You can now select the various types of display
or activate the night display (see "Display" on Page19).
Clinical functions
enabled
Default display in
Patient mode
Vt
PEEP
IPAP
F
I : E
Dial

14 Operation
EN
2.3.2 Menu key
Use the Menu key to switch from Monitor to Menu (in the display, you
will see to the left of the key: Menu).
Current values during therapy are shown in the Monitor display. In
Menu, you can make settings on the device.
The menu key has other functions assigned to it as a function of context
(e.g. back). The current function in each case is shown in the display to
the left of the Menu key.
You can navigate within the menu using the dial, as described in
„2.3.1Navigate with the dial“.
2.3.3 Function keys
You can call up some functions directly by pressing the relevant key on
the device. When these keys are pressed, the relevant menu appears in
the display.
• IPAP
• EPAP / PEEP
• f
• Ti/T (I:E)
• Vt
If you press the key, you initiate LIAM (insufflation).
If you press the program key , you can choose between the 3
pre-configured programs.
Pressing the O2key gives you rapid access to the functions below.
• If clinical functions are enabled: Device configuration > menu O2
usage (see “O2” on page37).
• In Patient mode: Calibrate O2sensor menu
If you press the key, you acknowledge an acoustic alarm and mute it
for 120 seconds.
2.4 Set ventilation parameters
2.4.1 Set IPAP
1. To change the therapy pressure for inspiration, press the IPAP key. The
current settings for IPAP and EPAP are displayed.
The selection bar is on the IPAP value.
2. Change the IPAP value using the dial. Press the dial to confirm the new
value.
The selection bar switches to IPAP.
3. To set the EPAP / PEEP value as well, use the dial to select EPAP /PEEP.
Press the dial to confirm your selection.
4. Change the EPAP / PEEP value using the dial. Press the dial to confirm
the new value.
The selection bar switches to EPAP / PEEP.
2.4.2 Set EPAP / PEEP
To change the therapy pressure for exhalation, press the EPAP key. Then proceed as described in „2.4.1Set IPAP“.
Vt
PEEP
IPAP
F
I : E
Menu key
Vt
PEEP
IPAP
F
I : E
Acknowledge
alarms
Program key
O2
LIAM
1
2
3

Operation 15
EN
2.4.3 Set respiratory frequency
To change respiratory frequency, press the fkey. Then proceed as described in „2.4.1Set IPAP“.
2.4.4 Set inspiration time
To change the proportion of inspiration time in the respiratory cycle, press the I:E key. Then proceed as described
in „2.4.1Set IPAP“.
2.4.5 Set tidal volume
Use the Vt button to set the respiratory volume (single patient circuit) or the tidal volume (double patient circuit,
VENTIlogicLS only). Then proceed as described in „2.4.1Set IPAP“.
2.5 Activate patient mode
Before you pass the set device to a patient, you must switch it to Patient
mode. This prevents the patient - deliberately or inadvertently - changing
the therapy parameters or device configuration.
Proceed as follows to activate Patient mode.
1. Ensure that clinical functions are enabled
(see “Enable and lock clinical functions” on page13).
2. Use the dial to select the menu item Patient mode and confirm your
selection by pressing the dial.
3. The message Activate Patient mode? appears in the display. Use the
dial to select YES and confirm your selection by pressing the dial.
Patient mode is now activated. The message Patient mode active!
appears in the display. The current settings for the physiological alarms
(on/off or the relevant alarm limits) are displayed. After approx.
4 seconds, the device switches to the default display for the patient.

16 Operation
EN
2.6 Convert device
The therapy device can be operated with both leakage and valve ventilation.
Depending on the patient circuit, various functions and connection options are available for accessories. This is
clearly marked in the corresponding sections.
2.6.1 Convert device for operation with leakage ventilation
To convert the device from valve ventilation to leakage ventilation, proceed as follows.
1. Use a hex socket wrench (size 3) to undo the screw on the adapter.
2. Remove the adapter for valve ventilation.
3. Plug on the adapter for leakage ventilation and tighten the screw
hand-tight.
4. If present, remove the exhalation block on the bottom of the device
and replace it with the corresponding panel.
Note
It is not essential to remove the exhalation block for operation in
a hospital environment.
5. In the Device configuration menu, set leakage ventilation.
6. Perform a function check (see “7. Function check” on page 53).
Convert device for operation with leakage adapter for standard tapered connector
For leakage operation, an adapter is available as an option to allow tubes with sleeves with an internal diameter of
Ø 22 mm and a pressure-measuring tube with an internal diameter ≤Ø 5 mm to be used. Proceed as outlined
below to convert the device.
1. Loosen the screw on the adapter on the device using a size 3 hex socket
wrench.
2. Remove the adapter.
3. Push on the leakage adapter for standard tapered connector and hand-
tighten the screw.
4. If present, remove the exhalation block on the underside of the device
and replace it with the corresponding panel.
Note
It is not essential to remove the exhalation block for operation in
a hospital environment.
5. In the Device configuration menu, set the leakage system.
6. Note that maximum flow rate and the accuracy of dynamic pressure
may deviate if you are not using tubes from the manufacturer.
7. Perform a function check (see “7. Function check” on page 53).
2.6.2 Convert device for operation with valve ventilation
Convert leakage ventilation to a single patient circuit with patient valve
1. Use a hex socket wrench (size 3) to undo the screw on the adapter.
2. Remove the adapter for leakage ventilation.
3. Plug on the adapter for valve ventilation and tighten the screw hand-
tight.
4. In the Device configuration menu, set the single patient circuit or
double patient circuit depending on the patient circuit being used (see
“Patient circuit” on page37).
5. Perform a function check (see “7. Function check” on page 53).

Operation 17
EN
Additional preparations for double patient circuit with patient valve (VENTIlogicLS only)
1. Turn the device over.
2. Use a hex socket wrench (size 3) to undo the screw on the panel and
remove the panel.
3. Insert the exhalation block and tighten the screw hand-tight.
4. Turn the device back up the right way.
5. In the Device configuration menu, set the single patient circuit or
double patient circuit depending on the patient circuit being used (see
“Patient circuit” on page37).
6. Perform a function check (see “7. Function check” on page 53).
2.7 Connect device to remote alarm
Caution!
The remote alarm connection is designed to switch protective low voltages. The device can be damaged by
excessive voltages.
2.7.1 Connecting cable for nurse call system
The connecting cable from the therapy device to the in-hospital nurse call system has a bayonet fitting on one end
for connecting it to the therapy device. The cable is open at the other end. To connect the connecting cable,
proceed as follows.
1. Connect the connector of the connecting cable to the therapy device and latch it with the bayonet fitting.
2. Connect the cables at the other end of the connecting cable to the in-hospital nurse call system. To do so, see
the brief instructions for use for the connecting cable.
2.7.2 VENTIremotealarm
For operation with the VENTIremotealarm remote alarm box, see the associated instructions for use.
2.8 Use with nebulizers
You can use the therapy device with pneumatic nebulizer sets made by other manufacturers. A prerequisite for this
is that the nebulizer is designed by the manufacturer for use in combination with a ventilator.
General information
• When using the device in conjunction with nebulizers, be sure to adhere to the cleaning intervals for the patient
circuit and even reduce these if necessary, as residues of medication can impair valve function.
• When used with a double patient circuit, the exhalation block for measuring flow on exhalation must be cleaned
after use of the nebulizer.
• It is essential to follow the instructions for use for the therapy device and for the nebulizer used.
• The manufacturer is unable to make any statements in relation to medication dosages and the efficacy of aerosol
therapy. Contact the manufacturer of the nebulizer used for information on this.
Panel
Screw

18 Operation
EN
Pneumatic nebulizers
When pneumatic nebulizers are used, deviations in respiratory volume and oxygen concentration may occur
between the values displayed and those actually administered. The ventilator may exhibit modified trigger
characteristics depending on the amount of deviation in respiratory volume.
In this case, it will be necessary to reset ventilation parameters and alarm settings before and, if appropriate, during
administration of the medication. The patient needs close monitoring during use. As a result, pneumatic nebulizers
may only be used in combination with the therapy device in a hospital environment.
Our experience shows that pneumatic nebulizer sets may only be used with the therapy device at a maximum
supply flow of up to 8 l/min and with the corresponding flow controller.
Nebulizer ref. 8-4026-100 from B+P and the Oxinova Nebulizer II from Carburos Medica have been tested.
Micropump nebulizers
We recommend the Aeroneb Solo/Pro nebulizers from Aerogen. These can also be used in a domestic environment.

Clinical menu 19
EN
3. Clinical menu
This section describes the Clinical menu and the parameters which can be set. A description of the Patient menu
can be found in the instructions for patients.
3.1 Displays
Whilst the patient is receiving therapy, if the Clinical menu is enabled you can use the function keys of the therapy
device to correct ventilation parameters and have the progress of ventilation displayed in the form of curves. You
can also acknowledge alarms.
3.1.1 Display
During therapy, ventilation parameters are displayed in Monitor.
You can select the following other types of display.
When you activate the night display, the display reduces its brightness to
the lowest level but remains legible. In Patient mode, you can also switch
off the display completely. To do this, press the dial in Patient mode
during therapy.
Proceed as follows to switch from Monitor to other types of display.
1. Press the dial or press the Menu key and then use the dial to select the
menu item Displays > Display.
The Display selection list appears.
2. Use the dial to select a type of display. Confirm the selection by
pressing the dial. The display switches to the desired type of display.
3. To change the type of display again or to return to Monitor, repeat
Step 1.
The display automatically switches back to the main window set if the
keys or dial are not operated again within 15 minutes.
Monitor F(t)
P(t), V(t)
PV loop
(VENTIlogicLS only)
FV loop
(VENTIlogicLS only)
