Belnick ZG-025-WH-GG User manual

Tnk you for yo purce!
TV-Stand with
Storage
ASSEMBLY INSTRUCTIONS

 
 


 




DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE

 



Customer Service Email: [email protected] I Phone: [phone]
Z G-0 2 5-WH-GG / Z G-0 2 5-GY-GG

Have a Question/Concern?
Quality products and first-class customer service are the cornerstone of long-
lasting consumer relationships. We strive toward excellence in all we do and
want you to be completely satisfied with your purchase.
Please contact our exceptional Customer Experience Agents at the email
address or phone number shown below to assist you with any product
questions or issues before requesting a return.
We look forward to serving you in a friendly, efficient manner to resolve any
issues you may have.
Customer Service Email: CustomerExpe[email protected]
Customer Service Phone: [phone]
Our Warranty Statement
This warranty covers manufacturing defects associated with your new product. The product
is warranted from the original purchase date and to the original purchaser for normal usage,
according to the below-referenced specifications and limitations.
Non-moving metal parts are warranted for 5 years.
Component parts including pneumatic cylinder, control mechanism, base and casters
are warranted for 2 years.
All other items are warranted for 1 year.
Normal usage means use in compliance with the restrictions and weight limits specified for
the product. In the absence of product-specific restrictions and weight limits, normal usage
means use for no more than forty hours per week by persons weighing 250 lbs. or less.
Coverage terminates if the product is sold or otherwise transferred. Repairs made by
parties other than Belnick also void this warranty.
This warranty will not cover: (1) labor, freight, or damage from misuse, abuse, negligence,
alteration, assembly, installation, attachments, accident, vandalism, acts of nature or any
other event beyond the control of Belnick; (2) tearing, scratching, scuffing, or blemishing of
leather or fabric; (3) cosmetic damage that may result from normal usage; (4) damage
attributable to use by persons exceeding specified weight limits or commercial use
exceeding forty hours per week; or (5) rust or other damage caused by exposure to
moisture. The user assumes all risk of injury resulting from use of this product. Liability for
incidental or consequential damage is excluded. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.

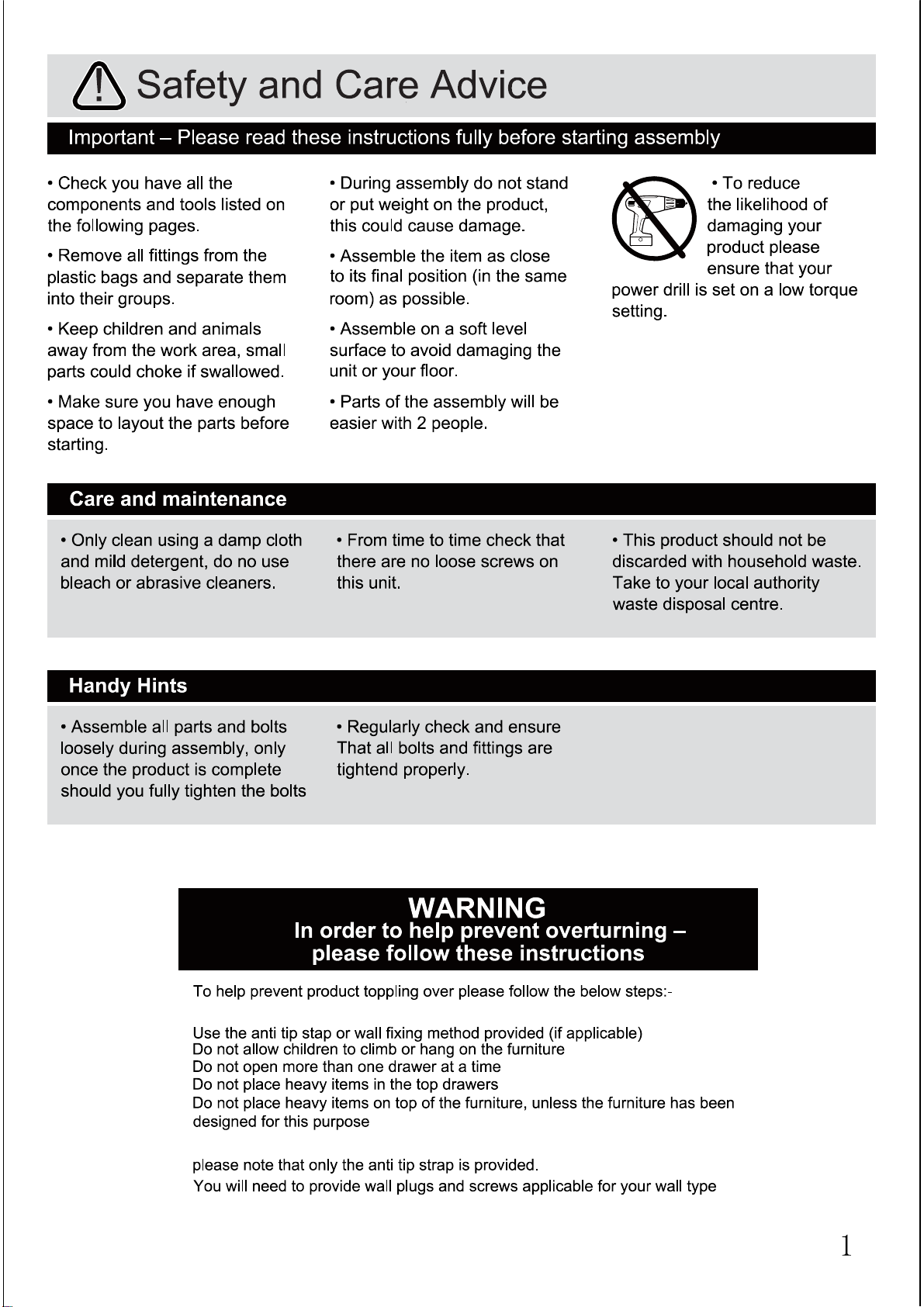

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
tightend properly.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
WARNING
In order to help prevent overturning –
To help prevent product toppling over please follow the below steps:-
Do not open more than one drawer at a time
Do not place heavy items in the top drawers
Do not place heavy items on top of the furniture, unless the furniture has been
designed for this purpose
You will need to provide wall plugs and screws applicable for your wall type
1
!
• Remove all fittings from the
to its final position (in the same
unit or your floor.
That all bolts and fittings are
please follow these instructions
Do not allow children to climb or hang on the furniture
Use the anti tip stap or wall fixing method provided (if applicable)
please note that only the anti tip strap is provided.

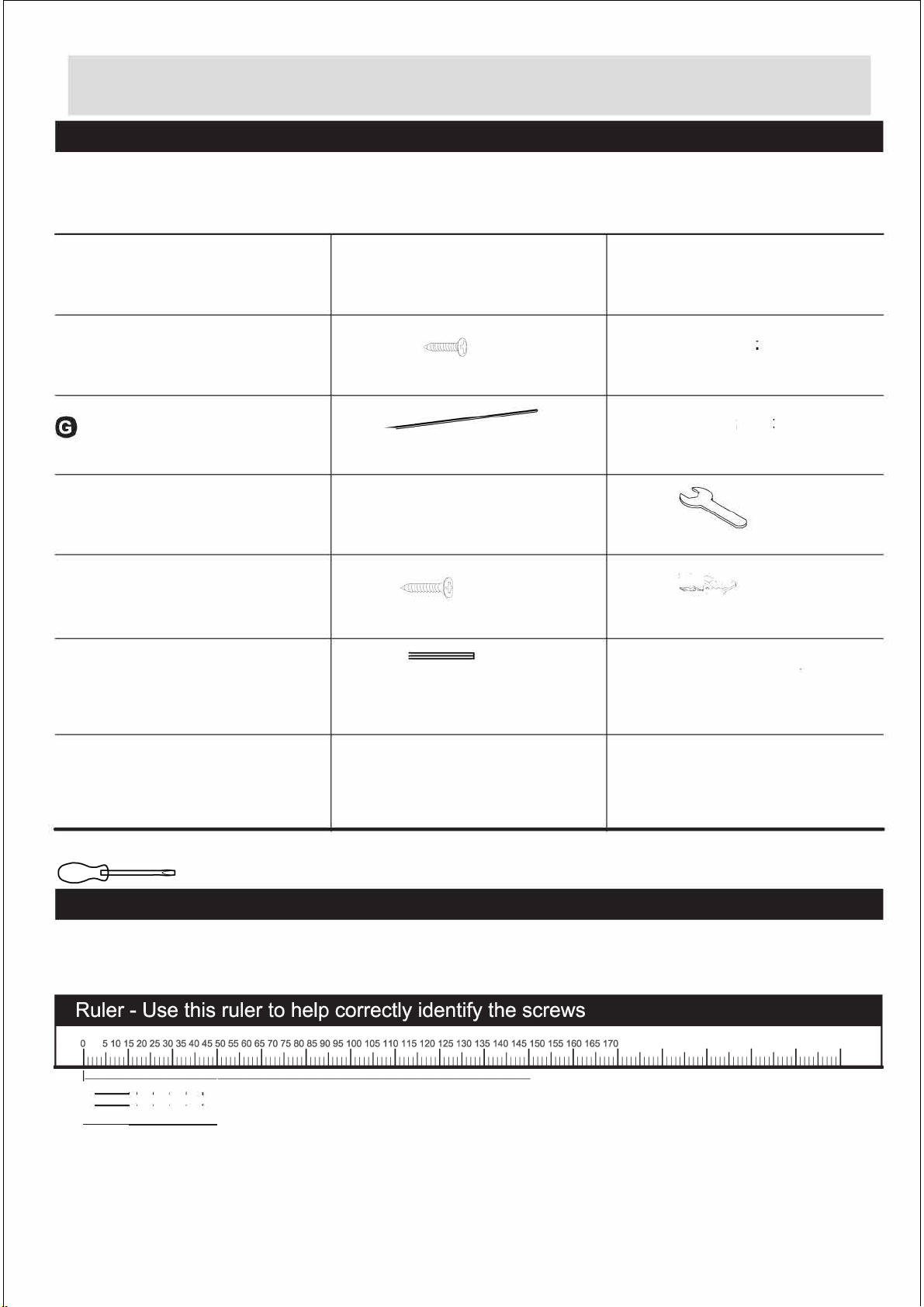

Components -Fittings
Please check you have all the panels listed below
Note: 

    e '
 
   



 
- 
  
'  •
  
   12if 
·(:�
  
G @ 

A  - 
A 
Tools required
 
 
D I 
2

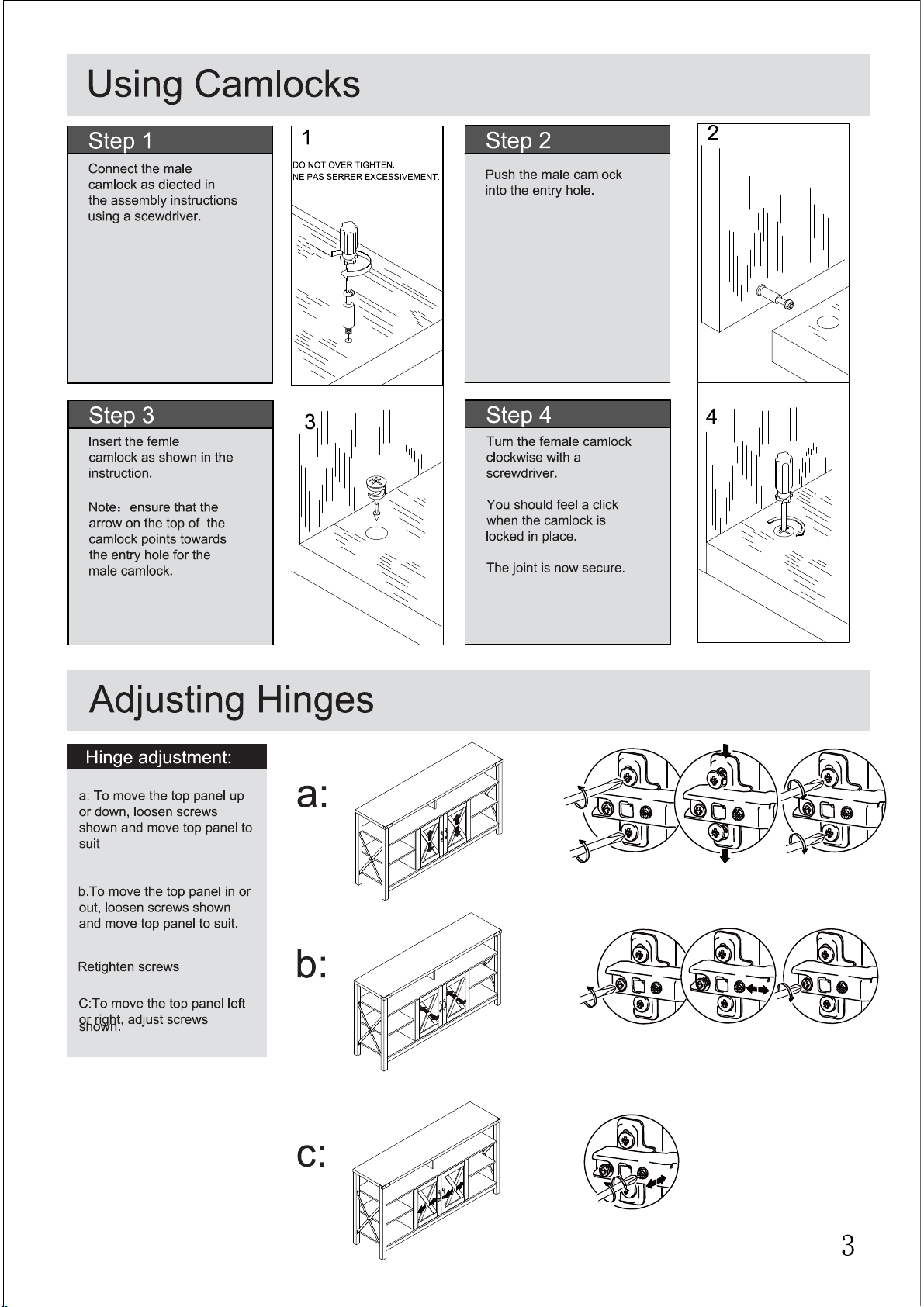

Using Camlocks
12
DO NOT OVER TIGHTEN.
NE PAS SERRER EXCESSIVEMENT.
34
4
Step 1
Step 3
Step 2
Step 4
Connect the male
camlock as diected in
the assembly instructions
using a scewdriver.
Push the male camlock
into the entry hole.
Insert the femle
camlock as shown in the
instruction.
Note：ensure that the
arrow on the top of the
camlock points towards
the entry hole for the
male camlock.
Turn the female camlock
clockwise with a
screwdriver.
You should feel a click
when the camlock is
locked in place.
The joint is now secure.
Adjusting Hinges
Hinge adjustment:
a: To move the top panel up
or down, loosen screws
shown and move top panel to
suit
b.To move the top panel in or
out, loosen screws shown
and move top panel to suit.
Retighten screws
C:To move the top panel left
or right, adjust screws
shown.
b:
a:
c:

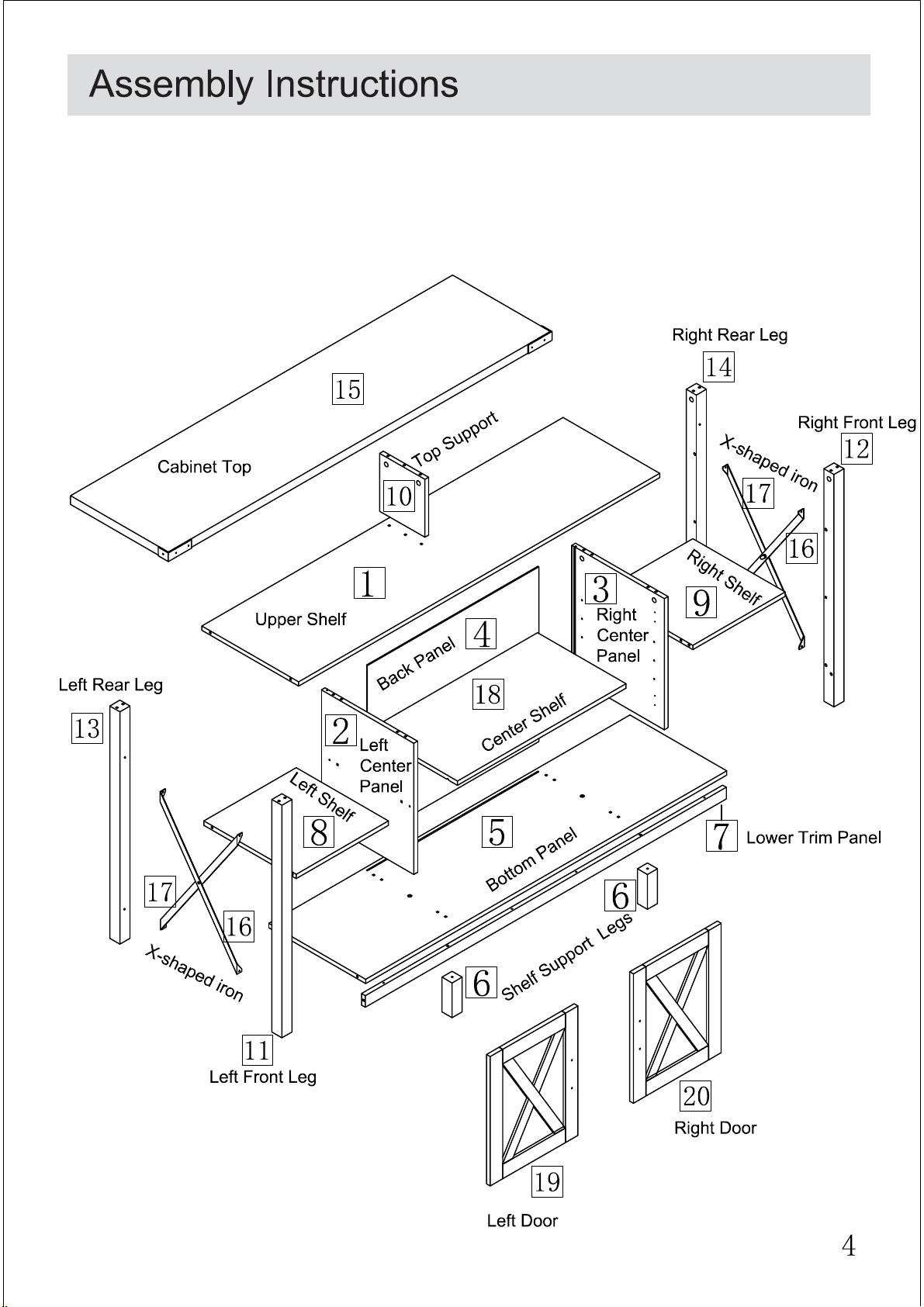

Assembly Instructions
Cabinet Top
Upper Shelf
Top Support
Back Panel
Center Shelf
Bottom Panel
Right
Center
Panel
Left
Center
Panel
Left Shelf
Right Shelf
Left Rear Leg
Left Front Leg
X-shaped iron
X-shaped iron
Right Front Leg
Right Rear Leg
Lower Trim Panel
Shelf Support Legs
Left Door
Right Door

Assembly Instructions

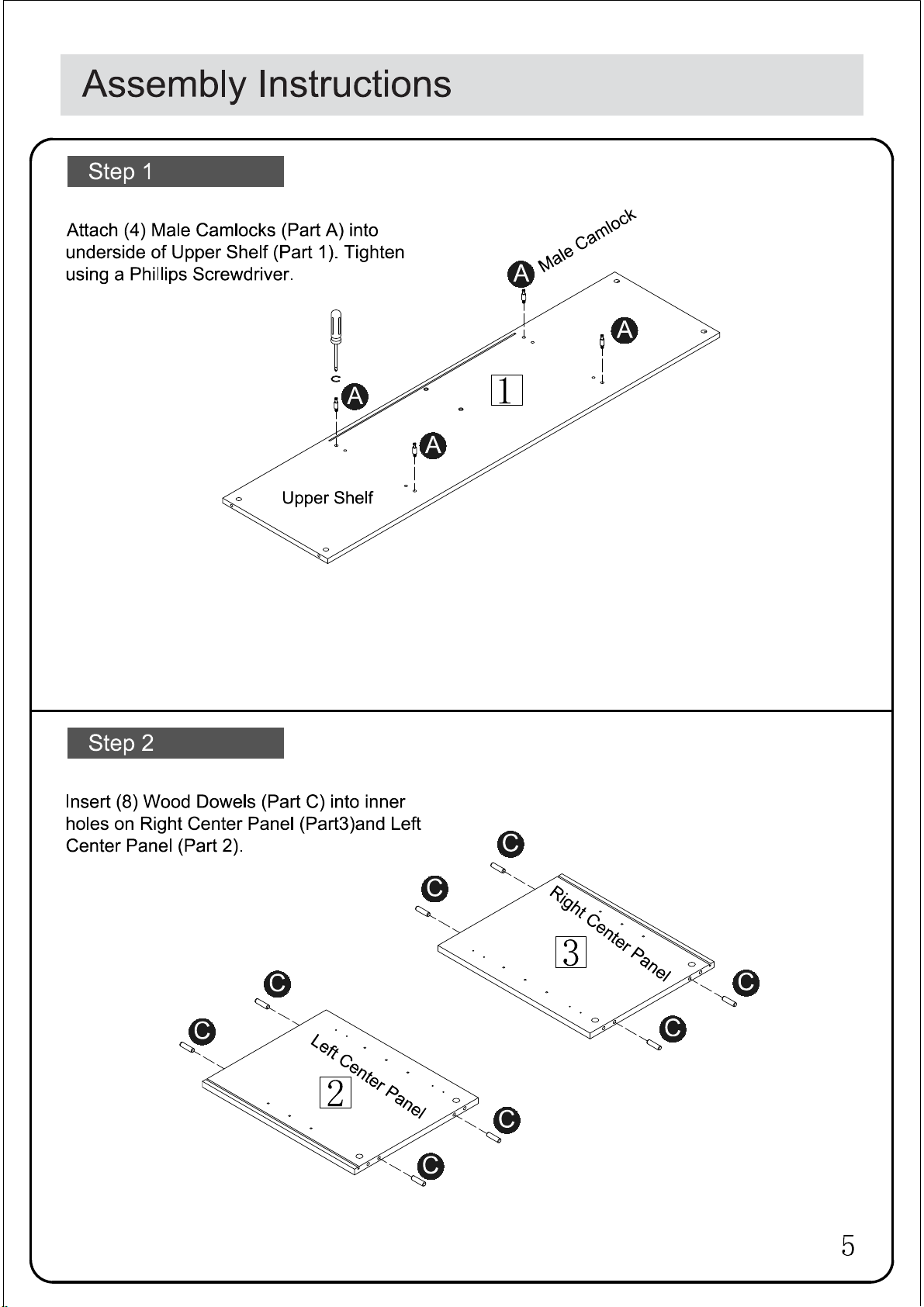

Step 1
Step 2
A
A
A
A
C
C
C
C
C
C
C
C
Left Center Panel
Right Center Panel
Upper Shelf
Male Camlock
Attach (4) Male Camlocks (Part A) into
underside of Upper Shelf (Part 1). Tighten
using a Phillips Screwdriver.
Insert (8) Wood Dowels (Part C) into inner
holes on Right Center Panel (Part3)and Left
Center Panel (Part 2).

Assembly Instructions
Step 3
Step 4
1 2 3
BB
B
B
H

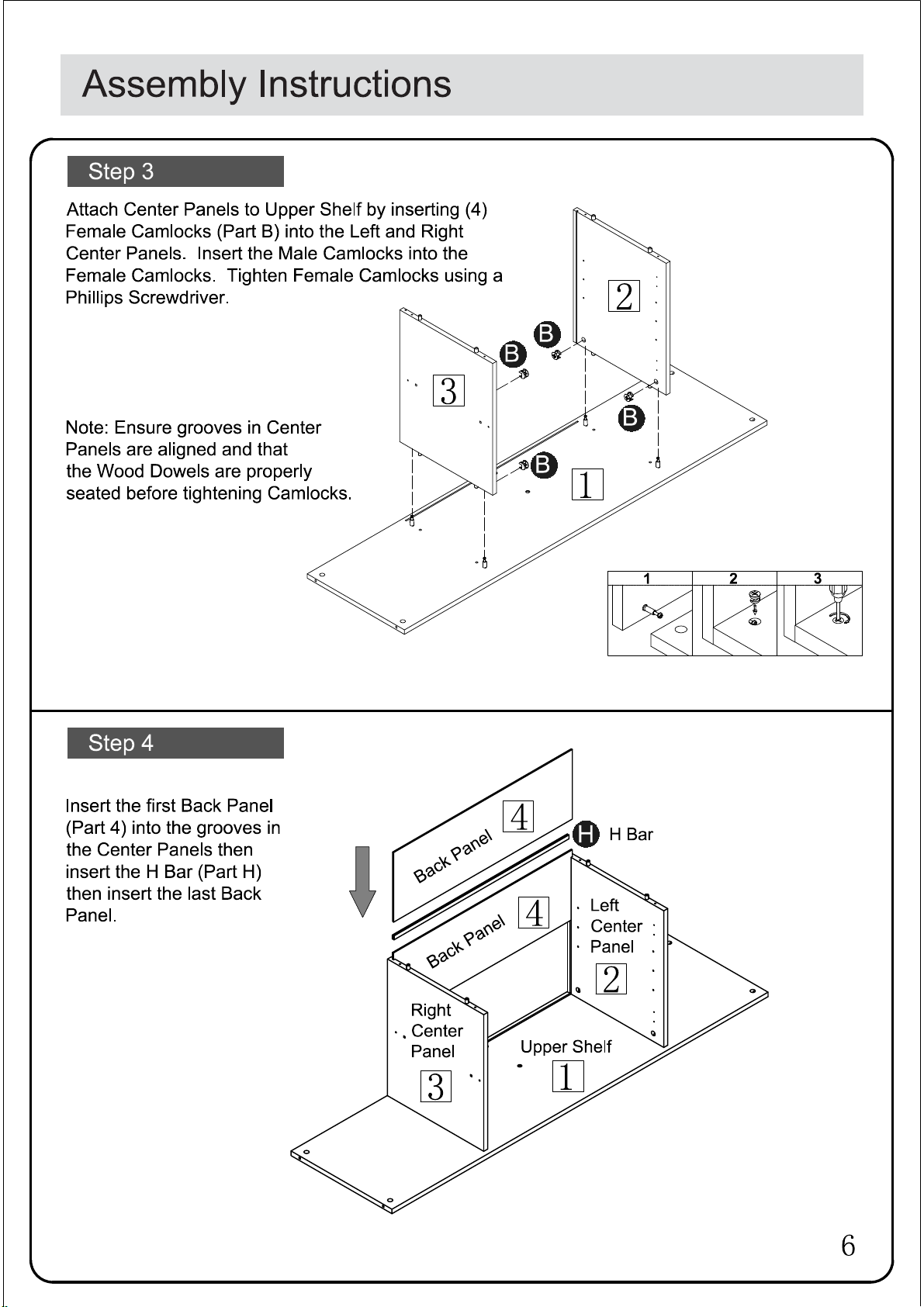

Attach Center Panels to Upper Shelf by inserting (4)
Female Camlocks (Part B) into the Left and Right
Center Panels. Insert the Male Camlocks into the
Female Camlocks. Tighten Female Camlocks using a
Phillips Screwdriver.
Note: Ensure grooves in Center
Panels are aligned and that
the Wood Dowels are properly
seated before tightening Camlocks.
Back Panel
Back Panel
H Bar
Right
Center
Panel
Left
Center
Panel
Upper Shelf
Insert the first Back Panel
(Part 4) into the grooves in
the Center Panels then
insert the H Bar (Part H)
then insert the last Back
Panel.

Assembly Instructions
Step 5
Step 6
C
C
R
F
F
Shelf Support Legs
Bottom Panel
6*50mm Screw

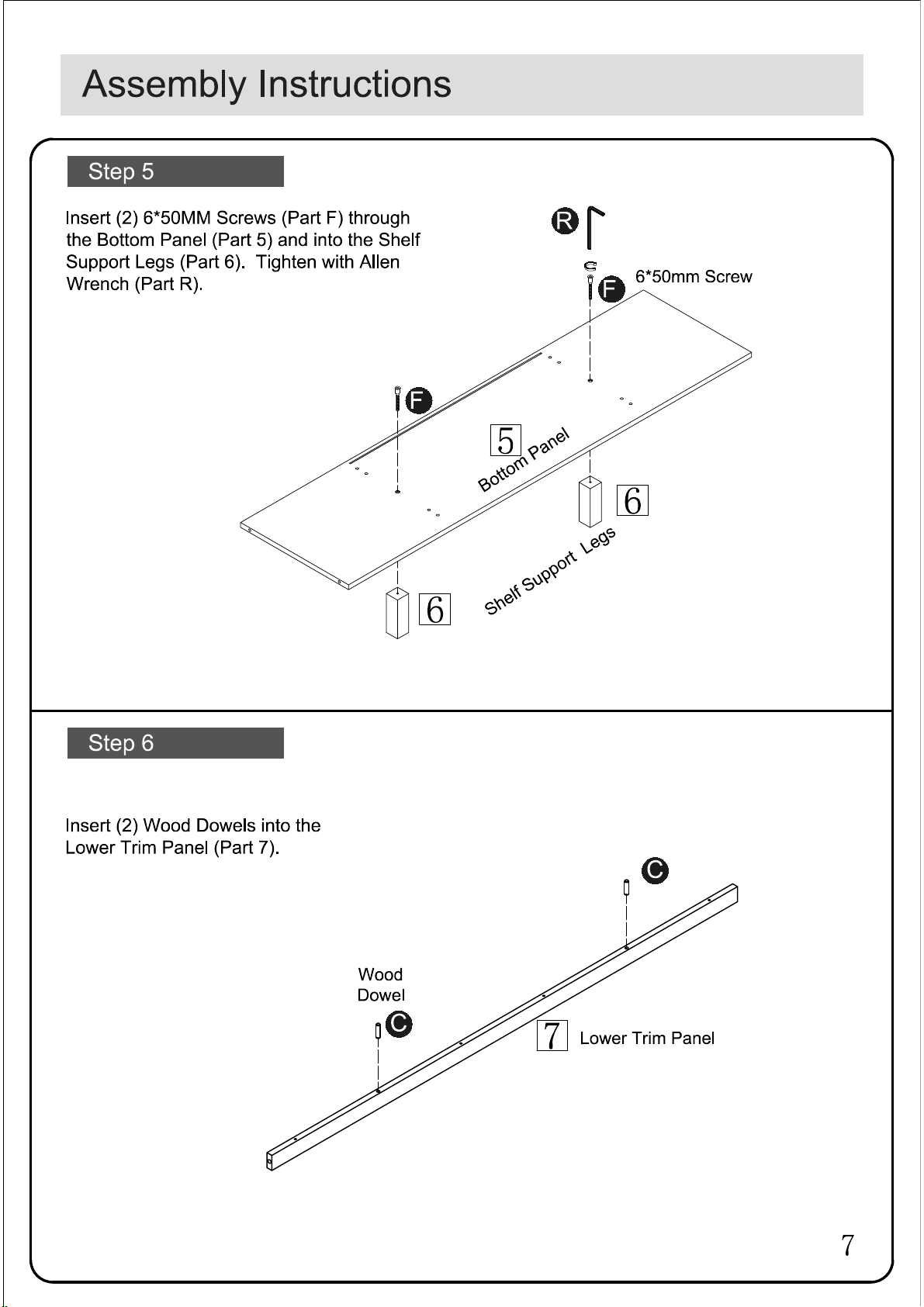

Insert (2) 6*50MM Screws (Part F) through
the Bottom Panel (Part 5) and into the Shelf
Support Legs (Part 6). Tighten with Allen
Wrench (Part R).
Wood
Dowel
Lower Trim Panel
Insert (2) Wood Dowels into the
Lower Trim Panel (Part 7).

Assembly Instructions

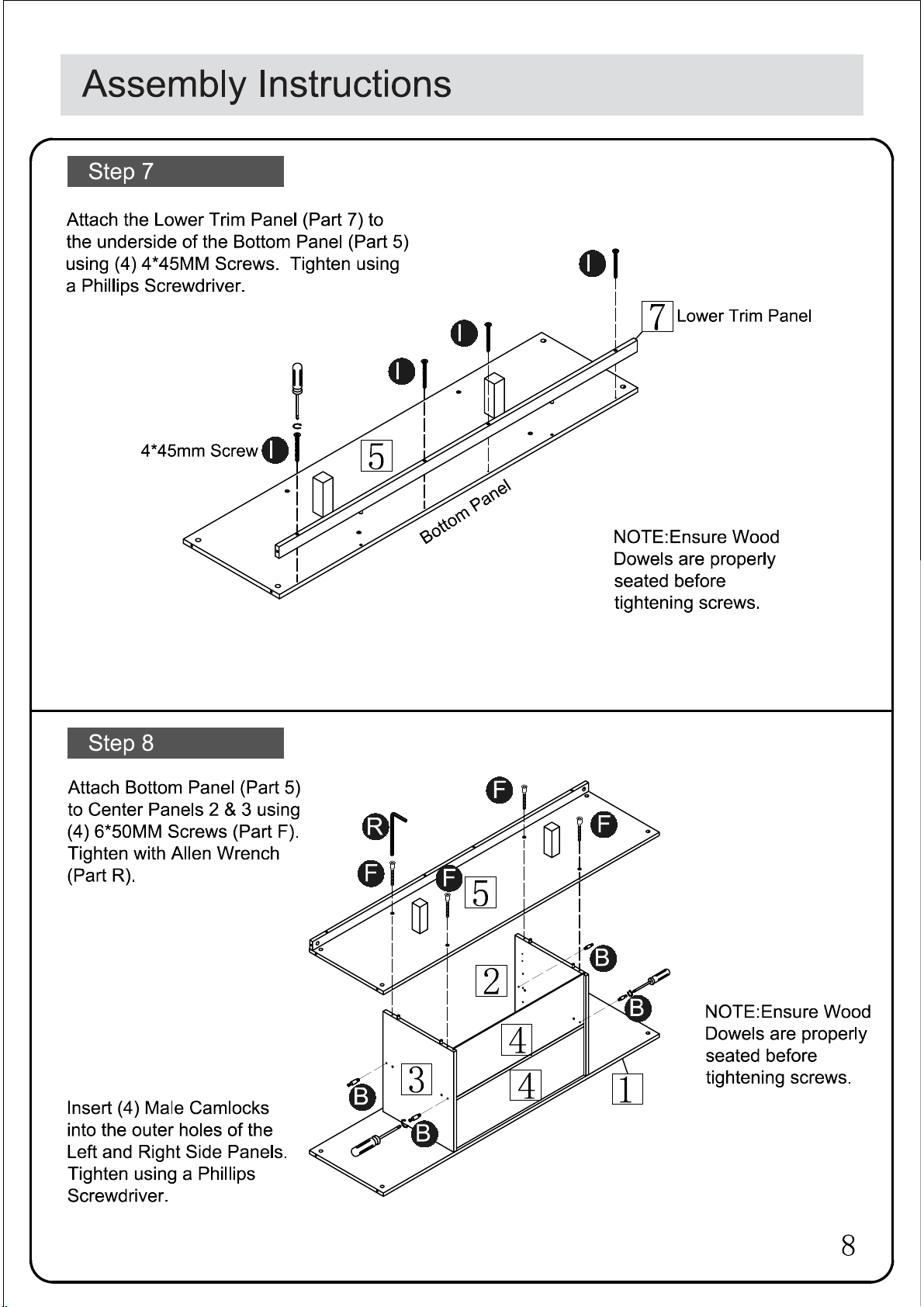

Step 7
Step 8
I
I
I
I
F
F
F
F
R
B
B
B
B
Lower Trim Panel
Bottom Panel
4*45mm Screw
Attach the Lower Trim Panel (Part 7) to
the underside of the Bottom Panel (Part 5)
using (4) 4*45MM Screws. Tighten using
a Phillips Screwdriver.
NOTE:Ensure Wood
Dowels are properly
seated before
tightening screws.
Attach Bottom Panel (Part 5)
to Center Panels 2 & 3 using
(4) 6*50MM Screws (Part F).
Tighten with Allen Wrench
(Part R).
Insert (4) Male Camlocks
into the outer holes of the
Left and Right Side Panels.
Tighten using a Phillips
Screwdriver.
NOTE:Ensure Wood
Dowels are properly
seated before
tightening screws.

Assembly Instructions
Step 9
Step 10
C
C
C
C
B
B
B
B
1 2 3

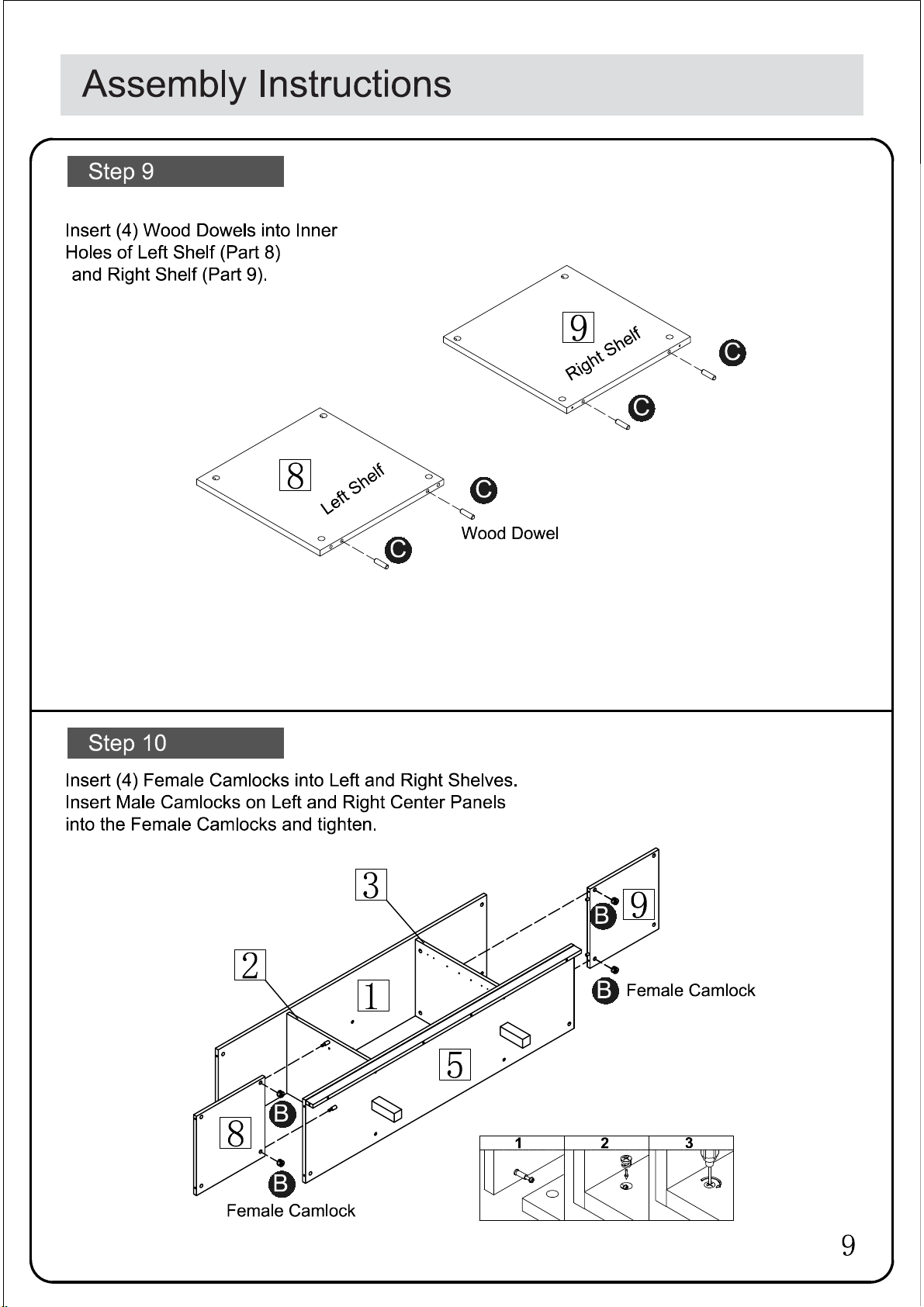

Insert (4) Wood Dowels into Inner
Holes of Left Shelf (Part 8)
and Right Shelf (Part 9).
Left Shelf
Right Shelf
Wood Dowel
Female Camlock
Insert (4) Female Camlocks into Left and Right Shelves.
Insert Male Camlocks on Left and Right Center Panels
into the Female Camlocks and tighten.
Female Camlock

Assembly Instructions

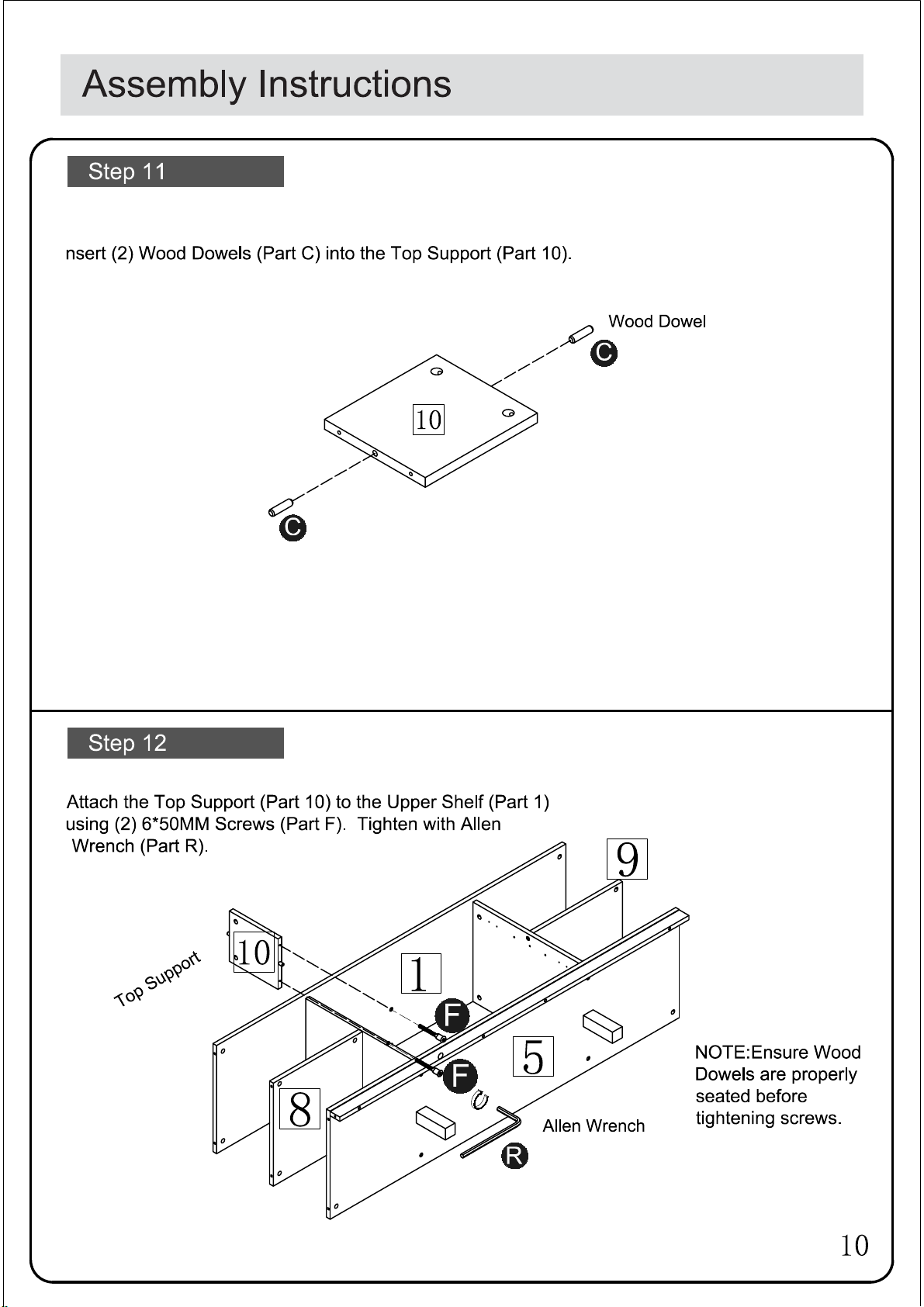

Step 11
Step 12
C
C
F
F
R
nsert (2) Wood Dowels (Part C) into the Top Support (Part 10).
Attach the Top Support (Part 10) to the Upper Shelf (Part 1)
using (2) 6*50MM Screws (Part F). Tighten with Allen
Wrench (Part R).
Top Support
Allen Wrench
NOTE:Ensure Wood
Dowels are properly
seated before
tightening screws.
Wood Dowel

Assembly Instructions
Step 13
Step 14
1 2 3
A
A
A
A
A
A
C
C
B
B
BB
B
B
BB
A
A
A
A
A
A
C
C
A
A
Wood Dowel
Male Camlock
Left Front Leg
Right Front Leg
Left Rear Leg
Right Rear Leg
Left Rear Leg
Left Front Leg
Male Camlock

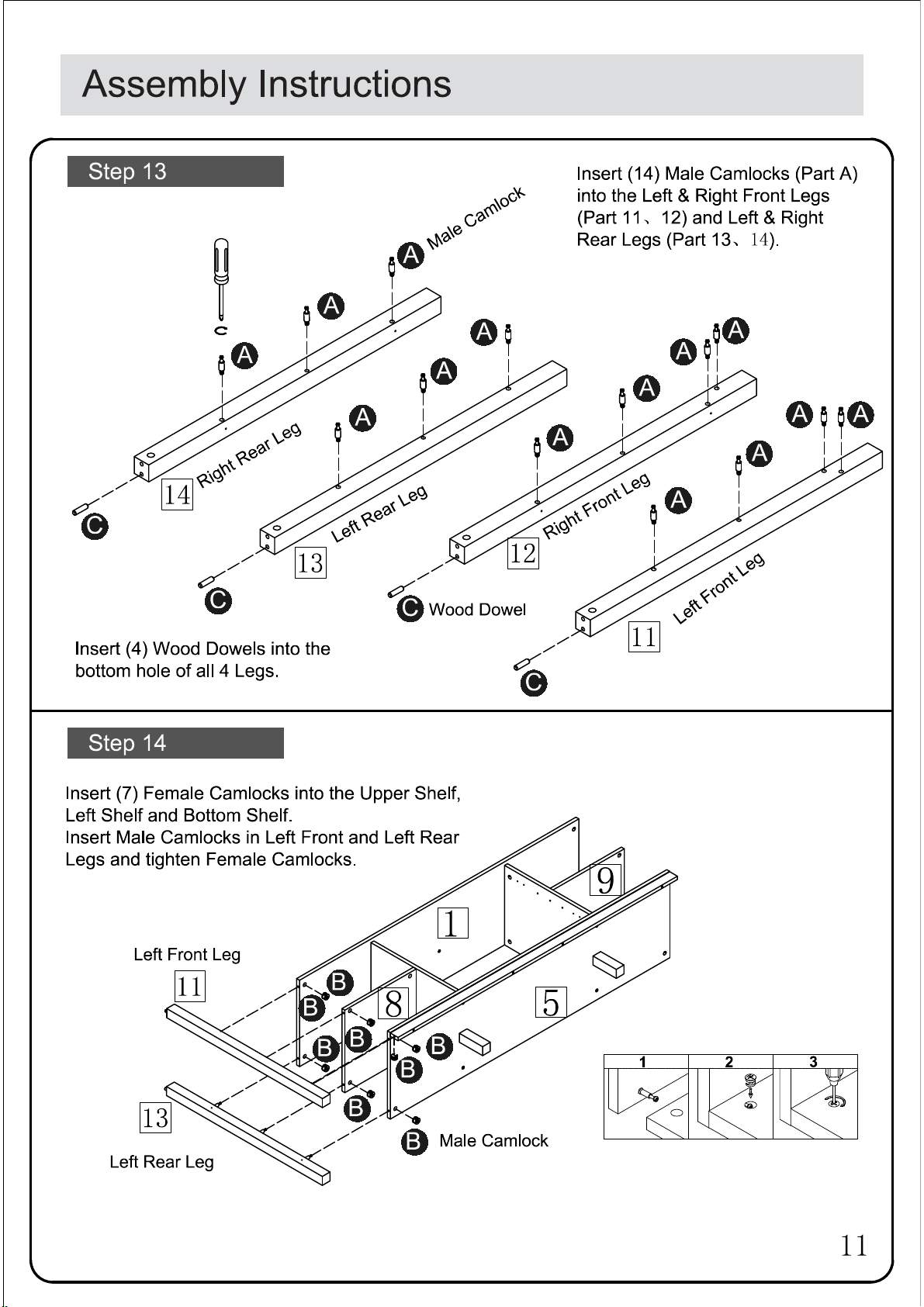

Insert (7) Female Camlocks into the Upper Shelf,
Left Shelf and Bottom Shelf.
Insert Male Camlocks in Left Front and Left Rear
Legs and tighten Female Camlocks.
Insert (4) Wood Dowels into the
bottom hole of all 4 Legs.
Insert (14) Male Camlocks (Part A)
into the Left & Right Front Legs
(Part 11、12) and Left & Right
Rear Legs (Part 13、14).

Assembly Instructions
Step 15
Step 16
1 2 3
B
B
B
B
B
B
B
Insert (7) Female Camlocks into the Upper Shelf,
Right Shelf and Bottom Shelf.
Insert Male Camlocks in Right Front and Right Rear
Legs and tighten Female Camlocks.
Ensure all Camlocks are securely tightened.

Assembly Instructions
Step 17
Step 18
1 2 3
A
A
AA
A
A
B
B
BB
B
B
Male Camlock

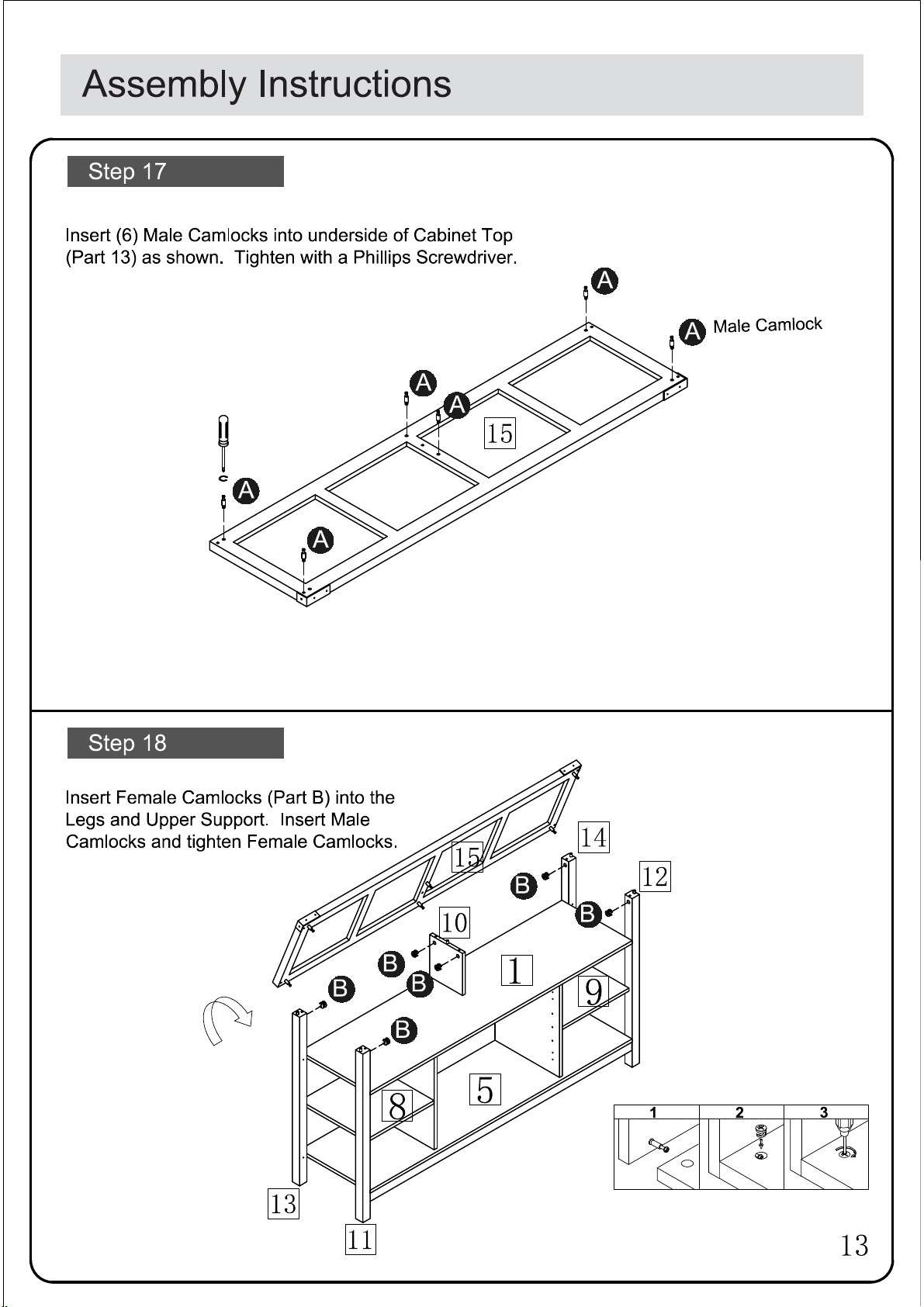

Insert (6) Male Camlocks into underside of Cabinet Top
(Part 13) as shown. Tighten with a Phillips Screwdriver.
Insert Female Camlocks (Part B) into the
Legs and Upper Support. Insert Male
Camlocks and tighten Female Camlocks.

Assembly Instructions
Step 19
Step 20
J
K
L
EX4 E
E
6*10 Bolt
10*12 Bolt
Wrench

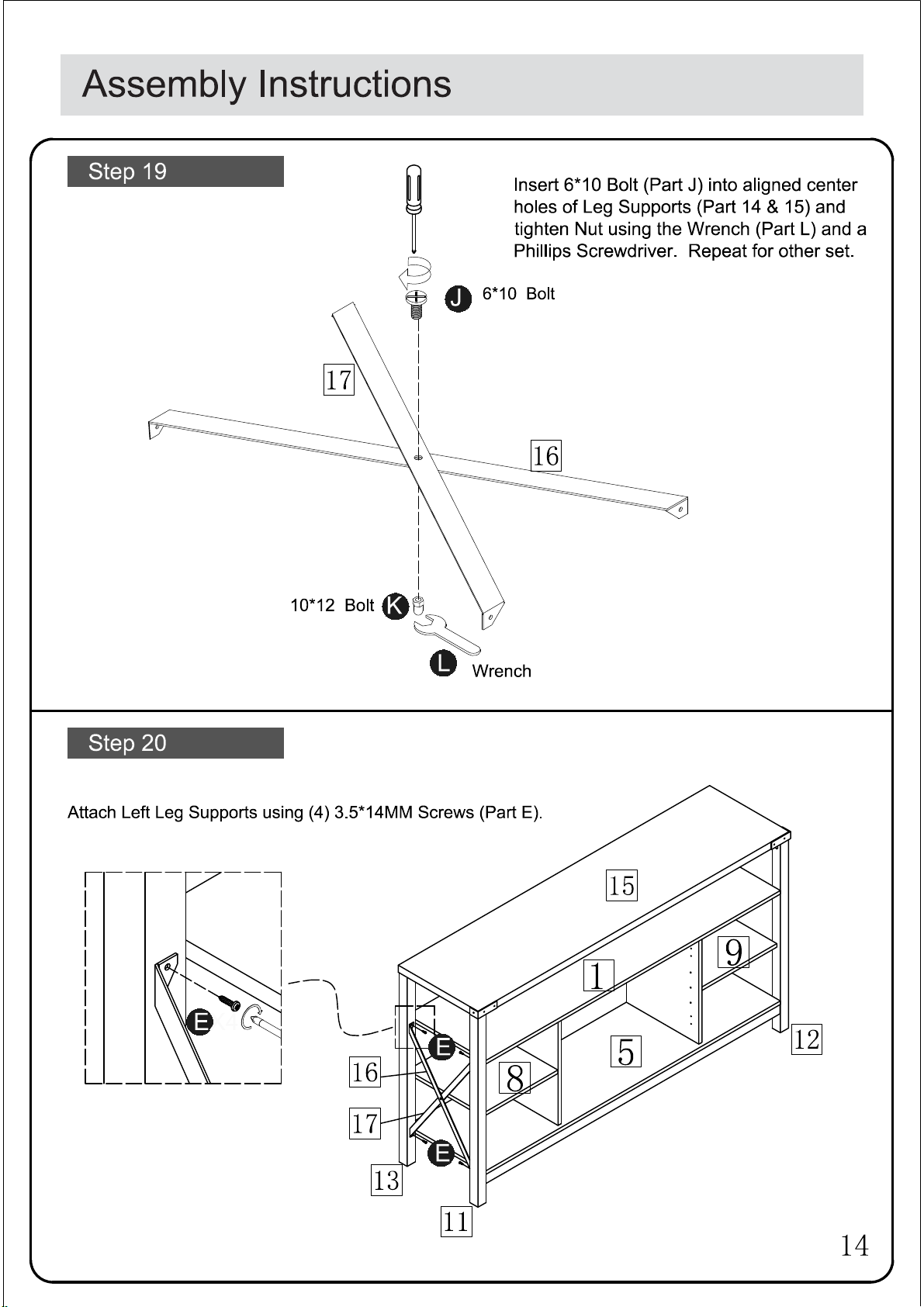

Insert 6*10 Bolt (Part J) into aligned center
holes of Leg Supports (Part 14 & 15) and
tighten Nut using the Wrench (Part L) and a
Phillips Screwdriver. Repeat for other set.
Attach Left Leg Supports using (4) 3.5*14MM Screws (Part E).

Assembly Instructions
Step 21
Step 22
EX4
E
E
DD
D
DD

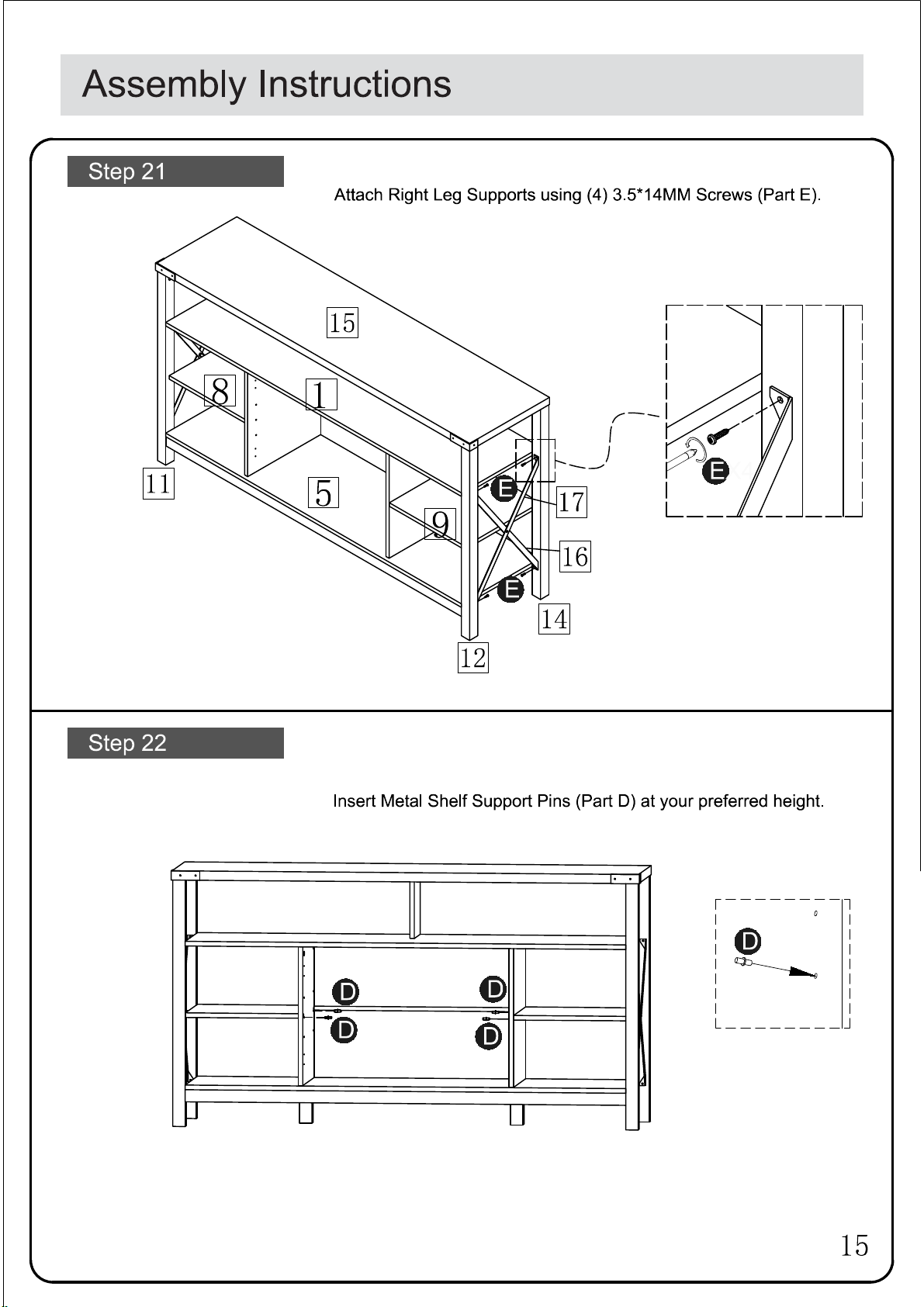

Attach Right Leg Supports using (4) 3.5*14MM Screws (Part E).
Insert Metal Shelf Support Pins (Part D) at your preferred height.

Assembly Instructions
Step 23
Step 24
D
D
GG
O
O
O
O
E
E
E
E

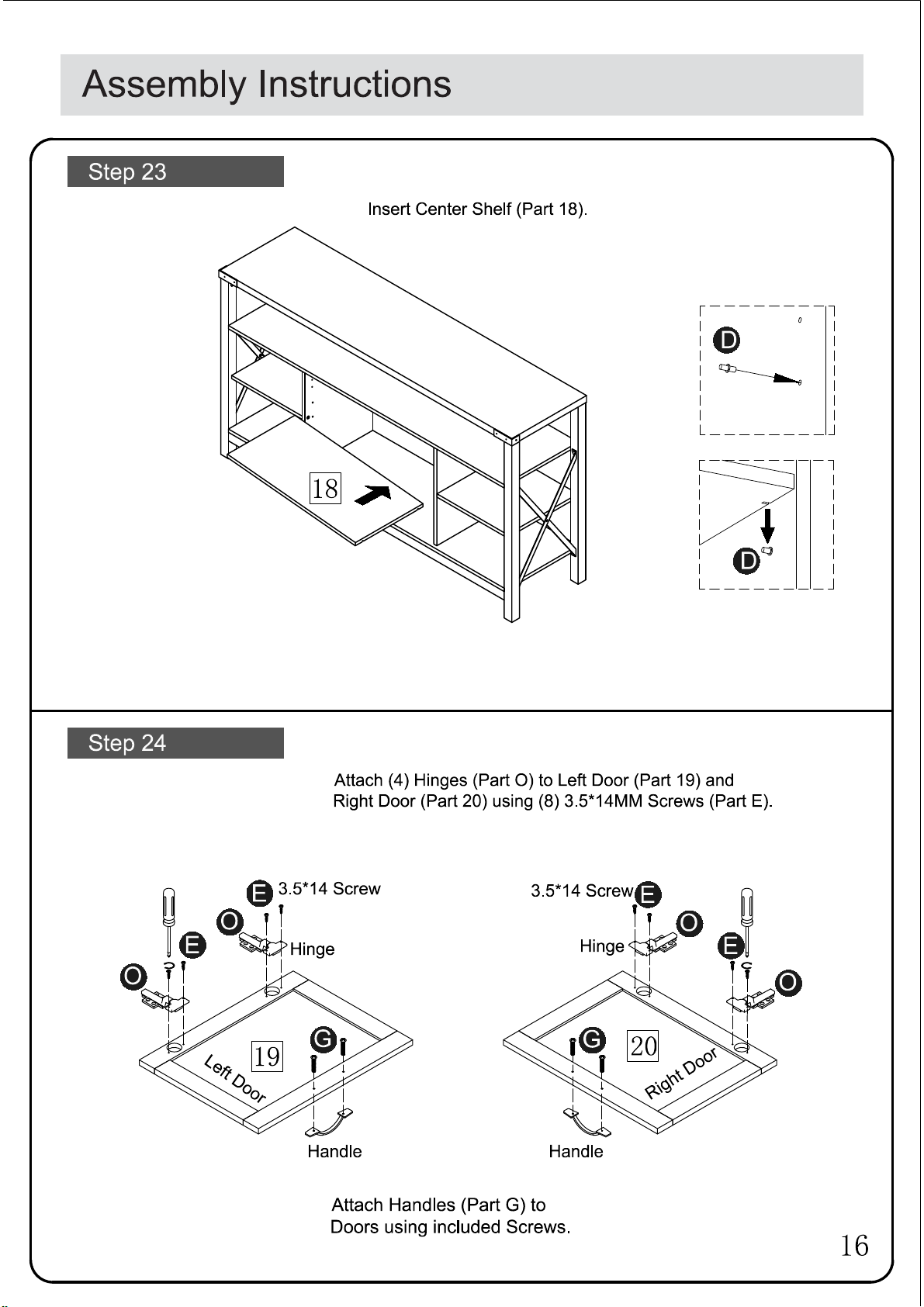

Insert Center Shelf (Part 18).
Left Door
Right Door
Attach (4) Hinges (Part O) to Left Door (Part 19) and
Right Door (Part 20) using (8) 3.5*14MM Screws (Part E).
Handle Handle
Hinge Hinge
3.5*14 Screw 3.5*14 Screw
Attach Handles (Part G) to
Doors using included Screws.

Assembly Instructions
Step 25
Step 26
N
M
M
E
E
E
E
Attach the other end of the
hinges to the inside of the
Center Panels using (16)
3.5*14MM Screws (Part E).
Tighten or loosen the screws
to ensure a proper fit.
Attach (6) Brackets to the Back Panels using (6)
3*16MM Screws. Tighten with a Phillips
Screwdriver.

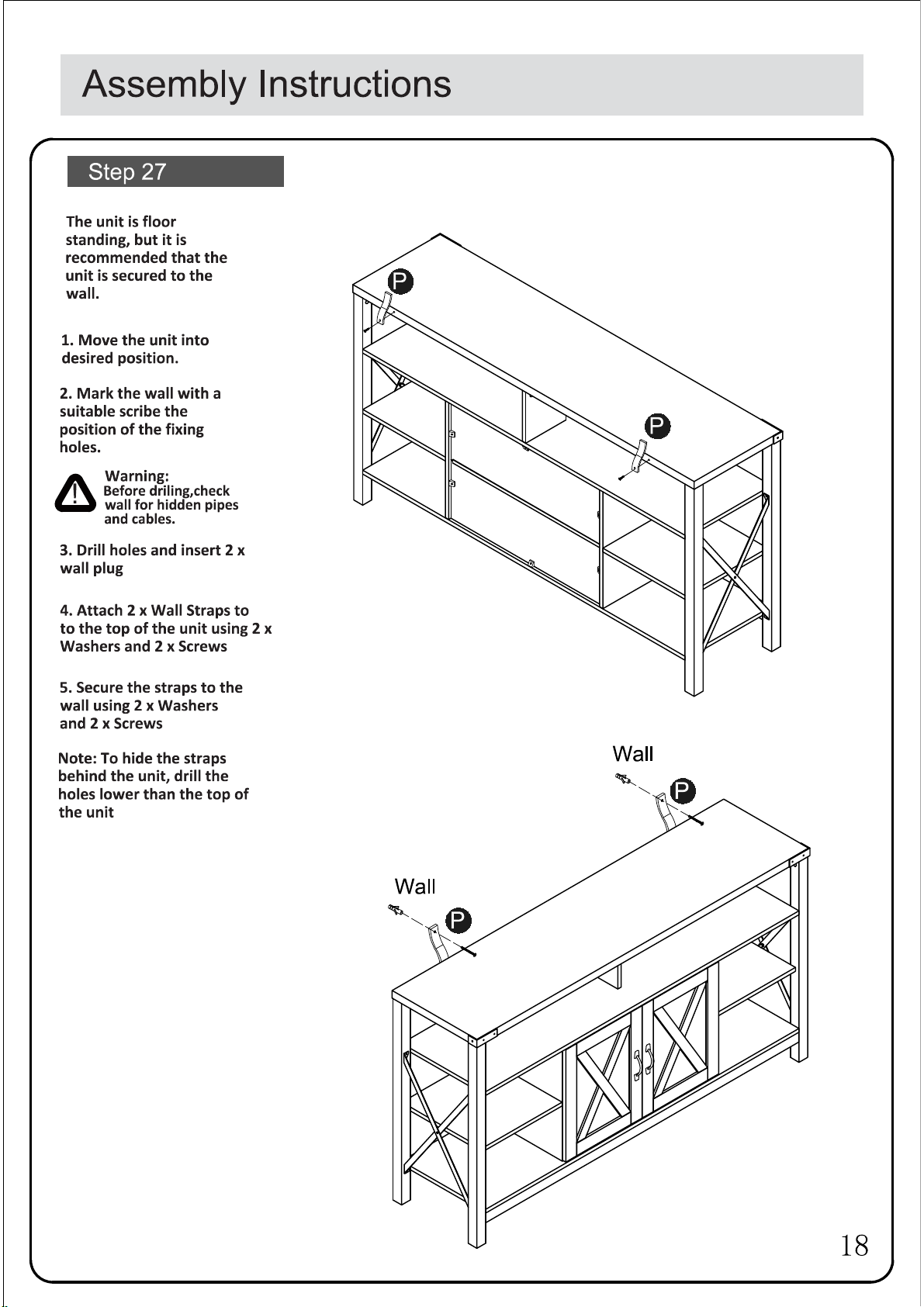

Assembly Instructions
Step 27
unit is secured to the
The unit is floor
standing, but it is
recommended that the
wall.
1. Move the unit into
desired position.
2. Mark the wall with a
suitable scribe the
position of the fixing
holes.
Warning:
Before driling,check
wall for hidden pipes
and cables.
3. Drill holes and insert 2 x
wall plug
4. Attach 2 x Wall Straps to
to the top of the unit using 2 x
Washers and 2 x Screws
5. Secure the straps to the
wall using 2 x Washers
and 2 x Screws
Note: To hide the straps
behind the unit, drill the
holes lower than the top of
the unit
!
P
P
P
P
Wall
Wall
