User Manual
HDMI & VGA & AV to SD/HD/3G-SDI Converter
Model No: VCF-009
NOTE: The casing design is subject to change without notice
Our HDMI & VGA & AV to SD/HD/3G-SDI Converter is used to convert HDMI or VGA OR AV video source to SD/HD/3G-SDI
signal. It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability. Simultaneously, it also
Integrates and converts the audio signals of CABS or VGA, then embed it to SDI signal .It supports multiple resolution up to
1920x1080@60HZ to ensure high compatibility with wide brands of PC and HDTV. It provides cheaper solution of connecting
HDTV and PC andAV(CVBS) to HD- SDI devices.
Features :
⚫Support all type SDI resolution
⚫SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
⚫Carry 2 channel SDI signal out.
⚫Automatically detect the HDMI EDID information adaptive HDMI best mode
⚫Support all formats asymmetric conversion
⚫The signal lost blue screen warning
⚫VGA output format would support all standard VGAresolutions
⚫Automatically embed SDI audio signal to HDMI signal.
⚫User selectable one signal source as output signal (HDMI and VGA and AV)

2
Please read theManual before attempting to use this product.Specifications
and appearance are subject to change without notice.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European
countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
Caution
1. Handle this product with care
Avoid any shock or bumping of the product. Improper handling could damage the product. Do not handle the unit with wet hands. Provide
proper ventilation and air circulation and do not use near water.
2. Requires a proper operating environment
This product is not waterproof and is designed for indoor use. The allo w abl e tem p er a t u re
range for operation of this product is between -0C~40C / 32°F~104°F.
3. Check the power source voltage
The power source voltage should be within the specified range. (Product must meet the specifications).
4. Objects and liquid entry
Never push objects of any kind into this product as this may touch dangerous voltage points of short out parts that could result in a fire or
electric shock. Never spill any kind of liquid on the product.
5. Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
6. Servicing
Do not attempt to service this product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards.
Refer all service to qualified servicing personnel.

3
LED
Color
Status
Description
RUN
Flicking
O N
SDI signal is output
OFF
No SDI signal output
LOC K
Green
O N
There are input signal to be connected
PackageContents ..
1. One (1) HDMI & VGA & AV to SD/HD/3G-SDI Converter
2. One (1) User Manual\
3. One (1) AC Adapter
4. One(1) IR remote controller
1. 2. 3. 4.
For any returns,please include all components listed above with original packaging in Resalable Condition. Absolutely No Returns will be
accepted if any component is missing/damaged. Parts&Functions .
Right panel : Left panel :
1.
5-24V DC : suggest DC 12V,1A Power plug in
6. Audio : audio source input
2.
IR: Infrared control
7. AV input
3.
K1/K2 dip Switch : Set HDMI &VGA output mode
8. VGA input
4.
lED indicator : PWR/RUN/LOCK (PWR/output /input)
9. HDMI input
5.
SDI OUT 1 and OUT2
Note : You only could choice HDMI as output source or VGA as output source or AV as output source by OSD menu operation by IR contorl
SDI OUT 1 and SDI OUT2 would be output the same image from one same video source.
Led indicator :

4
OFF
There are not input signal to be connected
POWER
Re d
Flickering
Power on
OFF
Power off

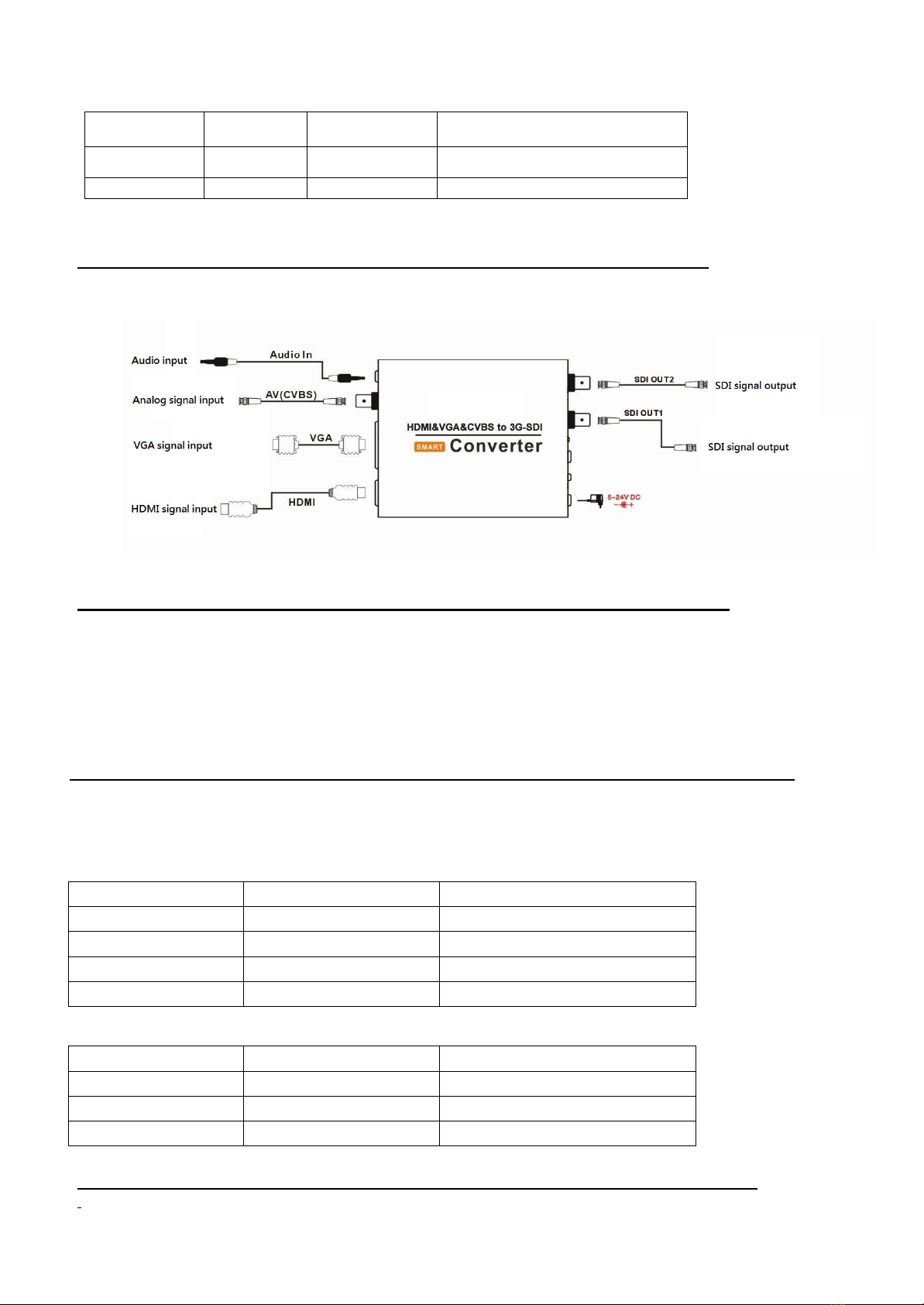

A ppli c a t ion Diagram :
* The distance depends on the quality of the SDI signal from the HD camera source and also the Coax
Cable & Connector
HardwareInstallation :
1.Check the power supply configuration and connect the correct voltage according to the power supply input requirements
(recommended power supply DC 12,1A )
2 Connect the AV, VGA,HDMI source to input ports of our converter by standard VGA,HDMI ,AV coaxal cable
3.Connect the SDI output port of our converter to SDI-input device e.f SDI monitor by quality coax cable e.f Belden 1694A or 75-
5 coax cable to get reasonable transmission distance.
4.Turn on the power
Note: This device only support to output one kind signals nor three kinds even if it could input three kinds signals and
choice from three kinds input signal
K1/k2 DIP Output Switch function
K1
K2
SDI output
OFF
OFF
Fit input
ON
OFF
720p 30Hz
OFF
ON
720P 60Hz
ON
ON
1080P 30HZ
K1/k2 DIP Input Switch function
K1
K2
SDI Input
ON
OFF
HDMI
OFF
ON
VGA
OFF
OFF
CVBS(AV)
Specifications
:

5
Model
VCF-009
HDMI Input
1x HDMI
VGA Input
1x VGA
A V(CVBS) Input
1 x BNC –F
Audio input
1X3.5mm audio socket
HDMI format
480i/p , up to 1080p 60Hz
VGA format
All standard resolutions :640*480@60Hz、800*600@60Hz、
1024*768@60Hz、1280*720@60Hz、1280*768@60Hz、
1280*800@60Hz、1280*1024@60Hz,
1360*768@60Hz、1440*900@60hz, 1600*1200@60Hz、
1920*1080@60Hz、1920*1200@60Hz
AV Format
NTSC and PAL
HD-SDI Out Interface
2x BNC SDI, 75 Ohm
Input Signal Type
SD-SDI (270Mbps), HD-SDI (1.485Gbps),
3G-SDI (2.97Gbps)
Support Output Format/HD-SDI
SD: 525i @ 59.94Hz, 625i @ 50Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59.94Hz / 60Hz
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
3G: 1080p @ 50Hz / 59.94Hz / 60Hz
SDI Signal Range
0.8V p-p
Max. Output Coax Length
Belden 1694A
SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;
3G-SDI 140m / 450ft
Frequency Bandwidth
340 MHz/ up to standard with HDCP :HDMI 1.3
Power Supply
5V~24V DC
Power Consumption
3~6 Watts
Operating Temperature
-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature
-30°C ~ 70°C / -22°F ~158°F
Relative Humidity
20~90% RH (Non-condensation)
Dimension
158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches
Weight
300g
KeyComponents
Components Made in USA for this product:
Name of Component
Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer
Gennum
Multi-Rate SDI Automatic Reclocker
Gennum
Multi-Rate Dual Slew-Rate Cable Driver
Mindspeed & Gennum
SDI SPD
Bourns
HDMI ESD Protection
Semtech
Components Made in Taiwan for this product:
Name of Component
Manufacturer
DC/DC Converter
Richtek
*Key components are listed by the manufacturer and are subject to change without notice
IRRemoteControl
IR remote controller is used to force HD-SDI output format or HDMI or VGA or AV as input source by OSD menu

6
A. Firstly press red button ‘Power’ to start management interface
As Secondly press ‘ power’ to restore default set of our device
B . Then press ‘Menu’to show main OSD menu on monitor
It will show manual functions e.f Video source , Audio Source , SDI output , Picture mode, Appearance ,Language , Restore default .
User could force output format :
480i/50
576i/60
480p/60
576p/50
720p@25/30/50/59.94/60
1080i @50/59.94/60
1080p @ 25/30/50/59.94/60
To execute by UP , Down . Left ,right to control the menu direction.
And press the key of ‘Menu’to enter or ensure
C : PICTURE: Menu to select output F:HDMI : Select HDMI signal as input source
D: FREEZE : Display current input signal G:VGA : Select VGA signal as input source
E:INPUT : Show input source H: AV : Select AV signal as input source

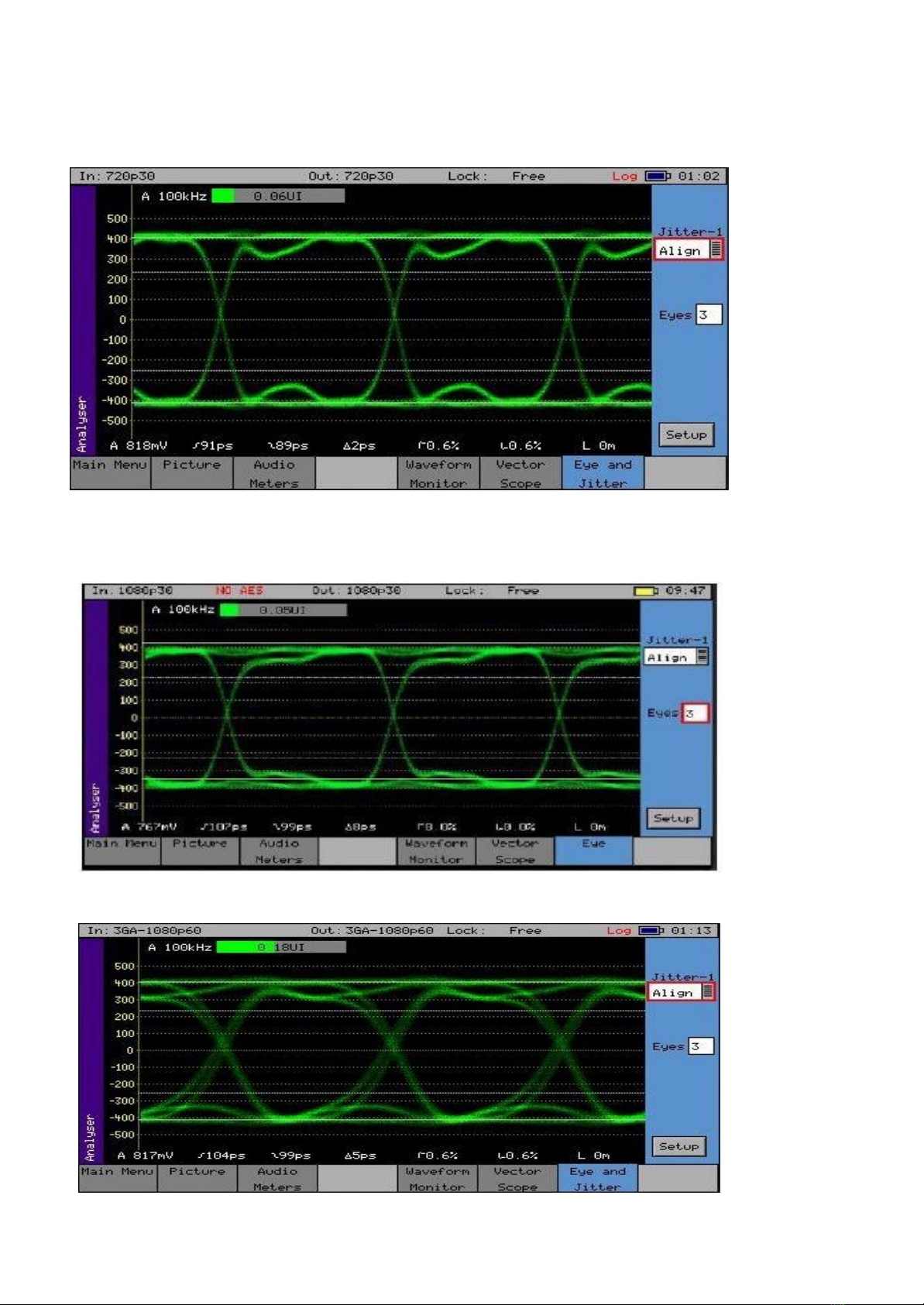

Eye Diagram ..
SD M od e
525i59

7
HD SDI Mode
720P 30Hz
1080P 30Hz
3G-1080p 60Hz

8
IMPO RTANT NOTE: Cable & Connector for HD-SDI Camera
In order to achieve the Be s t Quality and Lon g Range coax cable run of up to 200m / 600ft, you will need:
1.Good Quality Cable: We suggest using RG6 Belden 1694A Lo w Loss S er ial Digital coax cable because RG6 cables have better
grounding than RG59 cables. RG6 is for Digital Signal and RG59 is for Analog Signal.
2.Good Quality BNC Connectors: Contact Plating Gold plated pins provide exceptional conductivity.
3.Good Quality Installation : Do not over cut the braid because it will affect the grounding. The image will have lines and noise.
N Bare Copper
Conductor
Contact plating
Jacket Braid Shield Dielectric Gold plated Pin
Li m i te d W arra n ty
LIMITEDONE(1)YEARWARRANTYAND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its
sale by Manufacturer is free of defects in materials and workmanship under normal and proper use for one (1) year from the
purchase date. Manufacturer's only obligation is to correct such defects by repair or replacement, at its option, if within such one
year period the product is returned prepaid, with proof of purchase date, and a description of the problem. This warrant
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is voided if this
product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner,
or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other
implied warranties of any kind, including merchantability and fitness or a particular purpose, but if any implied warranty is
required by the applicable jurisdiction, the duration of any such implied warrant, including merchantability and fitness of or a
particular purpose, is limited to one (1) year.
Manufacturer is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss
of use of, any equipment, loss sales or profits or delay or failure to perform this warranty obligation. The remedies, provided therein
are the exclusive remedies under this warranty, whether based on contract, tort or others.
