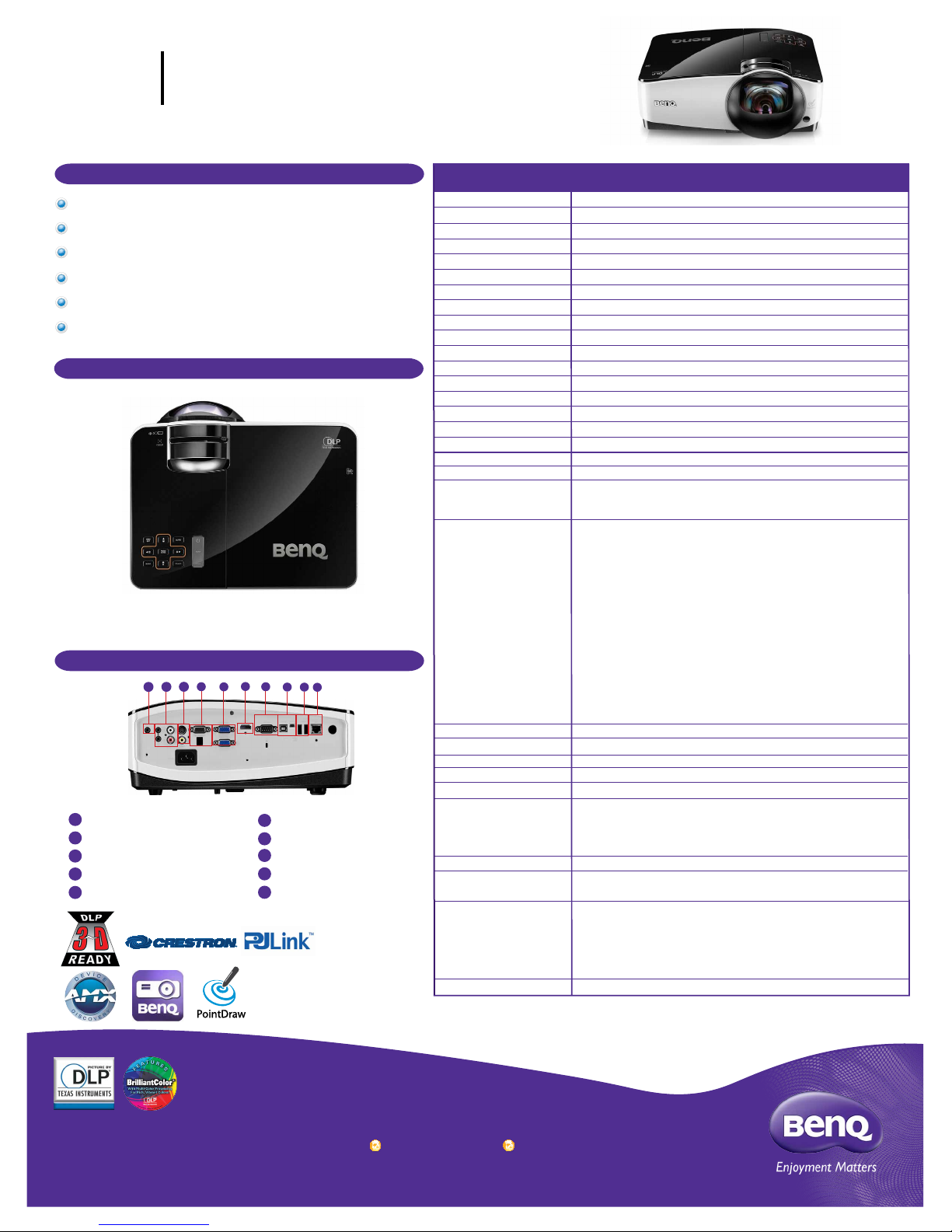

BenQ MW870UST User manual

BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618 Tel: [phone] www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP
®
is a registered trademark of Texas Instruments. All rights reserved.
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
MW870UST
INTERACTIVE
PROJECTOR
Features Specications
Input and Output Terminals
1
2
3
4
5
6
7
8
9
10
12345678910
Audio-Out x1 HDMI x1
S-Video/Video USB Type B & Mini B
Audio-In & MIC-In, Audio L/R RS232 x1
Monitor Out Output USB Type A x2
Computer 1 & 2 RJ45 x1 (Control & Display)
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size (Diagonal)
Zoom Ratio
Lamp Type
Lamp (Normal/Eco Mode)
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
HDTV Compatibility
Video Compatibility
3D Compatibility
Interface
Dimensions
Weight
Power Supply
Power Consumption
Audible Noise
Display Languages
Picture Mode
Accessories (Standard)
Accessories (Optional)
Limited Warranty
DLP®
WXGA (1280x800)
3,000 ANSI lumens
2,600:1 (Full on/Full off)
1.07 Billion Colors
F=2.7, f=5.45mm
Native 16:10 (5 aspect ratio selectable)
0.37 (87”@0.73m)
60~300”
Fixed
225W
2,500/4,000 hrs (Normal/Economic mode)
ID, Vertical ±30 degrees
125% ±5%
VGA(640 x 480) to UXGA(1600 x 1200)
31K-102KHz
23~120Hz
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
NTSC, PAL, SECAM
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
Computer in (D-sub 15pin) x 2 (Share with Component video in)
Monitor out (D-sub 15pin) x 1
HDMI x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Microphone in (Mini jack) x 1
Speaker 10W x 2
LAN (RJ45) x 1
USB (TypeA) x 2 (wireless display/USB reader/remote desktop)
USB (TypeB) x 1(work for PD pen/ FW download)
USB (Mini Type B) x 1(USB display)
RS232 (DB-9pin) x 1
IR Receiver x 2
12.99” x 6.06” x 10.9”
9.1 lbs (4.1kg)
AC 100 to 240 V, 50/60 Hz
310W, Standby<1W
33/31 dBA (Normal/Economical Mode)
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/
German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/
Portuguese/ Romanian/ Russian/ Simplied Chinese/Spanish/
Swedish/ Turkish/ Thai/ Traditional Chinese (24 Languages)
Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Remote Control w/ Battery, Power Cord, User Manual CD/Quick Start Guide,
Warranty Card, VGA(D-sub 15pin) Cable
Wireless Dongle WDRL3070 P/N: 5J.J0614.A21
PD03 pen kit P/N: 5J.J8E26.A01
PD03 pen P/N: 5J.J8E26.A11
Wall mount P/N: 5J.J4R10.001
3D Glass P/N: 5J.J7K25.001
Carry Bag P/N: 5J.J2V09.011
3-Years Parts/Labor / 1-Year or 2000 hours of lamp life
Native WXGA (1280 x 800) Resolution
3,000 ANSI Lumens; 2,600:1 Contrast Ratio
0.37 Ultra Short Throw, Mic Input,10 Watt Speakers x 2
LAN Control/Display, USB Reader/Display
Wireless Display (Optional)
PointDraw™ Interactivity Ready (Optional)
MW870UST 02-01-13-BQus
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and
specications are subject to change without notice.
Top / Front-Left View

Distance Chart
Optional Interactivity Function
Dimensions
MW870UST Digital Projector
6.06”
Units: inch
Required equipment list:
10.9”
12.99”
Screen Size
Distance from screen (inch) Vertical offset (inch)
Diagonal W
(inch)
H
(inch)
Inch mm
40 1016 34 22 11.5 2.6
50 1270 42 26 15 3.3
60 1524 51 32 18.4 3.9
80 2032 68 42 25.2 5.3
100 2540 85 53 32.1 6.61
120 3048 102 64 39 7.9
150 3810 127 79 49.3 9.9
200 5080 170 106 66.4 13.2
250 6350 212 132 83.6 16.5
300 7620 254 159 112.6 19.8
PointDraw 3.0 Pen
Or
