Beretta IDRA MS 150 User manual

Installation and Operation Manual
Storage cylinder
IDRA MS
Installation and Operation Manual
EN

This manual, Code 20129019 - Rev. 3 (01/18) comprises 8 pages.
2
GENERAL INFORMATION
RANGE
MODEL CODE
IDRA MS 150 20128979
ACCESSORIES
For a complete list of accessories and details of their com-
patibility, refer to the Catalogue.
Dear heating engineer,
We would like to congratulate you on having recommend-
ed a BStorage cylinder unit: a modern product that's
capable of ensuring a high degree of reliability, efciency,
quality and safety.
While your technical skills and knowledge will certainly be
more than sufcient, this booklet contains all the informa-
tion that we have deemed necessary for the device's cor-
rect and easy installation.
Thank you again, and keep up the good work,
Beretta
CONFORMITY
Bstorage cylinders conform to DIN 4753-3 and UNI
EN 12897 standards.
CONTENTS
The following symbols are used in this manual:
b
CAUTION! = Identies actions that require caution
and adequate preparation.
a
STOP! = Identies actions that you MUST NOT do.
1 GENERAL SAFETY INFORMATION
b
Check that the product is complete, undamaged and
as ordered as soon as you receive it. Report any dis-
crepancies or damage to the Bdealer who sold
it.
b
This product must be installed by a legally qualied
heating engineer. On completion of the installation,
the installer must issue the owner with a declaration
of conformity conrming that the installation has been
completed to the highest standards in compliance
with the instructions provided by Bin this instruc-
tion manual, and that it conforms to all applicable
laws and standards.
b
This product must only be used for the purpose
for which it is designed and made, as specied by
B. Bdeclines all responsibility, contractual or
other, for damage to property or injury to persons or
animals caused by improper installation, adjustment,
maintenance or use.
b
The product must be serviced at least once a year.
Servicing must be arranged in advance with the
BTechnical Assistance Centre.
b
All servicing and repairs must be performed by a
qualied heating engineer.
b
If water leaks from the storage cylinder, turn off the
water supply and contact B’s Technical Assis-
tance Centre or a qualied heating engineer imme-
diately.
b
If the product is not going to be used for an extended
period of time, contact the manufacturer’s Technical
Assistance Centre to have at least the following oper-
ations performed:
- Close the shut-off cocks for the domestic hot water
circuit
- Shut down the boiler connected to the storage cylin-
der as instructed in its own manual
- Switch the storage cylinder OFF at the control panel
(if tted) and at the mains power switch
- Drain the central heating circuit and domestic hot
water circuit if there is any risk of freezing.
b
This instruction manual is an integral part of the prod-
uct. It must be kept safe and must ALWAYS accom-
pany the product, even if it is sold to another owner or
transferred to another user or to another installation.
If you lose this manual, order a replacement immedi-
ately. Keep the product purchase documents to be
presented to the Bauthorised Technical Assis-
tance Centre to request a service call under warranty.
Thismanual,Code
-Rev.
comprises
pages. ENGLISH
Generalinformation
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . 2
1 General Safety Information . . . . . . . . . . . . . . . . . 2
2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Description of the appliance . . . . . . . . . . . . . . . . 3
4 Identication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5 System layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6 Technical specications . . . . . . . . . . . . . . . . . . . 4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7 Unpacking the product . . . . . . . . . . . . . . . . . . . . 6
8 Place of installation . . . . . . . . . . . . . . . . . . . . . . . 6
9 Installation in older systems and systems
requiring modernisation. . . . . . . . . . . . . . . . . . . . 6
10 Water quality requirements . . . . . . . . . . . . . . . . . 6
11 Water connections . . . . . . . . . . . . . . . . . . . . . . . . 7
12 Recycling and disposal . . . . . . . . . . . . . . . . . . . . 8
END USER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
13 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
14 Temporary shutdown . . . . . . . . . . . . . . . . . . . . . . 8
15 Preparing for extended periods of disuse . . . . . . 8
16 External maintenance . . . . . . . . . . . . . . . . . . . . . 8

GENERAL INFORMATION
3
2 PRECAUTIONS
The operation of any appliance that uses electrical power
demands that a number of fundamental safety precautions
be respected. In particular:
a
Never attempt to install the system without using suit-
able personal protection equipment and without fol-
lowing all applicable occupational safety standards.
a
Do not touch the product when barefoot or wet if it
has any electrical accessories installed in it.
a
Never clean or service the storage cylinder without
rst turning the mains power switch OFF to discon-
nect all electrical accessories (if tted) from the mains
electricity supply.
a
Never pull, disconnect, or twist any electrical cables
coming from the appliance even if it is disconnected
from the mains electricity supply.
a
Do not expose the storage cylinder to the elements. It
is not designed for use outdoors.
a
Do not allow children or inrm persons to operate the
system unsupervised.
a
Do not dispose of packaging material into the envi-
ronment, or leave it within the reach of children, since
it can become a potential hazard. Dispose of packag-
ing material in compliance with applicable legislation.
3 DESCRIPTION OF THE
APPLIANCE
The B IDRA MS boiler produces domestic hot water for
storage purposes.
Their most important technical features are:
- the storage cylinder and coil are specially designed
and shaped for optimum performance in terms of
stratication, heat exchange and replenishment times
- internal glazing, bacteriologically inert, to ensure the
maximum hygiene of treated water, reduce limescale
deposits and make cleaning operations easier
- CFC-free polyurethane insulation and an elegant ex-
ternal casing reduce heat loss
- a ange is provided for easy cleaning and mainte-
nance of the anti-corrosion magnesium anode.
4 IDENTIFICATION
The B IDRA MS solar heaters can be identied by:
Data plate
This lists the technical specications and performance
of the product.
BALLON
Modele
Model
Fabrication
Année
bar
W
l
W
kW
l/h
BOLLITORE
Modello
Codice
Matricola
Anno
m2
kW
T067774IFE
T067774IFE
BOILER
Year
Serial number
V-Hz
Potenza elettrica assorbita
Puissance élect. absorbée
Electrical consumption
Alimentazione elettrica
Alimentat. élect.
Power supply
Dispersioni secondo EN 12897
Déperditions selon EN 12897
Heat loss according to EN 12897
Matricola
Fabrication
Serial number
Modello
Modele
Model
Max pot. assorb.
Puiss. absor. serp.
Power abs. by coil
Code
Code
Massima potenza assorbita [T° Primario 80°C]
Puissance absorbée serpentin [T° Primaire 80°C]
Power absorbed by coil [T° primary 80°C]
Produzione acqua calda sanitaria [∆T 20°C]
Production eau chaude sanitaire [∆T 20°C]
Domestic hot water production [∆T 20°C]
Superficie serpentino
Surface serpentin
Coil heat exchange surface area
Press. esercizio max.
Pression service max.
Maximum working pressure of storage cylinder
Capacità del bollitore
Capacité ballon
Storage cylinder capacity
Collegamento di terra obbligatorio - Raccordement a la terre obligatoire
Obligatory ground connection
Beretta Caldaie
Via Risorgimento, 13
23900 Lecco (LC)
Beretta Caldaie
Via Risorgimento, 13
23900 Lecco (LC)
Serial number plate
This species the serial number and model.
b
If these plates or any other means of clearly iden-
tifying the product are defaced, removed or lost,
proper installation and servicing may be rendered
difcult.
5 SYSTEM LAYOUT
UAC
EAF
SB
P
M
1
3
6
5
4
2
1 Storage cylinder
2 Preset for lifting
handles (accesso-
ry) and/or device
grounding point
3 Coil
4 Flange for heater
inspection
5 Insulation
6 Cover
P Socket
M Guide
UAC Domestic hot water
outlet
EAF Domestic cold water
inlet
SB Storage cylinder
drain

GENERAL INFORMATION
4
6 TECHNICAL SPECIFICATIONS
DESCRIPTION
IDRA MS
150
Type of storage cylinder Vertical, glazed
Heat exchanger layout Vertical, with elliptical section
Storage cylinder capacity 162 l
Diameter of storage cylinder with insulation 604 mm
Diameter of storage cylinder without insulation - mm
Height with insulation 1088 mm
Height without insulation - mm
Insulation thickness 52 mm
Total net weight 62 kg
Quantity/diameter/length of magnesium anode 1/33/300 mm
Flange internal diameter 130 mm
Diameter/length of sensor sockets 16/180 mm
Coil water capacity 4,25 l
Coil heat exchange surface area 0,85 m2
Maximum operating pressure of storage cylinder 10 bar
Maximum operating pressure of coils 10 bar
Maximum operating temperature 99 °C
Discharges according to EN 12897:2006 ∆T=45 °C
(ambient 20°C and storage at 65°C) 55 W
Discharges according to UNI 11300 1,22 W/K
Energy class B
Continuous availability of domestic water (DHW 10-45°C) at the different coil inlet temperatures and with the
indicated delta (∆) T°.
Coil delivery temperature
80°C ∆T 20°C 27 kW
660 l/h
70°C ∆T 20°C 19 kW
480 l/h
60°C ∆T 10°C 11 kW
280 l/h
50°C ∆T 10°C 8 kW
190 l/h
Set-up time required to heat the boiler to 60°C (coil probe point reference) with primary exchanger at the indi-
cated delivery temperature and with the indicated delta (∆) T°.
Coil delivery temperature
80°C ∆T 20°C 35 min
70°C ∆T 20°C 39 min
Set-up time required to heat the boiler to 55°C (coil probe point reference) with primary exchanger at the indi-
cated delivery temperature and with the indicated delta (∆) T°.
Coil delivery temperature
60°C ∆T 10°C 45 min
Set-up time required to heat the boiler to 45°C (coil probe point reference) with primary exchanger at the indi-
cated delivery temperature and with the indicated delta (∆) T°.
Coil delivery temperature
50°C ∆T 10°C 56 min
NL thermal efciency coefcient according to DIN 4708. The NL index indicates a number of apartments having
3.5 people that can be fully supplied, with a 140 l bathtub and two other drawing points.
Coil delivery temperature
80°C 1,84
70°C 1,44
60°C 1
50°C 0,75

GENERAL INFORMATION
5
EMPTYING IN 10’
IDRA MS
150
Quantity of domestic water obtained in 10’ with boiler pre-heated to 60°C (coil probe point reference) and pri-
mary exchanger at the indicated delivery temperature, considering an increase of the domestic water tempera-
ture of 30°C between inlet and outlet (according to EN 12897).
Coil delivery temperature
80°C 272 l
70°C 250 l
Quantity of domestic water obtained in 10’ with boiler pre-heated to 55°C (coil probe point reference) and pri-
mary exchanger at the indicated delivery temperature, considering an increase of the domestic water tempera-
ture of 30°C between inlet and outlet (according to EN 12897).
Coil delivery temperature
60°C 223 l
Quantity of domestic water obtained in 10’ with boiler pre-heated to 45°C (coil probe point reference) and pri-
mary exchanger at the indicated delivery temperature, considering an increase of the domestic water tempera-
ture of 30°C between inlet and outlet (according to EN 12897).
Coil delivery temperature
50°C 170 l
Pressure drops
COIL
PRESSURE DROP (mbar)
800
600
400
1000
200
0
0 1000 2000 3000 4000
FLOW RATE (l/h)

6
INSTALLATION
7 UNPACKING THE PRODUCT
Heaters B IDRA MS are supplied in a single package
on a wooden pallet.
The following items are delivered in a plastic bag inside the
packaging:
- Instruction manual
- Bar code label
- Hydraulic test certicate
- Energy label (to be applied to device upon installa-
tion)
b
The instruction manual is an integral part of the so-
lar storage cylinder. Once located, read it thoroughly
and keep it safe.
b
For handling operations, thoroughly follow the in-
structions on device package label.
8 PLACE OF INSTALLATION
B IDRA MS storage cylinders can be installed in any
room where there is no specic requirement for an electri-
cal protection rating higher than IP X0D.
≥ 0,3 m
≥ 0,3 m
≥ 0,3 m
≥ 0,6 m
≥ 0,7 m
NOTE: the above-indicated dimensions are recommended
for a correct maintenance and access to the device.
9 INSTALLATION IN OLDER
SYSTEMS AND SYSTEMS
REQUIRING MODERNISATION
When installing B IDRA MS storage cylinders in old sys-
tems or systems requiring modernisation, always perform
the following checks.
- Make sure that the system is tted with safety and
control devices in accordance with applicable legis-
lation and standards
- Make sure that the central heating circuit has been
ushed out to remove all sludge and lime scale, and
has been vented and seal tested
- Make sure that a suitable water treatment system is
installed if the quality of the supply/recirculation water
so demands. (Refer to the reference values listed in
the table alongside.)
10 WATER QUALITY
REQUIREMENTS
REFERENCE VALUES
pH 6-8
Electrical conductivity less than 200 μS/cm (25°C)
Chlorine ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0.3 ppm
Alkalinity M less than 50 ppm
Total hardness less than 35°F
Sulphur ions none
Ammonia ions none
Silicon ions less than 30 ppm
The values above ensure proper operation of the system.
Refer to the limit values specied in the current standards
and regulations on the installation site.
Installation

INSTALLATION
7
11 WATER CONNECTIONS
A
B
C
D
E
F
G
H
AD
L
I
DF
UAC
MC
Psc
RL
RC
EAF
DESCRIPTION
IDRA MS
150
UAC Domestic hot water outlet 1” M Ø
MC Outlet from boiler 1” M Ø
RC Return to boiler 1” M Ø
RL DHW recirculation 1” M Ø
EAF Domestic cold water inlet 1” M Ø
Psc Diameter/length of boiler sensor socket 16/180 mm
AD Quantity/diameter/length of magnesium
anode 1/33/300 mm
DF Flange internal diameter 130 mm
A 171 mm
B 243 mm
C 323 mm
D 431 mm
E 523 mm
F 663 mm
G 920 mm
H 1088 mm
I 604 mm
L M8 threaded inserts for grounding point/
accessory handles connection 700 mm
b
We recommend that you install isolating valves in the outlet and return lines.
b
Check the efciency of the seals when lling/relling the storage cylinder.
b
In case of a probe, any electric junction between probe cable and extensions for the connection to the electric panel
must be soldered and protected with a sheath or a suitable electric insulation.

8
20129019 - Rev. 3 (01/18)
END USER
12 RECYCLING AND DISPOSAL
The device is primarily composed of:
Material Component
steel structural work
PU (polyurethane) insulation
PE (polyethylene) water connection washers
ABS (acrylonitrile-butadiene-styrene) lining and covers
At the end of the device's useful life, these components must be separated and disposed of according to current regu-
lations in the country of installation.
END USER INSTRUCTIONS
Refer to the GENERAL SAFETY INFORMATION and PRECAUTIONS section for safety-related information.
13 START-UP
The heater commissioning must be performed by Techni-
cal Assistance Centre personnel.
Under certain circumstances, such as after long periods of
disuse, the user may need to re-start it without involving the
Technical Assistance Centre. Before doing so, perform the
following checks and operations.

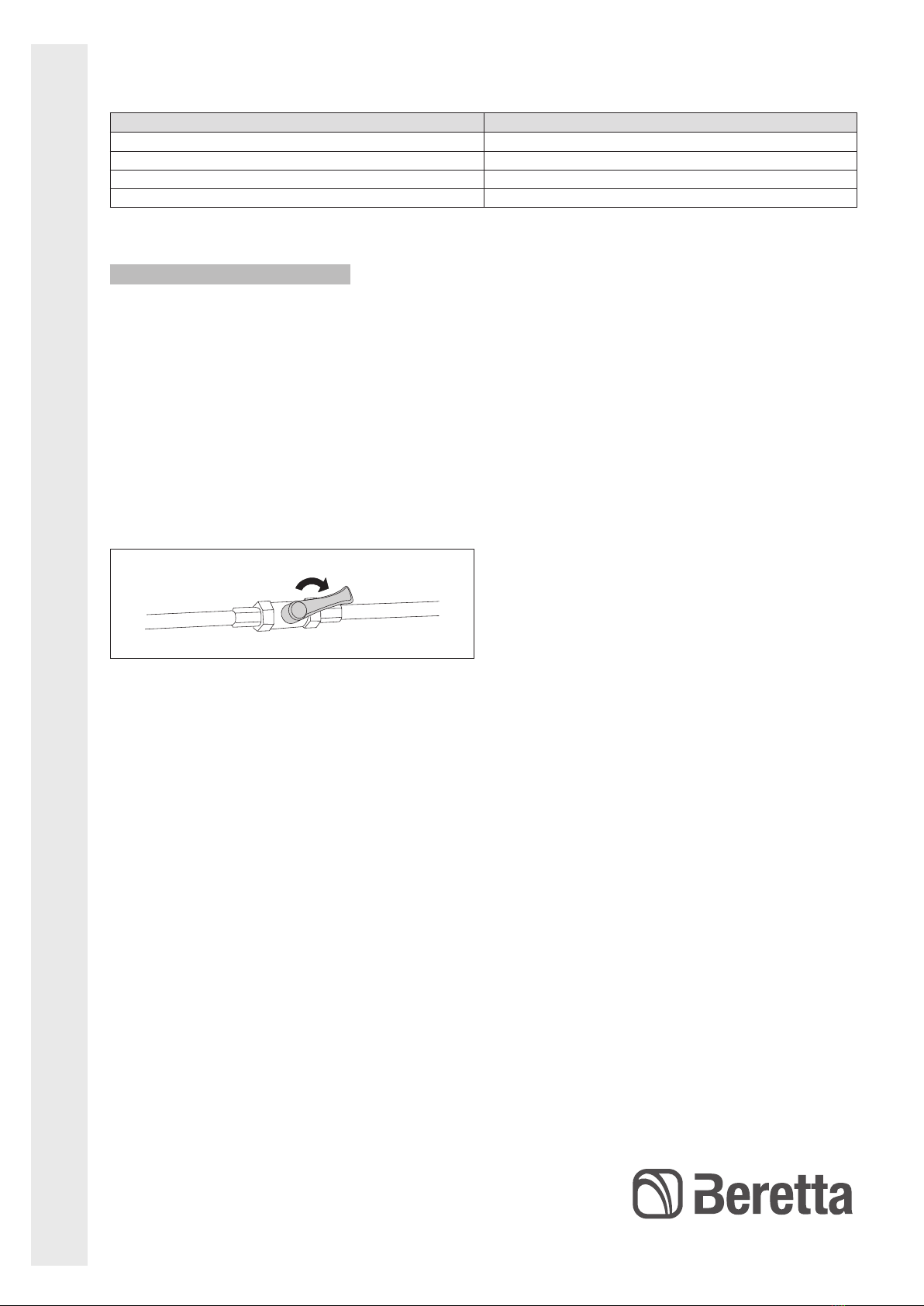

- Check that the supply cocks in the domestic water
circuit are all open
- Switch the electricity supply ON at the mains power
switch and at control panel switch (if tted).
14 TEMPORARY SHUTDOWN
To reduce to the environmental impact and save energy,
in case of brief absences, week-ends, short trips, etc., and
with external temperatures above 0°C, set the heater tem-
perature control, where available, to the minimum value.
b
If the temperature to which the heater is exposed can
fall below 0°C (frost hazard), perform the operations
described in paragraph "Preparing for extended pe-
riods of disuse".
15 PREPARING FOR EXTENDED
PERIODS OF DISUSE
If the storage cylinder is not going to be used for an ex-
tended period of time, ask the manufacturer’s Technical
Assistance Centre to make the system safe.
16 EXTERNAL MAINTENANCE
Clean the outside of the storage cylinder with a soft cloth
damped in soapy water.
a
Do not use abrasive products, petrol or triethylene.
Enduser
Via Risorgimento, 23 A
23900 - Lecco (LC), Italy
www.berettaboilers.com
The manufacturer strives to continuously improve all products. Appearance, dimensions, technical
specications, standard equipment and accessories are therefore liable to modication without notice.
