Contents
1 Step 1: Base and Large Bowl
2 Bowl Locking System
4 Step 2: Fountain Bowl Installation
7 Step 3: Battery Installation
8 Connecting e Battery
10 Inserting Battery Compartment Door
10 Removing e Battery Compartment Door
11 Step 4: Setting Up Your Fountain
12 Fill Your Fountain
12 Operating Your Fountain
15 Step 5: Installation Instructions for Decor Tops
16 Dancing Water Feature Installation
16 Dancing Water Feature and Spray Pattern
17 Planter/Bird Feeder/Vanishing Edge Bowl Installation
17 Vanishing Edge Bowl Installation
17 Bowl Feeder Installation
17 Planter Installation
19 Troubleshooting and Maintenance
19 Cleaning Your Fountain
19 Cold Storage
19 Recharging Your Battery
20 Cleaning e Water Pump’s Parts
20 Water Pump Air Filters
20 Water Pump Impeller
21 Priming the Water Pump
22 Using Leveling Shims
22 Weighing Down Your Fountain
23 Water Pump Connection
23 Troubleshooting Guide

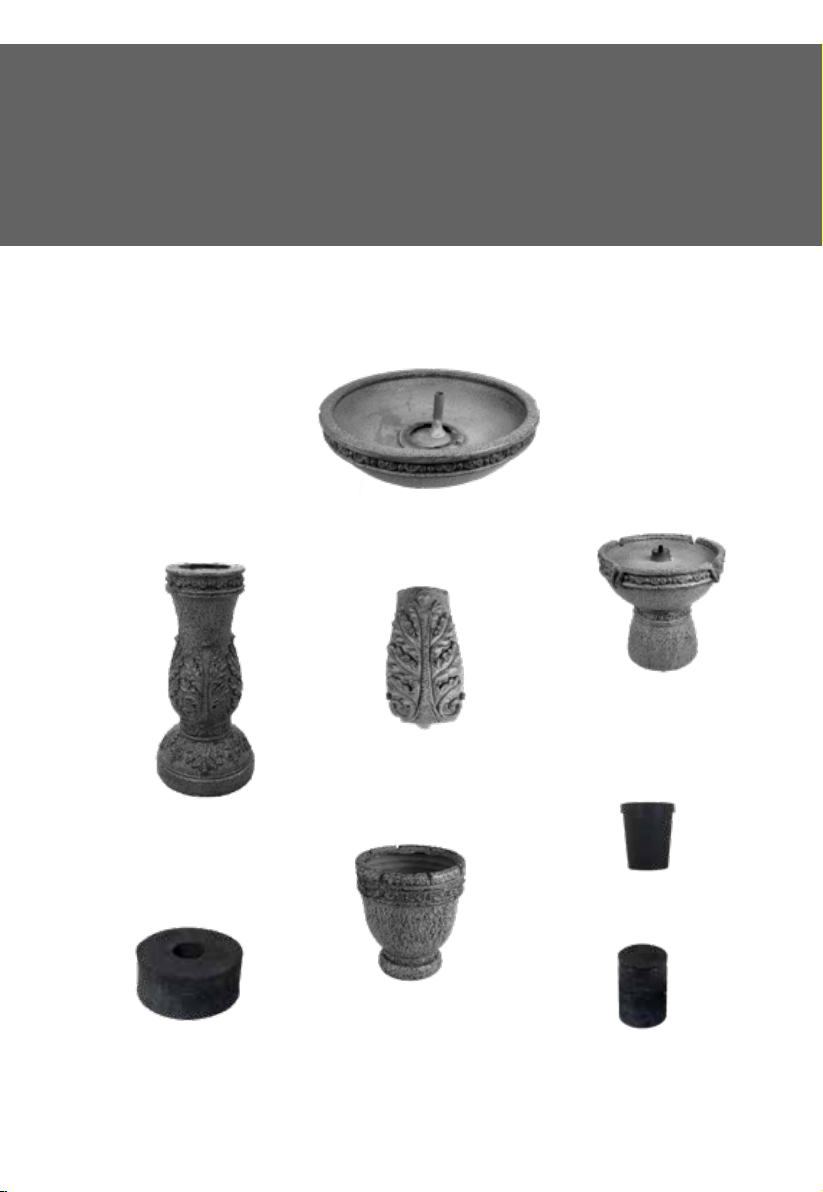

Base
Battery Compart-
ment Door
Fountain Tier
with Water Pump
Installed
Large Bowl
Parts to your new
Bernini™Fountain:
Foam Ring
Rubber Plug
Planter/Bird
Feeder/Vanishing
Edge Bowl Foam Ring
Center Plug

Parts to your new
Bernini™Fountain:
Dancing Water
Attachment
Bird Seed
Bowl
Leveling Shim
Connection Port
Battery Charger
Rechargeable Battery

Remember if you need help contact Customer Care: 1+ [phone] |1
Step 1:
Base &
Large Bowl
You will need:
Step 1:
Base Large Bowl
Step 1:

Remember if you need help contact Customer Care: 1+ [phone]
2|
Step1: Make sure to
place the Base of your
Fountain on a at, rm
surface.
Step 3: Turn the Large
Bowl a quarter turn clock-
wise to lock it into place.
Step 2: Apply downward
pressure by stepping on the
edge of the Base to prevent it
from turning.

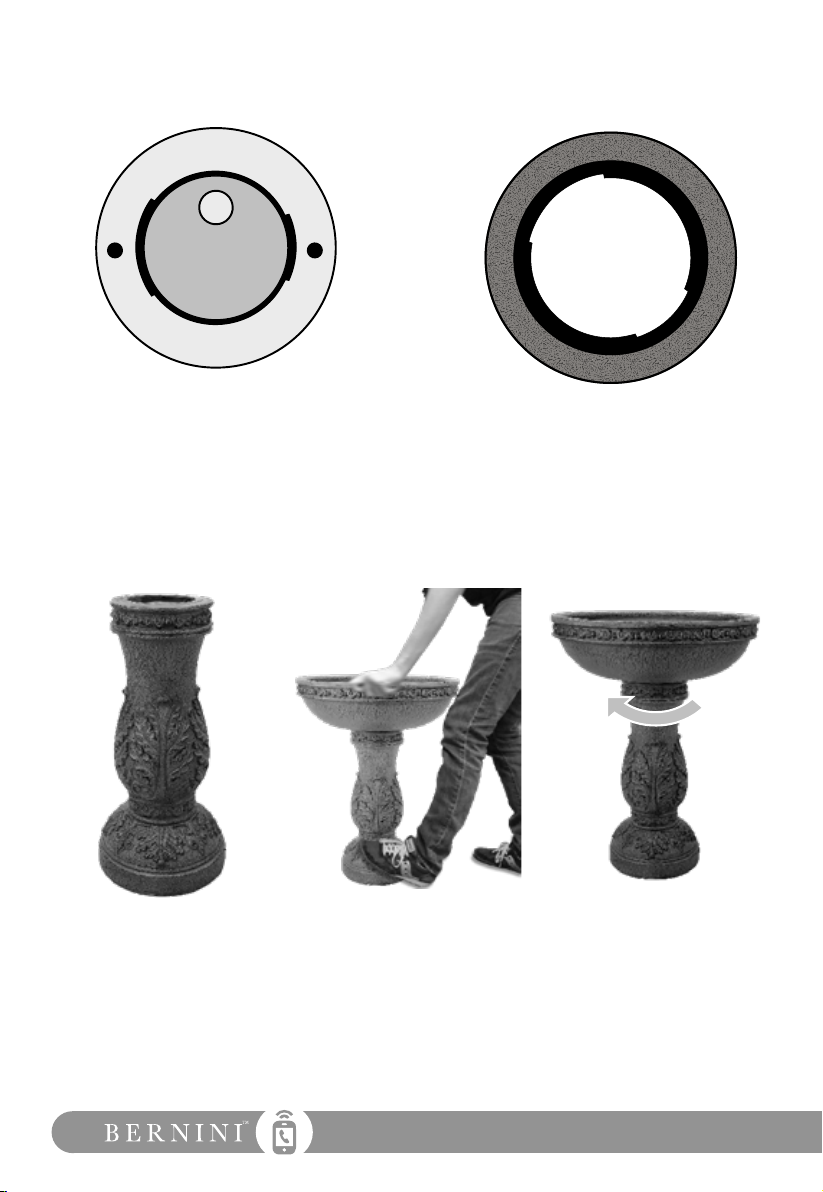

Align and connect the Large
Bowl to the Base.
Note: You will notice that there are two dierent sized tabs on the bottom of the Large Bowl
and there are two corresponding grooves in the top of the Base. These tabs t together and
lock when turned clockwise.
Bottom of large bowl Top of base
Bowl Locking System
A look at how the bowl locking system works on your Fountain.

Remember if you need help contact Customer Care: 1+ [phone] |3
STOP!
At this point, your fountain should look like the im-
age below. Go to the next page for the next step
to setup your new Bernini™ Fountain.

Remember if you need help contact Customer Care: 1+ [phone]
4|

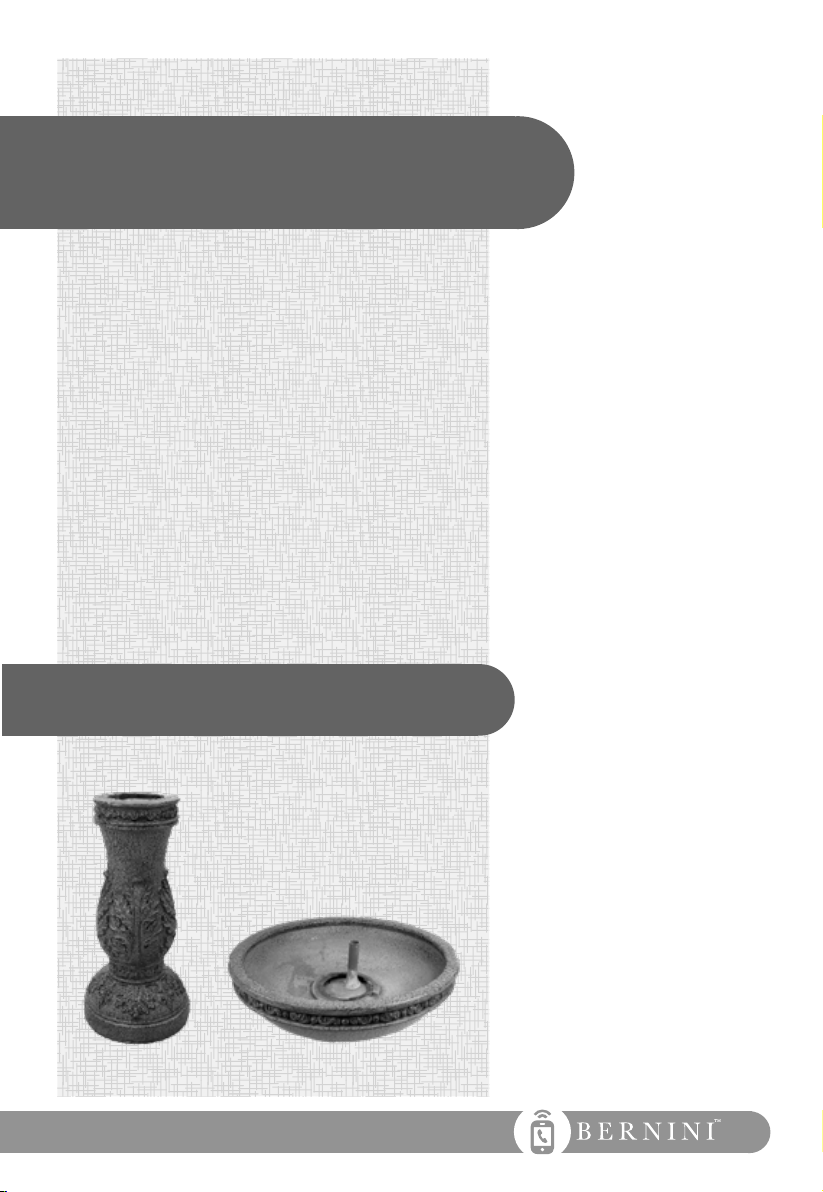

You will need:
Step 2:
Fountain Bowl
Installation
Fountain Tier
with Water Pump
Installed
Assembled Base
& Large Bowl

Remember if you need help contact Customer Care: 1+ [phone] |5

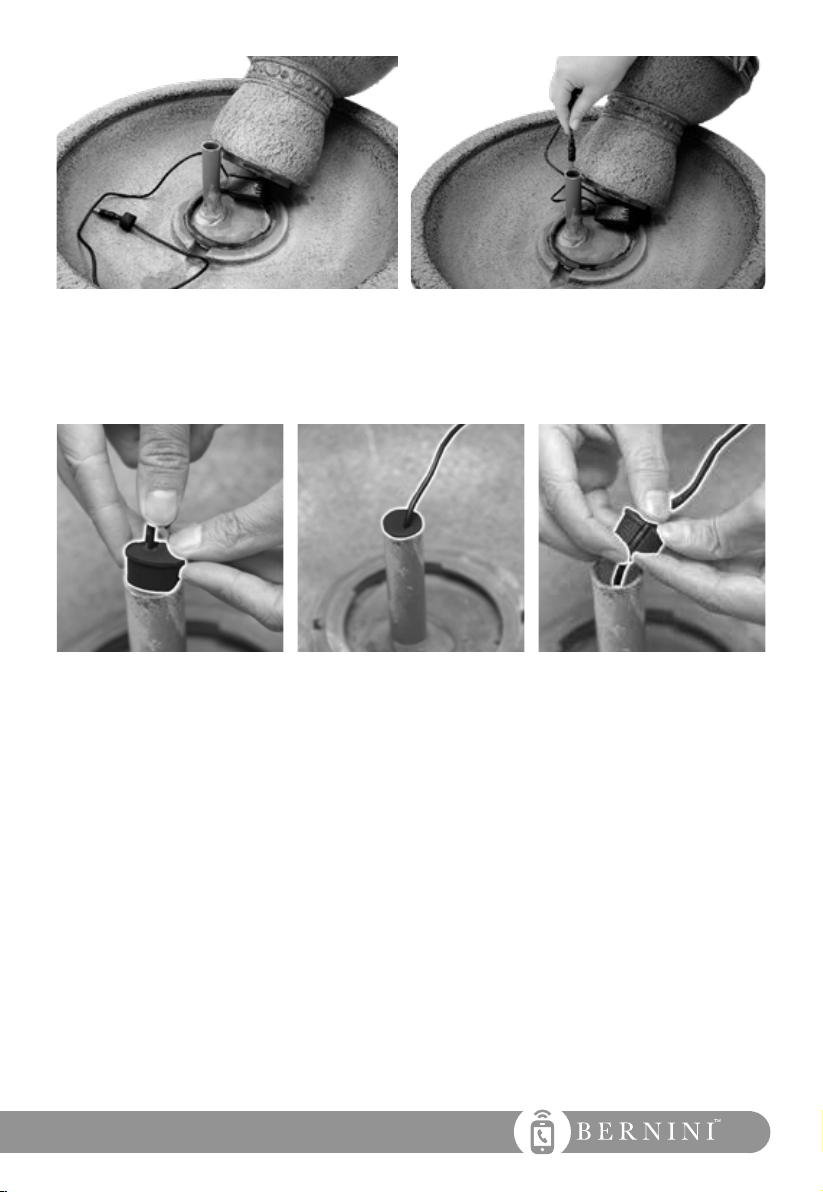

Step 1: Feed the Water Pump cord down
the pipe. The cord will be connected to the
Connection Port at a later step.
For the next step, the Fountain Tier will
install into the middle of the Large Bowl
assembled in step 1. Rest the Fountain Tier
on the side of the large bowl.
NOTE: If the cables slip out
of the rubber stopper, you
can press the cables into the
slot in the side of the rubber
stopper. Maneuver the cord
to t snugly inside the hole
that is located in the center
of the rubber stopper.
Step 3: Firmly press the plug
into the pipe in the middle of
the Large Bowl.
If you are having trouble
pressing the plug into the
pipe, you can rub a small
amount of soapy water
on the plug to help it slide
into place.
Step 4: To ensure that you
have a good seal, make
sure the plug ts snugly as
pictured above.
If your Fountain came with the Water Pump disconnected from the tube inside of
the Fountain Tier, refer to the “Water Pump Connection” section of this manual for
instructions on how to connect the Water Pump to the Fountain Tier.

Remember if you need help contact Customer Care: 1+ [phone]
6|

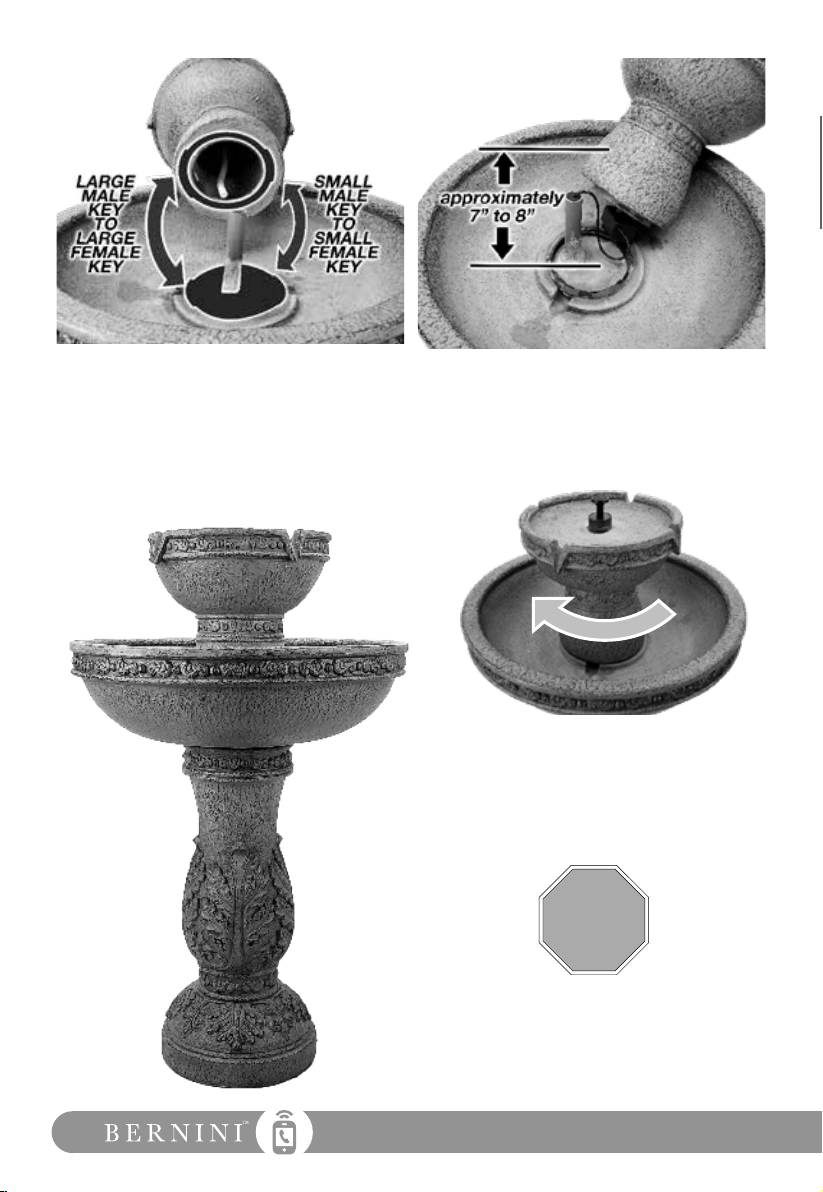

Step 5: Just like the large bowl and base, the fountain bowl uses a key system that will
lock it to the middle of the large bowl.
Be sure to leave approximately 7 to 8 inches (18 to 20cm) of slack in the cords
coming from the water pump so the pump will sit on the bottom of the large bowl
when the fountain bowl is assembled.
Step 6: Connect the Fountain Tier to the
Large Bowl and turn the Fountain Tier about
a quarter turn clockwise to lock it into place.
T o keep the base from turning rest your foot
on the base to assist in locking the fountain
tier in place.
STOP!
At this point, your Fountain should look like
the image on the left. Go to the next page
for the next step to setup your new
Bernini™ Fountain.

Remember if you need help contact Customer Care: 1+ [phone] |7
You will need:
Step 3:
Battery
Installation
Fountain
assembled
Battery
Compartment
Door
Connection Port
Rechargeable
Battery

Remember if you need help contact Customer Care: 1+ [phone]
8|
Connecting The Battery

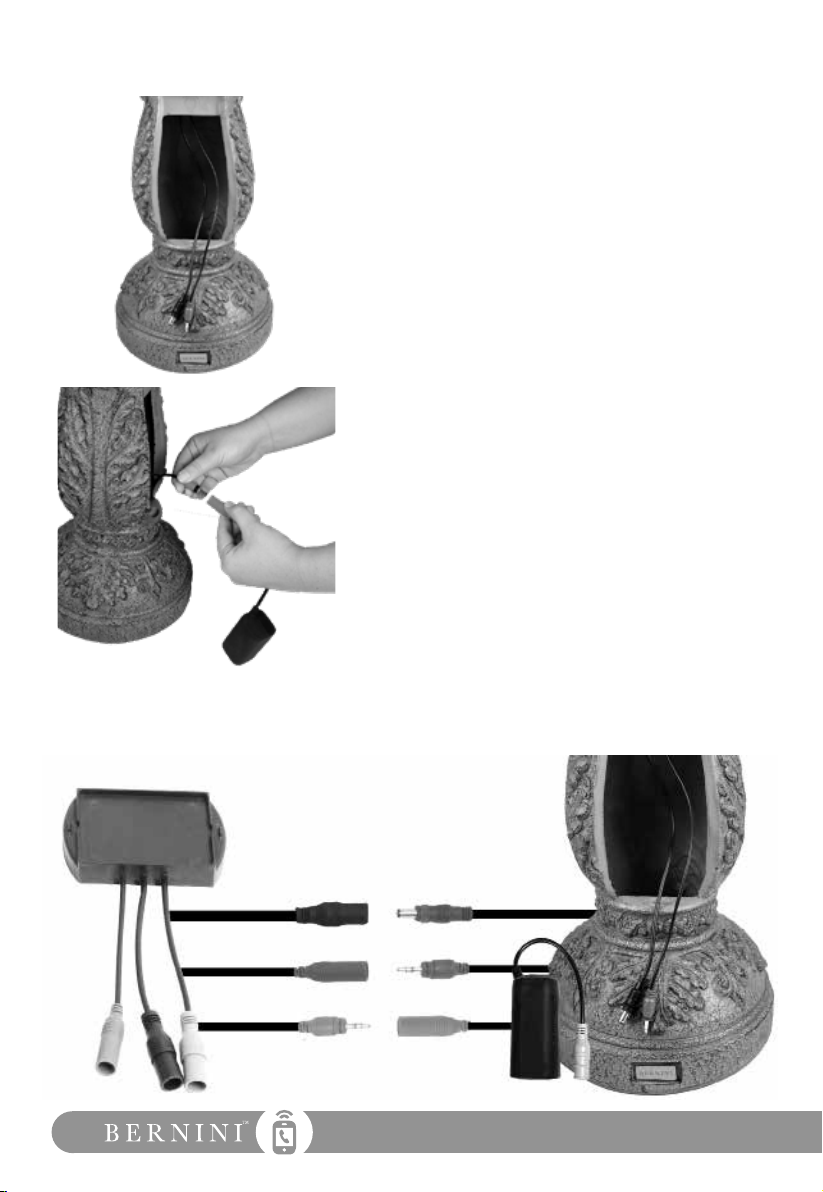

Step 2: Using the cords from inside the base and the cords
from the Battery, connect the color coded cords to their
corresponding receptacles.
Use Diagram 1 for a more in depth explanation on
connecting the Battery.
Step 1: In the open Battery Compartment, you will see
two cords hanging down that you must connect to the
Connection Port.
If you do not see the two cables inside the battery
compartment, reach up into the Base and gently pull
them down until they are hanging inside the Battery
Compartment.
NOTE: USE CAUTION WHEN REACHING INSIDE THE
BATTERY COMPARTMENT OR PLACING BATTERY
INSIDE. DUE TO THE MANUFACTURING PROCESS
THERE MIGHT BE SHARP EDGES.
Diagram 1.
Battery
Connection Port
NOTE: USE CAUTION WHEN PLACING BATTERY INSIDE THE COMPARTMENT,
DUE TO THE MANUFACTURING PROCESS THERE MIGHT BE SHARP EDGES.
Black
Blue
Yellow
Blue
(ABCD Button)
Yellow
(Battery)
Black
(Water Pump)
AA
BB
CC

Remember if you need help contact Customer Care: 1+ [phone] |9
Connecting The Battery (Cont.)
Step 3: Place your Connection Port inside the designated angled area located at the back of your
Fountain Base. (Diagram 2)
Step 4: Place the Battery inside of the compartment in front of the Connection Port (Diagram 2). There
is a notch in the lower corner of the Battery Compartment Door that allows for the optional Solar Panel
wire to extend out from the battery compartment door. DO NOT PLACE BATTERY UPSIDE DOWN
INSIDE OF BATTERY COMPARTMENT. Note: Installing the Battery Door will be shown in a later
step.
Diagram 2.

Remember if you need help contact Customer Care: 1+ [phone]
10|

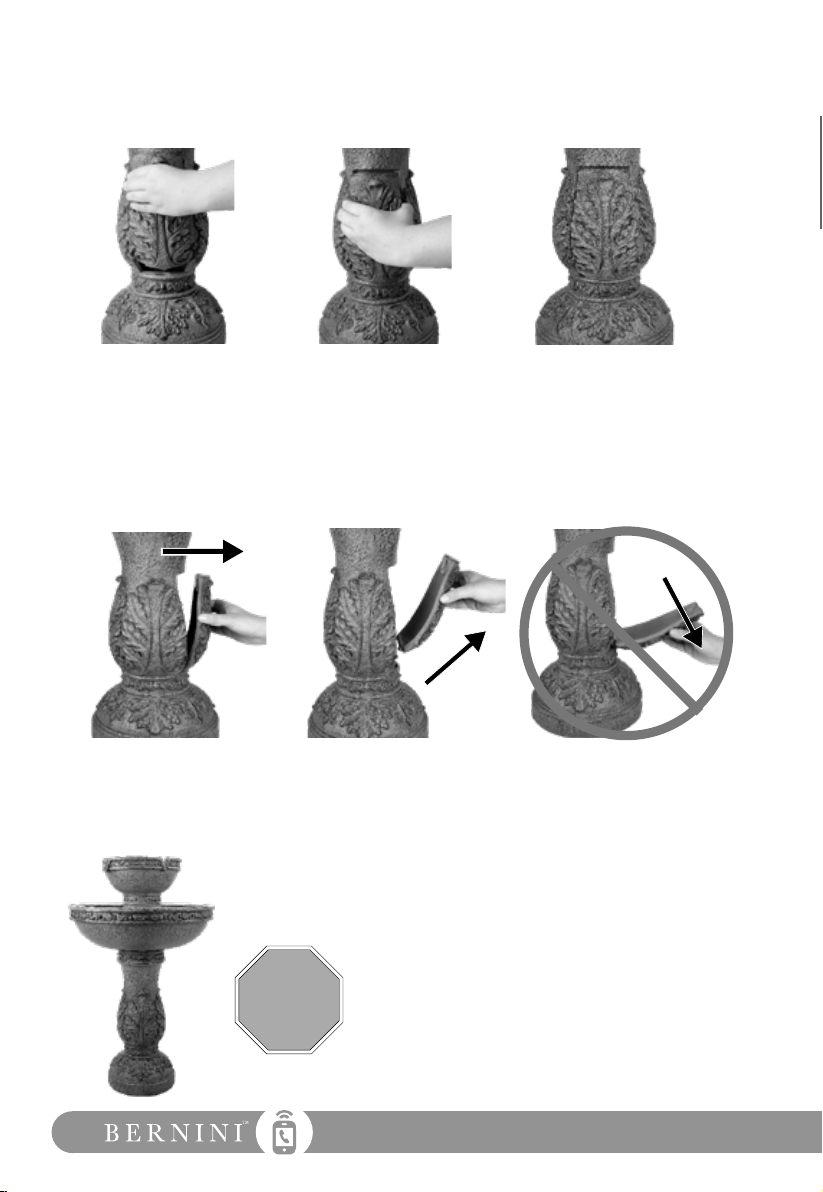

Step 1: Start by lining up the
notch on the bottom of the
Battery Compartment Door
with the notch in the bottom
of the Battery opening.
Step 1: Carefully disconnect
the Battery Compartment
Door from the base by gently
pulling outward from the top.
Step 2: Push the Battery
Compartment door in toward
the Base. You will know it is
in position when the magnet
locks the door in place.
Step 2: Then, pull the
Battery Compartment Door
up and out to remove from
the Base.
Once the door is in place, you
may notice a small notch in the
bottom left corner of the Battery
Compartment Door. This is for
the optional Solar Panel cord.
DO NOT OVER EXTEND THE
BATTERY COMPARTMENT
DOOR BY PULLING DOWN!
This may cause damage to
your new Bernini™ Fountain.
Inserting the Battery Compartment Door
After you have connected the cables inside your Fountain to the Rechargeable Battery,
you should then place the Battery Compartment Door on the Base of the Fountain.
STOP!
At this point, your fountain should look like the
image on the left. Go to the next page for the next
step to setup your new Bernini™ Fountain.
Removing the Battery Compartment Door

Remember if you need help contact Customer Care: 1+ [phone] |11
You will need:
Setting
Up Your
Fountain
Step 4:
Fountain Assembled
Water To
Fill Your
Fountain

Remember if you need help contact Customer Care: 1+ [phone]
12|
Fill Your Fountain
Fill the Fountain Tier until water pours over the spouts. Then ll the Large Bowl until the
water is about 1 inch (2.5 centimeters) from the top of the bowl.
After you have lled your Fountain, grab both sides of the Large Bowl and quickly shake
your Fountain for ten seconds. This is to dislodge any air bubbles that may be caught
in your Water Pump. Press the C button once to turn your Fountain on. Water should
be owing from the top of your fountain. If water is not owing, press the C button once
more to turn your Fountain o, and repeat the step above.
IF YOUR FOUNTAIN IS MAKING A LOUD NOISE, DON’T PANIC!
This just means that there are air bubbles stuck in the Water Pump. Your pump will not
be harmed and you can easily x this issue. You can try priming the Fountain again by
repeating the steps above however, if the problem still persists, refer to the “Priming The
Water Pump” section of this manual for instructions on how to prime the Water Pump.
Operating Your Fountain
The on-board control panel is located towards the top of the base, just below the Large
Bowl. See the diagram below to see how the all-new on-board controls work for your
Bernini™ Fountain.

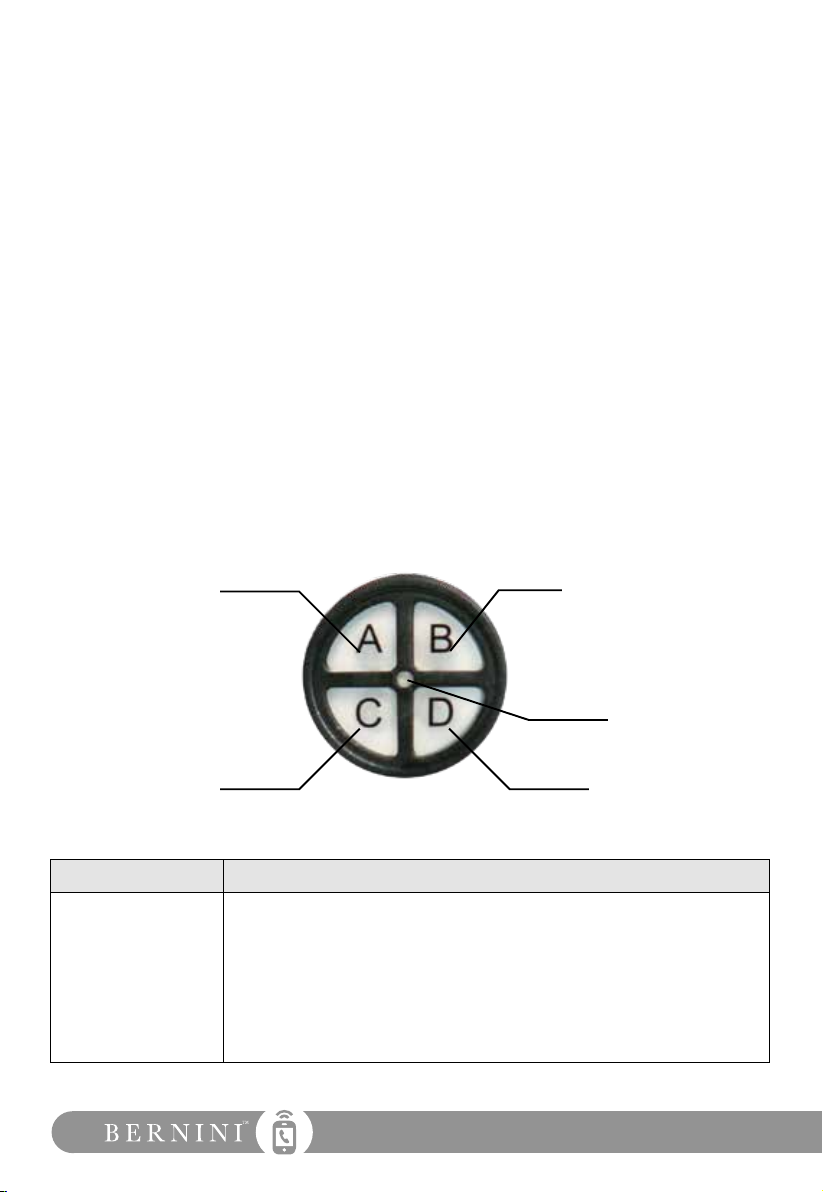

Manual On/O
1-4 Hour Timer
Status Light
1-4 Hour Daily Timer
(Repeats Every Day)
This Feature Is
Not Used On
This Model.
BUTTON DESCRIPTION
A (1-4 Hour Timer)
Runs the fountain for 1-4 hours with automatic shut o.
One hour operation: press the A button once for your fountain to
turn on with an automatic shut-o after one hour of operation.
Two hour operation: press the A button twice and your fountain
will automatically shut-o after two hours of operation.

Remember if you need help contact Customer Care: 1+ [phone] |13
BUTTON DESCRIPTION
A (1-4 Hour Timer)
(continued)
Three hour operation: press the A button three times and your
fountain will automatically shut-o after three hours of operation.
Four hour operation: press the A button four times and your foun-
tain will automatically shut-o after four hours of operation.
How To Use This Function:
1. Press the A button one, two, three or four times to turn your foun-
tain on for the desired automatic run time.
2. The Status Light will blink once for each hour you have selected
to conrm your fountain’s 1-4 Hour Timer, up to four hours.
3. At the end of the desired interval, your fountain will automatically
turn o.
B(1-4 Hour Daily
Timer)
This function is the same as the 1-4 Hour Timer (button A)
except with the added feature of automatically turning your
fountain on at the same time the next day for the interval you
selected.
One hour operation: press the B button once for your fountain to
turn on with an automatic shut-o after one hour of operation. This
will repeat daily at the same time each day.
Two hour operation: press the B button twice and your fountain
will automatically shut-o after two hours of operation and repeat
daily at the same time.
Three hour operation: press the B button three times and your
fountain will automatically shut-o after three hours of operation and
repeat daily at the same time.
Four hour operation: press the B button four times and your
fountain will automatically shut-o after four hours of operation and
repeat daily at the same time.
How To Use This Function:
1. Select the amount of time you would like the fountain to run by
pressing the B button one, two, three or four times.
2. Your fountain will then run for the selected amount of time and
at the end of the selected duration it will automatically turn o.
Then your fountain will automatically turn on at the same time
the next day for the run time duration you selected.

Remember if you need help contact Customer Care: 1+ [phone]
14|
BUTTON DESCRIPTION
B(1-4 Hour
Daily Timer)
(continued)
Example: If you turn on your fountain, choose a two hour run
time by pressing the B button twice at 5pm, your fountain will
turn o at 7pm and turn on again the next day at 5pm and run
for two hours automatically.
C (Manual On/O)
Turns the fountain on and o without any timer. Can be used
when extended run times are desired. Will also limit the battery
life as the battery was designed to run in four hour increments.
Note: Fountain will run until the battery loses its charge.
DThis feature is not used on this model.
Status Light Status light will blink for the number hours you have selected
when using the timer functions (buttons A and B).
You can now try your Bernini™ Fountain to see if everything is working
correctly! Turn your Fountain on and if you see water owing from
the outlet in the middle of the Fountain Tier, go to the next page and
select one of the many decorative options for your fountain. If water is
not owing, refer to the “Priming The Water Pump” section of this
manual for instructions on how to prime the Water Pump.
STOP!
