Model IM32I100SP

- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service discon-
necting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in ac-
cordance with all applicable codes and standards, including fire-rated construction
codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating
equipment manufacturer’s guidelines and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electrical shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not
vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or
garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor
if it becomes overheated. The motor will restart when it cools down. If the motor
continues to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum
of 24" and a maximum of 30" above the cooking surface. See “Install Mounting
Bracket” section for mounting restrictions.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan
or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out imme-
diately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion
will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to oper-
ate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

- 4 -
OPERATION
Controls
The hood is operated using the (5) push buttons located on the underside of the
hood. Fig. 1.
Ten Minute Delay
Press Blower Speed 1, Blower Speed 2, or Blower Speed 3 for two seconds when
the blower is running at the selected speed. The LED below the button will start
blinking to display the delay function. After ten minutes the blower will automatically
turn off. If you change the speed while the timer is running, the function will not
deactivate. To deactivate the function, press the button with the blinking LED for two
seconds. Note: The delay is not available for Blower Speed 4.
Filter Alarm
After 30 hours of blower operation, the grease filter alarm is activated and all of the
LED indicators will turn on. The alarm is activated when the motor is off and the
LEDs will remain on for 30 minutes. To deactivate the alarm, press any of the control
buttons for two seconds while the LEDs are on.
After 120 hours of blower operation the charcoal filter alarm is activated and all
of the LED indicators will blink, indicating the charcoal filters need to be replaced.
The alarm is activated when the motor is off and the LEDs will remain on for 30
minutes. To deactivate the alarm, press any of the control buttons for two seconds
while the LEDs are on.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY™ thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
Lights
On/Low/
High/Off
Blower
Speed 1 Blower Speed 2 Blower Speed 3 Blower Speed 4
Fig. 1

- 5 -
HALOGEN BULBS
This range hood requires six halogen bulbs (Type T3,
12 Volt, 20 Watt Max, G4 Base).
WARNING: Always switch off the electrical
supply before carrying out any operation on the
appliance.
To change bulbs:
1. Remove the glass lens by removing the (3) mount-
ing screws. Fig. 2.
2. Carefully drop down the glass lens without putting
any strain on the control wires.
!
CAUTION: Bulbs may be hot.
3. Open the cover by prying from the proper slots. Do
not touch replacement bulbs with bare hands!
4. Replace with Type T3, 12 Volt, 20 Watt Max G4 Base halogen bulbs.
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor. The impeller
should also be replaced.
Grease Filters
The grease filters should be cleaned frequently, typically when the filter alarm turns on. Use
a warm dishwashing detergent solution. Grease filter is dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of
the filter may occur if using phosphate detergents, or as a result of local water conditions
- but this will not affect filter performance. This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-ducted Recirculation Filter
The non-ducted recirculation filter should be changed every 6 months. Replace more often if
your cooking style generates extra grease, such as frying and wok cooking. See “INSTALL
FILTERS” section, on page 15, for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap
or liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
DON’T:
•
Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During construc-
tion/renovation, cover the range hood to
make sure no dust sticks to the stainless
steel surface.
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.
Fig. 2
MOUNTING
SCREWS
GLASS
LENS

- 6 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
2 - Power Unit
1 - Ceiling Canopy
2 - Decorative Shroud
1 - Telescopic Mounting Arm
2 - Glass Gasket
2 - Glass Trim
2 - Lower Support Arms
2 - Bracket
2 - Upper Arm Cover
2 - Lower Arm Cover
6 - Lag Bolts, M6x60
2 GLASS GASKETS
Fig. 3
12 - Washers, 12.5 mm
2 - Large Head Torx Screws, M4x16
2 - Large Head Torx Screws, M4x20
6 - Decorative Step Screws, M4x16
4 - Pan Head Screws, M4x20
6 - Machine Screws, M4x16
12 - Flat Head Screws, M4x6
4 - Black Sheet Metal Screws, M3x13
4 - Thumb Screws, M4x24
2 - Set Screw Kit containing:
12 - M6 Set Screws
1 - Allen Wrench
1 - Mounting Template
1 - Installation Instructions
CEILING CANOPY
MOUNTING TEMPLATE
2 GLASS TRIMS 2 POWER UNITS
2 BRACKETS
2 DECORATIVE
SHROUDS
6 LAG
BOLTS,
M6X60
TELESCOPIC
MOUNTING ARM
SET
SCREW
KIT
2 LARGE
HEAD TORX
DRIVE
SCREWS,
M4x16
4 THUMB
SCREWS,
M4x24
12 WASHERS,
12.5 MM
6 DECORATIVE
STEP SCREWS,
M4x16
2 LOWER
ARM
COVERS
2 UPPER ARM
COVERS
2 LOWER
SUPPORT
ARMS
2 LARGE
HEAD TORX
DRIVE
SCREWS,
M4x20
4 PAN HEAD
SCREWS,
M4x20
12 FLAT
HEAD
SCREWS,
M4x6
4 BLACK
SHEET METAL
SCREWS,
M3x13
6 MACHINE
SCREWS,
M4x16

- 7 -
The total weight of the hood is 100 lbs. as supplied. Special structure consider-
ations must be made to ensure proper installation. The mounting brackets need to
be mounted to 2" nominal lumber. Hollow wall anchors should not be used at any
time. Fig. 4.
ROUGH-IN DETAILS
ROUGH-IN ELECTRICAL
This hood is hard wired via a junction box located in the hood canopy. Incoming
power should be located as shown on the drawings above.
WARNING: Electrical wiring must be done by a qualified person in accor-
dance with all applicable codes and standards.
Fig. 4
STRUCTURAL REQUIREMENTS
2-3/4"
12"
INCOMING
POWER
LOCATION
2X4
FRAMING
2X6 BLOCKING
(MIN.) MUST BE
FLUSH WITH
CEILING JOISTS
OUTLINE
OF CEILING
CANOPY
3-1/2"

- 8 -
UPPER
BRACKETS
COVER
Note: Covers mount between the
telescopic arm and mount on the
ceiling bracket.
1. Install the Upper Brackets to the
Telescopic Mounting Arm using
(2) Large Head M4x20 Torx drive
screws. Fig. 5 and Fig. 6. Remove the
protective coating.
Fig. 5
MOUNT TELESCOPIC
MOUNTING ARMS
1. Tape the mounting template in place
and drill (6) 1/8" (3 mm) diameter
holes at the center locations shown.
Fig. 7. When complete remove tem-
plate from ceiling.
1/8" DIAMETER
LOCATIONS (6)
Fig. 7
INSTALL UPPER BRACKETS
Fig. 6
M4x20
TORX
DRIVE
SCREWS

- 9 -
2. Mount the telescopic arm. Attach with
(2) M6 x 60 lag bolts with (2) 12.5 mm
washers - mount the two key hole
slots first (2 bolts / arm). Make sure
the arms are perpendicular to the
ceiling. Fig. 8.
3. Attach the remaining four (4) M6x60
lag bolts per arm. Fig. 9.
4. Install the ceiling canopy and attach
with (2) M4 x 16 large head torx
drive screws. Fig. 10. (You will need
to remove it when making electrical
connections.)
Fig. 8
Fig. 9
M6X60
LAG
BOLTS
12.5 MM
WASHERS
Fig. 10
M6X60
LAG
BOLTS
M4X16 LARGE
HEAD
TORX DRIVE
SCREWS (2)

- 10 -

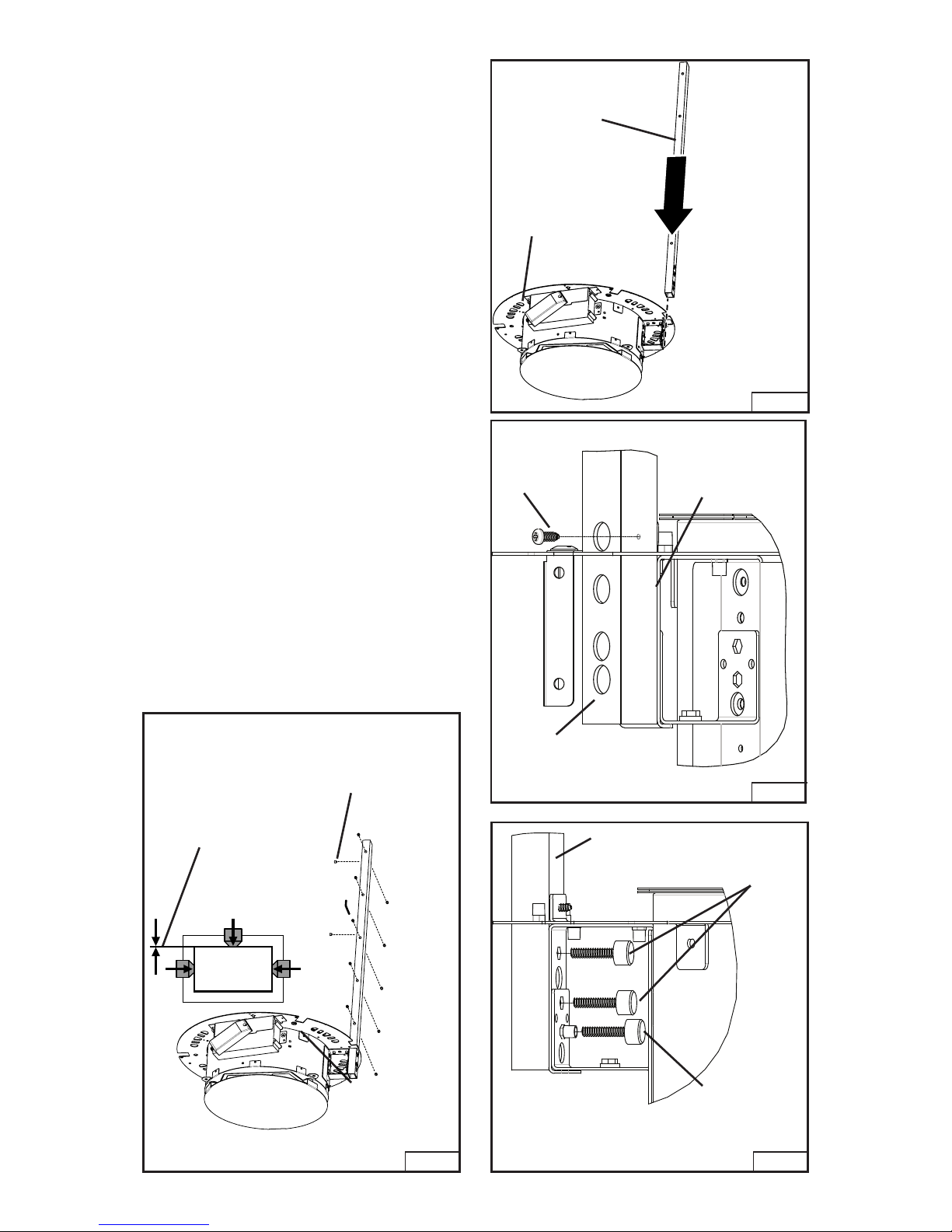

5. Attach the lower support arms to each
power unit. Slide the support arm
through the slot in power unit flange.
Fig. 11.
6. Attach the arm to the power unit
flange with (1) M3 x 13mm sheet
metal screw. Fig. 12.
7. Continue to attach arm to power unit
with (2) M4x24mm thumb screws.
Attach a third M4 x 24mm thumb
screw to the threaded insert in the
power unit flange. This screw will be
used to level the power unit later .
Fig. 13.
8. Insert 12 set screws into each lower
support arm. Make sure the screws
do not protrude into the inner section
of the arm. Fig. 14. Fig. 11
LOWER
SUPPORT
ARM
POWER
UNIT
FLANGE
Fig. 12
M3 x 13
SHEET
METAL
SCREW
SUPPORT
ARM
POWER
UNIT
FLANGE
Fig. 13
SUPPORT
ARM
LEVELING
THUMB
SCREW
THUMB
SCREW
Fig. 14
NOTE: SET
SCREWS
SHOULD NOT
PROTRUDE
SET
SCREWS
(12)

- 11 -

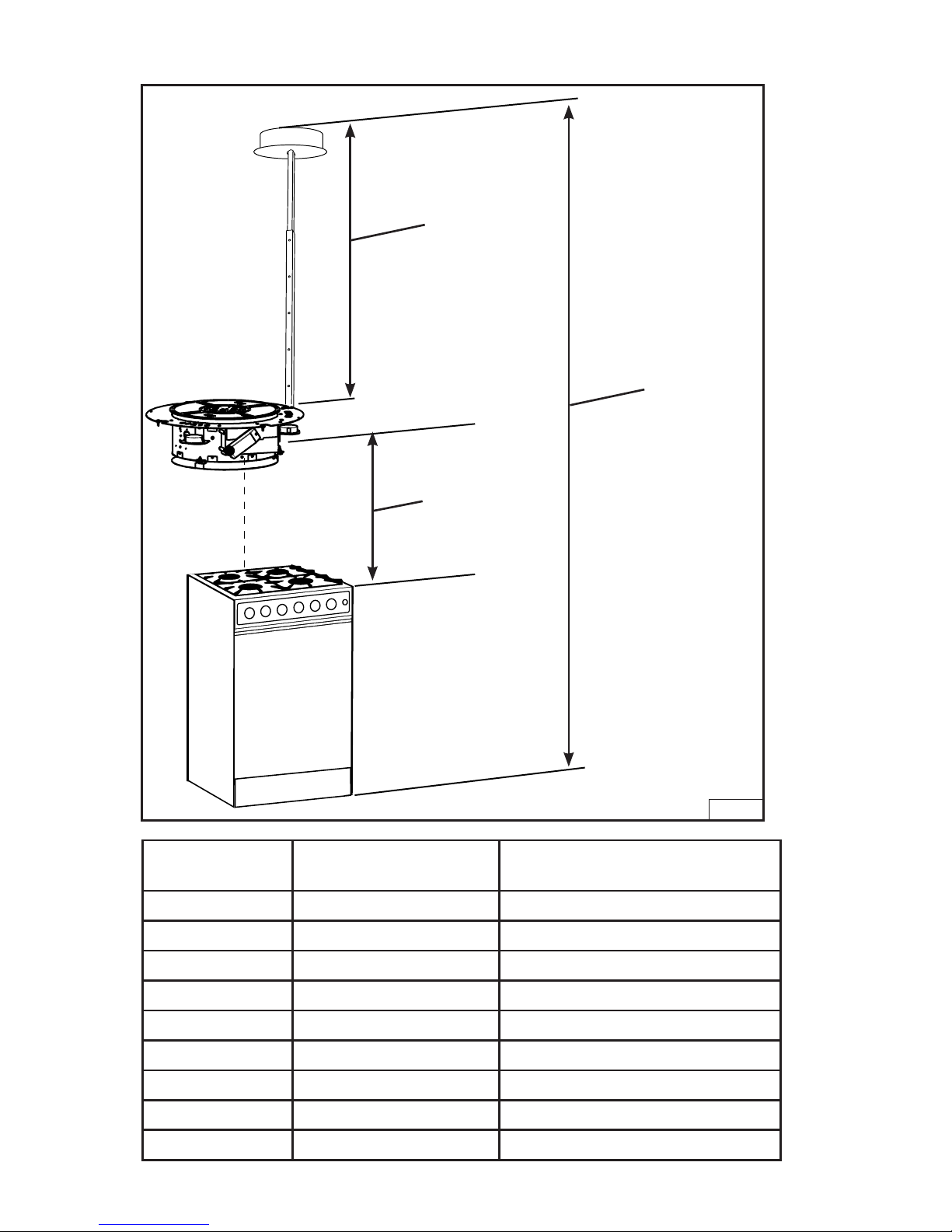

Ceiling Height Distance Cooktop to
Bottom of Hood Height of assembled telescopic arm assembly
8 ft 24" 33.25"
8 ft 25” 32.25”
8 ft 26" 31.25"
8 ft 27" 30.25"
9 ft 24" 45.25"
9 ft 26" 43.25"
9 ft 28" 41.25"
9 ft 29” 40.25”
9 ft 30" 39.25"
9. Determine mounting height.
Fig. 15
CEILING
HEIGHT
COOKTOP TO
BOTTOM HOOD
DISTANCE
ASSEMBLED
TELESCOPIC
ARM HEIGHT

- 12 -
10. Install the lower support arm onto the
upper arm at the desired mounting
height. Tighten the set screws mak-
ing sure at least (5) screws are in
contact with the upper arm. Fig. 16.
Repeat for the second unit.
11. Level the two units with the cook
top surface using the leveling thumb
screw. Fig. 1 7.
Fig. 16
SET
SCREWS
LEVELING
THUMB
SCREW
Fig. 17

- 13 -
INSTALL WIRING

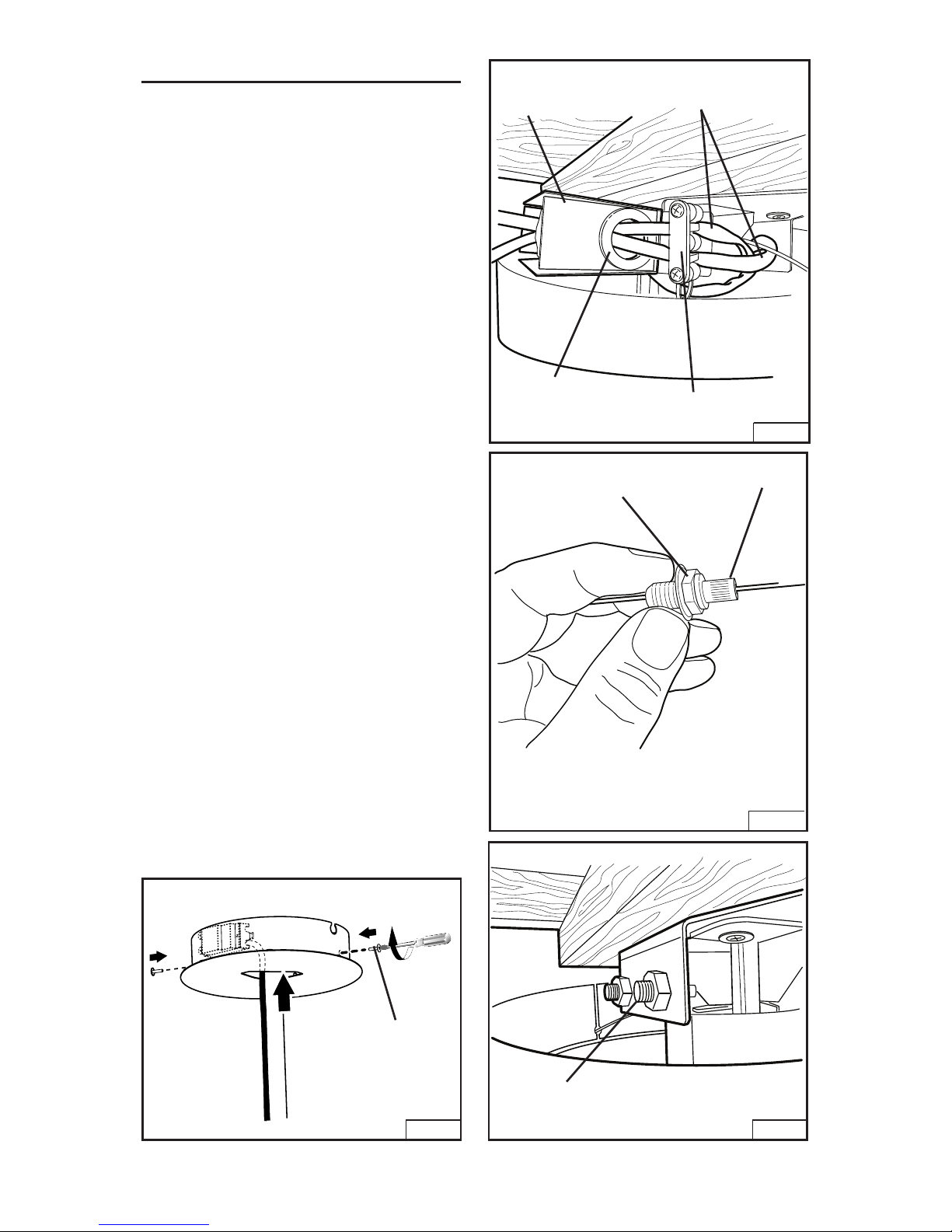

1. Drop the ceiling canopy. Wire tie the
two power cables to the support
arms. Insert the wires onto the strain
relief and into the junction box. Se-
cure the wires by tightening the strain
relief. Make the power connections
Fig. 18.
2. Feed the wire safety cables along the
support arms and insert into the cable
supports as shown in Fig. 19. Repeat
for each power unit.
A. Push cable through support rods
and into hood cavity.
B. Slide washer and cable clamp
with barrel nut onto cable. Note
that the barrel nut must be slightly
backed off of cable clamp and
pushed (spring compressed)
when sliding assembly onto cable.
C. Push clamp assembly all the way
to the top of the hood while push-
ing down on barrel nut. Fig. 19.
D. When assembly is all the way to
the top inside of hood, completely
tighten barrel nut. Fig. 20.
E. Cut excess cable off.
3. Install the ceiling canopy and attach
with (2) M4 x 16 large head torx drive
screws. Fig. 21. Remove the protec-
tive coating.
Fig. 18
Fig. 21
JUNCTION
BOX
POWER
CABLES
STRAIN
RELIEF
WIRE
WAY
GROMMET
Fig. 19
HEX NUT
NOTE: CABLE CLAMP ASSEMBLY
INCLUDES BARREL NUT AND HEX NUT.
BARREL NUT
Fig. 20
CABLE CLAMP
ASSEMBLY
M4 x 16 LARGE
HEAD
TORX DRIVE
SCREWS (2)

- 14 -
INSTALL ARM COVERS
1. Attach (2) Upper Arm Covers to the
Upper Brackets with (12) M4x6 flat
head screws. Remove the protective
coating. Fig. 22 and Fig. 23.
2. Attach the Lower Arm Covers with (4)
M4x20 pan head screws. Remove
the protective coating. Fig. 24 and
Fig. 25.
3. Bend the two ears on the Lower Arm
Cover over the Upper Arm Cover.
Repeat for the other cover. Fig. 26.
Fig. 22
Fig. 23
UPPER
ARM
COVERS
M4X6 FLAT HEAD SCREWS (12)
Fig. 25
M4X20
PAN HEAD
SCREWS (4)
Fig. 24
Fig. 26
EARS
LOWER
ARM
COVERS

- 15 -
INSTALL DECORATIVE
SHROUDS
1. First Slide the Shroud between the
support arms. Make sure the attach-
ment brackets are above the power
unit flange. Fig. 27 and Fig. 28.
2. Turn the Decorative Shroud so that
the shroud holes match up with the
flange holes. Secure the Shroud with
(3) M4x16 machine screws. Fig. 29.
Remove the protective coating.
Repeat for the second shroud.
Fig. 27
Fig. 28
SHROUD
ATTACHMENT BRACKET
M4X16 MACHINE SCREWS
Fig. 29

- 16 -
3. Attach the Glass Gasket to the Glass
as shown. Repeat for second glass.
Fig. 30.
4. Pull the control wire thru the glass
opening. Attach the Glass with (3)
M4x 16 Decorative Step Screws.
Fig. 30. Repeat for second glass.
Fig. 31
CONTROL
5. Attach the Control Cable to the Con-
trol. Fig. 3 1.
6. Snap the Control into the Decorative
Glass. Fig. 3 1.
Fig. 30
M4X16
DECORATIVE
STEP SCREW
GLASS
FACING
TOWARDS
COOKTOP
GLASS
GASKET
CONTROL
CABLE
PUSH CONNECTOR DOWN
INTO
CONTROL AND
SNAP INTO PLACE
DECORATIVE
GLASS

- 17 -
INSTALL FILTERS
1. Remove the filter; remove any protec-
tive coatings on the filters.
A. Swing filter cover down. Fig. 32.
B. Remove filter by pushing tab in
and swing the filter down. Fig. 33.
C. Remove the charcoal filter by
removing the wire holders from
the main filter. Fig. 34.
2. Repeat step 1 and replace the filters.
3. Remove all protective coverings from
the hood. Fig. 32
Fig. 34
FILTER
COVER
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products
will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE
ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDES-
CENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject
to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or
installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LI-
ABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com
Fig. 33
FILTER
WIRE
HOLDER

- 18 -
SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 B08092783 FRAME
5 B03115221 GRILL
9 B08087691 GREASE FILTER
14 B02300976 CONDENSER
26 B02300891 LAMP BULB
37 B02300804 KNOB
38 B03292357 ELECTRICAL CIRCUIT BOARD BOX
39 B03294033 ELECTRICAL CIRCUIT BOARD BOX COVER
48 B02310731 MOTOR (CLOCKWISE)
50 B03294349 BLOWER BRACKET
53 B03204177 RUBBER WASHER
76 B02005214 TOP GLASS
114 B03292499 RUNNER WIRES
115 BE3348996 FEEDER CABLE CONNECTION BOX
116 BE3334252 FEEDER CABLE CONNECTION BOX COVER
118 BE3350690 BOTTOM DUCT EXT.
119 BE3350691 UPPER DUCT EXT.
124 B02011387 BOTTOM TELESCOPIC SKELETON
125 B08093200 UPPER TELESCOPIC SKELETON
144 B03292287 WIRES STOP PIN
151 B032920200 ELECTRICAL BOX WIRES STOP
154 B03202286 FEEDER CABLE STOP
195 BE3350719 BRACKET
202 B03292290 REFLECTOR STOP
208 B02300861 TRANSFORMER
312 B08092785 INSIDE PANEL
332 B08093199 COVER
362 B02011377 DISPLAY VISOR SPRING
415 B03202291 FAIRLEAD
B03202442 FAIRLEAD
B03299169 FAIRLEAD
474 B02300798 HALOGEN LAMP
477 B02011376 CLOSING
AQI B06108625 SWITCH BOX ASSEMBLY
* B06103994 CONDENSER ASSEMBLY
(INCLUDES KEY NO. 14, 38, 39, 151)
* B06145147 ELECTRICAL INSTALLATION ASSEMBLY
(INCLUDES KEY NO. 14, 38, 39,
60, 67, 144, 151, 166, 208)
* B080810953 FITTING SET (INCLUDES KEY NO. 154)

- 19 -
SERVICE PARTS
60
116
202
115
39
38
144
166
208
53
5
14
415 (03202442)
AQI
67
362
332
124
1
76
312
477
9
114
474
26
415 (03202291)
50
125
195
119
118
154
37
415 (03202169)
151
48
Fig. 35

- 20 - 99044741A
