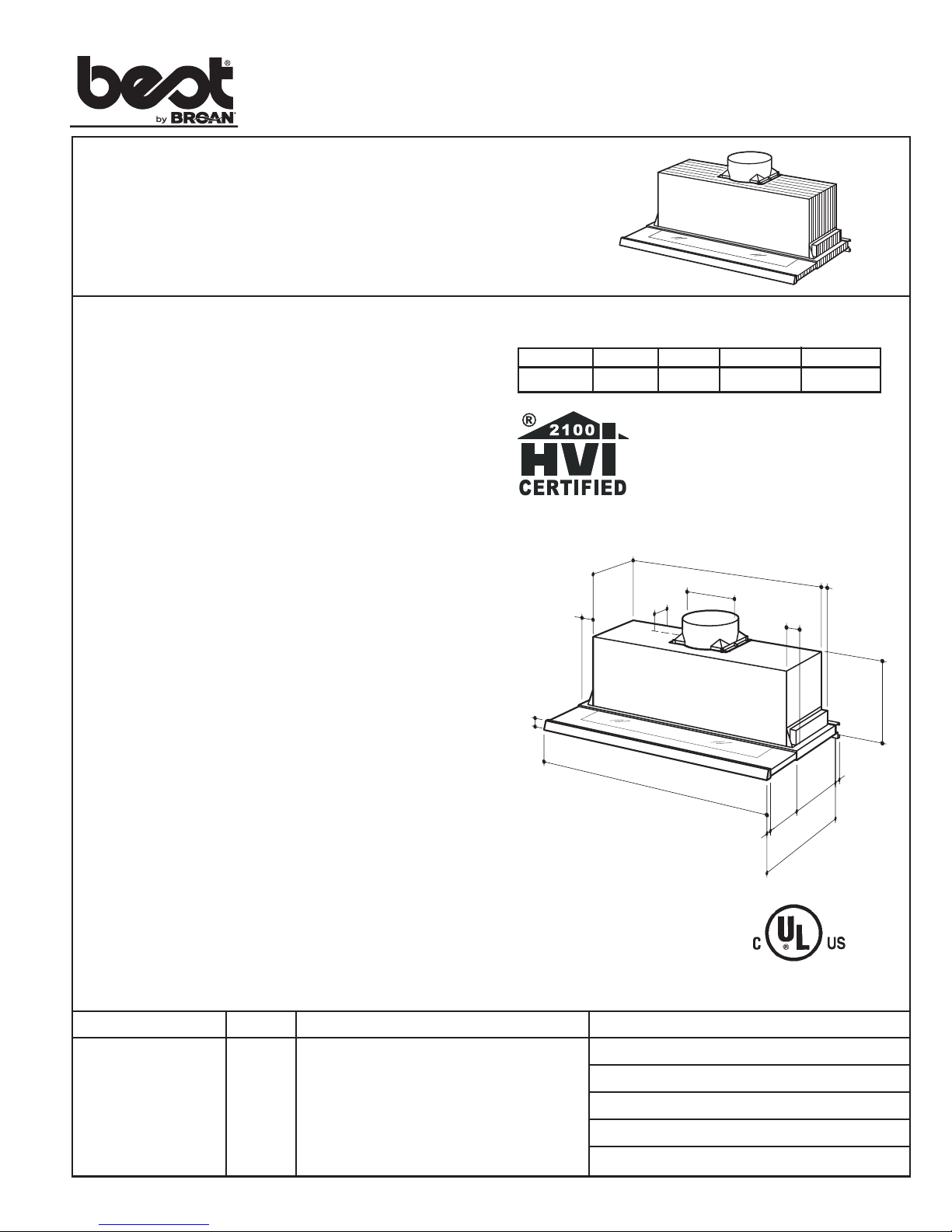

SPECIFICATION SHEET
BEST BY BROAN, P.O. BOX 140 HARTFORD, WISCONSIN 53027
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
U102I SERIES
RANGE HOODS
Slim-linedesignprovidesstrong,effectiveventilation
and cooktop lighting unobtrusively.
FEATURES
•Italian design
•Cabinet mount
•Finish: 304 Stainless Steel #4 Brushed, White & Black
•Black Glass Control Panel
•Width: 30” & 36”
•8” round duct connector/backdraft damper
•Halogen lighting (2 x 20 watt, Type JC 12V 20W G4
Base - bulbs included) with multilevels from bright
cooktop illumination to a low nighttime setting
•Advanced, electronic push-button controls
•Quiet, variable-speed centrifugal blower with high-
efficiency motor produces 500 cfm of exhaust
•Four-speed motor controls
•Delay timer control automatically shuts off range hood
after ten minutes
•Special control indicates when it’s time to clean the filter
•Can be ducted to the outside or non-ducted for indoor
recirculation (purchase recirculation kit separately)
•Dishwasher-safe filter features a quick-release latch and
decorative cover plate
•Heat SentryTM - automatically turns blower to high
speed when excess cooking heat is detected
•Pull out visor with clear glass panel
OPTIONS
•Replacement grease filters available
•Non-ducted recirculation kit (Model ANKUIO)
•Replacement charcoal filters available (Model ROUND
FILTER)
•Exterior blower (U102E Series) available, providing
600, 900, 1200, or 1500 cfm exhaust
•Replacement bulb (Part No. SB02300891)
SPECIFICATIONS
VOLTS AMPS CFM SONES DUCT
120 3.13 500 10.0 8” round
50K 99043481B
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by
the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers.
Product performance is rated at 0.1 in. static
pressure, based on tests conducted in AMCA’s
state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory
measurements.
11-7/8”
1-9/16”
30”, 36”
26”, 32”
2”
2”
7-7/8” dia.
10-1/2”
5-3/4”
MAX.
11-3/8” 5/8”
1-5/16”
12-11/16” MN.
18-7/16” MAX.
4-1/8”
1-1/8”
Mount range hood so bottom
is 22-1/2” (minimum) above
cooking surface.

BEST BY BROAN, P.O. BOX 140 HARTFORD, WISCONSIN 53027
U102I SERIES MOUNTING
Cabinet “A” “B”
Width
30” 28-1/2” 15”
36” 34-1/2” 18”
120 VOLT, 60 HZ
LINE IN
BOX MARKED
“120 VAC INPUT”
CONNECT
WHITE-TO-WHITE
BLACK-TO-BLACK
GREEN-TO-GROUND
U102I SERIES WIRING
