Best PIK33 User manual

MODELS PIK33 AND PIK45
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER:USE AND CARE INFORMATION ON PAGES 11, 12 AND 13.
BEST BY BROAN P.O. Box 140, Hartford, WI 53027
V05862 rev E
HB0030
INSTALLATION INSTRUCTIONS
READ AND SAVETHESE INSTRUCTIONS
!
!

WARNING WARNING
- 2 -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
2. Before servicing or cleaning unit, switch power off
at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done
by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the
outdoors.
7. Do not use this unit with any solid-state speed
control device other than WCPI optional wall
mounted control.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite.Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or
when cooking flaming foods.
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
TO REDUCETHE RISK OF INJURYTO PERSONS
IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid,
cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. IF
THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may
be burned.
3. DO NOT USE WATER, including wet dishcloths
or towels – This could cause a violent steam
explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and
you know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by
NFPA.
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
3. Your insert motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it cools
down.If the motor continues to shut off and restart,
have the insert serviced.
4. The minimum hood distance above cooktop must
not be less than 24”. A maximum of 30” above
cooktop is highly recommended for best capture of
cooking impurities.
5. Two installers are recommended because of the
large size and weight of this unit.
6. To reduce the risk of fire and to properly exhaust
air, be sure to duct air outside – Do not exhaust air
into spaces within walls or ceiling or into attics,
crawl space or garage.
7. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk
of injury and to prevent power from being switched
on accidentally, switch power off at service panel
and lock or tag service panel.
8. Because of the high exhausting capacity of this
unit, you should make sure enough air is entering
the house to replace exhausted air by opening a
window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the
Best models PIK33 and PIK45 must be installed
with blower models P5, P8, EB6, EB9, EB12 or
EB15 only. Other blowers cannot be substituted.
(Blowers sold separately).
10. Use with approved cord-connection kit only.
11. Please read specification label on product for
further information and requirements.
!
!

HL004
1
- 3 -

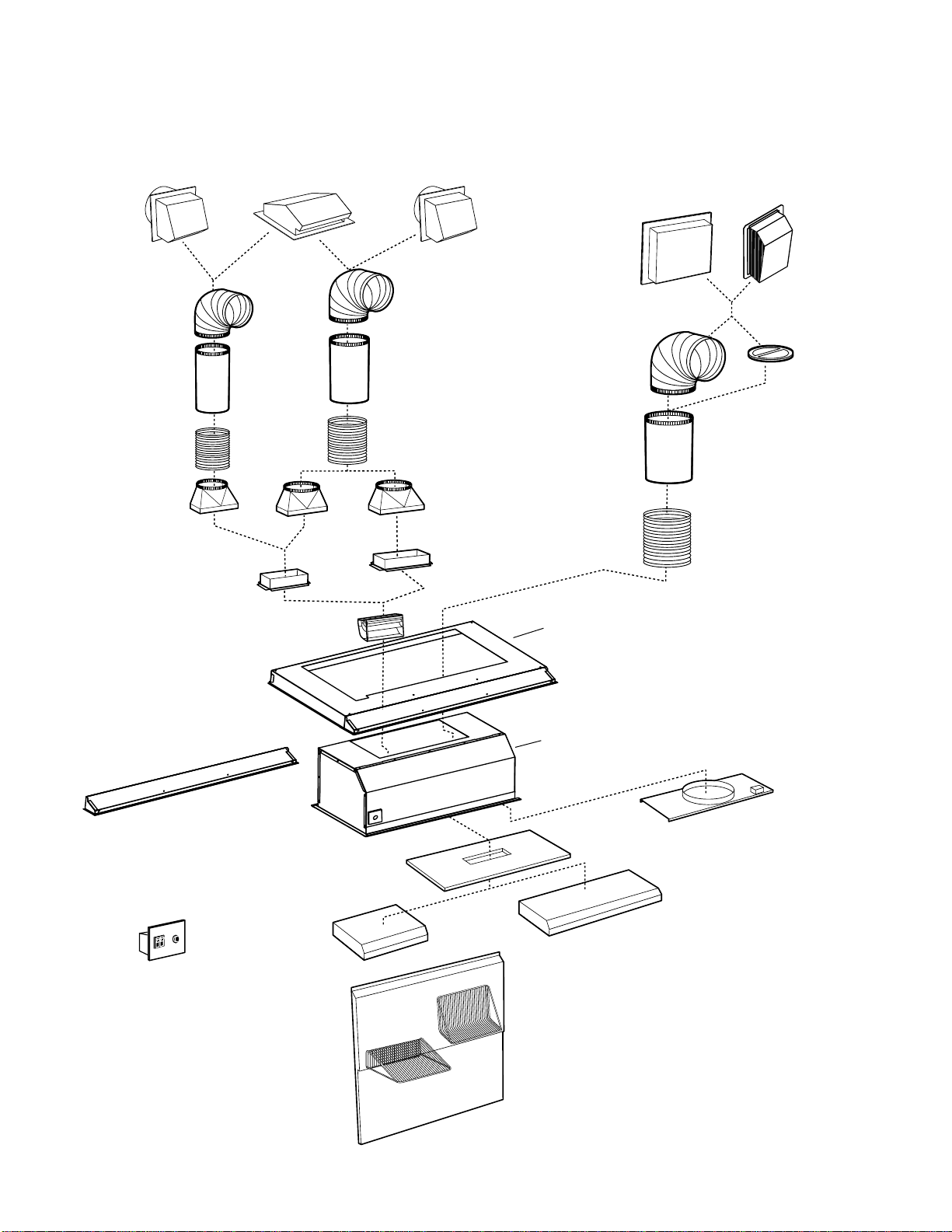

RMP Series Backsplash
(Stainless Steel wall
covering with warming
shelves. Optional)
L3336, L3342, L4548, L4560,
L3336S, L3342S, L4548S or L4560S
Custom Hood Liner (optional)
Model 418
10” Rd
adjustable elbow
(optional)
Model 415
7” Rd adjustable
elbow (optional)
8” Rd
adjustable elbow
(optional)
Model 412
transition
(3 1/4” x 10” to 7”)
Adapter and damper
3 1/4’’ x 10’’
(supplied with P5
and P8 blowers)
Adapter and damper
3 1/4’’ x 14’’
(supplied with P8 blower)
Model P5
single-blower
(500 cfm)
PIK33 OR PIK45
INSERT
PIK33 AND PIK45
INSERT SYSTEM
Model EB6 (600 cfm)
or EB9 (900 cfm)
exterior blower
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
exterior blower
Flow deviator
(supplied with P5 and P8 blowers)
Model 647
(7” Rd wall cap) Model 634 or 644
(roof cap) Model 643
(8” Rd wall cap)
Model 421
(10” Rd. vert.
in-line damper)
8” Rd
standard
duct
Model 407
(7” Rd x
24’’ section)
7” Rd metal
flexible duct
(optional)
8” Rd metal
flexible duct
(optional)
Model 413
transition
(3 1/4” x
10” to 8”)
Model 459 transition
(3 1/4” x 14” to 8”)
Model 410
(10” Rd duct
- 2ft. sections)
10” Rd metal
flexible duct
(optional)
Exterior blower rough-in kit
(included with EB6, EB9,
EB12 and EB15 blowers
Model P8
dual-blower (900 cfm)
NOTE: The dual blower P8 can be
installed either with 7’’ round
or 8’’ round ductwork.
For optimal air and quiet sound
performance,use 8’’round ductwork.
Rough-in kit
(supplied with P5 and P8 blowers)
ALP30, ALP36,
ALP42, ALP48 or ALP60
Ambient light panel (optional)
WCPI
Wall control
(Optional)

- 4 -

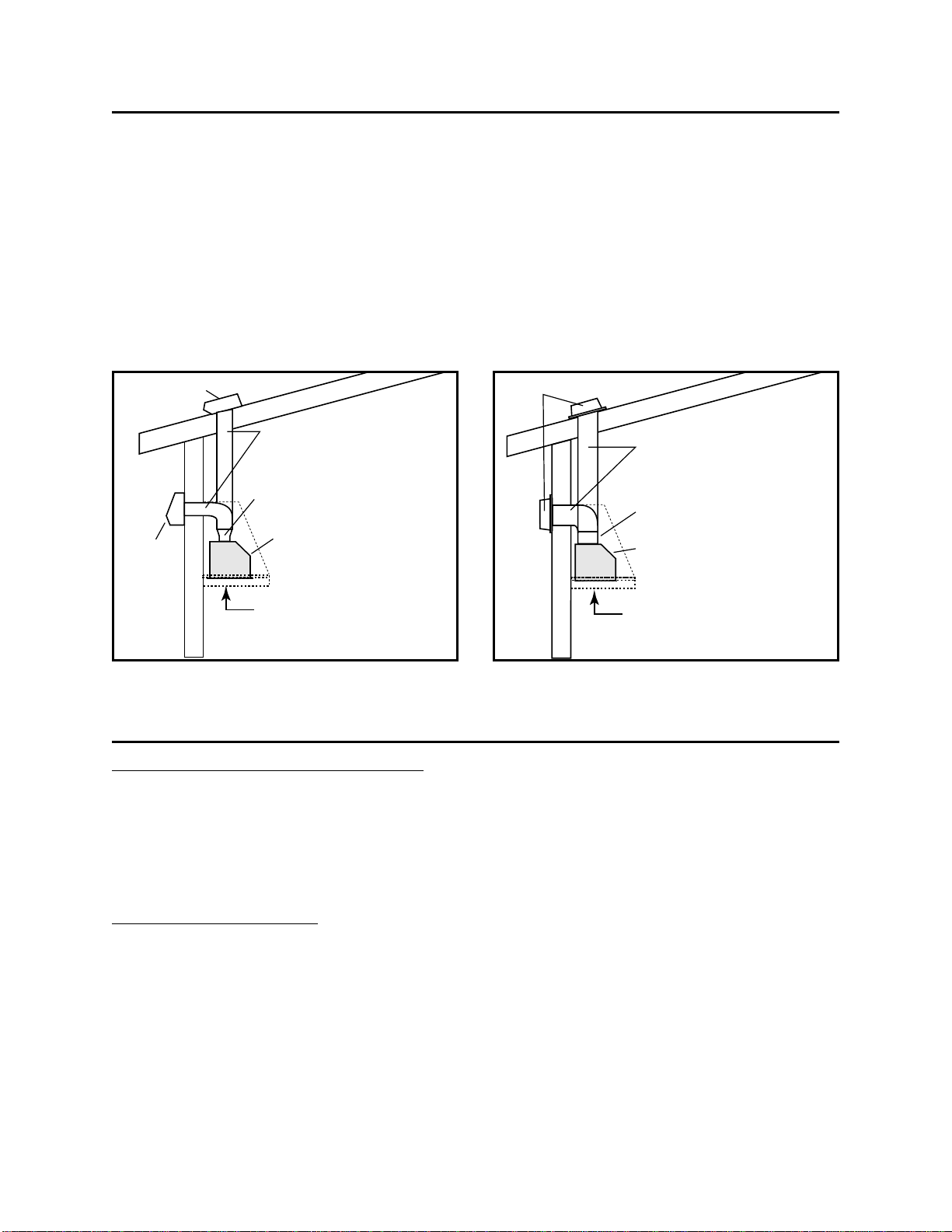

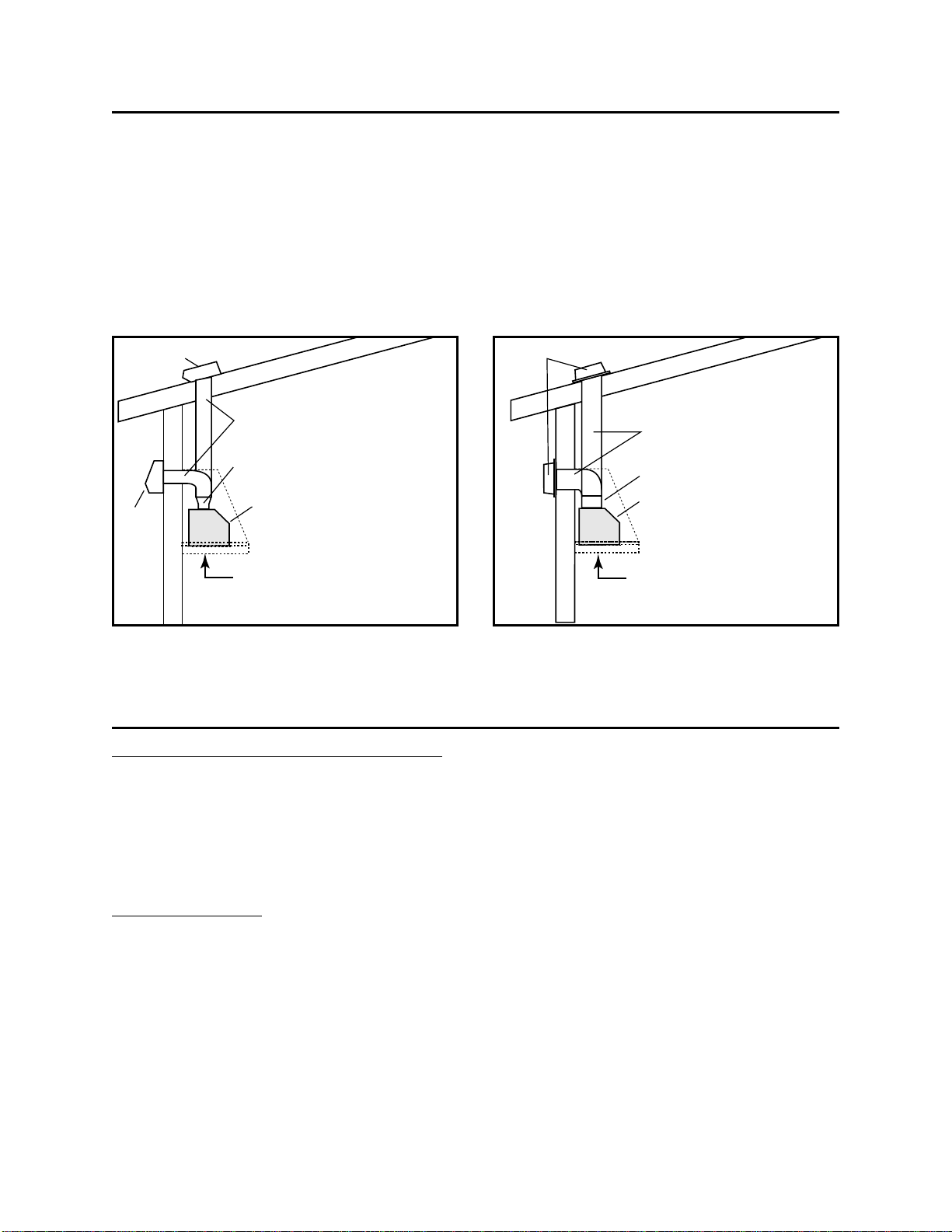

1. SELECT BLOWER OPTION AND INSTALL DUCTWORK
Either an interior or exterior blower may be used with this insert.The insert model PIK33 or PIK45 must be
installed with blower models P5, P8, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted.
(Blowers sold separately).
Plan where and how the ductwork will be installed. Access to the top of the hood is preferred for connection
of ductwork. As an alternative, flexible metal ductwork may be used.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing.Use round
ductwork, with a short section (about 4’ expanded) of flexible metal duct (optional) for attachment to the
transition. Use screws to attach flexible metal duct to the rigid duct. Use 2” duct tape to seal duct joints.
The minimum hood distance above cooktop must not be less than 24”. A maximum of 30” above
cooktop is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion.
Insert with
interior blower
Roof cap
Wall
cap
HH0038A
7”or 8”round ducts
with 7”or 8”round
metal flex. duct (optional)
3 1/4”x 10”to 7”or 8”transition
or 3 1/4”x 14”to 8”transition
24”minimum
above cooking surface
MODEL P5 (SINGLE) OR P8 (DOUBLE)
INTERIOR BLOWER TYPICAL DUCTWORK MODEL EB6, EB9, EB12 OR EB15 EXTERIOR
BLOWER TYPICAL DUCTWORK
Insert with
exterior blower
10”round duct
Exterior blower
HH0039A
24”minimum
above cooking surface
10”round metal flex. duct
(optional)
2. PREPARE THE INSTALLATION
Make sure that the following items are included:
- Insert
- Accessories:
•Baffle filters (3 for PIK33 model, 4 for PIK45 model)
•Chrome rings for lights (2 for PIK33 model, 3 for PIK45 model)
•Bag of parts including:
(4) lock nuts, (1) wire clamp, (8) #8 x 3/4”standard screws, (2) wire connectors,
(2) #6 x 1/2”standard screws, (8) #8 x 3/8”screws. Discard items not used.
Parts sold separately:
- Interior blower Model P5 includes blower, rough-in kit, flow deviator and 3 1/4”x 10”adapter
- Interior blower Model P8 includes blower, rough-in kit, flow deviator and 3 1/4”x 10”adapter
and 3 1/4”x 14”adapter
- Exterior blower assembly EB6, EB9, EB12 or EB15 (all include rough-in plate)
- Halogen lights (120V, 50W, PAR 20)
- Custom hood liner Model L3336, L3336S, L3342, L3342S, L4548, L4548S, L4560 or L4560S (optional)
- Ambient light panel Model ALP30, ALP36, ALP42, ALP48 or ALP60 (optional)
- Backsplash RMP Series (optional)
- WCPI Remote control (optional)
- Transitions, ducts (rigid and flexible), elbows, dampers, wall and roof caps.Refer to page 3 for a complete
list of venting options and model numbers.
NOTE: During installation, protect countertop and/or cooktop.

- 5 -
3. INSTALL BACKSPLASH (OPTIONAL)
It is recommended to install the backsplash before the custom hood insert. The custom hood will cover the
backsplash top mounting screws. In order to be able to install the backsplash, make sure you have at least
18’’ clearance between bottom of custom hood and range control panel or cooktop. (See instructions
packed with backsplash.)

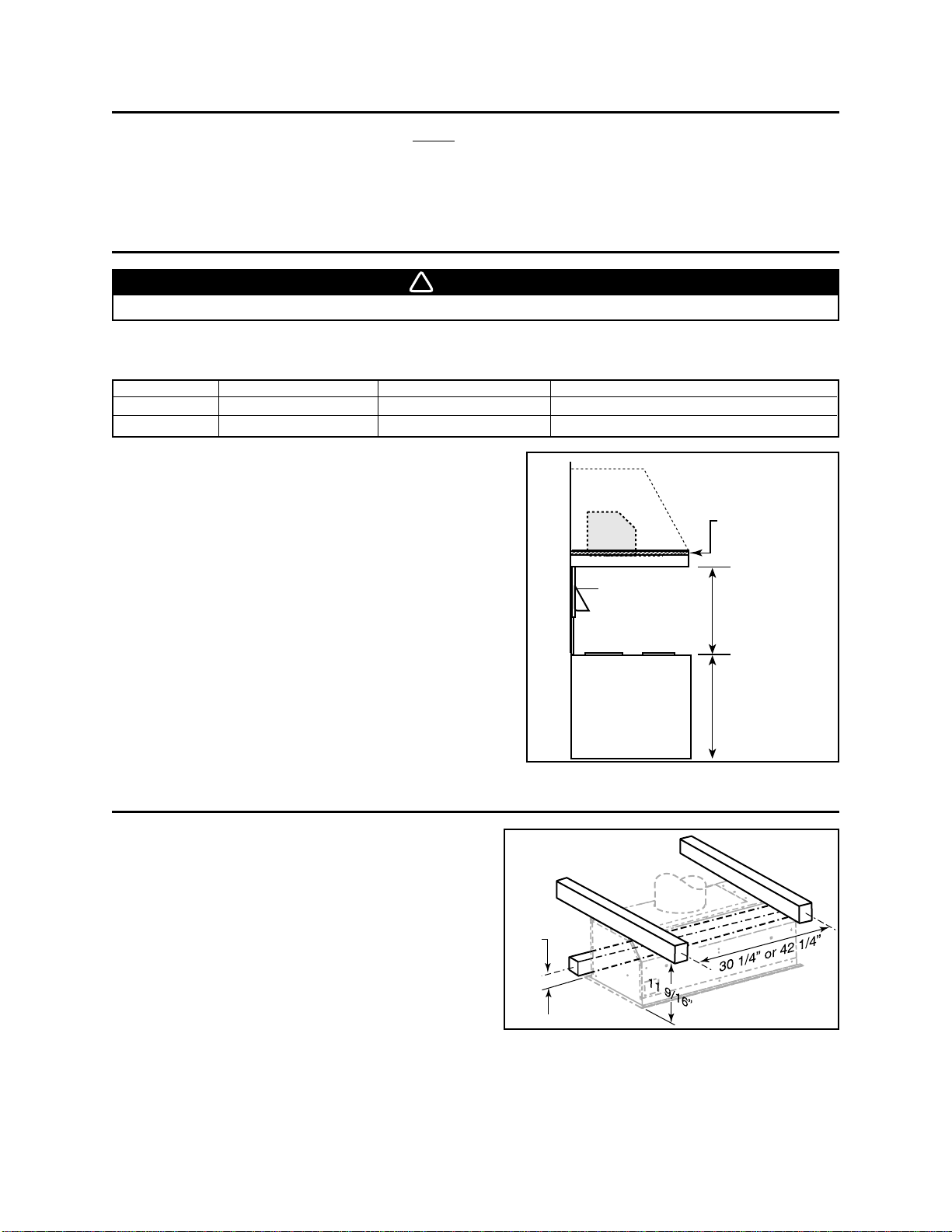

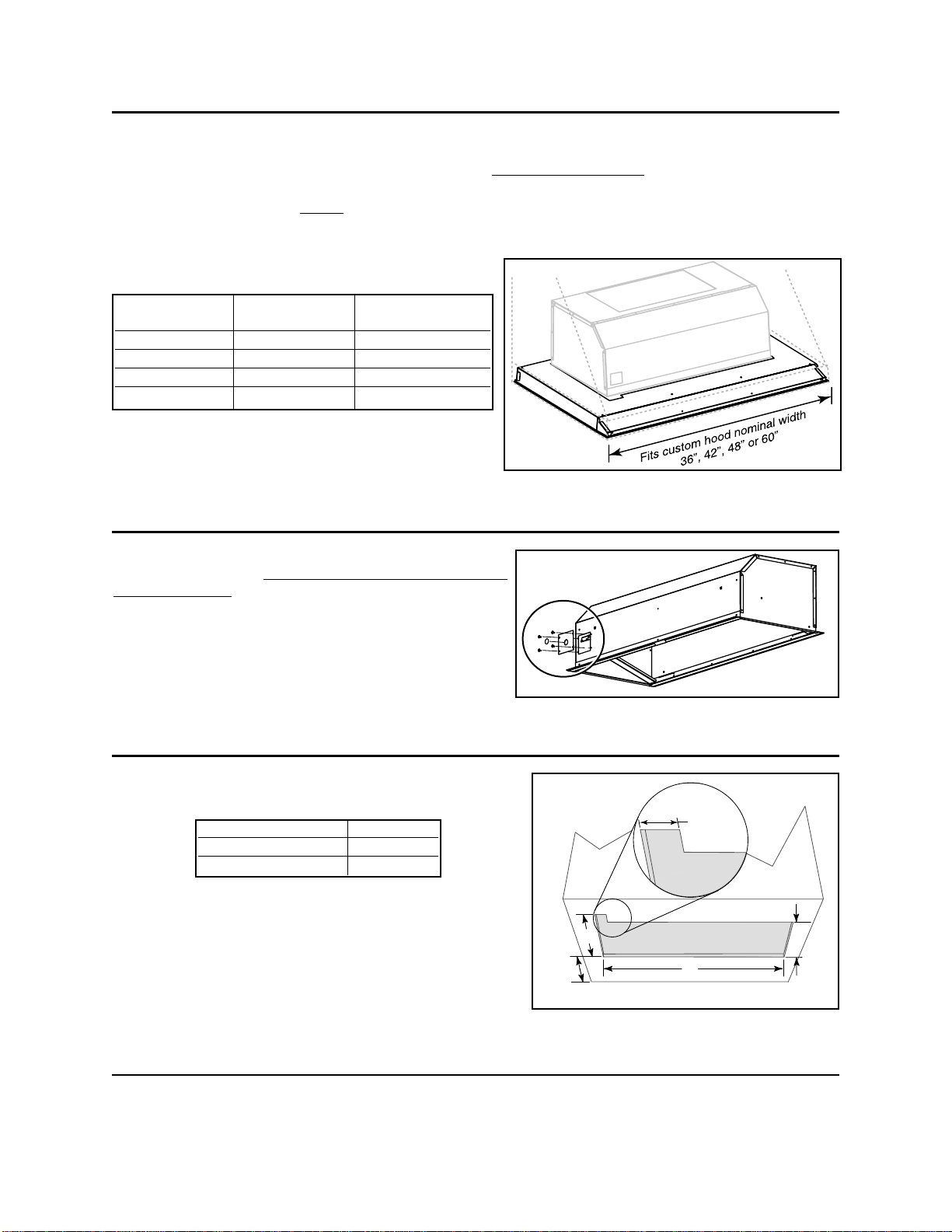

4. CUSTOM HOOD PREPARATION
WARNING
When building a custom hood, always follow all applicable construction codes and standards.
!
The custom hood frame must be sized to the shape and total weight of the insert assembly. Refer to the
table below for total weight of the insert, according to the type of blower choosen.
INSERT MODELS WITH P5 INT.BLOWER WITH P8 INT.BLOWER WITH EXT.BLOWERS (ROUGH-IN PLATE ONLY)
PIK33 45 LBS 53 LBS 31 LBS
PIK45 56 LBS 64 LBS 42 LBS
Start with the custom hood base, because its position will
determine the height of the insert.We recommend the base
of the custom hood should be 3/4 inch thick plywood. If an
optional custom hood liner will be installed, we recommend
the sides and front of the custom hood to be 3/4 inch thick,
assuming standard cabinet widths. If the optional custom
hood liner will not be installed, the custom hood side and
front thickness is at the installer’s discretion.
Run power cable to installation location. Stub out a 4 foot
length of electrical cable below the custom hood.
If the WCPI optional remote control will be installed, run
electrical cable from the insert to the remote control location.
Stub out a 6 inch length from the remote control wall location.
Refer to the remote control installation instruction. Standard 36” h.
cooktop
Backsplash
(Optional)
HH0037A
24” to 30” above
cooking surface
Plywood base
thickness: 3/4”
5. SUGGESTED CUSTOM HOOD INTERNAL FRAMEWORK
The mounting holes for the 2 top stud supports are
located at 11 9/16”up from the insert base. The on
center distance between the 2 studs is 30 1/4”for the
PIK33 insert model and 42 1/4”for the PIK45 insert
model.
The mounting holes for the rear stud support are located
at 1 1/2”up from the insert base.See illustration beside.
Once the custom hood base and frame are done, finalize
the custom hood.
HH0040A
1 1/2”

- 6 -

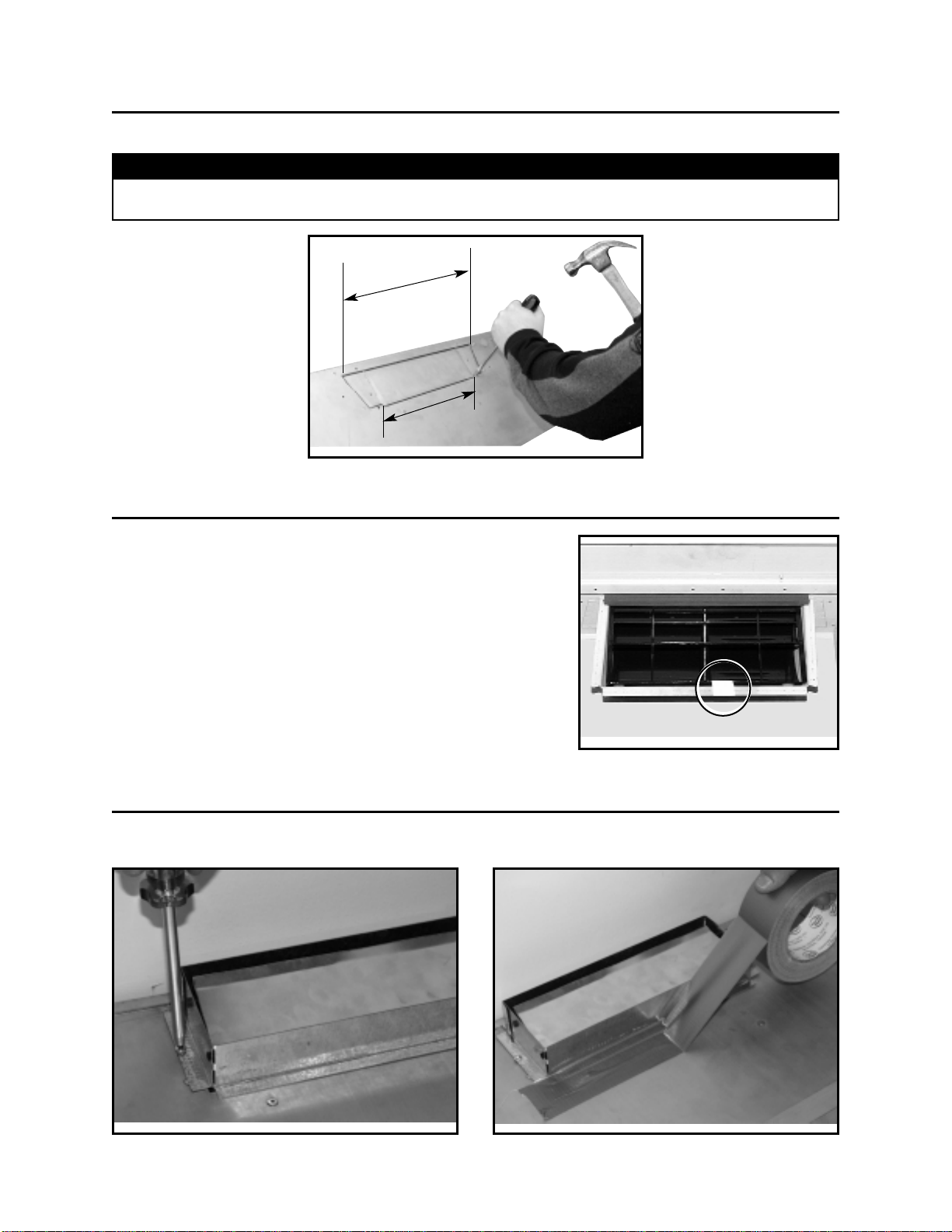

8. CUT THE HOLE IN CUSTOM HOOD BASE
If it is not done yet, cut a hole in the bottom of the cabinet,
using the dimensions shown beside.
NOTES: 1. The notch shown in the inset must be cut only if
theWCPI optional remote control will be installed.
2.The recommended distance from the back to the
rearmost cutout edge is 2 1/4’’ minimum. A
17 1/16''
HD0084
3 1/2''
16 3/8''
2 1/4''
min.
INSERT MODEL NUMBER A
PIK33 32 1/2’’
PIK45 44 1/2’’
6. INSTALL CUSTOM HOOD LINER (OPTIONAL)
The liners are specially designed to protect the exterior base of the custom hood.To order, refer to the table
below to find the right liner model number for your insert and width of custom hood.To view specific model
information, including depths for each liner models, visit www.bestbybroan.com or contact Technical support
(phone number listed on page 14, in warranty text).To install, see instruction packed with custom hood liner.
The liner must be installed before the insert.
NOTE: On some liners models, front liner piece may overlap front insert flange.If so, remove the front liner
piece, assemble insert, and reassemble front liner piece.
LINER MODEL INSERT MODEL CUSTOM HOOD
NOMINAL WIDTH
L3336, L3336S PIK33 36’’
L3342, L3342S PIK33 42’’
L4548, L4548S PIK45 48’’
L4560, L4560S PIK45 60’’
HA0038A
The electrical connection for the remote control is located
in front of the insert. Perform this connection before the
insert installation. For installation details, see installation
instructions included with the WCPI remote control.
7. INSTALL THE WCPI REMOTE CONTROL (OPTIONAL)
HL0044
9. INSTALL BLOWER (EXTERIOR OR INTERIOR)
INTERIOR BLOWER: Follow all subsequent steps of this manual.
EXTERIOR BLOWER: Refer to instructions packed with exterior blower and follow steps 13, 14, 16, 17,
19 and up of this manual.

- 7 -
11. INSTALL THE DEVIATOR (INTERIOR BLOWER)
Install the deviator as shown.
NOTE:To prevent the deviator from sliding out of the rough-in plate,
put some tape on the deviator base after sliding it into the
rough-in plate (provided with the P5 and P8 blower) opening.
If installed correctly, the deviator will protrude about 1/8”
above the rough-in plate.
HD0087
12. INSTALL THE ADAPTER (INTERIOR BLOWER)
Using two (2) #6 x 1/2’’ screws provided with insert, secure the adapter to the top of the rough-in plate.
Remove tape from damper flap. Seal the adapter to the rough-in plate by using duct tape.
HD0005 HD0006
10. REMOVE THE KNOCK-OUT OPENING (INTERIOR BLOWER)
Remove the knockout on rough-in plate. See picture below.
CAUTION
When using P5 blower, remove the 10’’ wide knockout (smaller part). If using P8 blower, remove
the knockout corresponding to the ducting installed (10’’ or 14’’ adapter/damper).
Removing vertical knockout opening on rough-in plate
HD0077
14’’
KNOCKOUT
10’’
KNOCKOUT

- 8 -
13. CONNECT WIRING (INTERIOR & EXTERIOR BLOWER)
Connect cable into wiring box using provided wire connectors.
Connect wires as follow: BLACK to BLACK, WHITE to WHITE
and GREEN or BARE wire under ground screw.DO NOT FORGET
TO CONNECT THE GROUND. Reinstall wiring cover.
WARNING
Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with
all applicable codes and standards. Before connecting wires, switch power off at service panel
and lock service disconnecting means to prevent power from being switched on accidentally.
!
1
HD0007
1) Ground screw
INTERIOR BLOWER: Remove the cable knock-out on the top of the rough-in plate. Remove rough-in plate
wiring cover. Place the wire clamp in the knock-out hole, insert the cable through the wire clamp in the
rough-in plate wiring box.Tighten the wire clamp to secure the cable.
Position insert below the installed custom hood. Pull cable through hole in top of insert.
EXTERIOR BLOWER: Remove rough-in plate wiring cover and connect wiring (see instructions included
with exterior blower).
14. INSTALL THE ROUGH-IN PLATE (INTERIOR & EXTERIOR BLOWER)
INTERIOR BLOWER: Carefully install the rough-in
plate inside the top of the
insert with four (4) lock nuts.
See picture beside.
EXTERIOR BLOWER:Refer to instructions included with EB6, EB9, EB12 or EB15 rough-in kit.Secure the
rough-in plate inside the top of the insert with (4) lock nuts.
HD0042

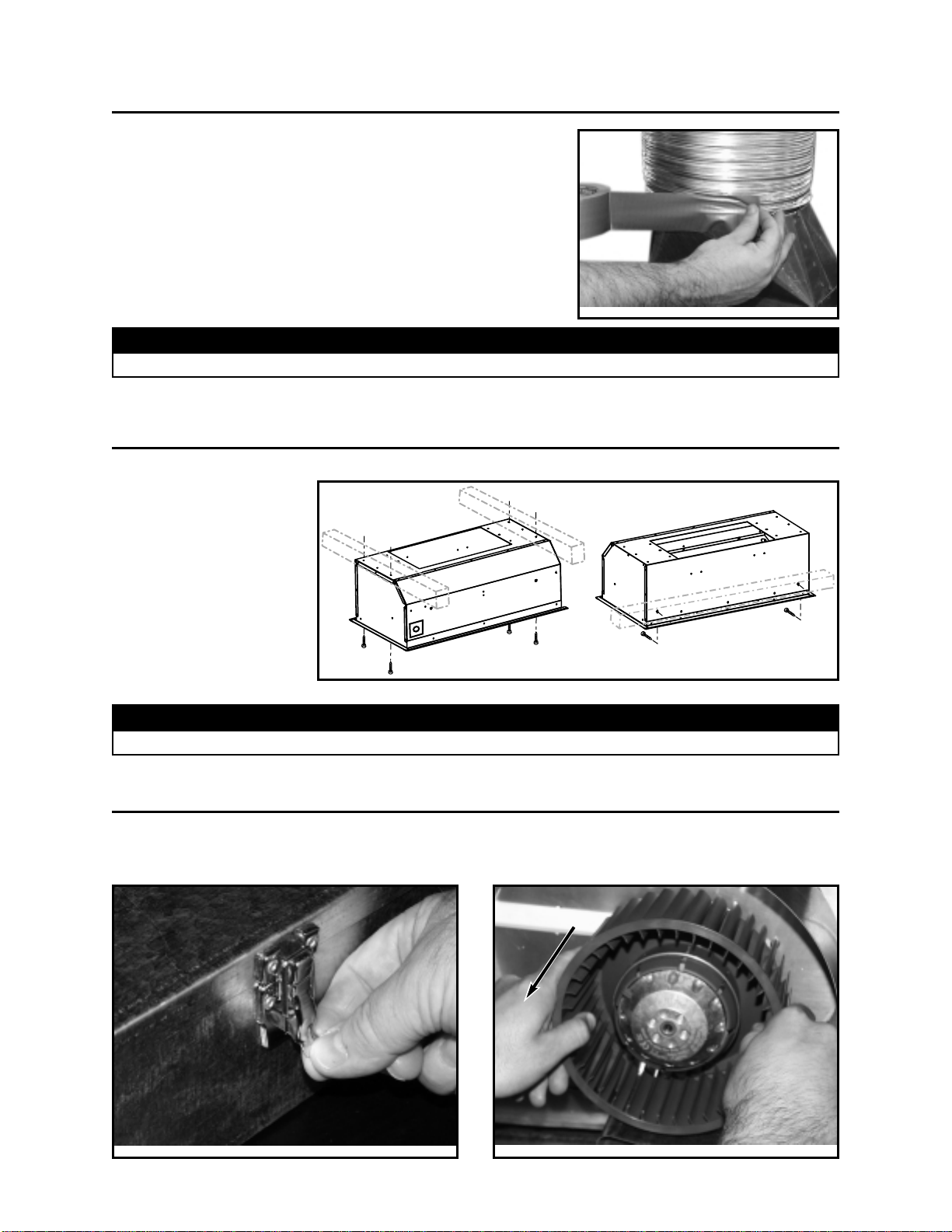

15. INSTALL THE TRANSITION (INTERIOR BLOWER)
Slide the transition over the adapter/damper. Seal the transition to the
adapter/damper by using duct tape.
HD0091

- 9 -
16. DUCTING CONNECTION (INTERIOR & EXTERIOR BLOWER)
A. When there is access to the top of the hood, connect ductwork
and seal connections with duct tape after Step 17 Install the
insert.
B. When there is no access to the top of the hood, carefully pull
down the metal duct through the custom hood base hole. Slide
this duct over the transition (interior blower) or over the flange
of the rough-in plate (exterior blower). Make sure the
adapter/damper assembly enters the ducting.Seal the connection
with duct tape.
HD0092
17. INSTALL THE INSERT
If an optional wall control will be installed, refer to its installation instructions now.When done, continue the
insert installation.
Install the insert inside the
custom hood and secure to the
frame by using the #8 x 3/4”
mounting screws provided.
Start with 4 screws on top
and finish with 2 on rear
side. (See figure beside for
mounting screw specific
locations.)
18. INSTALL THE BLOWER (INTERIOR BLOWER)
The blower must be installed to the rough-in plate using (6) #8 x 3/8” screws for the single blower unit and
(8) #8 x 3/8” screws for the dual blower unit. Remove the cover from the blower assembly. Remove the
impeller(s) by pulling them out gently (see pictures below).
HD0021 HD0022
HD0085 TOP REAR
CAUTION
Take care not to kink ducting or pinch electrical cable when installing insert.
CAUTION
Take care not to kink ducting when installing insert (step 17).

- 10 -
Secure the blower by installing 2 more #8 x 3/8’’ screws for the P5 blower and 4 more #8 x 3/8’’ screws for P8
into the locations shown in the pictures below (single blower or dual blower).Reinstall impeller(s) and cover.
HD0080 HD0081
Single blower (P5) Dual blower (P8)
18. INSTALL THE BLOWER (INTERIOR BLOWER) (CONT’D)
Install (4) #8 x 3/8’’ screws into the location as shown in the pictures below (single blower or dual blower).
Do not tighten screws down fully, leave a 1/8” gap. Hang blower unit onto blower plate (screws through the
large part of the keyhole). Slide the blower to its position (screws in the small part of the keyhole).Tighten
the (4) screws.
HD0044 HD0045
Single blower (P5) Dual blower (P8)
WARNING
Never plug the 2-prong blower cord to the 3-prong power supply cord.
!
FOR DUAL BLOWER UNIT, MAKE
SURE THE IMPELLERS ARE
CORRECTLY INSTALLED, THE
INSERT WILL NOT WORK
PROPERLY IF REVERSED. Both
impellers are different in the dual
blower, one rotates clockwise and
the other counterclockwise. Each
wheel and motor have an arrow and
a number on them, you have to
match them correctly (see drawing
beside).
FRONT
12
HD0023
Plug the power supply to the 3-prong male connector (A) and the
blower unit into the 2-prong female receptacle (B) inside the
insert.
HE0022
A
B

- 11 -
20. INSTALL BAFFLE FILTERS
Baffle filters and impeller(s).
The baffle filters, impeller(s) and grease rail should be cleaned frequently. Use a warm detergent
solution. Baffle filters and impeller(s) are dishwasher safe.
Remove baffle filters by pushing them towards the back of hood and rotating downward.
It is recommended to install side filters first and finish with center
one(s).
NOTE: For PIK45 model, side filters are smaller than center ones.
A vertical arrow with the word AIR can be found on the filters
border. Make sure to install the baffle filters with the arrow pointing
towards the inside of the hood insert. See figure beside.
1. Insert upper end of baffle filter into the insert.
2. Raise lower end of baffle filter to position inside of unit and
push to insert the rear clip inside its slot in baffle back side.
3. While pushing the baffle filter, slide it under the inner retaining
piece.
Make sure the baffle filters are positioned as shown beside in
order to allow the grease to reach the grease rail easily.
HO0014
CAUTION
Remove protective plastic film covering the baffle filters before installing them.
Stainless steel cleaning: How to maintain its « BRIGHT LOOK »
Do:
- Regularly wash surfaces with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
- Always clean in the direction of original polish lines.
- Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
- You may also use a specialized household stainless steel cleaner.
Don’t:
- Do not use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
- Do not use any harsh or abrasive cleansers.
HD0090
3
2
1
21. USE AND CARE
19. LIGHT BULBS
This insert uses 50W halogen lamps. (120V, 50W, PAR 20)
(Purchase separately)
1. Install the lamps by rotating them clockwise into their socket holder.
2. Install chrome rings by pushing upward until they snap in place.
HD0078

- 12 -
22. OPERATION
COOKTOP LIGHTING (HALOGEN)
The light switch turns the halogen lights ON and OFF.
Use PAR 20, 50W halogen bulbs (Purchase separately).
BLOWER
The blower is operated using two (2) controls.
Use the blower speed control to increase or decrease cooktop ventilation. Slide the control to the left to
increase the blower speed - to the right to decrease the blower speed.
The blower ON/OFF switch turns the blower ON to the speed pre-set by the speed control.The blower must
be turned On and OFF using this switch.
1) Light switch
2) Blower speed control
3) Blower ON/OFF switch
1 2 3
HE0019
Always turn your blower on before you begin cooking to establish an air flow in the kitchen. Let the blower
run for a few minutes to clear the air after you turn off the range.This will help keep the whole kitchen cleaner
and brighter.
The insert is operated using the (3) slide controls located beneath the front edge of the insert or the WCPI
optional wall control.
HEAT SENTRY™
This unit is equipped with a Heat Sentry™ thermostat.This thermostat is a device that will turn on or speed
up the blower if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting – it turns the blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
Test all insert switches. If a WCPI remote control is installed, test all its switches.
Finalize the custom hood.
WARNING
The HEAT SENTRY™ can start the blower even if the insert is turned OFF. In this case, it is impossible
to turn the blower OFF with blower switch. If you must stop the blower, do it from the main
electrical panel.
!
21. USE AND CARE (CONT’D)
Don’t (cont’d):
- Do not allow dirt to accumulate.
- Do not let plaster dust or any other construction residues reach the insert. During construction or
renovation, cover the hood to make sure no dust sticks to stainless steel surface.
Avoid: when choosing a detergent
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing : chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are
highly explosive and should never be used close to a range.

- 13 -

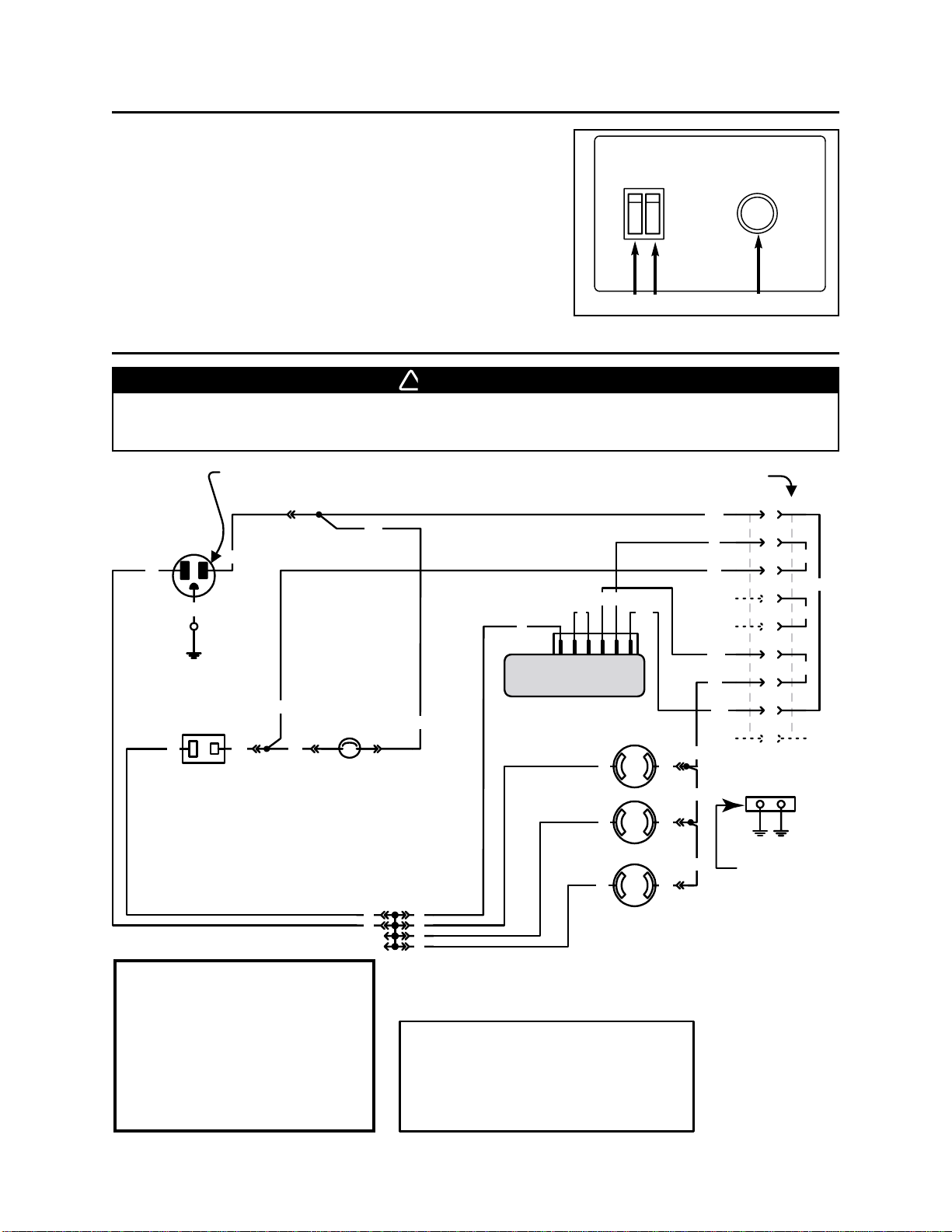

23. WIRING DIAGRAM
WARNING
Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with
all applicable codes and standards. Before connecting wires, switch power off at service panel
and lock service disconnecting means to prevent power from being switched on accidentally.
0!
120V, 60Hz
in
WIRING COLOR CODE
BK BLACK
BN BROWN
BL BLUE
G GREEN
O ORANGE
R RED
W WHITE
Y YELLOW
LIGHT SOCKET LEFT
LIGHT SOCKET CENTER
TERMINAL BLOCK
FAN MOTOR
OUTLET HS
THERMOSTAT
NEMA 5-15P
PLUG Wall control remote by-pass Plug
LIGHT SOCKET RIGHT
NOTE 1
2
3
4
5
6
7
8
1
9
2
3
4
5
6
7
8
1
9
R
R
BK
BK
BK
BK
W
W
W
W
W
W
W
W
G
BK
BK
nc
nc
PCB
123456
O
O
BN
BN
W
R
R
O
BL
W
W
WY
NOTES
1. Light socket not included in PIK33
model.
2. If any of the original wire, as
supplied, must be replaced, use the
same equivalent wire.
3. Field wiring must comply with
applicable codes, ordinances and
regulations.
BK
BK
BK
BK
BK
W
Y
Y
Y
HE0023A
Grounding
plate
Pin #9 is empty
22. OPERATION (CONT’D)
WCPI REMOTE CONTROL (OPTIONAL)
An optional remote control is also available to operate your hood
insert.For installation details, see installation instructions included
with the WCPI remote control.
NOTE: When the WCP1 remote control is connected to the insert,
the control switches on the insert are no longer operational.
HC0006 123
1) Light switch
2) Blower ON/OFF switch 3) Blower speed control

KEY PART MODEL
# NUMBER DESCRIPTION 33 45
BEST LOGO
FILTER CLIP
THERMOSTAT
BOARD ASSEMBLY
SCREW #6-1/2, T/A
MALE CONNECTOR
FEMALE CONNECTOR
SOCKET LAMP
CHROME RING
BEST BAFFLE FILTERS 9.250’’X12.500’’
BESTBAFFLE FILTERS 11.125’’X12.500’’
SWITCH ASSEMBLY, BLACK
HALOGEN LAMP PAR 20 50W
INSTALLATION MANUAL
PARTS BAG ((4) lock nut #10-32, (1)
wire clamp LP16-AP, (2) wire connectors
#74B, (8) #8 x 3/4” screws, (8) #8 x 3/8”
screws, (2) #6 x 1/2" screws)
- 14 -
HL0042

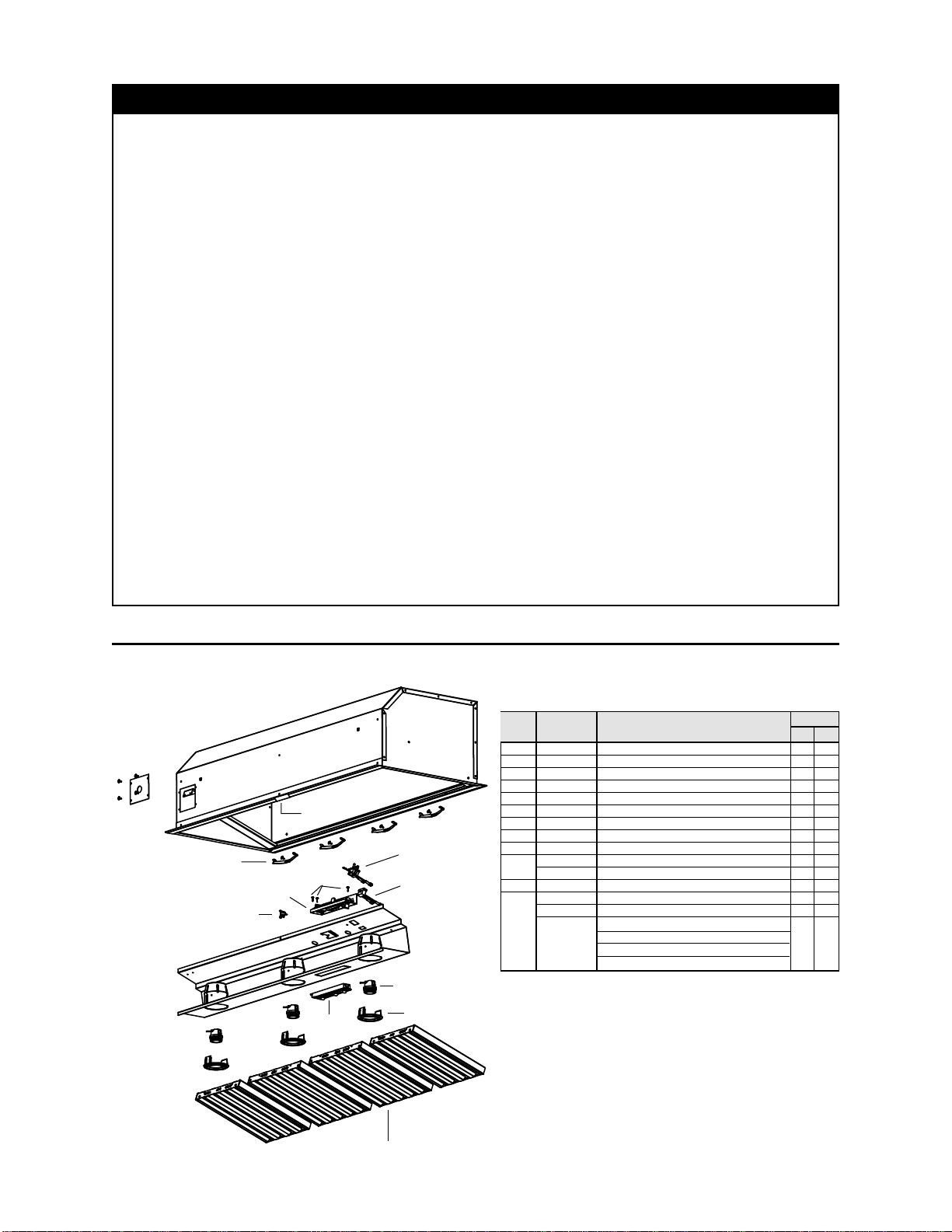

SERVICE PARTS
PIK33 AND PIK45 MODELS
1
26
7
5
4
3
11
89
10
WARRANTY
BROAN ONE-YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such products will be free from
defects in materials or workmanship for a period of one year from the date of original purchase.
THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITEDTO,
IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan will, at its option, repair or replace, without charge, any product or
part which is found to be defective under normal use and service.
This warranty does not cover (a) normal maintenance and service or (b) any products or parts which
have been subject to misuse, negligence, accident, improper maintenance or repair (other than by
Broan), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty.
Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you.
BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN SHALL
NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces
do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state
to state or province to another.This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan at the address or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the
product or part. At the time of requesting warranty service, you must present evidence of the original
purchase date.
Best by Broan, P.O. Box 140, Hartford, WI 53027 (1-800-637-1453)
1
2
3
4
5
6
7
8
9
10
11
V05869
V03686
V03435
V03255
V01964
V02773
V02772
V02264
V03241
V13431
V13432
V12969
V02544
V05852
V03888
11
34
11
11
33
11
11
23
23
32
-2
11
23
11
11

KEY
# PART NUMBER DESCRIPTION QTY
- 15 -

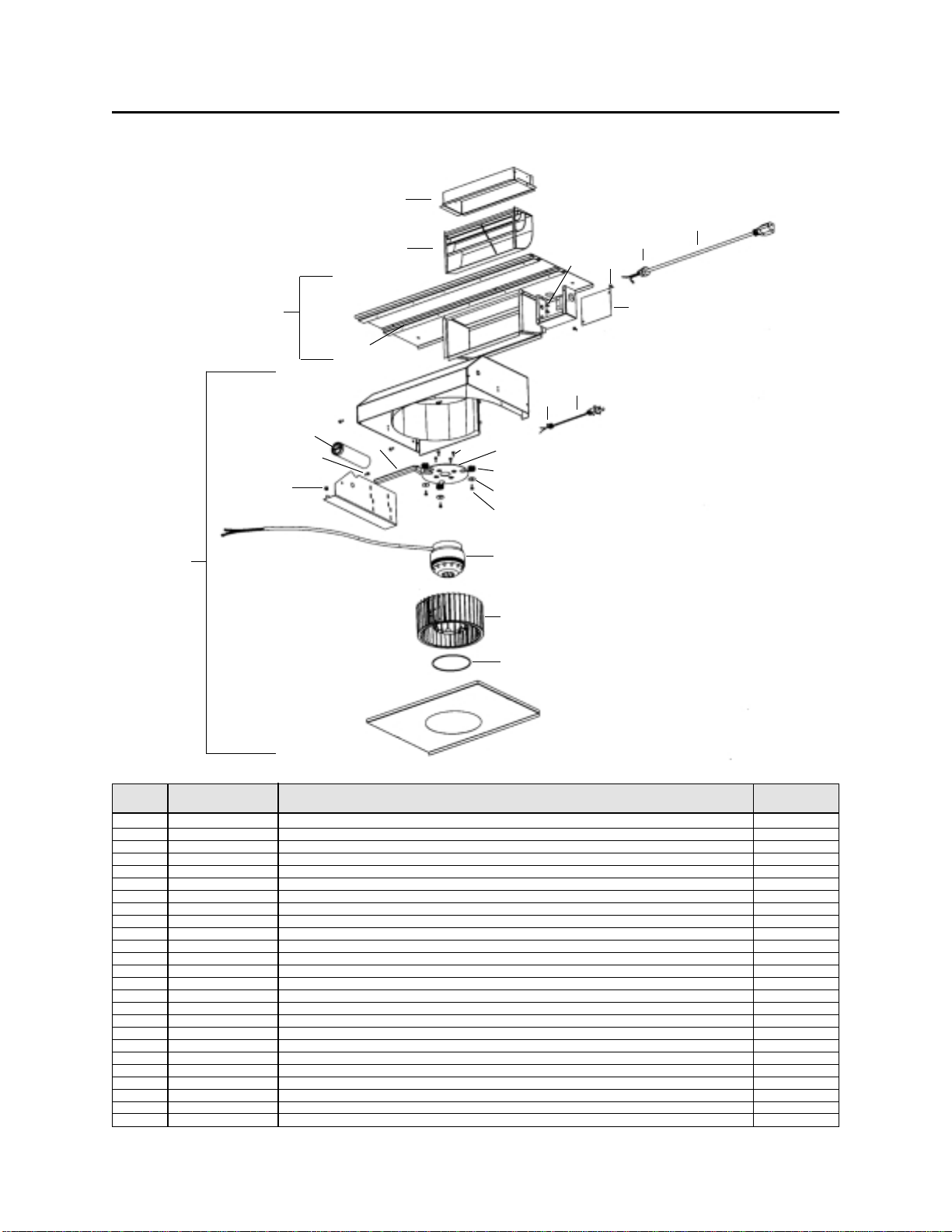

SERVICE PARTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
V13296
V03500
V12997
V03577
V02160
V01869
V01857
V01582
V14973
V01810
V03400
V01766
V00871
V02001
V01831
V11705
V11614
V01927
V03495
V03494
V13230
V03496
V00660
V05520
V00613
1
1
1
1
1
4
1
1
1
1
1
1
3
3
2
1
1
4
1
1
1
1
1
2
2
ADAPTER AND DAMPER 3 1/4’’ x 10’’
AIR DEFLECTOR
SINGLE BLOWER ROUGH-IN PLATE ASSEMBLY
FOAM 1/2” X 1/2” X 12”
CAPACITOR 15MFD
MACHINE SCREW #6-32 X 1/4”
WIRE COVER
LOCK NUT #6-32
SINGLE BLOWER ASSEMBLY
IMPELLER RING
BLOWER IMPELLER 7.094” X 3.375” CW
MOTOR 165W CW
WASHER 3/16”ID X 3/4 OD
MOTOR GROMMET G-431-1
8” TIE WRAP
MOTOR MOUNT
WIRE #18 TEW BROWN X 10”
METRIC SCREW M4 X 6MM PAN QDRX
STRAIN RELIEF FOR BLOWER POWER CORD
36” BLOWER POWER CORD
OUTLET BOX COVER
POWER CORD, 120 VOLTS
STRAIN RELIEF FOR POWER CORD
SCREW #8 X 3/8”, T/B, #8 HEAD
SCREW #10-32 X 3/8, TF, GREEN
SINGLE BLOWER/ROUGH-IN
(Model P5)
HL0021
19
21
18
17
20
22
2
3
23
4
1
9
6
8
515
14
13
6
16
12
7
11
10

HL0022
21
22
23
2
3
20
24
25
1
19
18
17
16
15
13
6
9
10
11
12
14
45
KEY
# PART NUMBER DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
V14971
V13296
V03500
V14975
V03577
V01582
V02160
V01857
V01766
V03400
V14974
V01810
V03399
V03457
V00871
V01831
V11705
V11614
V02001
V01927
V03495
V03494
V14960
V00660
V03496
V05520
V00613
1
1
1
1
1
1
2
2
1
1
1
2
1
1
6
4
2
2
6
8
1
1
1
1
1
4
2
ADAPTER AND DAMPER 3 1/4 ‘’ x 14’’
ADAPTER AND DAMPER 3 1/4 ‘’ x 10’’
AIR DEFLECTOR
DUAL BLOWER ROUGH-IN PLATE ASSEMBLY
FOAM 1/2” X 1/2” X 12”
LOCK NUT #6-32
CAPACITOR 15MFD
WIRE COVER
MOTOR 165W CW
BLOWER IMPELLER, HOOD 7.094” X 3.375” CW
DUAL BLOWER ASSEMBLY
IMPELLER RING
BLOWER IMPELLER, HOOD 7.094” X 3.375” CCW
MOTOR 165W CCW
WASHER 3/16”ID X 3/4 OD
8” TIE WRAP
MOTOR MOUNT
WIRE #18 TEW BROWN X 10”
MOTOR GROMMET G-431-1
METRIC SCREW M4 X 6MM PAN QDRX
STRAIN RELIEF FOR BLOWER POWER CORD
36” BLOWER POWER CORD
OUTLET BOX COVER
STRAIN RELIEF FOR POWER CORD
POWER CORD, 120 VOLTS
SCREW #8 X 3/8”, T/B, #8 HEAD
SCREW #10-32 X 3/8”, TF, GREEN
- 16 -

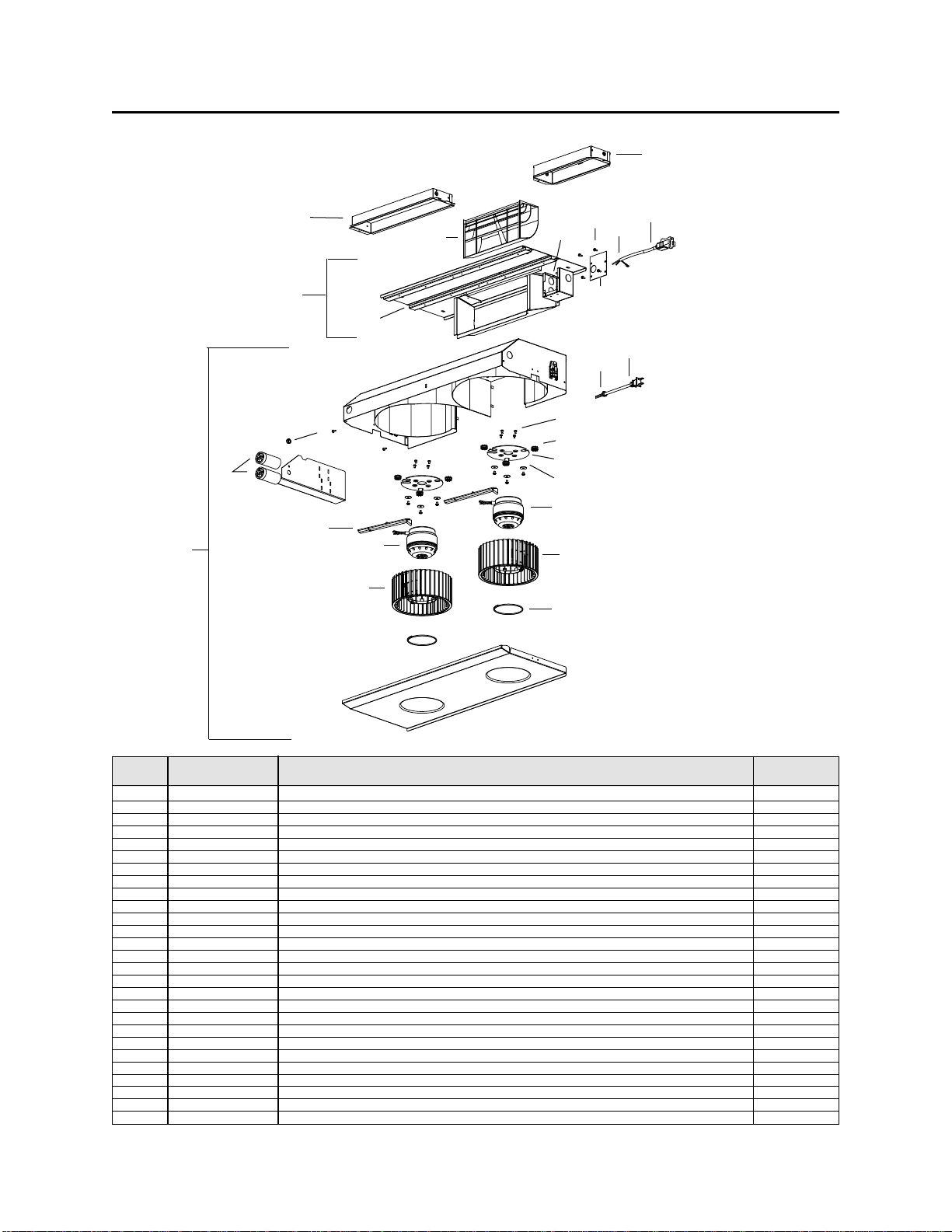

SERVICE PARTS
DUAL BLOWER/ROUGH-IN
(Model P8)
7
8

GUIDE D’INSTALLATION
CONÇUS POUR LA CUISSON DOMESTIQUE SEULEMENT
INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.
PROPRIÉTAIRE :INSTRUCTIONS D’UTILISATION ET D’ENTRETIEN EN PAGES 27 À 29.
BEST BY BROAN P.O. Box 140, Hartford, WI 53027
V05862 rév. E
LIRE ET CONSERVER CES INSTRUCTIONS
!
!
MODÈLES PIK33 ET PIK45
HB0030

- 18 -
AVERTISSEMENT AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE,
D’ÉLECTROCUTION OU DE BLESSURES CORPORELLES,
SUIVEZ LES INSTRUCTIONS SUIVANTES :
1. N’utilisez cet appareil que de la façon prévue par
le manufacturier. Si vous avez des questions,
contactez le manufacturier à l’adresse et au
numéro de téléphone indiqués sur la garantie.
2. Avant de réparer ou de nettoyer l’appareil, couper
l’alimentation électrique en verrouillant le panneau de
service afin d’éviter sa remise en marche accidentelle.
Si le panneau de service ne peut être verrouillé, y
fixer un avertissement en évidence.
3. Les travaux d’installation et de raccordement
électrique doivent être effectués par une personne
qualifiée, conformément aux codes et standards
de construction, incluant ceux concernant le feu.
4. Une quantité d’air adéquate est requise afin d’assurer
une bonne combustion et l’évacuation des gaz par
la cheminée dans le cas des équipements alimentés
au gaz, afin de prévenir les retours de cheminée.
Conformez-vous aux instructions et aux standards
de sécurité des manufacturiers d’équipement de
chauffage, tel que publiés par le National Fire
Protection Association (NFPA), et l’American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), ainsi que les
responsables des codes locaux.
5. Lorsque vous coupez ou perforez un mur ou un
plafond, prenez garde de ne pas endommager
les fils électriques ou tout appareil cachés.
6. Les ventilateurs avec conduits doivent toujours
être ventilés à l’extérieur.
7. Ne pas utiliser cet appareil avec une commande
de vitesse à semiconducteur autre que le contrôle
mural optionnel WCPI.
8. Afin de réduire les risques d’incendie, n’utilisez
que des conduits de métal.
9. Cet appareil doit être mis à la terre.
AFIN DE RÉDUIRE LES RISQUES DE FEU
DE CUISINIÈRE :
a) Ne jamais laisser les appareils de cuisson sans
surveillance lorsqu’ils sont réglés à feu vif. Les
débordements engendrent de la fumée et des
déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, à feu doux ou moyen.
b) Toujours mettre la hotte en marche lorsque vous
cuisinez à feu vif ou que vous cuisinez des
mets flambés.
c) Nettoyez régulièrement la (les) roue(s) du ventilateur.
Ne laissez pas la graisse s’accumuler sur le ventilateur
ou les filtres.
d) Utilisez le bon format de casserole. Servez-vous
toujours de casseroles et d’ustensiles appropriés à
la dimension de la surface chauffante.
AFIN D’ÉVITER TOUT RISQUE DE BLESSURES
DANS LE CAS D’UN FEU DE CUISINIÈRE, SUIVEZ
CES INSTRUCTIONS* :
1. Étouffez les flammes avec un couvercle hermétique,
une tôle à biscuits ou un plateau métallique et
ensuite, éteindre le brûleur. PRENEZ SOIN
D’ÉVITER LES BRÛLURES. SI LES FLAMMES
NE S’ÉTEIGNENT PAS IMMÉDIATEMENT,
ÉVACUEZ LES LIEUX ET APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS UNE CASSEROLE EN
FLAMMES DANS VOS MAINS – Vous pourriez
subir des brûlures.
3. N’UTILISEZ PAS D’EAU, incluant linge à vaisselle
ou serviette mouillés – ceci pourrait occasionner
une violente explosion.
4. N’utilisez un extincteur QUE DANS LE CAS OÙ :
A. Voussavezqu’il s’agit d’un extincteurde classe ABC
et que vous en connaissez le fonctionnement.
B. L’incendie est petit et limité à l’endroit où il a débuté.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre l’incendie en ayant
accès à une sortie de secours.
*Tirées du “Kitchen Fire SafetyTips” publié par la NFPA.
ATTENTION
1. Pour usage domestique seulement. Ne pas utiliser
pour évacuer des vapeurs ou des produits
dangereux ou explosifs.
2. Afin d’éviter tout dommage au moteur et de débalancer
ou de rendre bruyante la roue du moteur, garder votre
appareil à l’abri des poussières de placoplâtre
et de construction/rénovation, etc.
3. Le moteur de votre module de hotte encastrable
possède une protection thermique qui éteindra
automatiquement le moteur s’il devient surchauffé. Le
moteur repartira automatiquement une fois refroidi.Si le
moteur continue à arrêter et à repartir, faites-le vérifier.
4. La distance minimale entre le bas de votre hotte et
la surface de cuisson ne doit pas être plus petite
que 24”.Un maximum de 30’’au dessus de la surface
de cuisson est fortement recommandé pour une
meilleure évacuation des odeurs de cuisine.
5. Deux installateurs sont recommandés lors de
l’installation du à la grande dimension et au poids
de cet appareil.
6. Afin de réduire les risques d’incendie, assurez-
vous d’évacuer l’air à l’extérieur – Ne pas évacuer
l’air dans des espaces restreints comme l’intérieur
des murs ou plafond ou dans le grenier, faux
plafond ou garage.
7. Cet appareil est équipé d’un thermostat pouvant
faire démarrer le ventilateur automatiquement.Afin
de réduire le risque de blessure, couper le courant à
partir du panneau électrique et verrouiller ou apposer
un avertissement sur le panneau afin de prévenir
que la hotte soit mise en marche automatiquement.
8. À cause de la grande capacité d’évacuation de cet
appareil, il est recommandé d’ouvrir une fenêtre dans
ou près de la cuisine afin de remplacer l’air évacué.
9. Afin de réduire les risques d’incendie et d’électrocution,
les modèles PIK33 et PIK45 doivent être installés
uniquement avec un des ventilateurs suivants : P5,
P8, EB6, EB9, EB12 ou EB15 (vendus séparément).
Aucun autre ventilateur ne doit être utilisé.
10. Ce module de hotte encastrable ne doit être utilisé
seulement qu’avec un ensemble de cordon
d’alimentation approuvé.
11. Veuillez consulter l’autocollant apposé à l’intérieur du
produit pour plus d’information ou autres exigences.
!
!

HL004
1
- 19 -
Dosseret Série RMP
(Recouvrement de mur
en acier inoxydable
avec support assiettes.)
Adaptateur et
volet 3 1/4” x 10” (fourni avec
ventilateurs P5 et P8)
Adaptateur
et volet 3 1/4” x 14”
(fourni avec ventilateur P8)
Modèle P5
ventilateur simple
(500 pcm)
Contrôle mural WCPI
(optionnel)
Modèle P8
ventilateur double (900 pcm)
NOTE : Le ventilateur double P8 peut
être installé autant avec des
conduits ronds de 7” que des
conduits ronds de 8”. Pour une
performance optimale au niveau
sonore et de la ventilation, utiliser
des conduits ronds de 8”.
Plaque ventilateur fournie
avec ventilateurs P5 et P8
Plaque ventilateur
extérieur (incluse avec
EB6, EB9 EB12 et EB15)
MODULE DE HOTTE
ENCASTRABLE
PIK33 OU PIK45
MODÈLES PIK33 ET PIK45
SYSTÈME DE MODULE DE HOTTE ENCASTRABLE
Modèle 407
(Conduit de7”
rond section
de 24’’)
Modèle 412
transition
(3 1/4” x 10” à 7”)
Modèle 643
(Capuchon de mur 8” rond)
Ventilateur extérieur
modèle EB6 (600 pcm)
ou EB9 (900 pcm)
Ventilateur extérieur
modèle EB12 (1200 pcm)
ou EB15 (1500 pcm)
Déviateur d’air
(fourni avec les ventilateurs P5 et P8) Revêtement d’armoire (optionnel)
L3336, L3342, L4548, L4560,
L3336S, L3342S, L4548S ou L4560S
Panneau d’éclairage
d’ambiance (optionnel)
ALP30, ALP36, ALP42, ALP48 ou ALP60
Modèle 647
(Capuchon
de mur
7” rond)
Modèle 634 ou 644
(Capuchon de toit)
Conduit
standard de
8” rond
Modèle 413
transition
(3 1/4” x
10” à 8”)
Modèle 418
Coude ajustable
de 10” (optionnel)
Modèle 415
Coude ajustable
de 7” (optionnel)
Coude ajustable
de 8” (optionnel)
Modèle 421
(Volet intérieur
10” rond vert.)
Modèle 410
(Conduit de 10” rond
standard section de 2’)
Conduit de
métal flexible
de 7”rond
(optionnel)
Conduit de
métal flexible
de 8” rond
(optionnel)
Conduit de
métal flexible
de 10” rond
(optionnel)
Modèle 459
transition
(3 1/4” x 14” à 8”)

- 20 -
1. SÉLECTIONNEZ L’OPTION VENTILATEUR ET NSTALLER LES CONDUITS
Ce module de hotte encastrable fonctionne autant avec un ventilateur intérieur qu’extérieur. Le modèle de
module de hotte encastrable PIK33 ou PIK45 doit être installé uniquement avec l’un des ventilateurs suivants :
P5, P8, EB6, EB9, EB12 ou EB15 (vendus séparément). Aucun autre ventilateur ne peut être utilisé.
Déterminer à quel endroit et de quelle façon les conduits seront installés.Il est préférable de garder un accès au
dessus de la hotte pour le raccordement des conduits.Sinon, des conduits de métal flexibles peuvent être utilisés.
Utiliser des vis pour fixer le conduit de métal flexible au conduit rigide. Installer des conduits de bonnes
dimensions, coude(s) et capuchon de mur ou de toit selon le type de ventilateur. Utiliser des conduits circulaires
avec une petite section de conduit de métal flexible (environ 4’ étiré) (optionnel) pour le raccordement à la
transition. Utiliser du ruban adhésif en toile pour assurer l’étanchéité des joints.
La distance minimale entre le bas de votre hotte et la surface de cuisson ne doit pas être plus petite
que 24”. Un maximum de 30’’au dessus de la surface de cuisson est fortement recommandé pour une
meilleure évacuation des odeurs de cuisine.
Une distance de plus de 30” demeure à la discrétion de l’installateur et de l’utilisateur.
Module de hotte
encastrable avec
ventilateur intérieur
Capuchon de toit
Capuchon
de mur
HH0038F
Conduits ronds de 7”ou 8”
avec conduit de métal flex.
de 7”ou 8”rond (optionnel)
Transition de 3 1/4”x 10”
à7”ou 8”ou transition de
3 1/4”x 14”à8”
Minimum de 24''
au-dessus de la
table de cuisson
INSTAL.TYPIQUE AVEC VENTILATEUR INT.
MODÈLE P5 (SIMPLE) OU P8 (DOUBLE) INSTAL. TYPIQUE AVEC VENTILATEUR
EXT. MODÈLE EB6, EB9, EB12 OU EB15
Module de hotte
encastrable avec
ventilateur extérieur
Conduit rond de 10”
Ventilateur extérieur
HH0039F
Minimum de 24''
au-dessus de la
table de cuisson
Conduit métallique
flexible de 10”rond
(optionnel)
2. PRÉPARER L’INSTALLATION
S’assurer que les items suivants sont inclus :
- Module de hotte encastrable
- Accessoires :
•Filtres àchicane (3 pour le modèle PIK33, 4 pour le modèle PIK45)
•Anneaux de chrome pour les ampoules (2 pour le modèle PIK33, 3 pour le modèle PIK45)
•Sac de pièces incluant:
(4) écrous dentelés, (1) serre-fils, (8) vis #8 x 3/4”standards, (2) connecteurs (genre “marette”),
(2) vis #6 x 1/2”standards, (8) vis #8 x 3/8”. Jeter la quincaillerie non utilisée.
Pièces vendues séparément :
- Ventilateur interne modèle P5 incluant ventilateur, plaque ventilateur, déviateur et adaptateur 3 1/4”x 10”
- Ventilateur interne modèle P8 incluant ventilateur, plaque ventilateur, déviateur et adaptateur 3 1/4”x 10”
et adaptateur 3 1/4”x 14”
- Ensemble ventilateur extérieur modèles EB6, EB9, EB12 ou EB15 (tous incluant la plaque ventilateur)
- Ampoules halogènes (120V, 50W, PAR 20)
- Revêtement d’armoire modèle L3336, L3336S, L3342, L3342S, L4548, L4548S, L4560 ou L4560S (optionnel)
- Panneau d’éclairage d’ambiance modèle ALP30, ALP36, ALP42, ALP48 ou ALP60 (optionnel)
- Dosseret série RMP (optionnel)
- Contrôle mural WCPI (optionnel)
- Transitions, conduits (rigides et flexibles), coudes, volets, capuchons de mur ou de toit.Consuler la page 19 pour
la liste complète des accessoires de ventilation et les numéros de modèle.
NOTE : Lors de l’installation, protéger la table de cuissson et/ou le comptoir de cuisine.
