SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
HK0077
HB0035
70D 99043330C
Especiallydesignedtobeinstalledinoutdoorcustom
hood for use over residential commercial-style
cooking surfaces or gas and electric grills. This unit
is not for use with a charcoal grill.
A complete installation requires several optional
components. Refer to page 2 when planning your
installation.
FEATURES
•Corrosion resistant 316 Stainless Steel construction
•UL Listed for use in damp locations when properly connected
to a GFCI circuit.
•Cabinet mount _ custom application
•Insert width: 33’’
•Halogen lighting (2 x 50 watt GU10) lamps not included
•Switch controls: Lighting, on-off, and infinite speed
•Easily accessible, dishwasher-safe stainless steel
baffle filters
•Heat Sentry™ turns blower ON to HIGH speed when
excess heat is detected
OPTION
•Custom hood liners (L3336D and L3348D Series):
Widths - 36’’ and 48’’
Adjustable depth - see liner spec sheet for details
Corrosion resistant 316 Stainless Steel construction - protects
custom hood base and wipes clean easily
•Designed for use with either interior blower (Model P8D), in-
line blower (Model ILB11), or exterior blower (Model EB12 or
EB15)

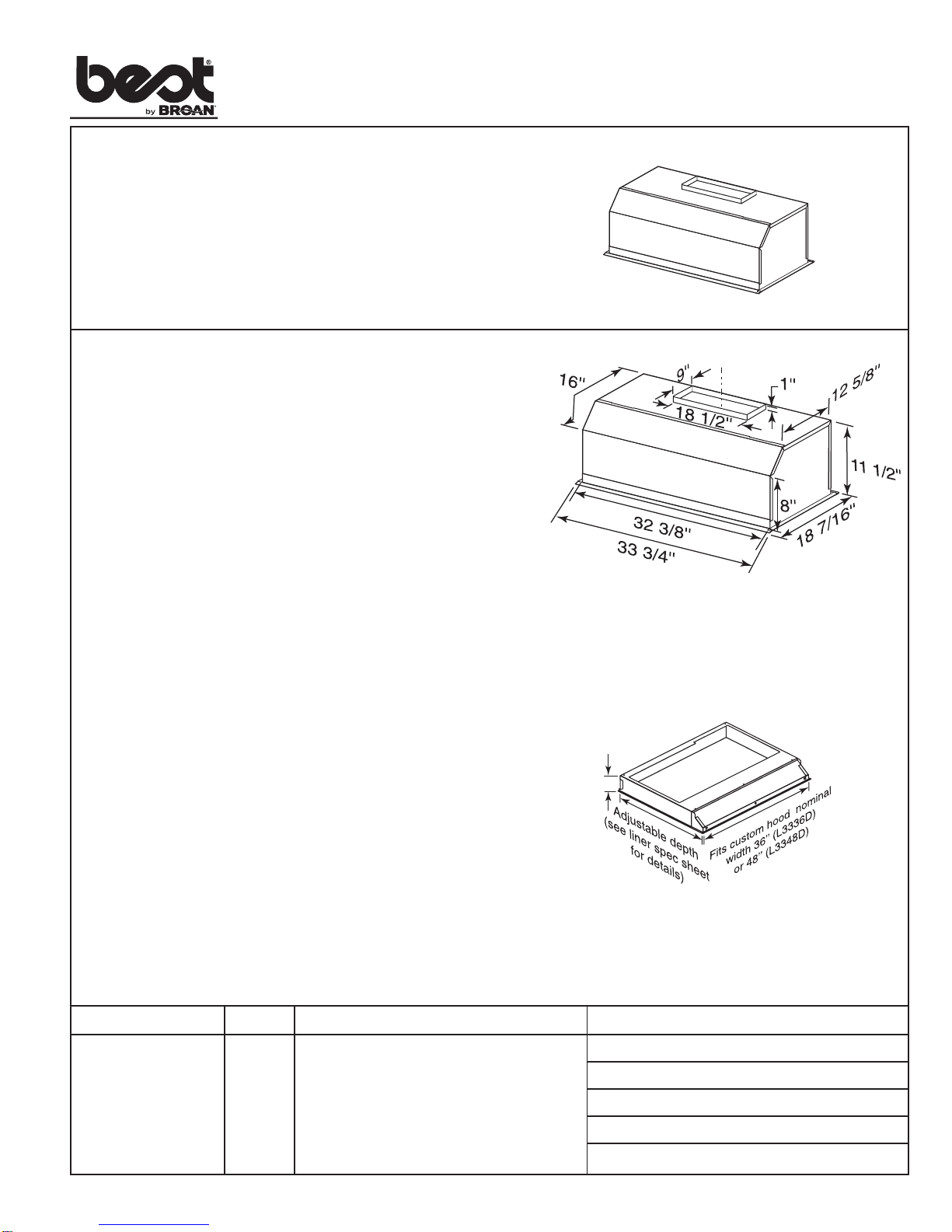

INSERT SPECIFICATIONS
120 VAC, 60 Hz
Amps (without blower): 0.8 A
Mount insert so bottom of custom hood is 36’’ to 42’’
above cooking surface.
PIK33D SERIES
INSERT
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
Custom Hood Liner
L3336D and L3348D Series
HA0043A
4''

32 1/2''
10 3/4''
16 1/2''
2 1/4''
min.
11/16''
HH0043
1 1/2”
NOTE: If optional L3336D or L3348D series liner is used,
refer to installation instructions for size and location
of the cut-out.
Suggested Custom Hood Internal Framework
PIK MOUNTING
SIZE OF THE CUT-OUT
HL0080
L3336D or L3348D
Custom Hood Liner (optional)
Model 418
10” round adjustable
elbow (optional)
PIK33D INSERT
PIK33D
INSERT SYSTEM
Model EB12
(1200 cfm) or
EB15 (1500 cfm)
exterior blower
Flow deviator
(supplied with interior blower P8D)
Model 421
(10” Round vert.
in-line damper)
Recommended
for use with
exterior blowers
Model SV03428 transition
(9” x 18” to 10” round) (included)
10” round metal
flexible duct
(optional)
Dual-blower P8D
(sold separately)
Rough-in plate (supplied
with interior blower P8D)
Model 441
(10” Round
wall cap)
Model 437
(High capacity roof cap)
Model ILB11 (1100 cfm)
in-line blower (includes two 8” x 12”
to 10’’ round transitions)
Model 410
(10” Round duct
—2 ft. sections)

HB0035
MODELPIK33DWITHP8D, EB12OREB15BLOWER
(Vertical outlet)
PIK33D INSERT
BLOWER DUCTING
POSITION
Rear view
C
L
16 1/8’’
7’’ 18’’
9’’
3/4’’
10’’ round transition
7 1/2’’ 1 1/2’’
4 15/16’’ Two 7/8’’ diameter wiring holes
Top view
