Best WP29M SERIES User manual

WP29M SERIES
HB0058
INSTALLATION INSTRUCTIONS
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE AND OPERATION INFORMATION
ON PAGES 11 AND 12.
READ AND SAVE THESE INSTRUCTIONS
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
To register your product online or for additional information visit www.BestRangeHoods.com
SV07693 rev. 11
! !

2
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional solid-state speed
control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise more
restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expenses.
TO REDUCETHE RISK OF A RANGETOP GREASE FIRE:
a) Never leave surface units unattended at high settings.Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn power pack ON when cooking at high heat or
when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Your range hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated. The
motor will restart when it cools down. If the motor continues to
shut off and restart, have the range hood serviced.
5. For best capture of cooking impurities, the bottom of the hood
should be at a minimum of 24” and at a maximum of 36” above
the cooking surface.
6. Two installers are recommended because of the large size and
weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to
duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.
8. This product is equipped with a thermostat which may start
blower automatically.To reduce the risk of injury and to prevent
power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
9. Because of the high exhausting capacity of this hood, you
should make sure enough air is entering the house. Use an
appropriate make-up air device or open a window close to or
in the kitchen.
10. To reduce the risk of fire and electric shock, the Best WP29M
Series hood must be installed with Best interior blower models
iQ6, P3, P6, iQ12 or P12; Best exterior blower models EB6,
EB9, EB12 or EB15; Best inline blowers models ILB3, ILB6,
ILB9, ILB11. Other blowers cannot be substituted. (Blowers
sold separately.)
11. Please read specification label on product for further
information and requirements.
WARNING
!
CAUTION
TO REDUCE THE RISK OF INJURYTO PERSONS INTHE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner.BE CAREFULTO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
WARNING
!

3
HL0218
- WP29M SERIES RANGE HOOD SYSTEMS -
INTERIOR BLOWERS
MODEL 441
(10” ROUND WALL CAP)MODEL 643
(8” ROUND WALL CAP)
MODEL 421
(10” ROUND VERTICAL
IN-LINE DAMPER,
INCLUDED WITH IQ12 AND P12
BLOWER/ROUGH-IN KIT)
MODEL 437
(HIGH CAPACITY ROOF CAP)
8” ROUND ADAPTER/DAMPER
(INCLUDED WITH IQ6, P3 AND P6
BLOWER/ROUGH-IN KIT)
8” ROUND
STANDARD DUCT
8” ROUND
ADJUSTABLE ELBOW,
OPTIONAL
MODEL 634 OR 644
(ROOF CAP)
MODEL 418
(10” ROUND
ADJUSTABLE ELBOW,
OPTIONAL)
MODEL 410
(10” ROUND DUCT—
2 FT. SECTIONS)
OPTIONAL
DECORATIVE FLUE
AEWP SERIES
NON-DUCT KIT FLUE
ANKWP SERIES
MODEL iQ12 OR P12
BLOWER/ROUGH-IN KIT
(1200 CFM INTERIOR BLOWER &
ROUGH-IN PLATE)
MODEL iQ6, P3 OR P6
BLOWER/ROUGH-IN KIT
(600 CFM (EXCEPT 300 CFM
FOR P3) INTERIOR BLOWER
& ROUGH-IN PLATE)
NOTE: For a non-ducted installation, we
recommend the non-duct kit flue
ANKWP Series be installed with
model IQ6, P3 or P6 Blower/Rough-in
kit for effectiveness.
WP29M SERIES HOOD
(CANOPY WITH BLOWER
CONTROLS & LIGHTING.
REQUIRED FOR ALL INSTALLATIONS.)

4
HL0219
- WP29M SERIES RANGE HOOD SYSTEMS -
IN-LINE AND EXTERIOR BLOWERS
MODEL 441
(10” ROUND WALL CAP)
MODEL 643
(8” ROUND
WALL CAP)
MODEL 421
(10” ROUND VERTICAL
IN-LINE DAMPER)
RECOMMENDED FOR USE
WITH EXTERIOR BLOWERS.
MODEL 437
(HIGH CAPACITY ROOF CAP)
MODEL 418
(10” ROUND
ADJUSTABLE ELBOW,
OPTIONAL) MODEL 410
(10” ROUND DUCT—
2 FT. SECTIONS)
OPTIONAL
DECORATIVE FLUE
AEWP SERIES
WP29M SERIES HOOD
(CANOPY WITH
BLOWER CONTROLS & LIGHTING.
REQUIRED FOR ALL INSTALLATIONS)
MODEL 441
(10” ROUND
WALL CAP)
MODEL ILB9 (800 CFM)
OR ILB11 (1100 CFM)
IN-LINE BLOWER
(INCLUDES TWO 8” X12” TO
10” ROUND TRANSITIONS)
MODEL ILB6 (600 CFM)
IN-LINE BLOWER
(INCLUDES TWO 4½” X18½”
TO 10” ROUND TRANSITIONS)
MODEL ILB3 (280 CFM)
IN-LINE BLOWER
(INCLUDES ONE 8” TO 10”
ROUND TRANSITION)
MODEL EB6 (600 CFM)
OR EB9 (900 CFM)
EXTERIOR BLOWER
MODEL EB12 (1200 CFM)
OR EB15 (1500 CFM)
EXTERIOR BLOWER
IN-LINE AND EXTERIOR
BLOWER ROUGH-IN KIT
(INCLUDED WITH EB6, EB9,
EB12, EB15, ILB3, ILB6,
ILB9 AND ILB11 BLOWERS)

5
1. SELECT BLOWER OPTION AND INSTALLATION TYPE
8”ROUND DUCT
ROOF CAP
24”TO 36”
ABOVE COOKING SURFACE
WALL CAP
HOOD
DECORATIVE
FLUE
OR SOFFIT
6”
OR
12”
HH0205A
HOOD
DECORATIVE
FLUE OR SOFFIT
10” ROUND DUCT
ROOF
CAP
HH0206A
24” TO 36” ABOVE
COOKING SURFACE
WALL
CAP
6”
OR
12”
MODEL iQ6, P3 OR P6
SINGLE INTERIOR BLOWER
TYPICAL DUCTWORK
MODEL iQ12 OR P12
DUAL INTERIOR BLOWER
TYPICAL DUCTWORK
EXTERIOR BLOWER
EXTERIOR
BLOWER
DECORATIVE FLUE
OR SOFFIT
HH0207A
24” TO 36” ABOVE
COOKING SURFACE
10” ROUND DUCT
HOOD
6”
OR
12”
HH0208A
IN-LINE BLOWER
10” ROUND DUCT
(EXCEPT HLB3, 8” ROUND DUCT)
24” TO 36” ABOVE
COOKING SURFACE
ROOF CAP
WALL
CAP
HOOD
MODEL EB6, EB9, EB12 OR EB15
EXTERIOR BLOWER TYPICAL DUCTWORK
MODEL ILB3, ILB6, ILB9 OR ILB11
IN-LINE BLOWER TYPICAL DUCTWORK
1.1 NON-DUCTED INSTALLATION
For a non-ducted installation, we recommend using interior blower Best model iQ6, P3 or P6 for effectiveness. (Blower sold
separately.)
The non-duct kit ANKWP Series (sold separately) must be installed. This kit fits hood from 30-inch width up to 48-inch width. See
installation instructions included with the non-duct kit ANKWP Series.
1.2 DUCTED INSTALLATION
For a ducted installation, either an interior or exterior blower or in-line blower may be used with this hood. The Best WP29M Series
must be installed with blower models iQ6, P3, P6, iQ12, P12, ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15 only.
Other blowers cannot be substituted. (Blowers sold separately.)
Plan where and how the ductwork will be installed.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1 up to 8, 11, 12, 15 and up of this
manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use metal duct tape to seal duct
joints.
NOTE: It is recommended that there be a minimum of 6” of straight duct from this hood to an elbow for 8” ducting and 12” for 10” ducting.

6
2. MEASURE INSTALLATION
Dimensions for the most common installation are shown at right.
The minimum hood distance above cooktop must not be less than 24’’. A
maximum of 36” above cooktop is highly recommended for best capture of
cooking impurities.
Distances over 36” are at the installer and users discretion.
3. PREPARE THE INSTALLATION
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Remove the installation kit from inside the hood.
Make sure that the following items are included:
- Wood strip (screwed on back of hood)
- Installation manual
- Accessories including:
• Hybrid baffle filters with handles (3 for 30” and 36” width, 4 for 42” width, 5 for 48” and 54” width, 6 for 60” width)
• Shielded halogen bulbs (GU10 type base, 120 V, 50 W) (4 for hoods up to 42” width, 6 for hoods from 48” to 60” width)
• Bag of parts including:
4 no. 10-2” flat head screws, 8 no. 8 x 3/4” screws, 4 no. 10-32 nuts, 2 wall anchors, 2 washers 3/16” ID x 3/4” OD
Parts sold separately:
- Interior blower model iQ6, P3 or P6 (includes rough-in kit and 8” round adapter and damper), for either ducted or non-ducted installation.
- Interior blower model iQ12 or P12 (includes rough-in kit and 10” round vertical in-line damper, model 421), for ducted installation only.
- In-line blower assembly model ILB3, ILB6, ILB9 or ILB11 (all include transition(s) and rough-in plate), for ducted installation only.
- Exterior blower assembly model EB6, EB9, EB12 or EB15 (all include rough-in plate), for ducted installation only.
- Duct, elbows, dampers, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options and model numbers.
- Non-duct kit ANKWP Series, mandatory for non-ducted installation.
- Optional decorative flue AEWP Series, for ducted installation only.
WARNING
!
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
Ceiling
Cabinet, soffit,
decorative flue or
non-duct kit flue
Standard 36”
high cooktop
Top of wood
mounting strip
A + 0.25’’
Hood
A
HH0204A
Minimum distance between
the hood and cooktop: 24’’
Recommended maximum
distance between the hood
and cooktop: 36’’
MINIMUM AND MAXIMUM DISTANCE
OVER COOKTOP

7

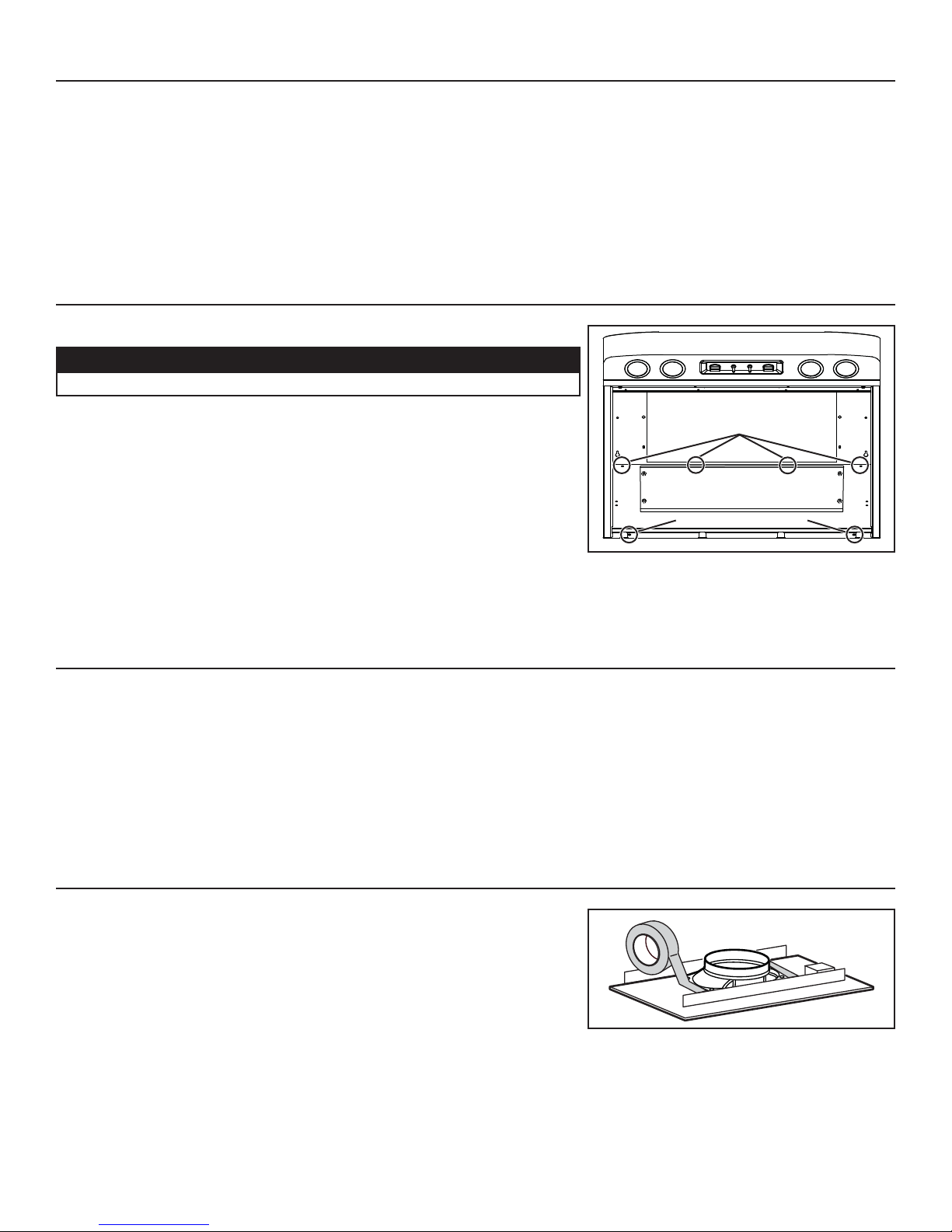

4. REMOVE THE FILTERS AND THE GREASE DRIP RAIL(S)
A. Remove tape on filters.
Remove filters from hood and set aside.
NOTE: It is recommended to start with the center one.
B. Remove tape on grease drip rail (1).
Lift out grease drip rail and set aside.
NOTE: The 60-inch width hood has 2 grease drip rails.
5. REMOVE THE PAN
HD0175
1
Using a Phillips no. 2 or Robertson no. 2 screwdriver, remove the screws retaining the
pan (shaded part on illustration at right) to the hood. Remove the pan and set aside.
6. INSTALL WOOD MOUNTING STRIP
CAUTION
Due to the weight of this hood, ensure that the wood strip is attached
to all of the available studs (2 studs minimum for a 30’’ width hood,
more as hood width increases); not into the drywall alone.
Measure and mark a level line on wall above cooktop location for the wood mounting
strip (see illustration at right and under step 2). Remove wood mounting strip from
back of hood.
Use no. 10 - 2’’ flat head screws to secure the mounting strip to the drywall. Make sure
to hit the wall studs.
HD0174A
1. Drywall
2. Wood mounting strip
3. Flat head screw
4. Wall anchor location
5. Back of hood outline
6. Wall studs
HD0536
RETAINING SCREWS LOCATION

8
7. INSTALL THE FLUE
7.1 DUCTED INSTALLATION: OPTIONAL DECORATIVE FLUE AEWP SERIES
For a ducted installation, refer to the instructions sheet included with the optional decorative flue.
7.2 NON-DUCTED INSTALLATION: NON-DUCT KIT FLUE ANKWP SERIES
Refer to the installation sheet included with the non-duct kit for details.
8. INSTALL THE HOOD
Rest the top back cavity of the hood on the wood mounting strip.
Secure the hood to wood mounting strip with (4) screws no. 8 x 3/4” (for 30” and 36”
width hoods) or (6) screws (for 42” width and wider hoods) provided at locations shown.
Drill (2) 3/16’’ size holes into the drywall for wall anchors through the existing holes in
the inside hood back, in the locations shown. Then, install the two wall anchors with
the remaining no. 8 x 3/4” screws and the (2) washers provided.
For a non-ducted installation, go to step 11, Install the Rough-in Plate.
CAUTION
Hold the hood until it is completely secured to the wood mounting strip.
9. SELECT BLOWER OPTION (EXTERIOR OR INTERIOR, DUCTED INSTALLATION)
INTERIOR BLOWER: Follow all subsequent steps of this manual.
EXTERIOR BLOWER: Refer to instructions packed with exterior blower and follow steps 11 to 13, then 15 and up of the present manual.
HD0178
TOP OF THE HOOD (INSIDE VIEW)
MOUNTING SCREWS LOCATION
BACK OF HOOD (INSIDE VIEW)
WALL ANCHORS LOCATION
10. ATTACH 8” ROUND ADAPTER AND DAMPER TO ROUGH-IN PLATE
(iQ6, P3 OR P6 INTERIOR BLOWER, DUCTED INSTALLATION ONLY)
Attach 8” round adapter and damper to iQ6, P3 or P6 blower rough-in plate.
Use metal duct tape to make all joints secure and air-tight.
HO0196

9
11. INSTALL THE ROUGH-IN PLATE TO THE HOOD (ALL INSTALLATIONS)
11.1 ALL INSTALLATIONS:
Run power cable to installation location. Refer to the instructions included with
the selected blower/rough-in kit (sold separately) for details on installing the
rough-in plate. Install the rough-in plate so that the wiring box is located on the
right side as you are facing the hood.
11.2 DUCTED INSTALLATIONS ONLY:
For ducting through back of hood, remove existing plate from inside back of
hood and attach it to inside top of hood to cover hole. Secure to threaded studs
with same (4) nuts. For ducting through top of hood, existing plate remains in
place on inside back of hood.
Connect ducting to adapter and damper or rough-in plate (according to blower
model) as you are installing the rough-in plate. Use duct tape to make all joints
secure and air-tight. HD0179
ROUGH-IN PLATE
ON TOP OF HOOD
LOCKNUTS
PLATE ON BACK OF HOOD
WIRING COVER
LOCKNUTS

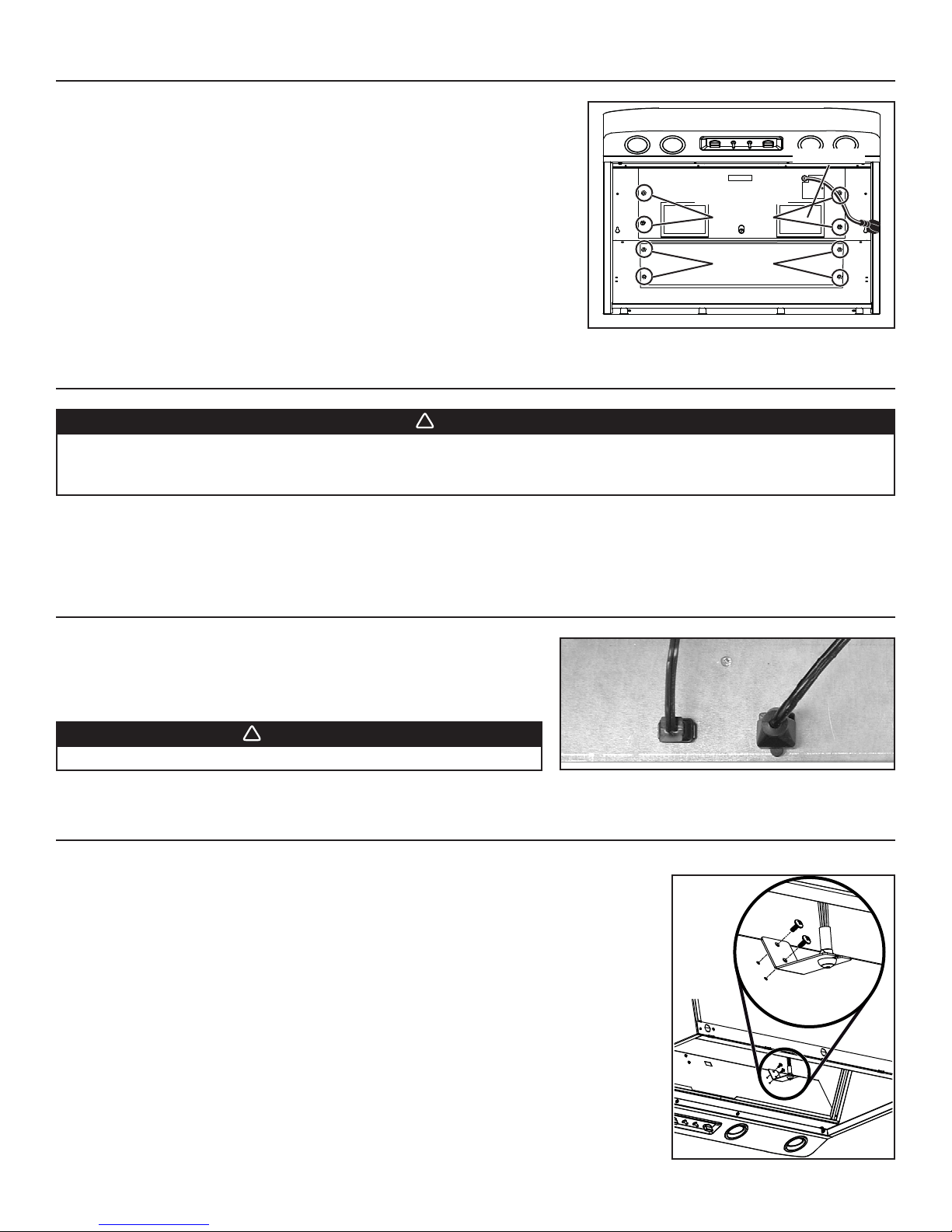

12. CONNECT THE WIRING (ALL INSTALLATIONS)
WARNING
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable
codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting
means to prevent power to be switched on accidentally.
Remove wiring cover from rough-in plate and set aside.
Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.
Reinstall wiring cover.
!
13. INSTALL THE BLOWER (INTERIOR OR EXTERIOR BLOWER)
Refer to instructions included with blower.
Once the blower is installed, plug the blower cord (A) into the female receptacle
and the power supply cord (B) onto the male connector inside the hood.
HE0078
AB
WARNING
!
Do not plug the two cords into each other.
14. INSTALL THE CALIBRATION BUTTON BRACKET IN THE HOOD
(iQ6 AND iQ12 INTERIOR BLOWERS ONLY)
Both iQ6 and iQ12 blowers are equipped with a calibration button already mounted to its own bracket.
Install this bracket in the hood, using 2 screws provided with iQ6 or iQ12 interior blower.
See additional details in the iQ6 and iQ12 blower instructions included with the blowers.
HD0539

10
It is recommended to install side filters first and finish with center one(s).
Insert the end with filter spring clip of hybrid baffle filter into the upper
channel of the hood.
Raise the other end toward the inside of hood and insert in the grease
drip rail of the hood.
Replacement filters are available from your dealer. See label inside hood
for size and part number.
15. REINSTALL THE PAN
16. REINSTALL GREASE DRIP RAIL(S) AND BAFFLE FILTERS
Reinstall grease drip rail(s) (1). The illustration at right shows how to reinsert the
grease drip rail(s) into the range hood.
Using a Phillips no. 2 or Robertson no. 2 screwdriver and the retaining screws, reinstall
the pan (previously removed in step 5) inside the hood (shaded part on illustration at
right).
HD0537
1
CAUTION
Remove protective plastic film covering hybrid baffle filters before reinstalling them.
HD0538 

HD0536
RETAINING SCREWS LOCATION

11
17. LIGHT BULBS REPLACEMENT
This hood requires 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (included).
1. To remove lamps, gently push upwards and turn counterclockwise to
disengage bulb leads from their grooves.
NOTE: To ease removal of the bulbs, use a rubber dishwashing
glove or use suction cup tool available from Best. Contact
Best Customer Service at 1-800-558-1711 to order suction
cup tool, part no. 99526707.
2. Install the new lamps by placing the bulb leads into their grooves in
the socket.
3. Gently push upwards and turn clockwise until secure.
WARNING
!
Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury,
only install shielded halogen lamps. Also, never install a cool beam, a dichroïc lamp, a lamp not suitable for use in
recessed luminaires or identified for use in enclosed fixtures.
12 3
HO0089
18. USE AND CARE
Hybrid Baffle Filters
The hybrid baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates
greater grease—like frying foods or wok cooking.
Remove hybrid baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe.
Allow filters to dry completely before reinstalling them in the hood.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent
or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent solution. As for the baffle filters, wash
more often if your cooking style generates greater grease—like frying foods or wok cooking.Allow grease drip rail to dry completely before
reinstalling it in the hood.
Blower Cleaning
Remove the filters in order to access the blower. Vacuum blower to clean. Do not immerse in water. Refer to blower instruction manual for
more details.
Hood cleaning
Stainless steel cleaning:
Avoid when choosing a detergent:
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be
used close to a range.
Do:
• Regularly wash with clean cloth or rag soaked with warm water
and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner.
Don’t:
• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the
power pack. During construction/renovation, cover the power
pack to make sure no dust sticks to stainless steel surface.
CAUTION
Never attempt to wash the carbon filters in the non-duct kit. Those filters must be replaced by new ones. Refer to
the non-duct kit installation instructions for details.

12
19. OPERATION
Always turn ON your hood before you begin cooking in order to establish an air flow in the kitchen. Let the blower run for a few minutes to
clear the air after you turn off the range.This will help keep the whole kitchen cleaner and brighter.
Blower
The blower is operated using two (2) controls.
Use the ON/OFF switch (item 1on picture above) to start and stop the blower. When turned on, the blower will operate at the previous
setting of the speed control (item 2on picture above).
Turn the speed control knob counterclockwise to increase blower speed—clockwise to decrease speed.
HEAT SENTRY™
This hood is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will speed up the blower if it senses excessive
heat above the cooking surface.
If blower is ON at a lower speed setting—it turns the blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
Cooktop Lighting (Halogen)
The halogen lighting is controlled by two switches; one ON/OFF switch (item 3 on picture above) and one light intensity control switch.
When turned on, the halogen bulbs will light cooktop at the previous setting of the light intensity control (item 4 on picture above).
Turn the light intensity control knob counterclockwise to increase lighting—clockwise to decrease lighting.
Use 120 V, 50 W, MR16 or PAR16 with GU10 base, shielded halogen lamps (included).
1. ON/OFF Blower switch
2. Blower speed control
3. ON/OFF Halogen light switch
4. Light intensity control
HC0030
1234
WARNING
!
The Heat Sentry can start the blower during a range top fire or other excessive heat situations even if the hood is
turned off. If this situation occurs, it is impossible to turn the blower OFF with blower switch. If you must stop the
blower, unplug the blower power cord (located behind the filters) from the hood by pulling on its 2-prong connector;
do not pull on the wire.

13
20. WIRING DIAGRAMS
INTERIOR BLOWER
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
1 2 1 2 1 2 1 21 2 1 2
1 2 1 2 1 2 1 21 2 1 2
Y Y
YY
Y
Y
W W
WW
W W
BLK
W
2 1
2 1
W
W
BLK
BLK
BLOWER
SWITCH
BLK
LIGHT
SWITCH
LIGHT
CONTROL
BLK BLK Y
BLUBLU
BLK BLK BLK
BLOWER
SPEED CONTROL
BLU
BLK
1 2
1 2
W
BLK
W
BLK
W
BLK M
MOTOR
INTERNAL BLOWER ASSEMBLY
ROUGH-IN PLATE
NEUTRAL
LINE
GROUND
120 V SUPPLY
W
BLK
G
HE0181A
COLOR CODE
BLK BLACK BLU BLUE G GREEN W WHITE Y YELLOW
HS
T˚

14
21. WIRING DIAGRAMS (CONT'D)
IN-LINE OR EXTERIOR BLOWER
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
50 W
MAX.
1 2 1 2 1 2 1 21 2 1 2
1 2 1 2 1 2 1 21 2 1 2
Y Y
YY
Y
Y
W W
WW
W W
BLK
W
2 1
2 1
W
W
BLK
BLK
BLOWER
SWITCH
BLK
LIGHT
SWITCH
LIGHT
CONTROL
BLK BLK Y
BLUBLU
BLK BLK BLK
BLOWER
SPEED CONTROL
BLU
BLK
1 2
1 2
W
BLK
W
BLK
W
BLK M
MOTOR
REMOTE BLOWER ASSEMBLY
ROUGH-IN PLATE
NEUTRAL
LINE
GROUND
120 V SUPPLY
W
BLK
G
HE0182A
COLOR CODE
BLK BLACK BLU BLUE G GREEN W WHITE Y YELLOW
HS
T˚
GROUND

15
ONE-YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in
materials or workmanship for a period of one year from the date of original purchase.THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under
normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSES,
FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance
and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-
NuTone), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or provinces do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to another. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below, (b) give the model
number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must
present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC, Canada, J2C 7W9 (866-737-7770)
www.BestRangeHoods.com
22. WARRANTY

16
23. SERVICE PARTS
WP29M Series
KEY NO.PART NO.DESCRIPTION QUANTITY (HOOD WIDTH)
30” 36” 42” 48” 54” 60”
1 SV05917 SOCKET GU10 444666
2 SV09435 SOCKET HOLDER GU10 444666
3 SV09434 LIGHT TRIM STAINLESS STEEL 444666
4 SV05921 SHIELDED HALOGEN BULBS (50 W, 120 V, PAR16, GU-10) 444666
5 SV03501 ROTARY CONTROL 222222
6 SV07689 TOGGLE SWITCH 222222
7 SV13924 MALE CONNECTOR 111111
8 SV13923 FEMALE CONNECTOR 111111
9 SV16966 PLASTIC CONTROL FRAME AND KNOB ASS’Y111111
10 SV07688 KNOB 222222
11 SV03435 HEAT SENTRY™ 111111
12 SV61691 FILTER FILLERS WITH SCREW (PAIR) --1---
13
SV61932 GREASE DRIP RAIL 30” 1----2
SV61933 GREASE DRIP RAIL 36” -1----
SV61934 GREASE DRIP RAIL 42” - - 1 - - -
SV61935 GREASE DRIP RAIL 48” - - - 1 1 -
14 SV61639 HYBRID BAFFLE FILTER 8.84” X8.61” X1” 314556
SV61640 HYBRID BAFFLE FILTER 11.84” X8.61” X1” -2----
* SV07693 INSTALLATION GUIDE 111111
* SV12971 PARTS BAG: 4 NO. 10 X2’’ FLAT HEAD SCREW, 8 NO. 8 X3/4’’ SCREWS,
4 NO. 10-32 NUTS, 2 WALL ANCHORS, WASHERS 3/16’’ ID X3/4’’ OD 111111
* SV05869 BEST LOGO 111111
* NOT SHOWN.
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in
good working condition, you must use
Broan-NuTone genuine replacement
parts only. Broan-NuTone genuine
replacement parts are specially
designed for each unit and are
manufactured to comply with all the
applicable certification standards and
maintain a high standard of safety.
Any third party replacement part
used may cause serious damage and
drastically reduce the performance
level of your unit, which will result
in premature failing. Broan-NuTone
recommends to contact a certified
service depot for all replacement
parts and repairs.
HL0217
4
3
1
2
5
6
9
10
78
11
14
12
13

CONÇUE UNIQUEMENT POUR LA CUISSON DOMESTIQUE
INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.
PROPRIÉTAIRE : DIRECTIVES D’UTILISATION ET D’ENTRETIEN
EN PAGES 27 ET 28.
LIRE ET CONSERVER CES DIRECTIVES
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
Pour enregistrer votre produit en ligne ou pour obtenir plus d’information, consultez notre site www.BestRangeHoods.com
! !
SÉRIE WP29M
HB0058
GUIDE D’INSTALLATION
SV07693 rév. 11

18
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE,
D’ÉLECTROCUTION OU DE BLESSURES
CORPORELLES,SUIVEZLESDIRECTIVESSUIVANTES :
1. N’utilisez cet appareil que de la façon prévue par le
manufacturier. Si vous avez des questions, contactez le
manufacturier à l’adresse ou au numéro de téléphone indiqués
dans la garantie.
2. Avant de réparer ou de nettoyer l’appareil, couper l’alimentation
électrique en verrouillant le panneau de distribution afin
d’éviter sa remise en marche accidentelle. Si le panneau de
distribution ne peut être verrouillé, y fixer un avertissement en
évidence, telle qu’une étiquette de couleur vive.
3. Les travaux d’installation et de raccordement électrique doivent
être effectués par une personne qualifiée, conformément
aux codes et aux standards de construction, incluant ceux
concernant la protection contre les incendies.
4. Une quantité d’air adéquate est requise afin d’assurer une
bonne combustion et l’évacuation des gaz par la cheminée
dans le cas des équipements alimentés au gaz afin de prévenir
les retours de cheminée. Conformez-vous aux instructions et
aux standards de sécurité des manufacturiers d’équipement de
chauffage, tel qu’ils sont publiés par la National Fire Protection
Association (NFPA) et l’American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE) ainsi
que les responsables des codes locaux.
5. Veillez à ne pas endommager le câblage électrique ou d’autres
équipements non apparents lors de la découpe ou du perçage
du mur ou du plafond.
6. Les ventilateurs avec conduits doivent toujours évacuer l’air
à l’extérieur.
7. Ne pas utiliser cet appareil avec une commande de vitesse à
semi-conducteur additionnelle.
8. Afinde réduirelesrisquesd’incendie,n’utilisez quedesconduits
de métal.
9. Cet appareil doit être mis à la terre.
10. Lorsqu’une réglementation est en vigueur et qu’elle comporte
des exigences d’installation et/ou de certification plus
restrictives, lesdites exigences prévalent sur celles de ce
document et l’installateur entend s’y conformer à ses frais.
AFIN DE RÉDUIRE LES RISQUES DE FEU
DE CUISINIÈRE :
a) Ne jamais laisser les appareils de cuisson sans surveillance
lorsqu’ils sont réglés à feu vif. Les débordements engendrent
de la fumée et des déversements graisseux pouvant
s’enflammer. Chauffez l’huile lentement, à feu doux ou moyen.
b) Mettez toujours la hotte en marche lorsque vous cuisinez à feu
vif ou que vous cuisinez des mets flambés (par ex. : crêpes
Suzette, cerises jubilé, steaks au poivre flambés).
c) Nettoyez régulièrement la (les) roue(s) du ventilateur. Ne
laissez pas la graisse s’accumuler sur le ventilateur, les filtres
ou les conduits d’évacuation.
d) Utilisez le bon format de casserole. Servez-vous toujours de
casseroles et d’ustensiles appropriés à la dimension de la
surface chauffante.
1. Pour une utilisation à l’intérieur seulement.
2. Pourusagedomestiqueseulement.Ne pas utiliser pourévacuer
des vapeurs ou des matières dangereuses ou explosives.
3. Afin d’éviter tout dommage au moteur et de débalancer ou de
rendre bruyante la roue du moteur, garder votre appareil à l’abri
des poussières de gypse et de construction/rénovation, etc.
4. Le moteur de votre hotte possède une protection thermique
qui éteindra automatiquement le moteur s’il devient surchauffé.
Le moteur redémarrera automatiquement une fois refroidi. Si
le moteur continue à arrêter et à redémarrer, faites-le vérifier.
5. Pour une meilleure évacuation des odeurs de cuisson, le bas
de votre hotte devrait être situé à un minimum de 24 po et à un
maximum de 36 po au-dessus de la surface de cuisson.
6. Deux installateurs sont recommandés lors de l’installation vu
la grande dimension et le poids de cette hotte.
7. Afin de réduire les risques d’incendie, assurez-vous d’évacuer
l’air à l’extérieur. Ne pas évacuer l’air dans des espaces
restreints comme l’intérieur des murs ou plafond ou dans le
grenier, faux plafond ou garage.
8. Cet appareil est équipé d’un thermostat pouvant faire démarrer
le ventilateur automatiquement. Afin de réduire le risque de
blessure, couper le courant à partir du panneau électrique et le
verrouiller ou apposer un avertissement sur le panneau afin de
prévenir que la hotte ne soit mise en marche accidentellement.
9. En raison de la grande capacité d’évacuation de cette hotte, il
est recommandé d'utiliser un dispositif d'apport d'air approprié
ou d’ouvrir une fenêtre dans ou près de la cuisine afin de
remplacer l’air évacué.
10. Afin de réduire les risques d’incendie et d’électrocution, la
hotte Best de série WP29M doit être installée uniquement
avec un des ventilateurs intérieurs Best suivants: iQ6, P3, P6,
iQ12 ou P12, ou un des ventilateurs extérieurs Best suivants:
EB6, EB9, EB12 ou EB15, ou un des ventilateurs en ligne Best
suivants: ILB3, ILB6, ILB9 ou ILB11 (vendus séparément).
Aucun autre ventilateur ne doit être utilisé.
11. Veuillez consulter l’autocollant apposé à l’intérieur de la hotte
pour plus d’information ou autres exigences.
AVERTISSEMENT
!
ATTENTION
AVERTISSEMENT
!
AFIN D’ÉVITER TOUT RISQUE DE BLESSURES LORS
D’UN FEU DE CUISINIÈRE, SUIVEZ CES DIRECTIVES* :
1. Étouffez les flammes avec un couvercle hermétique,
une tôle à biscuits ou un plateau métallique et ensuite,
éteindre le brûleur. PRENEZ SOIN D’ÉVITER LES
BRÛLURES. SI LES FLAMMES NE S’ÉTEIGNENT PAS
IMMÉDIATEMENT, ÉVACUEZ LES LIEUX ET APPELEZ
LES POMPIERS.
2. NE PRENEZ JAMAIS UNE CASSEROLE EN FLAMMES
DANS VOS MAINS.Vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, incluant un linge à vaisselle ou une
serviette mouillée, cela pourrait occasionner une violente
explosion de vapeur.
4. N’utilisez un extincteur QUE DANS LE CAS OÙ :
A. Vous savez qu’il s’agit d’un extincteur de classe ABC et
que vous en connaissez le fonctionnement.
B. L’incendie est petit et limité à l’endroit où il a débuté.
C. Les pompiers ont été avisés.
D. Vouspouvezcombattrel’incendieenayantaccèsàunesortie
de secours.
*Tirées du Kitchen Fire Safety Tips publié par la NFPA.

19
HL0218
MODÈLE 441
(CAPUCHON MURAL 10 PO ROND)MODÈLE 643
(CAPUCHON MURAL DE 8 PO ROND)
MODÈLE 421
(VOLET VERTICAL EN LIGNE DE
10 PO ROND INCLUS AVEC LE
VENTILATEUR/PLAQUE
VENTILATEUR IQ12 ET P12)
MODÈLE 437
(CAPUCHON DE TOIT ÀHAUT RENDEMENT)
ADAPTATEUR/VOLET
DE 8 PO ROND (INCLUS AVEC LE
VENTILATEUR/PLAQUE VENTILATEUR
IQ6, P3 ET P6)
MODÈLE 634 OU 644
(CAPUCHON DE TOIT)
MODÈLE 418
(COUDE AJUSTABLE
DE 10 PO ROND,
OPTIONNEL).
MODÈLE 410
(CONDUIT DE 10 PO ROND,
SECTIONS DE 2 PI)
MODÈLE iQ12 OU P12
VENTILATEUR/
PLAQUE VENTILATEUR
(VENTILATEUR INTÉRIEUR DE
1200 PI/MIN ET PLAQUE VENTILATEUR)
MODÈLE iQ6, P3 OU P6
VENTILATEUR/
PLAQUE VENTILATEUR
(VENTILATEUR INTÉRIEUR DE
600 PI/MIN (SAUF 300 PI/MIN
POUR P3) ET PLAQUE VENTILATEUR)
- SYSTÈME DE HOTTE DE CUISINIÈRE SÉRIE WP29M -
VENTILATEURS INTÉRIEURS
CONDUIT STANDARD
DE 8 PO ROND
COUDE AJUSTABLE
DE 8 PO ROND,
OPTIONNEL
CHEMINÉE DÉCORATIVE
OPTIONNELLE SÉRIE AEWP
CHEMINÉE DU KIT
DE RECIRCULATION
SÉRIE ANKWP
NOTE : Pour une installation sans conduit,
nous recommandons que le kit
de recirculation série ANKWP
ne s’installe qu’avec l’ensemble
ventilateur et plaque ventilateur
de modèle iQ6, P3 ou P6 pour une
meilleure efficacité.
HOTTE SÉRIE WP29M
(AVEC COMMANDES VENTILATEUR
ET ÉCLAIRAGE. REQUISES POUR
TOUTES LES INSTALLATIONS)

20
HL0219
MODÈLE 643
(CAPUCHON MURAL
DE 8 PO ROND)
MODÈLE 418
(COUDE AJUSTABLE
DE 10 PO ROND,
OPTIONNEL)MODÈLE 410
(CONDUIT DE 10 PO
ROND, SECTIONS DE 2 PI)
MODÈLE 441
(CAPUCHON MURAL
10 PO ROND)
MODÈLE ILB9 (800 PI/MIN
OU ILB11 (1100 PI/MIN)
VENTILATEUR EN LIGNE
(INCLUANT 2 TRANSITIONS DE
8 PO X12 PO À10 PO ROND)
MODÈLE ILB3 (280 PI/MIN
VENTILATEUR EN LIGNE
(INCLUANT UNE TRANSITION
RONDE DE 8 PO À10 PO)
MODÈLE EB6 (600 PI/MIN)
OU EB9 (900 PI/MIN)
VENTILATEUR EXTÉRIEUR
MODÈLE EB12 (1200 PI/MIN)
OU EB15 (1500 PI/MIN)
VENTILATEUR EXTÉRIEUR
PLAQUE VENTILATEUR POUR
VENTILATEURS EXTÉRIEURS OU EN LIGNE
(INCLUSE AVEC LES VENTILATEURS
EB6, EB9, EB12, EB15, ILB3,
ILB6, ILB9 ET ILB11).
MODÈLE 441
(CAPUCHON MURAL 10 PO ROND)
MODÈLE 421
(VOLET VERTICAL EN LIGNE DE
10 PO ROND.) RECOMMANDÉ
POUR UTILISATION AVEC LES
VENTILATEURS EXTÉRIEURS
MODÈLE 437
(CAPUCHON DE TOIT ÀHAUT RENDEMENT)
- SYSTÈME DE HOTTE DE CUISINIÈRE SÉRIE WP29M -
VENTILATEURS EN LIGNE ET EXTÉRIEURS
CHEMINÉE DÉCORATIVE
OPTIONNELLE SÉRIE AEWP
HOTTE SÉRIE WP29M
(AVEC COMMANDES VENTILATEUR
ET ÉCLAIRAGE. REQUISES POUR
TOUTES LES INSTALLATIONS)
MODÈLE ILB6 (600 PI/MIN)
VENTILATEUR EN LIGNE
(INCLUANT 2 TRANSITIONS
RONDES DE 4½ PO X18½ PO
À10 PO)
