Bestarc BTC500DP User manual

IGBT DIGITAL PLASMA CUTTER 110/220V
BESTARC MANUAL
DIGITAL PLASMA CUTTER
BTC500DP 7th Gen
This Manual for Digital Plasma Cutter:
BTC500DP 7th Generation
EC DECLARATION OF CONFORMITY
We hereby declare that our machines for industrial and professional use as stated below.
Model: BTC500DP 7th Generation
Conforms with EMC Directives: 73/23/EEC and 89/336/EEC
European Standard: EN/IEC60974
Please read and understand this instruction manual carefully before the installation and operation
of this equipment. The contents of this manual may be revised without prior notice and
without obligation. This instruction manual is issued on 20-May-2023
website: www.bestarc.com Technology Support: [e-mail]
Dear Customer,
Thank you for purchasing our Digital Plasma Cutter, Read this manual thoroughly.
Incorrectly installed or improperly grounded equipment is a hazard, and can cause serious
Damage, Properly install and ground this equipment according to this manual and national, state,
and local codes.

PARAMETER:
This is 50Amps digital plasma cutter with pilot arc function.
14mm Quality Cutting thickness at Stainless Steel.
Inverter with Industrial Rated, Lightweight and Portable.
FEATURES
• Latest IGBT Inverter Technology
• Safe torch connection
• High quality cutting torch with quality cable
• Industrial application
• Tolerant to variable power supply
• Quality Air regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing

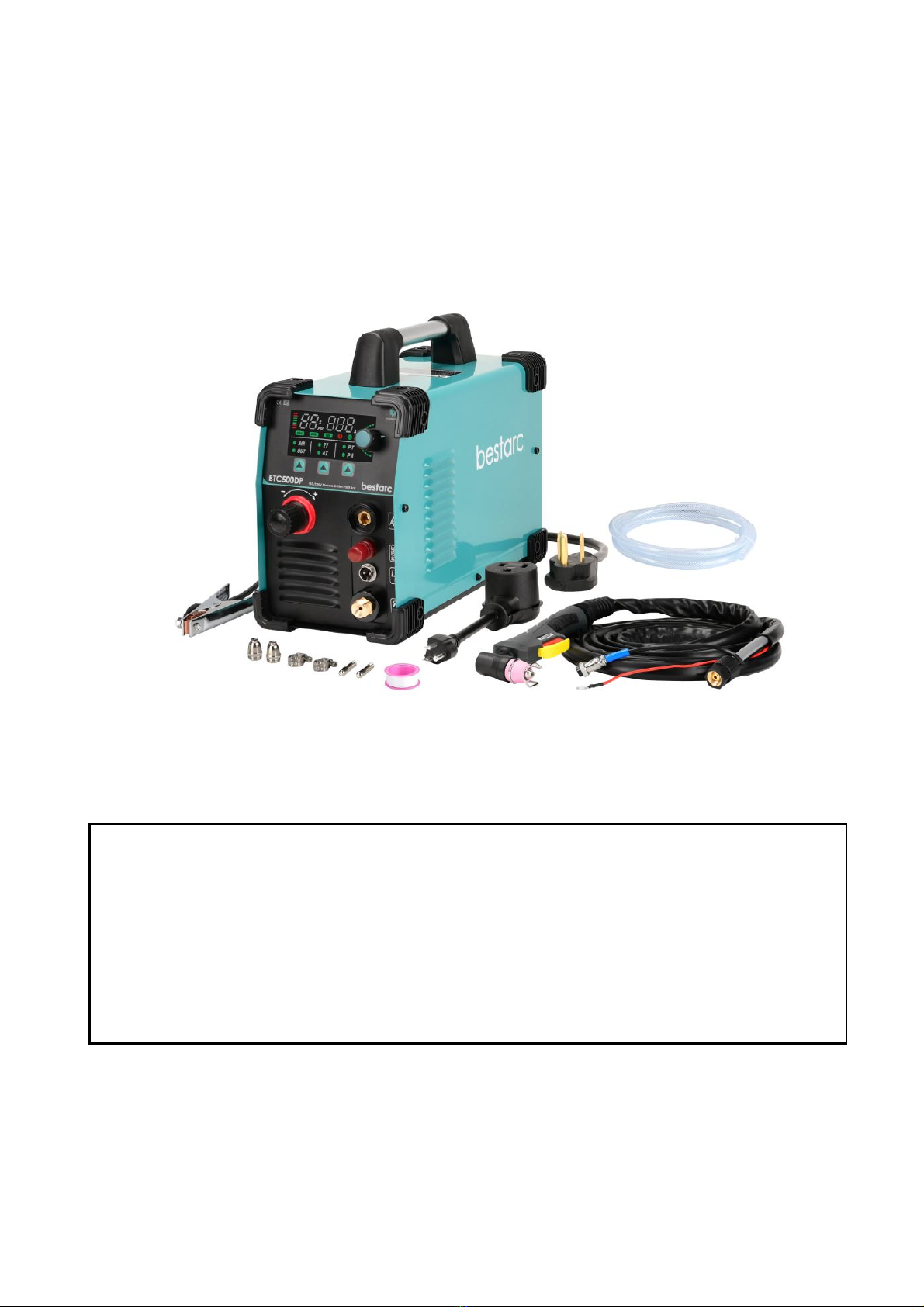

What included in package:
• 1 × Plasma cutter
• 1 × Cutting torch
• 1 × Earth clamp with cable
• 2 × Tip (Nozzle)
• 2 × Electrode
• 1 × Air hose
• 1 × Wire adaptor
• 2 × Hose clamp

Function:
AIR/CUT: AIR means Checking does air supplying to machine, CUT prepare for cutting
2T/4T: 2T: Press switch torch working, Stop pressing switch torch stop working.
4T: Press switch torch working, Stop pressing switch torch still working; Press torch
switch again torch working, Stop pressing switch torch stop working.
PT= Post time(Time for Post air), PA=Pilot Arc Time

One of them lighting up while machine connecting to 110V or 220V power
Fan will work only when machine getting heat, It will not working all the time for
efficient
S: This symbol only means time (seconds) for PT and PA
PSI: This symbol is for air pressure, User will get reading after pressure air
supply into machine.
A: This symbol only for current.
Top of two red line:
this mean air pressure too high, need to reduce the air into machine.
Middle of three green line: means the pressure air is in good range.
Bottom of two red line:
This mean air pressure too low, Need to increase air into machine.
Problem lamp
Cutting lighting
Error Code:
E01 Over current protection
E02 Over heat protection
E05 Low or No air pressure
Suggest Range for Air pressure
Voltage 110V 220V
Suggest Range 20-40PSI 30-60PSI
>50PSI >75PSI
41-49PSI 61-74PSI
34-40PSI 50-60PSI
27-33PSI 40-49PSI
20-26PSI 30-33PSI
10-19PSI 15-29PSI
0-9PSI 0-14PSI

PLASMA CUTTING TORCH PARTS
