DELAHEY PORCH SWING
ASSEMBLY INSTRUCTIONS
Style # TM013656W
1
QUESTION ?
Identify all parts and hardware. If any pieces are missing call our toll free number
at 1-888-287-4275 from 9:00 am to 5.00 pm CST (Monday to Friday) or e-mail
[e-mail] for replacement parts. For faster service, have the style number
handy when calling.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Maximum Occupant Capacity : 2 Person

2
TOOLS REQUIRED
For proper assembly use these tools
1. 8" Phillips screwdriver (not included)
- for tightening the bolts.
2. Wrench (included)
- for tightening all nuts
3. Rubber mallet (not included)
- for tapping in the wooden caps.
Washer .......... 12 Pcs
LIST OF HARDWARE PARTS
1 1/4" Bolt ......... 6 Pcs
E
D
LIST OF WOODEN PARTS
A1
A2
B
C
A1
BA2
CNO.
1 Pc
1 Pc
1 Pc
1 Pc
Right side frame
Left side frame
Back support
Seat
DESCRIPTION Q'TY
IMPORTANT !
* ASSEMBLE YOUR UNIT IN AN AREA FREE FROM ANY OBJECTS THAT MIGHT SCRATCH
THE SURFACE OF YOUR UNIT.
* EXAMINE ALL PACKING MATERIAL BEFORE DISCARDING, SHORTAGES MAY OCCUR FROM
PARTS LEFT IN THE PACKING MATERIAL.
* PLEASE READ THE INSTRUCTIONS CAREFULLY, AND VERIFY ALL PARTS ARE INCLUDED.
* CHECK ALL BOLTS NEED FOR TIGHTNESS BEFORE AND DURING USAGE SEASON.
* OIL ALL METALLIC PARTS DURING USAGE SEASON.
Nut .......... 6 Pcs
F
Hanger bolt with chain & chain lock ...... 2 Pcs
H
HANGER BOLT ............... 2 PCS
I
Head nut .......... 4 Pcs
J

G
D

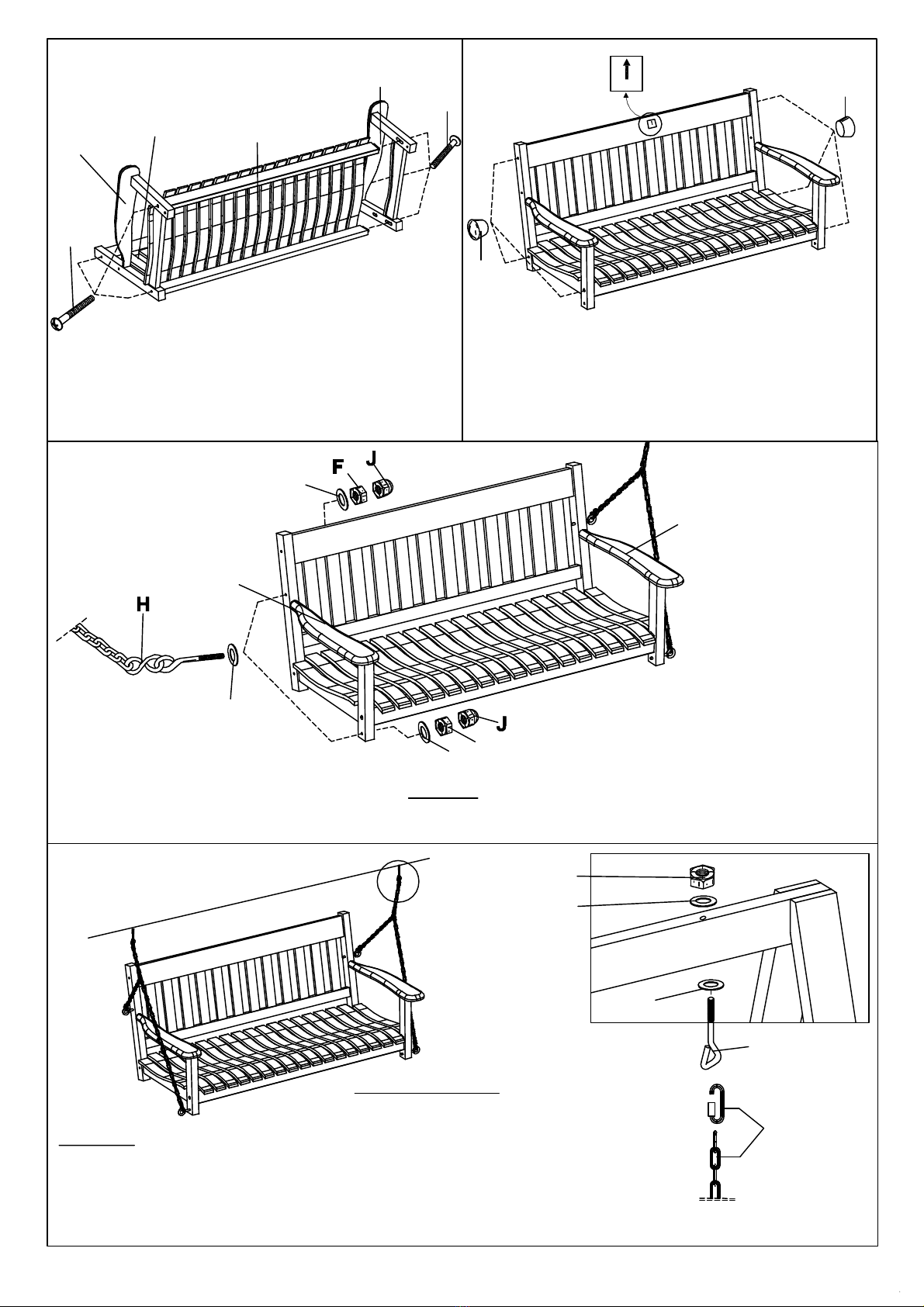

STEP 1
A1
G
CD
A2
E
E
B
F
E
E
F
Secure the hanger bolts with chain (H) into predrilled holes of right side frame (A1) using washers (E), nuts (F)
and head nut (J), as shown. (The hanger bolt with long chain must be install in front).
Repeat the same procedure to install the hanger bolts (H) into left side frame (A2).
Make sure all parts are correctly connected and tighten all nuts completely using wrench.
3
STEP 2
STEP 3
STEP 4
To hang up the swing :
Insert the hanging bolts (I) into predrilled holes of
swing frame and secure with washers (E) and nuts
(F) as shown.Tighten the nuts using wrench.
Insert and hang the hanger bolt with chain (H) to
hanger bolt (I) and lock.
Recommended height is 60 cm from the bottom of
the seat to the ground.
NOTICE :
Install not less than 6.5 feet
from any obstruction
such as fence, garage, house,
overhanging branch laundry
lines or electrical wires.
Install on level ground.
Attach the back support (B) and seat (C) into right and
left side frames (A1 & A2).
Secure using 1 1/4" bolts (D).
Tighten all bolts completely using screwdriver and
tapping in the wooden caps (G) to cover bolts head
using rubber mallet.
A2
A1
FRONT
F RONT
H
I
E
65 inch
8 FOOT CEILING
