BH FITNESS LK500RiB User manual

LK500RiB
OWNER’S MANUAL
BH FITNESS | 620 N. 2nd Street, St. Charles, MO 63301
p.636-487-0050 | www.BHFitnessUSA.com | www.BHFitnessCanada.ca
Important: Read all instructions carefully before using this product.
Register your product warranty online at: www.BHFitnessUSA.com.
Retain this owner’s manual for future reference.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
2
TABLE OF CONTENTS
Title .........................Page
Congratulations ................02
Maintenance and Cleaning .......02
Warnings and Labels ............03
Safety Information ..............04
Exercise Instruction .............05
Training Guidelines .............06
Suggested Stretching............10

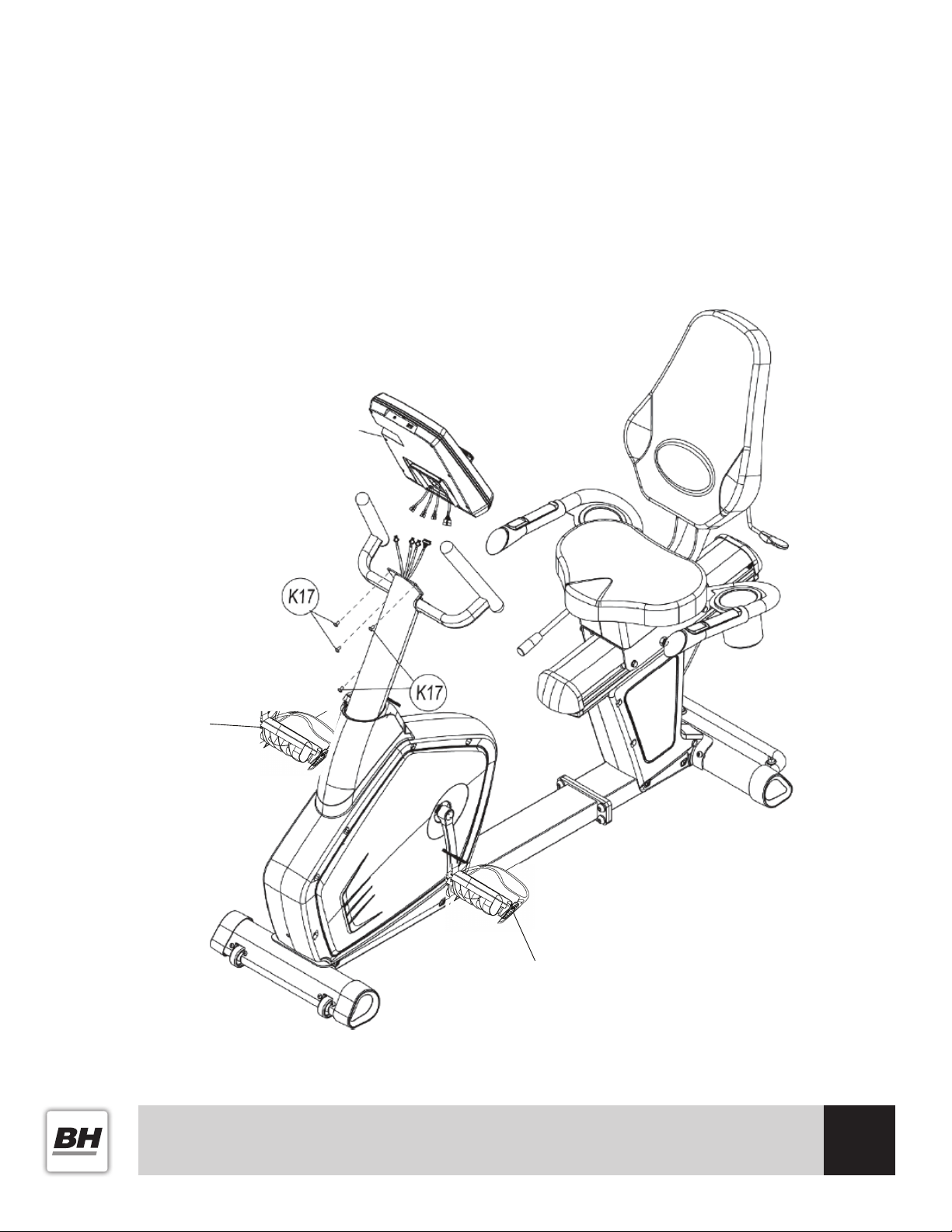

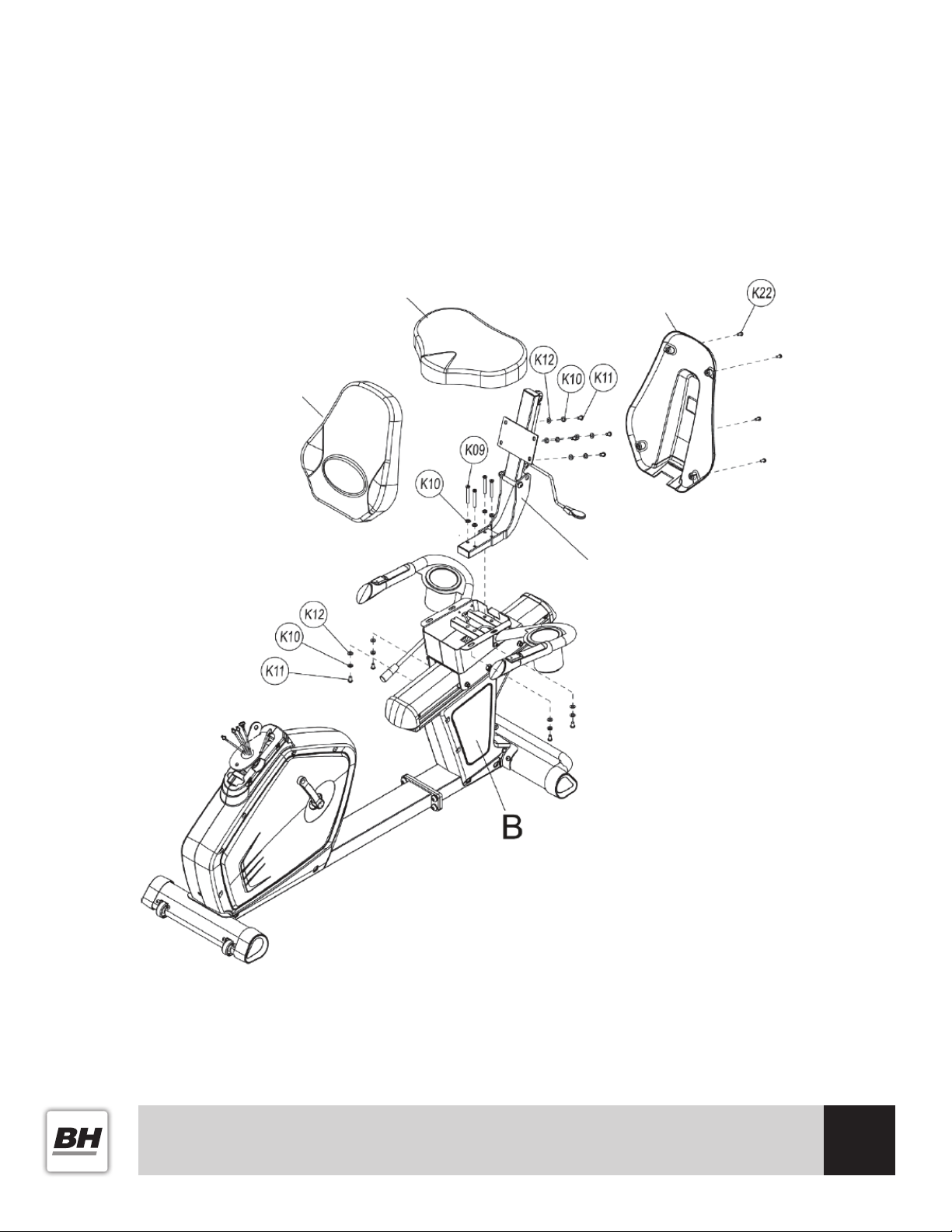

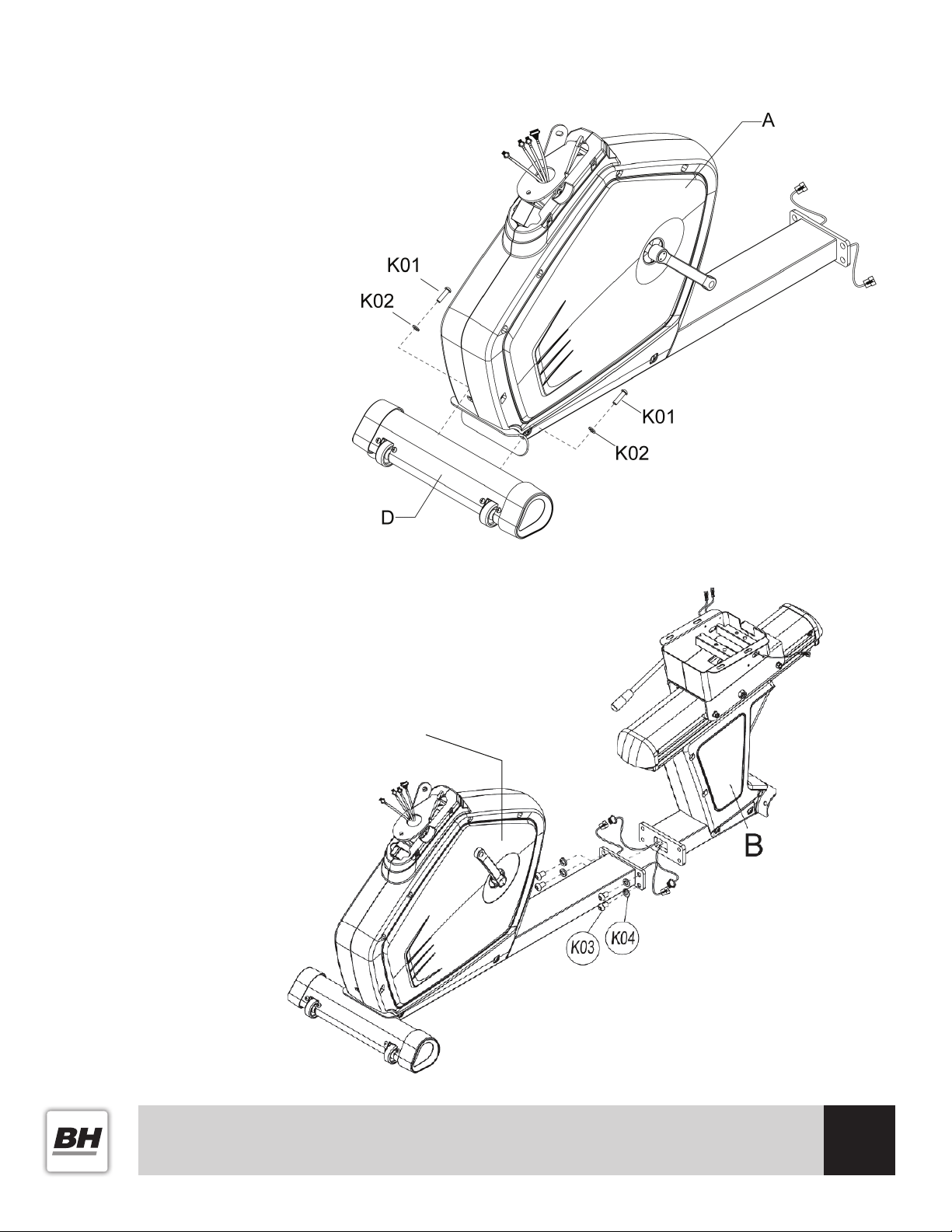

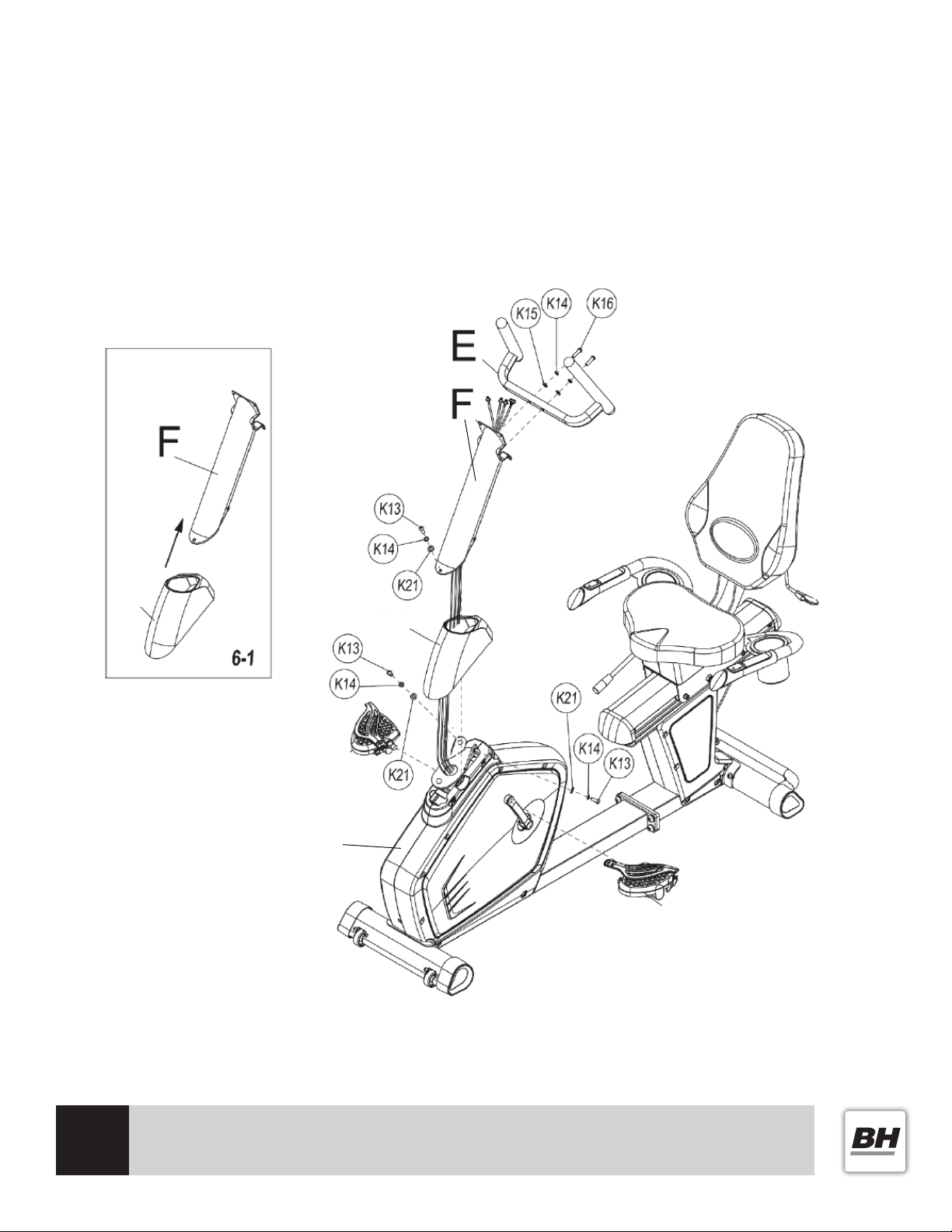

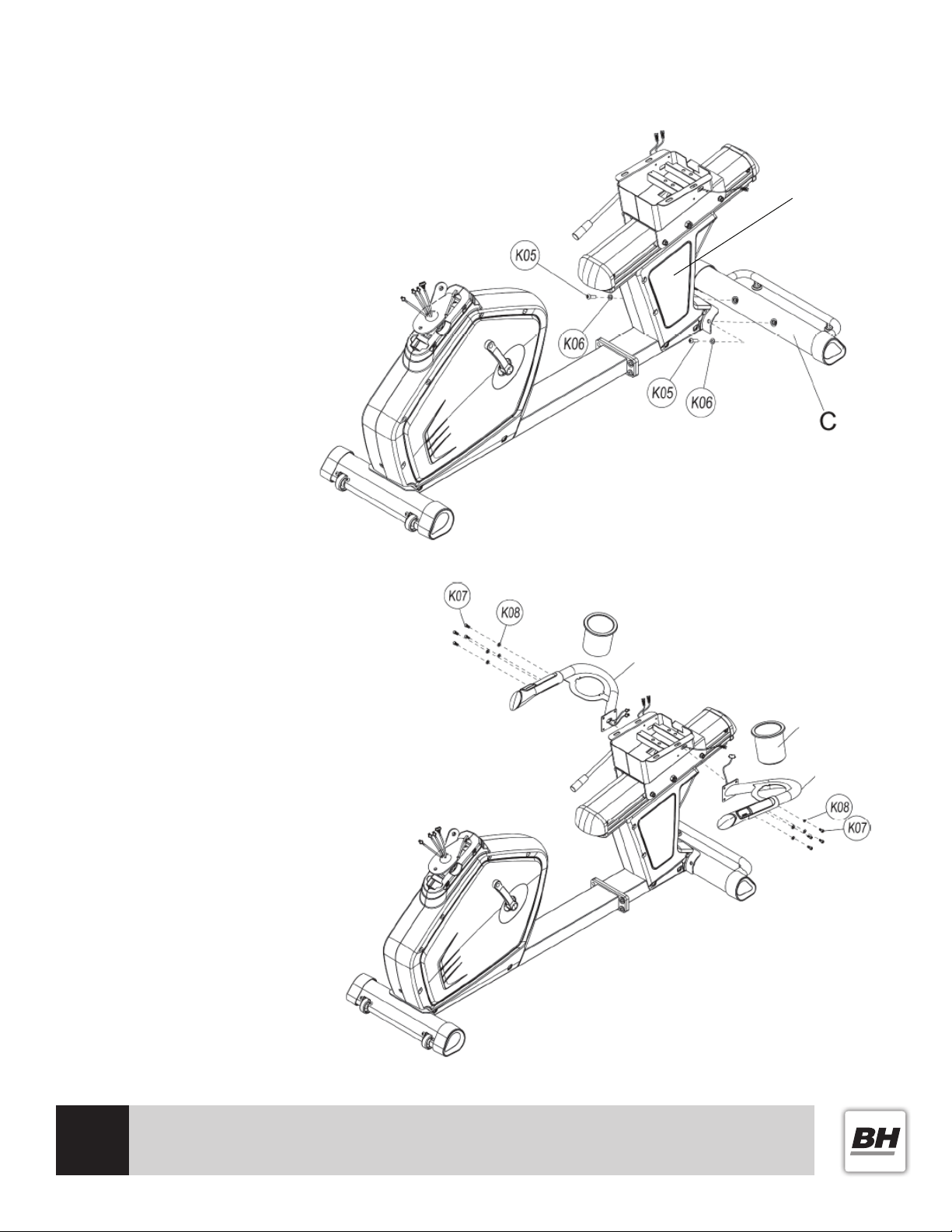

Assembly Instructions ...........12

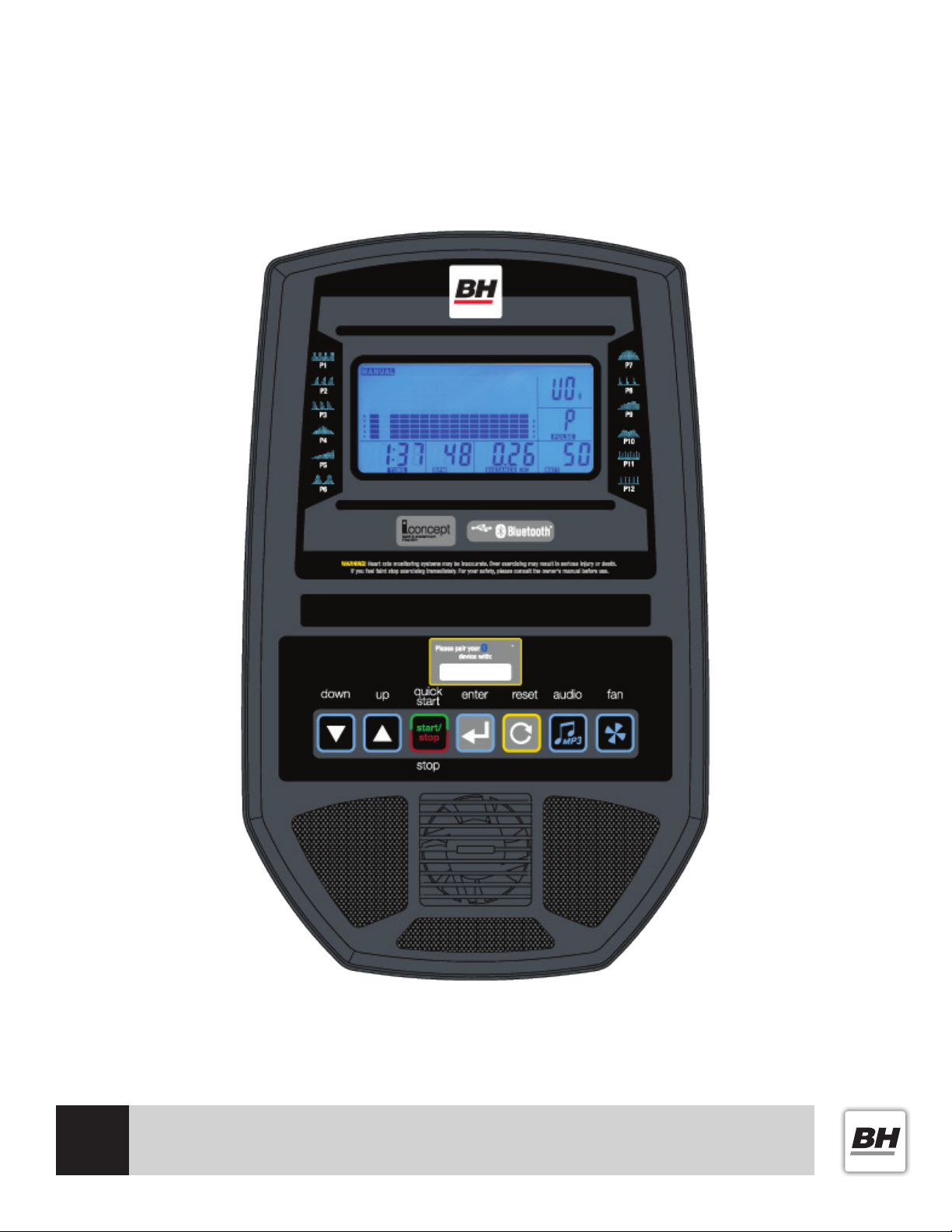

Console Operations .............20
Exploded View Drawing ..........29
Parts List......................30
Warranty ......................31
French / Français...............32
CONGRATULATIONS
Congratulations on your purchase of BH
Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers
around the world have come to expect from
BH Fitness.
If you have any questions, concerns or
product issues please call our Customer
Service Team at 1-866-325-2339 or email us
at [e-mail].
Carefully read through the instructions
contained in this manual. They provide you
with important information about assembly,
safety, tness and use of the machine.
Please read ALL the safety information
contained on the following page.
MAINTENANCE AND CLEANING
Care has been taken to assure that your
equipment has been properly adjusted
and lubricated at the factory. It is not
recommended that the user attempt
service on the internal components.
Instead, seek service from an authorized
service center. However, you may clean the
outer surface. Use a soft cloth, dampened
with warm water. Do not use aerosol sprays
or pump bottles as they may deposit
sediments upon the console surface.
The use of harsh chemicals will destroy the
protective coating and cause a static
build-up that may damage the some of
the components.

3
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
WARNINGS AND LABELS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
4
Caution: Consult your doctor before beginning to use the machine or any exercise program.
Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
SAFETY INFORMATION
PRECAUTIONS
This recumbent bike has been designed and constructed to provide maximum safety.
Nevertheless, certain precautions should be taken when using exercise equipment.
Read the whole manual before assembling and using the machine. Please observe the
following safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using
this machine STOP the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get
caught in the machine. Always wear athletic shoes when using the machine and tie
the laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT
use accessories that are not recommended by BH Fitness. Read manual prior to
use and follow all warnings and instructions.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine
without the assistance of a qualied person or doctor. Misuse of this machine may
result in serious injury.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Keep a perimeter of 3 feet (1 meter) around the machine before operating the
equipment.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. This machine was designed for a maximum user weight of 450 lbs (204.1 kgs)
18. The machine can only be used by one person at a time.

5
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
Use of the machine offers various benets; it can improve tness, muscle tone and when
used in conjunction with a calorie controlled diet, it can help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to undergo a
complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose clothing; do
not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Get on the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your workout
interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.
EXERCISE INSTRUCTION

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
6
Exercise is one of the most important factors in the overall health of an individual. Listed
among its benets are:
• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory efciency
• Decreased risk of coronary heart disease
• Changes in body metabolism, e.g. losing weight
• Delaying the physiological effects of age
• Reduction in stress, increase in self-condence, etc.
There are several components of physical tness and each is dened below.
STRENGTH
The capacity of a muscle to exert a force against resistance. Strength contributes to power
and speed.
MUSCULAR ENDURANCE
The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular
endurance of your legs to carry you 10 km without stopping.
FLEXIBILITY
The range of motion of your joints. Improving exibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle
injury or soreness.
CARDIO-RESPIRATORY ENDURANCE
The most essential component of physical tness. It is the efcient functioning of the heart
and lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the
aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the
body's metabolic or energy-generating process. Many types of exercise are aerobic, and by
denition are performed at moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING
Is an exercise intense enough to trigger anaerobic metabolism. This means “without oxygen”
and is the output of energy when the oxygen supply is insufcient to meet the body’s long
term energy demands. (For example, a 100 meter sprint.)
TRAINING GUIDELINES

7
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to
deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect
that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max
indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen,
and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
This is the minimum level of exercise which is required to produce signicant improvements
in any physical tness parameter.
OVERLOAD
This is where you exercise above your comfort level. The intensity, duration and frequency of
exercise should be above the training threshold and should be gradually increased as the
body adapts to the increasing demands. As your tness level improves, the training threshold
should rise. Working through your program and gradually increasing the overload factor is
important.
PROGRESSION
As you become more t, a higher intensity of exercise is required to create an overload and
therefore provide continued improvement.
SPECIFICS
Different forms of exercise produce different results. The type of exercise that is carried out
is specic to the muscle groups being used and to the energy source involved. There is little
transfer of the effects of exercise, i.e. from strength training to cardiovascular tness. That is
why it is important to have an exercise program tailored to your specic needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benets you
have gained. Regular workouts are the key to success.
WARM-UP
Every exercise program should start with a warm-up where the body is prepared for the
effort to come. It should be gentle and preferably use the muscles group to be involved
later. Stretching should be included in both your warm-up and cool down, and should be
performed after 3-5 minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise,
a large supply of blood remains in the working muscles. If it is not returned promptly to the
central circulation, pooling of blood may occur in the muscles.
TRAINING GUIDELINES

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
8
HEART RATE
As you exercise, your heart rate increases. This is often used as a measure of the required
intensity of an exercise. You need to exercise hard enough to condition your circulatory
system, and increase your pulse rate, but not enough to strain your heart.
Your initial level of tness is important when developing an exercise program. Depending on
the individual, when starting an exercise program, you can achieve good training results with
a heart rate of 110-120 beats per minute (BPM). If you are more t, you will need a higher
threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70%
of your maximum heart rate. If you nd this is too easy, you may want to increase it, but it is
better to lean on the conservative side.
As a rule of thumb, your maximum heart rate is calculated by subtracting your age from 220.
As you increase in age, your heart, like other muscles, loses some of its efciency. Some of
this loss can be won back as tness improves.
HOW TO CALCULATE YOUR HEART RATE
Immediately after exercising, take your heart rate by applying two ngers to your wrist or
carotid artery in the neck. Count the beats for ten seconds. Multiply the number of beats
times 6 to calculate your current heart rate in BPM (beats per minute). Ten seconds is long
enough for accuracy. Since heart rate slows as you recover, a count longer than ten seconds
isn’t as accurate.
The following tables are guides for target heart rate per beginning tness and above average
tness levels based on your age.
BEGINER FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Heart Rate In Beats Per Minute 138 132 132 126 120 114 114 108 108
ABOVE AVERAGE FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Heart Rate In Beats Per Minute 156 156 150 144 138 132 132 126 120
Don’t push yourself too hard to reach the gures on this table. It can be very uncomfortable
if you over exercise. Let it happen naturally as you work through your program. Remember,
the target is a guide, not a rule, a little above or below is just ne.
Don’t be concerned with day to day variations in your pulse rate. Being under pressure or not
enough sleep can affect it. Your pulse rate is a guide, don’t become obsessed with it.
TRAINING GUIDELINES

9
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
MUSCLE SORENESS
For the rst week or so, muscle soreness may be the only indication you have that you
are on an exercise program. This, of course, does depend on your overall tness level. A
conrmation that you are on the correct program is a very slight soreness in most major
muscle groups. This is quite normal and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you
have increased your program too rapidly.
If you experience pain during or after exercise, your body is telling you something. Stop
exercising and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should
be light enough to allow the body to cool. Excessive clothing that causes you to perspire more
than you normally would gives you no advantage. The extra weight you lose is body uid and
will be replaced with the next glass of water you drink. Always wear a pair of athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible.
Remember, breathing involves the intake and distribution of oxygen, which feeds the
working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not
break off halfway through and then restart at the same place later on without going
through the warm-up stage again. The rest period required between exercises may vary
from person to person.
TRAINING GUIDELINES

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
10
HEAD ROLLS
Rotate your head to the right for one count while feeling
the stretch up the left side of your neck. Next, rotate your
head back for one count, stretching your chin to the ceiling.
Rotate your head to the left for one count, and nally, drop
your head to your chest for one count.
SHOULDER LIFTS
Lift your left shoulder up toward your ear for one count.
Then lift your right shoulder up for one count as you lower
your left shoulder.
SIDE STRETCHES
Open your arms to the side and continue lifting them until
they are over your head. Reach your left arm as far upward
as you can for one count. Feel the stretch up your left side.
Repeat this action with your right arm.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach behind you
and pull your left foot up. Bring your heel as close to your
buttocks as possible. Hold for 15 counts and repeat with
right foot up.
SUGGESTED STRETCHES

11
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
INNER THIGH STRETCH
Sit with the soles of your feet together with your knees
pointing outward. Pull your feet as close into your groin as
possible. Gently push your knees towards the oor. Hold for
15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down
as far as you can and hold for 15 counts.
HAMSTRING STRETCHES
Sit with your right leg extended. Rest the soles of your left
foot against your right inner thigh. Stretch toward your toes
as far as possible. Hold for 15 counts. Relax and then repeat
with left leg extended.
CALF/ACHILLES STRETCHES
Lean against a wall with your right leg in front of the left and
your arms forward. Keep your left leg straight and the right
foot on the oor; then bend the right leg and lean forward
by moving your hip toward the wall. Hold, then repeat on the
other side for 15 counts.
SUGGESTED STRETCHES

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
12
ASSEMBLY INSTRUCTIONS

13
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
ITEM Description Qty ITEM Description Qty
A Front Frame 1 K Pedal-left 1
B Rear Frame 1 L Pedal-right 1
C Rear Foot tube 1 M Right handle bar 1
D Front Foot tube 1 N Left handle bar 1
E Handrail tube 1 O Control tube cover 1
F Control tube 1 P Cup holder 1
G Computer 1 Q Adaptor 1
H Backrest 1 R Seatback cover 1
I Backrest tube 1
J Seat 1
PRE-ASSEMBLY CHECKLIST

ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
14
No. Description Qty No. Description Qty
K01 Truss hex screw M8X30 2 K12 Flat Washer Ø8XØ16X1.5t 8
K02 Spring washer M8 2 K13 Truss hex screw M8X20 3
K03 Truss hex screw M12X20 4 K14 Spring washer M8 5
K04 Spring washer M12 4 K15 Flat Washer Ø8XØ16X1.5t 2
K05 Truss hex screw M8X30 2 K16 Truss hex screw M8X30 2
K06 Spring washer M8 2 K17 Truss Phillips Screw M4X6 4
K07 Steel hex screw M6X12 8 K18 Wrench 8mmX55mmX110mm 1
K08 Spring washer M6 8 K19 Wrench+Screwdriver 5mmX26m-
mX76mm 1
K09 Flat hex screw M8X60 4 K20 Open spanner 13mm+15mm 1
K10 Spring washer M8 12 K21 Flat Washer Ø8XØ19X3t 3
K11 Truss hex screw M8X15 8 K22 Truss Philips Screw M6X15 4
HARDWARE CHECKLIST

ASSEMBLY INSTRUCTIONS

15
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
A

STEP 1
Assemble the Front Frame (A) and Front Foot
Tube (D) with Truss Hex Screw (K01) and
Spring Washer (K02).
STEP 2
Connect the guide wires from the Front Frame (A) to the Rear
Frame (B), then screw the Front Frame (A) to the Rear Frame
(B) with Truss Hex Screw( K03) and Spring Washer (K04), then
tighten rmly.
ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
16
STEP 3
Assemble the Rear Foot Stabilizer (C) and the Rear
Frame (B) with Truss Hex Screw (K05) and Spring
Washer (K06).
STEP 4
Connect the wiring from the Right
Handlebar (N), to the Rear Frame (B),
and then attach the right handlebar
to the rear frame with Hex Screws
(K07) and Spring Washers (K08). Do
the same for the Left Handlebar (M).
Finally, place the Cup Holders (P) into
the holes on the handle bars.
To secure, tighten clockwise.
M
P
N
B
ASSEMBLY INSTRUCTIONS

17
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
H
JR
I
STEP 5
Attach the Backrest Tube (I) onto the Rear Frame (B) with Flat End Hex Screws (K09) and
Spring Washers (K10). Then attach Seat-pad (J) and Backrest (H) onto the Backrest Tube (I)
and Rear Frame (B) with Truss Hex Screws (K11), Spring Washers (K10) and Flat Washers
(K12). Finally, attach the Backrest Decorative Cover (R) and tighten with Screws (K22).
ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
18
STEP 6
Slide the Control Tube Decorative Cover (O) onto Control Tube (F)- see Figure 6-1. Then thread
the lower control wires from the Front Frame (A) through the Control Tube (F). Then attach the
Control Tube (F) and Front Frame (A) with the Truss Hex Screws (K13), Spring Washers (K14)
and Flat Washers (K21), tighten rmly. Attach the Handrail Tube (E) to the Control Tube (F)
with Truss Hex Screws (K16), Spring Washers (K14) and Flat Washers (K15).
L
O
O
A
ASSEMBLY INSTRUCTIONS

19
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
STEP 7
Connect all wires from the Console (G) with the wires you threaded through the control tube.
Tuck the connected wires into the Control Tube (F). Then attach the Console (G) to the Control
Tube (F) with Truss Phillips Screw (K17). Then assemble the left & right pedals (L, K). Each
pedal is labeled with an "L" and "R" for left and right, please make sure that you are attaching
the correct pedal onto the correct side. Left side pedal is reverse threaded and must be spun
counter-clockwise to install.
G
K
L
ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
20
CONSOLE OPERATIONS
