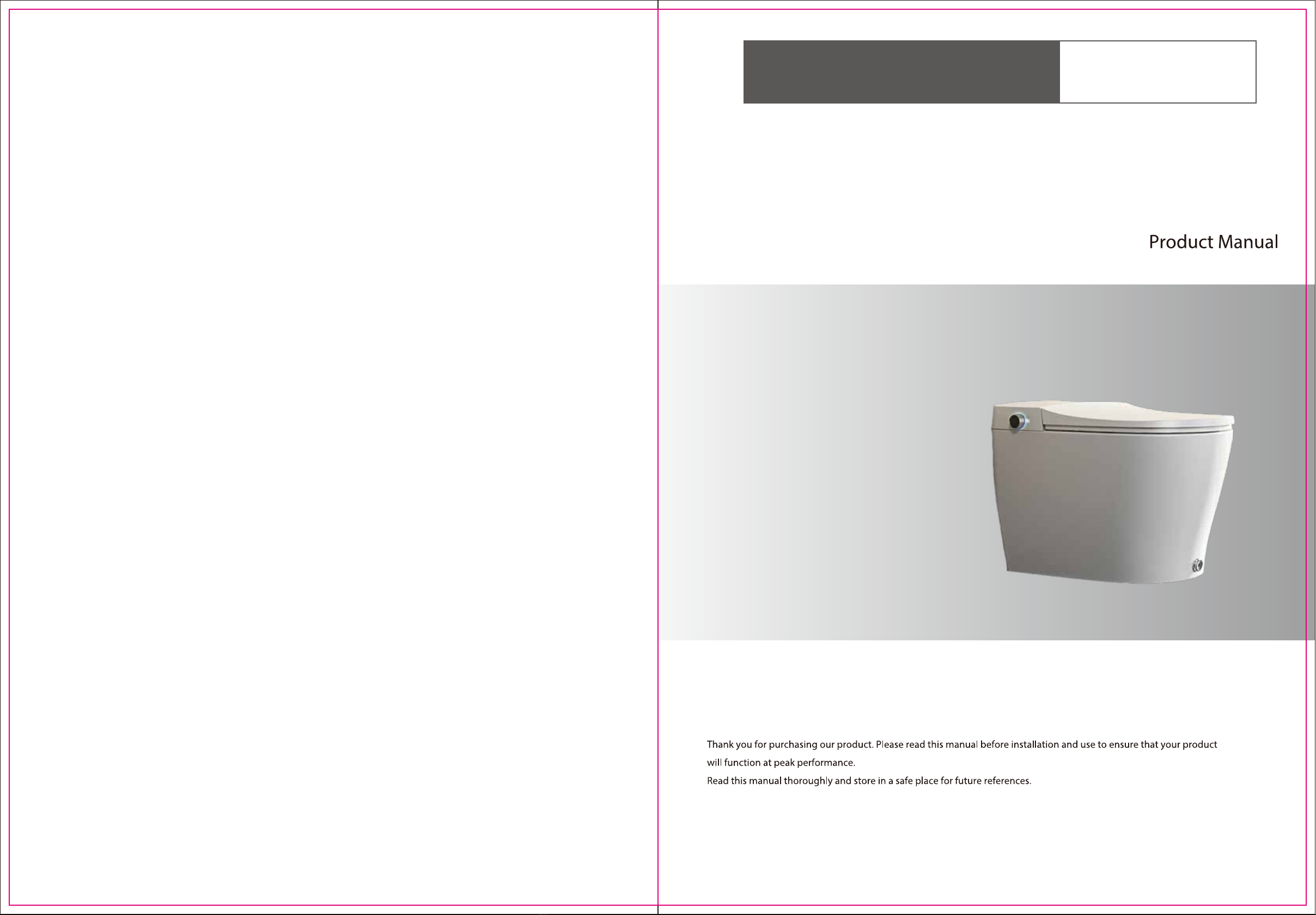

BidetMate BM-6000 User manual

INTELLIGENT TOILET
BIDETMATE
BM-6000
User Manual

IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present, basic safety
precautions shouldalways be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
WARNING– To reduce the risk of burns, electrocution, fire, or injury to persons.
1. Close supervision is necessary when this product is used by, on, or near children or i
nvalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a service
center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings of the product or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and the like.
6. Never use while sleeping or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors or operate where aerosol (spray) products are being used or
where oxygen is being administered.
10. Connect this product to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. This
product is equipped with a cord having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed and grounded.

DANGER– Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding
wire to either flat blade terminal. The wire with insulation having an outer surface that is
green with or without yellow stripes is the grounding wire.
Check with a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
This product is factory equipped with a specific electric cord and plug to permit connection
to a proper electric circuit. Make sure that the product is connected to an outlet having the
same configuration as the plug. No adapter should be used with this product. Do not
modify the plug provided — if it will not fit the outlet, have the proper outlet installed by a
qualified electrician. If the product must be reconnected for use on a different type of
electric circuit, the reconnection should be made by qualified service personnel.
If it is necessary to use an extension cord, use only a three wire extension cord that has a
three-blade grounding plug, and a three-slot receptacle that will accept the plug on the
product.Replace or repair a damaged cord.
Wind Temp Regulation
Seat Temp Regulation
Damping Slow Descent
Automatic deodorization
Strong Dry
Seat Heating
Nozzle self-cleaning
Removable Spout
Cold/Hot Massage
Cleaning Back and Forth
Auto-cleaning
Bubble Cleaning
Female Cleaning
Hip Cleaning
No Limited Cleaning
Eight Safe Keeping
Remote control
Spout Position Regulation
Water Temp Regulation
Warm Dry
Nano-antibiotic
Prevent Cross-flow
UV Sterilizer
Air Isolation
Filter Steel Mesh
Remote turn
Remote flip
Foot touch circle
Speed Microwave
Feet flush
Dry flush
Automatic flushing
Remote flush
Night Light
Frequency Instant Heating
Foot flip
Automatic flip
Memory Mode
Water Pressure Regulation
Flame and Heat Resistance
Seat Ring Induction

 





Self-cleaning glaze
Nozzle cleaning

T-valve
Water valve
Hose
Power plug
 
Parts Information
Overview
Remote Control
Design Overview

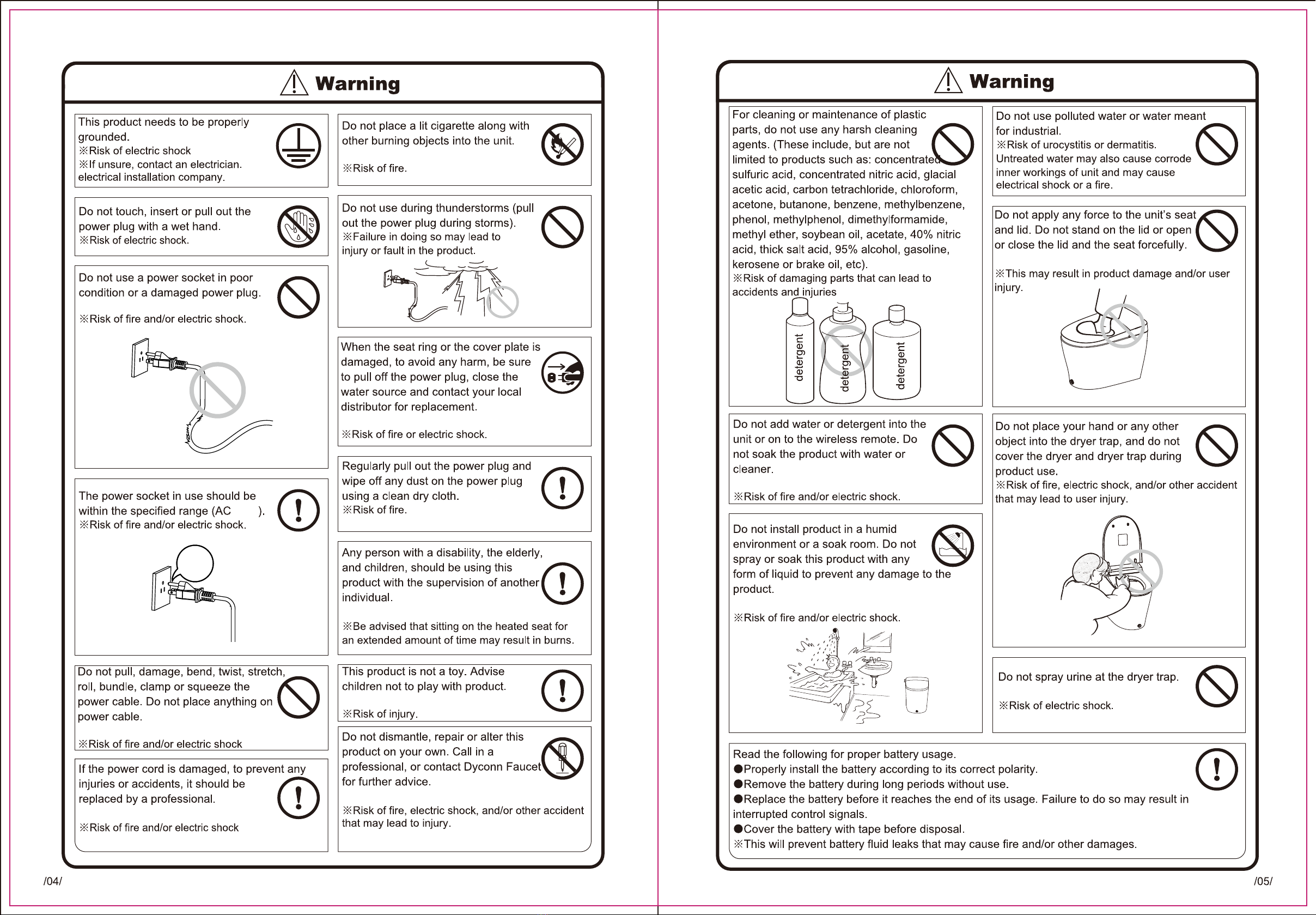

Warnings
Attention
Safety Information
Installation
Before you Install
Installing Your Product
Function Explanations
Surface Cleaning
Filter Maintenance

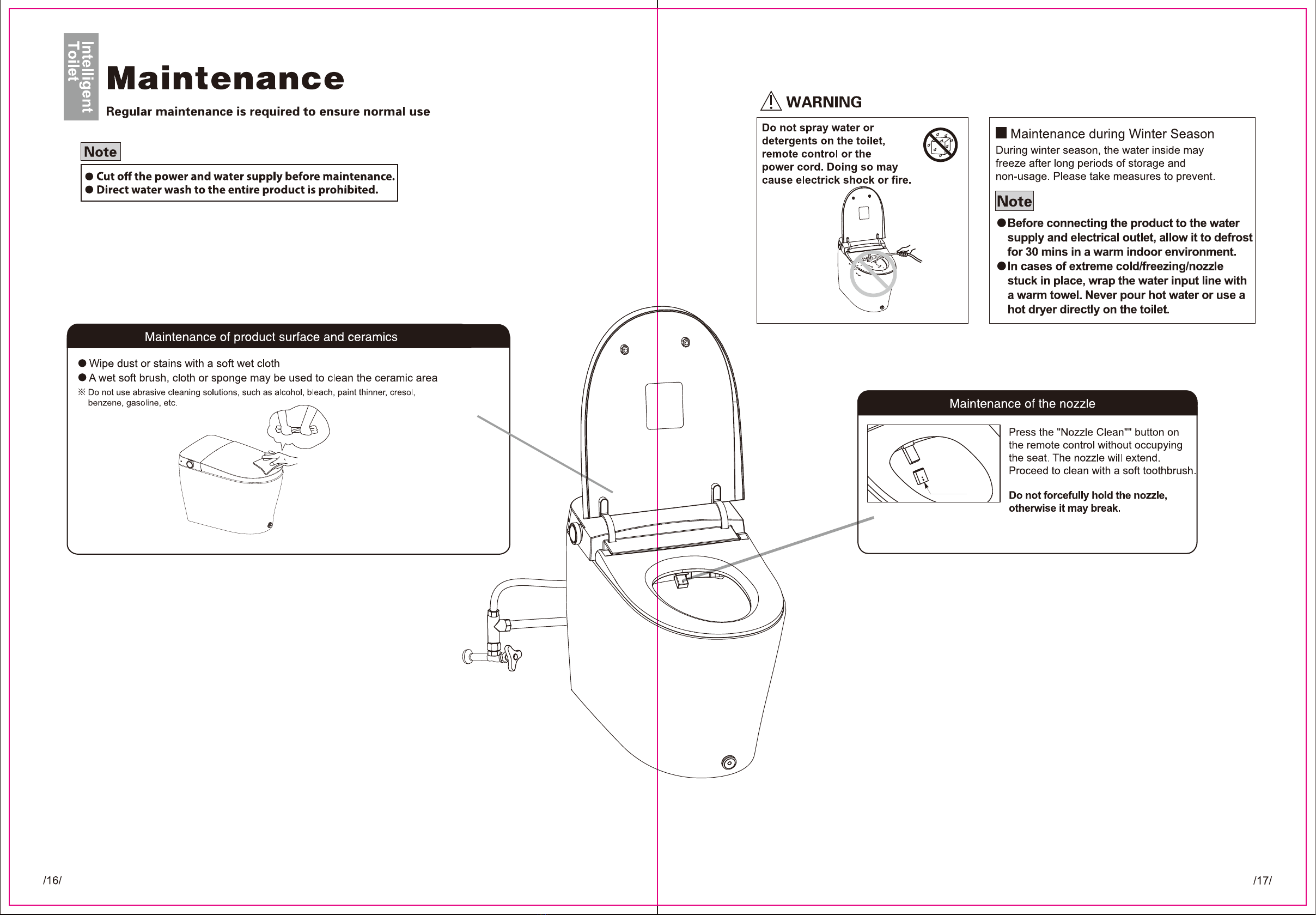

Maintenance
Nozzle Maintenance
Troubleshooting
Power button
Wash functions
Dryer
Toilet Unit
Soft-Closing Feature
Remote Control
Specifications
Heated Seat
1
1
2
2
3
4
6
7
8
9
13
16
16
16
17
18
18
18
19
19
19
19
19
20
Caution Label
Lid
Warm Dryer
Cleaner
(Rear & Front wash)
The heating seat
Toilet
Kick control
Rotated Switch
Rotated
forward
Rotated
backward

Nozzle Backward
Water Pressure
Air Temp Water Temp Seat Temp
Night Light
FrontStop FlushDryerRear
Open / Close cover Open / Close seat
Nozzle position
can be adjusted
in 5 positions
Adjust the wash
intensity of rear
wash and front
wash
Adjustable warm
air temperature
Adjustable water
temperature
Adjustable seat
temperature
Water Pressure Nozzle Forward Nozzle Clean H/C Massage
Adjust the wash
intensity of rear
wash and front
wash
Nozzle position
can be adjusted
in 5 positions
For manual
nozzle cleaning
Alternate cleaning
with hot and cold
water temperature
Night light lighting
on or off
Feminine WashStop Front Wash
or Rear Wash
Flushing after
toilet
Drying the cleaning
area with warm air
For hip cleaning
Open/close seat cover Open/close seat ring
Stop Front Rear Dryer Flush
H/C
Massage
Nozzle
clean
Nozzle
forward
Water
pressure
Water
pressure
Nozzle
backward
Air
temp
Water
temp
Night
light
Seat
temp
Remote Control Pair Code:
Pull the plug off→Press the stop
button until the gear lights flicker
→Pull the plug in when the
remote controller near the
product→The gear lights stop
flicking and keep lighting→
Open/Close
cover Open/Close seat

120V
120V

T-valve(1 pc)
(G1/2,G1/2,G1/2)
Two AAA Battery
Floor ange(1pc) Bolt (2pcs)
Washer (8pcs)
Hexagon bolt(4pcs)
Mounting bracket (2pcs)
Bolt(2pcs)
Please conrm all the aforementioned items are inside the package.
If there are any omissions, please contact our customer service.
Illustrations above are for references only,Actual objects may look dierent in person.
If your water valve is 3/8, you could directly connect the T-valve; If your water valve is 1/2,
please screw o the adapter, then connect it.
Pre-installed
3/8’’ adapter

●The lowest working water pressure is 0.08MPa, the highest water pressure is 0.75MPA, the toilet can not
reach the best clean situation when the lowest water pressure can not reach 0.08MPA.
Unit: inches
Wall
Drain hole distance
to wall12in
Front view Top view Side profile
15.75
15.75
18.5
26.97
1.Put the ange on the drain hole, and x it on the
ground with four bolts. Then Seal the ange with
glass glue.
2.Place the xing block on the installation position
marked by the line drawing pen and fasten it with two
bolts.
Screw mounting
holes of xing block
Openings of
ceramic bottom
Screw mounting
holes of xing block
1.Align the ange with the drain hole, and mark
the positions of the four mounting holes of the
ange on the ground with a marking pen.
2.Place the toilet on the ground with aligning the
ground drain hole, place two xing blocks in the
openings on the left and right sides of the toilet
bottom, mark the screw mounting hole positions of
the xing block with a marking pen, and then
remove the toilet.
Bolt mounting holes of ange
Screw mounting
holes of xing block

5
0.24in
1.Place the wax ring on the drain hole at the bottom of
the ceramic.
3.Fix the two sides of the ceramic with two bolts, and
nally install the cap.
2.Align the ceramic drain with the drain hole on the
ground, and press down to make the wax ring fully
contact with the ground.
G1/2 G1/2
G1/2
G1/2
G1/2
3/8”Adapter
3/8”Adapter

120V
Matching your remote control code
Air
temp
Water
temp
Seat
temp
※When the product leaves the factory, the remote control and the product are connected, if the
remote control went failure, please re-connect the code as following methods.
1. Unplug the product's
plug, press the stop ket for
few seconds until the level
light is flickered.
Press the stop key
for few seconds Level light
is flickered.
2. Plug the attaching plug
when the remote control get
closer to the product.
3. The level light stops
flickering, and then it is
lighted on.
All the level light (red)
is lighted on
4. At the time, the remote
control and product is
re-connected.
Stop Front Rear Dryer Flush
H/C
Massage
Nozzle
clean
Nozzle
forward
Water
pressure
Water
pressure
Nozzle
backward
Air
temp
Water
temp
Night
light
Seat
temp
Remote Control Pair Code:
Pull the plug off→Press the stop
button until the gear lights flicker
→Pull the plug in when the
remote controller near the
product→The gear lights stop
flicking and keep lighting→
Power/Stop
RearFront
Stand by: Press it for 3s to activate it.
Activated: under the hip cleaning, female
washing, drying mode, press it for short
time to stop it, press and hold for 3s to
shut down.
Under no cleaning and drying mode,
and seating the toilet.
“Rotated backward”, rotated it back-
ward for 45° to enter into the front
wash mode, which the mode is defaulted
to cleaning moving. The cycle of opera-
tion: front wash 1.5mins + drying 4mins
+ flushing when drying for once.
When the function of front wash is
activated, rotates the switch forward to
increase the cleaning strength, switch
backward to decrease the cleaning
strength.
Knob light color : pink
Under no cleaning and drying mode,
and seating the toilet.
“Rotated forward” , rotated it forward
for 45° to enter into the rear wash
mode, which the mode is defaulted to
cleaning moving. The cycle of operation:
rear wash 1.5mins + drying 4mins +
flushing when drying for once.
When the function of front wash is
activated, rotates the switch forward to
increase the cleaning strength, switch
backward to decrease the cleaning
strength.
Knob light color : blue
1.Open the water supply angle valve to
maximum as shown in the figure.
2.Confirm various connecting parts are not
water leaking.
※In case of water leaking, unfasten the nuts
again and install them again.

120V
※
Knob light color : lake blue


The toilet seat will open automatically.
Get close to the product about 1 meter.
※When the product cannot detect the human body for a while, it will close the toilet cover and toilet seat
automatically.
※When you leave the seat and the product are
activating, long press the “Feminine” button,
and you will hear the sound of “DONG, DONG,DONG”, which means that the induction function turns off.
When you hear the sound of “DONG”, which means that the induction function turns on.
※This function is only limited to some model, see the details on the list of product function.

● Slow-closing lid/seat
Preserve your toilet’s life and allows you to close the lid/seat silently.
● Water purification
Equipped with dedicated filter to ensure your bidet will only spray clean, filtered water.
● 8 Layers of safety
8 different built-in safety features to protect the user and product.
● Memory mode
After power failure, water temp, water pressure, seat temp, and wand position are all
restored to mid-range after power failure.Night light is turned on by default after power failure.
On / off, keep the last memorized setting state.

Tap the kick button once: Lid opens
Tap the kick button twice: Seat raises
Tap the kick button three times: Seat and
Lid will close and toilet will flush.
Tap the “Kick Button” with your foot to
raise your toilet seat/lid.
※Posterior/front wash is not available during flushing.

Press “Dryer” once.Press the "Dryer"
button again, the wind speed can be
adjusted to 3.
Dries front and rear.

The toilet will only flush once.
When the seat sensor no longer detects
a user, it will automatically flush.

During flushing, the function of “Reat wash”,
“Front wash” cannot be used.
Tap the “Kick Button” with your foot for
easy, manusl flushing.

When the human body is seated, the seat
will automatically flush once.
The human body leaves the seat
sensing area.
Light of rotated switch
No functions operating, no seating White
Green
Blue
Pink
Aqua blue
No functions operating, seating
Hip cleaning activates
Female washing activates
Flushing mode
YellowDry mode
PurpleUV
State Colour
Rotated
switch
light
UV Light
UV Sterilization
After leaving the seat, it will run
automatically.
Operate it automatically when leaving
seat.The cleaning spout will back to
position, and the UV function will be
activated after 10s, and it is working for
3min, the light of rotated switch becomes
purple. After seating, the UV function will
stop and the indicator will go out.
※Ultraviolet lamp device is installed on smart toilet.
Dryer

nozzle
Please change the spout if it blocked.

Not working
Check whether the attaching
plug is loose or not
Check whether the power is
switching on or off (the power
light is not on)
Please check the circuit
Phenomenon Fault Diagnoses Solutions
Phenomenon Fault Diagnoses Solutions
Power button
Wash functions
No water from
the spout
Check whether or not the water
supply cuts off
Check whether or not the water
filter is blocked
Check whether or not the inlet
pipe is flexed
Check whether or not the angle
valve switches off
Wait for the water supply restoring
The inlet pipe must be straight
The intensity of
cleaning is not
strong enough
Open the angle valve
Clean the filter mesh or change the water filter
Clean the filter mesh or change the water filter
Regulate the water pressure according to the
instruction manual
Unusual water
flow from the spout Abnormal operation Unplug the attaching plug for one minute and then
plug it again
The cleanser is
always leaking
Solenoid valve no longer has
any effect
Please contact with our qualified maintenance
personnel for repairing
The water temp is
not warm enough
Check whether or not the water
supply switches to low level
Regulate the water temp according to the instruction
manual
The cleaning function
is not working normally
The human induction system of the
toilet seat no longer has any effect
Please contact with our qualified maintenance
personnel for repairing
Check whether there is any
electric leakage or not (the
light of leakage protection
plug is not on)
Press rotated switch for 3s, the power light is on.
Unplug the attaching plug from the socket, plug
it again later. Press the reset switch of the
leakage protection plug, if it is still not working,
please unplug the attaching plug and
contact with local distributor to repair.
Check whether or not the water
pressure of cleaning switch to low
level or not
Check whether or not the inlet
filter is blocked
Phenomenon Fault Diagnoses Solutions
Phenomenon Fault Diagnoses Solutions
Phenomenon Fault Diagnoses Solutions
Phenomenon Fault Diagnoses Solutions
Phenomenon Fault Diagnoses Solutions
Dryer
The dryer blows
cold air
Check whether or not the dryer
switches off
Check whether or not the heating
element of dryer is damaged
Please contact with our qualified maintenance
personnel for repairing
Regulate the temperature of dryer according to
the instruction manual
Heated seat
The seat temp is too
low or is not hot
Check whether or nor the temp
of toilet seat is on the “off”
position
Regulate the temperature of toilet seat according
to the instruction manual
Auto-damping is damaged
Soft-Closing Feature
1. Recharge after unplug the attaching plug
2. Please contact with our qualified personnel if the
following solution is not working.
The product is not
flushed clean
No power supply
No water from the spout
No water but have the sound of
flushing
Toilet Unit
Power restoration
1. Check whether or not the pipeline is blended or
not, please keep the water supply pipeline open
and smooth
2. Check there is any damage of water pump
have water all the time Please contact with our qualified maintenance
personnel for repair if there is any unusual from
the water inlet valve.
Please contact with our qualified maintenance
personnel for repairing
Remote control is
not working
The blue light of water
temp is flickered Low battery
Check whether or not there is
any water on the remote control
Remote Control
Please replace a new battery
Wipe off water by dry towel
The function of
flipping the seat
cover/ring up by
foot touch cannot
open or close

120V~Power rating
60HzFrequency
Rated power input 1050W(When inlet water temp in 15℃
39.4 ~104
Water supply type
Source water temperature range
Seat and dryer temperature range
DN15(G1/2″)
39.4 ~95
Water Inlet
Minimum pressure
Maximum pressure
0.08MPa, and also make sure the water flow is above 2.3L/10s
0.75MPa(in a static condition)
Toilet Flush type
Rough-in
Tornado flush
rough-in 12in
Way for heating
Temp pf warm water
Safety devices
Transient heating
Off/about 93.2 ~102.2 (4 levels)
Thermostat series, thermal fuse, flow detection device
Warm wind temp
Wind speed
Safety devices
Off/about 95 ~131 (4 levels)
Above 4m/s (3 levels regulations)
Bimetal thermostat series, thermal fuse
Flushing
Warm wind
Seat ring Seat ring temp
Safety devices
Off/about 93.2 ~104 (4 levels)
Thermal fuse
Remote control Dimension
Battery
Power cable length
Product dimension
Appx. 47.2in
7.48in(L) ＊ 2.01in(W) ＊ 0.87in(H)
Two AAA Batteries
26.97in(L) ＊ 15.75in(W) ＊ 15.75in(H)
