Cod. 81320427 - 01/02/2013 WEIGHING TERMINAL QUICK START
DD1010
2. Language setting
1. Unpacking and Installing
3. Touch-screen calibration
4. Network setting
Once the congurations have been carried out, wait until the appli-
cation is fully loaded and the archives are activated.
International Settings
- International settings: English
- User interface language: English
- Input language: EN
OK
TOUCH-SCREEN calibration
Take the terminal and documents out of the packaging.
Available
connections:
1. Slot for optional
cards
2. Scale 1
3. Scale 2
4. COM2 Port
5. COM1 Port
6. Expansion for
SD card
7. Ethernet Port
10/100 Mbps
8. USB HOST Ports
9. Power supply
12V (via external po-
wer supply unit)
Press the touch-screen within
5 seconds of switching it on.
Select“International Settings”.
Press “OK”.
Press the touch-screen within
5 seconds of switching it on.
Select “TOUCH-SCREEN
Calibration” to recalibrate the
screen (follow the guided pro-
cedure).
Network settings
Press the touch-screen within
5 seconds of switching it on.
Select “Network settings” to
set the network parameters re-
lative to the connection (follow
the guided procedure).
1
2 3
4
67
8
9
5
Version with connectors
Version with cable glands
1
Available
connections:
1. USB HOST Ports
• Slot for optional
cards
• Scale 1
• Scale 2
• COM2 Port
• COM1 Port
• Expansion for
SD card
• Ethernet Port
10/100 Mbps
• Power supply
110/240 Vac
Press to access
the terminal.
Install the terminal

5. RcD Weighing
1
2
3
4
5
6
7
6. RcP/RcA Weighing
1
2
3
4
Società Cooperativa Bilanciai Campogalliano - 41011 Campogalliano (MO) Italy
Via S. Ferrari, 16 - Tel. [phone] - Fax [phone]
Web: http://www.coopbilanciai.it - E-mail:[email protected]
Customer Service Tel. [phone] - Fax [phone]
DECLARATION OF CONFORMITY
N° dd1010_1
SOCIETÀ COOPERATIVA BILANCIAI A.R.L.
We: Via S. Ferrari, 16
41011 Campogalliano (MO) - Italy
declare under our responsibility that
the product: Electronic weighing terminal DD1010
and its options
described in this declaration complies with:
Electromagnetic Compatibility 2004/108/EC
Directives: Low voltage 2006/95/EC
Non-automatic weighing instrument 2009/23/EC
Conformity is ensured by complying with
EN 61000-6-3, EN 61000-6-4
standards: EN 60950
EN 45501
The terminal is also suitable for producing non-automatic weighing in-
struments, approved with "EC type-approval certicate" in compliance
with Directive 2009/23/EC (ex. 90/384).
The CE marking has been applied on the product.
Campogalliano, (date) ............................
Management Division
Franco Brighenti
WARNINGS
Do not install in environments with presence of potentially
explosive gas or powders.
• This appliance cannot be disposed of as municipal solid
waste.
• It must be disposed of separately.
For further information, refer to the site www.coopbilanciai.it.

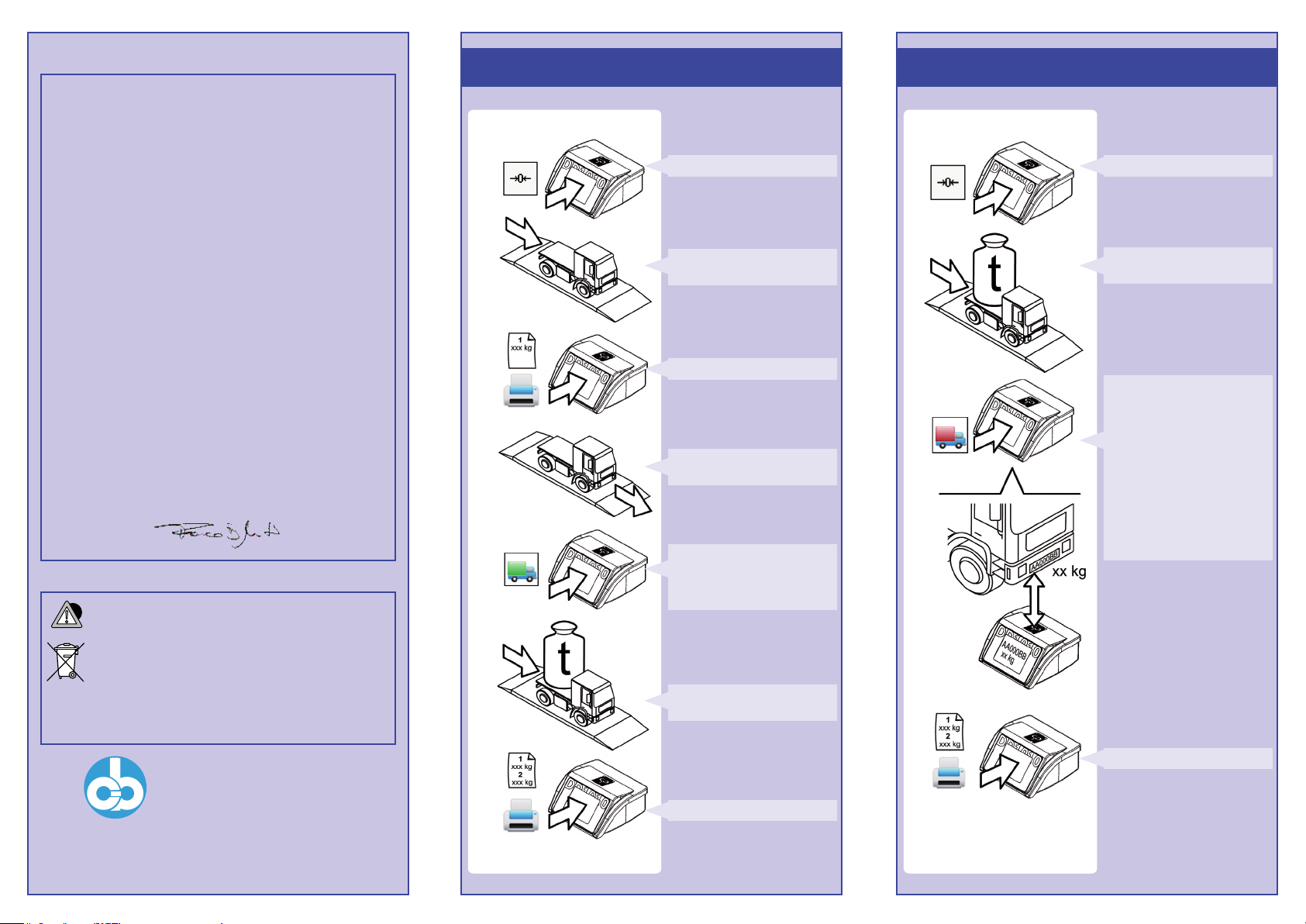

Reset the instrument.
Place the empty vehicle on
the weighing platform.
Generate entry printout.
Remove the vehicle from the
weighing platform.
Recall code RcD:
• Select the newly-perfor-
med weighing operation
and press “OK”.
Place the loaded vehicle on
the weighing platform.
Generate exit printout.
Reset the instrument.
Place the loaded vehicle on
the weighing platform.
Recall code RcP (or RcA):
• Select the vehicle code
and press "OK".
or (if there is no relative
code):
• Enter the vehicle
data in a new code
and conrm.
• Select the new code
and press “OK”.
Generate exit printout.
RcD
