Rockwell Automation OI-E1480 User manual

Swift-E Reconfigurable 3D Sensor
Catalog Number OI-E1480
User Manual
OIE1-UM001B-EN-P, May 2020

Trademarks
Unless stated otherwise, all trademarks appearing in this document of Rockwell Automation ,
are brands protected by law.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Warranty
The information provided by Odos Imaging, A Rockwell Automation Company is supplied
without any guarantees or warranty whatsoever, be it specific or implicit. Also, excluded are all
implicit warranties concerning the negotiability, the suitability for specific applications or the
non-breaking of laws and patents. Even if we assume that the information supplied to us is
accurate, errors and inaccuracy may still occur.
Copyright
All texts, pictures and graphics are protected by copyright and other laws protecting intellectual
property. It is not permitted to copy or modify them for trade use or transfer, nor may they be
used on websites.

Contents
1 Preface 1
1.1 Who Should Use This Manual . . . . . . . . . . . . . . . . . . 1
1.2 Styles ............................... 1
1.3 Features.............................. 2
1.4 Warning and Caution Summary . . . . . . . . . . . . . . . . . 2
1.5 Device Maintenance . . . . . . . . . . . . . . . . . . . . . . . 2
1.6 Additional Resources . . . . . . . . . . . . . . . . . . . . . . 3
1.7 ContactDetails.......................... 3
2 Introduction 4
2.1 DeviceSummary......................... 4
2.2 QuickStart ............................ 4
2.3 Hardware and Software Compatibility . . . . . . . . . . . . . 5
2.4 Swift-E and Time-of-Flight (ToF) Technology . . . . . . . . . . 5
2.4.1 Effect of Ambient Light . . . . . . . . . . . . . . . . . . 5
2.5 Example System Setup . . . . . . . . . . . . . . . . . . . . . 6
3 Installation 7
3.1 Connections ........................... 7
3.2 Grounding and Power Requirements . . . . . . . . . . . . . . 8
3.3 EtherNet/IP wiring . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Mounting ............................. 9
3.5 Height Requirements and Field-of-View . . . . . . . . . . . . 9
3.6 Device Positioning . . . . . . . . . . . . . . . . . . . . . . . . 11
3.6.1 Optimal Mounting Configurations . . . . . . . . . . . . 11
3.7 Object Shadowing . . . . . . . . . . . . . . . . . . . . . . . . 12
3.8 Object Parameters . . . . . . . . . . . . . . . . . . . . . . . . 12
3.8.1 Size ............................ 12
3.8.2 Motion........................... 12
3.9 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 13
i OIE1-UM001B-EN-P

3.10NetworkSetup .......................... 14
3.10.1 IP Address and Subnet . . . . . . . . . . . . . . . . . 14
3.10.2 Gateway Address . . . . . . . . . . . . . . . . . . . . 15
3.11 Establishing a Web Connect Session With Swift-E . . . . . . 16
3.11.1 Reset of Network Settings . . . . . . . . . . . . . . . . 16
4 Configuration of Swift-E with Web Connect 17
4.1 FirstTimeLogin ......................... 17
4.1.1 Forgotten Password . . . . . . . . . . . . . . . . . . . 18
4.2 ContextualHelp.......................... 18
4.3 Top Bar - Web Connect Mode and Menu . . . . . . . . . . . . 19
4.4 Swift-E Mode of Operation . . . . . . . . . . . . . . . . . . . . 19
4.5 Web Connect Mode of Operation . . . . . . . . . . . . . . . . 20
4.6 Device Settings Page . . . . . . . . . . . . . . . . . . . . . . 20
4.6.1 EtherNet/IP Settings . . . . . . . . . . . . . . . . . . . 21
4.6.2 Configuration Backup and Restore . . . . . . . . . . . 22
4.6.3 Device Management - Firmware Upgrade . . . . . . . 23
4.6.4 Device Management - Change Password . . . . . . . 24
4.6.5 Device Management - Factory Reset . . . . . . . . . . 24
4.6.6 Device Management - Restart Device . . . . . . . . . 24
4.6.7 Additional Information . . . . . . . . . . . . . . . . . . 24
4.7 HomePage............................ 25
4.7.1 Range Representation . . . . . . . . . . . . . . . . . . 25
4.7.2 Intensity Representation . . . . . . . . . . . . . . . . . 27
4.7.3 Template Management . . . . . . . . . . . . . . . . . 28
4.8 Template Editor - Designing or Editing a Template . . . . . . 29
4.9 Acquisition Parameters . . . . . . . . . . . . . . . . . . . . . 30
4.9.1 Basic Parameters . . . . . . . . . . . . . . . . . . . . 30
4.9.2 Advanced Parameters . . . . . . . . . . . . . . . . . . 31
4.9.3 Effect on Response Time . . . . . . . . . . . . . . . . 33
4.10 Adding Virtual Sensing Zones (VSZ) to a Template . . . . . . 34
4.10.1 How Virtual Sensing Zones Work . . . . . . . . . . . . 34
4.10.2 Creating VSZ . . . . . . . . . . . . . . . . . . . . . . . 34
4.10.3Zooming.......................... 35
ii OIE1-UM001B-EN-P

4.10.4CloningVSZ ....................... 36
4.10.5 VSZ Numbering . . . . . . . . . . . . . . . . . . . . . 36
4.10.6 Grouping VSZ . . . . . . . . . . . . . . . . . . . . . . 36
4.10.7 Deleting VSZ . . . . . . . . . . . . . . . . . . . . . . . 36
4.10.8 Aligning and Distributing VSZ . . . . . . . . . . . . . . 37
4.10.9 Activating VSZ . . . . . . . . . . . . . . . . . . . . . . 37
4.10.10 Distance / Height Selection . . . . . . . . . . . . . . . 38
4.10.11 VSZ Measurements . . . . . . . . . . . . . . . . . . . 40
4.11 Saving a Template . . . . . . . . . . . . . . . . . . . . . . . . 41
4.12 Application Considerations . . . . . . . . . . . . . . . . . . . 42
5 Connecting to Logix 5000 Controllers 44
5.1 EDSFile.............................. 44
5.1.1 Changing Swift-E IP Address using RSLinx . . . . . . 45
5.2 Add Swift-E to Rockwell Automation Studio 5000 Logix De-
signerApplication ........................ 46
5.3 Input and Output Assembly Tags . . . . . . . . . . . . . . . . 48
5.3.1 Input Assembly . . . . . . . . . . . . . . . . . . . . . . 49
5.3.2 Output Assembly . . . . . . . . . . . . . . . . . . . . . 50
6 Specifications 51
7 Ordering Information 52
8 Document History 53
iii OIE1-UM001B-EN-P

1 Preface
Industry is evolving. Consumer expectations for personalization have re-
sulted in a growing demand for greater product variability, ultimately driving
the need for more flexible manufacturing and increased spatial awareness.
The new Swift-E is a fully reconfigurable 3D sensor that enables machine
builders and production plants to adapt to new market trends. The capability
to adapt to changing products or conditions makes Swift-E an ideal solution
for production lines that require high flexibility.
Swift-E includes built-in capability for distance or height measurement with
configuration via an easy to use interface that require no additional software.
Firmware updates will enable Swift-E to extend its capabilities.
Swift-E integrates quickly and easily with Allen-Bradley
R

Logix controllers
via EtherNet/IP
TM
, providing real-time data access to help maximize produc-
tivity and avoid unplanned downtime.
1.1 Who Should Use This Manual
This manual is intended for qualified personnel. Familiarity with the Rock-
well Automation Studio 5000
R

environment and EtherNet/IP networking
is necessary. Swift-E is an advanced sensor with EtherNet/IP interface
using the principle of time-of-flight to measure distance. Refer to product
documentation before attempting to use Swift-E devices.
1.2 Styles
This manual uses certain typographical conventions in order to maintain an
easily accessible and consistent layout. The styles contained in table 1.1
and symbols noted below are used throughout the manual.
Table 1.1: Typographical conventions
Style Function Example
Bold Font important information, key
words, headings
Bold
Fixed Space Font IP addresses 192.168.1.40
Boxed Text Controller Tag Web Connect Enable
Blue Text Hyperlink https://www.odos-
imaging.com/
1 of 53 OIE1-UM001B-EN-P

This symbol highlights important information to
note.
Use of the CAUTION heading throughout this man-
ual explains risks that are potentially harmful to
either the product or personnel, or have impact
on performance. These sections should always
be read carefully and understood
1.3 Features
Features of Swift-E reconfigurable 3D sensors include:
• Sensing Area of 640 × 480 individual distance points, arranged in a
field of view of 43◦×33◦
• Capability to add up to 64 user-defined Virtual Sensing Zones (VSZ)
per template
•
Storage for up to 255 templates (user-defined combinations of VSZs)
•VSZ typical measurement precision of ±1 cm
•Operating range from 0.5 — 6 m (Approximately 1.5 to 20 ft)
1.4 Warning and Caution Summary
According to IEC 62471:2006, the light-emitting
diodes (LEDs) that are used in the Swift-E are
classified as exempt. This classification is con-
sidered safe and represents no photobiological
hazard. As with any light source, they must be
used consistent with their intended use. Do not
stare directly at the infrared LED output through
the windows on the front of the device.
1.5 Device Maintenance
Swift-E contains no user serviceable parts. Opening or dismantling the
device will invalidate warranty, and will break on board calibration.
If required, the windows on the front of the device may be gently cleaned
with a microfiber or lint free cloth and distilled water.
2 of 53 OIE1-UM001B-EN-P

1.6 Additional Resources
Resource Description
OI-E1480 Installation Instructions Provides detailed information on the
physical installation of Swift-E devices
EtherNet/IP Network Devices, publication
ENET-UM006
Manual describing connection of Ether-
Net/IP communication modules in Logix
5000 control systems
Industrial Automation Wiring and Ground-
ing Guidelines, publication 1770-4.1
Provides general guidelines for installing
a Rockwell Automation industrial system
Link to Product Certification website Provides declarations of conformity, cer-
tificates, and other certification details
1.7 Contact Details
Technical
Support
Center
Knowledgebase Articles,
How-to Videos, FAQs,
Chat, User Forums, and
Product Notification Up-
dates.
https://rockwellautomation.custhelp.com/
Local
Technical
Support
Phone
Numbers
Locate the phone num-
ber for your country.
http://www.rockwellautomation.com/global/support/
get-support-now.page
Literature Li-
brary
Installation Instructions,
Manuals, Brochures,
and Technical Data.
https://www.odos-imaging.com/literature/
Product
Compati-
bility and
Download
Center
(PCDC)
Get help determining
how products interact,
check features and capa-
bilities, and find associ-
ated firmware.
http://www.rockwellautomation.com/global/support/
pcdc.page
Odos Imaging, A Rockwell Automation Company
36 South Gyle Crescent
South Gyle Business Park
Edinburgh, EH12 9EB
Scotland
Tel: [phone]
Email: inf[email protected]
3 of 53 OIE1-UM001B-EN-P

2 Introduction
2.1 Device Summary
Swift-E is a reconfigurable 3D sensor. It uses time-of-flight technology
to measure the distance to each and every one of 640 × 480 individual
distance points within the sensing area (over 300,000 points in total).
The Web Connect interface allows creation of arbitrary shaped selections of
distance points - each selection of points is called a Virtual Sensing Zone
(VSZ). Virtual Sensing Zones are arranged on a template . Templates can
be defined either as a distance templates or height templates. Swift-E mea-
sures either the mean distance to each VSZ, or the mean height measured
from the reference (reference is captured during configuration).
Capability to store up to 255 unique templates, each with up to 64 VSZ.
Over EtherNet/IP
TM
networking, Swift-E delivers the measurement for each
VSZ directly into the controller. The controller is able to define which tem-
plate to use, allowing it to reconfigure the sensing area as required. That
is, the controller is able to make decisions based on a user-defined VSZ
arrangement.
2.2 Quick Start
To prepare the Swift-E reconfigurable 3D sensor to work on an EtherNet/IP
network, it is necessary to complete the following steps:
1. Mount the Swift-E (Section 3.4)
2. Connect the power and network cables (Sections 3.1 and 3.3)
3. Ensure computer or laptop has an Ethernet interface configured in the
192.168.1.xx subnet (Section 3.10)
4. Use Web Connect interface to configure (Chapter 4)
5. Add the device to a Rockwell Automation Studio 5000
R

application
and connect a Logix 5000TM controller (Chapter 5)
After successfully completing these steps it will be possible to configure
Swift-E via a Web Connect browser session, and connect the device to an
Allen-Bradley R
Logix 5000 controller.
4 of 53 OIE1-UM001B-EN-P

2.3 Hardware and Software Compatibility
Table 2.1: Firmware Compatibility
Product Catalog No. Firmware Version / Software Release
OI-E1480 Firmware 1.001 and later
Table 2.2: Application Compatibility
Product Firmware Version / Software Release
Rockwell Automation Studio 5000 R
V20 or later
Logix 5000TM Controllers Any with EtherNet/IP support
RSLinx R
2.56 or later (or FactoryTalk R Linx)
Internet Browser Any, Tested with Desktop Chrome v80,
Mozilla Firefox v74 and Microsoft
R

Edge
v80
2.4 Swift-E and Time-of-Flight (ToF) Technology
Swift-E uses time-of-flight technology to measure distance to each and
every individual distance point within the sensing area.
The principle of operation is as follows:
1. A very short flash of invisible infrared light (850 nm wavelength) is
emitted from the sensor.
2. A small amount of this light is reflected back to the device from objects
in the sensing area.
3. A lens focuses light onto the time-of-flight sensor, and the round-
trip time is measured. The speed of light is a known constant, and
therefore the round-trip distance to the object that reflected the light
can be calculated based on the time for the reflected pulse to arrive.
It is a requirement for Swift-E that light is returned
directly from the target object for optimal mea-
surement performance.
In common with many electro-optic measurement devices, objects that allow
infra-red light to: pass through (eg translucent objects like clear glass or plas-
tic bottles), reflect away (mirrored surfaces), or be absorbed entirely (dark
matte surfaces) may prove challenging. In case of such challenging objects,
an alternative method of distance measurement should be employed.
2.4.1 Effect of Ambient Light
The effect of ambient light from normal indoor lighting sources is not de-
tectable in the measurement provided by Swift-E .
5 of 53 OIE1-UM001B-EN-P

However, in some cases, direct sunlight on the sensing area may introduce
an error in the measurement. For installations where measurement accuracy
is critical, and there is a chance of direct sunlight, then it is recommended
that a shade is introduced.
Where there are multiple Swift-E devices in the same area, care should be
taken that the sensing areas are well separated to avoid cross-talk between
the devices. In these situations, it may be possible to pause the illumination
while a device is not actively measuring (see section 5.3.2 for more details).

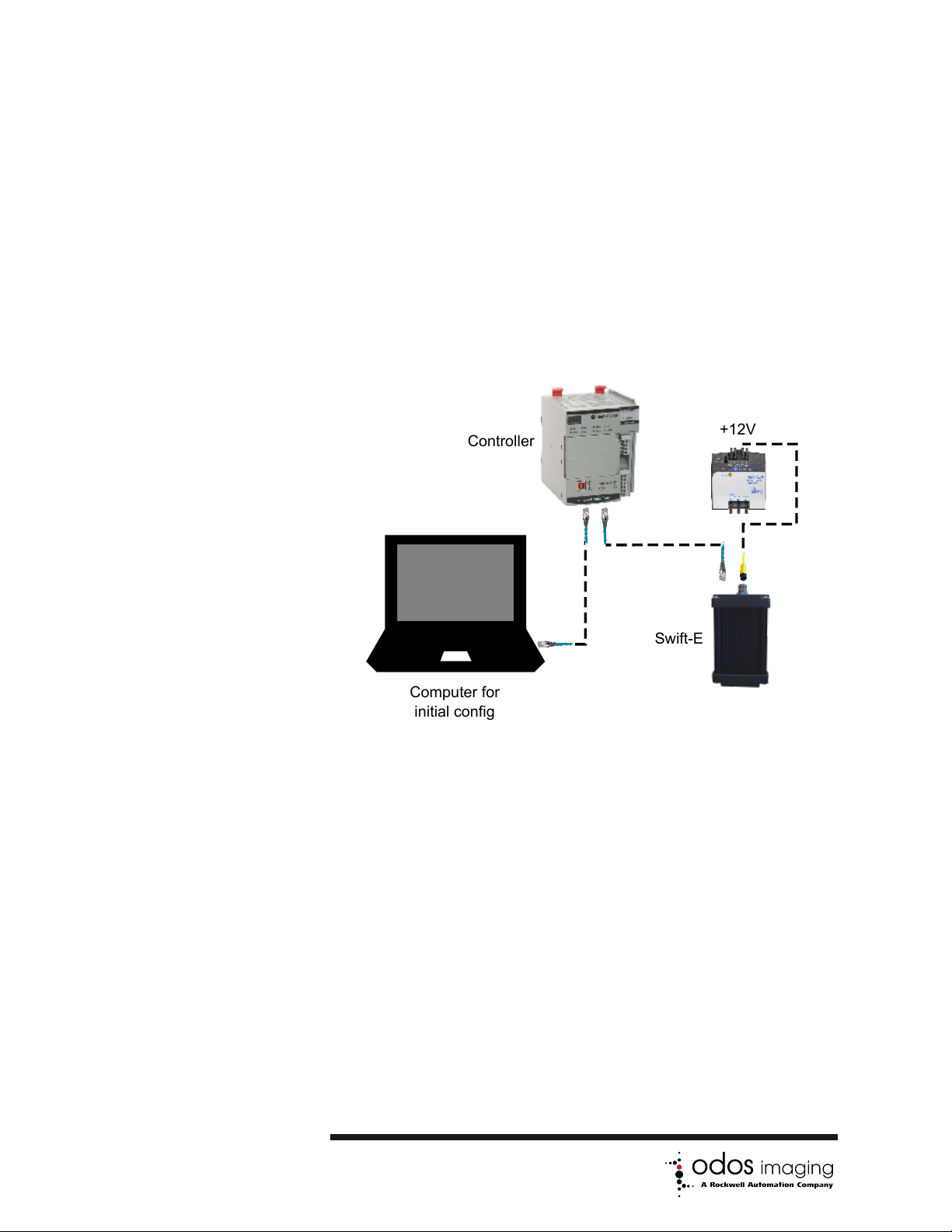

2.5 Example System Setup
Swift-E
Controller +12V
Computer for
initial config
6 of 53 OIE1-UM001B-EN-P

3 Installation
3.1 Connections
The sensor should be powered with an industrial 12 V / 5 A (min) DC
power supply via the 4–pin M12 power connector (figure 3.1 and table 3.1).
EtherNet/IPTM connection to host is via RJ45.
IMPORTANT: Swift-E requires a 12 VDC power
supply.
Figure 3.1: Sensor connections
12VDC Power
EtherNet/IP
Reserved
Status LED
1
1. Reserved for future use.
Table 3.1: M12 Power connector on device
Face View of Male DC
Micro Pin Signal / Receiver
2
4
3
1
1 Not Connected
2 12 VDC
3 GROUND
4 Not Connected
7 of 53 OIE1-UM001B-EN-P

Table 3.2: M12 Power cable connections
Face View of Female
DC Micro Pin / Color Signal / Receiver
1
3
4
2
1 / Brown Not Connected
2 / White 12 VDC
3 / Blue GROUND
4 / Black Not Connected
3.2 Grounding and Power Requirements
The GROUND / 0 V / negative power input to the Swift-E should normally
be connected to earth ground. It is directly connected to the metal housing
of the Swift-E for shielding purposes, as well as the shells of all connectors.
If there is a concern for ground loops in the application, it is recommended
to keep the connection from the power supply to Swift-E short, and consider
disconnecting the shield of the Ethernet cable at the opposite end, if the
connected equipment also has a low-ohmic d.c. connection to ground. If
there is a suspicion of noise problems in operation, besides keeping power
cables short, and using shielded cables where possible, clip-on ferrites
applied near the Swift-E unit can be a simple and cost-effective solution.
To ensure stability is provided in the 12 VDC supply to Swift-E , it is rec-
ommended that both +12 VDC and ground are connected directly to the
power supply. Power requirements for Swift-E may vary based on the illumi-
nation settings, in addition there can be a requirement to support up to 50%
inrush on power-up, it is therefore recommended that a power supply of
sufficient rating is used (60 W or greater), for example, the Allen-Bradley
R

1606–XLP90B power supply.
It may also be useful to refer to Rockwell Automation Industrial Automation
Wiring and Grounding Guidelines, publication 1770-4.1.
3.3 EtherNet/IP wiring
To comply with the limits for a Class A digital de-
vice pursuant to Subpart J of Part 15 of the FCC
Rules, it is required that a shielded ethernet cable
is used.
A suitable gigabit Ethernet cable (e.g. CAT5E or CAT6) must be used with
Swift-E . For best immunity to RFI in noisy environments, and to minimize
any radiated RF emission from the unit, a shielded Ethernet cable (e.g.
S/FTP type) is recommended, and may be required for compliance with
EMC regulations in some cases. A range of suitable cables is available from
Allen-Bradley (https://ab.rockwellautomation.com/Connection-Devices/RJ45-
Network-Media#selection).
8 of 53 OIE1-UM001B-EN-P

It may also be useful to refer to the ODVA EtherNet/IP Media Planning &
Installation Manual.
3.4 Mounting
Swift-E supports two different methods of mounting:
1. The sensor has sixteen M4 threaded screw holes for flexible attach-
ment to a structure (figure 3.2)
2. An optional tripod mount plate accessory (part number: OI-TMOUNT)
can be ordered. The mount plate offers a standard 1/4
00
UNC tripod
thread for attaching to any standard camera mounting device.

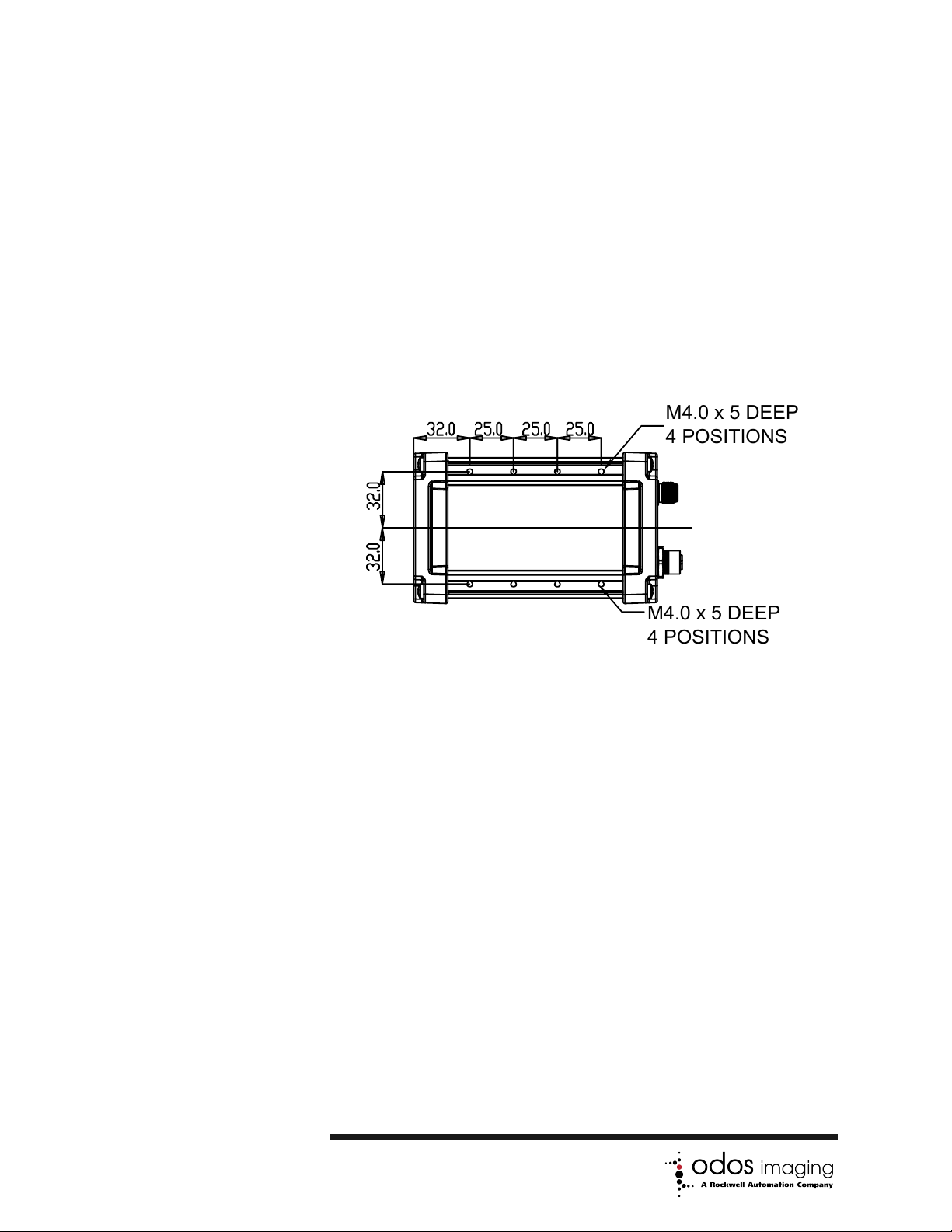

Figure 3.2: Location of M4 mounting points (distances in mm)
M4.0 x 5 DEEP
4 POSITIONS
M4.0 x 5 DEEP
4 POSITIONS
For initial evaluation, the Swift-E can be mounted using a flexible approach
(e.g. clamp or camera grip) and the tripod mount accessory (OI-TMOUNT),
as this will allow optimization of the setup.
For permanent mounting, use of a custom mount is recommended. This
can be appropriately designed to provide a robust solution according to
the application requirements. Direct mounting onto a metal structure will
also assist with dissipation of heat from the Swift-E housing. Note that the
housing may become warm or even hot to touch - this is perfectly normal.
CAD files are available for download from https://www.odos-imaging.com/
literature/.
3.5 Height Requirements and Field-of-View
When positioned perpendicular to a surface, the Swift-E sensing area is a
rectangle. The width of the rectangle is approximately 0.8 × height from
Swift-E to surface. The height of the rectangle is approximately 0.6 × height
from Swift-E to surface.
Due to optical limitations, measurement reliability in the center will be better
than at the extremeties and corners of the sensing area.
9 of 53 OIE1-UM001B-EN-P

Table 3.3: Size of sensing area with increasing installation height. Optimal
measurement performance is achieved with closer positioning.
Installation
height
Sensing area Min. recommended
detectable object area1
width (approx.) height (approx.)
0.5 m 0.4 m 0.3 m 0.5×0.5 cm
1.0 m 0.8 m 0.6 m 1.0×1.0 cm
1.5 m 1.2 m 0.9 m 1.5×1.5 cm
2.0 m 1.6 m 1.2 m 2.0×2.0 cm
2.5 m 2.0 m 1.5 m 2.5×2.5 cm
3.0 m 2.4 m 1.8 m 3.0×3.0 cm
4.0 m 23.2 m 2.4 m 4.0×4.0 cm
5.0 m 24.0 m 3.0 m 5.0×5.0 cm
6.0 m 24.8 m 3.6 m 6.0×6.0 cm
1. Minimum recommended detectable object area is based on the ability to accurately
position a Virtual Sensing Zone consisting of 8 × 8 individual distance points using zoom
feature in Web Connect (section 4.10.3).
2. Maximum operating range is 6 m (approximately 20 ft), however at longer operating
ranges (greater than 3 m or 10 ft), quality of measurement may be reduced.
In summary, the greater the distance between Swift-E and target objects,
the larger the sensing area. This is depicted in figure 3.3.
Figure 3.3: Height requirements - note the pyramid shape with sensing
area at base
0.6 x Swift-E Height
Sensing Area
0.8 x Swift-E Height
Swift-E Height
10 of 53 OIE1-UM001B-EN-P

Illumination may ‘spill’ beyond this area, therefore
care should be taken if Swift-E devices are to be
positioned in proximity to each other.
3.6 Device Positioning
Figure 3.4: Example mounting options
Swift-E should be mounted no closer than 0.5 m (approximately 1.5 ft) to
the target object(s). Maximum operating range is 6 m (approximately 20 ft),
however at longer operating ranges (greater than 3 m or 10 ft), quality of
measurement may be reduced.
In general, the sensor can be mounted using the most suitable method for
the application. In some circumstances (particularly with highly reflective
target objects) signal light generated by the sensor may be reflected directly
back to the device (which can cause saturation of the time-of-flight measure-
ment - section 4.10.11). In such situations, it may be necessary to mount
the device at a slight angle (e.g. 10◦) with respect to the target objects.
Further consideration may have to be taken due to changes in the measure-
ments as a result of the change in application geometry (that is, any target
plane will be at an angle with respect to the Swift-E - in these applications it
may be most useful to use height based templates - section 4.10.10).
3.6.1 Optimal Mounting Configurations
Any unwanted material or object that is within the field-of-view of Swift-E
(where the sensing area is the base of a pyramid shape) can cause un-
wanted reflections to occur, potentially introducing error to the measurement.
If possible, no objects other than the target objects and background should
be within the pyramid. If this is not possible, then ensure any large objects
are fixed, and use height templates where possible.
11 of 53 OIE1-UM001B-EN-P

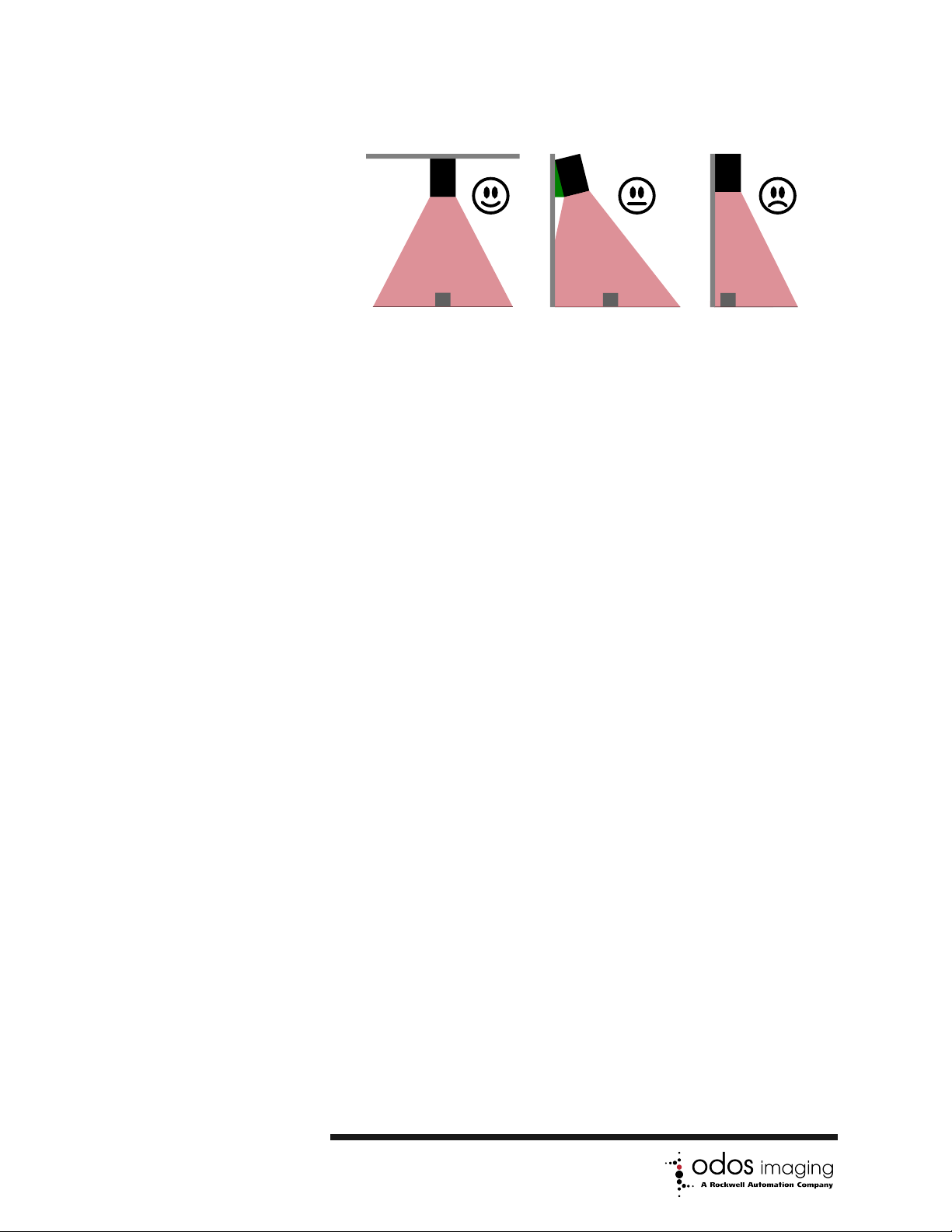

Figure 3.5: Ensure mounting avoids possibility for unwanted reflections
3.7 Object Shadowing
Like many optical sensors, objects closer to Swift-E can block the view of
objects further away, preventing possibility of a measurement from the more
distant object. Similarly, objects on the same plane, and close to the external
border of the sensing area may produce a shadow over smaller objects
further towards the extremity.
3.8 Object Parameters
3.8.1 Size
Consideration should be taken with regard to the size of the object to be
measured. Small objects might present challenges even at short distances.
In general, the larger the object, the easier it will be to create proper VSZs
and for Swift-E to make accurate measurements. If the size of the object is
such that it requires very small VSZs, the number of individual sensing points
to be used for the measurement will be low and the quality of measurement
may be compromised. Even if an object is large, mounting Swift-E too far
away could result in small VSZ, therefore running into the same challenge.
Minimum detectable object areas are shown in table 3.3. The larger the
VSZ over the object, the more accurate the measurement.
In presence or absence applications, for optimal reliability it is recommended
that a measurable difference of 3 — 4 cm is allowed between the object
surface (present state) and the surface from where the object needs to be
discerned - the background (absent state).
3.8.2 Motion
Swift-E is also suitable for use in applications where the objects are moving
(e.g. conveyor belts). However, in these applications, there are several
considerations:
1. The size of the object will affect the capability of Swift-E to measure
while it is moving. The larger the object, the smaller the impact of
movement on the object.
2. The speed of movement will have an impact on the timing of the
measurement. Since this is strongly dependent on each particular
12 of 53 OIE1-UM001B-EN-P

situation, we recommend the use of a variable timer to control the
time between object detection (e.g. using a photoelectric sensor) and
measurement trigger. In many cases, Swift-E is capable of measuring
objects moving at average conveyor belt speeds (around 1 m/s or
200 ft/min). Measurement or detection of faster objects may be more
reliable if the Swift-E can be positioned further from the belt (effectively
slowing the lateral speed of the object across the sensing area).
3. It may also be possible to develop a template and a controller program
to allow Swift-E to self trigger (that is, for the controller to select a
particular template, based on the result of a measurement change
identified in another template - this will require some custom code in
the controller).
4. In some cases, patterned or textured objects can be more difficult
for Swift-E to measure accurately when moving. In this case, it is
recommended to configure the VSZ on an area of the object that is
uniform, if possible (e.g. for a moving carton, configure the VSZ on a
blank area, not on any label or logos).
3.9 Status Indicators
Swift-E has a single, multicolor Status LED on the rear of the housing
plus dual communication status LEDs at the bottom of the RJ45 Ethernet
connector.
Table 3.4: Possible gigabit Ethernet LED states and interpretation.
Face View of
RJ45
connector
LED Color Status
01
LED0 flashing/solid orange Ethernet activity
LED1 flashing green system is powered
LED1 solid green link to host established
13 of 53 OIE1-UM001B-EN-P

Table 3.5: Status LED states and interpretation during startup and
operation.
Sequence Status LED Sensor Status
Startup
off (15 s) initial boot of device
green (0.5 s), red
(0.5 s) then green
power up sequence
solid red
boot failure [power cycle de-
vice to attempt to redress er-
ror]
solid blue
boot failure [power cycle de-
vice to attempt to redress er-
ror]
Operation
flashing blue device powered up in out-of-
box condition 1
flashing green
device started and Edit Mode
is enabled, device available for
configuration. See section 4.5
for more detail.
solid green device started and running
flashing red major recoverable fault
solid red major unrecoverable fault
1. Out-of-box condition means IP address is default ( 192.168.1.40 ), and no password
has been set on the device. Opening the Web Connect interface will require the user
to set a password).
3.10 Network Setup
3.10.1 IP Address and Subnet
When connecting with a Swift-E device for the first time, it is necessary that
the computer is on the same subnet as the device. Swift-E ships by default
with the following configuration:
•IP Address: 192.168.1.40
•Subnet: 255.255.255.0
Swift-E can only be used with static IP addressing.
Neither BOOTP or DHCP protocols are supported.
The IP address identifies each node on the Ethernet network (or system of
connected networks). Each TCP/IP node on a network must have a unique
IP address.
The IP address is 32 bits long and has a Net ID part and a Host ID part. Net-
works are classified A, B, C, or other. The class of the network determines
how an IP address is formatted.
14 of 53 OIE1-UM001B-EN-P

It is possible to distinguish the class of the IP address from the first integer
in its dotted-decimal IP address as follows:
Table 3.6: Classes of IP Address
Range of First Octet Class
0...127 A
128...191 B
192...223 C
224...255 Other
Each node on the same logical network must have an IP address of the
same class and must have the same Net ID. Each node on the same network
must have a different Host ID thus giving it a unique IP address.
IP addresses are written as four decimal integers ( 0...255 ) separated by
periods where each integer gives the value of one byte of the IP address.
3.10.2 Gateway Address
If the controller in use, Swift-E and computer are
all on the same network, skip this section.
This section applies to multi-network systems. The gateway address is the
default address of a network, it provides a single domain name and point
of entry to the site. Gateways connect individual networks into a system of
networks.
When a node needs to communicate with a node on another network, a
gateway transfers the data between the two networks. Figure 3.6 shows
gateway G connecting Network 1 with Network 2.
Figure 3.6: Two Network Connection with Gateway G
A
B C
G
128.1.0.1
128.2.0.1 128.2.0.2 128.2.0.3
128.1.0.2
Network 1
Network 2
15 of 53 OIE1-UM001B-EN-P
