Binks 81-384 User manual

Binks 81-384 8 Ounce

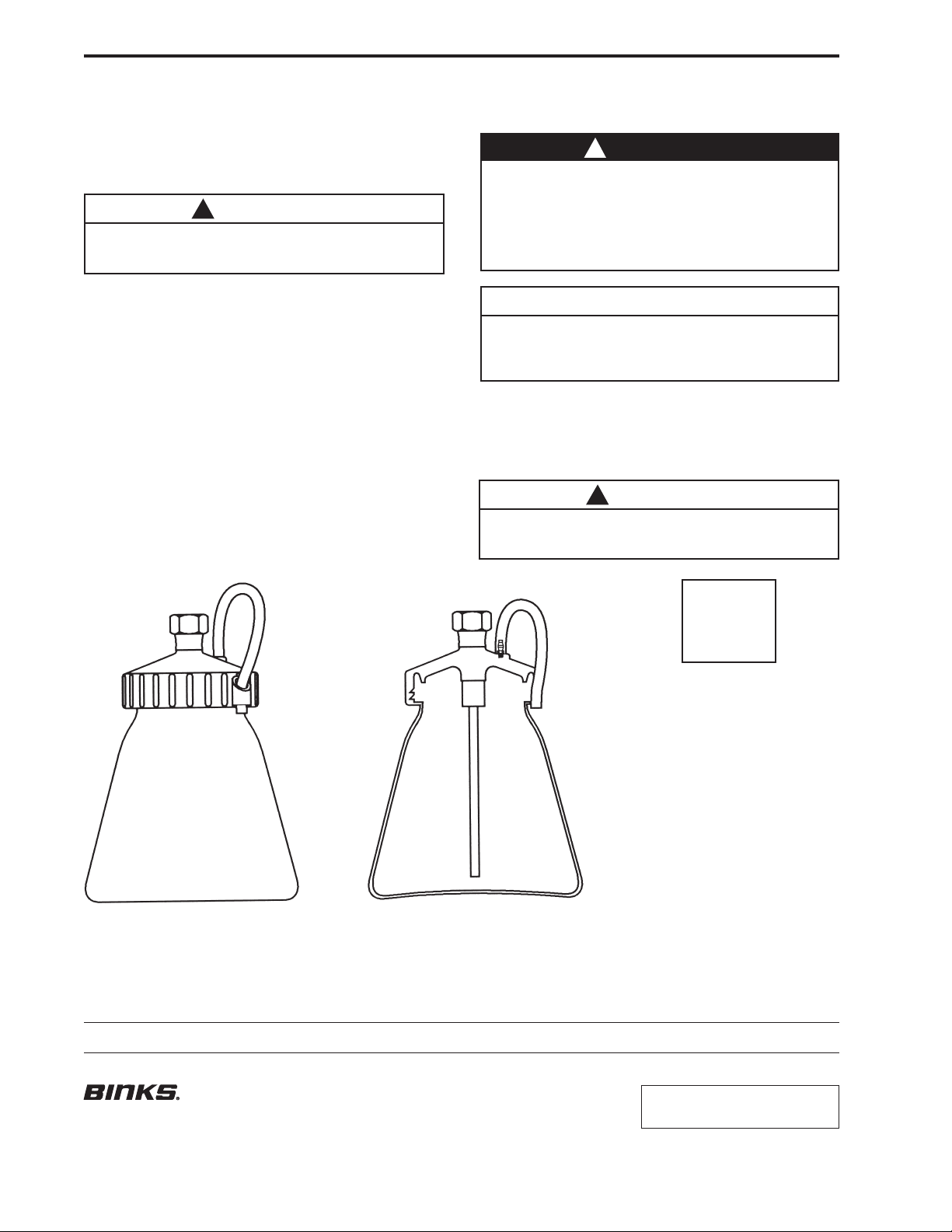

SIPHON CUP ASSEMBLY
Replaces
Part Sheet
77-2741R-4
Part
Sheet
77-2741R-5
ITEM PART
NO. NO. DESCRIPTION QTY.
1 81-307 10-32 CONNECTOR.......................................... 1
2 54-3925 GASKET ............................................................ 1
3 81-386 CUP COVER ASSEMBLY w/1/4 NPS(f) Swivel ...... 1
4 20-6685 O-RING (Lid Gasket) .......................................... 1
5 54-4475 8 OZ. CUP ONLY .............................................. 1
6 54-4476 STORAGE COVER (Not Shown) ......................... 1
7 54-4328 3-3/4" VENT TUBE ........................................... 1
8 * PICK-UP TUBE ONLY........................................ 1
9 AD-404** ADAPTER 1/4 NPS(m) x 3/8 NPS(f)....................... 1
* Replacements available in 3-pack only, 54-4561.
** Required when adapting to 3/8 NPS threads.
PARTS LIST
When ordering, please specify Part No.
7
2
3
4
8
5
The Binks 8 Ounce Siphon Cup
Assembly is designed to be used with
Binks Spray Guns. Molded from high-
density polyethylene (HDPE), your
8 ounce cup will last for years with
proper use. This part sheet describes
use and cleaning of the cup.
Please call 1-800-992-4657 if any of
the parts below are not included in this
package.
1
9

HOW TO USE THE CUP
To attach the 8 Ounce Cup to your Binks spray gun,
simply screw the swivel nut onto the threaded fluid inlet
of your Binks spray gun.
1. Fill the cup with fluid.
2. Screw the cup cover onto the cup.
3. Screw the swivel nut onto the gun’s fluid inlet. Use
the supplied adapter for spray guns with 3/8 NPS fluid
inlets.
4. Push one end of the vent tube onto the 10-32 connec-
tor and the other end down through the sleeve on the
side of the cup cover. (You may have to reposition the
cup assembly or cover so the vent tube does not inter-
fere with triggering the gun.)
Unused paint may be stored in the cup for brief periods.
Remove the cup from the gun and replace the siphon cup
cover with the storage cover. Binks recommends that
you not store paint or other coating materials in this cup
for more than 30 days.
HOW TO CLEAN THE CUP
HOW TO CLEAN THE CUP
1. Loosen swivel nut and remove the cup assembly.
2. Unscrew cup cover.
3. Rinse cup, cover and siphon tube with solvent.
Binks 8 Ounce SIPHON CUP ASSEMBLY
WARNING
REGARDING SOLVENT SAFETY
Do not use open containers for storage or disposal of
solvents, cloth, or paper used for surface preparation or
cleanup. Solvents contain volatile chemicals that are a
cause of pollution and a health and fire hazard. Always
wear appropriate clothing, including gloves, eye protec-
tion, and a respirator when cleaning the cup.
!
NOTE
You may wish to clean your Binks gun and cup assembly
by triggering solvent through the gun under siphon pres-
sure into a closed collection system. Refer to the Part Sheet
that came with your gun for detailed instructions.
CAUTION
Take care not to overtighten the nut so as to not damage
threads on the inlet. If damage occurs to these parts, the
entire cup assembly may have to be replaced.
!
CAUTION
Never immerse plastic cup parts in solvent for long
periods of time. Plastic cup parts may be damaged by
prolonged exposure to solvent.
!
FOR FURTHER SAFETY
INFORMATION REGARDING BINKS
AND DEVILBISS EQUIPMENT,
SEE THE GENERAL EQUIPMENT
SAFETY BOOKLET (77-5300).
IT IS THE RESPONSIBILITY OF THE
EMPLOYER TO PROVIDE THIS
INFORMATION TO THE OPERATOR
OF THE EQUIPMENT.
