Bizerba GSP H User manual

Slicer
GSP H
GSP HD
Instruction manual
38107010002 en

Alle Rechte vorbehalten
All rights reserved
Tous droits réservés
Reservados todos los derechos
Tutti i diritti riservati
Bizerba SE & Co. KG,
72336 Balingen
Postfach 10 01 64
72301 Balingen, Germany
Telephone [phone], Fax [phone]
E-mail: [email protected]
Internet: www.bizerba.com
Original instructions 38107010002 en-US
© 06 / 2019
Bizerba Service
www.bizerba.com

Instruction manual GSP Table of Contents
3 / 9238107010002 en-US
Table of Contents
1 About these instructions ....................................................................................  6
1.1 Safe-keeping ........................................................................................ 6
1.2 Target group .........................................................................................  6
1.3 Symbols used .......................................................................................  6
1.4 Warnings .............................................................................................. 7
2 About this machine .............................................................................................  8
2.1 Intended use......................................................................................... 8
2.2 Machine description..............................................................................  9
2.2.1 Components of the manual slicer......................................................... 12
2.2.2 Components of the automatic slicer ..................................................... 16
2.2.3 Accessories .......................................................................................... 18
2.3 Directives..............................................................................................  19
2.4 Warranty ...............................................................................................  19
2.5 Disposal of the machine / environmental protection.............................  19
3 Safety instructions .............................................................................................. 20
3.1 General notes on safety .......................................................................  20
3.2 Safety instructions for transport and installation...................................  21
3.3 Safety instructions during operation, slicing .........................................  21
3.4 Safety instructions for sharpening, cleaning.........................................  22
3.5 Protective and safety devices...............................................................  22
3.6 Plates on machine ................................................................................  23
4 Installation............................................................................................................  24
4.1 Transport and storage .......................................................................... 24
4.2 Installation and assembly ..................................................................... 24
4.2.1 Installation requirements ...................................................................... 24
4.2.2 Electrical connection............................................................................. 25
4.2.3 Leveling ................................................................................................ 26
4.2.4 Attaching product feed for tomatoes..................................................... 27
4.2.5 Attaching vegetable hopper.................................................................. 27
4.3 Start-up................................................................................................. 27
4.3.1 Switching the slicer on.......................................................................... 28
4.3.2 Switching the machine off..................................................................... 28
4.4 Decommissioning ................................................................................. 29
5 Machine and operating elements.......................................................................  30
5.1 Membrane keyboard GSPH ................................................................  30
5.1.1 HMI touchscreen GSP H W.................................................................. 30
5.2 Membrane keyboard GSPHD..............................................................  31
5.2.1 HMI touchscreen GSP HD....................................................................  32
5.2.2 Membrane keyboard GSP HD W with HMI touchscreen...................... 33
5.3 Slice thickness adjustment ................................................................... 34

Table of Contents Instruction manual GSP
4 / 92 38107010002 en-US
5.4 Options ................................................................................................. 34
5.5 Product holder ...................................................................................... 35
5.6 Product fixation device / product guide.................................................  36
5.7 Lifting device.........................................................................................  37
5.8 Connected scale at GSP H Flex...........................................................  38
6 Operation..............................................................................................................  39
6.1 Working with the manual slicer.............................................................  39
6.1.1 Slicing long product .............................................................................. 39
6.1.2 Slicing product ends ............................................................................. 40
6.1.3 Weighing operation with GSP H W.......................................................  41
6.1.4 Weighing operation with GSP H Flex ................................................... 43
6.2 Working with the automatic slicer .........................................................  43
6.2.1 Slicing long product .............................................................................. 44
6.2.2 Slicing product ends ............................................................................. 45
6.2.3 Manual carriage guide with servo support............................................ 46
6.2.4 Weighing operation with GSP HD W.................................................... 47
6.3 Slicing with product feed for tomatoes..................................................  53
6.4 Slicing with vegetable hopper...............................................................  53
7 Troubleshooting .................................................................................................. 55
7.1 Procedure .............................................................................................  55
7.2 Fault description ................................................................................... 55
8 Maintenance.........................................................................................................  56
8.1 Preparation for cleaning .......................................................................  56
8.2 Removing components.........................................................................  57
8.3 Cleaning ............................................................................................... 61
8.4 Cleaning plan for slicers ....................................................................... 64
8.5 Preparing the machine for operation .................................................... 66
8.6 Blade sharpening..................................................................................  69
8.6.1 Sharpening device................................................................................ 70
8.6.2 Preparation for sharpening................................................................... 70
8.6.3 Attaching the sharpener ....................................................................... 71
8.6.4 Sharpening ........................................................................................... 71
8.6.5 Honing .................................................................................................. 72
8.6.6 Removing sharpener ............................................................................ 73
8.6.7 Removing sharpening dust................................................................... 73
8.7 Care of machine, servicing, maintenance ............................................  74
9 Technical data......................................................................................................  76
9.1 Dimensions GSP H with a carriage inclination of 0°............................. 76
9.2 Dimensions GSP H with a carriage inclination of 18°........................... 77
9.3 Dimensions GSP H with a carriage inclination of 25°........................... 78
9.4 Dimensions GSP H W .........................................................................  80
9.5 Dimensions GSP H Flex.......................................................................  81

Instruction manual GSP Table of Contents
5 / 9238107010002 en-US
9.6 Dimensions of GSP HD with carriage inclination 18° ........................... 82
9.7 Dimensions of GSP HD with carriage inclination 25° ........................... 84
9.8 Dimensions GSP HD W........................................................................  85
9.9 Power supply ........................................................................................  87
9.10 Ambient conditions ............................................................................... 87
10 Attachment...........................................................................................................  88
10.1 Declaration of conformity GSP .............................................................  89
10.2 Declaration of conformity for materials getting in direct contact with
food GSP ..............................................................................................  90
10.3 Checklist installation and start-up.........................................................  91

About these instructions Instruction manual GSP
6 / 92 38107010002 en-US
1 About these instructions
Read the instruction manual very carefully before connecting and switching on the machine
to ensure that you utilize the full quality and potential of this machine and avoid any potential
risks.
This instruction manual covers the use, installation, operating, cleaning and maintenance of
the machine.
Our products undergo continuous further development and are subject to different country-
specific regulations. Examples of pictures and graphics included in these instructions may
vary from the version you have received.
1.1 Safe-keeping
The owner's manual are an integral part of the machine and must be stored close to the ma-
chine to be easily accessible to others.
If the machine is sold, the owner's manual must be included in its entirety.
1.2 Target group
The machine may only be operated by trained personnel. This means that the operator has
to be familiar with the contents of the instruction manual.
The minimum age of the operating personnel by German law is 14. Other age limits may ap-
ply according to the corresponding national regulations. Therefore the operating company
must check the legislation at the place of machine installation.
Installation, maintenance and repair works must be performed by Bizerba authorized special-
ists only.
1.3 Symbols used
Various symbols are used in these instructions.
Icon Description
Text with arrow prompts you to carry out an action.
Item number in figure.
<Key> Text within <> refers to a key.
"Display" Text within "" shows the display text.
Requirements are displayed with a gray background.
Instruction
These instructions are mandatory for you.

Instruction manual GSP About these instructions
38107010002 en-US 7 / 92
Information
This information is intended for better understanding.
1.4 Warnings
Warnings are divided into danger levels by the signal word above the warning symbol.
Structure of warnings and meaning of signal words are described in these instructions as fol-
lows.
DANGER
Source of danger with high risk of imminent danger to persons!
The consequences are:
life threatening injuries,
serious health damage
– Measurements for prevention of danger are specified.
WARNING
Source of danger with medium risk of possible danger to persons!
The consequences can be:
serious injuries,
damage to health,
serious damage to property
– Measurements for prevention of danger are specified.
CAUTION
Source of danger with low risk of possible danger to persons!
The consequences can be:
injuries,
damage to property.
– Measurements for prevention of danger are specified.
NOTICE
Source of danger, improper use!
Damage to property can result.
– Measurements for prevention of danger are specified.

About this machine Instruction manual GSP
8 / 92 38107010002 en-US
2 About this machine
2.1 Intended use
Bizerba slicers are technical equipment exclusively intended for commercial use.
They may only be operated by instructed personnel over the age of 14. [}6]
As regards manual slicers GSPH, GSPH W, GSPHFlex, the carriage is moved forwards
and backwards by hand for slicing.
In the event of automatic gravity feed slicers GSPHD, GSPHD W the carriage is driven by a
motor for slicing. In addition, the stroke width can be adjusted to the size of the product and
the number of carriage strokes can be changed as well.
Manual slicing with the GSPHD, GSPHD W is possible. The servo-motor support comes au-
tomatically into action during the manual carriage movement. [}46]
Permitted product
Approved sliced products, taking sizes into consideration
– All kinds of cold cuts, deli meat
– Ham, bacon
– Smoked ham with / without rind
– Roast meats, roast beef
– Meat, roulades
– Sliceable cheese
– Fruit, vegetables
– Bread
Note: If cheese is the main product being sliced, we recommend using a special cheese
blade.
Slicing of other materials requires prior written approval by Bizerba product management.
Non-permitted product
The following may not be sliced due to risk of injury and damage:
– NON-FOOD articles
– Bone-in products
– Frozen products
Applications
The slicing machines are intended for installation in the sales area. The use in the prepara-
tion area is permitted taking into account cleaning procedures and protection class.
Permissible ambient temperatures from -10°C to 40°C (+14 to +104 degF).
Operating time
The slicers are designed for permanent operation.

Instruction manual GSP About this machine
38107010002 en-US 9 / 92
2.2 Machine description
Designations or versions
GSP H = Manual gravity feed slicer
GSP H W = Manual gravity feed slicer with portion scale
GSP H Flex = Combination of metrologically approved PC scale and manual gravity feed
slicer
GSP HD = Automatic gravity feed slicer
GSP HD W = Automatic gravity feed slicer with portion scale
Drive
The blade of this gravity feed slicer is operated electrically. The low-noise, low-maintenance
drive is effected via an AC motor.
The blade drive can be switched on/off via the membrane keyboard. [}30] to [}33]
Keys green = <I>, red = <O> have a signal lamp for activation control (GSP H, GSP HD). For
the red key a reduced operating force is needed reacting at a slight touch.
Further function keys are integrated in the membrane keyboard, e.g. number of carriage
strokes and stroke width for motor-driven carriage (GSP HD, GSP HD W).
The contactor control with self-locking circuit prevents automatic restarting after a power cut.
Carriage
Since the carriage with product and product holder are at an angle the product is fed towards
the blade by means of the product's own weight.
A carriage inclination between 0° or 18° with a low depositing height and 25° with low or high
depositing height (GSPH, GSPHC) can be chosen.
Also a carriage inclination between 18° with a low depositing height and 25° with low or high
depositing height (GSP HD, GSP HDC) may be selected.
The carriage is optionally available as one part made of anodized aluminum with Ceraclean
finish (GSPHC).
The one-piece carriage has an inclination of 25°.
For better gliding of the product, parts which are in contact with the product to be sliced are
provided with grooves.
A slice thickness setting below "0" unlocks the tilting lock of the carriage. This allows the car-
riage to be tilted to the outside in any position.
Scale
The slicers GSP H W, GSP HD W are fitted with a scale which is not metrologically ap-
proved. The portion scale is not metrologically approved and cannot be used for legal for
trade applications.
Slicer GSP H Flex with connected metrologically approved scale allows sliced product to be
weighed at the same time.
Materials
The complete machine housing as well as the gauge plate, blade cover and carriage, are
made of anodized aluminum. Optionally the surface can have a Ceraclean finish (GSPHC,
GSPHDC).

About this machine Instruction manual GSP
10 / 92 38107010002 en-US
Carriage rear wall, pusher guard and remnant holder plate are made of break-proof and food-
grade plastic. A one-piece carriage in anodized aluminum with Ceraclean finish is optionally
available.
All components getting in direct contact with food and materials used in the working area
comply with the food hygiene regulations. Bearings in visual range are lubricated with food-
grade lubricants.
Vibration
The total vibration of the items, which get into contact with hand and arm is below 2.5m/s2
and therefore below the required limited value.
Work place-related emission noise level value
GSP H: LpA = 55 dB (A)
GSP HD: LpA = 61 dB (A)
The value takes into consideration an instable measuring of 3 dB.
Operating time
The slicers are designed for continuous operation.

Instruction manual GSP About this machine
38107010002 en-US 11 / 92

About this machine Instruction manual GSP
12 / 92 38107010002 en-US
2.2.1 Components of the manual slicer
Blade cover
Blade
Blade guard ring
Handle for product holder
Guard plate
Clamp handle for remnant holder plate
Remnant holder plate
Product fixation device
Carriage
Carriage handle
Rear wall
Star knob screw on carriage foot
Identification plate / CE mark
Slice thickness adjustment
Lifting device
Rubber base
ON / OFF buttons with signal lamp (GSP H, GSP H Flex)
Membrane keyboard with HMI touchscreen (GSP H W)
Weighing module (GSP H W, GSP H Flex)
Load platter (GSP H W, GSP H Flex)
Gauge plate
Deflector
The machines are available in different versions. Figures show examples.

Instruction manual GSP About this machine
38107010002 en-US 13 / 92

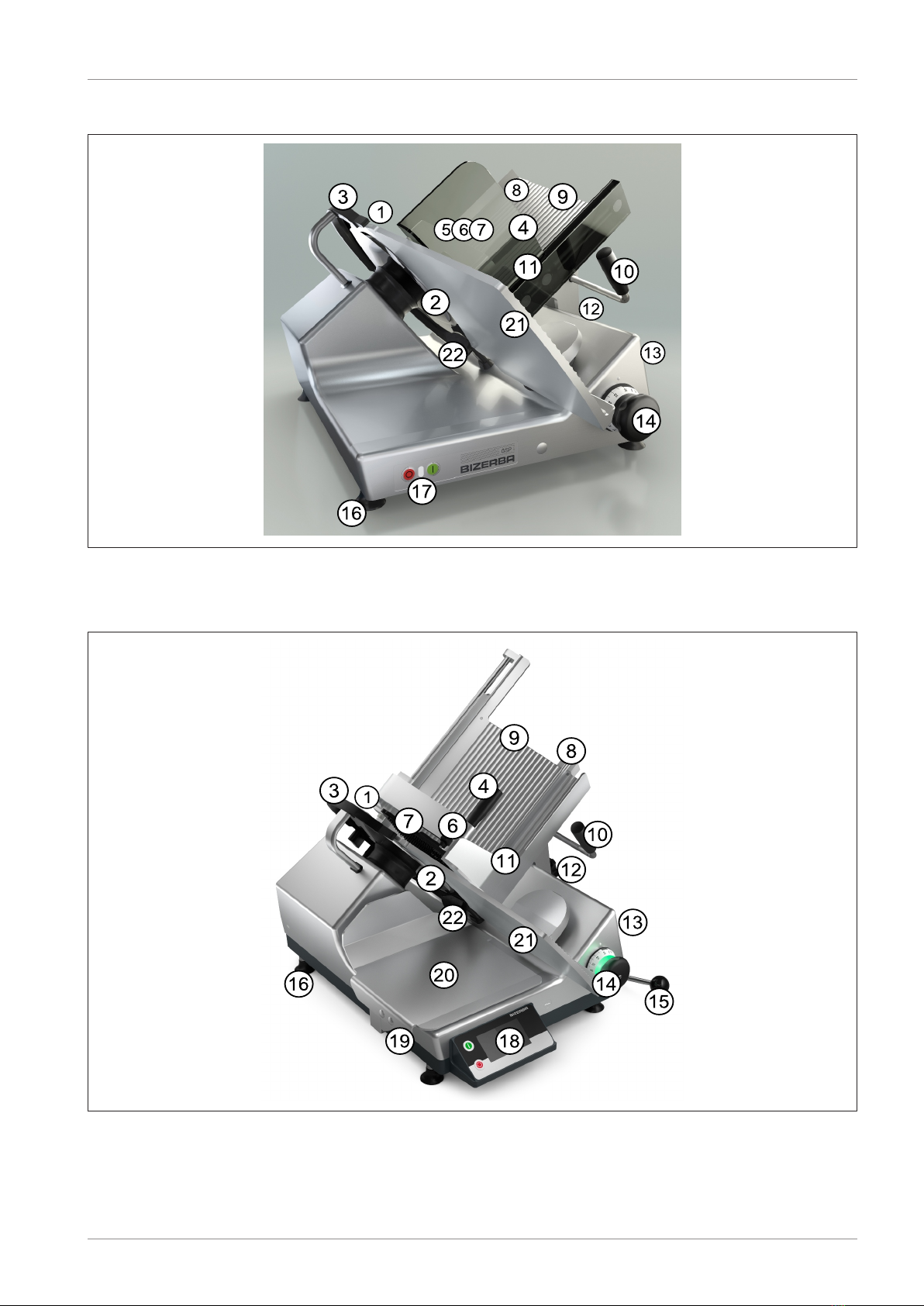

Names of components GSPH
Fig.1: GSP H with carriage inclination 18°
Names of components GSP H W
Fig.2: GSP H W

About this machine Instruction manual GSP
14 / 92 38107010002 en-US
Names of components GSPHFlex
Fig.3: GSP H Flex

Instruction manual GSP About this machine
38107010002 en-US 15 / 92

About this machine Instruction manual GSP
16 / 92 38107010002 en-US
2.2.2 Components of the automatic slicer
Blade cover
Blade
Blade guard ring
Handle for product holder
Guard plate
Clamp handle for remnant holder plate
Remnant holder plate
Product fixation device
Carriage
Carriage handle
Rear wall
Star knob screw on carriage foot
Identification plate / CE mark
Slice thickness adjustment
Lifting device
Rubber base
Membrane keyboard with ON / OFF buttons (GSP HD)
Membrane keyboard with HMI touchscreen (GSP HD W)
Weighing module (GSP HD W)
Load platter (GSP HD W)
Gauge plate
Deflector
The machines are available in different versions. Figures show examples.

Instruction manual GSP About this machine
38107010002 en-US 17 / 92
Names of components GSP HD
Fig.4: GSP HD with carriage inclination 18°
Names of components GSP HD with HMI
Fig.5: GSP HD with HMI

About this machine Instruction manual GSP
18 / 92 38107010002 en-US
Names of components GSP HD W
Fig.6: GSP HD W
2.2.3 Accessories
For the machines we offer a wide range of accessories for different application areas.
Only use the original Bizerba spare parts and accessories in order to en-
sure safe and trouble-free operations.
If cheese is the main product being sliced, we recommend using a special
cheese blade.
Designation Blade diameter Carriage angle
Special channeled blade for cheese 330 mm 18° / 25°
Serrated blade for bread 330 mm 18° / 25°
Blade removal aid 330 mm 18° / 25°
Product fixation device 0° / 18°
Product guide height 3cm 0° / 18° / 25°
Product guide height 7cm 25°
Product feed for tomatoes 25°

Instruction manual GSP About this machine
38107010002 en-US 19 / 92
Designation Blade diameter Carriage angle
Vegetable hopper with stomper 0° / 18° / 25°
2.3 Directives
For directives and legal requirements see attachment Declarations of conformity.
2.4 Warranty
We are not responsible for damages caused by:
– Non-compliance with the instruction manual
– or unauthorized and incorrect electrical installation by the customer
– incorrect operation, utilization contrary to terms and conditions
– structural modifications, removal of protective devices
– use of replacement parts and accessory components or third-party resources that are not
Bizerba originals
– natural wear and tear
In such cases, the user is acting at his own risk and is responsible for any damage occurred.
2.5 Disposal of the machine / environmental protection
This machine is an electronic device as per definition of the WEEE Directive.
To ensure that the machine is recycled environmentally friendly, return the machine to the
manufacturer or the dealer after intended use has expired.
Naturally, Bizerba and its dealers will take back free of charge old machines no longer in op-
eration.
Please contact your specialist in this case.
The application of these disposal regulations are based upon legal regula-
tions of the respective country.

Safety instructions Instruction manual GSP
20 / 92 38107010002 en-US
3 Safety instructions
3.1 General notes on safety
DANGER
Damaged power supply cables or faulty protective devices!
danger to life due to electric current Acute risk of injury of operating
personnel.
– Damaged supply lines must be replaced immediately with new cables
and installed by a professional electrical company or by Bizerba Ser-
vice.
– The mains cable must be routed in a way that it is no cause of risk.
– Protective devices must be checked every day with regards to function
before start-up.
– Protective devices may not be removed, modified or bypassed.
DANGER
Open the electrical installation area!
danger to life due to electric current
– The electrical installation area may only be opened by Bizerba Ser-
vice.
– Pull power plug before moving the machine.
WARNING
Unauthorized persons!
Serious injuries to fingers and hands and damage to health.
– Only trained personnel over 14 years may operate, clean and maintain
the machine. [}6] Subsequent training to be repeated on a regular ba-
sis.
– Unauthorized persons, particularly children, may not stay in the work
area of the machine.
Medical information for persons with active implants
Active implants are, e.g. pacemakers or defibrillators. If a safety distance of 30cm is main-
tained between field source and implant, it might be very unlikely that active implants are af-
fected in any way.
Non-ionizing radiance is not generated intentionally, but is a technical effect caused through
electrical equipment: e.g. electric motors, high-voltage cables or magnetic coils. Furthermore,
the device is not equipped with strong permanent magnets.
