Bizerba A400 User manual

Slicer
A400 / A400FB
Instruction manual
6.054.98.5.10.06 en

Translation of original Instruction manual 6.054.98.5.10.06 en
Bizerba Service
www.bizerba.com
Alle Rechte vorbehalten
All rights reserved
Tous droits réservés
Reservados todos los derechos
Tutti i diritti riservati
© 05/2014
Bizerba GmbH & Co. KG,
72336 Balingen
P.O. Box 10 01 64
72301 Balingen, Germany
Telephone [phone], Fax [phone]
Email: [email protected]
Internet: www.bizerba.com

6.054.98.5.10.06 en
Chapter index
About these instructions 1
About this machine 2
Safety instructions 3
Installation 4
Machine and operating elements 5
Operation 6
Troubleshooting 7
Maintenance 8
Technical data 9
Appendix 10

6.054.98.5.10.06 en

Instruction manual A400 / A400FB Contents
6.054.98.5.10.06 en 0 - 1
Contents Page
1 About these instructions ............................................ 1 - 1
1.1 Safe-keeping ................................................ 1 - 1
1.2 Target group ................................................. 1 - 1
1.3 Symbols used ................................................ 1 - 1
1.4 Warnings .................................................... 1 - 2
2 About this machine ................................................. 2 - 1
2.1 Intended use ................................................. 2 - 1
2.2 Machine description .......................................... 2 - 2
2.2.1 Descriptions of components A400 ............................. 2 - 3
2.2.2 Descriptions of components A400FB ........................... 2 - 5
2.2.3 Accessories .................................................. 2 - 6
2.3 Directives .................................................... 2 - 6
2.4 Warranty .................................................... 2 - 6
2.5 Disposal of the machine / environmental protection ............. 2 - 7
3 Safety instructions ................................................. 3 - 1
3.1 General notes on safety ...................................... 3 - 1
3.2 Safety instructions for transport and installation ................. 3 - 2
3.3 Safety instructions during operation, slicing ..................... 3 - 2
3.4 Safety instructions for sharpening, cleaning .................... 3 - 2
3.5 Protective and safety equipment ............................... 3 - 3
3.6 Plates on machine ............................................ 3 - 4
4 Installation ......................................................... 4 - 1
4.1 Transport and storage ........................................ 4 - 1
4.2 Installation and assembly ..................................... 4 - 1
4.2.1 Installation requirements ...................................... 4 - 1
4.2.2 Electrical connection .......................................... 4 - 2
4.3 Start-up ..................................................... 4 - 3
4.3.1 Switching the slicer on ........................................ 4 - 3
4.3.2 Switching the machine off ..................................... 4 - 3
4.4 Placing out of operation ....................................... 4 - 3

Contents Instruction manual A400 / A400FB
0 - 2 6.054.98.5.10.06 en
4.5 Option A400FB openWorld .................................... 4 - 4
4.5.1 Installation of conveying belts and light sensor .................. 4 - 5
4.5.2 Installation of insertion plate set and remnant holder ............ 4 - 7
4.5.3 Switch off optional, external ................................... 4 - 8
4.5.4 I/O interface ................................................. 4 - 9
5 Machine and operating elements .................................... 5 - 1
5.1 Operating and display panel ................................... 5 - 1
5.2 Function keys ................................................ 5 - 1
5.3 Icons on display .............................................. 5 - 3
5.4 Workstation .................................................. 5 - 4
5.5 Depositing station ............................................ 5 - 5
5.6 Measuring station ............................................ 5 - 6
5.7 PLU station .................................................. 5 - 7
5.8 Information station ............................................ 5 - 8
5.9 Grinding station .............................................. 5 - 9
5.10 Cleaning station .............................................. 5 - 10
5.11 Paper holder ................................................. 5 - 11
5.12 Product support .............................................. 5 - 12
6 Operation .......................................................... 6 - 1
6.1 Inserting and slicing product ................................... 6 - 1
7 Troubleshooting .................................................... 7 - 1
7.1 Fault description ............................................. 7 - 1
7.2 Procedure ................................................... 7 - 1
8 Maintenance ........................................................ 8 - 1
8.1 Preparation for cleaning ...................................... 8 - 1
8.2 Removing components ....................................... 8 - 2
8.3 Cleaning ..................................................... 8 - 7
8.4 Cleaning plan for slicing machines ............................. 8 - 10
8.5 Preparing the machine for operation ........................... 8 - 12

Instruction manual A400 / A400FB Contents
6.054.98.5.10.06 en 0 - 3
8.6 Blade sharpening ............................................ 8 - 17
8.6.1 Sharpener ................................................... 8 - 17
8.6.2 Preparation for sharpening .................................... 8 - 18
8.6.3 Sharpening .................................................. 8 - 19
8.6.4 Honing ...................................................... 8 - 20
8.6.5 Removing sharpener ......................................... 8 - 20
8.6.6 Removing sharpening dust .................................... 8 - 21
8.7 Care of machine, servicing, maintenance ....................... 8 - 22
9 Technical data ...................................................... 9 - 1
9.1 Dimensions .................................................. 9 - 1
9.2 Voltage supply ............................................... 9 - 2
9.3 Ambient conditions ........................................... 9 - 3
Appendix
Set programs
Declaration of conformity
Declaration of conformity for plastic materials with direct food con-
tact

Contents Instruction manual A400 / A400FB
0 - 4 6.054.98.5.10.06 en

Instruction manual A400 / A400FB About these instructions
6.054.98.5.10.06 en 1 - 1
1
1 About these instructions
Read the instruction manual very carefully before connecting and switching on the ma-
chine to ensure that you utilize the full quality and potential of this machine and avoid any
potential risks.
This instruction manual covers the use, installation, operating, cleaning and maintenance
of the machine.
Our products undergo continuous further development and are subject to different country-
specific regulations. Examples of pictures and graphics included in these instructions may
vary from the version you have received.
1.1 Safe-keeping
The owner's manual are an integral part of the machine and must be stored close to the
machine to be easily accessible to others.
If the machine is sold, the owner's manual must be included in its entirety.
1.2 Target group
The machine may only be operated by trained personnel over the age of 14. This means
that the operator has to be familiar with the contents of these operating instructions.
Installation, maintenance and repair must be performed by Bizerba authorized specialists
only.
1.3 Symbols used
Various symbols are used in these instructions.
Symbol Meaning
Text with arrow prompts you to carry out an action.
1
Position number in figure.
<Key> Text within < > refers to a key.
"Display" Text inside a " " refers to display text.
Prerequirements are displayed with a gray background.
Notes
These instructions are mandatory for you.
Information
Additional information for better understanding.

About these instructions Instruction manual A400 / A400FB
1 - 2 6.054.98.5.10.06 en
1
1.4 Warnings
Warnings are divided into danger levels by the signal word above the warning symbol.
Structure of warnings and meaning of signal words are described in these instructions as
follows.
DANGER Source of danger with high risk of imminent danger to persons!
The consequences are:
life threatening injuries,
severe damage to health.
– Measures to avoid the danger are specified.
WARNING Source of danger with medium risk with potentially threatening
danger for personnel!
The consequences can be:
serious injuries,
damage to health,
serious damage to property.
– Measures to avoid the danger are specified.
CAUTION Source of danger with slight risk with potentially threatening dan-
ger for personnel!
The consequences can be:
injuries,
damage to property.
– Measures to avoid the danger are specified.
CAUTION Source of danger, improper use!
Damage to property can result.
– Measures to avoid the danger are specified.

Instruction manual A400 / A400FB About this machine
6.054.98.5.10.06 en 2 - 1
2
2 About this machine
2.1 Intended use
This Bizerba slicer is technical work equipment intended for commercial use only.
It may only be operated by instructed personnel over the age of 14.
The A400 / A400FB is a slicer that automatically feeds, slices and delivers according to the
respective program that is set.
Several sliced product pieces can be placed next to each other. Insertion width max. 240
mm (= 9.45").
Approved sliced products, taking sizes into consideration
– All kinds of cold cuts, deli meat
– Ham, bacon
– Smoked ham with / without rind
– Roast meats, roast beef
– Meat, roulades
– Sliceable cheese
– Bread
Note: If cheese is the main product being sliced, we recommend using a special cheese
blade.
Slicing of other materials requires prior written approval by Bizerba product management.
The following may not be sliced due to risk of injury and damage:
– NON-FOOD articles
– Bone-in products
– Frozen products
Product sizes
Min. 50 x 50 mm = 2" x 2" (W x H) or 50 mm = 2" diameter
Min. 240 x 175 mm = 9.5" x 6.9" (W x H) or 180 mm = 7.1" diameter
Applications
The slicer is intended for installation in the sales area. Installation is permitted in the prep-
aration room.
Permissible ambient temperatures from -10°C to 40°C (+14 to +104 degF).
Operating time
Designed for permanent operation (2 shift operations at 16/day)

About this machine Instruction manual A400 / A400FB
2 - 2 6.054.98.5.10.06 en
22.2 Machine description
Type designations or versions
A402 = Depositing table version with 200 mm carriage
A404 = Depositing table version with 400 mm carriage
A406 = Depositing table version with 600 mm carriage
A402FB = Conveyor belt version with 200 mm carriage
A404FB = Conveyor belt version with 400 mm carriage
A406FB = Conveyor belt version with 600 mm carriage
Option openWorld allows easy connection of A400FB slicers to automatic packaging ma-
chines, film or tray dispensers via configurable communication interfaces, see chapter 4.5.
All versions are available with a mobile bench.
This slicer is equipped with a power-driven carriage with automatic sliced product feed and
delivery system.
The drive systems for blade, carriage, depositing table, depositing arm and chains are
separated. The blade motor is operated with supply voltage; the other drives are operated
with mains voltage.
The contractor control having a self-locking circuit prevents automatic restarting after a
power cut.
The main switch and the function keys are on the operating and display panel.
The sliced good holder and leftover slicer facility is equipped with a movable gripper hook.
The remnant holder for the 200 mm and 400 mm carriage has its own clamping device
which can be swiveled up and stopped in place in order to insert the product (not possible
for 600 mm).
The depositing system consists of a chain frame with transport chain, feed roller with guide
cam as well as depositing arm and depositing table incl. paper holder.
The machine and motor housing, gauge plate and blade guard are made of anodized cast
aluminum, the carriage guide is made of coated cast aluminum and the drive housing of
lacquered cast aluminum.
The carriage plate is made of stainless steel plate.
The back panel is composed of transparent plastic.
All materials used in the food zone and in the working area comply with the food hygiene
regulations.
Work place-related emission noise level value
LpHA = 61 dB (A). The value takes into consideration an instable measuring of 3 dB.

Instruction manual A400 / A400FB About this machine
6.054.98.5.10.06 en 2 - 3
2
Vibration
The total vibration of the items, which get into contact with hand and arm is below 2.5 m/s2
and therefore below the required limited value.
2.2.1 Descriptions of components A400
Fig. 1: Descriptions of components A400
The machine is available in different versions. The figure shows an example:
1
Blade guard ring
2
Blade
3
Blade cover
4
product support
5
Product holder complete with remnant holder
6
Feeding carriage
7
Carriage
8
Carriage guide
9
Protective hood

About this machine Instruction manual A400 / A400FB
2 - 4 6.054.98.5.10.06 en
2
10
Drive housing
11
Rating plate
12
Depositing table
13
Gauge plate
14
Rear wall
15
Depositing arm
16
Feed roller with cam
17
Chain frame
18
Main switch
19
Operating and display panel on motor tower (optional on drive housing)

Instruction manual A400 / A400FB About this machine
6.054.98.5.10.06 en 2 - 5
2

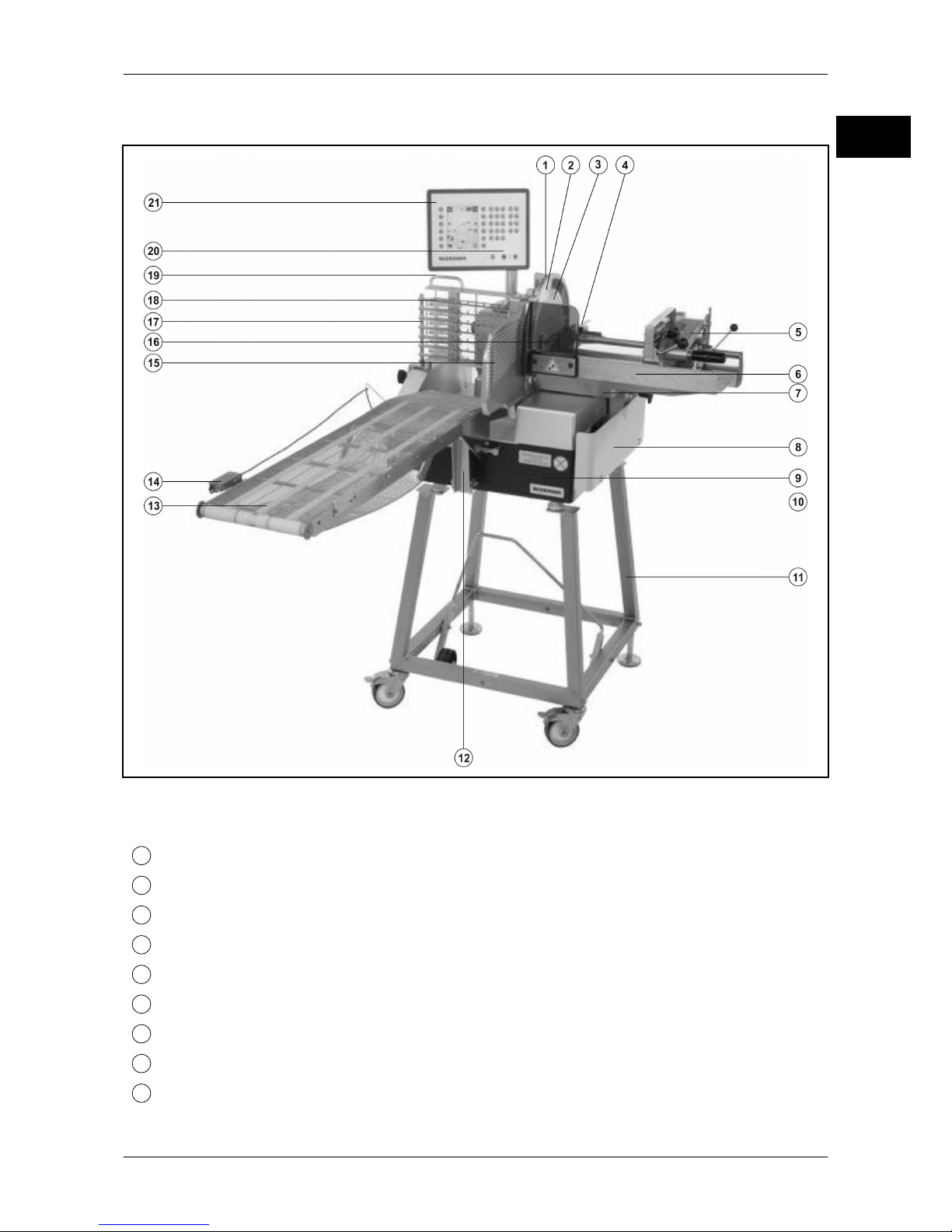

2.2.2 Descriptions of components A400FB
Fig. 2: Descriptions of components A400FB
The machine is available in different versions. The figure shows an example:
1
Blade guard ring
2
Blade
3
Blade cover
4
product support
5
Product holder complete with remnant holder
6
Carriage
7
Carriage guide
8
Protective hood
9
Drive housing

About this machine Instruction manual A400 / A400FB
2 - 6 6.054.98.5.10.06 en
2
10
Rating plate
11
Stand, mobile
12
Lock at belt support
13
Conveyor belt
14
Light sensor
15
Gauge plate
16
Rear wall
17
Depositing arm
18
Feed roller with cam
19
Chain frame
20
Main switch
21
Operating and display panel on motor tower (optional on drive housing)
2.2.3 Accessories
Only use the original Bizerba spare parts and accessories in order to
ensure safe and trouble-free operations.
standard
– Instruction manual
– Accessories kit including sharpener, paper felt, cleaning cloth, scrubber and brush
and service oil
optional
– Bench
– Cheese blade, hard chromium plated
– non-stick blade
– product support
– A400FB openWorld, see chapter 4.5
2.3 Directives
For directives and legal requirements see attachment Declarations of conformity.
2.4 Warranty
We are not responsible for damages caused by:
– Non-compliance with the instruction manual
– or unauthorized and incorrect electrical installation by the customer

Instruction manual A400 / A400FB About this machine
6.054.98.5.10.06 en 2 - 7
2
– incorrect operation, utilization contrary to terms and conditions
– structural modifications, removal of protective devices
– use of replacement parts and accessory components or third-party resources that are
not Bizerba originals
– natural wear and tear
In such cases, the user is acting at his own risk and is responsible for any damage occur-
red.
2.5 Disposal of the machine / environmental protection
To ensure that the machine is recycled environmentally friendly, return the machine to the
manufacturer or the dealer after intended use has expired.
Naturally, Bizerba and its dealers will take back free of charge old machines no longer in
operation.
Please contact your specialist in this case.
The application of these disposal regulations are based upon legal reg-
ulations of the respective country.

About this machine Instruction manual A400 / A400FB
2 - 8 6.054.98.5.10.06 en
2

Instruction manual A400 / A400FB Safety instructions
6.054.98.5.10.06 en 3 - 1
3
3 Safety instructions
The safety instructions must be observed throughout the installation, operation, cleaning
and maintenance procedures.
3.1 General notes on safety
DANGER Damaged power supply cables or faulty protective devices!
Risk of life from electric current. Acute risk of injury of operating
personnel.
– Damaged supply lines must be replaced immediately with new ca-
bles and installed by a professional electrical company or by Bizer-
ba Service.
– The mains cable must be routed in a way that it is no cause of risk.
– Protective devices must be checked every day with regards to
function before start-up.
– Protective devices may not be removed, modified or bypassed.
DANGER Open the electrical installation area!
Risk of life from electric current.
– The electrical installation area may only be opened by Bizerba
Service.
– Pull power plug before moving the machine.
WARNING Unauthorized persons!
Serious injuries to fingers and hands and damage to health.
– Only trained personnel over 14 years may operate, clean and
maintain the machine. Subsequent training sessions should be re-
peated whenever necessary.
– Unauthorized persons, particularly children, may not stay in the
work area of the machine.
– People with pacemakers should consult a doctor before operating
the machine (magnetic field).

Safety instructions Instruction manual A400 / A400FB
3 - 2 6.054.98.5.10.06 en
3
3.2 Safety instructions for transport and installation
CAUTION Carriage might move due to its unladen weight.
Risk of hand injuries due to crushing!
– Be careful when unpacking.
3.3 Safety instructions during operation, slicing
WARNING Rotating blade!
Cut-injuries.
– Do not allow yourself to become distracted. Concentrate on the
task in hand and avoid time pressure.
– During operation, do not reach into the path of the carriage.
–Never push product ends towards blade by hand.
CAUTION There are spikes on the product holder!
Driver hooks on feed carriage, grip hooks!
Risk of injury.
– Use handle when working with product holder.
– Claws are lowered into a rest position.
3.4 Safety instructions for sharpening, cleaning
WARNING Unprotected blade!
Coming in contact with the sharp blade can lead to serious inju-
ries.
– Always wear cut-proof gloves during the cleaning and sharpening
procedures and shoes with toe caps when the blades are replaced.
– Do not clean the blades when operating the machine.
