0_Introduction
The BJ Control 4remote control allows you controlling several devices in
your environment in a simple way. Once programmed, you can activate
each function by directly pressing the keys on the remote.
What devices can be controlled with this remote?
a) All BJ system receivers. These allow you to control common
elements around the home, such as lights, blinds, alarms, doors,
beds, etc.
b) All devices around the home operated by remote controls,
including stereos, televisions, DVD players, etc.
What are the parts of the remote control?
This remote has an ergonomic keypad with four buttons, an infrared
port, LED status indicator, reset input and input for battery charging.
It is powered by a battery that can be recharged by connecting it directly
to the USB port of a computer using the charger supplied with the remote
control.
Two functions can be associated to each button, with the exception of the
scene change button. So, with this remote, you can programme up to 6
different functions in total. If you do not want to use both scenes, you can
programme functions on the four buttons of the remote.
ADDITIONAL INFORMATION:
What is the BJ system?
The BJ system is a system that allows you to control your home wirelessly.
There are two elements to the BJ system: the remote controls and the
receivers.
BJ system controls can be used to control different types of receivers,
including those for alarms, plug sockets, bed control, blinds, etc.
They can also control any equipment in your home that is already operated
by a remote control via infrared.
BJ-257-4 BJ-CONTROL 4

Page3
1_Basic operation
To get the most out of your remote, you need to programme each key
(button) with the desired functions. For example, you could set off an alarm
or turn up the volume on the television by pressing , depending on which
function you recorded.
Follow these steps to enable a device:
1.
Check that the battery is charged.
The battery needs charging when the
LED on the remote flashes red.
Needs charging Battery charged
LED Status

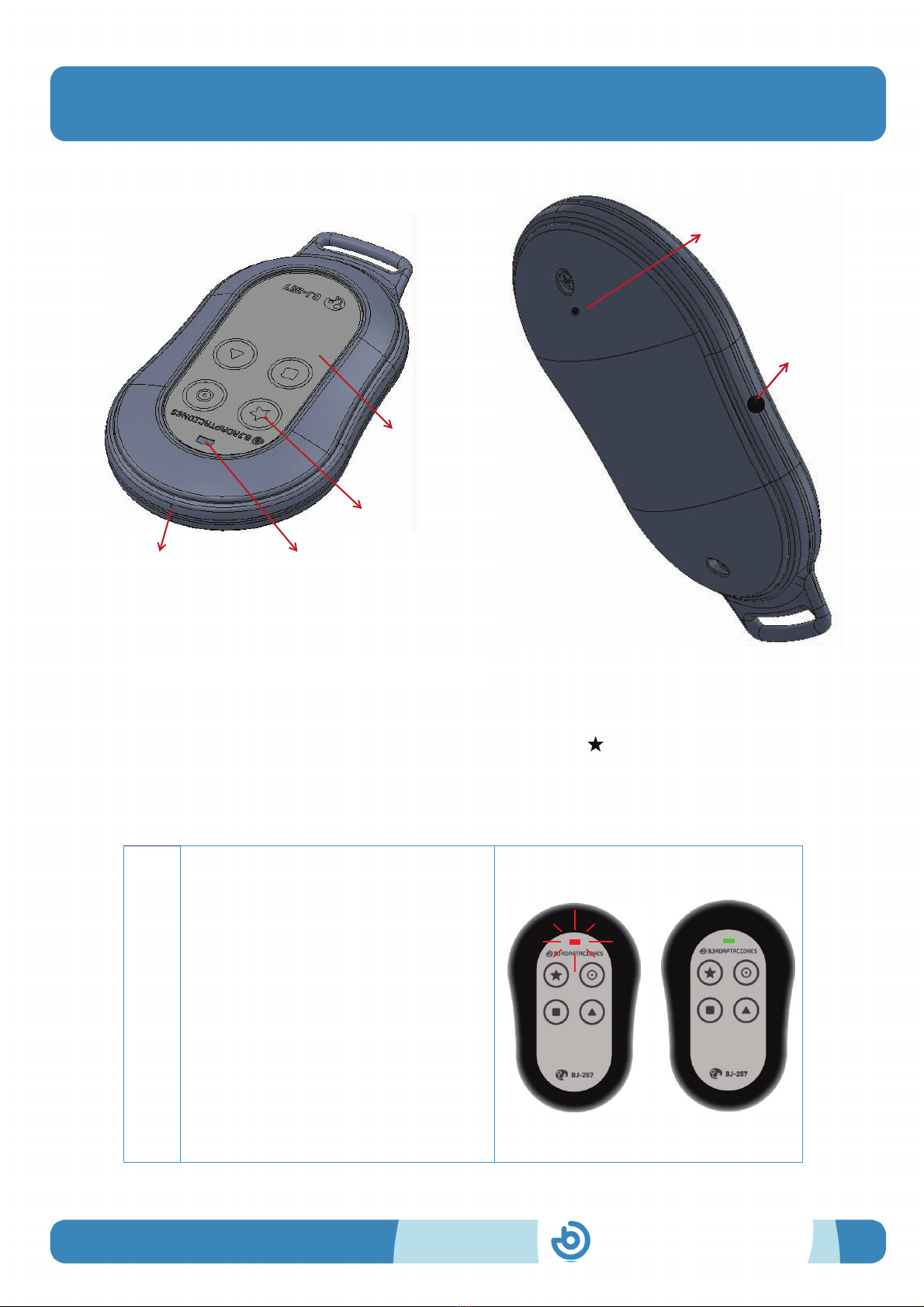

Ergonomic keypad
Infrared port
Button
Reset input
Input for battery
charging
BJ-257-4 BJ-CONTROL 4
BJ-257-4 BJ CONTROL 4
User’s guide

Page4
The remote uses radio frequency signals to control BJ System receivers, so
you can activate the receiver without the need for a direct line of sight
between the remote and the receiver.
Infrared signals are used to control devices operated by remote controls
that have been copied to the sequential direct remote control. In this case,
then, there must be a direct line of sight between the remote control and
the receiver, just as there would with the original remote control.
2_Changing scenes
A scene is a set of programmable keys (buttons) on the remote. To increase
the number of devices controlled, you can change the scene on the remote.
When the remote changes scene, the functions programmed in the cells are
stored but are no longer active. There are five programmable cells in each
scene on this remote and a total of two scenes. This means that you can
programme up to 6different functions.
To change the scene, activate the key that you programmed for changing
the scene, which is the key in which code 300 was recorded (see
"Programming").
The current scene of the remote is indicated by the colour of the LED when
you press on a key. If you are in scene 1, the LED will turn red any time
you press a key, whereas if you are in scene 2, it will turn green.
2.
Follow the instructions in section 1 of this manual to programme the key on
the remote that you want to use (e.g. key ).
3.
Prepare the device that you wish to control according to its instructions.
4. Enable the programmed key (e.g.
key ) directly by pressing it. When
you press down on it, if you are in
scene 1, the LED will turn red,
whereas, if you are in scene 2, the
LED will turn green. The programmed
action will then be performed.
To enable a function that is
programmed in scene 2 on the same
key, press the change of scene key
and then the key.
BJ-257-4 BJ-CONTROL 4
BJ-257-4 BJ CONTROL 4
User’s guide

Page5
IMPORTANT: You must activate the change of scene key every time you
want to change the scene. Until this key is activated, the remote will remain
permanently in the selected scene. Therefore, if you record code 300 in a
key in scene 1 in order to switch to scene 2, you will need to record the
same code in a key in scene 2 to be able to go back to scene 1 again.
Once a scene has been selected, the basic programming and operation of
the remote is as described in section 1.
When the remote is in the second scene, the LED will flash green.
3_Programming
How a device is programmed depends on the type of equipment you wish to
control, i.e. whether it is a BJ System receiver or a device that works with
infrared (devices that already have a remote control, like televisions, DVD
players, stereos, etc.).
Programming for BJ System receivers
To control BJ System receivers, you must assign the RF code identifying the
receiver to the key on the remote that will be used to operate with this
receiver.
Once you have the information on the code to programme, follow these
steps:
1) Choose the key you wish to programme.
2) Select the programming mode on the remote.
3) Enter the code to programme.
4) Record in the desired scene.
ADDITIONAL INFORMATION:
What is an RF code?
For a remote to control the various receivers you have installed, each
receiver must be identified by a code that differentiates it from the others.
Hence, each receiver has an "RF code selector" that allows you to assign a
code to it. By programming this code in the BJ System remote, you can
control each of the receivers you have installed. See the user manual of
the receiver you wish to control to find out its RF code.
BJ-257-4 BJ-CONTROL 4
BJ-257-4 BJ CONTROL 4
User’s guide

Page6
IMPORTANT: The RF code programmed into the remote must always be a
three-digit number, so if the code indicated for the receiver only has two
digits, add a 0 in front. For example, if you have a receiver for a socket with
the code 37, programme the remote with the code 037.
It is a good idea to use the programming template when programming as it
indicates the numbers and functions associated with each key.
Figure 2: Programming template
In the following example, we will programme the key in scene 1 to
control an alarm receiver with an "RF code" of 25. The programming steps
are as follows:
1) Choose the key you wish to programme
In this step, you need to choose which key on the remote you want to assign
receiver control to. In the example here, this is the key.
All keys can be programmed with two functions excep
t for the one used to
change scenes (this can be the ▲
key or any other key that has been
programmed to change the scene).
2) Select the programming mode on the remote
1st digit
code
⊙
Record scene
1
2nd digit
code
▲
Record
Scene 2
BJ-257-4 BJ-CONTROL 4
3rddigit
code
ESC
BJ-257-4 BJ CONTROL 4
User’s guide

Page7

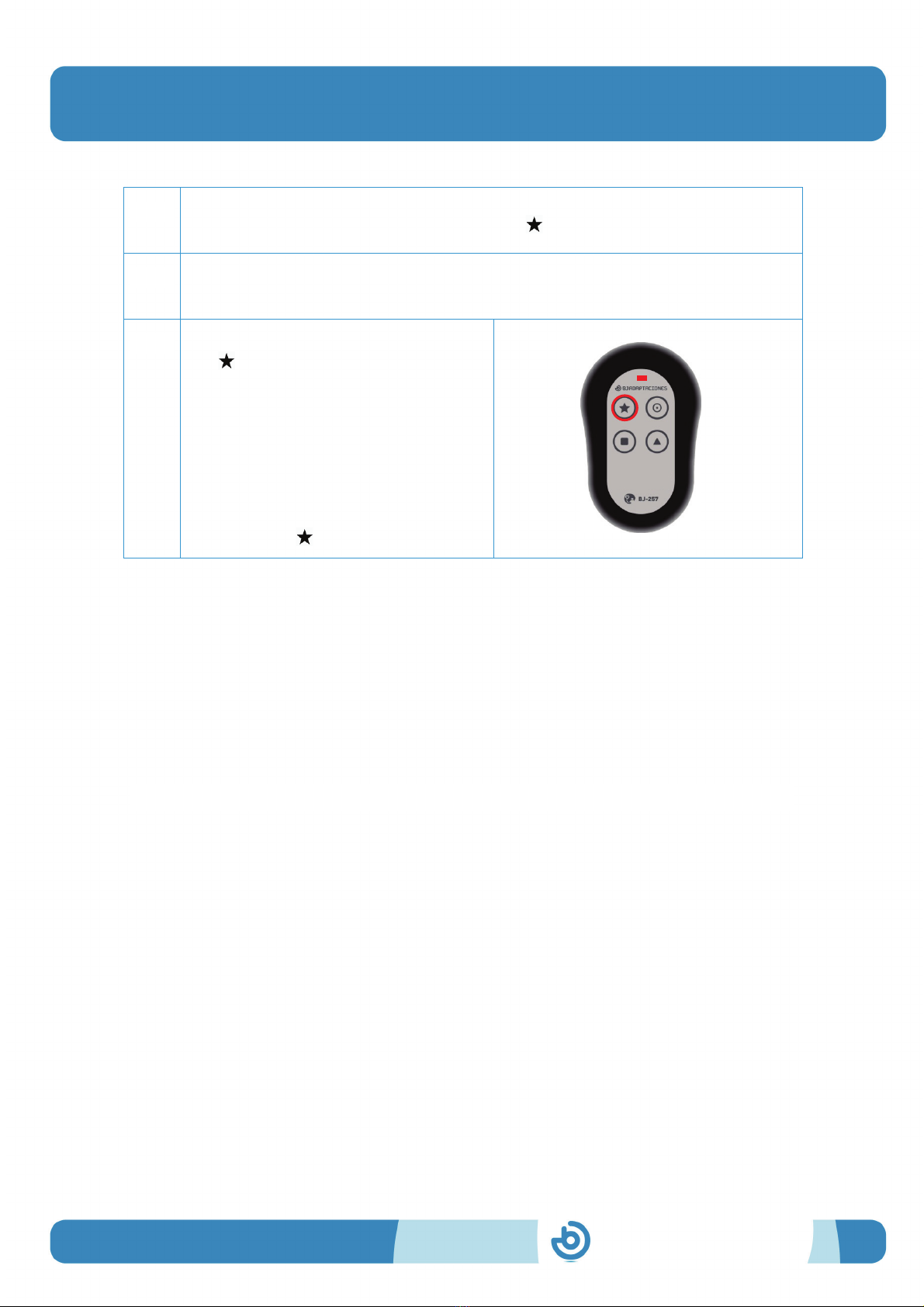

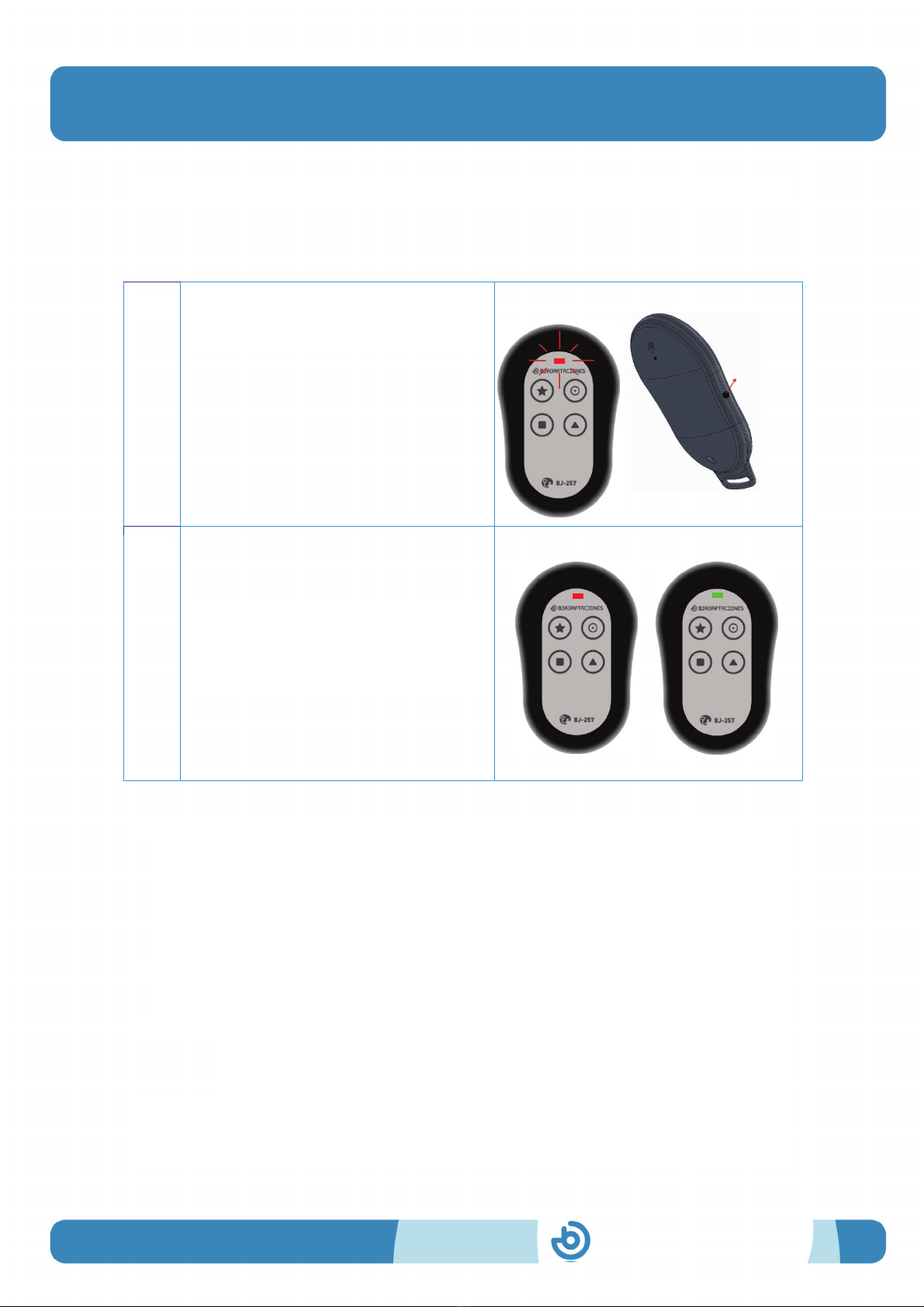

In this step, press and hold the key you wish to programme. The status LED will
turn red.
Without releasing the button, use something pointed
to press and release the
reset button (on the back of the remote).
The LED will turn green, indicating that the remote is ready for a function to be
programmed in the selected key.
3) Enter the code to programme
In this step, the digits of the receiver
code are entered one by one.
In the example given (code 025), these
would be entered as follows:
1) Press the button 0 times
2) Press the button 2 times
4) Record in the desired scene
BJ-257-4 BJ-CONTROL 4
BJ-257-4 BJ CONTROL 4
User’s guide

Page8
After entering the code digits of the
receiver, press the Record Scene 1 (
⊙
)
button to save the code in scene 1.
Alternatively, press the Record Scene 2
(▲) button to save the code in scene 2.
After completing this action, the
remote goes into standby mode.
IMPORTANT:If the remote freezes while programming or you wish to
cancel it, you can exit programming by pressing ESC at any time during
the process.
NOTE:Code 255 cancels all functions assigned to a key.
Programming for infrared functions (standard receivers)
Prepare the remote you want to duplicate. Make sure that there are no
other infrared devices switched on in the room (some laptops, mobile
telephones and other devices could interfere with the recording process).
When duplicating a remote control for a device, you need to remember that
each key on the remote can only be programmed with a single function of
the remote control of the device. For example, if you wish to control the
volume of a stereo system, you need to record the "volume up" function on
one key and the "volume down" function on another.
To programme an infrared function, follow steps 1 and 2 of the previous
section for RF code recording, and then:
Prepare the remote to record the infrared signal
In this step, enter the code 000. To do this, press the Record Scene 1 or Record
Scene 2
button directly, depending on which scene the function you wish to record
is in. The LED will turn red, indicating that the remote
is ready to record the
infrared signal in the selected key.
Record the infrared signal
Record in
scene 1
Record in
scene 2
BJ-257-4 BJ-CONTROL 4
ESC
BJ-257-4 BJ CONTROL 4
User’s guide

Page9
1) Point the remote control that you
wish to duplicate at the "infrared
recording" port of the sequential
direct remote control and press the
button on the remote that
you wish
to duplicate.
2)
When the control has stored the
function of the other remote, the
LED will switch itself off, indicating
that programming has ended.
Programming of special codes:
Code 400: This code is used to record infrared signals instead of code 000
when we want the device to perform the programmed action for as long as
the key is pressed.
For example, if the action recorded is "turn up the volume on the
television," if code 000 was used, when you press the button where the
signal was recorded, the volume on the television will be turned up one
level. However, if you used code 400, the remote continues the action, so
the volume will continue to rise until you release the button.
Code 500: This code is used for the dual recording of the infrared signal.
This is a useful feature because the infrared signal emitted by some
consumer devices can change even when the same button is pressed (e.g.
the same button switches the television "on" and "off"). With this code, you
can record the different signals emitted by the device to resolve situations
where the recorded action would otherwise only work half of the time.
To begin, record the first press of the button on the remote control you
wish to copy using code 000 and then record the second time it is pressed
using code 500.
NOTE:Check that they were recorded correctly; if not, repeat the process
until they are recorded correctly. If after five attempts you have not
managed it, contact your dealer as it may be possible that the two remotes
are incompatible.
Code 800: This code is used to perform the action recorded in a key in
scene 2 in the next press of a key. The battery LED flashes green to
indicate the change of scene. After the second keystroke, the remote
automatically returns to scene 1.
BJ-257-4 BJ-CONTROL 4
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page10
4_Battery charging and care
The battery needs charging when the LED on the remote flashes red. To
charge the remote, follow these steps:
•The battery installed in the remote is a single lithium ion polymer
cell.
•It is VERY IMPORTANT NOT to let the battery fully discharge. It
should be recharged immediately when the battery LED indicates that
the battery is discharged. Allowing the battery to fully discharge
could cause irreversible damage to it.
•Ion polymer batteries cannot withstand temperature excesses. For
this reason:
oDo not leave the remote near heat sources such as radiators,
electric blankets, heaters, etc.
oNever leave the remote inside vehicles.
If it overheats, the battery could catch fire.
1.
Connect the charger cable to any
computer USB port or to the charger
supplied with the product.
Needs charging
2. During charging, the LED will turn
red. The LED will turn green when the
battery is charged.
When the charging cable is
disconnected, the LED switches itself
off and the remote returns to standby
mode, ready for use.
Charging Battery charged
Input for
battery
charging
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page11
•Only charge the battery with the charger supplied with the product or
through a USB port. The charging process must be witnessed in order
to detect any charging abnormalities.
•Use the battery and charger for their intended purposes only.
Improper use or use of unapproved batteries or chargers may
present a risk of fire, explosion, or other hazard, and may invalidate
any approval or warranty.
•The battery can be charged and discharged countless times but it will
eventually wear out. You will need to replace the battery when the
battery life is noticeably shorter than normal. To do this, contact BJ
Adaptaciones to replace it.
•The full charging time of the battery can vary between 3 and 4 hours.
•Lithium-ion polymer batteries can be charged before they are fully
discharged because they are not susceptible to the memory effect.
We do not recommend charging the battery before it has lost 5% of
its charge. This will cut down on unnecessary charging that can be
harmful due to the increase in temperature. Charging and discharging
quickly and often will increase the inaccuracy between the battery
charge status and power meter readings.
•Leaving the battery at a high level of charge in a high-temperature
environment for extended periods (> 60°C) also accelerates the loss
of capacity.
•Frequent full charges and discharges put stress on the battery and
drastically reduce its lifespan.
•Try to keep it between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A
device with a hot or cold battery may not work temporarily.
•When the battery is fully charged, disconnect it from the charger, as
overcharging may shorten the battery's lifetime.
•This equipment is not designed to run on an external power supply.
•The correct way to disconnect the device from an external power
supply is, firstly, to unplug the cable from the socket transmitting the
electricity to the power supply/equipment charger. You may then
remove the connector socket directing the voltage to the actual
equipment.
•You should do this the other way round when connecting to the
power supply.
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page12
•When you unplug a charger or an accessory, hold and pull the plug,
not the cord.
•When your charger is not in use, unplug it from the electrical plug
and the device.
•Do not use the charger outdoors.
•If you believe the battery or charger is damaged, contact BJ
Adaptaciones to have it inspected before continuing to use it. Never
use a damaged charger or battery.
5_General features
o3.7 V, 900 mAh lithium-ion polymer battery
oCharging jack
o10 programmable functions in 2 scenes
oRF working frequency: 433 MHz (ISM)
oDimensions: 114 x 65 x 14 mm
6_Proper care and use of the device
•Keep the device dry. Moisture and liquids may damage the parts or
electronic circuits of the device. Water damage to your device may
void the warranty.
•Do not use or store the device in dusty or dirty areas. Dust may
cause the device to malfunction.
•Do not leave the device on a sloping surface if it is not properly
secured. Do not drop the product or subject it to impacts. It may be
damaged if dropped.
•Do not store the device in hot or cold areas. Use it at temperatures
between 0°C and 50°C. The device could explode if left inside a
closed vehicle as the internal temperature could reach 80°C.
•Do not expose the device to direct sunlight for long periods (e.g. on
the dashboard of a car).
•Avoid letting the device come into contact with metal products that
could scratch the surface. Avoid storing the device in your pockets as
it could be damaged if it is bent or deformed, or parts may stop
functioning correctly.
•Do not store the device near magnetic fields.
•Do not store the device in or near heaters, microwaves, hot cooking
equipment or high-pressure containers, because the battery may leak
and the device could overheat and cause a fire.
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page13
•Press the keys gently and do not use sharp objects that could
damage the surface of the keypad.
•Do not disassemble, modify or repair the device. Any changes or
modifications made to your device could void the warranty.
•Do not paint your device or attach stickers to it.
•When cleaning the device:
oUse a towel or soft cloth to clean the device and charger.
oDo not use chemicals, detergents or solvents.
•Do not use it for any purpose other than that for which it was
designed.
•The device is not a toy. Do not allow children to play with it because
they could hurt themselves and others or damage the device.
•Only allow qualified professionals to service your device.
Medical devices
•Radio equipment can interfere with the functioning of medical devices
that are not suitably protected. Consult a physician or the
manufacturer of the medical device to determine whether it is
adequately shielded from external radio frequency energy.
Implanted medical devices
•Manufacturers of medical devices recommend a minimum separation
of 15.3 centimetres (6 inches) between a wireless device and an
implanted medical device such as a pacemaker or implanted
cardioverter defibrillator, to avoid potential interference with the
medical device. Persons who have such devices should:
•Always keep the wireless device more than 15.3 centimetres (6
inches) from the medical device.
•Not carry the wireless device in a breast pocket.
•Move the wireless device away if there is any reason to suspect that
interference is taking place.
•Follow the manufacturer directions for the implanted medical device.
•If you have any questions about using the wireless device with an
implanted medical device, consult your doctor.
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page14
Operating environment
•During infrared recording, make sure that there is nothing nearby
generating an infrared signal. Note that some types of fluorescent
lighting emit infrared signals.
•Other products that use the same frequency band (433 MHz) as this
remote control can interfere with the control of the receivers. Make
sure that neither the remote nor the receivers are located near these
sources.
Potentially explosive environments
•Do not use the device in any area with a potentially explosive
atmosphere. Follow the instructions.
7_Correct disposal of this product
•At the end of their life, this product and its electronic accessories
(e.g. charger or USB cable) should not be disposed of with other
household waste.
•To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from other
types of waste and recycle them responsibly to promote the
sustainable reuse of material resources
•Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take these items for environmentally safe
recycling.
Correct disposal of batteries in this product
•The batteries should not be disposed of with other household waste.
Where marked, the chemical symbols Hg, Cd or Pb indicate that the
battery contains mercury, cadmium or lead above the reference
levels in EC Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or the
environment.
•To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
•Do not dispose of batteries in a fire as they may explode. Dispose of
batteries according to local regulations. Recycle when possible. Do
not dispose as household waste.
BJ-257-4 BJ CONTROL 4
User’s guide

BJ-257-4 BJ-CONTROL 4
Page15
•Do not dismantle, cut, open, crush, bend, puncture, or shred cells or
batteries. If a battery leaks, do not let battery liquid touch skin or
eyes. If this happens, immediately flush the affected areas with
water, or seek medical help.
BJ-257-4 BJ CONTROL 4
User’s guide
