Thank you for choosing a Somfy Telis 4 Soliris RTS .
Before installing and using the Telis 4 Soliris RTS, please read this guide
carefully.
Somfy solutions animate your windows and entrances to bring your
whole house alive. Somfy solutions are designed so that everyone can
enjoy the benets of the products in their home, based on their specic
requirements.
In this guide, the term ‘product’ can include your awning, blind, curtain,
garage door, gate, projection screen, roller shutter.
Well thought-out and easy to use, Somfy solutions are one of life’s little
daily pleasures, making home life more enjoyable.
1. Brief introduction to the Telis 4 Soliris RTS
remote control
This guide describes the installation steps required to make the best use
of the Telis 4 Soliris RTS.
1.1 What is the Telis 4 Soliris RTS for?
The Telis 4 Soliris RTS is a wireless radio remote control compatible
only with products tted with Somfy Radio Technology (RTS): roller shut-
ter motors, awning motors, etc.
The Telis 4 Soliris RTS makes it possible to control several products indi-
vidually using a single remote control handset, by means of a 5-chan-
nel radio system, each channel being identied by the indicator lights.
Several products can also be controlled at once using the Telis 4 Soliris
RTS.
The Telis 4 Soliris RTS also enables products linked to its fth channel
to be set to Wind and Sun mode. In Wind and Sun mode, the relevant
products react automatically to variations in sunshine, provided they are
linked to a Sun sensor or a Wind and Sun sensor.
3
Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
3

4Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
1.2 A few denitions
Installation:
All of the Radio Technology Somfy products a house is equipped with.
Favourite position:
The favourite position is your ideal position for your roller shutter or
awning in certain situations, for example, your awning partially extended
when you are dining beneath it in summer but don’t want to deprive your
houseplants of sunlight; shading your computer screen from glare by
partially closing your interior window blinds/curtains etc.
2. Safety - Important information
2.1 Installation and commissioning
Before installing and using the Telis 4 Soliris RTS, please read these
instructions carefully.
These describe how to install, commission and operate the Telis 4 Soliris
RTS.
Never begin installing without rst checking the compatibility of the Telis
4 Soliris RTS with the linked equipment and accessories.
Any incorrect use will invalidate the warranty and Somfy's liability.
2.2 Operating
Somfy recommends that at least one control point is located close to -
the product or group of products.
Do not allow children to play with the xed control points. Keep remote
-
controls out of the reach of children.
Monitor the product while it is moving, especially during commissio-
-
ning of the Telis 4 Soliris RTS, and keep people at a distance until the
product is completely closed.
Make sure the power supply to the product is turned off before any
-
maintenance operation in the vicinity of the product (for example,
when cleaning windows near your awning).
Avoid moving the product if ice has formed in it, unless the motor is
-
tted with antifreeze protection.
Do not leave the product behind a window in full sunlight, as the Telis 4
-
Soliris RTS cannot withstand temperatures greater than 60°C.
Do not leave the Telis 4 Soliris RTS in a car in winter.
-
Do not immerse or soak the Telis 4 Soliris RTS in any liquid.-

5
Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
Only use maintenance products recommended by Somfy.-
Frequently check the product (e.g. awning) to detect any defects in -
balance or any signs of wear. Do not use the product if a repair or
adjustment is required.
2.3 Environment
Damaged electrical or electronic products, such as used batteries,
should not be disposed of with household waste. Please take them to
a collection point or an approved centre to ensure they are recycled
correctly.
3. Content of the kit and tools required

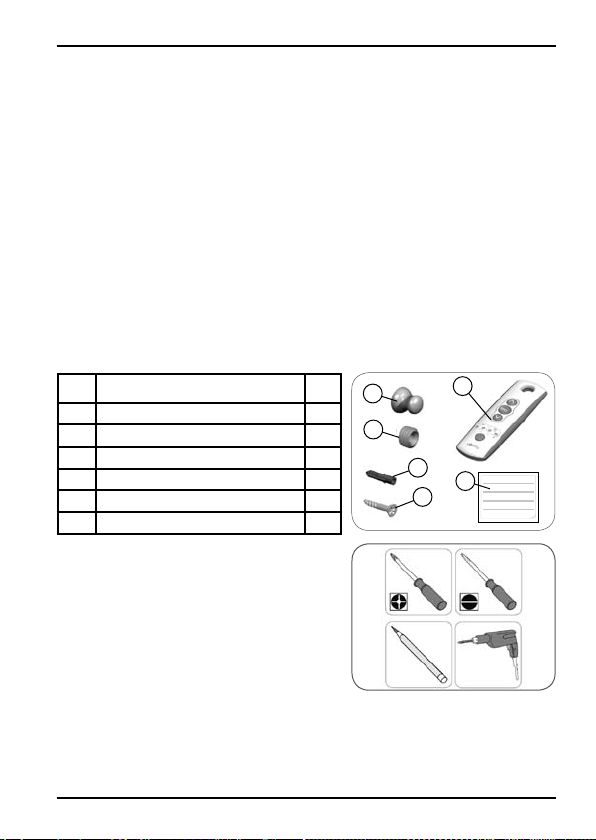

3.1 List of parts
-Before starting installation and commissioning of the Telis 4 Soliris
RTS, check that all parts listed in the table below are present in the
correct quantity (Q):
No. Components Q.
1Telis 4 Soliris RTS remote control 1
2Mounting pin 1
3Bracket 1
4Plug 1
5Screw 1
6Identication label 1
3.2 Tools required
• Appropriate screwdriver for
the screws to be used
Insulated athead electrician's•
screwdriver
Drill and drill bit•
Pencil•
4
3
1
5
2
1
2
3
4
5
6

6Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
4. Details of the Telis 4 Soliris RTS
4.1 Components
A. Up button
B. STOP/my button
C. Down button
D. Indicator lights
E. Selection Button
F. Programming button (PROG)
4.2 Technical data
Dimensions in mm (H x w x d): 145 x 49 x 22 mm
Operating temperature: 0°C to + 60°C
Protection rating IP 44: Rain resistant and shock resistant
Frequency: 433.42 MHz
Range: 20 m through two concrete walls; 200 m in open space
Battery: 3 V type CR 2430.
5. How does the Telis 4 Soliris RTS operate?
5.1 Channels and indicator lights
5.1.1 Description
The Telis 4 Soliris RTS allows independent or simultaneous control of
different products with a single remote control unit.
This functionality is possible thanks to a 5-channel system, identied
by indicator lights: each indicator light corresponds to an individual
channel.
Each channel is independent and controls a product or group of
products.
The amount of sun the house receives can also be adjusted using
Channel 5, by selecting the Sun function: if a Sun sensor or a Wind and
Sun sensor is linked to the products controlled by Channel 5, the sensor
will automatically control the lowering or raising of the products, depen-
ding on the intensity of the ambient light.
The Selection button (E) is used to navigate between the 5 channels and
my somfy.com
C
B
A
F
D
E

7
Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
to activate the Wind and Sun function.
5.1.2 Channel identication
The rst 4 channels are each represented
by an indicator light, the fth channel by all
4 indicator lights:
• Channel 1: the rst indicator light is on,
Channel 2: the second indicator light •
is on,
Channel 3: the third indicator light is •
on,
Channel 4: the fourth indicator light is •
on,
Channel 5: all four indicator lights are •
on.
5.1.3 Channel selection
The Selection button (E) allows naviga-
tion between the 5 channels:
Press the Selection button (E) to select
-
the indicator light, or the four indicator
lights, that correspond to the required
channel, that is the channel for the
product to be controlled:
The indicator light(s) will come on
►
for a few seconds and then turn
off.
Press one of the three buttons, Up/
-
STOP/Down to control the operations.
Caution: the Telis 4 Soliris RTS will store
the last channel activated. Press the
Selection button (E), the indicator light of
the last channel used will light up.
Channel 1:
Channel 2:
Channel 3:
Channel 4:
Channel 5:
E

8Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS

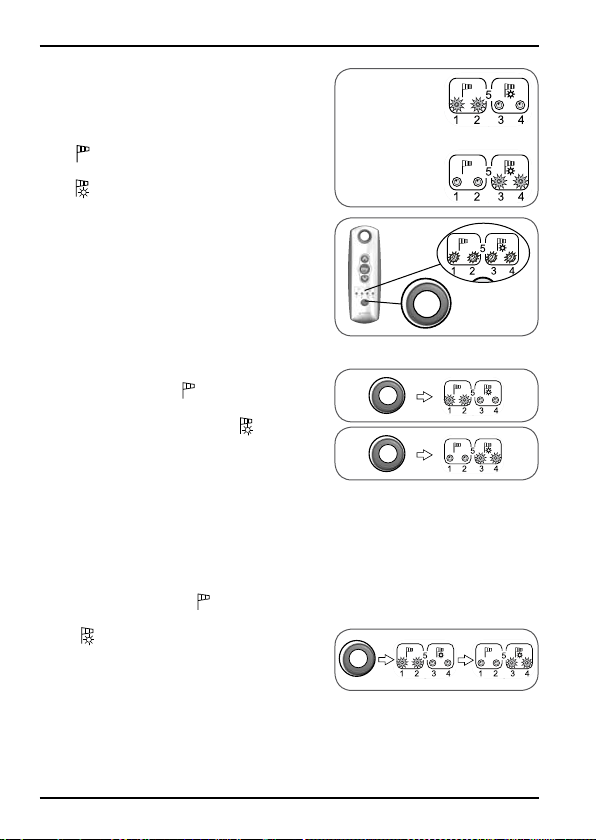

5.1.4 The Wind and Sun function
The Selection button (E) also enables the
Wind and Sun function to be activated for
the products controlled by Channel 5:
• Wind function: the products react
to the wind.
• Wind and Sun function the
products react to the wind and the
sun.
Press the Selection button (E) to select
-
Channel 5:
The four indicator lights will come
►
on for a few seconds and then turn
off.
Press the Selection button (E) again
-
and keep it pressed until two indicator
lights come on:
If the two Wind
- indicator lights are
on: the Wind function is active.
If the two Wind/Sun
- indicator
lights are on: the Wind and Sun
function is active.
5.1.4.1 Selecting the Wind and Sun function
To change from the Wind function to the
Wind and Sun function:
Select channel 5.
-
Press the Selection button (E) again -
and keep it pressed:
The two Wind
► indicator lights
will go out and the two Wind/Sun
indicator lights will come on; the
roller shutter / awnings allocatted to
channel 5 move briey.
Release the Selection button (E): the
-
Wind and Sun function is active.
E
E
E
E
Wind function:
Wind and Sun function:

9
Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
5.2 Choice of products to be controlled
Caution: This section is illustrated with a specic example to explain the
operation of the Telis 4 Soliris RTS and its channels.
5.2.1 Context of use
To simplify the explanations, we will use a total of 4 products controlled by
the Telis 4 Soliris RTS in a typical house:
Living room roller shutter No.1 called Living Room Shutter 1,•
Living room roller shutter No.2 called Living Room Shutter 2,•
Terrace awning No. 1 called Terrace Awning 1,•
Terrace awning No. 2 called Terrace Awning 2,•
Each of these products is tted with an individual control point.
The purpose of installing the Telis 4 Soliris RTS is to be able to control
these 2 roller shutters and 2 awnings independently but also on certain
occasions, the 2 terrace awnings at the same time.
In order to control these 2 roller shutters and 2 awnings with the Telis 4
Soliris RTS, each roller shutter or awning must be allocated a channel
and then the 2 terrace awnings allocated to the fth channel.
5.1.4.2 Selecting the Wind function
To change from the Wind and Sun func-
tion to the Wind function:
Select channel 5.
-
Press the Selection button (E) again -
and keep it pressed:
The two Wind/Sun
► indicator lights
will go out and the two Wind indi-
cator lights will come on; the roller
shutter / awnings allocatted to chan-
nel 5 move briey.
Release the Selection button (E): the
-
Sun function is no longer active.
Caution: the products linked to channels
1, 2, 3 and 4 are still in Wind mode.
The Wind function can only be activa-
ted if a Wind sensor or a Wind and Sun
sensor is linked to the products.
The Sun function can only be activated if
a Sun sensor or a Wind and Sun sensor
is linked to the products.
E

10 Copyright © 2008 Somfy SAS. All rights reserved.
Telis 4 Soliris RTS
The 2 awnings allocated to channel 5
may therefore be controlled at the same
time. They may also be allowed to react
to the sun conditions if the Sun func-
tion is active (if a Sun sensor or a Wind
and Sun sensor is allocated to these 2
awnings).
5.2.2 Allocating a channel to a roller
shutter/awning
Caution: This step is to choose which
channel to allocate to which product. It is
not to make the allocation itself.
-Choosing which channel to link to which
roller shutter or awning:
Channel 1: Living Room Shutter 1•
Channel 2: Living Room Shutter 2•
Channel 3: • Terrace Awning 1
Channel 4: • Terrace Awning 2
• Channel 5: the 2 awnings -
Terrace 1 and 2.
Add these names to the identication
-
sticker.
-Apply the sticker to the back of the Telis
4 Soliris RTS as a guide.
5.2.3 How to link the Telis 4 Soliris
RTS to each shutter/awning
Caution: A channel is allocated to a shutter/
awning individually.
Living Room Shutter 1 on channel 1
Identify the original control point alloca--
ted to the Living Room shutter 1.
Press the PROG button on the origi-
-
nal control point (refer to the section
“Adding a new Telis 4 Soliris RTS”) until
the roller shutter moves briey.
-Press the Selection button (E) to light
up the rst indicator light (channel 1).
1
2
3
4
5
Living Room 1
Living Room 2
Terrace 1
Terrace 2
Terrace 1 and 2
E
