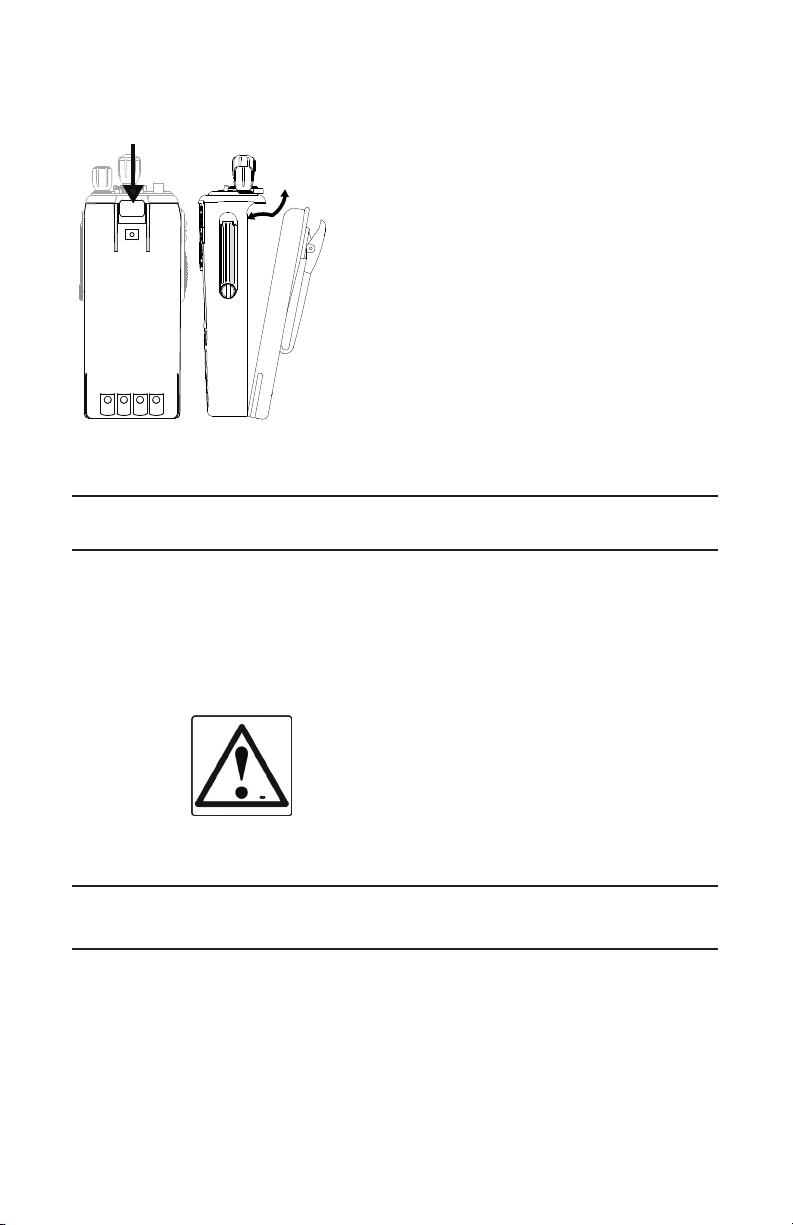

Battery Installation and Removal .................................................8
Battery Care and Maintenance ....................................................9
Antenna Installation and Removal ...............................................9
Radio Controls..............................................................................10

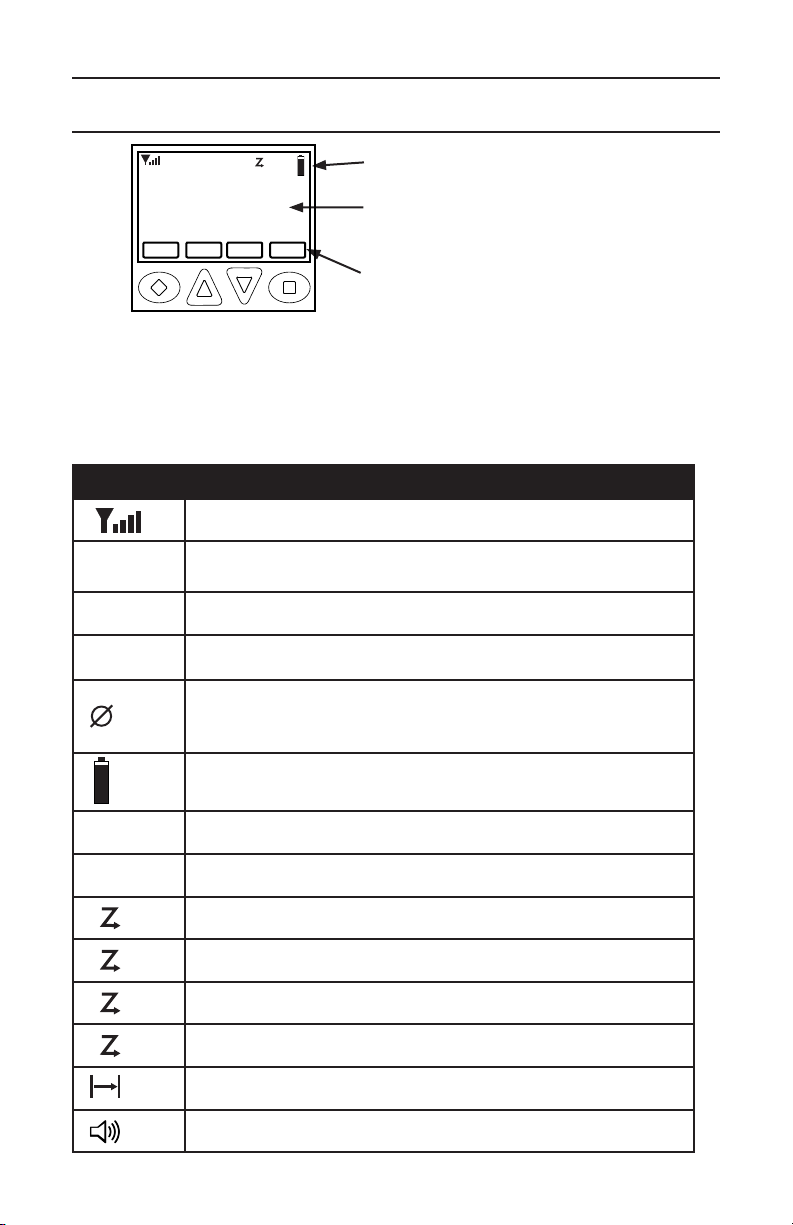

LCD Display...................................................................................11

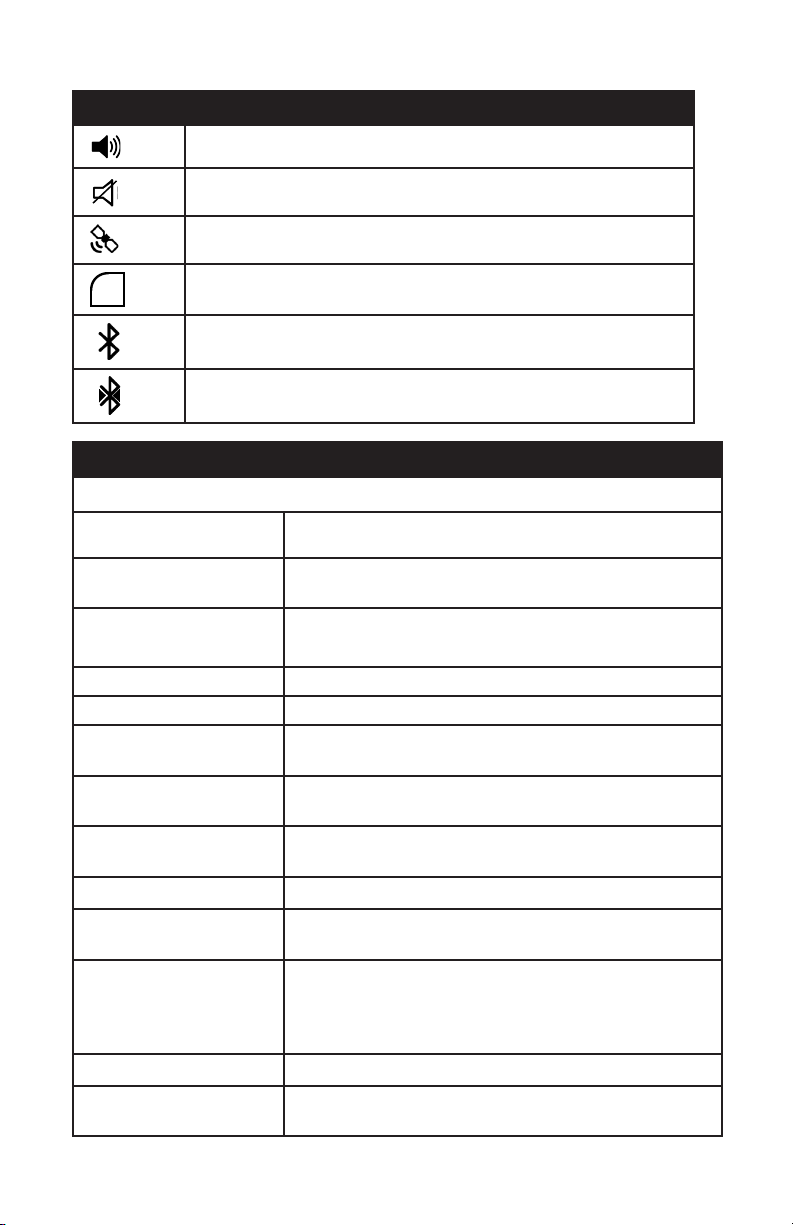

Status Indicators .......................................................................... 11
Alphanumeric Label Options ........................................................12
Programmable Switch and Button Functions ...........................13
Options and Labels .......................................................................14
Channel/Zone Selection Options................................................17
Channel/Zone Selector Knob........................................................17
Button/Menu Item Selection..........................................................17
Direct Keypad Entry ......................................................................17
Using Knob and Button Operations Together ...............................18
Basic Radio Operation.................................................................18
Command Zone Operation ..........................................................19
Building a Command Zone [CHAN+] ............................................19
Editing a Command Zone [CHAN-]...............................................19
Code Guard/NAC Operation ........................................................20
Code Guard Receive.....................................................................20
Code Guard Transmit....................................................................20

Analog Squelch Control ................................................................20
APCO Project 25 Digital Squelch Control.....................................21
Mixed Mode Operation.................................................................22
Trunking Channel Basic Operation ............................................23
Scan Options ................................................................................24
Channel Scan [SCAN] ..................................................................24
Channel Scan List [SCN+] ............................................................25
Talkback Scan...............................................................................25
Vote Scan [Requires Option KZA0581].........................................25
Dual Mode Scan [DSCN] ..............................................................26
Enhanced Scan [ESCN]................................................................26
Priority Scan [PSCN] ....................................................................26
Priority Channel Select [PRI] ........................................................27
Zone Scan [ZSCN]........................................................................28
Zone Scan List [ZSC+]..................................................................28
Pick List Options ..........................................................................29
TX/RX CxCSS Picklist [TXCG] [RXCG] .......................................29
TX/RX Network Access Code Picklist [TNAC] [RNAC]................29
Talk Group ID Picklist [TGID] ........................................................30
Encryption Key Picklist [KEY] .......................................................30
Keyset Picklist [KSET]...................................................................30
Unit-to-Unit Call Options .............................................................31
Emergency Signaling Options ....................................................33
Encryption Operation ..................................................................34
Required Setup .............................................................................34
Basic Operation.............................................................................34
Transmit Secure [SEC]..................................................................35
Transmit Encryption Key Selection [KEY].....................................35
User Selectable Encryption Keyset [KEYST]................................35
Rekey Request [RKEY].................................................................36
Keyset Viewing and Selecting [KSET] ..........................................36
Zeroizing [ZERO] ..........................................................................36
Messaging ....................................................................................37

Text Messaging [TXT]...................................................................37
Short Message Update [MSG]......................................................39
User Update Messaging [STS]......................................................39
Paging and Call Alert ..................................................................41
Conventional Two-Tone/DTMF/MDC1200 Paging [MUTE] ..........41
Call Alert Paging [ALRT] ..............................................................41
Radio Check [RCHK] ...................................................................42
Radio Inhibit/Enable [INH]/[UNINH]............................................43
Other Options and Functions .....................................................44
Backlight [LITE] .............................................................................44
Battery Life [LIFE] .........................................................................44
Bluetooth [BT] ...............................................................................44
Busy Channel Operation ...............................................................44
Channel Select [CHAN] ................................................................45
Cloning [CLON] .............................................................................45
Contrast.........................................................................................46
Control Lockout [LCK]...................................................................46
Date and Time [DATE] ..................................................................46
Global Positioning [GPS]...............................................................47
Hard Power Down [PWRD] ...........................................................47
Keypad Programming ...................................................................48
Minimum Volume [VOL] ................................................................48
Monitor [MON]...............................................................................48
Nuisance Channel Delete [DEL] ...................................................48
Phone [PHN] and Hang Up [HANG] .............................................49
Radio Accountability Tone [RAT] ..................................................49
Radio info ......................................................................................49
Repeater Talkaround [T/A] ............................................................49
Send Alert Tone [SNDT] ...............................................................49
Send Signal [SEND]......................................................................50
Squelch Adjust [SQL] ....................................................................50
Site Display [STDS].......................................................................50
Site Lock [STLK] ...........................................................................50
Site Search [STSR] .......................................................................50
Surveillance Mode [SURV] ...........................................................51
System Test...................................................................................51
Transmit Digital [TXAD] ................................................................51
Transmit Power [PWR]..................................................................51

Two-Tone Select [TONE] ..............................................................51
Versions ........................................................................................52
Zone Select [ZONE] .....................................................................52
Keypad Programming ..................................................................53
Keypad Programming Navigation .................................................53
Entering Keypad Programming Mode ...........................................54
Global, System, Zone and Channel Parameters...........................54
Global Settings ....................................................................54
Displayed Information Lines ..............................................54
User Password...................................................................56
System Settings.................................................................56
System Priority 1 or 2 Channel..........................................56
Tx on Priority 1 Channel ....................................................56
Zone Settings.......................................................................56
Add Zone ...........................................................................56
Delete Zone .......................................................................57
Edit Zone............................................................................57
Channel Settings .................................................................57
Add Channel ......................................................................58
Delete Channel ..................................................................58
Edit Channel ......................................................................58
P25 ID Unit Call/Receive List........................................................60
User Selectable Code Guards ......................................................60
User Selectable Network Access Codes ......................................62
User Selectable Talkgroup IDs......................................................62
Warranty ........................................................................................62
My Radio Settings ........................................................................64

KNG2 Portable Radio User’s Manual
- 1 -
Introduction
Congratulations on your purchase of the BK Radio KNG2 Portable radio
from RELM Wireless.
The KNG2 APCO Project 25 radio o󰀨ers an array of programmable
functionality to help radio users get the most out of their portable
communications. Check with your RELM/BK Radio dealer or
communications o󰀩cer for information on the programmed functions of
your radio prior to operation.
This manual contains information concerning the operation procedures
for the BK Radio KNG2 Portable radio. The KNG2 has been
designed to meet the tough requirements of today’s communications
environment. Please take a moment to read the information in this
manual so you can get optimum performance from your new radio.
FCC Requirements
Your radio must be properly licensed by the Federal Communications
Commission prior to use. Your BK Radio dealer can assist you in
meeting these requirements. Your dealer will program each radio with
your authorized frequencies, signaling codes, etc., and will be there to
meet your communications needs as your system expands.
The FCC rules require manufacturers to comply with the FCC RF
energy exposure limits for portable 2-way radios before they can be
marketed in the U.S. When 2-way radios are used as a consequence
of employment, the FCC requires users to be fully aware of and able
to control their exposure to meet occupational requirements. Exposure
awareness can be facilitated by the use of a product label directing
users to specic user awareness information. Your BK Radio 2-way
radio has a RF exposure product label. Also, your BK Radio owner’s
and service manuals include information and operating instructions
required to control your RF exposure and to satisfy compliance
requirements.
Compliance with RF Exposure Standards
Your BK Radio 2-way radio is designed and tested to comply with a
number of national and international standards and guidelines (listed

RELM Wireless Corporation
- 2 -
below) for human exposure to radio frequency electromagnetic energy.
This radio complies with the IEEE and ICNIRP exposure limits for
occupational/controlled RF exposure environment at operating duty
factors of up to 50% transmitting and is authorized by the FCC for
occupational use only. In terms of measuring RF energy for compliance
with the FCC exposure guidelines, your radio radiates measurable
RF energy only while it is transmitting (during talking), not when it is
receiving (listening) or in Standby Mode. Note: The approved batteries
supplied with this radio are rated for a 5-5-90 duty factor (5% talk - 5%
listen - 90% standby), even though this radio complies with the FCC
occupational RF exposure limits and may operate at duty factors of up
to 50% talk.
Your BK Radio 2-way radio complies with the following RF energy
exposure standards and guidelines:
United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR §§ 1.1307, 1.1310, 2.1091 and 2.1093
American National Standards Institute (ANSI) / Institute of Electrical and
Electronic Engineers (IEEE) C95. 1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999
Edition
Industry Canada Compliance
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
WARNING:
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.

KNG2 Portable Radio User’s Manual
- 3 -
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne
et son gain de sorte que la puissance isotrope rayonnée quivalente
(p.i.r.e.) ne dépassepas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
The KNG2 Series Radio Transmitter has been approved by Industry
Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (identier le dispositif par son numéro de
certication ou son numéro de modèle s'il fait partie du matériel de
catégorie I) a été approuvé par Industrie Canada pour fonctionner avec
les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au
gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
Approved Antennas:
Antenna Freq. Range Impedance Gain Radiation Polarization
KNG2-
P150
KAA0810G2 136 -174MHz 50 Ohms -8dBi Omni Vertical
KAA0818 150-170MHz 50 Ohms 0dBi Omni Vertical
K A A0 811C 162-174MHz 50 Ohms 0dBi Omni Vertical
KNG2-
P400
KAA0817 380-420MHz 50 Ohms 0dBi Omni Vertical
KAA0826 403-435MHz 50 Ohms 1dBi Omni Vertical
KAA0815 380-470MHz 50 Ohms 1dBi Omni Vertical
KNG2-
P500 KAA0816 440-520MHz 50 Ohms 1dBi Omni Vertical
KNG2-
P800
KAA0825 746 - 870MHz 50 Ohms 2dBi Omni Vertical
KAA0833 760-870MHz 50 Ohms 0dBi Omni Vertical
Please refer to the following websites for more information on what
RF energy exposure is and how to control your exposure to assure
compliance with established RF exposure limits.
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01904.html
http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00080.html

RELM Wireless Corporation
- 4 -
Safety Precautions
• Do not operate the transmitter in close
proximity to blasting caps.
• Do not operate the radio in an explosive
atmosphere (petroleum fuels, solvents, dust,
etc.) unless your radio is an intrinsically safe
model designed for such use.
RF ENERGY EXPOSURE AWARENESS AND CONTROL
INFORMATION, AND OPERATIONAL INSTRUCTIONS FOR
FCC OCCUPATIONAL USE REQUIREMENTS
BEFORE USING YOUR PORTABLE 2-WAY RADIO,
READ THIS IMPORTANT RF ENERGY AWARENESS AND
CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS
TO ENSURE COMPLIANCE WITH THE FCC’S RF EXPOSURE
GUIDELINES.
NOTICE: This radio is intended for use in occupational/controlled
conditions, where users have full knowledge of their exposure and
can exercise control over their exposure to meet FCC limits. This radio
device is NOT authorized for general population, consumer, or any
other use.
This 2-way radio uses electromagnetic energy in the radio frequency
(RF) spectrum to provide communications between two or more users
over a distance. It uses radio frequency (RF) energy or radio waves
to send and receive calls. RF energy is one form of electromagnetic
energy; other forms include electric power, radar, sunlight and x-rays.
RF energy, however, should not be confused with these other forms
of electromagnetic energy, which when used improperly can cause
biological damage. Very high levels of x-rays, for example, can damage
tissues and genetic material. The energy levels associated with radio
waves from portable 2-way radios, when properly used, are not great
enough to cause biological damage.
Experts in science, engineering, medicine, health and industry work
with organizations to develop standards for exposure to RF energy.
These standards provide recommended levels of RF exposure for both
workers and the general public. These recommended RF exposure
levels include substantial margins of protection. All 2-way radios

KNG2 Portable Radio User’s Manual
- 5 -
marketed in North America are designed, manufactured and tested
to ensure they meet government established RF exposure levels. In
addition, manufacturers also recommend specic operating instructions
to users of 2-way radios.
These instructions are important because they inform users about RF
energy exposure and provide simple procedures on how to control it.
Please refer to the following websites for more information on what
RF energy exposure is and how to control your exposure to assure
compliance with established RF exposure limits.
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
RF Exposure Compliance and Control Guidelines and Operation
Instructions
To control your exposure and ensure compliance with the occupational/
controlled environment exposure limits always adhere to the following
procedures.
Guidelines:
Do not remove the RF Exposure Label from the device.
User awareness instructions must accompany device when transferred
to other users. Do not use this device if the operational requirements
described herein are not met.
Operating Instructions:
Transmit no more than the rated duty factor of 50% of the time.
To transmit (talk), push the Push-To-Talk (PTT) button. To receive
calls, release the PTT button. Transmitting 50% of the time, or less,
is important because this radio generates measurable RF energy
exposure only when transmitting (in terms of measuring for standards
compliance).
Hold the radio in a vertical position in front of face with the microphone
(and the other parts of the radio, including the antenna) at least one
inch (2.5 cm) away from the nose. Keeping the radio at the proper
distance is important because RF exposures decrease with distance
from the antenna. Antenna should be kept away from eyes.

RELM Wireless Corporation
- 6 -
When worn on the body, always place the radio in a BK Radio approved
clip, holder, holster, case, or body harness for this product. Using
approved body-worn accessories is important because the use of BK
Radio or other manufacturer’s non-approved accessories may result
in exposure levels which exceed the FCC’s occupational/controlled
environment RF exposure limits.
If you are not using a body-worn accessory and are not using the radio
in the intended use position in front of the face, then ensure the antenna
and the radio are kept at least one inch (2.5 cm) from the body when
transmitting. Keeping the radio at the proper distance is important
because RF exposures decrease with increasing distance from the
antenna.
Use only BK Radio approved supplied or replacement antennas,
batteries, and accessories. Use of non-BK Radio approved antennas,
batteries, and accessories may exceed the FCC RF exposure
guidelines.
For a list of BK Radio approved accessories visit the following website:
http://www.relm.com.
The AMBE® voice compression software included in this product
is protected by intellectual property rights including patent rights,
copyrights and trade secrets of Digital Voice Systems, Inc. The user
of this software is explicitly prohibited from attempting to decompile,
reverse engineer, or disassemble the object code, or in any other way
convert the object code into a human-readable form. This software is
licensed solely for use within this product. US Patent Nos. #6,912,495
B2, #5,870,405, #5,826,222, #5,754,974, #5,715,365, #5,701,390,
#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,
#5,247,579, #5,226,084, and #5,195,166.
Contact Information
For additional information on exposure requirements or other
information, visit website http://www.relm.com.

KNG2 Portable Radio User’s Manual
- 7 -
Information and Options
Depending on model type, KNG2 radios operate in the VHF, UHF or
800MHz frequency band. Up to 5000 channels can be programmed
into the radio. The channels may be divided into operating zones.
Zones can be designated as standard operating zones or command
zones. Command zones are made of up of channels selected from
standard operating zones.
Model Frequency Range
P150 136 - 174Mhz
P400 380 - 470Mhz
P500 440 - 520Mhz
P800 763 - 870Mhz

RELM Wireless Corporation
- 8 -
Options
Factory installed options are listed on a tag located on the back of your
radio near the top.
Number Option
KZA0558 Intrinsically Safe Certication
KZA0577 AES/DES Encryption
KZA0570 Over-the-Air Rekeying (OTAR)
KZA0579 P25 Trunking
KZA0581 Vote-Scan
KZA0582 Over-the-Air Programming (OTAP)
Battery Installation and Removal
NOTE:For safety reasons, rechargeable battery packs are shipped
uncharged or only partially charged. Therefore, a rechargeable battery
pack should be properly charged in an approved battery charger before
use.
Only RELM Wireless approved batteries should be used to insure
proper operation and specications.
Models with KZA0558, intrinsically safe certication, must use a
KAA0100IS battery to meet certication requirements.
Installing the Battery
Turn the radio o󰀨.1.
Align the tabs on the bottom of the battery2.
with the slots on the radio.
Push the top of the battery toward the radio3.
until release tab “clicks” into place.
KZA0577
KZA0579
Options Tag

KNG2 Portable Radio User’s Manual
- 9 -
Removing the Battery
Slide the release tab toward the1.
bottom of the radio.
Pull the top of the battery out.2.
(Approximately 30o)
Pull up to remove the battery pack.3.
NOTE: All information programmed into the
radio is maintained even when the battery
pack is removed.
Battery Care and Maintenance
BK Radio battery packs are available in a variety of capacities and
types for special applications. Rechargeable battery packs can be
charged separately or while attached to a radio.
Periodically check the contacts on the battery pack for dirt or debris
that could prevent a good electrical contact with the charging base.
WARNING!
DO NOT DROP A BATTERY
PACK INTO FIRE.
AN EXPLOSION MAY OCCUR
Antenna Installation and Removal
NOTE: Transmitting without an antenna could result in damage to
your radio.
Use RELM/BK Radio approved antennas only. Use of non-qualied
or mismatched antennas could result in diminished radio operation.
Published radio specications cannot be guaranteed with non-approved
antennas. Bent, broken or damaged antennas should be replaced.
+TS ON
-
Release Tab

RELM Wireless Corporation
- 10 -
Installing the Antenna
Insert the radio’s antenna connector into the
threaded connector of the antenna and turn it
clockwise until it is rmly seated.
Removing the Antenna
Holding the base, turn the antenna
counterclockwise until released.
Radio Controls
On/O󰀨
Volume
3 Programmable
Side Buttons
Push-to-Talk
Speaker
Accessory
Connector
Alphanumeric
Display
Dual Microphones
Programmable
Buttons
Keypad
Channel/Zone
Select
Collar Switch
Antenna
Connector
Emergency
Button
Toggle Switches
LED
15
1
2
3
4
5
6
7
89
1 1
10
12
13
14
16
SCAN
PRI
VOL

KNG2 Portable Radio User’s Manual
- 11 -
LCD Display
The KNG2 display can be programmed for a variety of options and
functionality. Check with your RELM/BK Radio dealer or communications
o󰀩cer for information on the programmed functions of your radio.
NOTE: The KNG2 display can be programmed to display di󰀨erent
information when a trunking or conventional channel is selected.
Status Indicators
Receiver Signal Strength
RXD,
RXA Receive Digital, Receive Analog, Hold Time Active
TXD, TXA Transmit Digital, Transmit Analog
L, H Low or High transmit power
Selected channel is encrypted.
Flashing means a reception is decrypted - solid means next TX will
be encrypted.
Battery Level Indicator
P1, P2 Priority 1 Channel, Priority 2 Channel
Scanned Channel
C
Channel Scan On
D
Dual Mode Scan On
Z
P
Zone Scan On
C
P
Priority Scan On
Repeater Talkaround Enabled
Monitor Mode
Status Indicators
Programmable Alphanumeric Labels
Programmable Button Labels
Ch 1
171.58500 MHz
RXD
KNG2-P150
CHAN+ TXCG ZONE MENU
C

RELM Wireless Corporation
- 12 -
Status Indicators
Open Audio
Voice Mute Enabled
GPS Enabled
iP
Trunking IP Data Enabled
Bluetooth Enabled. Flashing indicates Discovery Mode.
Bluetooth Paired
Alphanumeric Label Options
NOTE: Three channel information lines are programmable with PC Radio Editor.
None No information is displayed.
Channel Label Alphanumeric label of currently selected channel or
active scanned channel.
Channel Number Channel number of currently selected channel or
active scanned channel.
Channel # and Zone Currently selected channel numbers and zone.
Date and Time Displays date and time.
DTMF* Displays the numeric DTMF tones of received
signal.
Frequency* Operating frequency of currently selected channel
or active scanned channel.
MDC* Displays the numeric MDC ID or received signal
DT MF.
Radio Name Displays radio name.
Received TGID P25 Talk Group ID of the radio transmitting the
message currently being received.
Rx’d Unit ID P25 ID of a received digital signal. If the incoming
ID is programmed in your Unit ID Call List list, the
associated label will be displayed. During standby
you radio ID number is displayed.
Rx/Tx Key Currently selected encryption key.
Rx Picklist
Selections*
NAC, TGID or Code Guard currently selected from
the programmable RX Pick Lists.

KNG2 Portable Radio User’s Manual
- 13 -
Alphanumeric Label Options
Subaudible* Displays CxCSS value of received signal.
Tx Picklist Selections* NAC, TGID or Code Guard currently selected from
the programmable TX Pick Lists.
Unit ID Shows your P25 Unit ID
While receiving, the ID of the radio transmitting the
message is displayed
If the received ID is programmed in your radio's Call
List, the corresponding label will be displayed
Zone Label Label of currently selected zone.
Zone and Channel # Currently selected zone and channel numbers.
Zone Number Currently selected zone number.
*Conventional Channels Only
Programmable Switch and Button Functions
The KNG2 portable radio is equipped with seven programmable control
buttons and three programmable switches. Switch and button functions
are assigned via PC programming.
NOTE: Switches, buttons and menu items can be programmed for
di󰀨erent functions when a trunking or conventional channel is selected.
Button Options and Labels
The Diamond, Up Arrow, Down Arrow, and Square buttons are
programmable with PC Radio Editor. The programmed functions are
activated by pressing the associated button. Active functions are
indicated by a highlighted background.
SCN = Active, SCN = Inactive.
15
1
2
3
4
5
6
7
89
1 1
10
12
13
14
16
SCAN
PRI
VOL
Right ToggleCollar Switch
Left ToggleOrange Button
Square
Diamond
Up Down
Side Buttons
15
1
2
3
4
5
6
7
89
11
10
12
13
14
16
SCAN
PRI
On O󰀨
On O󰀨

RELM Wireless Corporation
- 14 -

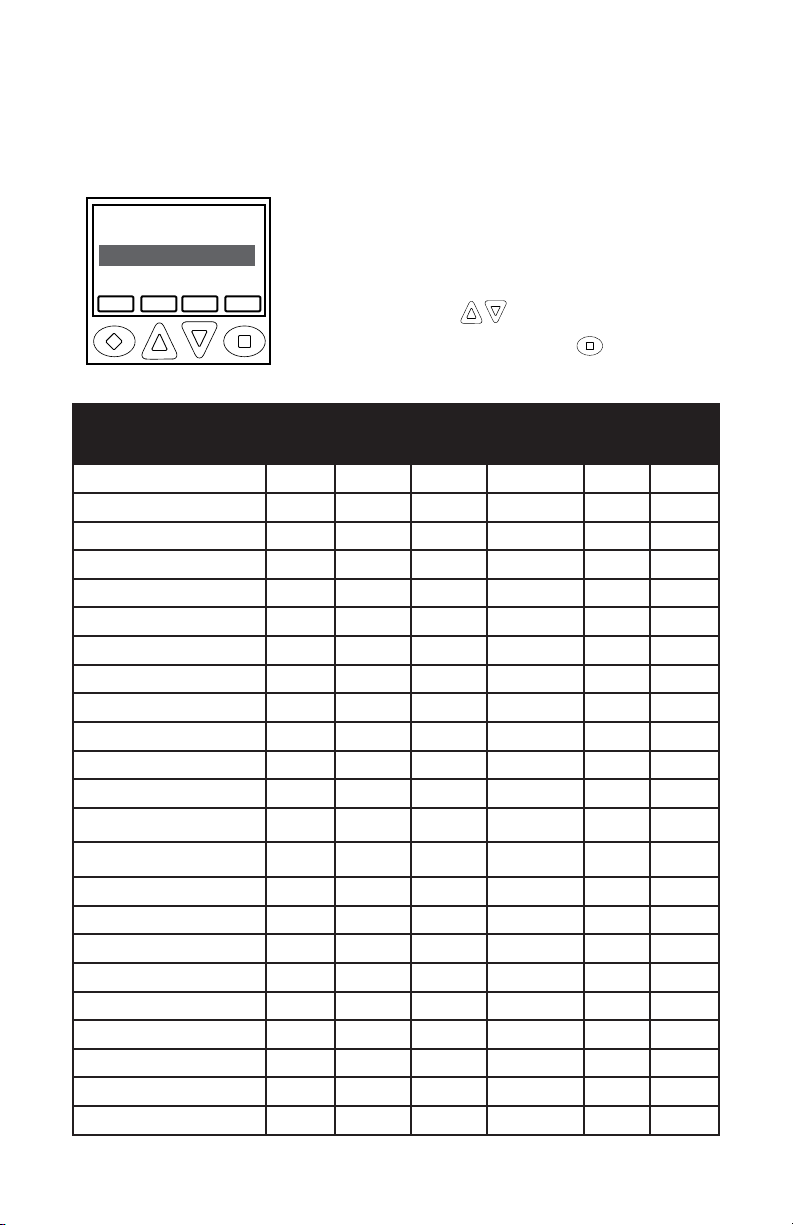

Keypad Menu Operation
One button can be programmed as “Menu”. Items shown in the
Options and Labels table can be programmed and arranged via PC
programming. These items can then be accessed with the Menu button.
To select from the menu:
1. Press the programmed “Menu” button.
2. Scroll to the desired menu item with the
up/down buttons .
3. Press the button marked ENT to open
the item.
Options and Labels
Menu Switch Button Label Trunk Conv.
Backlight x x x LITE x x
Battery Life x x LIFE x x
Bluetooth x x BT x x
Call Alert x x ALRT x x
Channel Add/Delete x CHAN+/- x
Channel Scan x x x SCAN x
Channel Scan List x x SCN+ x
Channel Select x x CHAN x x
Cloning x-x
Contrast x-x x
Control Lock x x x LCK x x
Date and Time x x x DATE x x
Dual Mode Scan x x x DSCN x x
Dual Mode Scan List x x DSED x x
Emergency1x-x x
Enhanced Scan x x x ESCN x
GPS* x x GPS x x
Hang Up x x HANG x
Hard Power Down x PWRD x x
Home Channel x HOME x x
Inhibit x x INH x
Keyset Select x x KSET x x
Menu xMENU x x
Channel Scan
Tx Digital
PRI Scan
TXD
ESC ▲ ▼ ENT

KNG2 Portable Radio User’s Manual
- 15 -
Options and Labels (cont.)
Menu Switch Button Label Trunk Conv.
Minimum Volume x x VOL x x
Monitor x x x MON x
Nuisance Delete x DEL x
Phone x x PHN x
Picklist - Rx CxCSS x x RXCG x
Picklist - Rx NAC x x RXNC x
Picklist - Talkgroup ID x x TGID x
Picklist - Tx CxCSS x x TXCG x
Picklist - Tx NAC x x TXNC x
Picklist-KEY** x x KEY x
Priority Channel x x PRI x
Priority Scan x x x PSCN x x
Radio Accountability Tone xRAT x x
Radio Check x x x RCHK x
Radio Info x -x x
Rekey Request*** x x RKEY x x
Repeater Talkaround2x x x T/A x
Send Alert Tone x SNDT x x
Send Signal x SEND x
Short Message Update x x MSG x
Site Display**** x x STDS x
Site Lock**** x x STLK x
Site Search**** x x STSR x
Squelch Adjust x x SQL x
Surveillance Mode x x x SURV x x
System Test x -
Talkback Scan x TKBK x
Text Message x x TXT x
Two-Tone Select x x TONE x
Tx Digital/Analog x x x TXAD x
Tx Power x x x PWR x x
Tx Secure** x x x SEC x x
Uninhibit x x UNINH x
Unit Call x x UNIT x x

RELM Wireless Corporation
- 16 -
Options and Labels (cont.)
Menu Switch Button Label Trunk Conv.
User Update x x STS x
Version x-x x
Voice Mute2x x MUTE x
Zeroize Keys** x x ZERO x x
Zone Scan xx x ZSCN x
Zone Scan List xxZSC+ x
Zone Select xxZONE x x
1Emergency button can only be assigned to the orange button.
2Works on a per-channel basis.
*Requires GPS option.
**Requires Encryption option.
***Requires Encryption and OTAR options.
****Requires P25 Trunking option.
