Hytera PD602 User manual

数字手持终端
DIGITAL PORTABLE RADIO
使用说明书
OWNER’S MANUAL

Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how
to use the product. For detailed features and operations, please refer to the Feature
Book along with the product
This manual is applicable to the following product:
PD60X Digital Portable Radio (X may represent 2, 5, 6 or 8)
DIGITAL PORTABLE RADIO

Instructional Icons
Indicates functions that are available on digital channel only.
Indicates functions that are available on analog channel only.
Functions marked with no function icons are available on both analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the Company) endeavors to achieve the accuracy and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specications and designs are subject to change without notice due to continuous technology development. No part
of this manual may be copied, modied, translated, or distributed in any manner without the express written permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party products and contents
involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at:http://www.hytera.com.
RF Radiation Information
This product must be restricted to operations in an Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the
exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits.
RF Radiation Prole
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in
communication, medicine, food processing and other elds. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to
develop standards for safe exposure to RF radiation. These standards consist of:

●United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;
●American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992;
●Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999;
●International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998.
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards
before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and
guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures:
●RF energy will be generated only when the radio is transmitting.
●The radio must be 2.5 centimeters away from human body when transmitting.
EU Regulatory Conformance
As certied by the qualied laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/
EC.
Please note that the above information is applicable to EU countries only.

Contents
Items in the Package----------------------------------------1
Product Overview --------------------------------------------2
Product Controls ---------------------------------------------------2
Programmable Keys ----------------------------------------------3
Before Use------------------------------------------------------3
Attaching the Battery ----------------------------------------------3
Attaching the Antenna --------------------------------------------3
Attaching the Belt Clip --------------------------------------------4
Attaching the Accessories ---------------------------------------4
Charging the Battery ----------------------------------------------4
Checking the Battery Power ------------------------------------5
Status Indication ---------------------------------------------5
LED Indicator -------------------------------------------------------5
Basic Operations---------------------------------------------6
Powering On/Off ---------------------------------------------------6
Adjusting the Volume ---------------------------------------------6
Selecting a Zone ---------------------------------------------------6
Selecting a Channel -----------------------------------------------6
Call Services---------------------------------------------------7
Calling on Digital Channel ----------------------------------7
Calling on Analog Channel (No Signaling) --------------8
Emergency Call ---------------------------------------------------8
Feature Description -----------------------------------------8
Troubleshooting ----------------------------------------------10
Care and Cleaning -------------------------------------------11
Optional Accessories ---------------------------------------12

1

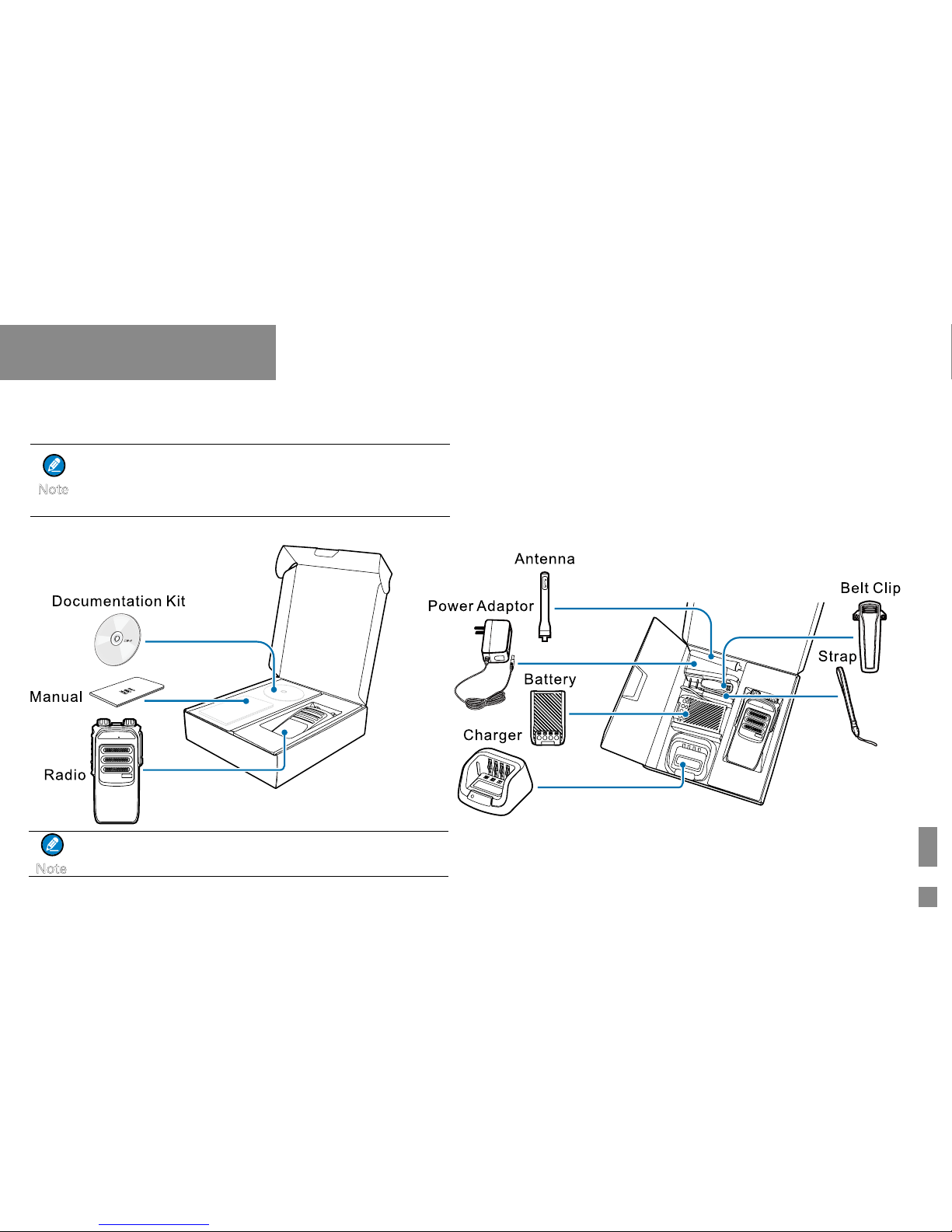

Items in the Package
Please unpack carefully and check that all items listed below are
received. If any item is missing or damaged, please contact your dealer.
The frequency band is marked on the label of antenna; if
not, please refer to the label on the radio for frequency
band information.
Note
All pictures in this manual are for reference only.
Note

2
Product Overview
Product Controls

3
Product Overview
Programmable Keys
For enhanced convenience, you may request your dealer to program the
SK1 key as shortcut to certain feature. Please refer to the corresponding
Feature Book for feature details.
Before Use
Attaching the Battery
●To remove the battery, please turn off the radio first.
●If not assembled with battery specified by Hytera,
the radio will give an alarm tone to remind you when
powering on. Afterwards, it will operate normally.
Assemble Disassemble
Attaching the Antenna
“click ”
12
“click ”
Assemble Disassemble
Note

4
Attaching the Belt Clip
Attaching the Accessories
12
Remove the screws Assemble the Belt Clip
Before Use Charging the Battery
Please use the charger specied by the Company to charge the battery.
Charging Diagram is listed below.
LED Indication Current Status
The LED Indicator ashes orange slowly Low current charging
The LED Indicator ashes red slowly Standby (no load)
The LED Indicator glows red Charging
The LED Indicator glows orange 90 % 90% charged
The LED Indicator glows green 100 %Fully charged
The LED Indicator ashes red rapidly Charging failure
●Make sure the radio is powered off before charging.
Read the Safety Information Booklet in advance to get
necessary safety information.
●To achieve optimal battery performance, please charge
the battery for at least 5 hours before initial use.
Do not hold the radio by its antenna, otherwise the
performance and lifespan of the antenna will be reduced.
Caution
Caution
Charging the Radio Charging the Battery
Charging Status Indication (on charger):

5
Before Use

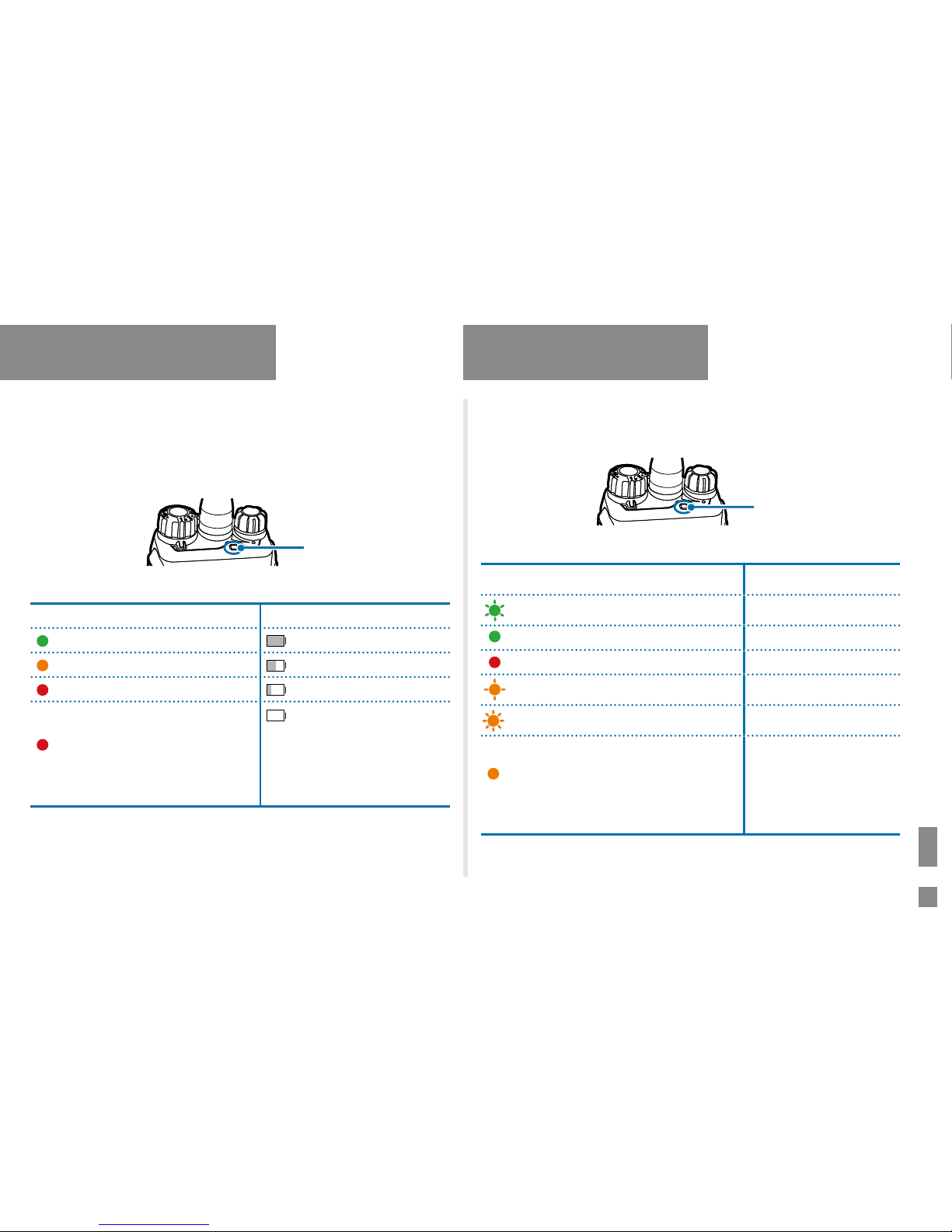

Checking the Battery Power
You may check the current battery power by holding the programmed
Battery Power Indicator key preset by your dealer. Release the key to
exit.
LED Indication Battery Power
The LED indicator glows green High
The LED indicator glows orange Medium
The LED indicator glows red Low
The LED Indicator glows red and
low battery alert tone sounds.
Under the low battery
threshold. Please
recharge or replace the
battery for proper radio
operation.
LED Indicator
LED Indication Product Status
The LED indicator ashes green Powering on
The LED indicator glows green Receiving
The LED indicator glows red Transmitting
The LED indicator ashes orange slowly Scanning or roaming
The LED indicator ashes orange rapidly Emergency
The LED indicator glows orange
Call hung. During a call,
you can hold down the
PTT key to talk to the
other party before the call
hang time expires.
Status Indication
LED
LED

6

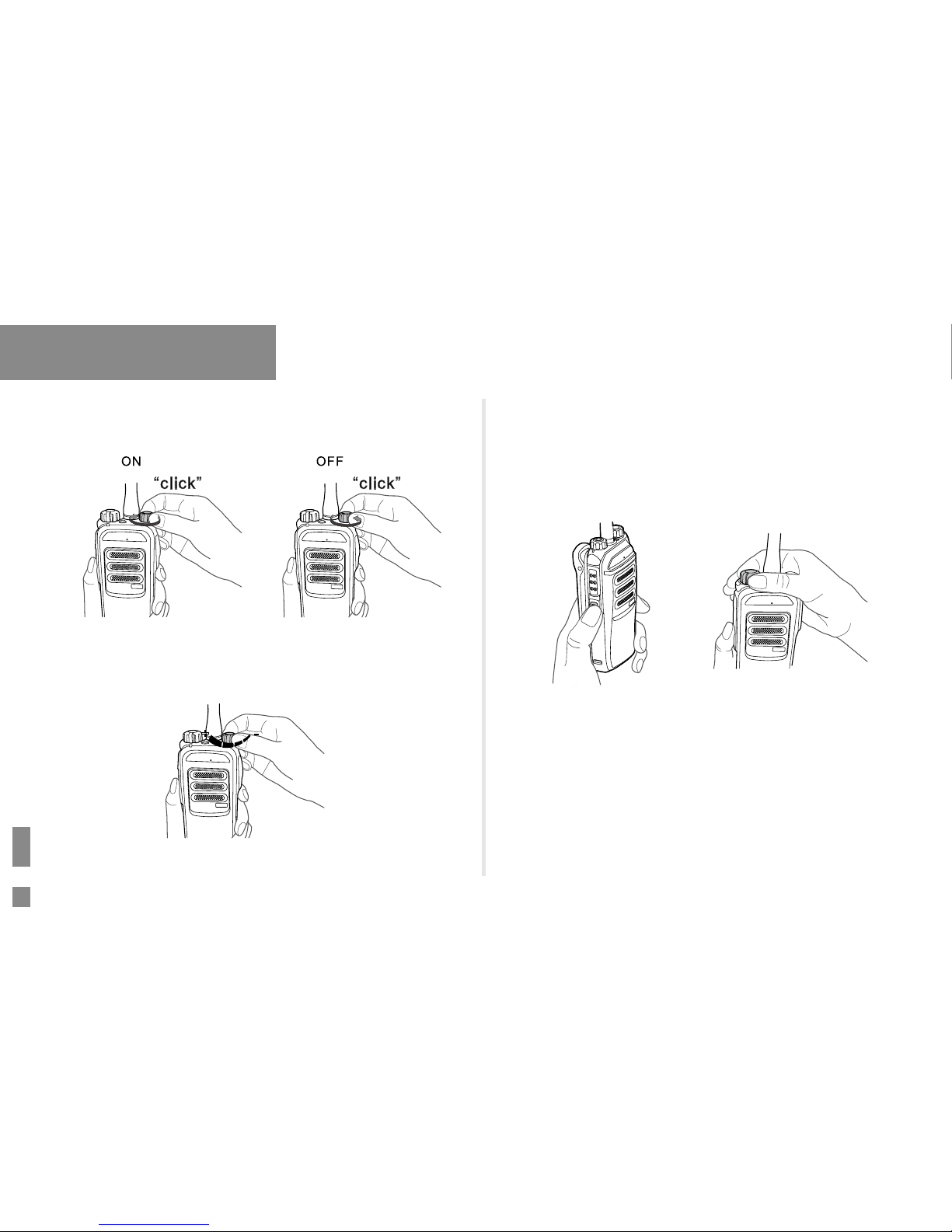

Powering On/Off
Basic Operations
Adjusting the Volume
Selecting a Zone
A zone is a group of channels exhibiting the same property, which is
programmed by your dealer and can facilitate convenient management
over the channel. The radio supports up to 3 zones, each with a
maximum of 16 channels. You can switch to the appropriate zone by
pressing the programmed Zone Up or Zone Down key preset by your
dealer.
Selecting a Channel
After the radio is powered on, you can rotate the Channel Selector knob
to select an appropriate channel. You can also switch to the designated
channel directly by pressing the programmed Preset Channel key preset
by your dealer.
If the Channel Notify feature is enabled by your dealer, the radio will play
the channel number upon channel switching.
Selecting a Zone Selecting a Channel
- +

7
Call Services
After the radio is powered on, you can make and receive calls. To ensure
optimal volume of the receiving radio, keep the microphone about 2.5 to
5 centimeters away from your mouth when transmitting.
The types of calls you may initiate are listed below:
●Private call: A call made to a private contact.
●Group call: A call made to the group contacts.
●All call: A call made to all the contacts on the current channel.
2.5~5.0CM
Call on Digital Channel
You can initiate a private call, group call or all call (your radio must be
programmed to allow you to use the all call service) through the same
operations on digital channel. When calling back, the radio will make
a call to the calling party in private call and all call (your radio must be
programmed to allow you to call back in an all call); but in group call, the
radio will make a call to all parties involved when calling back.
Here we take the private call as example to illustrate the call process:
1. User A and B select the same digital channel for radios.
Users can request the dealer to preset a regular private call/group
call/all call contact for each digital channel.
2. User A holds down the PTT key to initiate a call.
User A can talk to the microphone when the LED indicator on the
radio glows red and release the PTT key to nish talking.
3. User B can receive the call without any operation. When receiving,
the LED indicator glows green.
User B can hold down the PTT key to talk when the LED indicator on
the radio glows orange.
4. User A can receive the call without any operation. When receiving, the
LED indicator glows green.
User A can hold down the PTT key to talk when the LED indicator on
the radio glows orange.
The duration of LED indicator glowing orange (Call Hold
Time) is preset by your dealer.
Note

8
Call Services
Call on Analog Channel (No Signaling)
On the analog channel without signaling, the calling operations are the
same as on the digital channel. The difference is that the called parties
are all the users on the channel, rather than the preset contact for the
channel.
Please refer to the corresponding Feature Book for calling operations on
the analog channel with signaling.
Emergency Call
In case of emergency, you can use this feature to ask for help from your
companion or the control center. The Emergency Call has the highest
priority which can terminate the ongoing calls with lower priorities on the
current channel. You can make emergency operation even when your
radio is transmitting or receiving.
This feature needs to be congured and enabled by your dealer. Please
refer to the corresponding Feature Book for details.
Feature Description
Available features of this radio are listed below. Please refer to the
corresponding Feature Book for details.
Feature Type Detailed Feature
Radio Features
●Radio setting: Power Level, Covert Mode
●Audio setting: Mic AGC, Always Treble Boost,
LQO, Audio Feedback Suppression
●Convenient functionality: Shortcuts, One Touch
Call and VOX
●Security: Man Down (Optional) and Lone
Worker
●Rent
Conventional
Common Features
●Scan
●Talk Around

9
Feature Type Detailed Feature
Digital Features
●Access management: Time-out-Timer (TOT)
and Transmission Management
●Basic voice services: Private Call and Group
Call
●Auxiliary voice service: All Call
●Message (Preset)
●Security: Emergency Call (Enabled via
programmable keys) and Encrypt
●Supplementary services
●Patented features: Pseudo Trunking and
Priority Interrupt
●Mobility management: Roam
Analog Feature
●Access management: Time-out-Timer (TOT),
Transmission Management, Monitor, Squelch
Off and Adjust Squelch Level
● Call on Analog Channel (No Signaling)
●Security: Emergency Alarm and Scrambler
●Signaling: HDC1200, 5-Tone and 2-Tone
Features developed
by Third Party
● API: GPS Report (optional), Radio Registration
Service, Telemetry
Feature Description

10
Troubleshooting
If the solutions below cannot x the problems for you, or you may have some other queries, please contact us or your local dealer for more technical
support.
Phenomena Analysis Solution
Power-on Failure.
The battery may be improperly installed. Remove the battery and reassemble it.
The battery power may be used up. Charge or replace the battery.
The battery is poorly connected due to dirtied or
damaged battery contacts.
Clean the battery contacts. If the problem cannot be solved, contact
your dealer or authorized service center for inspection and repair.
During receiving,
the voice is weak,
discontinuous or totally
inactive.
Low battery voltage. Charge or replace the battery.
Low volume level. Increase the volume by rotating the Volume Control knob.
The antenna may be loosened or improperly installed. Reassemble the antenna after turning off the radio.
The speaker may be blocked or damaged.
Clean the surface of the speaker. If the problem cannot be solved,
contact your dealer or authorized service center for inspection and
repair.
Unable to communicate
with other members.
The frequency or signaling may be inconsistent with
that of other members.
Set your TX/RX frequency and signaling to the same as that of
other members.
The channel type (digital/analog) may be set
inconsistently. Make sure all members are on the same digital/analog channel.
You may be too far away from the group members. Move towards other members.
Irrelevant
communication or
noise is heard on the
channel.
You may be interrupted by radios using the same
frequency. Change the frequency, or adjust the squelch level.
The radio may be set with no signaling. Set signaling for all member radios to avoid interference at the
same frequency.
The noise is too loud.
You may be too far away from other members. Move towards other members.
You may locate in an unfavorable position. For
example, your communication may be blocked by high
buildings or frustrated in the underground areas.
Move to an open and at area, and restart the radio to try again.
You may suffer from external disturbance (such as
electromagnetic interference). Stay away from equipment that may cause interference.

11
Care and Cleaning
To guarantee optimal performance as well as a long service life of the
product, please follow the tips below.
Product Care
Do not pierce or scrape the product.
Keep the product far away from substances that can
corrode the circuit.
Do not hold the product by its antenna directly.
Do not hold the product by its earpiece cable directly.
Attach the accessory connector cover when the
accessory is not in use.
Product Cleaning
Turn off the product and remove the battery before
cleaning.
●Clean up the dust and fine particles on the product surface and
charging piece with a clean and dry lint-free cloth or a brush regularly.
●Use neutral cleanser and a non-woven fabric to clean the keys,
control knobs and front case after long-time use. Do not use
chemical preparations such as stain removers, alcohol, sprays or oil
preparations, so as to avoid surface case damage.
●Make sure the product is completely dry before use.
Caution
HNO 2
HNO 3
H2FeO4
HMNO4
HMNO 4
HNO3
H2FeO4
H2TIO3

12
Cable:
Carry Accessories:
X1 series programming cable with USB port
Optional Accessories
The following items are the main optional accessories for the radio. For
more information of other accessories, please consult your local dealer.
Use the accessories specified by the Company only. If
not, the Company shall not be liable for any losses or
damages arising out of use of unauthorized accessories.
Power Supply:
Audio:
Caution
MCA08 MCU Multi-unit Rapid-rate Charger (for
Li-Ion/Ni-MH batteries),
CH10A06 Dual-Pocket MCU Charger Kit (for
Li-Ion/Ni-MH battery, including Dual-Pocket
Charger and Switching Power),
PS7501 AC/DC Adapter,
MCA05 Battery Optimizing System,
BL2010 Li-ion battery(2000mAh)
X1 series 3-wire Surveillance Earpiece with Transparent
Acoustic Tube (Beige),
X1 series Remote Earbud,
X1 series Remote Swivel Earset,
X1 series Remote C-Earset,
X1 series Remote Earpiece with Transparent Acoustic
Tube,
SM26N1 Waterproof Remote Speaker Microphone(IP67),
SM26N2 Waterproof Remote Speaker Microphone(IP54),
ESW01-N2 Wireless Earset Kit
NCN011 Nylon Carrying Case

811PD60 000000
8 1 1 PD6 0 0 0 0 0 1 0
O10745 D03207
2014
深圳市南山区北环大道9108号
2014
Hytera Communications Corporation Limited.
Hytera Communications Corporation Limited.
