Black & Decker BPC08CJ Installation instructions

Hease Read and Save this Use & Care Book
Por favor lea este instructivo antes de usar el producto
Veuiltez lire et conserver ce guide dVentretien et d'utiJisation
PORTABLE AiR CONDiTiONER
L|MAT|SEUR PORTAT|F
DE A| PORTAT|L
/

P@ @
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number
can be obtained from the serial label, which is on your air conditioner. For all your service calls
during the warranty period, the following information will be needed:
Model Number: ..............................................................................................................
Serial Number: ...............................................................................................................
Date of Purchase: ............................................................................................................
Dealer's Name: ..............................................................................................................
Dealer's Address: ............................................................................................................
Dealer's Phone Number: ..................................................................................................

WARNING:
$
Read all of the instructions before using this appliance. When using
this appliance, always exercise basic safety precautions, including
the following"
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply.
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle
outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
Do not operate the air conditioner if the power cord is frayed or otherwise damaged. Avoid
using it if there are cracks or abrasion damage along the length, plug connector or if the unit
malfunctions or is damaged in any manner. Contact an authorized service technician for
examination, repairs or adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. The exhaust hose should be free of any
obstructions,
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming
in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioner near a bathtub, shower or wash basin.
THESE iNSTRUCTIONS
tAUT|ON! If the air conditioner has been placed in a horizontal or tilted position for any period of
time, wait 24 hours before plugging the unit in.
2

@$

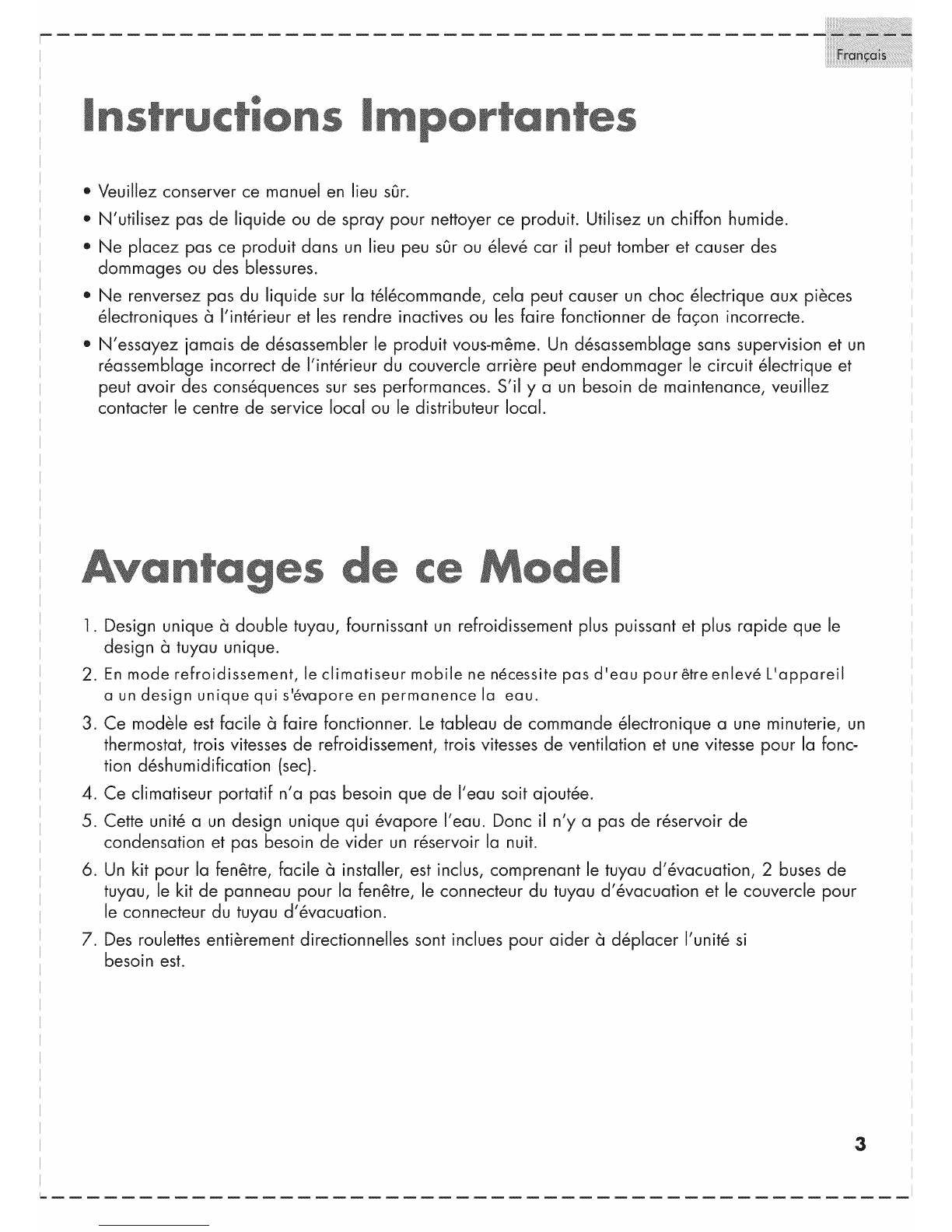

• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product in an insecure or elevated ptace as it may fall and cause damage or
injury.
o Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside
and disable them or cause them to function improperly.
• Never try to dismantle the product by yourself as this will void the warranty. Unsupervised
dismantling and incorrect reassembly of the inside of the back cover may damage the electrical
circuit and affect its performance. When maintenance is required, please contact the local service
center or local distributor.
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three cooling
speeds, three fan speeds and one speed dehumidification function.
2. In cooling mode, this portable air conditioner does not require water to be removed. The unit has
a unique design which continuously evaporates the water.
3. An easy-to-install window kit is included, which consists of the exhaust hose, 2 hose nozzles, the
window panel kit, exhaust hose connector and cover for the exhaust hose connector.
4. Full directional casters are included to help move the unit as needed.
5. The filter screen is designed for easy accessibility of the filter.
6. Portable air conditioners are easy to store when not in use.
3

n@

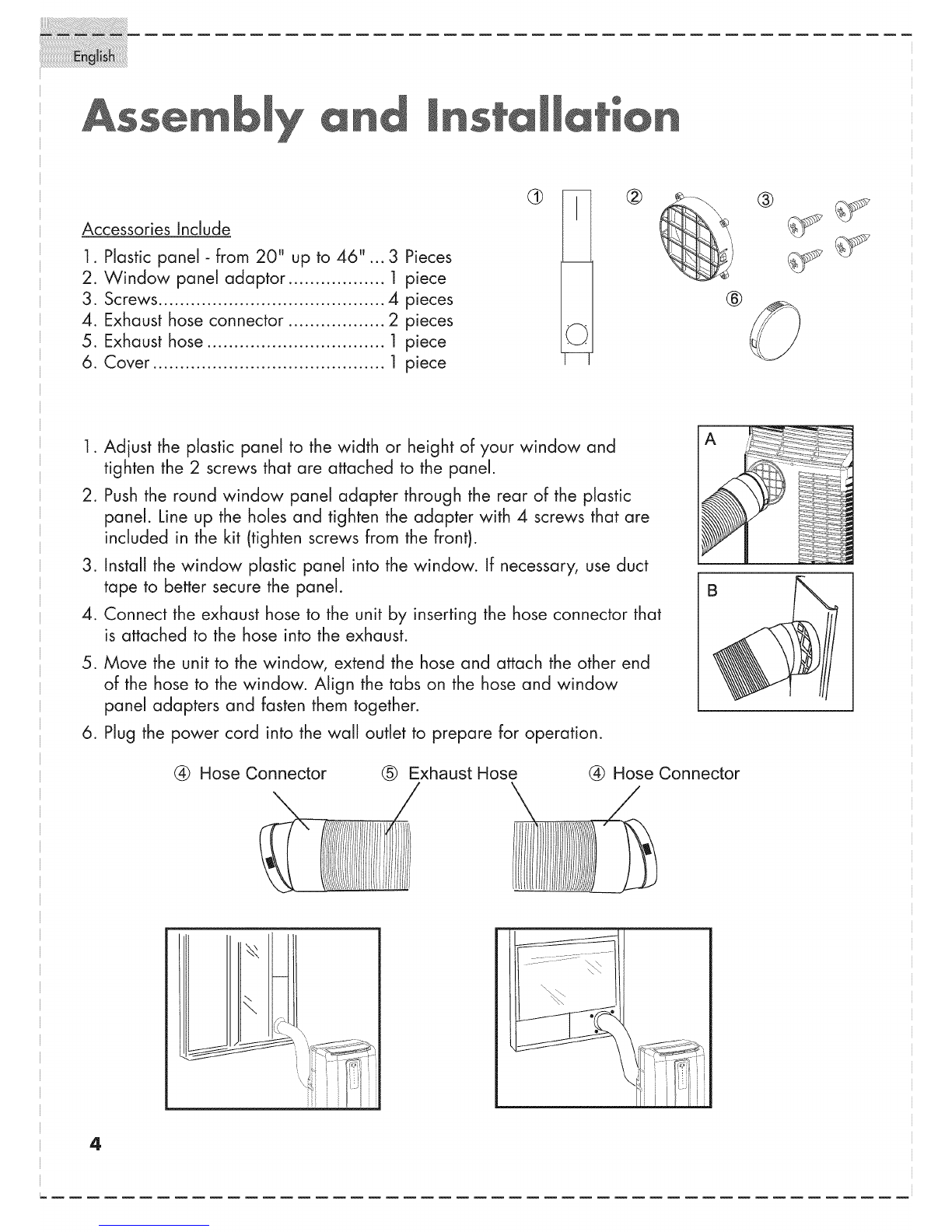

Accessories Include
1. Plastic panel - from 20" up to 46"... 3 Pieces
2. Window panel adaptor .................. 1 piece
3. Screws .......................................... 4 pieces
4. Exhaust hose connector .................. 2 pieces
5. Exhaust hose ................................. 1 piece
6. Cover ........................................... 1 piece
@
®
.
.
.
.
Adjust the plastic panel to the width or height of your window and
tighten the 2 screws that are attached to the panel.
Push the round window panel adapter through the rear of the plastic
panel. Line up the holes and tighten the adapter with 4 screws that are
included in the kit (tighten screws from the front).
install the window plastic panel into the window. If necessary, use duct
tape to better secure the panel.
Connect the exhaust hose to the unit by inserting the hose connector that
is attached to the hose into the exhaust.
5. Move the unit to the window, extend the hose and attach the other end
of the hose to the window. Align the tabs on the hose and window
panel adapters and fasten them together.
6. Plug the power cord into the wall outlet to prepare for operation.
B
@ Hose Connector ® Exhaust Hose @ Hose Connector
4

1
2
3
4
5
6

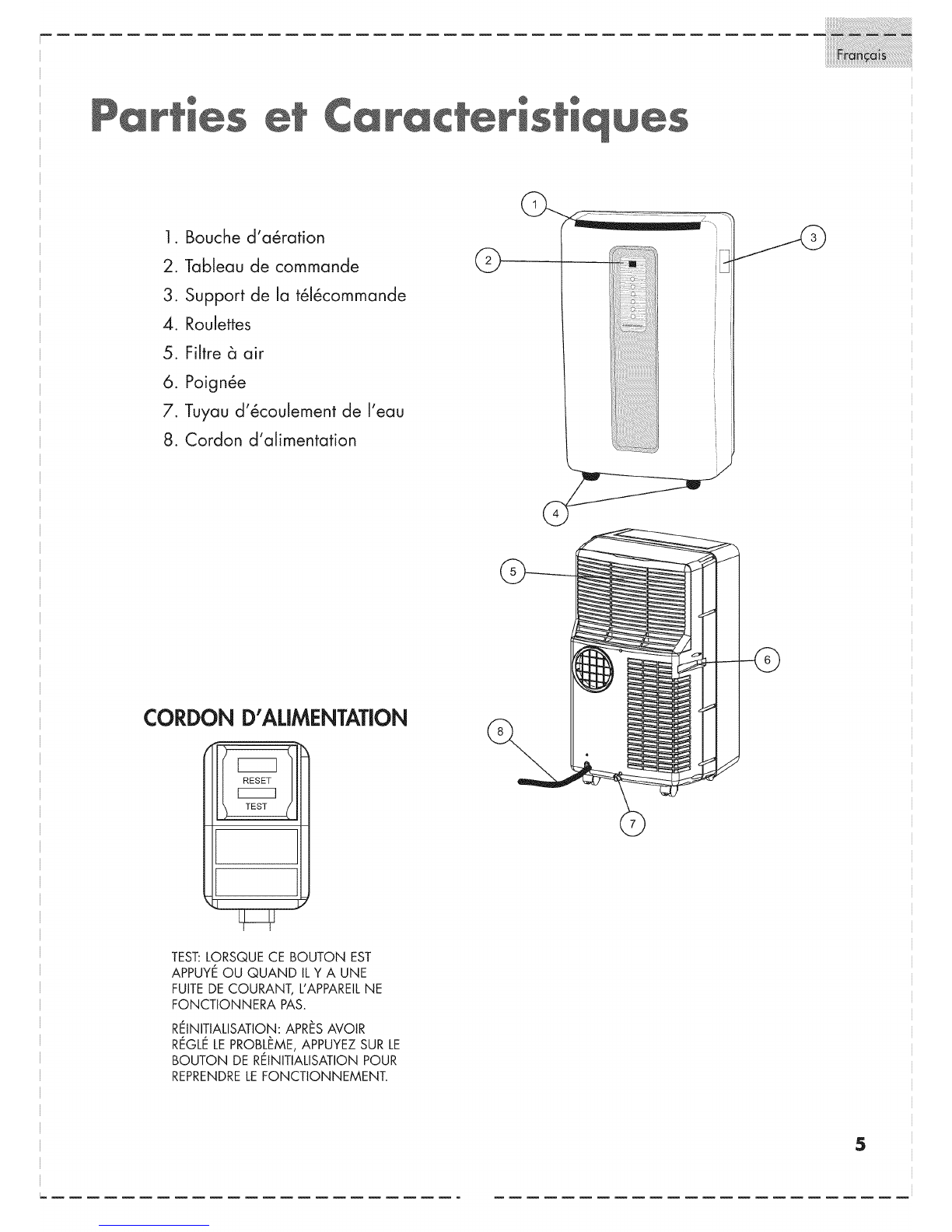

Air Outlet
Control Panel
Magnetic RemoteControl Storage
Casters
Air Filter
Handle
7. Water Drain
8. Power Cord
I
POWER CORD
RESET
V----?
TEST
TEST: When this button is pressed or
when there is a current leak, the unit
wilt not operate.
RESET: After resolving the problem,
press the reset button to resume
operation.
5

NOTE: Wait 24 hours before turning on the air conditioner if the unit has been tilted for any reason.
This allows the oils and the coolants to settle and level off.
BEFORE USE
1. Use an 115V, 15Amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
2. Do not place the air conditioner in direct sunlight or close to any heating appliances (ie.,
baseboard heaters, stoves, etc.)
3. Operate on a flat surface only.
4. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
5. Keep unit at least 1 foot away from the wall.
DURING USE
,
.
.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start
in a high fan cooling mode. The temperature display on the LEDwill show the current room
temperature. When turning on the unit during regular usage, it will remember the last setting used.
If you want to operate the air conditioner as a dehumidifier, then adjust to dehumidification mode.
After a normal shut down, wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
In cooling mode, this portable air conditioner does not require water to be removed. The unit has
a unique design which continuously evaporates the water. In heating mode, or when the unit is
operated in high humidity conditions, you may need to empty the water pan periodically, since the
auto-evaporation function does not operate in heat mode. The unit will shut down automatically
when the water pan is full and the "Tank Full" warning light will turn on.
.
Emptying the water tank: Place a shallow pan below the drain plug located on the back of the
unit (near the bottom of the air conditioner), remove plug, and drain the water pan completely.
Re-insert the drain plug. You will then be able to restart your portable air conditioner.
Check and clean the filter once every week for highest efficiency.
NOTE: Do not operate unit without filter.
AFTER USE
1. If the unit is not being used for a long period of time, remove the plug from the water drain and
drain out any condensed water. Please see the "Storage" section on page 10 for more
information.
6

C
®
@

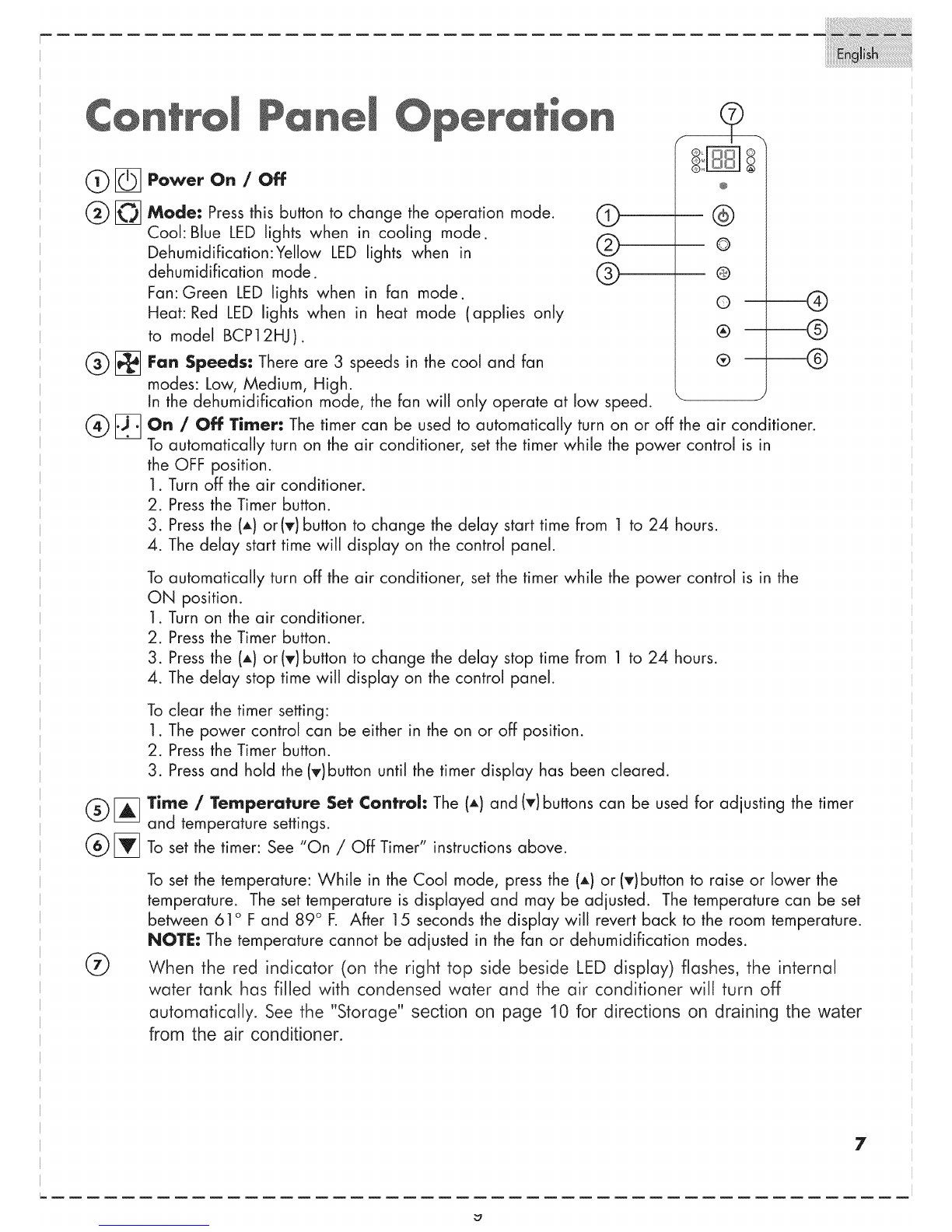

Power On /Off
Mode: Press this button to change the operation mode.
Cool: Blue LED lights when in cooling mode.
Dehumidification:Yellow LED lights when in
dehumidification mode.
Fan: Green LED lights when in fan mode.
Heat: Red LED lights when in heat mode (applies only
to model BCP12HJ).
Fan Speeds: There are 3 speeds in the cool and fan
modes: Low, Medium, High.
In the dehumidification mode, the fan will only operate at low speed.
@
©
O
®
®
®
@
@
On /Off Timer: The timer can be used to automatically turn on or off the air conditioner.
To automatically turn on the air conditioner, set the timer while the power control is in
the OFF position.
1. Turn off the air conditioner.
2. Press the Timer button.
3. Press the (A) or(T) button to change the delay start time from ] to 24 hours.
4. The delay start time will display on the control panel.
To automatically turn off the air conditioner, set the timer while the power control is in the
ON position.
1. Turn on the air conditioner.
2. Press the Timer button.
3. Press the (A) or (T)button to change the delay stop time from I to 24 hours.
4. The delay stop time will display on the control panel.
To clear the timer setting:
1. The power control can be either in the on or off position.
2. Press the Timer button.
3. Press and hold the (T)button until the timer display has been cleared.
Time /Temperature Set Control: The (A) and (T)buttons can be used for adjusting the timer
and temperature settings.
To set the timer: See "On / Off Timer" instructions above.
To set the temperature: While in the Cool mode, press the (J,)or (T)button to raise or lower the
temperature. The set temperature is displayed and may be adjusted. The temperature can be set
between 61 o F and 89 ° F. After 15 seconds the display will revert back to the room temperature.
NOTE: The temperature cannot be adjusted in the fan or dehumidification modes.
When the red indicator (on the right top side beside LED display) flashes, the internal
water tank has filled with condensed water and the air conditioner will turn off
automatically. See the "Storage" section on page 10 for directions on draining the water
from the air conditioner.
7

e
®®
®®
Power On /OFF
Mode
Cool: Blue LED lights when in cooling mode.
Dehumldlfication:Yellow LED lights when in dehumidification mode.
Fan: Green LED lights when in fan mode.
Heat: Red LED lights when in heat mode (applies only to model BCP]2HJ).
Fan Speeds There are 3 adjustable speeds in the cooJ and fan mode:
Low, Medium and High. In dehumidification mode, and room temperature is greater
than 77°F, fan speed can be adjusted; otherwise fan speed is fixed to "low."
On /Off Timer
To set the Timer for a 1 to 24-hour delay until the air conditioner turns off"
1. When you use the timer setting button while the unit is operating, you can preset a time for
the unit to turn off.
2. When you use the timer setting button while the unit is on standby, you can present a time
for the unit to turn on.
3. if you press the "ON/OFF" button, the preset timer function will be cancelled.
4. Timer setting range is 1~24 hours.
To dear Timer Delay program:
NOTE: Air conditioner can be either on or off.
1. Press the Timer button.
2. Press and hold the minus button until the timer display has cleared.
To change the remaining time (in hours):
1. Press the Timer button.
2. Press the plus or minus button to change the delay time
from 1 to 24 hours.
3. The new deJay time wiJl display.
® ® [q so,,iog,hoTo po,o,o,o
To set the temperature, press the [] or [] key to
raise or lower the temperature. The
temperature can be raised or lowered in the cool
mode. The temperature cannot be adjusted in fan
or dehumidification mode.
NOTE: The temperature can be set between
61 °Fto 89°F.
--_ ON/OFF I
o°oo o oo oo
o o oOO o
÷ TEMP/TIMI_
° o o o
-- TEMP/TIMEi
°ooooooooo
"'_ _',_ SPEED]
oo ooo
o ° o
-_ TIMER ]
oO°o°o°°°o°o
I O MODE _-
oo o ° OoO o °
o o
8

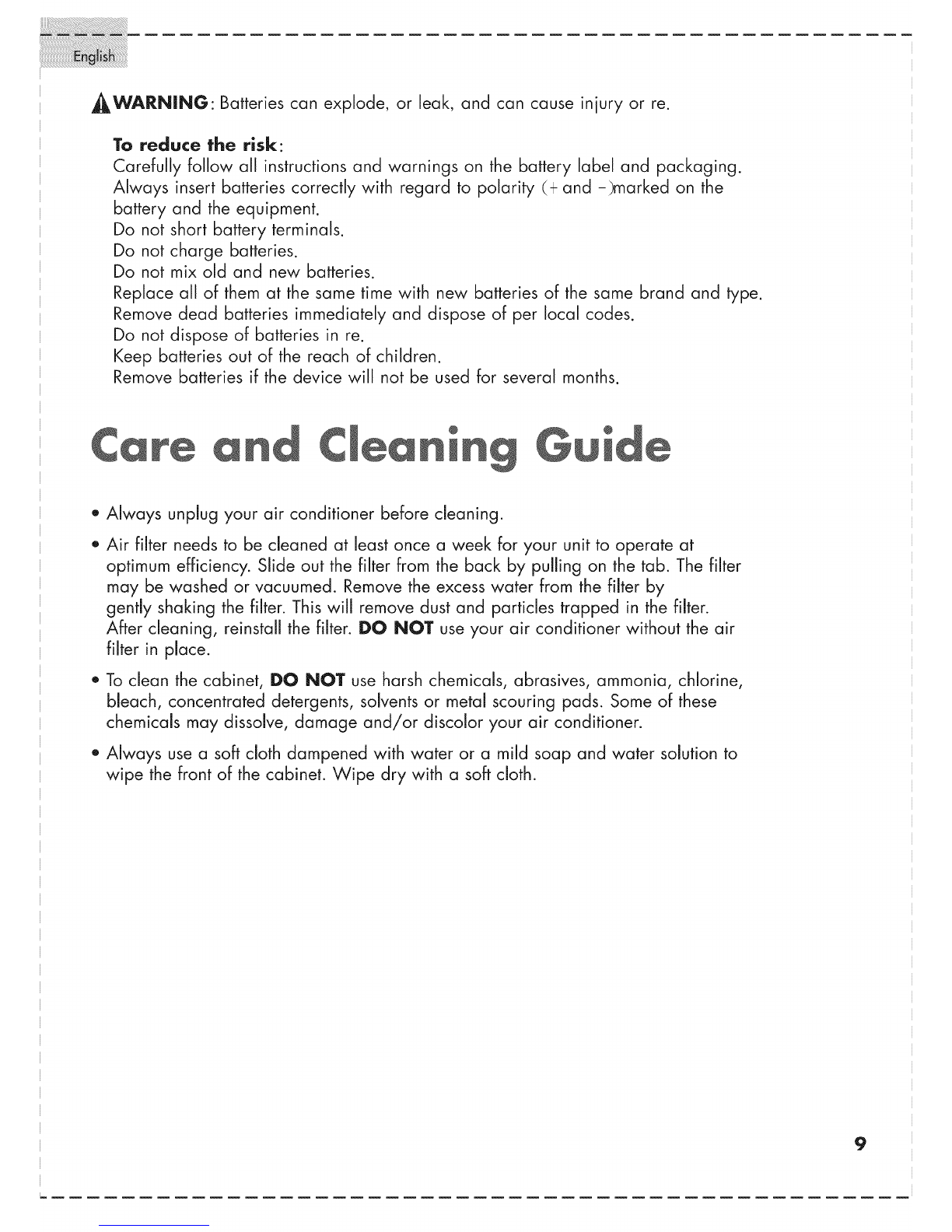

_WARN|NG" Batteries can explode_ or leaL and can cause injury or re.
To reduce the risk:
Carefully follow all instructions and warnings on the battery label and packaging.
Always insert batteries correctly with regard to polarity (+ and -)marked on the
battery and the equipment.
Do not short battery terminals.
Do not charge batteries.
Do not mix old and new batteries.
Replace all of them at the same time with new batteries of the same brand and type.
Remove dead batteries immediately and dispose of per local codes.
Do not dispose of batteries in re.
Keep batteries out of the reach of children.
Remove batteries if the device will not be used for several months.
re ¢!
@
®
Always unpbg your air conditioner before cleaning.
Air filter needs to be cleaned at least once a week for your unit to operate at
optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter
may be washed or vacuumed. Remove the excess water from the filter by
gently shaking the filter. This will remove dust and particles trapped in the filter.
After cleaning, reinstall the filter. DO NOT use your air conditioner without the air
filter in place.
To clean the cabinet, DO NOT use harsh chemicaas, abrasives, ammonia, chlorine,
bbach, concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
Always use a soft cloth dampened with water or a mild soap and water sobtion to
wipe the front of the cabinet. Wipe dry with a soft cloth.
9

• To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, dean the filters, cover
with plastic bag and store away.
U@
if air conditioner does not operate:
*Check if unit is plugged in. The plug may have come loose.
. Press "Reset" button on the plug to resume operation.
o Check if the electrical wall receptacle is the proper voltage.
o Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
e Check if the unit is in "Off" mode.
. If the warning light is on, drain the water drain pipe by removing the plug.
Air conditioner working but room not cooling:
*Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
. Check exhaust hose for proper installation.
Redirect the airflow. Remove any obstacles.
. All doors and windows need to be closed so that cool air does not escape the room.
e Air filter may be blocked or may need cleaning.
o Unit BTU may be too low for the required cooling area.
.On extremely hot & humid days, air conditioners may take a little longer to cool.
e Drain the water drain pipe by removing the plug.
. Unit may be in fan or dry mode. Put air conditioner in cool mode.
Tank Fuff Warning Light |s On:
e Unit will shut down when the water pan is full. This condition may occur either when
the unit is operated in high humidity conditions, or when the unit is operated in
HEAT MODE, since the auto-evaporation function will not work in the heating
mode. See instructions in the "Operation" section under "During use".
10

@@

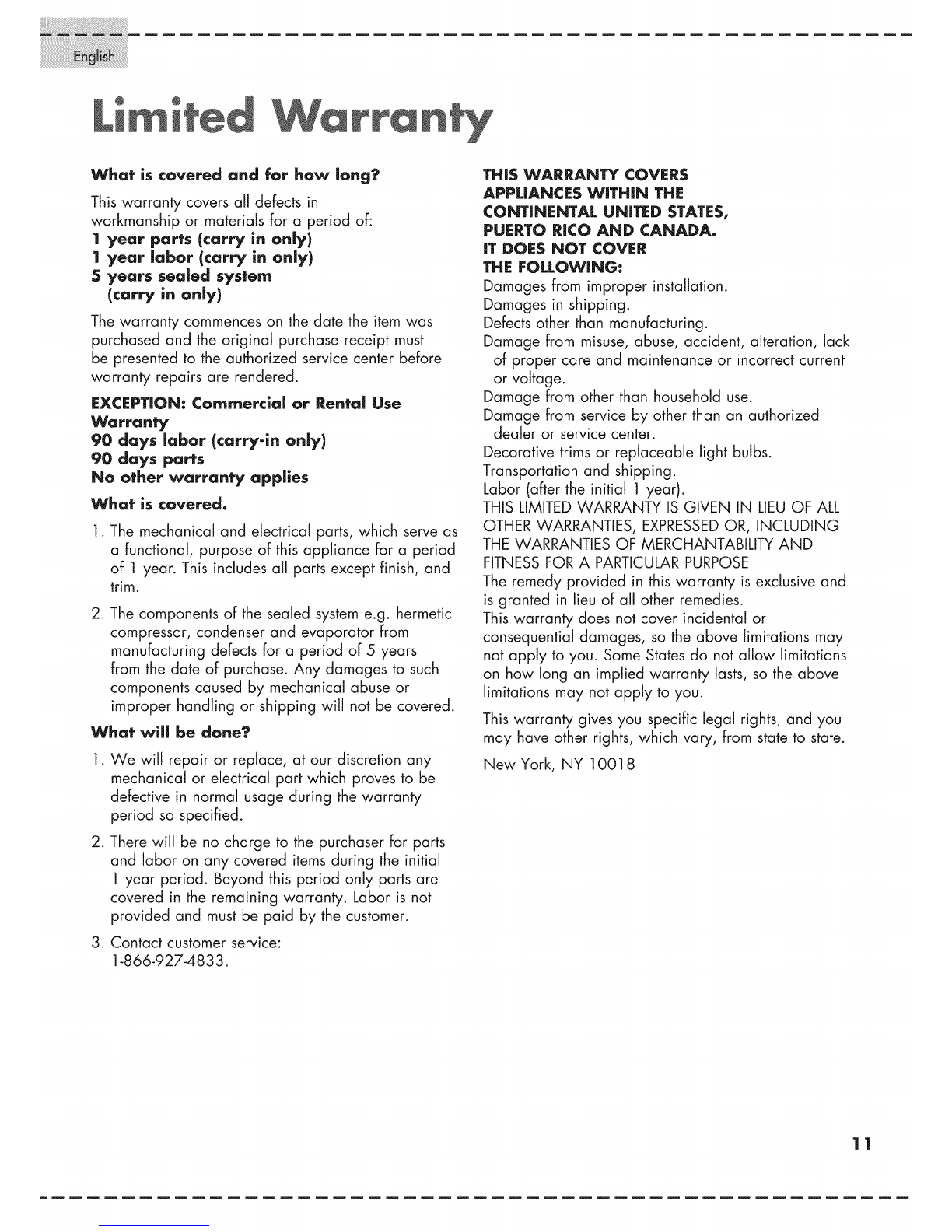

What is covered and for how long?
This warranty covers all defects in
workmanship or materials for a period of:
1 year parts (carry in only)
Iyear labor (carry in only)
5 years sealed system
(carry in only)
The warranty commences on the date the item was
purchased and the original purchase receipt must
be presented to the authorized service center before
warranty repairs are rendered.
EXCEPTION: CammerclaJ or Rental Use
Warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
,The mechanical and electrical parts, which serve as
a functional, purpose of this appliance for a period
of 1 year. This includes all parts except finish, and
trim.
.The components of the sealed system e.g. hermetic
compressor, condenser and evaporator from
manufacturing defects for a period of 5years
from the date of purchase. Any damages to such
components caused by mechanical abuse or
improper handling or shipping will not be covered.
What will be done?
.
.
.
We will repair or replace, at our discretion any
mechanical or electrical part which proves to be
defective in normal usage during the warranty
period so specified.
There will be no charge to the purchaser for parts
and labor on any covered items during the initial
1 year period. Beyond this period only parts are
covered in the remaining warranty. Labor is not
provided and must be paid by the customer.
Contact customer service:
1-866-927-4833.
THIS WARRANTY COVERS
APPLIANCES WiTHiN THE
CONTINENTAL UNITED STATES,
PUERTO RiCO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident, alteration, lack
of proper care and maintenance or incorrect current
or voltage.
Damage From other than household use.
Damage from service by other than an authorized
dealer or service center.
Decorative trims or replaceable light bulbs.
Transportation and shipping.
Labor (after the initial 1 year).
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL
OTHER WARRANTIES, EXPRESSEDOR, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE
The remedy provided in this warranty is exclusive and
is granted in lieu of all other remedies.
This warranty does not cover incidental or
consequential damages, so the above limitations may
not apply to you. Some States do not allow limitations
on how long an implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specific legal rights, and you
may have other rights, which vary, from state to state.
New York, NY 10018
11

@
Reglstrez Je model et numero de serie.
Pour tous vos appels de service pendant la periode de votre garantie, Jes informations
suivantes vous seront necessaries. Attachez le recu de ventes a ce guide et garder pour Ja
reference d'avenir. Cette information peut etre obtenue de la plaque en serie, qui est sur
votre climatiseur.
Numero du model"
Numero de serie: ............................................................................................................
Date d'achats: ................................................................................................................
Nom du negociant: .........................................................................................................
Addressed u negociant: ...................................................................................................
Numeros de telephone du negociant: ................................................................................

I
I
AVm:RT|SSI:M_:NT: VeuiJJez suivre ces pr6caufions de base Jorsque vous ufi-
Jisez J'appareiJ afin de r6duire tout risque d'incendie,
d'6Jectrocution, de bJessure, voire de mort.
1) Le climafiseur doit 6tre branch6 au niveau d'une prise 61ectrique d'une tension ad6quate.
(voir tableau)
2)
4)
L'appareil dolt _tre mis 6 la terre (masse) afin de r6duire tout risque d'_lectrocufion et
d'incendie. NE PAS COUPER NI RETIRERLA BROCHE DE MASSE. Si votre prise murale ne
peut accueillir une fiche 6 trois broches, veuillez faire en sorte qu'un _lectricien qualifi_ en
installe une. La prise murale DOlT 6tre raise 6 la masse.
Ne pas ufiliser I'appareil si le cordon d'alimentafion est effiloch6 ou fissure, si Ja fiche et Je con-
necteur sont endommag_s, ou si I'appareil pr_sente une panne ou est endommag_ d'une fac,on
quelconque.
NE PAS UTILJSERUN ADAPTATEUR OU UNE RALLONGE.
5) Ne pas g6ner ni bloquer le flux d'air autour de I'appareil et que rien ne bouche le tuyau
de sortie.
6) D_brancher toujours le dimatiseur avant de le d@lacer ou d'effectuer operation de
maintenance.
7) Ne pas installer le dimatiseur dans un endroit oO l'atmoshp_re est huileuse ou pr_sente des gaz
combustibles ou du soufre. Eviter que les produits chimiques entrent en contact avec
le cJimatiseur.
8) Ne placer aucun objet sur le climatiseur.
9) Ne jamais utiliser le dimatiseur sans les filtres.
10) Ne pas utiliser le dimatiseur _ proximit_ d'une baignoire, d'une douche ou d'un lavabo
ou _vier.
CONSERVEZ CES INSTRUCTIONS
ATTENTION:Si JecJimatiseur a et6 garde sur son c6te ou penche pendant un lapse de temps,
attendre 24 heures avant de branche I'appareil.
2

@$
®
®
®
VeuiJlez conserver ce manuel en lieu sOr.
N'utilisez pas de liquide ou de spray pour nettoyer ce produit. Utilisez un chiffon humide.
Ne placez pas ce produit dans un lieu peu sOr ou _lev6 car iJ peut tomber et causer des
dommages ou des blessures.
Ne renversez pas du liquide sur la t_l_commande, cela peut causer un choc _lectrique aux pi_ces
_lectroniques a I'int@ieur et les rendre inactives ou les faire fonctionner de fa¢on incorrecte.
N'essayez jamais de d_sassembler te produit vous-m@me. Un d_sassembtage sans supervision et un
r@assemblage incorrect de I'int@ieur du couverde arri_re peut endommager le circuit _lectrique et
peut avoir des consequences sur ses performances. S'il y a un besoin de maintenance, veuilJez
contacter le centre de service local ou le distributeur local.
n$$ $ ¢@
°
°
4_
5.
°
°
Design unique _ double tuyau, fournissant un refroidissement plus puissant et plus rapide que le
design a tuyau unique.
En mode refroidissement, le climatiseur mobile ne n6cessite pas d_eau pour 6tre enlev6 Uappareil
a un design unique qui s'6vapore en permanence la eauo
Ce mod@leest facile B faire fonctionner. Letableau de commande 6lectronique a une minuterie, un
thermostat, trois vitesses de refroidissement, trois vitesses de ventilation et une vitesse pour la fonc-
tion d@shumidification (see).
Ce ctimatiseur portatif n'a pas besoin que de l'eau soit ajout_e.
Cette unit6 a un design unique qui @vapore I'eau. Donc iJn'y a pas de r@servoirde
condensation et pas besoin de vider un r_servoir ta nuit.
Un kit pour la fen6tre, facile _ installer, est indus, comprenant le tuyau d'_vacuation, 2 buses de
tuyau, le kit de panneau pour la fen@tre, le connecteur du tuyau d'_vacuation et le couvercle pour
le connecteur du tuyau d'6vacuation.
Des roulettes enti_rement directionnelles sont indues pour aider @d@lacer I'unit_ si
besoin est.
3

n
Les accessoires indus
1. Panneau en plasfique- De 20" (50 cm)
jusqu'_ 46" (116 cm) ................... 3
2. Adaptateur du vitrage .................... 1
3. Vis ............................................... 4
4. Connecteur du tuyau d'6vacuation... 2
5. Tuyau d'_vacuation ........................ 1
6. Couverde ..................................... 1
_kbces
_kbce
_i@ces
_i@ces
_kbce
_i@ce
@
®
.
.
o
4_
.
Ajustez le panneau en ptastique _ Ja largeur ou Ja hauteur de votre
fen6tre et serrez Jes 2 vis qui sont attach@es au panneau.
Appuyez sur I'adaptateur rond du vitrage par J'arri_re du panneau en
plastique. Alignez les trous et serrez J'adaptateur avec 4 vis qui sont
indues dans Jekit. (Serrez les vis de J'avant.)
InstaHez te panneau en plastique _ la fenStre. Si n@cessaire, utilisez du
scotch pour bien s_curiser le panneau.
Connectez le tuyau d'_vacuation _ I'appareil en ins@ant le connecteur
du tuyau qui est attach_ au tuyau dans I'_chappement.
D@lacez l'appareil vers la fen@tre, alJongez le tuyau et attachez I'autre
extr6mit_ du tuyau _ Ja fen6tre. AJignez les Janguettes sur les adapta-
teurs du tuyau et de Ja vitrine et attachez-les ensemble.
6. Branchez dans la prise murale pour commencer le fonctionnement.
B
(_ Connecteur du tuyau (_)Tuya u d'6vacuation (_ Connecteur du tuyau
4

@
1. Bouche d'a6ration
2. Tableau de commande
3. Support de Ja t_J_commande
4. RouJeffes
5. Filtre _ air
6. Poign_e
7. Tuyau d'_couJement de J'eau
8. Cordon d'dimentation
©
J
CORDON D'ALIMENTATION
TEST:LORSQUE CE BOUTON EST
APPUYEOU QUAND ILY A UNE
FUITE DE COURANT, L'APPAREILNE
FONCTIONNERA PAS.
REINITtALISATtON: APRES AVOIR
REGLI_LE PROBLEME,APPUYEZ SUR LE
BOUTON DE REiNITIALISATION POUR
REPRENDRELEFONCTtONNEMENT.
5

I
Forte °@nn@@@
NOTE: Attendez 24 heures pour mettre Je cJimatiseur en marche si J'appareiJ a 6t_ pench6 pour
queJque raison que ce soit. C'est n_cessaire pour que JeshuiJes et JesJiquides de
refroidissement se mettre en pJace et se stabiJiser.
o
.
Apr_s avoir _teint J'appareiJ normaJement, attendez 3 minutes avant de le remettre en marche afin
de terminer le cycle du compresseur.
Utiiisez une prise de courant de 115v/15amp pour Je cJimatiseur. N'utiiisez pas d'autres appareiJs
6Jectriques sur cette Jigne ou vous risquez de faire sauter Je fusibJe. UtiJisez une Jigne d_di_e 6 ce
cJimatiseur.
3. Ne piacez pas Jeciimatiseur en contact direct avec la Jumi_re du soJeil ou pros d'appareiis de
chauffage (comme les pJinthes _lectriques, les cuisini_res, etc.)
4. Faites uniquement fonctionner sur une surface plane.
5. Faites en sorte qu'iJ n'y ait pas d'obstrucfion de rideaux, drapes et les stores, etc.
6. Gardez I'appareil 6 une distance d'au moins 1 pied (30 cm) du mur.
7. V_rifiez et nettoyez le fiitre une fois par semaine pour une efficacit_ maximaie.
NOTE: N'utiiisez pas cet appareil sans fiJtre.
8. Si I'appareil n'est pas utilis_ pendant Iongtemps, retirez le bouchon du tuyau d'_vacuation d'eau et
videz toute eau condens_e.
Quand vous allumez I'appareil pour la premiere fois apr_s I'avoir branch_ dans une prise de
courant, I'appareil commencera en mode de ventilation de refroidissement bas. La temperature qui
sera affich_e sur J'_cran LCD sera Ja temperature ambiante. Lorsque vous aJJumez J'appareiJ en usage
normal, I'appareil se souviendra du dernier r_glage utiJis6. Si vous vouJez fake fonctionner le
climafiseur comme un d_shumidificateur, r6glez-le en mode d6shumidification.
LORS DE L'UT|L|SAT|ON:
1.En mode refroidissement, ce climatiseur portable n'a pas besoin d_6tre vid6 de son eau. L'appareil
au design unique 6vapore continueilement J'eau.
2.En mode chauffant, ou clans des conditions particuli_rement humides, vous pouvez avoir besoin de
vider I_eau p6riodiquement, 6tant donn6 que Jafonction d'auto-6vaporation ne fonctionne pas en
mode chauffant. L'appareil s'arr6tera automafiquement quand le bassin 6 eau est plein et I'indicateur
<<Tank Full >> s'allumera.
Pour rider le bassin •
Hacez une contenant peu profond sous le bouchon d_6vacuation qui se trouve 6 J'arri_re du cJimatiseur
pros du bas de J_appareil, enievez le bouchon et vider le bassin compl_tement.Remettre le bouchon.
Vous pourrez donc, 6 ce moment, rallumer le climatiseur.
APRilSUSAGE:
Si I'appareil ne sera pas utiliser pendant un certain temps, enlevez le bouchon d_6vacuation et vider
I'eau condens6e. Voir la section <<Entreposage>> pour plus d'information.
6

eU
Marche/ArH'et
Mode: Appuyez sur [e bouton mode pour [e r_gJaged@sir_.
Refroidissement: BJeuLEDs'alJumequand en mode de
refroidissement.
D_shumidificatlon: Jaune LEDs'alJume [orsqu'il est en
mode d_shumidification.
@
@
Ventilateur: Vert LED s'alJume Iorsqu'il est en mode ventiJateur.
Chauffage: RLed rouge en mode thermique (s'appJique
uniquement au mod_bJe BCP12H J).
@
@
©
O
®
®
@
@
@
®®
Vltesses de ventlJatlon JJy a 3 vitesses ajustabJes dans Jemode refroidissement et ventiJation:
Low, Medium et High (Bas, Moyen et Fort). En mode d_shumidification Si Ja temp@ature ambiante
est sup@ieure 625°C Javitesse du ventiJateur peut @re ajust6e, sinon JeventiJateur est fix6 sur
(Bas).
Marche/Arr_t de ia minuterie
Pour r_gler la minuterie pour un arr_t diff_r_ entre lh et 24 heures iusqu'ace
que Je dlmatiseur ne s'_teigne :
1. Lorsque vous utiJisez Je bouton de r6gJage de Ja minuterie !orsque J'ap,pareiJ est en marche
vous pouvez pr@6gJer J heure 6JaqueJJe vous vouJez que JappareiJ s arr@te.
2. Lorsque vous utiJisez Je bouton de r6gJage de Ja minuterie !orsque J'appareiJ est en stand-by
vous pouvez pr6r_gJer I heure 6JaqueJJe vous vouJez que JappareiJ s arr@e.
3. Si vous appuyez sur Je bouton <<Marche/Arr@>> Ja fonction minuterie pr6r6gJ6e sera annuJ6e.
4. La minuterie est comprise entre 1 et 24 heures.
Pour effacer le programme de Timer Delay:
NOTE: LecJimatiseur peut 6tre aJJum_ou @eint.
1. Appuyez sur Jebouton Timer.
2. Appuyez et Jaissezvotre doigt sur Jebouton moins jusqu'a ce que Ja minuterie soit effac_e.
Pour changer la dur_e restante (en heures):
1. Appuyez sur Jebouton Timer.
2. Appuyez sur Jesboutons pJusou moins pour changer temps diff_r_ d'l jusqu'6 24 heures.
3. Le nouveau temps diff@_ s'afficher
rAJ _1 R_glage de Ja temperature
Pour r_gJer Jatemp@ature, appuyez sur Ja touche [] ou Jatouche [] pour augmenter ou
diminuer Ja temp@ature. La temperature peut 6tre augment@e ou diminu_e dans Je mode
refroidissement. La temp@ature ne peut 6tre ajust@een mode ventiJation ou d_shumidifica-
tion. Appuyez sur 5 et 6 simuJtan_ment pour passer de °F _°C et vice-versa.
NOTE: La temp6rature peut 6tre r_gi6e entre 61 °F (16°C) 6 89°F (32°C)
®Lorsque I'indicateur rouge (c6te sup@ieur droit, pr6s de I'affichage LED) clignote, le bac
eau interne s'est rempli d'eau condensee et le climatiseur s'6teint automatiquement. Voir la
section <<Entreposage >>sur la page 10 pour les instructions sur comment vider Feau du
climatiseur.
7
