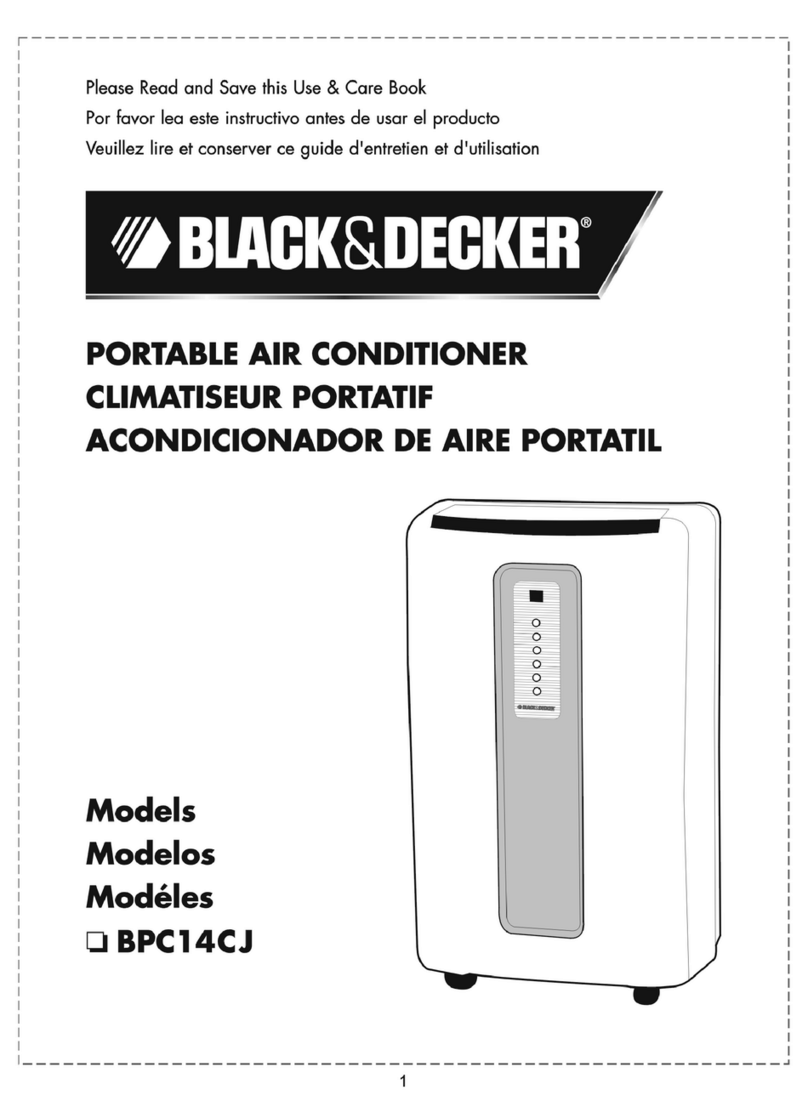

Black & Decker BPC14CJ Installation instructions

Please Read and Save this Use & Care Book
Por favor ba este instructivo antes de usar el producto
Veuillez lire et conserver ce guide d'entretien et d'utilisation
BLEAiR CON F

Record Your M_e! and Serlal Number.
Attach the sales receipt to thisguide and keep for future reference. Model and serial number
can be obtained from the serial label, which ison your air conditioner. For al! your service calls
during the warran_ period, the bllowing information will be needed:
Model Number: ...............................................................................................................
Serial Number: ..................................................................................................................
Date of Purchase:............................................................................................................
Dealer's Name: ..............................................................................................................
Dealer's Address: ............................................................................................................
Dealer's Phone Number: ..................................................................................................

WARN|NG: Read all of the instructionsbefore using this appliance. When using
this appliance, always exercise basic safe_ precautions, including
the following:
_lk 1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply,
Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a thre_prong electric receptacle
outlet in the wall, have a certified electrician installthe proper receptacle. The wall receptacle
MUST be properly grounded.
3) Do not operate the air conditioner if the power cord is frayed or otherwise damaged. Avoid
using it if there are cracks or abrasion damage along the length, plug connector or if the unit
malfunctions or is damaged in any manner. Contact an authorized service technician for
examination, repairs or adiustments.
4) DO NOT USEAN ADAPTEROR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. The exhaust hose should be free of any
obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere isoily or sulphurous. Avoid any chemicals coming
in contact with your air conditioner.
8) Do not place any obiect on the top of the unit.
9) Never operate the air conditioner without the filters in place.
"10)Do not use the air conditioner near a bathtub, shower or wash basin.
_UT|ON! If the air conditioner has been placed in a horizontal or tilted position for any period of
time, wait 24 hours before plugging the unit in.

@
• Please keep this manual in a safe place.
e Do not use liquid or a spray to clean this product. Use a damp cloth.
•Do not place the product in an insecure or ebvated place as it may fall and cause damage or
iniury.
•Never spill Jiquid on the control panel; it may cause electrical shock to the ebctronic parts inside
and disable them or cause them to function improperly.
•Never try to dismantle the product by ,€ourselfas this will void the warranty: Unsupervised
dismantling and incorrect reassembly of the inside of the back cover may damage the electrical
circuit and affect itsperbrmance. When maintenance is required, please contact the local service
center or local distributor.
1. This model iseasy to operate. The electronic contrd panel has a timer, thermostat, three coding
speeds, three fan speeds and one speed dehumidification function.
2. In cooling mode, this portable air conditioner does not require water to be removed. The unit has
a unique design which continuously evaporates the water.
3. An easy-to-install window kit is included, which consists of the exhaust hose, 2 hose nozzles, the
window panel kit, exhaust hose conn_tor and cover for the exhaust hose connector.
4. Full directional casters are included to help move the unit as needed.
5. The filter screen is designed for easy accessibility of the filter.
6. Portable air conditioners are easy to store when not in use.
3

@
Accessories Include
1. Plastic panel - from 20" up to 46" ... 3 Pieces
2. Window panel adaptor .................. 2 piece
3. Screws ............................................ 4pieces
4. Exhaust hose connector .................. 4pieces
5. Exhaust hose.................................. 2 piece
6. Cover ........................................... 2 piece
@.......ii,
®
1. Adjust the plastic panel to the width or height of your window and
tighten the 2 screws that are attached to the panel.
2. Pushthe round window panel adapter through the rear of the plastic
panel. Line up the holes and tighten the adapter with 4 screws that are
included in the kit (tighten screws from the front).
3. Install the window plastic panel into the window. If necessary, use duct
tape to better secure the panel.
4. Connect the exhaust hose to the unit by inserting the hose connector that
is attached to the hose into the exhaust.
5. Move the unit to the window, extend the hose and attach the other end
of the hose to the window. Align the tabs on the hose and window
panel adapters and fasten them together.
6. Plug the power cord into the wall outlet to prepare for operation.
B
® Hose Connector ® Exhaust Hose Q Hose Connector
4

1_Air Outlet
2. Contrd Panel
3. Magnetic Remote Control Storage
4. Casters
5. Air FiLter
6. Handle
7. Water Drain
8, Power Cord
Q
POWERCORD
_$?: When his button ispressedor
when there isa current bak, the unit
wiff notoperate_
HSET: After resolving the problem,
press the reset button to resume
operation.
5

@
NOTE: Wait 24 hours before turningon the air conditioner if the unit has been tilted for any reason.
This allows the oils and the coolants to settle and bvel off.
BFFORE USE
1. Use an 115V, 15Amp outlet for the air conditioner. Do not use any other electrical appliances on
thisline or you may trip the fuse. Use a dedicated line for thisair conditioner.
2. Do not place the air conditioner in direct sunlight or close to any heating appliances (ie.,
baseboard heaters, stoves, etc.)
3. Opera_ on a fiat surface onky.
4. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
5. Keep unit at least 1 foot away from the wall.
DURING USE
1. When turning on the unit for the first time after plugging it into an electrical outlet, the unit wilt start
in a high fan cooling mode. The temperature display on the LEDwilt show the current room
temperature_ When turning on the unit during regular usage, it will remember the last setting used.
if you want to operate the air conditioner as a dehumidifier, then adiust to dehumidification mode.
2_ After a normal shut down, wait for 3 minutes before restarting the unit so as to complete the
compressor cycb.
3. in cooJing mode, this portabb air conditioner does not require water to be removed. The unit has
a unique design which continuously evaporates the water. In heating mode, or when the unit is
operated in high humidity conditions, you may need to empty the water pan periodically, since the
auto-evaporation function does not operate in heat mode. The unit will shut down automatically
when the water pan is full and the "Tank Full" warning light will turn on.
.
Emptying the water tank: Place a shallow pan below the drain plug located on the back of the
unit (near the bottom of the air conditioner), remove plug, and drain the water pan compbteJy.
Reinsert the drain plug. You will then be abJeto restart your portable air conditioner.
Check and clean the filter once every week for highest efficiency.
NOTE: Do not operate unit without filter.
AFTER USE
i. If the unit isnot being used for a long period of time, remove the plug from the water drain and
drain out any condensed water. Please see the "Storage" section on page 10 for more
information.
6

@
®®
®®
®
Power On /Off
Mode: Press this button to change the operation mode.
Cool: BLue LED lights when in cooling mode.
Dehumidification:Yellow LED lights when in
dehumidification mode.
Fan: Green LED lights when in fan mode.
@---
Fan Speeds: There are 3 speeds in the coot and fan
modes: Low, Medium, High.
In the dehumidification mode, the fan will only operate at low speed.
@
@
@
®
®
_----t_ @
On /_Timer: The timer can be used to automatically turn on or off the air conditioner.
To automatically turn on the air conditioner, set the timer while the power control is in
the OFF position.
1. Turn off the air conditioner.
2. Press the Timer button.
3. Press the (,L)or{T) button to change the delay start time from 1 to 24 hours.
4. The delay start time will display on the control panel.
To automatically turn off the air conditioner, set the timer while the power control is in the
ON position.
1. Turn on the air conditioner.
2. Press the _mer button.
3. Press the (A) or(T)button to change the delay stop time from 1 to 24 hours.
4. The delay stop time will display on the control panel
To clear the timer setting:
1. The power control can be either in the on or off position.
2. Press the _mer button.
3. Press and hold the (T)button until the timer display has been cleared.
_me /?em_tahsre Set Control: The (A) and (T)buttons can be used for adiusting the timer
and temperature settings.
To set the timer: See "On /Off Timer" instructions above.
To set the temperature: While in the Cool mode, press the (A) or (T)button to raise or lower the
temperature. The set temperature is displayed and may be adiusted. The temperature can be set
between 61 ° F and 89 ° F. After 15 seconds the display wilt revert back to the room temperature.
NOTE: The temperature cannot be adiusted in the fan or dehumidification modes.
When the red indicator (on the right top side beside LED display) flashes, the internal
water tank has filled with condensed water and the air conditioner will turn off
automatically. See the "Storage" section on page 10 for directions on draining the water
from the air conditioner.
7

®®
Power On /
Mode
C_|: Blue LED lights when in cooling mode.
Dehumldlflcatlon:Yellow LED lights when in dehumidification mode.
Fan: Green LED lights when in fan mode.
Fan $pe_s There are 3 adiustabb speeds in the cool and fan mode:
Low, Medium and High. In dehumidification mode, and room temperature isgreater
than 77°F, fan speed can be adiusted; otherwise fan speed isfixed to "low."
_ On /_: Timer
To set the Timer for a | _ 24-hour delay until the air conditioner turns off:
1. When you use thetimer setting button while the unit isoperating, you can preset a time for
the unit to turn off.
2_ When you use the timerse_ing button while the unit is on standby, you can present a time
for the unit to turn on.
3. If you press the "ON/OFF" button, the preset timer function will be cancelled.
4. Timer setting range is 1~24 hours.
To dear Timer De|ay p_m:
NOTE: Air conditioner can be eitheron or off.
1. Pressthe Timer button.
2. Pressand hold the minus button until the timer display has cleared.
To change the remaining time (in hours):
1. Pressthe Timer button.
2. Pressthe plus or minus button to change the delay time
from 1 to 24 hours.
3. The new delay time will display. _--= '® oNto_ J
¢o 0€ oooo¢ €¢
oo
®® ® so.i.g,ho °°°
To set the temperature, press the_i/or _ key to _ TEMP_TIME
raise or lower the temperature. The _o_:°
temperature can be raised or lowered in the cool
mode. The temperature cannot be adiusted in fan F TEMPIT_ME_6_
or dehumidification mode. °°
NOTE: The temperature can be set between
61 °Fto 89°F. sPEEDI
o
,® rIMERJ
8

_WARN|NG: Batteries can explode, or leak, and can cause iniury or re.
To reduce the risk:
Carefully follow all instructionsand warnings on the battery label and packaging.
Always insertbatteries correctly with regard to polarity (+ and -)marked on the
battery and the equipment.
Do not short battery terminals_
Do not charge batteries.
Do not mix old and new batteries_
Replace all of them at the same time with new batteries of the same brand and type.
Remove dead batteries immediately and dispose of per local codes.
Do not dispose of batteries in re.
Keep batteries out of the reach of children.
Remove batteries if the device will not be usedfor several months.
*Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at
optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter
may be washed or vacuumed. Remove the excesswater from the filter by
gently shaking the filter. This will remove dust and particles trapped in the filter.
After cleaning, reinstall the filter. DO NOT use your air conditioner without the air
filter in place.
*Toclean the cabinet, _ NOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to
wipe the front of the cabinet. Wipe dry with a soft cloth.
9

Tostore your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, dean the filters, cover
with plastic bag and store away.
@
|f air conditioner does not operal_e:
o Check if unit is plugged in. The plug may have come loose.
• Press"Reset"button on the pnugto resume operation.
•Check if the ebctrical wall receptacle is the proper vo_tage_
o Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
•Check if the unit is in "Off" mode.
o If the warning light ison, drain the water drain pipe by removing the plug.
Air conditioner working but room not ceo|ing:
-Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
o Redirect the airflow. Removeany obstacles.
•All doors and windows need to be dosed so that cool air does not escape the room.
•Air fi)ter may be blocked or may need cleaning.
•Unit BTUmay be too low br the required cooling area.
o On extremely hot & humid days, air conditioners may take a little longer to cool.
o Drain the water drain pipe by removing the plug_
•Unit may be in fan or dry mode. Putair conditioner in cool mode.
Tank Fu|l Warning Ught |s On:
• Unit will shutdown when the water pan is full. This condition may occur either when
the unit isoperated in high humidity conditions, or when the unit is operated in
HEATMODE, since the auto-evaporation function will not work in the heating
mode. See instructions in the "Operation" section under "During use".
10

@ @
_of is cove_ and for how long?
This warranty covers aft defects in
workmanship or materials for a period of:
Iyear parts (carry in only)
|year labor (¢o_ in only)
5 years sealed system
(car_ in only)
The -warranty commences on the date the item was
purchased and the original purchase receipt must
be presented to the authorized service center before
warranty repairs are rendered.
EXCEPTION: Commercial or Renal Use
Warranty
90 days labor (cor_-in only)
90 days parts
No other wor_nty applies
_af is cove_.
1. The mechanicat and electrical parts, which serve as
a functional, purpose of this appliance for a period
of 1 year. This includes all parts except finish, and
trim.
2. The components of the sealed system e.g. hermetic
compressor, condenser and evaporator from
manufacturing defects for a period of 5 years
from the date of purchase. Any damages to such
components caused by mechanical abuse or
improper handling or shipping will not be covered.
Whot will bo done?
1. We will repair or reptace, at our discretion any
mechanica_ or electrical part which proves to be
defective in normal usage during the warranty
period so specified.
2. There will be no charge to the purchaser for parts
and labor on any covered items during the initial
1 year period. Beyond this period only parts are
covered in the remaining warranty_ Labor is not
provided and must be paid by the customer.
3. Contact customerservice:
1-866-927-4833o
THIS WARRAN_ COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOY_NG:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident, alteration, lack
of proper care and maintenance or incorrect current
or voltage.
Damage from other than household use.
Damage from service by other than an authorized
dealer or service center.
Decorative trims or replaceabb light bulbs.
Transportation and shipping.
Labor (after the initiaJ 1 year).
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL
OTHER WARRANTIES, EXPRESSEDOR, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE
The remedy provided in this warrant':,, is exclusive and
is granted in lieu of all other remedies.
This warranty does not cover incidenta_ or
consequential damages, so the above limitations may
not apply to you. Some States do not allow limitations
on how long an implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specific legal rights, and you
may have other rights, which vary, from state to state.
New York, NY ] 0018
11

@
Regls_z ie model et numero de serle.
Pour tous vos appels de service pendant la periode de votre garantie, bs informations
suivantes vous seront necessaries. A_achez b recu de ventes a ce guide et garder pour la
reference d'avenir. Cette information peut etre obtenue de la plaque en serie, qui est sur
votre dimatiseur.
Numero du model: ...........................................................................................................
Numero de serie: ............................................................................................................
Date d'achats: .................................................................................................................
Nora du negociant: .........................................................................................................
Addressed u negociant: ...................................................................................................
Numeros de telephone du negociant:................................................................................
14

AVERT|$$EMENT: Veuilbz suivre ces precautions de base Iorsque vous uti-
lisez I'appareil afin de r_duire tout risque d'incendie,
d ebctrocuhon, de blessure, voire de mort.
Ledimatiseur dolt 6tre branch_ au niveau d'une prise _lectrique d'une tension adequate.
(volt tableau)
L'appareit doit _tre mis 6 la terre {masse)afin de r_duire tout risque d'_lectrocution et
d'incendie. NE PASCOUPER NI RETIRERLA BROCHE DE MASSE. Si votre prise murale ne
peut accueiHir une fiche _ trois broches, veuilbz faire en sorte qu'un _bctricien quafifi_ en
installeune. La prise murab DOlT _tre raise_ Io masse.
Ne pas utiliser i'appareil si le cordon d'alimentation est effiloch_ ou fissure, sila fiche et le con-
necteur sont endommag_.s, ou si I'oppareil pr_sente une ponne ou est endommag_ d'une fa¢on
quekonque.
NE PASUTILISERUN ADAPTATEUROU UNE RALLONGE°
5) Ne pos g_ner ni bloquer le flux d'air outour de I'appareil et que rien ne bouche b tuyou
de sortie.
6) D_brancher toujours le climatiseur avant de le d_placer ou d'effectuer operation de
maintenance.
7) Ne pos installer le dimatiseur dons un endroit o5 I'atmoshp_re est huileuse ou pr_sente des gaz
combustibles ou du soufre. Eviter que bs produits chimiques entrent en contact avec
le climatiseur.
8) Ne placer aucun obiet sur le climatiseur.
9) Ne jomais utiliser le climatiseur sans bs filtres.
10) Ne pos utiliser le dimatiseur 5 proximit6 d'une baignoire, d'une douche ou d'un lavabo
ou 6vier.
3'
ATrENt|ON: Si le climotiseur a _t_ gard_ sur son c6t_ ou pench_ pendant un lapse de temps,
attendre 24 heures avant de branche I'appareiL
2
15

÷÷
• Veuillez conserver ce manuel en Jieu sot.
• N'ufilisez pas de liquide ou de spray pour nettoyer ce produit. UtiLisezun chiffon humide.
• Ne placez pas ce produit dans un lieu peu sOrou _rev_ car il peut tomber et causer des
dommages ou des bbssures.
o Ne renversez pas du liquide sur ia t616commande, cela peut causer un choc _bctdque aux pi_ces
_bctroniques _ I'int_rieur et bs rendre inacfives ou bs faire fonctionner de fad:on incorrecte.
o N'essayez jamais de d_sassembbr le produit vousom_me.Un d_sassemblage sans supervision et un
r_assemblage incorrect de I'int_rieur du couverde arri_re peut endommager le circuit _bctrique et
peut avoir des consequences sur ses performances. S'il y a un besoin de maintenance, veuillez
contacter le centre de service local ou le distributeur local.
1. Design unique _ double tuyau, fournissant un refroidissement plus puissant et plus rapide que le
design _ tuyau unique.
2. En mode refroidissement, le dimafiseur mobile ne n_cessite pas d_eau pour _,treenlev_ Uappareil
a un design unique qui s'6vapore en permanence la eau.
3. Ce mod_b est faciJe _ faire fonctionner. Le tableau de commande _bctronique a une minuterie, un
thermostat, trois vitesses de refroidissement, trois vitessesde ventilation et une vitesse pour Jafonc-
tion d6shumidification (sec).
4. Ce dimatiseur portatif n'a pas besoin que de I'eau soit ajout_e.
5. Cette unit_ a un design unique qui _vapore I'eau. Donc i_n'y a pas de r_servoir de
condensation et pas besoin de vider un r_servoir la nuit.
6. Un kit pour la fen_tre, facile _ installer, est indus, comprenant ie tuyau d'_vacuation, 2 buses de
tuyau, ie kit de panneau pour la fen_tre, le connecteur du tuyau d'_vacuation et le couvercb pour
le connecteur du tuyau d'_vacuation.
7. Des roulettes enti_rement directionnelbs sont indues pour aider 5 d_placer I'unit_ si
besoin est.
3
16

@
Les accessoires indus
1. Panneau en plastique -De 20" (50 cm)
jusqu'_ 46" 1116 cm) ................... 3 pi_ces
2. Adaptateur du vitrage .................... 2 piece
3. Vis ............................................... 4 pi_ces
4. Connecteur du tuyau d%vacuation ... 4 pi_ces
5. Tuyau d'_vacuation ........................ 2 piece
6. Couvercle ..................................... 2 piece
/f
®
1. Ajustez le panneau en plastique 5 la largeur ou la hauteur de votre
fen_tre et serrez les 2 vis qui sont attach6es au panneau.
2. Appuyez sur I'adaptateur fond du vitrage par I'arri_re du panneau en
plasfique. Alignez les trous et serrez I'adaptateur avec 4 vis qui sont
inclues dans le kit. (Serrez les vis de I'avant.)
3. instalJez le panneau en plastique 5 la fen_tre. Si n6cessaire, utilisez du
scotch pour bien s_curiser le panneau.
4. Connectez le tuyau d'_vacuafion _ I'appareil en ins_rant le connecteur
du tuyau qui est attach_ au tuyau dans I'_chappement.
5. D_placez I'appareil vers la fen_tre, allongez le tuyau et attachez I'autre
extr_mit_ du tuyau _ la fen_tre. Alignez les languettes sur les adapta-
teurs du tuyau et de la vitrine et affachez-les ensemble.
6. Branchez dans la prise murale pour commencer le fonctionnement.
B
Connecteur du tuyau _Tuyau d'6vacuation _ Connecteur du tuyau
111 "
4
17

@ ÷ @
1. Bouche d'a_ration
2. Tableau de commande
3. Support de nat_l_commande
4. Roulelies
5. Fiffre 6 air
6. Poign_e
7. TuTaud'_coulement de Veau
8. Cordon d'alimentation
Q
COR N D'AUMENTATION
TEST:LORSQUECEBOUTON EST
APPUYI_OU QUAND ILY A UNE
FUITEDECOU_NT, L'APPARE_LNE
FONCTIONNERA F_AS.
R_INWTIAUSATION:APRESAVOIR
R_GL_LEPROBL_ME,APPUYEZSURLE
BOUTON DER_iNITIAUSATIONPOUR
REPRENDRELEFONCTIONNEMENT.
S
18

@
NOTE: Attendez 24 heures pour mettre le climatiseur en marche si I'appareil a _t_ pench_ pour
quelque raison que ce soit. C'est n_cessaire pour que les huiles et les liquides de
refroidissement se meffre en place et se stabiliser.
1. Apr_s avoir _teint I'appareil normalement, attendez 3 minutes avant de le remettre en marche afin
de terminer le cycle du compresseur.
2. Utilisez une prise de courant de 115,,/15amp pour le climatiseur. N'utilisez pas d'autres appareils
_lectriques sur cette ligne ou vous risquez de faire sauter le fusible. Utilisez une ligne d_di_e ace
climatiseur.
3. Ne ptacez pas le cfimatiseur en contact direct avec la lumi_re du soleil ou pros d'appareils de
chauffage (commeles plinthes _lectriques, les cuisini_res, etc.)
4. Faitesuniquement fonctionner sur une surface plane.
5. Faitesen sorte qu'il n'y air pas d'obstruction de rideaux, drapes et les stores, etc.
6. Gardez I'appareil _ une distance d'au moins I pied (30 cm) du tour.
7. V_rifiez et nettoyez le filtre une lois par semaine pour une efficacit_ maximale.
NOTE: N'utilisez pas cet appareil sans filtre.
8. Si I'appareil n'est pas utilis_ pendant Iongtemps, retirez le bouchon du tuyau d'_vacuation d'eau et
videz route eau condens_e.
Quand vous allumez I'appareil pour la premiere lois apr_s I'avoir branch_ dans une prise de
courant, i'appareil commencera en mode de ventilation de refroidissement bas. La temperature qui
sera afl:ich_e sur I'_cran LCDsera la temperature ambiante. Lorsquevous allumez I'appareil en usage
normal, I'appareil se souviendra du dernier r6glage utilis6. Si vous voulez faire fonctionner le
climatiseur comme un d_,shumidificateur, r_glez-le en mode d_shumidification.
LORS DE L'UTiLiSAT|ON:
1.Enmode refroidissement,ce climatiseur portable n'a pas besoin d'6tre vid_ de son eau. L'appareil
au design unique 6vapore continuellement I'eau°
2.En mode chauffant, ou dans des conditions particuli_rement humides, vous pouvez avoir besoin de
vider I'eau p_riodiquement, 6rant donn_ que la fonction d'auto-_vaporation ne fonctionne pas en
mode chauffant. L'appareil s'arr6tera automatiquement quand le bassin a eau est plein et I'indicateur
<<Tank Full >> s'allumera.
Pour rider |e bassin:
Placez une contenant peu profond sous le bouchon d'_vacuation qui se trouve bI'arri_re du climatiseur
pros du bas de I'appareil, enlevez le bouchon et vider le bassin compl_tement.Reme_re le bouchon.
Vous pourrez donc, _ ce moment, rallumer le climatiseur.
APRES USAGE:
Si I'appareil ne sera pas utiliser pendant un certain temps,enbvez le bouchon d'_vacuation et vider
i'eau condens6e. Voir la section <<Entreposage>> pour plus d'information.
6
lg

@
@@
Marche/Ar_
Mode- Appuyez sur le bouton mode pour le r6glage d6sir6.
Refro_dmssemenh Bleu LEDs'allume quand en mode de
refroidissement.
D_shumldiflcah'on: Jaune LEDs'allume Iorsqu'il est en
mode d_shumidification.
Venti|a_ur: Vert LEDs;allume Iorsqu'il est en mode ventilateur.
@
--O
...... O
O
®
®®
®
®® Vi_sses de venti|al_on Ely a 3 vitesses aiustables dans le mode refroidissement et ventilation:
Low, Medium et High {Bas, Moyen et Fort). En mode d_shumidification Si la temperature ambiante
est sup6rieure 6 25°C la vitesse du ventilateur peut _tre aiust_e, sinon _eventilateur est fix_ sur
{Bas).
Ma_che/Ar_ de Ja minuterie
Pour _|er |a minuterle _ur un ¢mr_ di_r_ entre I het 24 heures |usqu" _a"€:e
clue le c|ima_i_ur .e s@telgne :
1. Lorsque vous utihsez te bouton de r6glage de la minuterie Iorsque I'appareil est en marche
vous pouvez pr_r6gler I heure 6laquelle vous voulez que I'appareil s'arrete.
2. Lorsque vous uti!isez b bouton de r_glage de la minuterie brsque I'appareit est en stand_by
vous pouvez preregler I'heure a laquelb vous voubz que I'appareil s'arr_te.
3. Si vous appuyez sur le bouton <<Marche/Arr_t_ la fonction minuterie pr_r_gl_e sera annul_e.
4. La minuterie est comprise entre 1et 24 heures.
Pour effacer |e prog_:lmme de _mer De|ay:
NOTE: Ledimatiseur peut 6tre affum6 ou 6feint.
1. Appuyez sur le bouton Timer.
2. Appuyez et laissez votre doigt sur le bouton mains iusqu'6 ce que _aminuterie soit effac_e_
Pour changer la ¢lu_ restan_ {en heures):
1. Appuyez sur le bouton Timer.
2. Appuyez sur les boutons plus ou mains pour changer temps diff6r_ d'l iusqu'6 24 heures.
3. Le nouveau temps diff6r_ s'afficher
® ® R lagedela ,m rato
Pour r6gler la temperature, appuyez sur la touche [] ou la touche _/pour augmenter ou
diminuer la temp6rature. La temperature peut _tre augment_e ou diminu6e dans le mode
refroidissement. La temperature ne peut _re aiust_e en mode ventilation ou d6shumidifica-
tion. Appuyez sur 5 et 6 simultan6ment pour passer de °F6 °C et vice-versa.
NOTE: La temp6rature peut _tre r_gl6e entre 61 °F 116°C) 6 89°F {32°C)
®Lorsque I'indicateur rouge {c6t6 sup6rieur droit, pros de I'affichage LED)clignote, le bac 6
eau interne s_est rempli d'eau condens6e et le climatiseur s'6teint automatiquement. Voir la
section <<Entreposage _ sur la page 10 pour les instructionssur comment vider I'eau du
climatiseur.
7
2O
