INSTRUCTION MANUAL
SPLIT AIR CONDITIONER
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
BSAH1215AC
BSAH1220AC
BSAH1820AC
BSAH2420AC

Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your split
AC.
Remember to record the model and
serial numbers. They are on a label
in the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION............................................................................................................................. 4-8
SET UP & USE
Operating Conditions ........................................................................................................................................................9-10
INSTALLATION
Parts & Features .........................................................................................................................................................................11
Notices ...........................................................................................................................................................................................12
Indoor Unit Installation....................................................................................................................................................13-22
Outdoor Unit Installation...............................................................................................................................................23-27
Install the Refrigerant Pipe...........................................................................................................................................28-35
REMOTE CONTROL MANUAL......................................................................................................36-43
TEST OPERATION.................................................................................................................................................44
CLEAN & CARE..................................................................................................................................................45-46
TROUBLESHOOTING & WARRANTY................................................................................. 47-49
Page 3

Page 4
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
• Read this guide before installing and using the appliance.
• All electrical connections, wiring and installation should be performed by
a licensed electrician. Otherwise, it may cause personal injury or damage.
• This appliance is not intended for use by children without responsible adult
supervision. Proper care should be taken to ensure safety.
• Heat pumps, air conditioners & heating equipment should be installed,
started up, and serviced only by qualied installers and service technicians.
Air conditioning, heat pumps and refrigeration systems are hazardous
due to high voltage electrical components, high refrigerant pressures, and
moving parts.
• Disconnect electrical power to the indoor and outdoor units before
performing any maintenance or cleaning.
• Do not attempt to repair the system yourself. Incorrect repairs may cause
electric shock or re. Contact a qualied service technician for all service
requirements.
• Keep combustible materials away from the unit.
• DO NOT share the electrical circuit with other appliances. Improper or
insufcient power supply can cause re or electrical shock.
• When connecting refrigerant piping, DO NOT let substances or gases
other than the refrigerant enter the unit. The presence of other gases or
substances will lower the unit’s capacity, and may cause abnormally high
pressure in the operation cycle. This may cause explosion and injury.
• DO NOT allow children to play with the air conditioner. Children should be
supervised around the unit at all times.
• Installation must be performed according to installation instructions.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following:

Page 5
SAFETY INFORMATION
Improper installation may cause water leakage, electrical shock, re, or
may void the warranty.
• In North America, service or repair must be performed in accordance with
the requirement of NEC and CEC (by authorized personnel or authority
having jurisdiction only.) Contact an authorized service technician for
repair or maintenance of the unit.
• Only use the included accessories and specied parts for installation. Using
non-standard parts can cause water leakage, electrical shock, or re and
may cause the unit to fall.
• For all electrical work. Connect cables tightly, and clamp them securely to
prevent external forces from damaging the terminal. Improper electrical
connections may overheat causing re and/or electrical shock.
• All wiring must be properly arranged to ensure that the control board
cover can close properly. If the control board cover is not closed properly,
it can lead to corrosion and cause the connection points on the terminal to
overheat, causing re and / or electrical shock.
• In certain functional environments, such as kitchens, server rooms, etc., the
use of specially designed air-conditioning units is highly recommended.
• This appliance can be used by children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance. Cleaning
and user maintenance should not be made by children without supervision.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
NOTE: Your actual air conditioning & heating system and related devices
may differ from the images shown in this manual.

Page 6
• Do not put hands or any objects into the air inlets or outlets. This may
cause personal injury or damage to the unit.
• When cleaning, be careful not to splash water on the unit. Doing this may
cause electric shock or damage to the unit.
• Do not use or place any ammable, combustible or noxious substance
next to the unit.
• In the event of a failure (burning smell, etc.), immediately disconnect all
electrical power to indoor and outdoor units.
• Never try repairing the system yourself; contact a qualied service
technician for all repairs.
• During the installation of the indoor and outdoor units, access to the
working area should be off limits to children. Unforeseeable accidents can
occur.
• Make sure that the base of the outdoor unit is securely installed and stable
before use.
• Check that air cannot enter the refrigerant system and check for
refrigerant leaks when moving the air conditioner.
• Do not install the appliance closer than 50cm from ammable substances
(alcohol, etc.) or pressurized containers(e.g. spray cans).
• If the appliance is used in areas without the possibility of ventilation,
precautions must be taken to prevent any leaks of refrigerant gas from
remaining in the environment to avoid creating a re hazard.
• The packaging materials are recyclable and should be disposed of in
separate waste bins. The air conditioner itself must be taken to a special
waste collection center for proper disposal.
• Only use the air conditioner as instructed in this booklet. These
instructions are not intended to cover every possible condition or
situation. As with only electric household appliance, common sense and
caution are therefore always recommended for installation, operation, and
maintenance.
• The appliance must be installed In accordance with NEC and local codes.
• Before accessing the terminals, all the power circuits must be
disconnected from the power supply.
• Do not try to install the air conditioner alone; always contact trained,
experienced personal.
CAUTION
Please read the following before operation. Safety Rules and
recommendations for the installer.
SAFETY INFORMATION

Page 7
SAFETY INFORMATION
• Cleaning and maintenance must be carried out by a trained and
experienced individual or technician. Make sure to disconnect the
appliance from the main’s electrical supply prior to cleaning or
maintenance of the unit.
• Never remain directly exposed to the ow of cold air for extended periods.
Direct and prolonged exposure to cold air could be dangerous to your
health.
• Particular care should be taken in rooms where there are children, elderly,
or sick individuals.
• If the appliance gives off smoke or there is a burning smell, immediately
disconnect the power supply and contact the Service Center. Prolonged
use of the device afterword could cause re or electrocution.
• Have repairs or maintenance carried out only by licensed mechanical
contractor. Incorrect repair could expose the user to risk of electric shock,
re hazard, etc..
• The air conditioner itself must be taken to a special waste collection center
for proper disposal.
• This appliance has been made for air conditioning domestic environments
and must not be used for any other purpose, such as for drying clothing,
cooling food, etc..
• Always use the appliance with the air lter mounted. The use of the
conditioner without the air lter could cause an excessive accumulation
of dust or waste on the inner parts of the device with possible subsequent
failures.
• The user is responsible for having the appliance installed by a licensed
mechanical contractor.
• Disable automatic functions if you foresee not using the device for on
extended period of time. The air ow direction must also be properly
adjusted.
• Check all building codes for applicable building permits or requirements.
• Only use the air conditioner as instructed in this manual. These instructions
are not intended to cover every possible condition or situation.
• Ensure that the appliance is disconnected from the power supply when
it will not be in operation for an extended period and before carrying out
any cleaning or maintenance.
• Do not use extension cords.
• Do not touch the appliance when barefoot or parts of the body are wet or
damp.
• Do not obstruct the air inlet or outlet of the indoor or outdoor units.
Obstruction of these openings causes a reduction in the operating
efciency of the air conditioner and can lead to consequent failures or
damages.

Page 8
SAFETY INFORMATION
• Do not alter the characteristics of the appliance in any way.
• Do not install the appliance in environments where the air could contain
gas, oil or sulphur or near sources of heat.
• This appliance is not intended for use by persons [including children] with
reduced physical, sensory, or mental capabilities, or lack of experience
and knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Do not climb onto or place any heavy or hot objects on top of either the
indoor or outdoor unit.
• Do not leave windows or doors open for long when the air conditioner is in
operation.
• Do not direct the ow of cold air onto plants or animals. Prolonged direct
exposure to cold air produced by the air conditioner could have negative
effects on plants and animals.
• Do not put the air conditioner in contact with water. The electrical
insulation could be damaged and lead to electrocution.
• Never insert a stick or similar object into the appliance. Such misuse can
lead to injury or damage to the operation of the units.
• Children should be supervised to ensure that they do not play with the
appliance.
• DO NOT install the unit in a location that may be exposed to combustible
gases. If combustible gas accumulates around the unit, it may cause re.
• DOT NOT operate your air conditioner in a wet room such as a bathroom
or laundry room. Too much exposure to water may cause electrical
components to short circuit.
• DO NOT operate the air conditioner with wet hands. This may cause
electrical shock.
• DO NOT climb onto or place objects on top of the outdoor unit.
• The product must be properly grounded during installation, or electrical
shock may occur.
• Install drainage piping according to the instructions in this manual.
Improper drainage may cause water damage to your home and property.

Page 9
SAFETY INFORMATION
OPERATING CONDITIONS
• Within the temperature range provided in following table, the air
conditioner may stop running and other anomalies may arise.
• When the temperature is too high, the air conditioner may activate the
automatic protection device, so that the air conditioner could be shut
down.
• When the temperature is too low, the heat exchanger of the air
conditioner may freeze, leading to water leakage or other malfunction.
• In long-term cooling or dehumidication with a relative humidity
of above 80% (doors and windows are open), there may be water
condensation or dripping near the air outlet.
NOTES FOR HEATING
• The fan of the indoor unit will not start running immediately after the heating is
started to avoid blowing out cool air.
• When it is cold and wet outside, the outdoor unit will develop frost over the
heat exchanger which will compromise the heating capacity. This is when the air
conditioner will start to defrost.
• During defrost, the air conditioner will stop heating for about 5-12 minutes. Vapor
may come out from the outdoor unit during defrost. This is not a malfunction, but a
result of fast defrost.
• Heating will resume after defrost is complete.
Cooling Outdoor > 109.4˚F (Apply to T1) > 125.6˚F (Apply to T3)
Indoor < 64.4˚F
Heating Outdoor > 75.2˚F < 19.4˚F
Indoor > 80.6˚F

Page 10
SET UP & USE
NOTE FOR TURNING OFF
• When the air conditioner is turned off, the main controller will
automatically decide whether to stop immediately or after running for
dozens of seconds with lower frequency and lower air speed.
NOTICES FOR USE
Emergency Operation
• If the remote control is lost or broken,
use force switch button to operate the air
conditioner.
• If this button is pushed with the unit OFF,
the air conditioner will operate in Auto
mode.
• If this button is pushed with the unit ON,
the air conditioner will stop running.
Airflow Direction Adjustment
• Use up-down swing and left-right swing, buttons on the remote
control to adjust the airow direction.
• For models without left-right swing function, the louvers have to be
moved manually.
WARNING
• Move the louvers before the unit is in operation, or your finger might
be injured.
• Never place your hand into the air inlet or outlet when the air
conditioner is in operation.

PARTS & FEATURES
INDOOR UNIT
OUTDOOR UNIT
INSTALLATION INSTRUCTIONS
Air Inlet
Air Inlet Grill
Panel
Air Filter
Air Louver
Air Vent
Air Outlet
Grill
Air Outlet
Air Outlet
Force Switch
Pipe
Protection
Ring
Remote
Control
Refrigerant Pipe
157.5 inches
Drain Hose
78.7 inches
Page 11
Condensate
drain
Insulation
sleeve
Mounting
Plate

Page 12
NOTICES:
• A split system air conditioner is a great option for keeping your home
cool and comfortable in the summer months. These units are also
quieter, easier to install, and may be more energy efcient than some
central air conditioning.
• This type of A/C is ductless, so all you have to do is install the cooling
unit inside and the compressor and condenser unit outside, then run
piping and a power cable between the units.
• A licensed electrician is recommended to install the wiring and
perform all the electrical work.
WARNING - Building permits are required. Installation must be in
accordance with NEC and other local codes.
• Each air conditioning unit is unique to its manufacturer, but the
general installation process is the same.
• See rating label of outdoor unit for electrical service requirements.
SUGGESTED TOOLS FOR INSTALLATION (Not included)
• Adjustable wrenches
• Electric or Manual Screwdriver
• Hole saw
• Tape measure
• Power drill
• Hammer
• Wall anchors and screws
• Insulated tape
• AAA batteries
NOTE: Save Instructions for future reference.
INSTALLATION INSTRUCTIONS

Page 13
1. Select an unobstructed location on your interior wall to
mount the indoor unit.
• You’ll need to cut a hole through the wall to feed the pipes from the
indoor unit to the outdoor unit, so make sure the location you choose
will allow you to do so. Choose a spot away from direct sunlight.
INDOOR UNIT INSTALLATION
INSTALLATION INSTRUCTIONS
Space to the ceiling
5.9 inches
Space to the wall
7.9 inches
Space to the wall
7.9 inches
Space to the floor
78.7 inches

Page 14
CAUTION
• Choose a location with studs to ensure the wall is strong enough to
hold the weight of the unit.
• Install the unit at least 3.3 feet (1.0 m) away from antennas and power
or connecting lines that are used for television, radio, home security
systems, intercoms, or telephones. The electrical noise from these
sources could cause operational problems for your air conditioner.
• Avoid locations where gas may leak or where oil mist or sulfur exists.
• These units have remote controls so that you can easily turn them on
or off and adjust the temperature even if they’re mounted high on the
wall.
Tip: Choose a central location for the indoor unit where the
cool air can easily flow through your home, such as in the
living room.
INSTALLATION INSTRUCTIONS

Page 15
2. Secure the mounting plate to the interior wall.
• Hold the mounting plate against the wall where you want to install
the indoor unit. Use a level to make sure it is both horizontally
and vertically level. Use a pencil to mark the locations of the screw
holes, remove the plate, then drill a hole into the wall where each
screw will go.
• Position the plate so it matches up with the holes, insert anchors into
the holes, and secure the plate to the wall with tapping screws (not
included). It is recommended that the bracket is secured to framing
members (studs) to ensure adequate mounting.
INSTALLATION INSTRUCTIONS

Page 16
INSTALLATION INSTRUCTIONS
3. Secure the indoor unit to the mounting plate.
• To attach the air conditioner to the wall, simply align the female
connections on the back of the unit with the male connections on the
mounting plate and press rmly to secure the unit in place. Make sure
the unit tilts backward 2-3 degrees so that water can ow out of the
drain hose.
• It may help to have a friend hold the unit in place while you secure
the connections.
Fixing the Indoor Unit
• Hang the indoor unit on the mounting
plate, and move the unit from left to
right to ensure that the hook is properly
positioned in the peg board.
• Push toward the lower left side and the
upper right side of the unit toward the
plate, until the hook is embedded in the
slot and makes a “click” sound.

Page 17
INSTALLATION INSTRUCTIONS

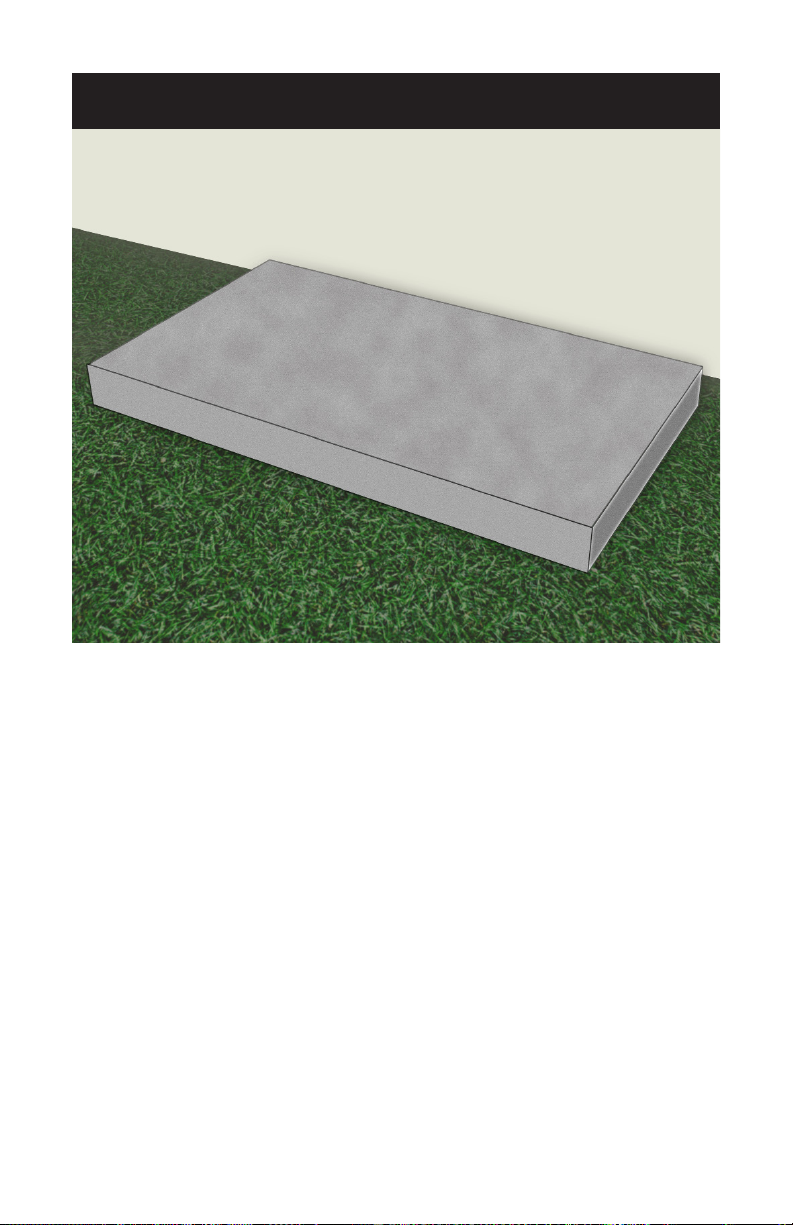

4. Lay a concrete pad on the ground.
• Don’t place the outdoor unit directly on the ground, as it’s heavy
and can shift around on dirt or rocks.
Tip: Situate the concrete pad so that it’s high enough to keep
the unit out of any water that may puddle on the ground
due to rain or snow.

Page 18
INSTALLATION INSTRUCTIONS

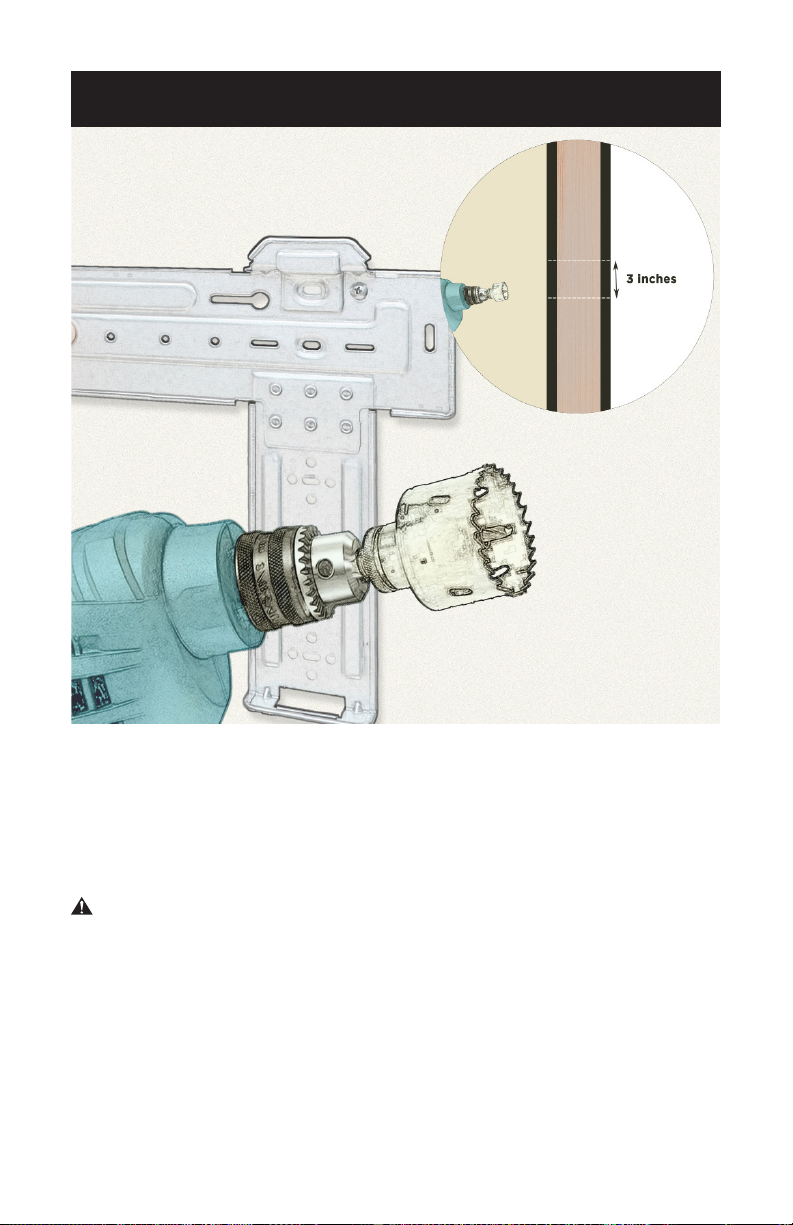

5. Drill a 3 in. (7.6 cm) hole through the wall so you can feed
the refrigerant lines and condensate drain hose outside.
• Make a mark in the center of the hole in the mounting plate. Use a
keyhole saw or a drill with a hole-cutting attachment to create a
circular 3 in. (7.6 cm) opening through the wall that slopes slightly
downward toward the ground to ensure adequate drainage.
WARNING - Make sure there are no pipes or wires behind the wall
before drilling or cutting the hole.

Page 19
6. Check the electrical connections on the indoor unit.
Route of Pipeline
• Depending on the position of the unit, the piping may be routed
sideway from the left or the right (Fig. 1), or vertically from the back
(Fig. 2) (depending on the pipe length of the indoor unit). The indoor
unit will draw it’s power from the exterior unit. In the case of sideway
routing, cut off the outlet cutting stock of the opposite side.
WARNING - All exterior wiring must be in LFNC-B or equivalent in
accordance with NEC requirements.
Fig. 1 Fig. 2
Refrigerant pipe
Drain Hose and
Cables
Refrigerant pipe
Drain Hose and
Cables
Outlet material preparation
INSTALLATION INSTRUCTIONS
WARNING - All interior wiring must be compliant articles
200-300 of NEC.

Page 20
INSTALLATION INSTRUCTIONS

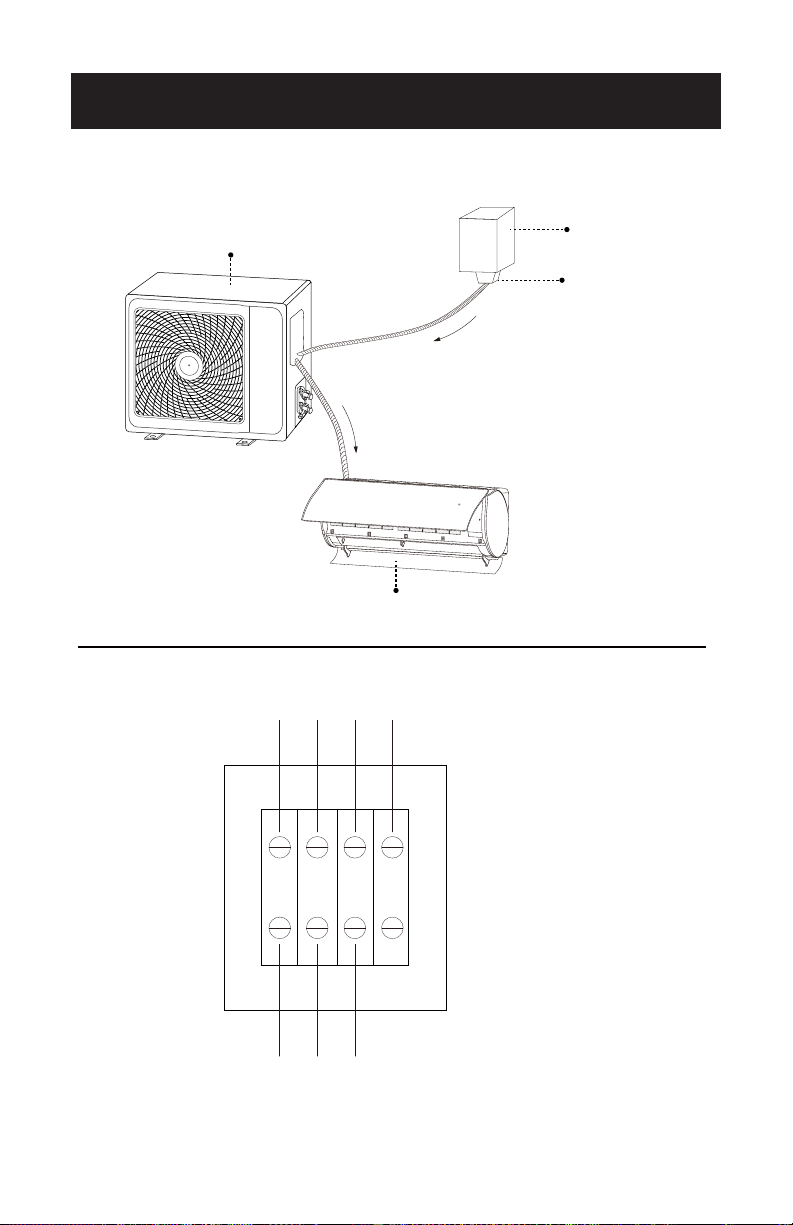

ELECTRICAL
DISCONNECT POWER FLOW
AC MAINS
WEATHER PROOF
FITTINGS
OUTDOOR UNIT
TO INDOOR UNIT
FROM DISCONNECT
VIEW OF ELECTRICAL
CONNECTIONS
AT UNIT OUTDOOR
L N G S
LIQUID TIGHT
NON-METALLIC
CONDUIT
INDOOR UNIT
