Black & Decker BXAC65002GB User manual

BXAC65002GBwww.blackanddecker.co.uk

ENGLISH (Original instructions)
2
What’s in the box
Instruction Manual
7 Litre Digital 3-in-1 Air Cooler
Remote Control
2 x Ice Packs
Features
1. Control Panel
2. Swinging Louvers
3. Horizontal Louvers
4. Castor Wheels
5. Carry Handle
6. Inner Filter
7. Air Inlet Cover
8. Removable Water Tank
9. Water Tank Lock
1
6
7
8
9
5
3
4
2

ENGLISH
(Original instructions)
3
Intended Use
Your BLACK+DECKER BXAC65002GB 7 Litre
Digital 3-in-1 Air Cooler has been designed for
cooling small and medium spaces.
This appliance is intended for indoor household use
only.
Thank you for choosing BLACK+DECKER. We hope
that you will enjoy using this product for many years.
Safety Instructions
WARNING: Read all safety
warnings and all instructions. Failure
to follow the warnings and
instructions listed below may result in
electric shock, re and/or serious
injury.
♦ Read this manual carefully before
using the appliance.
♦ The intended use is described in
this manual.
♦ The use of any accessory or
attachment or the performance of
any operation with this appliance
other than those recommended in
this instruction manual may present
a risk of personal injury.
♦ Retain this manual for future
reference.
♦ WARNING: When using mains-
powered appliances, basic safety
precautions, including the following,
should always be followed to
reduce the risk of re, electric
shock, personal injury and material
damage.
Using Your Appliance
Please read the operating
instructions carefully before using
your portable air cooler for the rst
time.
♦ Check that the voltage of the main
circuit corresponds with the rating
of the appliance before operating.
♦ Children shall not play with the
appliance.
♦ Do not let the cable hang over the
edge of a table or counter or let
it come into contact with any hot
surfaces.
♦ The use of accessory attachments
is not recommended by the
appliance manufacturer, apart from
those supplied with this product.
♦ Do not pull the plug out by the
cable as this may damage the plug
and/or the cable.
♦ Do not use this product for anything
other than its intended use.
♦ This appliance is for household use
only.
♦ Do not carry the appliance by the
power cable.
♦ Do not use the appliance outdoors.
♦ Do not operate with wet hands.
♦ Use of an extension cable with this
appliance is not recommended.
However, if it is necessary to use
an extension lead, ensure that
the lead is suited to the power
consumption of the appliance to
avoid overheating of extension
cable, appliance or plug point.

ENGLISH (Original instructions)
4
Do not place the extension cable
in a position where it can be pulled
on by children or animals or tripped
over.
♦ Always unplug the unit when not in
use or before cleaning.
♦ The manufacturer does not accept
responsibility for any damage
or injury caused by improper or
incorrect use, or for repairs carried
out by unauthorised personnel.
Safety Of Others
♦ Close supervision is necessary
when any appliance is used by or
near children.
♦ Children should not play with the
appliance.
♦ This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
♦ Cleaning and user maintenance
should not be undertaken by
children without supervision.
♦ Take care when any appliance is
used near pets.
♦ Do not allow the cord to become
twisted.
After Use
♦ While cleaning, DO NOT use a wet
cloth or use water on any part of
the unit, as this may cause a short
circuit or electrical shock.
♦ Keep this unit clean. Do not allow
objects to enter the ventilation
opening as this may cause electric
shock, or damage to the unit.
Switch off the unit and then remove
the plug from the socket when not
in use or before cleaning.
♦ Check all inlets and outlets
regularly for accumulated dust.
♦ Disconnect the unit from mains
outlet when it is not in use, or
before relocating or cleaning it.
♦ Switch off and remove the plug
from the socket before leaving the
appliance unattended and before
changing, cleaning or inspecting
any parts of the appliance.
♦ When not in use, the appliance
should be stored in a dry place.
Children should not have access to
stored appliances.
Inspections And Repairs
♦ Do not attempt to dismantle, repair
or remould any part of the unit. This
should only be done by a qualied
service agent. Even the change of
power cable should be done by a
qualied person.

ENGLISH
(Original instructions)
5
♦ In the unlikely event the appliance
develops a fault, stop using it
immediately and seek advice from
the manufacturer.
♦ In case of technical problems,
switch off the product and do not
attempt to repair it yourself. Return
the appliance to an authorised
service facility for examination,
adjustment or repair. Always
insist on the use of original spare
parts. Failure to comply with the
above mentioned precautions and
instructions, could affect the safe
operation of this product.
Additional safety instructions for
Air Coolers and Fans
♦ Install the unit on at and hard oor
to diminish vibration or noise.
♦ Always operate the appliance on a
smooth, even, stable surface. Do
not place the unit on a hot surface.
♦ Ensure that the unit is switched off
after use.
♦ Do not immerse cables, plugs or
any part of the appliance in water
or any other liquid.
♦ Operate the unit only at the voltage
specied.
♦ Do not use the unit near open
windows, as contact with rain and
other natural elements could cause
an electrical hazard
♦ Do not put heavy objects on the
appliance.
♦ Do not tip the unit on its side.
♦ Never insert any other object into
the unit body to avoid any hazard
or unit failure.
♦ Do not put the unit close to
heat-generating devices or
near ammable and dangerous
materials.
♦ If the supply cable is damaged,
it must be replaced by the
manufacturer or its service agent or
a similarly qualied person in order
to avoid a hazard
♦ The appliance must be positioned
so that the plug is accessible.
♦ For optimal airow circulation,
leave a distance of at least 1 metre
around the appliance on every side.
Always direct the airow in order
to optimise cooling. Avoid corners,
small objects and other surfaces
or objects which may impede the
airow.
WARNING: Do not place the unit
on or near a hot gas electric burner.

ENGLISH (Original instructions)
6
Electrical safety
Before use, check that the mains voltage
corresponds to the voltage on the rating plate.
Always check that the mains voltage
corresponds to the voltage on the rating
plate.
♦ Appliance plugs must match the outlet. Never
modify the plug in any way.
♦ Do not use any adapter plugs with this appliance.
Unmodied plugs and matching outlets will reduce
the risk of electric shock.
♦ To avoid the risk of electric shock, do not immerse
the cord, plug or appliance in water or other liquid.
Extension cables & class 2 product
♦ A 2 core cable must be used as your tool is not
earthed.
♦ Up to 30m (100 ft) can be used without loss of
power.
♦ If the supply cord is damaged, it must be
replaced by the manufacturer or an authorised
BLACK+DECKER Service Centre in order to avoid
a hazard.
Warning! Before assembling, switch the appliance
off and remove the plug from the socket.

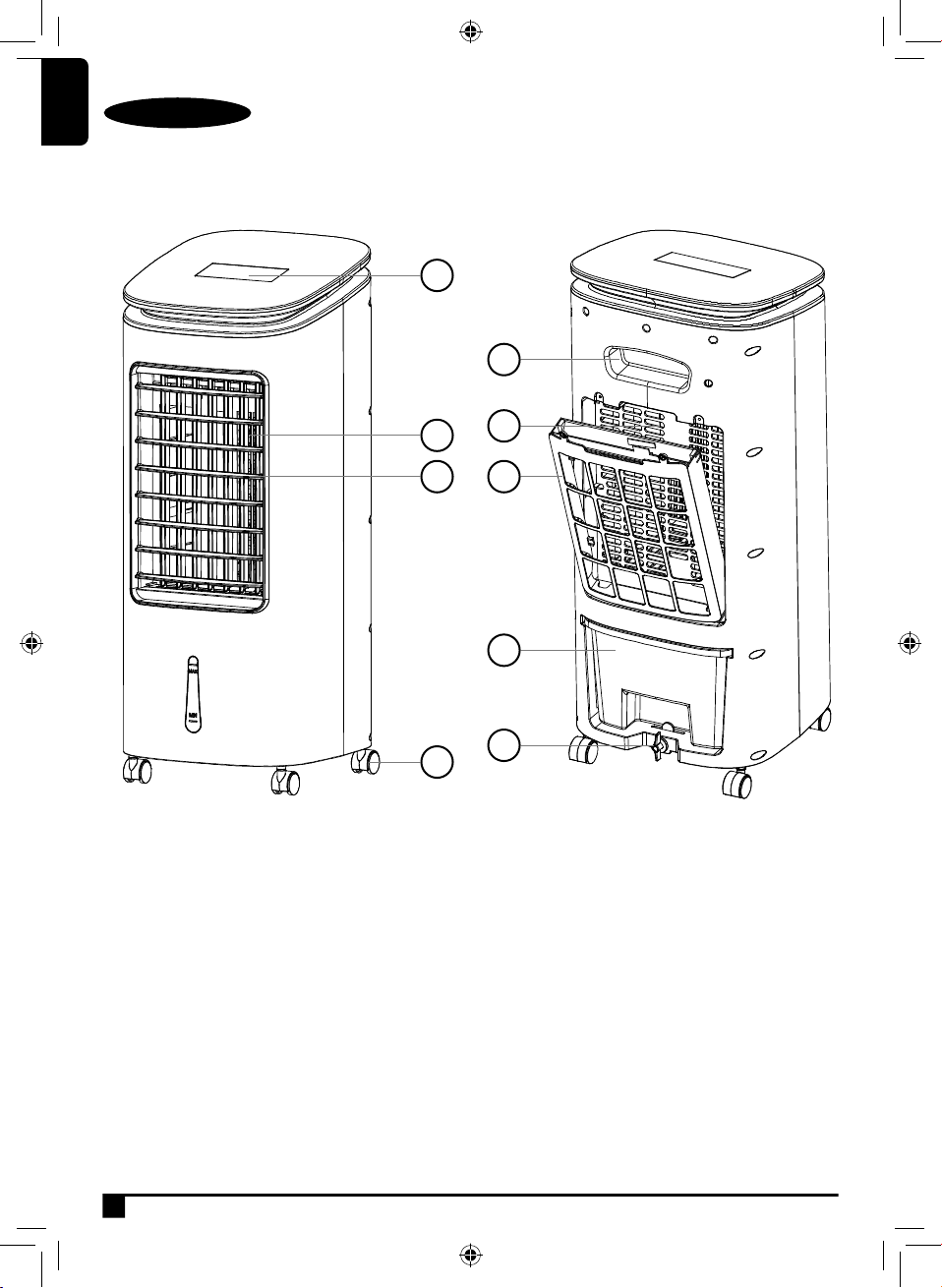

Features (refer to diagrams on page 2)
1. Control Panel
2. Swinging Louvers
3. Horizontal Louvers
4. Castor Wheels
5. Carry Handle
6. Inner Filter
7. Air Inlet Cover
8. Removable Water Tank
9. Water Tank Lock
Use
About the Controls
♦ 3 Speed Settings
♦ 3 Cooling Modes
♦ 8 Hour Timer
♦ Swing Function
♦ Cooling Function

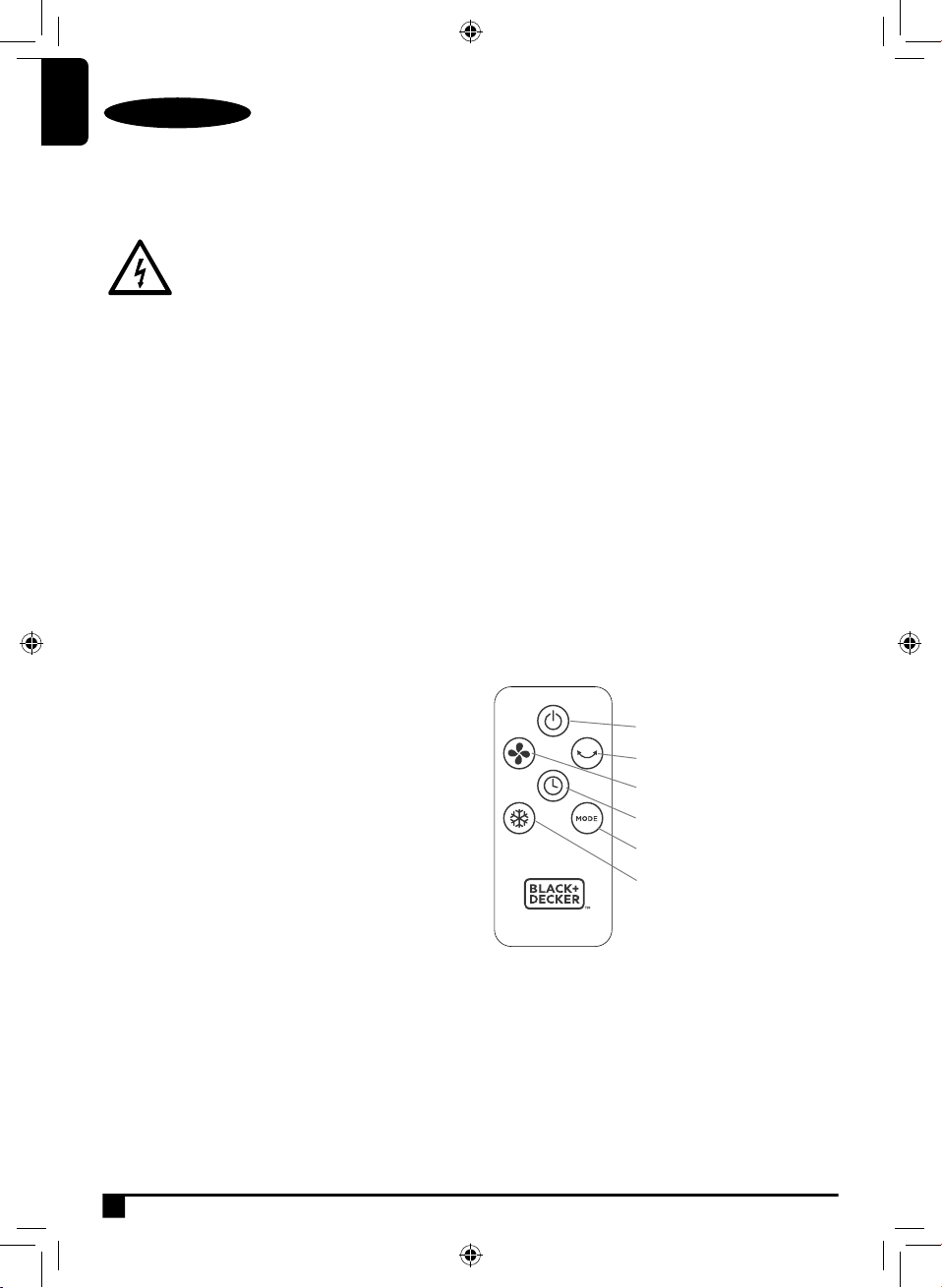

Remote Control
ON/OFF button
Swing button
Speed selection button
Timer button
Mode button
Cool button

ENGLISH
(Original instructions)
7
Installing the Battery
WARNING: Danger of explosion if battery is
incorrectly replaced.
WARNING: DO NOT INGEST BATTERY;
CHEMICAL BURN HAZARD. This product contains
a coin/button cell battery. If the coin/button cell
battery is swallowed, it can cause severe internal
burns in just 2 hours and can lead to death.
♦ Keep new and used batteries away from children.
If the battery compartment does not close
securely, stop using the product and keep it away
from children.
♦ If you think batteries might have been swallowed
or placed inside any part of the body, seek
immediate medical attention.
♦ If the coin cell battery contents come into contact
with the skin, immediately wash area with mild
soap and water. If coin cell battery liquid gets
into the eye, rinse water over the open eye for
15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is
composed of an organic solvent and lithium salts.
♦ Do not incinerate or dispose of tool together with
household waste material! Tool that has reached
the end of its life must be collected separately
and returned to an environmentally compatible
recycling facility.
To Begin Using Your Fan
♦ Start by installing the battery.
♦ To install the battery, rst detach the battery cover
from the remote. To do this, place a thumb or
small object on the grooved area on the underside
of the battery cover and push it gently to the side,
while simultaneously pulling the compartment
away from the body of the remote.
♦ Insert 1 x CR2032 battery into the battery
compartment, taking care to ensure the positive
polarity is facing upwards.
♦ Once the battery is in place, slide the battery
cover back into the remote. It will automatically
lock into place and secure the battery inside.
Installing the Wheels
♦ To prepare the air cooler for use, start by installing
the wheels.
♦ To install the wheels, rst place the unit on a
stable surface and turn it upside down.
♦ Once the unit is upside down, locate the four
holes on each corner of the base. Insert each of
the four castors into one of these holes and thread
them clockwise to tighten and secure them into
place. Ensure each castor is rmly secured into
place before attempting to use the unit.
♦ Once all four castors have been securely tted
into place, turn the unit right-side up.
♦ The unit is now ready for normal use.
Turning Your Appliance On or Off
♦ To turn the unit on, begin by plugging it into the
mains. There will be a sound prompt to indicate
the unit has been powered up.
♦ Once the unit has been plugged into the mains,
press the On/Off button on the remote control or
the unit’s control panel to turn the unit on. The
unit’s LCD screen and indicators will come on to
show the unit has been turned on.
♦ Press this button again while the fan is in
operation to put it into standby mode. The unit’s
LCD screen and indicators will go out, but the On/
Off indicator will remain lit to show the unit is in
Standby mode.

ENGLISH (Original instructions)
8
Speed Selection
♦ There is a choice of 3 airow settings: Low (1),
Medium (2) or High (3).
♦ Press the speed selection button on the remote
control or the unit’s control panel to cycle through
the available airow settings. The corresponding
indicator will light up to show each speed has
been selected.
Mode Selection
There is a choice of 3 cooling modes: Normal,
Natural and Sleep.
♦ In Normal mode, the unit will cool continuously at
the desired speed.
♦ In Natural mode, the unit will automatically cycle
through different airow settings to simulate a
natural breeze.
♦ In Sleep mode, the unit will automatically cycle
through different airow settings to simulate a
gentle natural breeze suitable for night-time use.
The Cooling Function
♦ This unit is equipped with a cooling function, ideal
for lowering room temperature or refreshing the air
inside a room.
♦ Press the ‘Cool’ button on the remote control or
the unit’s control panel to activate the cooling
function. The corresponding indicator will light up
to show the cooling function has been activated.
♦ Press this button again while the cooling function
is in operation to turn this function off. The
corresponding indicator will go out to show the
function has been turned off.
Note! Always ensure the water tank is lled before
attempting to use the cooling function; otherwise,
this function will not operate correctly. Refer to the
‘Filling the Water Tank’ section below for instructions
on how to ll the water tank.
Filling the Water Tank
♦ To remove the water tank to conveniently ll under
a tap, turn the safety locking mechanism at the
underside of the unit to a horizontal position to
release the tank from the unit. Once the lock has
been released, release the clip connecting the
water tank to the unit’s inner wiring, located at the
far end of the water tank. To release this clip, grip
it rmly and push both tabs inward at the same
time to loosen the clasp, then pull it rmly away
from the water tank until it detaches completely.
Once the clip is detached, place the water tank
under a running tap or shower and ll it up as
required.
♦ Alternatively, pull the water tank partway out of
the unit and ll it up with a hose, bucket or shower
head, as required.
♦ Once the water tank is full, place it back into the
unit, ensuring the connecting clip slots into place.
To do this, align the two tabs on either side of the
clip with the corresponding notches on the main
body of the water tank, then push the clip down
until they click into place. Once the clip is in place,
push the water tank back into the unit and turn the
locking mechanism to a vertical position to secure
it into place.
Emptying the Water Tank
♦ To empty the water tank, follow the steps detailed
above to detach it from the main body of the unit.
Once the water tank has been detached from the
main body of the unit, tip it over and empty it into a
sink or drain.
♦ Once the water tank is empty, place it back into
the unit, ensuring the connecting clip slots into
place. To do this, align the two tabs on either side
of the clip with the corresponding notches on the
main body of the water tank, then push the clip
down until they click into place. Once the clip is in
place, push the water tank back into the unit and
turn the locking mechanism to a vertical position
to secure it into place.
Note! If not using the dehumidifying function again,
ensure the water tank is fully dry before placing it
back into the unit.

ENGLISH
(Original instructions)
9
Using the Ice Packs
♦ This unit comes complete with 2 x ice packs, for
added cooling functionality.
♦ To make use of the included ice packs, start by
lling them with water. To do this, rotate the lid
counter-clockwise to loosen it. Fill the pack with
water, then replace the lid and turn it clockwise to
tighten it.
Note! Be careful not to overll the bottle, as water
expands when frozen. If necessary, leave the lid
loosely tightened after lling.
♦ Once one or both ice packs have been lled, put
them in the freezer and leave them to chill for a
few hours or overnight.
♦ When the ice packs have frozen through, take
them out of the freezer and insert them into the
previously lled water tank. This will help chill the
water in the tank, for more effective cooling.
Swing
♦ This fan is equipped with an swing function in its
inner louvers.
♦ Press the Swing button to turn the swing
function on and off. The fan’s inner louvers will
automatically begin to swing from side to side. The
corresponding indicator will light up on the unit’s
control panel to show the swing function has been
turned on.
♦ Press this button again while the unit is swinging
to turn this function off. The louvers will stop
swinging and become locked at their latest angle,
and the corresponding indicator will go out on the
unit’s control panel to show the swing function has
been turned on.
Note! The inner louvers cannot be manually
adjusted. To change the cooling angle of the inner
louvers, turn the swing function on, as described
above, wait until the louvers are at the required
cooling angle, then turn the function off.
Controlling the Air Flow
♦ This unit allows for manual control of the air ow
through the positioning of the outer louvers at the
front of the unit.
♦ To position the louvers, gently hold them by the
lip and push them upwards or downwards as
required. Push the louvers upwards to open them,
or downwards to close them.
The Timer Function
♦ The unit is complete with a built-in digital timer,
allowing for pre-set cooling cycles of up to 8
hours.
♦ Press the ‘Timer’ button on the remote control
or the unit’s control panel to activate the timer
function. The text ‘1H’ will show on the unit’s LCD
display to indicate the timer function has been
activated.
♦ Once the timer function is activated, repeatedly
press the ‘Timer’ button on the remote control or
the unit’s control panel to increase the length of
the pre-set time by increments of 1 hour, from 1 up
to 8 hours. The corresponding number will show
on the unit’s LCD screen to indicate each timer
has been selected.
Note! The timer function operates in ascending
order only. To decrease the length of the cooling
cycle, repeatedly press the ‘Timer’ button on the
remote control or the unit’s control panel until a full
cycle has been completed and no text is showing on
the unit’s LCD screen; then, repeatedly press this
button again until the corresponding length of time
has been selected. For example, to go down from a
5 hour cooling cycle to a 2 hour cooling cycle, press
the ‘Timer’ button until the timer has gone past the
‘8h’ setting and the LCD screen is blank, then press
it twice more until the text ‘2h’ appears on the unit’s
LCD screen.

ENGLISH (Original instructions)
10
Cleaning and maintenance
WARNING: Before cleaning and maintenance,
switch the appliance off and remove the plug from
the socket, to prevent electric shock.
♦ Do not immerse any part of the appliance, power
cord or plug in liquids..
♦ Use a soft damp cloth to wipe the surface. Avoid
using detergent, spray or chemicals as these may
cause damage to the appliance.
WARNING: DO NOT allow water or steam to
enter any part of the appliance, as this could cause it
to malfunction.
♦ Store the appliance in a cool, dry place, ideally in
its original packaging.
Mains plug replacement
WARNING: The following section on mains plug
replacement is for authorised service centre persons
only.
If a new mains plug needs to be tted:
♦ Safely dispose of the old plug.
♦ Connect the brown lead to the live terminal in the
new plug.
♦ Connect the blue lead to the neutral terminal.
♦ If the product is class I (earthed), connect the
green/yellow lead to the earth terminal.
Note! If your product is class II double insulated
(only 2 wires in the cord set), no connection is to be
made to the earth terminal.
Follow the tting instructions supplied with good
quality plugs. Any replacement fuse must be of the
same rating as the original fuse supplied with the
product.
Protecting the environment
Separate collection. Products and
batteries marked with this symbol must
not be disposed of with normal household
waste.
Products and batteries contain materials that can
be recovered or recycled, reducing demand for
raw materials. Please recycle electrical products
and batteries according to local provisions. Further
information is available at www.2helpU.com.
Technical data
BXAC65002GB
Input voltage V AC 220-240V
Frequency Hz 50/60
Power input W65
Weight KG 6.5

ENGLISH
(Original instructions)
11
Product Guarantee
This product comes with a 2 Year guarantee from the
original date of purchase. If any defect arises due to
faulty materials or workmanship, the faulty products
must be returned to the place of purchase. Refund or
replacement is at the discretion of the retailer. This
guarantee is in addition to and in no way prejudices
your statutory rights.
The Following Conditions Apply:
♦ The product must be returned to the retailer
with proof of purchase or a receipt within the
1st year of purchase. For any product related
issues after 12 months please contact our
customer services team.
♦ The product must be installed and used in
accordance with the instructions contained in
this instruction guide.
♦ It must be used only for domestic purposes.
♦ It does not cover wear and tear, damage,
misuse or consumable parts.
♦ This guarantee is valid in the UK and Republic
of Ireland.
For all customer service enquires please contact
us below;
RKW,
Sutton House,
Berry Hill Road,
Stoke-on-Trent,
ST4 2NL
Email [e-mail]
Tel [phone]
Model Identier(s): BXAC65002GB
Item Symbol Value Unit
Maximum fan ow rate F3.9 m3/min
Fan Power input P 73.4 W
Service Value SV 0.053 (m3/min)/W
Standby power consumption PSB 0.4 W
Seasonal electricity
consumption Q23.9 Kwh/a
Fan sound power level LWA 61.0 dB(A)
Maximum air velocity c - m/sec
Contact Details: Imported by Black & Decker, 210 Bath Road, Slough, Berkshire SL1 3YD

United Kingdom & Black & Decker Tel. [phone]
Republic Of Ireland 210 Bath Road Fax [phone]
www.blackanddecker.co.uk Slough, Berkshire SL1 3YD
emeaser[email protected]
10/2019
