1.Specifications
Resolution: Up to 1600 x 1200 @ 75 Hz
Input/Output Video Signals: Analog signal red, green, blue 0.7v p-p 75 ohm
Sync: TTL compatible
Horizontal/Vertical Sync Polarity: Positive/Negative
System Cable: CAT5 shielded twisted pair (STP) cable
Maximum Distance: 360 ft. (109.7 m)
Audio: Mono
Temperature Tolerance: Operating: Up to 122°F (50°C); Storage: -40 to +158°F
(-40 to 70°C)
Connectors:
AC156A-8: VGA In: (1) HD15 male;
VGA Out: (1) HD15 female;
System Out: (8) shielded RJ-45;
Sound card: (2) 3.5-mm In/Out jacks;
Microphone/Headphone: (2) 3.5-mm In/Out jacks;
Controller: (1) 8-pin mini-DIN female;
AC157A-8: System In: (1) shielded RJ-45;
System Out: (1) shielded RJ-45;
AC158A-REM: System In: (1) shielded RJ-45;
CPU VGA: (1) HD15 male;
Screen: (1) HD15 female;
Audio In/Out: (2) 3.5-mm jacks
Cables: AC156A-8: Control unit: (1) 3-ft. (0.9-m) cable to 8-pin mini-DIN
connector;
Broadcaster unit: (1) 5-ft. (1.5-m) VGA cable with HD15 male to HD15 female,
(2) 4-ft. (1.2-m) stereo cables with 3.5-mm plug to 3.5-mm plug;
AC157A-8: No cables;
AC158A-REM: (1) 2.5-ft. (0.8-m) VGA cable with HD15 male to HD15 female
connectors, (2) audio cables with (2) 3.5-mm plugs to (1) 3.5-mm plug and
(1) 3.5-mm jack

7
CHAPTER 1: Specifications
Power: AC156A-8 and AC157A-8: 12-VDC external power adapter and power cord;
AC158A-REM: From previous unit
Size: AC156A-8: 6.9"H x 3.8"W x 1.7"D (17.5 x 9.7 x 4.3 cm);
AC157A-8: 4.6"H x 3.8"W x 1.7"D (11.7 x 9.7 x 4.3 cm);
AC158A-REM: 1.3"H x 3.1"W x 0.9"D (3.3 x 7.9 x 2.3 cm)
Weight: AC156A-8, AC157A-8: 2 lb. (0.9 kg); AC158A-REM: 0.6 lb. (0.3 kg)

8
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
2. Introduction
2.1 Description
Broadcast a single audio/video source to up to 512 remote display stations. The
CAT5 Audio/Video System broadcasts high-resolution video and audio over CAT5
cable to multiple display stations in real time. You can place the remote display
stations up to 360 ft. (109.7 m) away from the source. Since the CAT5 system is a
pure hardware solution, it provides real-time screen transfer without loss of screen
quality. Broadcast the source screen at high video resolution—up to 1600 x 1200
@ 75 Hz!

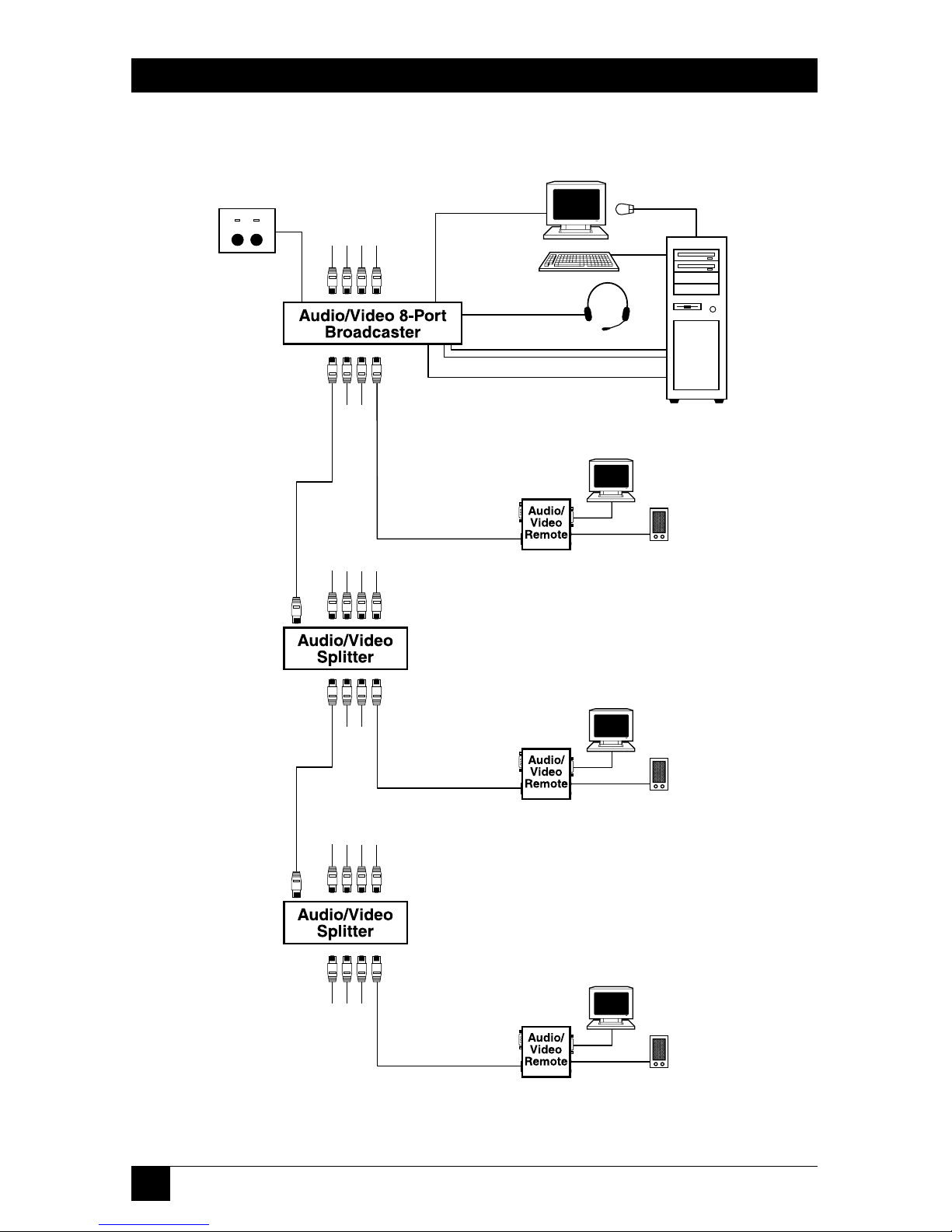

The CAT5 Audio/Video System consists of these components:
• (1) CAT5 Audio/Video 8-Port Broadcaster (AC156A-8) to connect to the
audio/video source. You must have one of these.
• (1) or more CAT5 Audio/Video Splitters (AC157A-8) to expand and boost the
system. You may or may not need one of these. You can have up to 72 splitters.
• (1) CAT5 Audio/Video Remote (AC158A-REM) for each remote
screen/computer. You need at least one of these (but could have as many as
512—for 512 users, you’d also need 72 splitters).
Category 5 shielded twisted-pair (STP) cables connect the CAT5 Audio/Video
system. The CAT5 Audio/Video Remote units (AC158A-REM) can be up to 360 ft.
(109.7 m) away from the Broadcaster (AC156A-8).
2.2 Features
• Remote display and control lets you extend your information/ideas to a
distance of 360 ft. (109.7 m) without making any changes or buying new
computer equipment.
• CAT5 cable technology is plug-and-play and produces no cable clutter.
• Monitor the connection at a local unit.
• No power required at the remote unit.
• Buy only the number of remote units you need.
• Online updates and troubleshooting.

9
CHAPTER 2: Introduction
• All required cables are included, so installation is quick and easy.
• High-resolution video support of up to 1600 x 1200 @ 75 Hz makes it ideal for
display on a large screen.
2.3 Typical Applications
• Broadcast display application: An ideal solution for a wide range of multi-
screen applications. Give real-time data updates at airports, train/bus stations,
stock exchanges, etc.; or broadcast entertainment/advertisements in stores,
restaurants, etc.; or for multiple-location security monitoring.
• Computer classroom application: Use the system to send a teacher’s screen
with audio to all student monitors/speakers or darken all screens. This
application works with or without computers connected to each CAT5
Audio/Video Remote (AC158A-REM).

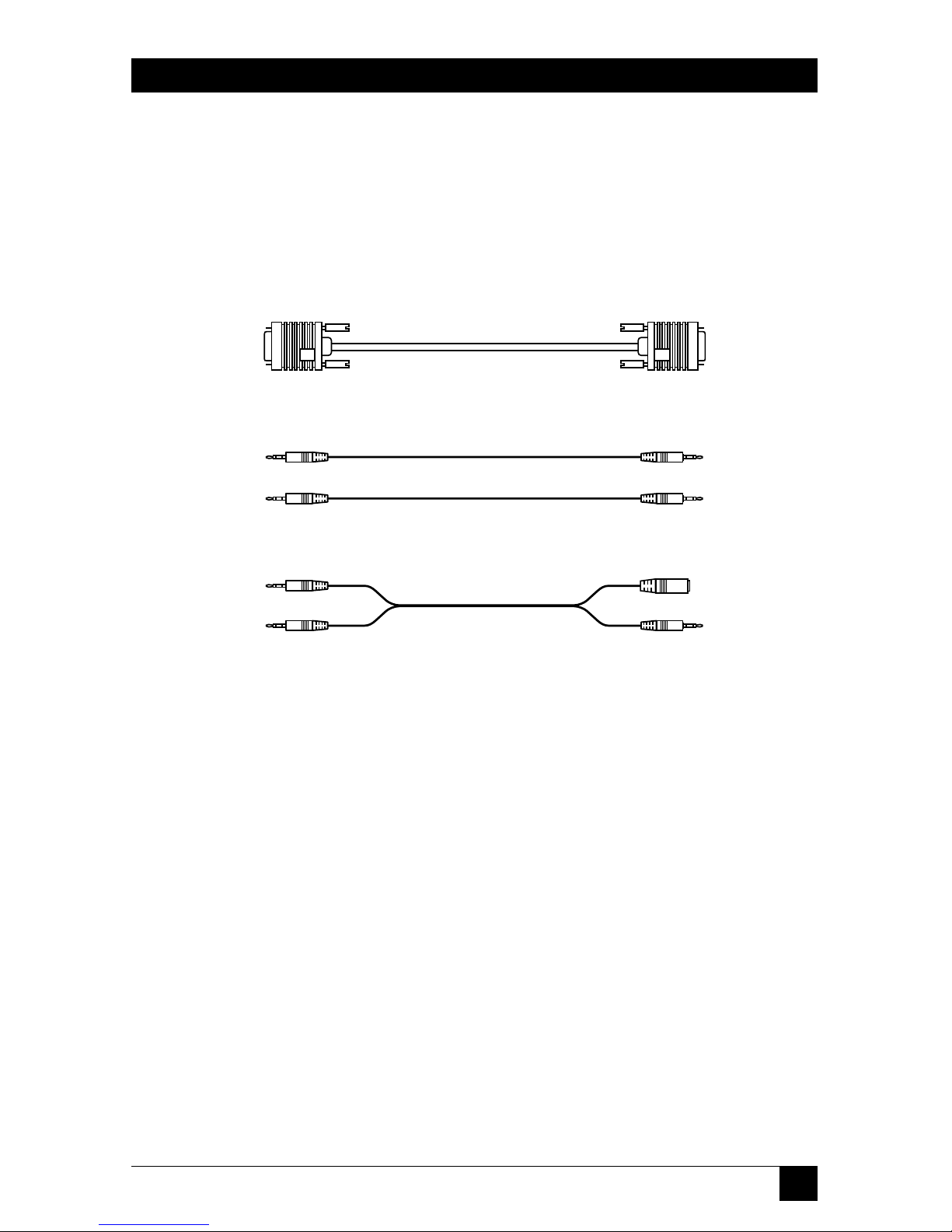

2.4 What the Package Includes
If you ordered the CAT5 Audio/Video 8-Port Broadcaster (AC156A-8), you should
have received the following items:
• (1) CAT5 Audio/Video Broadcaster
• (1) Control unit
• (1) VGA cable
• (2) Stereo audio cables
• (1) Power supply
• (1) Power cord
• This users’ manual
If you ordered the CAT5 Audio/Video Splitter (AC157A-8), you should have
received the following items:
• (1) CAT5 Audio/Video Splitter
• (1) Power supply
• (1) Power cord
• (3) Stickers to label the STP cable
• This users’ manual

10
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
If you ordered the CAT5 Audio/Video Remote (AC158-REM), you should have
received the following items:
• (1) CAT5 Audio/Video Remote
• (1) VGA cable
• (1) Audio cable
• (3) Stickers to label the STP cable
If anything is missing or damaged, please contact Black Box at 724-746-5500.

11
3. Installation
3.1 The Multi-Functional System
You can use the CAT5 Audio/Video system in the following ways:
A. Without the control unit: The CAT5 Audio/Video Broadcaster constantly
broadcasts a computer screen with audio to all remote monitors/speakers.
B. With the control unit:
• Broadcast a computer screen with audio to all remote monitors/speakers.
• Darken all remote screens (audio broadcast is unaffected).
• Release the remote screens to allow local access (when remote computers
are connected).
The screen dark function is useful when carrying out maintenance, when
changing the broadcast program, or for grabbing students’ attention in a
classroom environment.
With both applications, you can broadcast the video at resolutions of up to 1600 x
1200 @ 75 Hz, depending on the cable length.
3.2 The CAT5 Audio/Video System Units
The following illustrations show the Broadcaster, Video Splitter, and Remote units.
Figure 3-1. CAT5 Audio/Video 8-Port Broadcaster (AC156A-8).
CHAPTER 3: Installation
Power connector System cab es Monitor Audio cab es
Contro unit
port Video cab e Microphone and
speaker

12
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
Figure 3-2. CAT5 Audio/Video Splitter (AC157A-8).
Figure 3-3. CAT5 Audio/Video Remote (AC158A-REM).
3.3 Expanding the CAT5 Audio/Video System
You can expand the CAT5 Audio/Video System to 512 Remote units
(AC158A-REM). This is done by having up to two levels of Splitters (AC157A-8).
Each Splitter on level 2 can have 8 Remote units connected to it (see Figure 3-5).
3.4 Pre-Installation Instructions
NOTE
In the CAT5 Audio/Video System, the CAT5 cab es carry e ectrica
power. DO NOT connect them to any other device! To avoid this, we
recommend that you attach the provided stickers to the ends of each
CAT5 cab e.
Power connector
Video cab e System cab e
Side A
Headphones Picture adjuster
Sound card Monitor
Side B
System cab es
System cab e from Broadcaster or previous Sp itter

13
CHAPTER 3: Installation
Place cables away from fluorescent lights, air conditioners, and machines that are
likely to generate electrical noise.
3.5 The CAT5 Audio/Video System Cables
The included cables are illustrated below.
Figure 3-4. The CAT5 Audio/Video System cables.
T HE R EMOTE V IDEO AND A UDIO C ABLES
The Remote video and audio cables are only used when the CAT5 Audio/Video
Remote is connected to a computer.
3.6 Power Supply
Connect the Broadcaster and Splitters to the power supply with the power adapters
and power cords provided. The Remote units do not require an external power
supply.
To computer’s
video card
Broadcaster and
Remote VGA cab e
Broadcaster audio
cab es
To microphone
connector
To Remote’s
audio In port
Remote audio cab e
To Broadcaster’s
or Remote’s
video In port
To Broadcaster’s
sound card
microphone port
To Broadcaster’s
sound card
speaker port
To Broadcaster
computer’s
microphone
port
To Broadcaster
computer’s
speaker port
To Remote
computer’s
microphone port
To Remote
computer’s
speaker port

14
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
3.7 The CAT5 Audio/Video System Configuration for a Computer-Based
Training (CBT) Application
The illustration below shows the system configuration with the control unit (which
is included with the 8-Port Broadcaster) and the optional Remote units.
Contro unit
Broadcaster
computer
Remote
computer
Remote
computer
Audio cab es
Audio
cab e
Audio
cab e
Video cab e
Leve 1
Leve 2
Video
cab e
Video
cab e
CAT5 cab es to
Remote units or
Sp itters
CAT5 cab es to
Remote units or
Sp itters
CAT5 cab es to
Remote units

15
CHAPTER 3: Installation

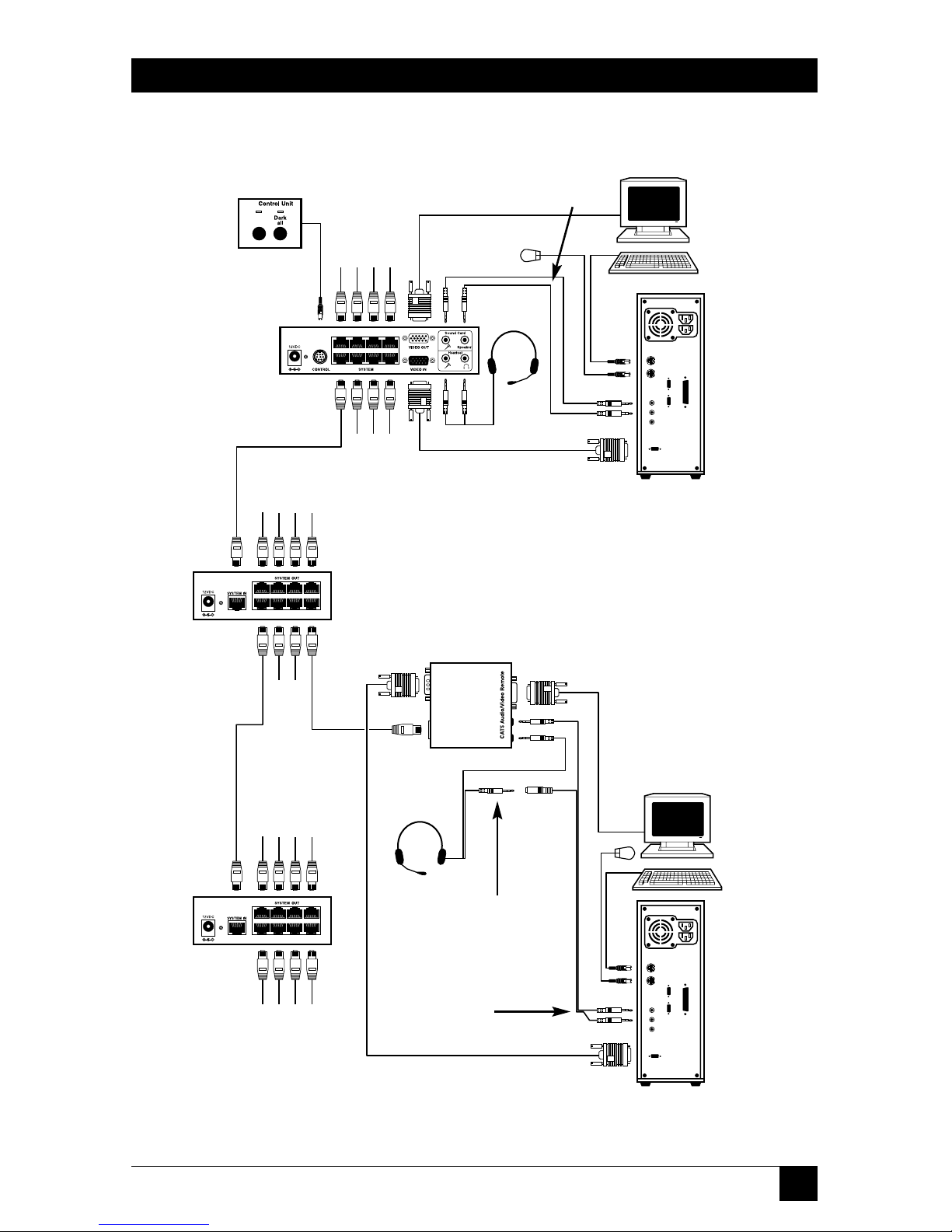

3.8 Detailed Connections
To microphone
port
To
mic.
port
To speaker
port
To speaker port
Video cab e
Video cab e
Audio
cab e
Remote
unit
Remote
computer
Audio
cab es
Broadcaster
unit
Broadcaster
computer
CAT5 cab es to
Remote units
or Sp itters
Contro unit
CAT5 cab es to
Remote units
or Sp itters
CAT5 cab es to
Remote units
or Sp itters
CAT5 cab es to
Remote units
CAT5 cab es to
Remote units
CAT5 cab es to
Remote units
or Sp itters
Pink connector to
microphone port;
Orange connector
to speaker port
Microphone
connector to pink
audio cab e connector
Sp itter
Sp itter
Sp itter
Broadcast
to a

16
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
3.9 System Configuration without Remote Computers
Contro unit
Audio cab es
Video cab e
Broadcaster
computer
CAT5 cab es to
Remote unit or
Sp itters
CAT5 cab es to
Remote unit or
Sp itters
CAT5 cab es to
Remote unit or
Sp itters
CAT5 cab es to
Remote unit

17
4. Operation
Once connected, the CAT5 Audio/Video System broadcasts to all monitors/
speakers.
4.1 The Control Unit
The control unit, which is included with the 8-Port Broadcaster, is shown below.
Figure 4-1. Control unit.
With the control unit, you can carry out the following functions: Master to all or
Dark all.
4.1.1 B ROADCAST TO A LL
Press the Broadcast to all button to send the Broadcaster’s screen with audio to all
remote monitors/speakers. The LED above the button will light.
Press the button again to release the remote screens.
4.1.2 D ARK A LL
Press the Dark all button to darken all remote screens. The LED above the button
will light. (This does not affect audio broadcasting.)
Press the button again to release the remote screens.
4.2 Adjusting the Picture Quality
To adjust the picture quality, use a small screwdriver to turn the Picture adjuster on
the Remote unit. (See Figure 3-3 in Chapter 3.)
CHAPTER 4: Operation
To Broadcaster
unit’s contro port
Broadcast
to a

18
CAT5 AUDIO/VIDEO 8-PORT BROADCASTER, SPLITTER, AND REMOTE
Appendix. Troubleshooting
A.1 Calling Black Box
If you determine that any component of your CAT5 Audio/Video System is
malfunctioning, do not attempt to alter or repair the unit. It contains no user-
serviceable parts. Contact Black Box at 724-746-5500.
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or
make it worse.
A.2 Shipping and Packaging
If you need to transport or ship any component of your CAT5 Audio/Video
System:
• Package it carefully. We recommend that you use the original container.
• If you are shipping any component of your CAT5 Audio/Video System for
repair, make sure you include everything that came in the original package.
Before you ship, contact Black Box to get a Return Authorization (RA)
number.

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 2002. Black Box Corporation. All rights reserved.
