Black Box AVSP-DVI1X2 User manual

BL A C K B O X®
Broadcast the same video plus audio signal source
to two, four, or eight DVI compatible outputs.
Support DVI display resolutions of up to Full HD (1920 x 1080), WUXGA
(1920 x 1200), and UXGA (1600 x 1200).
Splitters are Blu-ray ready.
1 x 2, 1 x 4, and 1 x 8 DVI Splitters
AVSP-DVI1X2
AVSP-DVI1X4
AVSP-DVI1X8
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days a
week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2 AVSP-DVI1X2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of BB
Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com Page 3
AVSP-DVI1X2
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.

724-746-5500 | blackbox.com
Page 4 AVSP-DVI1X2
NOM Statement
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.

724-746-5500 | blackbox.com Page 5
AVSP-DVI1X2
NOM Statement
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Page 6 AVSP-DVI1X2
Table of Contents
Table of Contents
1. Specifications.................................................................................................... 7
2. Overview ...................................................................................................... 8
2.1 Introduction............................................................................................. 8
2.2 Features ................................................................................................... 8
2.3 What’s Included ...................................................................................... 9
2.4 Optional Items You Might Need ............................................................. 9
2.5 Hardware Requirements.......................................................................... 9
2.6 Hardware Description............................................................................ 10
2.6.1 AVSP-DVI1X2 .............................................................................. 10
2.6.2 AVSP-DVI1X4 .............................................................................. 11
2.6.3 AVSP-DVI1X8 .............................................................................. 13
3. Installation .................................................................................................... 15
4. Operation .................................................................................................... 19
Appendix. Troubleshooting.................................................................................... 21
A.1 Symptoms, Possible Causes, and Solutions........................................... 21
A.2 Contacting Black Box ............................................................................ 22
A.3 Shipping and Packaging........................................................................ 22

724-746-5500 | blackbox.com Page 7
AVSP-DVI1X2
Chapter 1: Specifications
1. Specifications
Cable Length (Max.) — 32.8 ft. (10 m)
Enclosure — Metal
Max. Video Resolution/Signal Type — Full HD 1080p (1920 x 1080)/VGA
(640 x 480)/SXGA (1280 x 1024)/UXGA (1600 x 1200)/WUXGA (1920 x 1200)
Number of Video Outputs — AVSP-DVI1X2: 2;
AVSP-DVI1X4: 4;
AVSP-DVI1X8: 8
Rackmountable (optional) — AVSP-DVI1X2: N/A;
AVSP-DVI1X4: Yes;
AVSP-DVI1X8: Yes
Connectors — AVSP-DVI1X2: Input: (1) DVI female, (1) set of audio jacks,
Output: (2) DVI female, (2) 3.5-mm audio output;
AVSP-DVI1X4: Input: (1) DVI female, (1) set of audio jacks,
Output: (4) DVI female, (4) 3.5-mm audio output;
AVSP-DVI1X8: Input: (1) DVI female, (1) set of audio jacks,
Output: (8) DVI female, (8) 3.5-mm audio output
Indicators — AVSP-DVI1X2: (3) LEDs: (1) dual-color LED: Power active, Video OK,
(2) Video output LEDs;
AVSP-DVI1X4: (5) LEDs: (1) dual-color LED: Power active, Video OK,
(4) Video output LEDs;
AVSP-DVI1X8: (9) LEDs: (1) dual-color LED: Power active, Video OK,
(8) Video output LEDs
Power — Operating Voltage: 9 VAC (accepts 9–12 VDC);
Consumption (Max.) — AVSP-DVI1X2: 2.8 W;
AVSP-DVI1X4: 4.1 W;
AVSP-DVI1X8: 10.2 W
Size — AVSP-DVI1X2: 0.8"H X 7.1"W x 3.4"D (2 x 18 x 8.5 cm);
AVSP-DVI1X4: 1.7"H x 8.7"W x 5.3"D (4.4 x 22 x 13.5 cm);
AVSP-DVI1X8: 1.7"H x 17.2"W x 7.1"D (4.4 x 43.8 x 18 cm)

724-746-5500 | blackbox.com
Page 8 AVSP-DVI1X2
Chapter 2: Overview
2. Overview
2.1 Introduction
The DVI Splitters broadcast the same video with audio signals from one video (and
audio) signal source to two, four, or eight DVI compatible ports. To expand the
broadcast significantly, you can cascade several splitters together.
Depending on the length and cable quality, this fully HDCP-compliant splitter
supports DVI display resolutions of up to Full HD (1920 x 1080)/WUXGA (1920 x
1200)/UXGA (1600 x 1200), and is also Blu-ray ready. You don’t need to install
software or interface cards. Just connect the cables, power up the system and it will
duplicate video images for multiple monitors with excellent clarity. The 4- and
8-port splitters can also be rackmounted.
Use the spitters for presentations, exhibits, demonstrations, trade shows, monitor
testing and burn-in, business meetings, news, stock tickers, airline/train/bus
schedules, and retail stores.
2.2 Features
• Duplicates one video input to multiple DVI outputs.
• Saves power when signal input is lost.
• You can cascade operation for increased signal outputs.
• Provides crisp, clear, video images.
• Supports EDID, HDCP, and is Blu-ray ready for high definition display.
• Supports DVI display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x
1200), and Full HD 1080p (1920 x 1080).
• Rackmountable (AVSP-DVI1X4 and AVSP-DVI1X8 models only).
• LED indicators for signal activity monitoring
• Accurately and reliably reproduces digital video signals without attenuation and
distortion.
• Installs in seconds.

724-746-5500 | blackbox.com Page 9
AVSP-DVI1X2
Chapter 2: Overview
2.3 What’s Included
Your package should include the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or [e-mail].
• (1) 2-, 4-, or 8-Port Video + Audio Splitter
• (1) power adapter with AC cord or (1) plug-in power adapter
• (1) user’s manual
• (1) set of foot pads
• (1) set of rackmount brackets (AVSP-DVI1X8 only)
2.4 Optional Items You Might Need
• (1) set of rackmount brackets (for AVSP-DVI1X4)
• (1) 6-ft. (1.8-m) male to male HDMI to DVI cable
• (1) 6-ft. (1.8-m) male to male DVI Cable for DVI source connection
• Audio Cables
• DVI-to-HDMI Adapter
• HDMI-to-DVI Adapter
2.5 Hardware Requirements
• Video sources (ex. PS3, Blu-ray, DVD players, etc.), with DVI-D, and audio output
• DVI cables
• HDCP-complaint display devices (ex. TVs, monitors, projectors, etc.) for the HDCP
video source (optional)
• Speakers for audio

724-746-5500 | blackbox.com
Page 10 AVSP-DVI1X2
Chapter 2: Overview
2.6 Hardware Description
2.6.1 AVSP-DVI1X2
1 2 3 4
Figure 2-1. AVSP-DVI1X2 top panel.
5 6 5 6 7 8
Figure 2-2. AVSP-DVI1X2 back panel.

724-746-5500 | blackbox.com Page 11
AVSP-DVI1X2
Chapter 2: Overview
Table 2-1. AVSP-DVI1X2 components.
Number Component Description
1Port 1 LED Lights when there is activity on Port 1.
2Port 2 LED Lights when there is activity on Port 2.
3 Power input LED Lights when power is connected.
4Power connector Connects to AC power source.
5(2) DVI connectors Link to output monitors..
6(2) audio connectors Connect to audio output.
7DVI connector Connects to input source.
8(1) audio connector Connects to audio input.
2.6.2 AVSP-DVI1X4
1 2

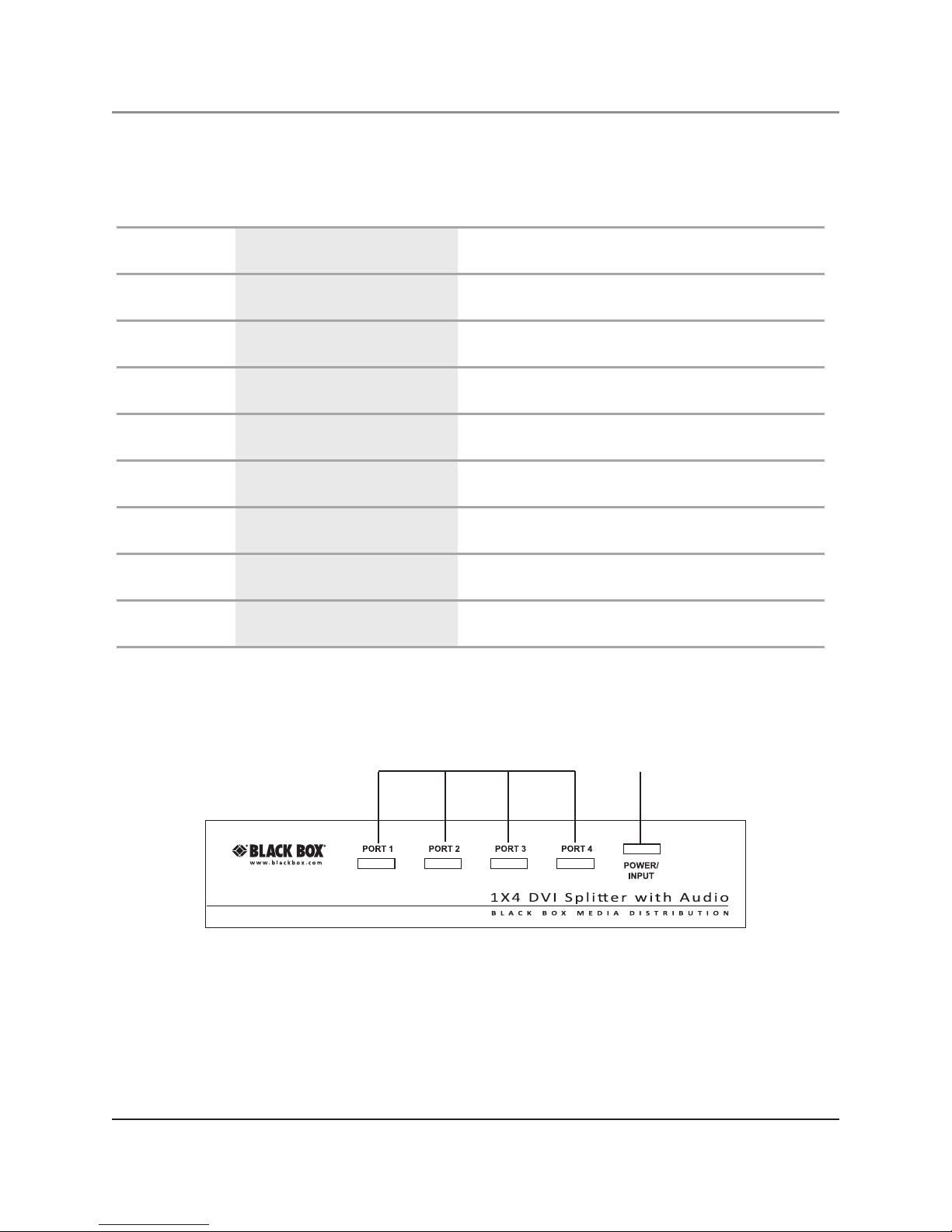

Figure 2-3. AVSP-DVI1X4 front panel.

724-746-5500 | blackbox.com
Page 12 AVSP-DVI1X2
Chapter 2: Overview
6 7
3 4 5
Figure 2-4. AVSP-DVI1X4 back panel.
Table 2-2. AVSP-DVI1X4 components.
Number Component Description
1Ports 1–4 LEDs Light when there is activity on Ports 1–4.
2 Power input LED Lights when power is connected.
3Power connector Connects to AC power source.
4DVI connector Connects to input source.
5(4) DVI connectors Link to output monitors.
6Audio connector Connects to audio input.
7(4) audio connectors Connect to audio outputs.

724-746-5500 | blackbox.com Page 13
AVSP-DVI1X2
Chapter 2: Overview

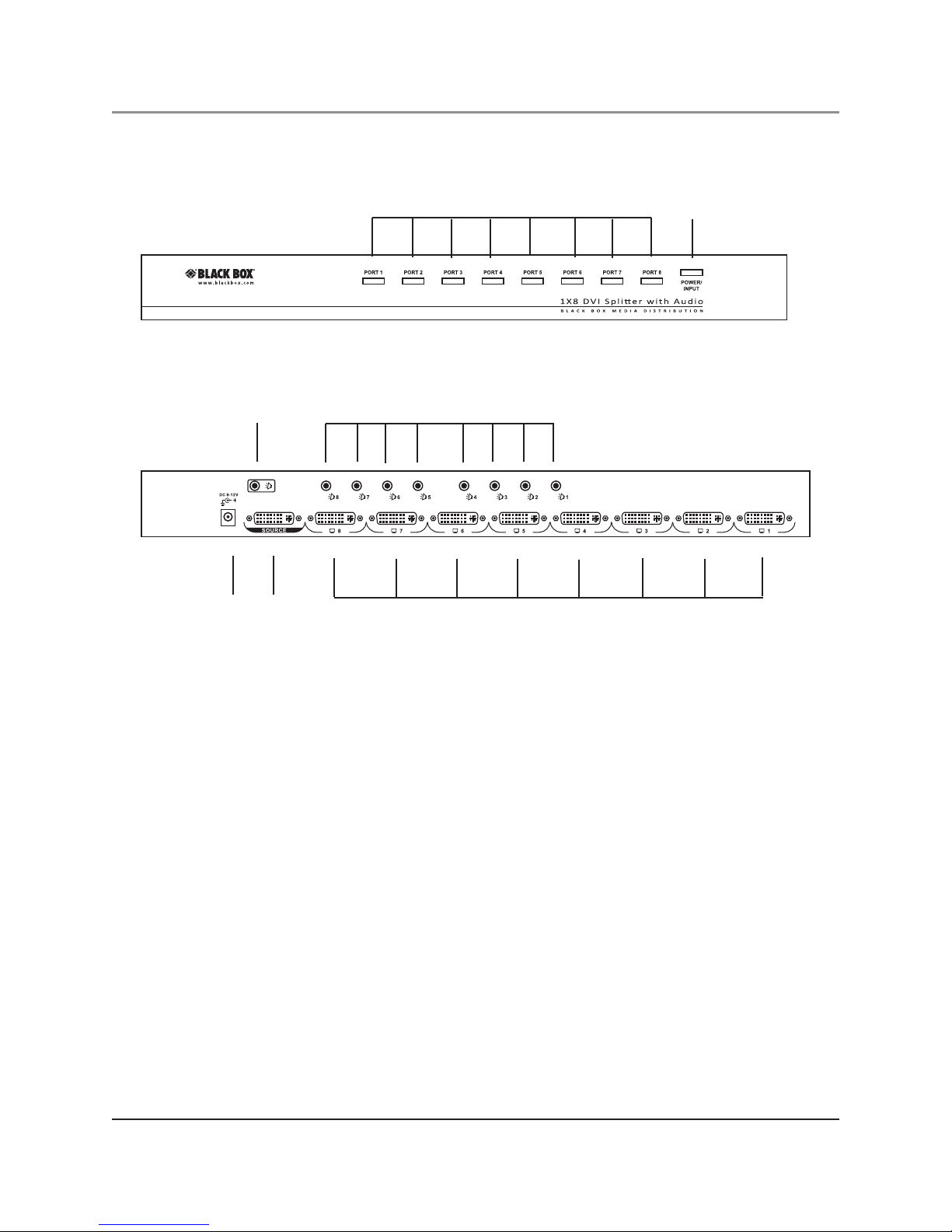

2.6.3 AVSP-DVI1X8
1 2
Figure 2-5. AVSP-DVI1X8 front panel.
6 7
3 4 5
Figure 2-6. AVSP-DVI1X8 back panel.

724-746-5500 | blackbox.com
Page 14 AVSP-DVI1X2
Chapter 2: Overview
Table 2-3. AVSP-DVI1X8 components.
Number Component Description
1Ports 1–8 LEDs Light when there is activity on Ports 1–8.
2 Power input LED Lights when power is connected.
3Power connector Connects to AC power source.
4DVI connector Connects to input source.
5(8) DVI connectors Link to output monitors.
6Audio connector Connects to audio input.
7(8) audio connectors Connect to audio outputs.

724-746-5500 | blackbox.com Page 15
AVSP-DVI1X2
Chapter 3: Installation
3. Installation
WARNING: Before installation, power off all devices that will be connected to this
system.
• Make sure that all devices you will connect are properly grounded.
• Place cables away from fluorescent lights, air conditioners, and machines that are
likely to generate electrical noise.
Use one DVI male-to-male cable to connect a video source to the video splitter Input
(SOURCE). Connect multiple monitors or TVs to the video splitter’s output ports.
Plug a set of audio jacks from the speaker to the splitter’s audio port.
Use a DVI-to-HDMI adapter that combines digital video (DVI) and digital audio into
HDMI to seamlessly integrate into your computer systems or modern home theater.
Simply connect the optional DVI-to-HDMI adapter(s) to the output side of the
splitter, and then connect the HDMI display or projector to the HDMI output of the
DVI-to-HDMI adapter.
The adapter will convert the digital audio onto the digital video signal to generate
the HDMI signal.
Turn on your video source only after you've made all the connections.
Figure 3-1. AVSP-DVI1X2 connection.

724-746-5500 | blackbox.com
Page 16 AVSP-DVI1X2
Chapter 3: Installation

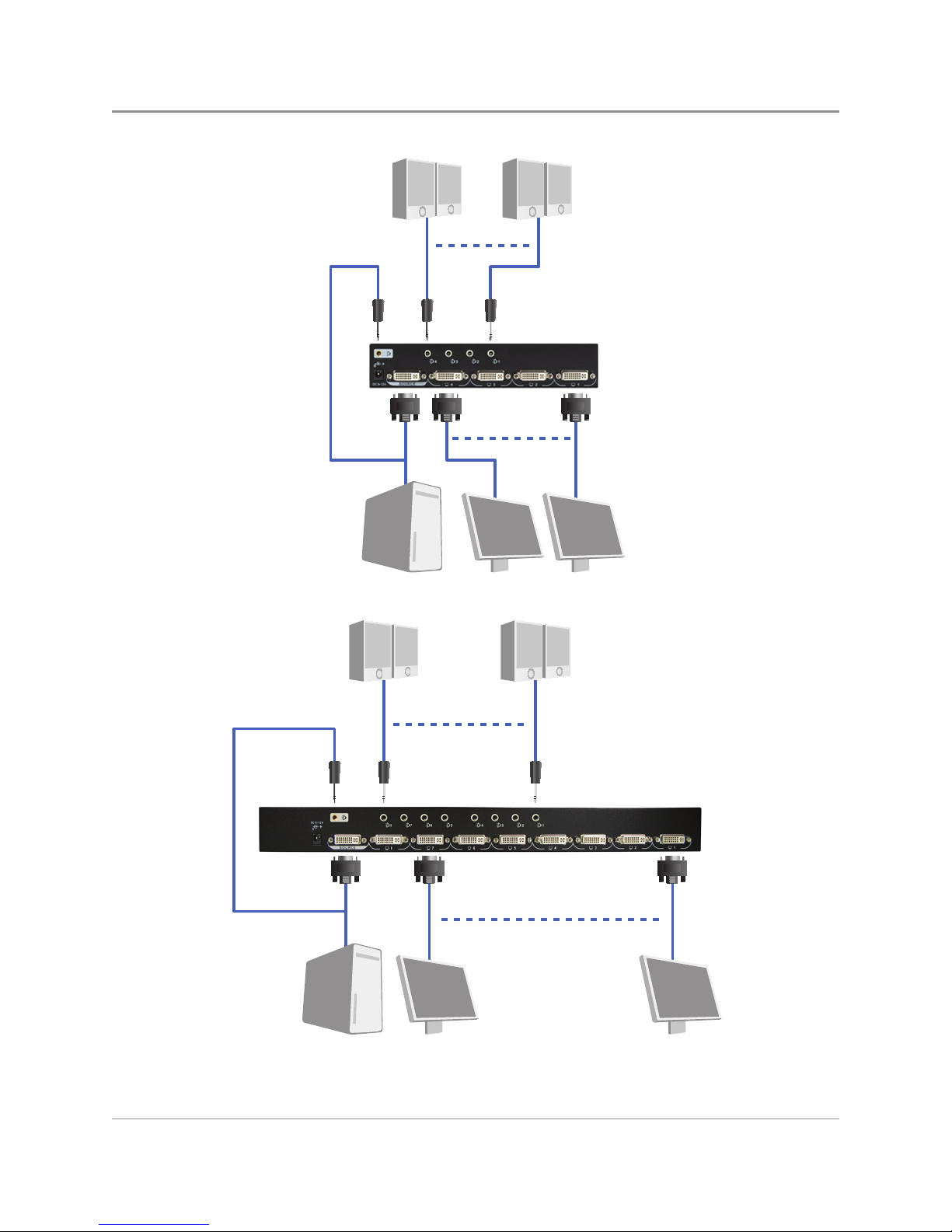

Figure 3-2. AVSP-DVI1X4 connection.
Figure 3-3. AVSP-DVI1X8 connection.

724-746-5500 | blackbox.com Page 17
AVSP-DVI1X2
Chapter 3: Installation
NOTE: Connect at least one monitor to the splitter before powering on the source
device.
NOTE: Connect the splitter to the computer before powering on the computer.
NOTE: Use an HDCP-compliant display to connect the splitter to the HDCP video
source.
NOTE: Each output port on the unit is required to apply the same connection
pattern whenever a DVI-to-HDMI (or HDMI-to-DVI) adapter is used for HDMI
(or DVI) signal conversion between the unit and the HDMI (or DVI) display.
Mixed (HDMI and DVI) output connections may cause signal degradation.
Signal degradation, harmful interference, or equipment malfunction are less
likely to occur if absolute connection consistency is used.

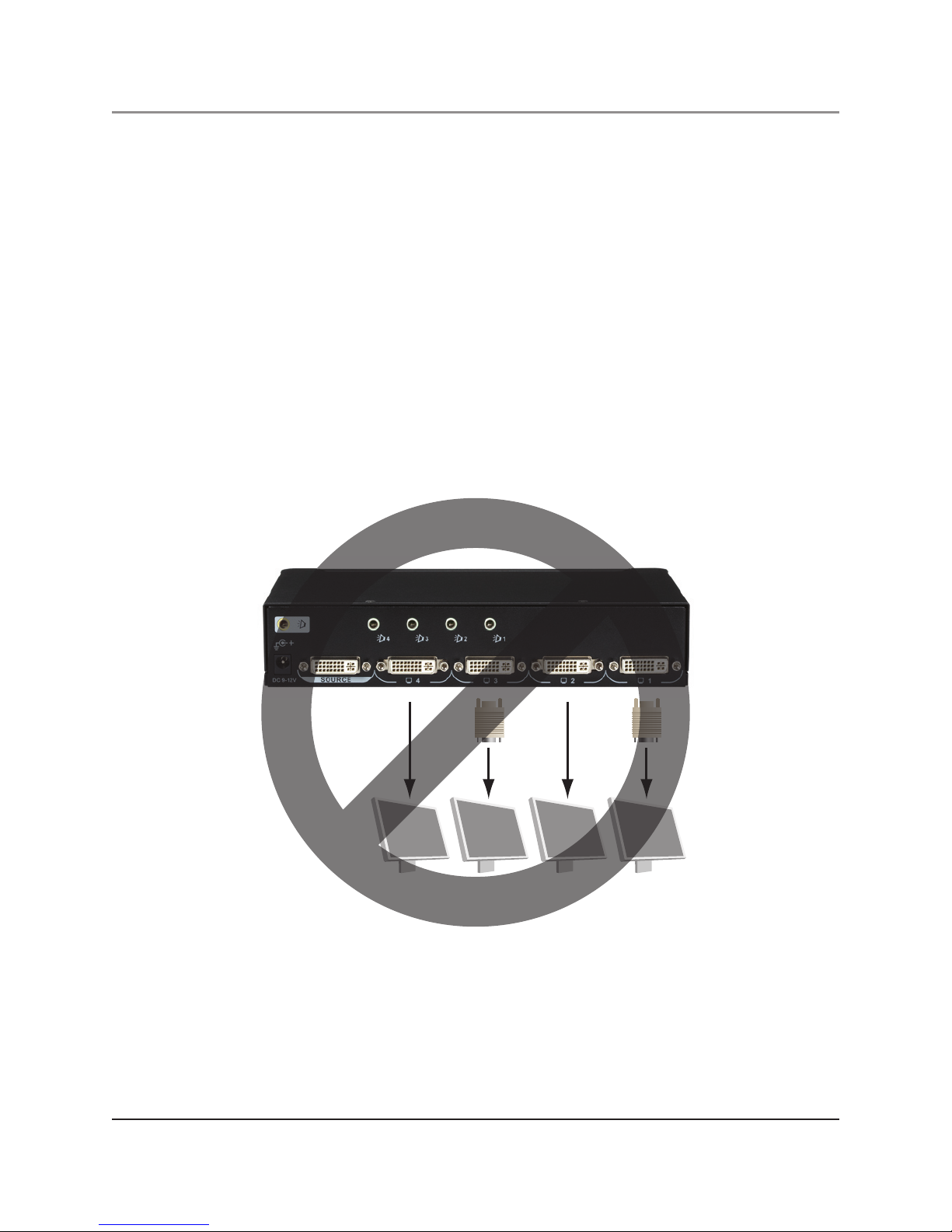

Figure 3-4. Do NOT use the mixed connection pattern shown in this diagram.
Blu-ray Ready
The splitter supports high-definition video such as DVD or Blu-ray and multichannel
audio, and carries the best signal from the source to displays; the high bandwidth
enables transmission of large amounts of information at a very high rate of speed.

724-746-5500 | blackbox.com
Page 18 AVSP-DVI1X2
Chapter 3: Installation
Blu-ray uses a blue-violet laser to read and write data, while current optical disc
technologies such as DVD, DVD±R, DVD±RW, and DVDRAM rely on a red laser to
read and write data. Blu-ray uses a blue-violet laser (405 nm) that it has a shorter
wavelength than a red laser (650 nm), which makes it possible to focus the laser
spot with even greater precision. This enables data to be packed more tightly and
stored in less space, so it’s possible to fit more data on the disc even though it’s the
same size as a CD/DVD.

724-746-5500 | blackbox.com Page 19
AVSP-DVI1X2
Chapter 4: Operation
4. Operation
The quality of the output signal depends largely upon the quality of the video
source, cable, and display device used. Low-quality cables degrade the output signal
causing elevated noise levels. Use the proper cable and make sure the display device
is capable of handling the resolution and refresh rate selected. Interference from
nearby electrical devices can adversely affect signal quality.
Table 4-1. LED display.
Number Color Description
1
Green Power on LED
Blue Video signal OK LED
2Yellow Video output signal LEDs
2 1
Figure 4-1. AVSP-DVI1X2.

724-746-5500 | blackbox.com
Page 20 AVSP-DVI1X2
Chapter 4: Operation
2 1
Figure 4-2. AVSP-DVI1X4.
2 1
Figure 4-3. AVSP-DVI1X8.
NOTE: Connect at least one display device to the splitter before you power on the
source unit.
