Black Box ACS1009A-xx User manual

ACS1009A-xx
ACS2209A-xx
ACS4001A-xx
ACS4201A-xx
DVI-D-Fiber-KVM-Extender
SingleHead and DualHead
Manual
http://www.blackbox.com

DVI-D FIBER KVM-EXTENDER
2
Welcome to the DVI-D Fiber KVM-Extender
Family!
Thank you for purchasing an DVI-D Fiber KVM-Extender! We appreciate your business, and
we think you’ll appreciate the many ways that your enhanced RGB Graphic system will save
you money, time, and effort.
That’s because our DVI-D Fiber KVM-Extender is all about breaking away from the
traditional model of attaching a new display to DVI graphic source. Using the DVI-D Fiber
KVM-Extender, you can remotely locate monitor, keyboard and mouse up to 10km away
from your CPU.
Wherever long distances are required, e.g. airports, industrial plants, call- centres or in
distributed computer centres, the DVI-D Fiber KVM-Extender is the best way, to solve all
problems in remotely locating your console. 8 different types are available: Singlehead and
Dualhead devices for PS2 keyboard/mouse and Singlehead and Dualhead devices for USB
keyboard/mouse – all types either for Singlemode or Multimode fibers.
This manual will tell you all about your new DVI-D Fiber KVM-Extender, including how to
install, operate, and troubleshoot it. For an introduction to the Converter, see Chapter 2. The
Converter product codes covered in this manual are:
ACS1009A-MM: KVM-Extender Singlehead DVI-D, PS2-K/M – Multimode Fibers
ACS2209A-MM: KVM-Extender Dualhead DVI-D, PS2- K/M – Multimode Fibers
ACS4001A-MM: KVM-Extender Singlehead DVI-D, USB- K/M – Multimode Fibers
ACS4201A-MM: KVM-Extender Dualhead DVI-D, USB- K/M – Multimode Fibers
ACS1009A-SM: KVM-Extender Singlehead DVI-D, PS2-K/M – Singlemode Fibers
ACS2209A-SM: KVM-Extender Dualhead DVI-D, PS2- K/M – Singlemode Fibers
ACS4001A-SM: KVM-Extender Singlehead DVI-D, USB- K/M – Singlemode
Fibers
ACS4201A-SM: KVM-Extender Dualhead DVI-D, USB- K/M – Singlemode Fibers

DVI-D FIBER KVM-EXTENDER
3
Copyrights and Trademarks
©2007. All rights reserved. This information may not be reproduced in any manner without
the prior written consent of the manufacturer.
Information in this document is subject to change without notice and the manufacturer shall
not be liable for any direct, indirect, special, incidental or consequential damages in
connection with the use of this material.
All trademark and trade names mentioned in this document are acknowledged to be the
property of their respective owners.
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer
assumes no responsibility for errors or omissions. Neither does the manufacturer assume any
liability for damages resulting from the use of the information contained herein. The
manufacturer reserves the right to change the specifications, functions, or circuitry of the
product without notice.
The manufacturer cannot accept liability for damage due to misuse of the product or due to
any other circumstances outside the manufacturer’s control (whether environmental or
installation related). The manufacturer shall not be responsible for any loss, damage, or injury
arising directly, indirectly, or consequently from the use of this product.
Cautions and Notes
The following symbols are used in this guide:
CAUTION. This indicates an important operating instruction
that should be followed to avoid any potential damage to
hardware or property, loss of data, or personal in ury.
NOTE. This indicates important information to help you make the best use of
this product.

DVI-D FIBER KVM-EXTENDER
4
.

DECLARATION OF CONFORMITY
5
EUROPEAN UNION DECLARATION OF CONFORMITY
This is to certify that, when installed and used according to the instructions in this
manual, together with the specified cables and the maximum cable length <3m, the
Units:
ACS1009A-MM, ACS2209A-MM
ACS4001A-MM, ACS4201A-MM
ACS1009A-SM, ACS2209A-SM
ACS4001A-SM, ACS4201A-SM
are shielded against the generation of radio interferences in accordance with the
application of Council Directive 89/336/EEC as well as these standards:
EN 55022: 1999 Class A
EN 55024: 1999
IEC 61000-4-2: 2001
IEC 61000-4-3: 2001
IEC 61000-4-4: 2001
EN 61000-3-2 2001
EN 61000-3-3 2002
The device was tested in a typical configuration with PC.
This equipment has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

DVI-D FIBER KVM-EXTENDER
6
Safety Precautions and Installation Guidelines
To ensure reliable and safe long-term operation, please note the following installation
guidelines:
•Only use in dry, indoor environments.
•If the building has 3-phase AC power, try to ensure that equipment connected to the
Local and Remote units is on the same phase.
•The Remote unit, Local unit and any power supplies can get warm. Do not locate them
in an enclosed space without any airflow.
•Do not place a power supply directly on top of a unit.
•Do not obstruct a unit’s ventilation existing holes.
To safeguard against personal in ury and avoid possible
damage to equipment or property, please observe the
following:
•Only use power supplies originally supplied with the
product or manufacturer-approved replacements. Do not
attempt to dismantle or repair any power supply. Do not
use a power supply if it appears to be defective or has a
damaged case.
•Connect all power supplies to grounded outlets. In each
case, ensure that the ground connection is maintained
from the outlet socket through to the power supply’s AC
power input.
•Do not attempt to modify or repair this product, or make
a connection from the Fiber link interface (LC) to any
other products, especially telecommunications or
network equipment.

TABLE OF CONTENTS
7
Contents
1. Quick Setup 8
2. Overview 9
2.1 Introduction 9
2.2 Glossary 9
2.3 Features 11
2.4 Product Range 12
2.5 Compatibility 13
2.6 How to Use This Guide 13
3. Installation 15
3.1 Package Contents 15
3.2 Interconnection Cable Requirements 16
3.3 System Setup 17
3.4 Diagnostic LEDs 24
4. Troubleshooting 25
Appendix A: Example Applications 27
Appendix B: Rack Mount Options 29
Appendix D: Calling Technical Support 31
Appendix E: Specifications 33
Appendix F: Connectors 35

DVI-D FIBER KVM-EXTENDER
8

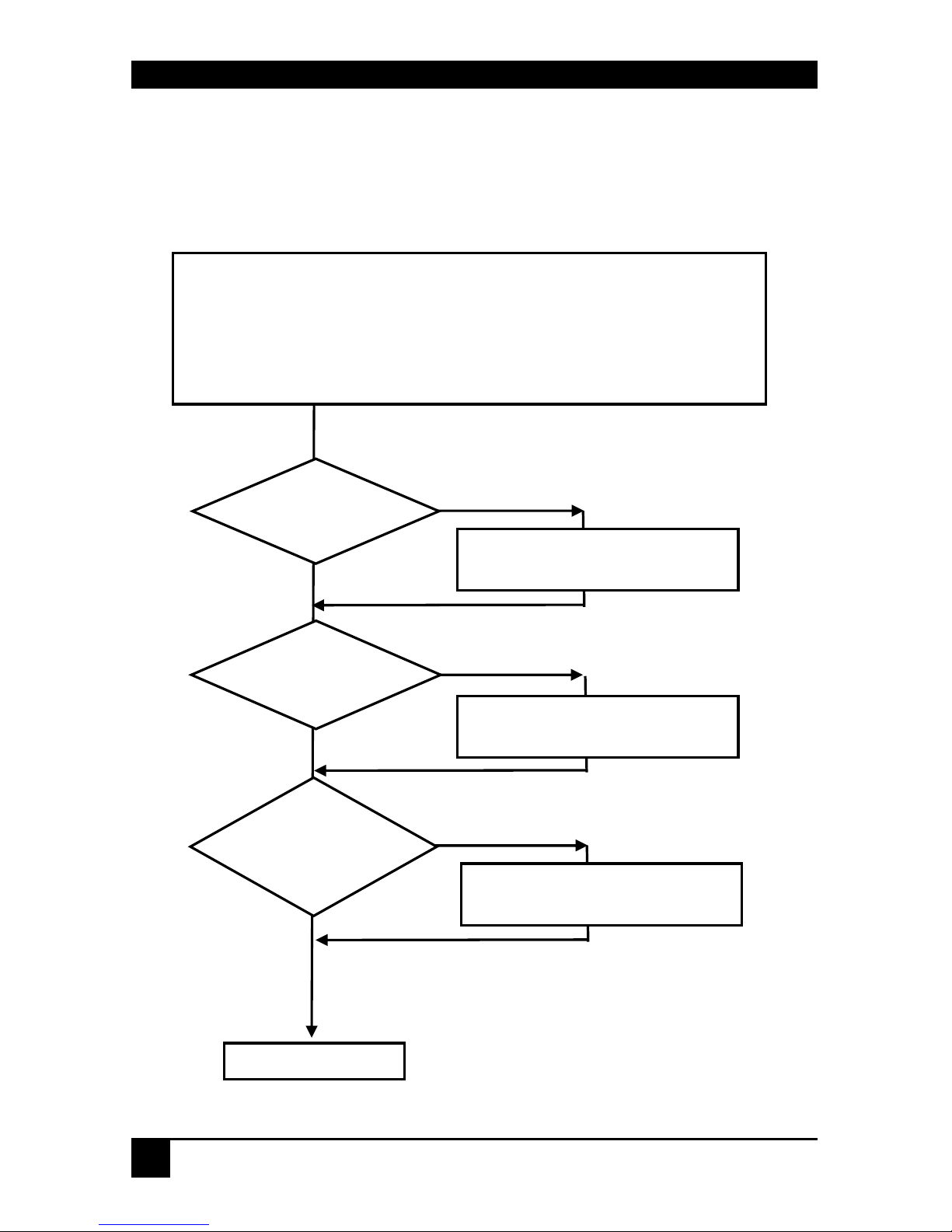

1. Quick Setup
This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of
this manual.
Install system
1. Connect Remote unit to KVM.
2. Connect Local unit to CPU or switch.
3. Connect Local and Remote units with matching interconnection cable
(Fiber).
4. Power up the system.
Done
YES
NO
Link LED
illuminated ?
NO
NO
YES
Check p.s.u.’s and connection
to power outlet
Power LED
illuminated?
Check the Fiber cable, and
Fiber connectors
Check settings of graphic card
or boot CPU
Video OK
LED ?
illuminated ?
YES

OVERVIEW
9
2. Overview
2.1 Introduction
A Fiber KVM Extender is mainly used, to extend the maximum distance between a CPU
and his Keyboard / Monitor / Mouse considerably. In addition they are beneficial in
installations in electromagnetic hazardous environments (EMI). Normal Keyboard-/
Monitor-/ Mouse extender cables (and Extender using traditional cables) cannot go so far
and EMI interferences may reduce the maximum distance and/or reliability. Using a
DVI-D Fiber Extender system, these limitations are past. Retain your CPU in a secure
rack cabinet or data center while accessing from a 10km remotely located place.
A basic KVM extension system comprises a Local unit (transmitter) and a Remote unit
(receiver). The Local unit connects directly to the computer (or a KVM switch system) using
the supplied cable(s). The user console (keyboard, mouse and monitor) attaches to the
Remote unit. The Remote and Local units communicate video and data information along the
interconnecting cable. Local units offer dual access, allowing the connection of a second user
console close to the computer.
2.2 Glossary
The following terms are used in this guide:
Fiber Singlemode or Multimode fiber cable.
Singlemode 9µ Singlemode-fiber cable
Mulitmode 62,5µ Multimode- or
50µ Multimode-fiber cable
KVM Keyboard, Video and Mouse.
Console Keyboard, Mouse and Monitor
Dual Access A system allowing connection of Local and Remote user consoles.
Singlehead An extender system that supports one monitor + Keyboard/Mouse
Dualhead An extender system that supports two monitors + Keyboard/Mouse
DVI Digital Video standard, installed by Digital Display Working Group
(www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x 1,6 Gbit/sec. Signals are TMDS Level.
PSU The desktop power supply connected to the Local/Remote unit.
HID Human Interface Devices are units, which are used for human access
to the CPU. They are a USB-device class of its own (e.g. Memory
Devices etc.). Besides of keyboard and mouse also touchscreen, light
pen, fingerprint sensor, graphic tablets etc. are HID devices

DVI-D FIBER KVM-EXTENDER
10

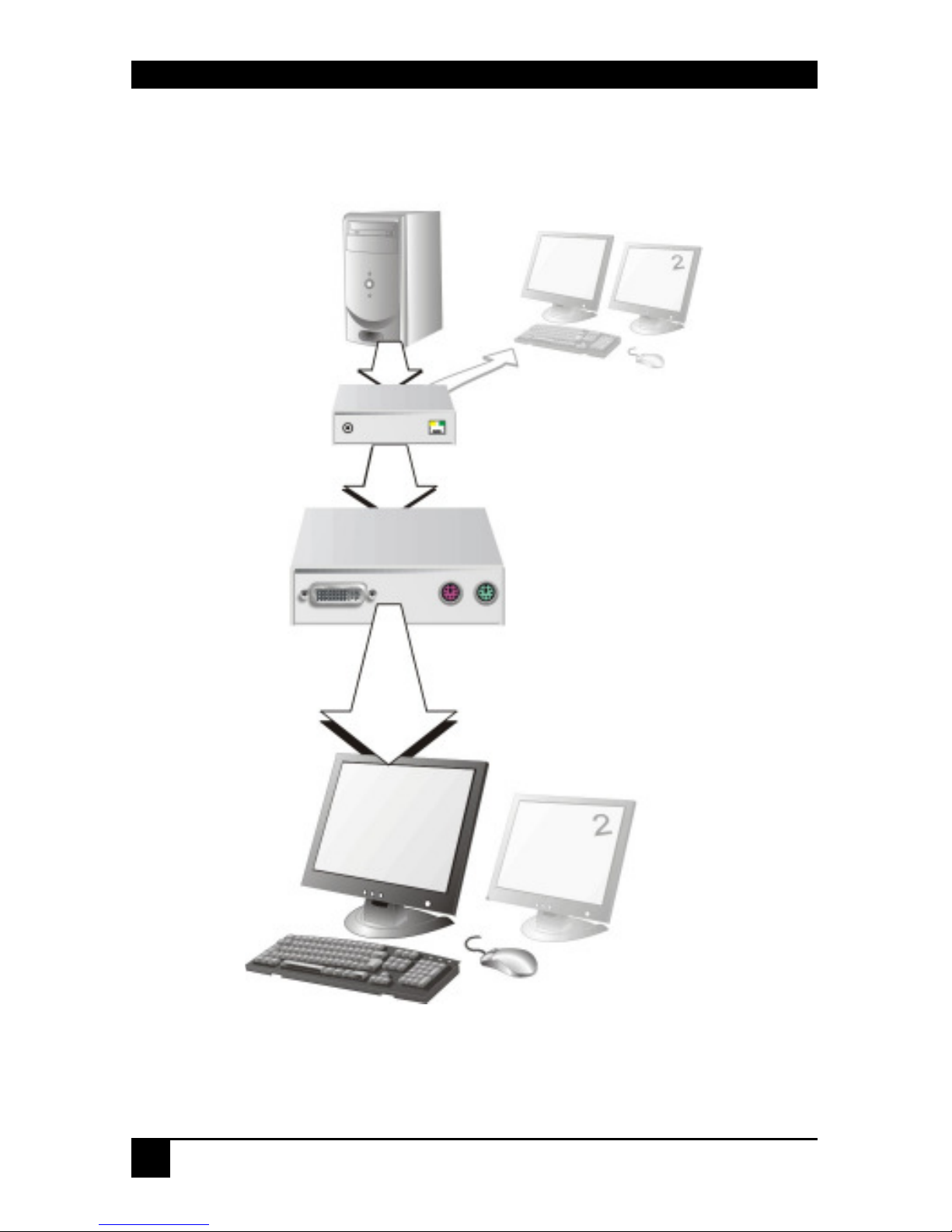

DVI-D Fiber – KVM Extender system (example)
CPU with DVI
-
D
Graphic card
DVI
-
D
Fiber
KVM
-
Extender system
Local Console
Remote Console
Optional
2. Monitor
Option
al
2. Monitor
