Black Box LBNC300A User manual

BL A C K B O X®
Extend one Ethernet channel over existing coaxial
cable.
10/100BASE-TX Ethernet over Coax Extender User’s Manual
LBNC300A
LBNC300AE
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 2
FEDERAL COMMUNICATIONS COMMISSION
AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE
STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residen-
tial area is likely to cause interference, in which case the user at his own expense
will be required to take whatever measures may be necessary to correct the i
nterference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compat-
ibility, EN 55022 class A for ITE, the essential protection requirement of Council
Directive 89/336/EEC on the approximation of the laws of the Member States relat-
ing to electromagnetic compatibility.

724-746-5500 | blackbox.com
NOM Statement
Page 3
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo
descrito en el instructivo de operación, o como se indique en el aparato.

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 4
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Trademarks Used in this Manual
Page 5
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 6
Table of Contents
Chapter Page
1. Specifications......................................................................................................... 7
2. Overview .............................................................................................................. 8
2.1 Introduction ................................................................................................. 8
2.2 Features........................................................................................................ 8
2.3 What’s Included........................................................................................... 8
2.4 Hardware Description .................................................................................. 9
2.4.1 Front Panel......................................................................................... 9
2.4.2 Back Panel ....................................................................................... 10
2.4.3 Top Panel..........................................................................................11
3. Installation...........................................................................................................12
3.1 Selecting a Site for the Equipment .............................................................12
3.2 Desktop Installation ....................................................................................12
3.3 Rackmount Installation ...............................................................................12
3.4 Installing Network Cables...........................................................................12
3.5 Network Extension Application..................................................................13

724-746-5500 | blackbox.com
Chapter 1: Specifications
Page 7
1. Specifications
Emissions: FCC Part 15, Class A; EN61000-6-3, EN55022, EN61000-3-2,
EH610000-3-3
Environmental Test Compliance: IEC60068-2-6 Fc (vibration resistance,
IEC60068-2-27 Ea (shock), IEC60068-2-32 (free fall)
Speed: 10BASE-T: 10-/20-Mbps for half-/full-duplex;
100BASE-TX: 100-/200-Mbps for half-full-duplex;
Ethernet Extender: 1, 5, 10, 20, 30, 40, 50, 60, 70, 75 Mbps
Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, Ethernet over VDSL
Connectors: 10-/100-Mbps Ethernet port: (1) RJ-45, Ethernet Extender port: (1) BNC
Indicators: Per unit: (12) LEDs: Unit: Pwr;
Ethernet: Lnk/Act, Fdx;
Line: Rmt, Err, Loc, Lnk;
Speed: 1, 2, 3, 4, 5
Temperature Tolerance: Operating: +14 to +140° F (-10 to +60° C);
Storage: -4 to +158° F (-20 to +70° C)
Operating Humidity: 5 to 95%, noncondensing
Power: LBNC300A: 100–240 VAC, 50–60 Hz, 12 VDC, 0.5 A, 6 W max.;
LBNC300AE: 100–240 VAC, 50–60 Hz, 12 VDC, 1A, 12 W max.
Size: 0.94"H x 3.2"W x 4.3"D (2.4 x 8 x 10.9 cm)
Weight: 0.3 lb. (0.2 kg)

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 8
2. Overview
2.1 Introduction
The LBNC300A provides one channel for Ethernet over existing coaxial cabe. Use it
as a standalone device or with a chassis.
2.2 Features
• Complies with EN61000-6-2 & EN61000-6-3 EMC generic standard immunity for
Industrial environment.
• Operates transparent to higher-layer protocols.
• One Ethernet port (RJ-45 connector): 10-/100-Mbps full-/half-duplex,
auto-negotiation, Auto MDI/MDI-X.
• Complies with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX standards.
• One Ethernet Extender port (BNC connector): Symmetrical on the VDSL, high-
speed, full-duplex 75-Mbps communications link over existing coaxial cable.
• Has BNC to F-Type connector.
• Supports one DIP switch to select local or remote site.
• Ten reference speeds: supports up to 75 Mbps @ about 656 feet (200 meters)
down to 1 Mbps @ about 8530 feet (2600 meters).
• External AC to DC power adapter.
• +14 to +140° F (-10 to +60° C) operating temperature range.
• Hardened aluminum case.
• Supports DIN-rail or wallmounting installation.
• Use as a standalone device or with a chassis. Hot-swappable when used with a
chassis.
2.3 What’s Included
Your package should include the following items. If anything is missing or damaged,
contact Black Box at 724-746-5500 or [e-mail].
LBNC300A: LBNC300AE:
• Ethernet extender • Ethernet extender
• This user’s manual (on CD-ROM) • This user’s manual (on CD-ROM)
• Quick Start Guide (printed) • Quick Start Guide (printed)
• AC to DC power adapter • AC to DC power adapter with EU, UK clips
• BNC to F-Type connector • BNC to F-Type connector

724-746-5500 | blackbox.com
Chapter 2: Overview
Page 9
2.4 Hardware Description
2.4.1 Front Panel
Figure 2-1 shows the Ethernet Extender’s front panel. Table 2-1 describes its
components.
1 5 7 9 2
4 3 6 8
Figure 2-1. Front panel.
Table 2-1. Front-panel components.
Number Component State Description
1 RJ-45 port 10/100 Ethernet connection
2 BNC connector Line connection
3 Pwr LED Steady Power on
Off Power off
4 Lnk/Act LED Steady A valid Ethernet connection is
established
Flashing Transmitting or receiving data
Off Neither a valid Ethernet connection
nor transmitting/receiving Ethernet
data.
5 Fdx LED Steady Ethernet transferring data at 100 Mbps
(full-duplex)
Off Ethernet transferring data at 10 Mbps
(half-duplex)

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 10
Table 2-1 (continued). Front-panel components.
Number Component State Description
6 Rmt LED Steady Device operating in remote mode
7 Loc LED Steady Device operating in local mode
8 Err LED Steady Error occurred
9 Lnk LED Steady A valid connection is established
2.4.2 Back Panel

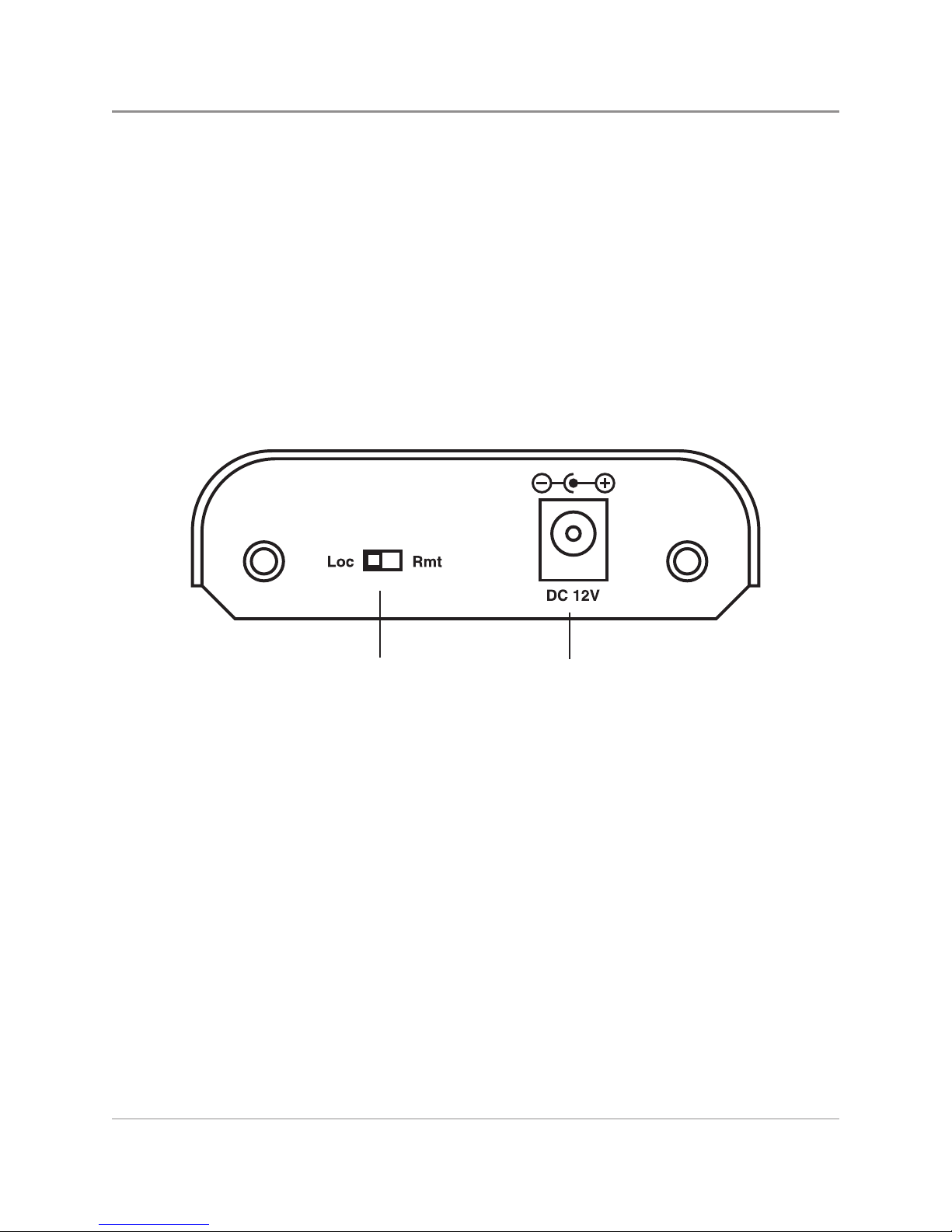

Figure 2-2 shows the extender’s back panel. Table 2-2 describes its components.
10 11
Figure 2-2. Back panel.
Table 2-2. Back panel components.
Number Component Description
10 Loc/Rmt selection switch Select local or remote
11 Barrel connector Attach 12 VDC power cord here

724-746-5500 | blackbox.com
Chapter 2: Overview
Page 11
2.4.3 Top Panel
Figure 2-3 shows the top panel. Table 2-3 describes its indicators.
Figure 2-3. Top panel.
LEDs 1-5 on the top panel indicate the extender’s speeds. See Table 2-3 for details.
Units automatically select the fastest speed for your connection.
Table 2-3. LED indicators on the top panel.
LED Color Description
1 Green Link speed: 1–5 Mbps; Distance: 8530 ft. (2600 m)
Amber Link speed: 6–10 Mbps; Distance: 7874 ft. (2400 m)
2 Green Link speed: 11–16 Mbps; Distance: 6561 ft. (2000 m)
Amber Link speed: 17–20 Mbps; Distance: 5905 ft. (1800 m)
3 Green Link speed: 21–29 Mbps; Distance: 5249 ft. (1600 m)
Amber Link speed: 30–43 Mbps; Distance: 4593 ft. (1400 m)
4 Green Link speed: 44–54 Mbps; Distance: 3937 ft. (1200 m)
Amber Link speed: 55–63 Mbps; Distance: 3280 ft. (1000 m)
5 Green Link speed: 64–74 Mbps; Distance: 1968 ft. (600 m)
Amber Link speed: 75–85 Mbps; Distance: 656 ft. (200 m)

724-746-5500 | blackbox.com
10/100BASE-TX Ethernet over Coax Extender
Page 12
3. Installation
3.1 Selecting a Site for the Equipment
CAUTION: Before you install the switch, we strongly recommend that you:
1. Place the extender within an appropriate ventilation environment. Allow at least
1" (2.5 cm) of space around the unit.
2. Position the extender and the relevant components away from sources of
electrical noise such as radios, transmitters, and broadband amplifiers.
3. Place the extender away from environments beyond the recommended moisture
specifcation (10–90% humidity).
3.2 Desktop Installation
1. Install the extender on a level surface that can support the weight of the unit and
the relevant components.
2. Plug the female end of the provided power cord to the extender and plug the
male end to the power outlet.
3.3 Rackmount Installation
To mount the switch in a rack:
1. Disconnect all the cables from the extender.
2. Place the unit right-side-up on a hard, flat surface with the front facing you.
3. Place a mounting bracket (not included) over the mounting holes on one side of
the unit.
4. Insert the screws and fully tighten with a screwdriver.
5. Repeat the two previous steps for the other side of the unit.
6. Insert the unit into the rack and secure with screws (not included).
7. Reconnect all the cables.
3.4 Installing Network Cables
1. Use crossover or straight-through cable to connect the switch with PCs,
other switches, hubs, and/or routers. All the ports on the extender support
Auto-MDI/MDI-X.
2. Use CAT3, 4, 5, or 5e UTP/STP cables to make a valid connection and obtain
optimal performance. Table 3-1 lists what cables work with each network speed.

724-746-5500 | blackbox.com
Chapter 3: Installation
Page 13
Table 3-1. Compatible cables.
Media Speed Wiring
10-/100-Mbps 10 Mbps Category 3, 4, 5, 5e UTP/STP
copper
100 Mbps Category 5, 5e UTP/STP
3.5 Network Extension Application
Internet PC
PC PC PC
PC
Switch Switch
LBNC300A LBNC300A
Figure 3-1. Typical application.

724-746-5500 | blackbox.com
Page 14
NOTES

724-746-5500 | blackbox.com Page 15
NOTES

About Black Box
Black Box Network Services is your source for an extensive range of networking
and infrastructure products. You’ll find everything from cabinets and racks and
power and surge protection products to media converters and Ethernet switches
all supported by free, live 24/7 Tech support available in 30 seconds or less.
©Copyright 2012. All rights reserved.
LBNC300A user manual rev. 2
BL A C K B O X®
Great tech support is just 30 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
